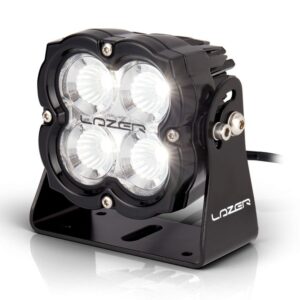

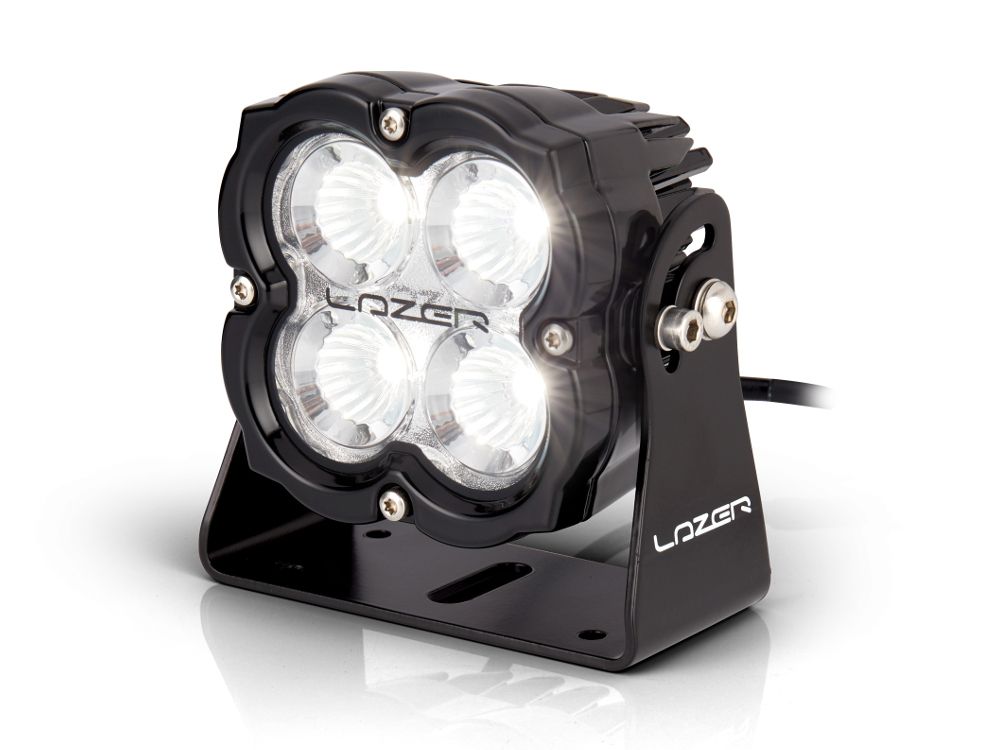

Lazer Utility 45 (4560 Lumens)

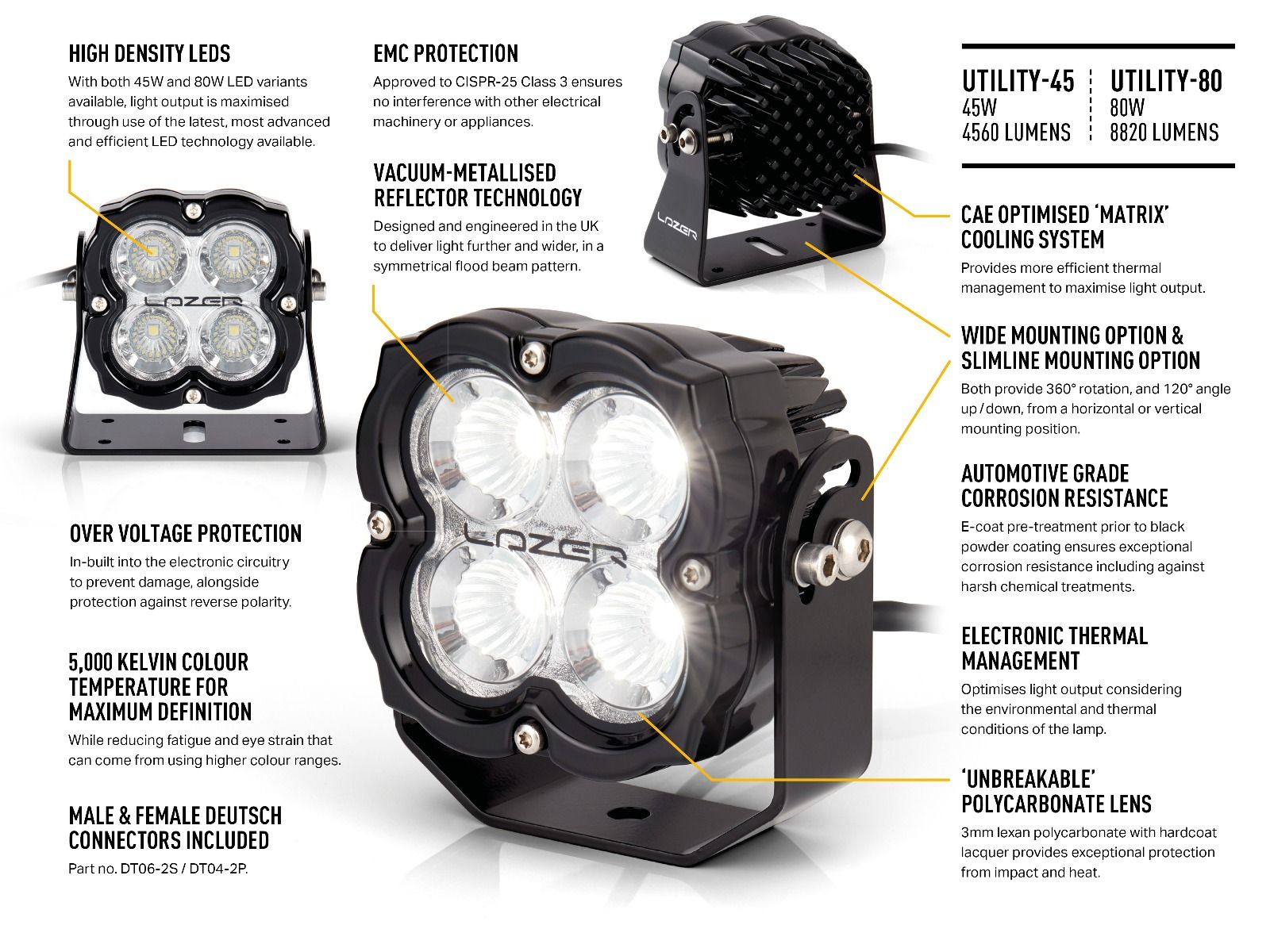

PRODUCT FEATURES
UNECE approved Work Light (Reg 10)
High density, premium ‘bin’ LEDs
Advanced optical design delivers superior lighting performance

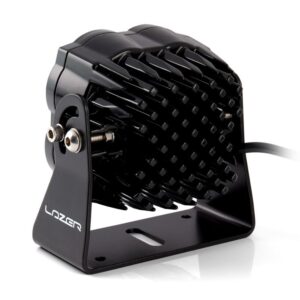

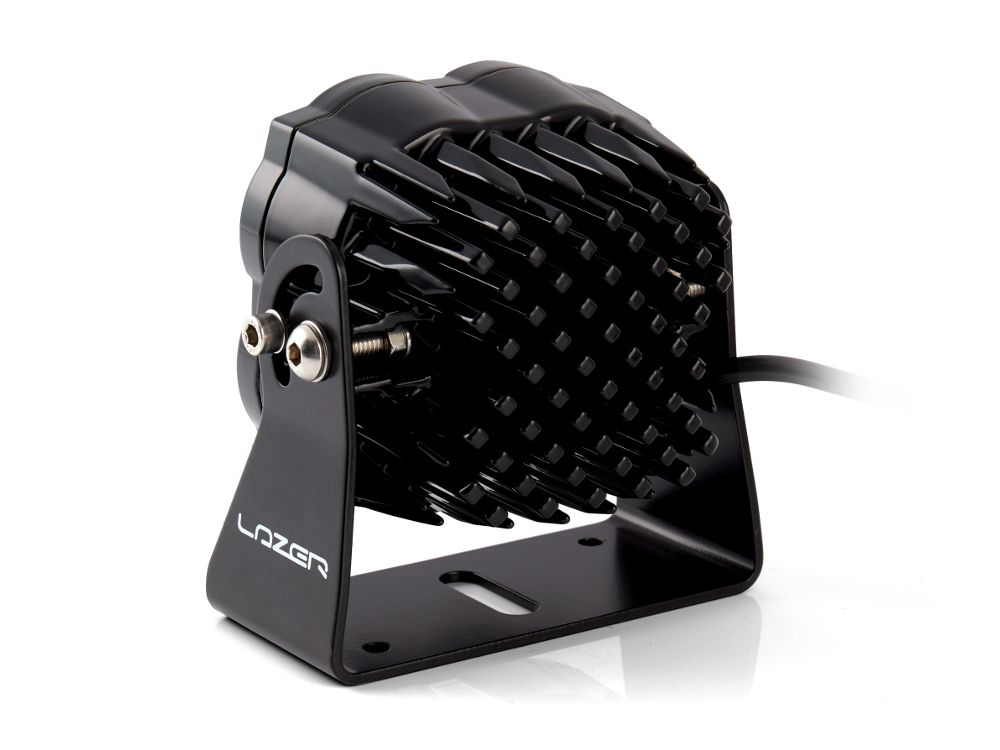

CAE optimised ‘Matrix’ cooling system offers improved thermal dynamics
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
EMC protected – CISPR 25: 2008 (Class 3)
Over voltage protected
Reverse polarity protected
ADR compliant versions available (does not cover vehicle side connections)
Optional Quad Core Dampening System protects against vibration (Wide Mount compatible only)
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
IP67 watertight
5-year warranty*
Supplied with pre-wired male/female 2-pin Deutsch connectors
Designed and manufactured in UK
* – 5 Year Warranty applies for Automotive and Commercial Fleet use, all other applications, a 2 Year Warranty period applies.
TECHNICAL SPECIFICATIONS
Based on: 1x Utility-45 LED Work Lamp.
Voltage Range (DC) | 10-32V |
LED Life | 50,000 hours |
Colour Temperature | 5,000 Kelvin |
Weight | 1260 gr |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 4560 Lm |
Colour Temperature | 5000K |
Number of High Output LEDs | 4 |
Power Consumption | 45 Watts |
Current Draw (at 14.4V) | 3.1 Amps |
CERTIFICATION | |
Work Lamp | ECE R10 |
IP Rating | IP68 / IP69K |
Salt Spray Test | ISO 9227 (2000H) |
EMC Protection | CISPR-25 (Class 3) |
OPERATING CONDITIONS | |
Vibration (BS EN 60068) | 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz |
Operating Temperature | -40deg C … +90degC |

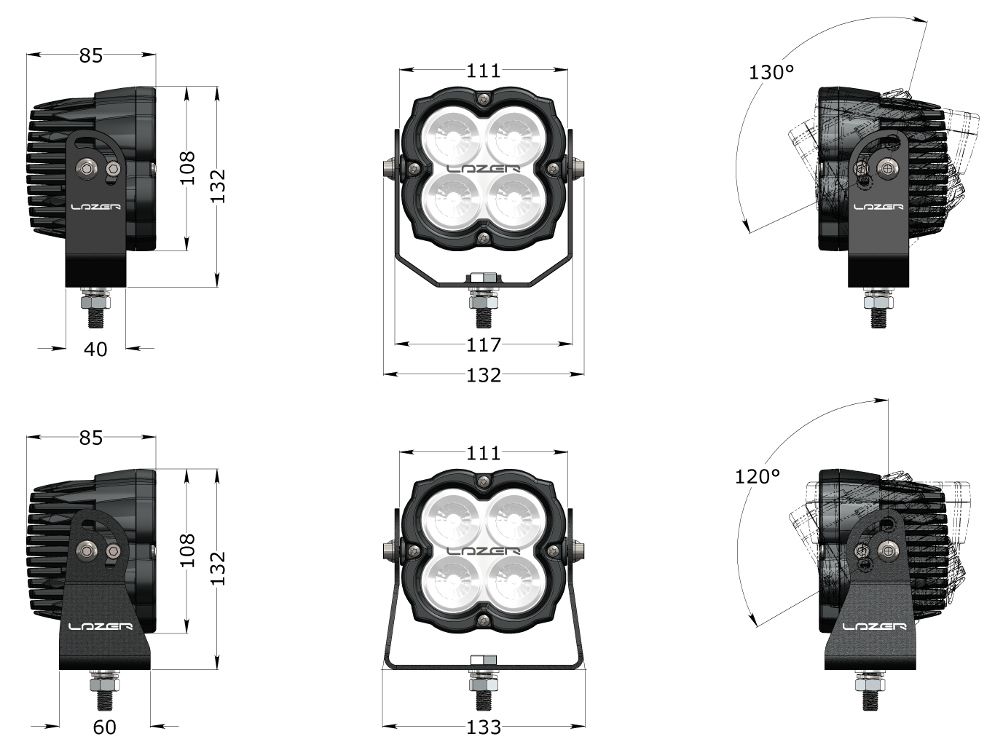

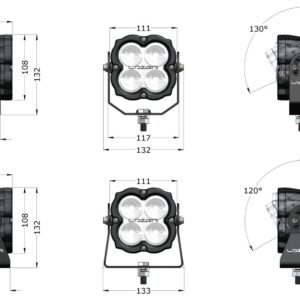

DIMENSIONS | |
Width | 110 mm |
Depth | 85 mm |
Height | 108 mm |

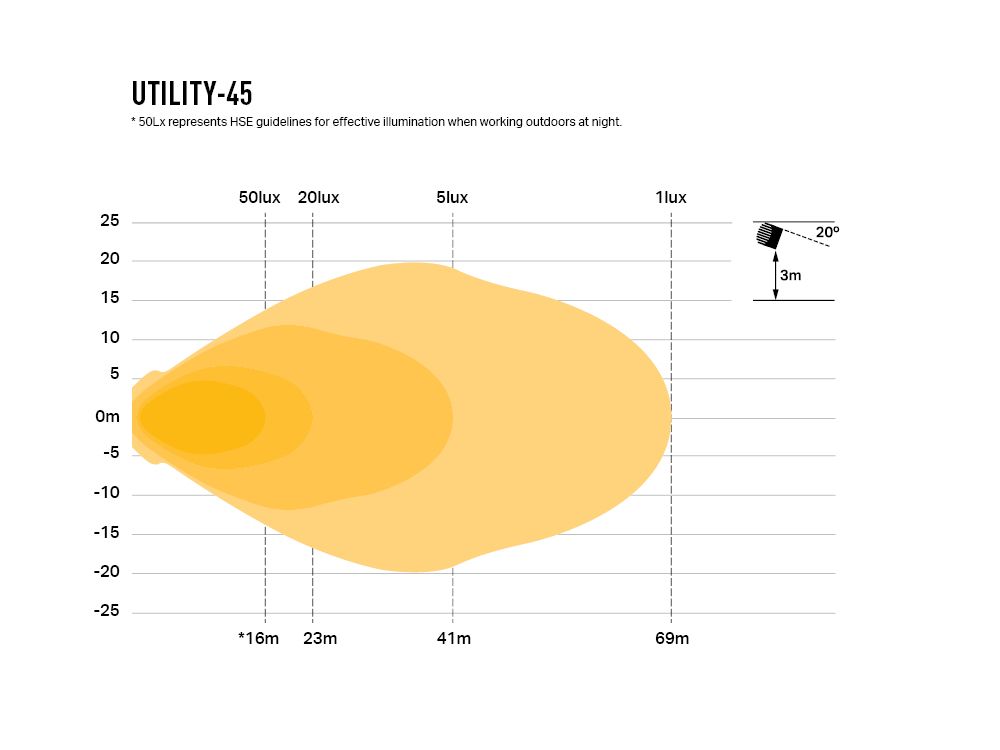

PHOTOMETRIC DATA | |
1Lx Line @ | 69m |
5Lx Line @ | 41m |
20Lx Line @ | 23m |
50Lx Line @ | 16m* |

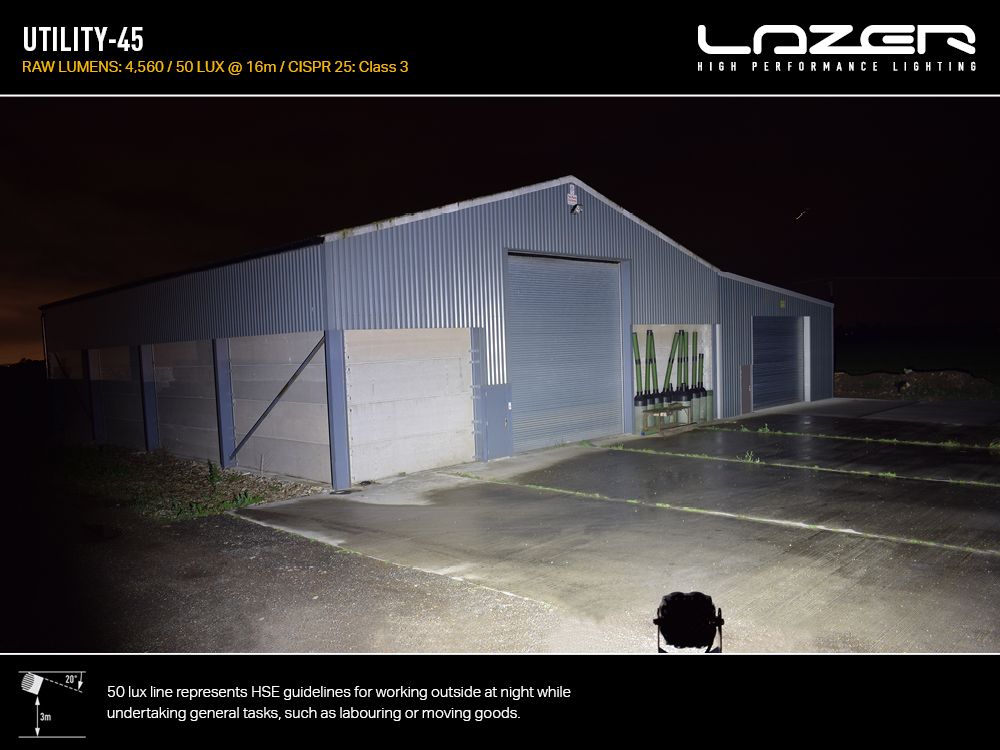

* – 50Lx represents HSE guidelines for effective illumination when working outdoors at night.
WHAT’S INCLUDED
- 1x Utility-45 Work Lamp
- 1x Slim or Wide Mount (supplied attached to lamp)
