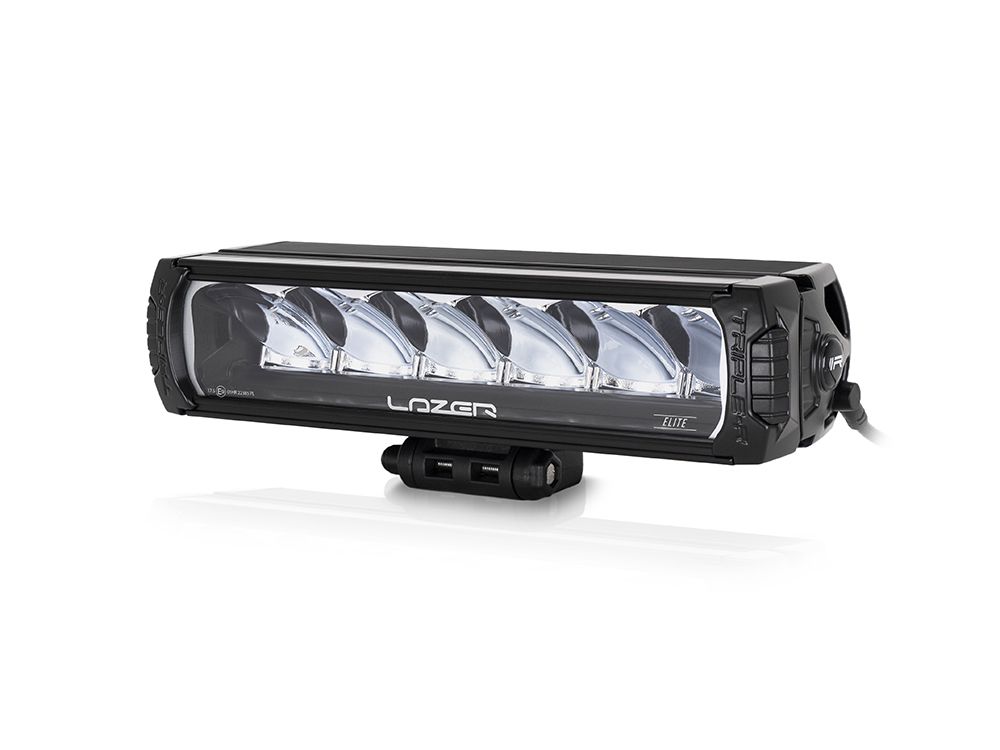

Lazer Triple-R 850 Elite (8068 Lumens)

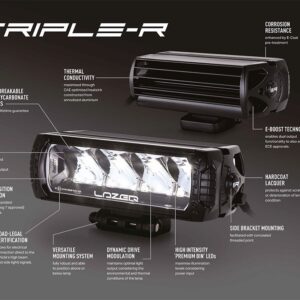

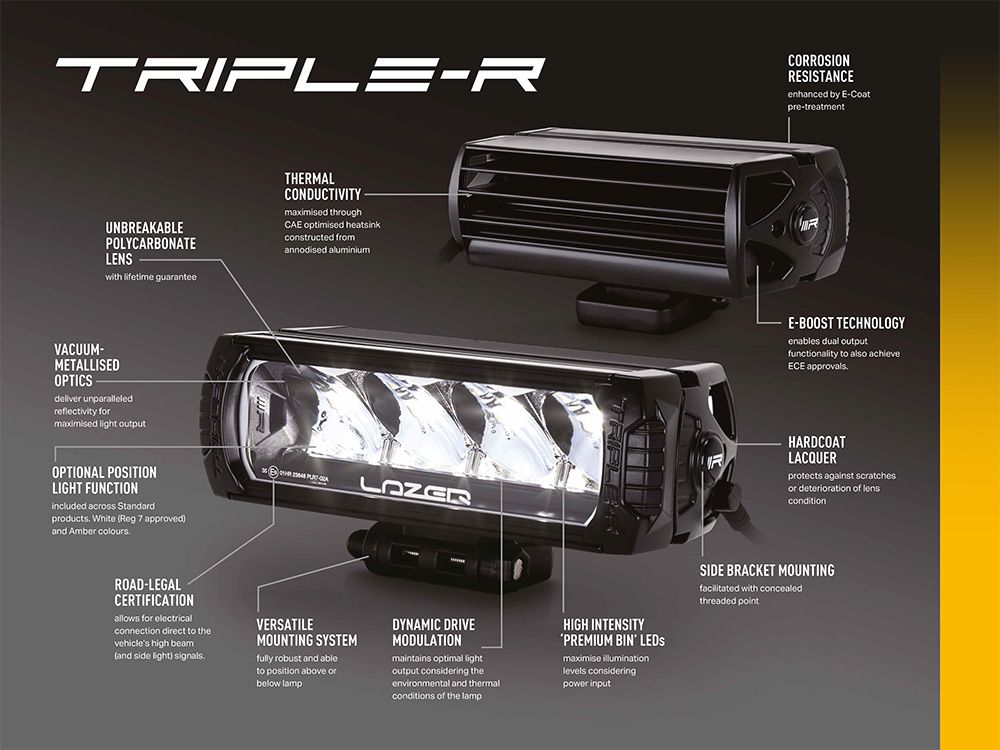

PRODUCT FEATURES
Ultra-reflective vacuum-metallised optics deliver perfectly tuned beam pattern
Highly efficient LED technologies
5000K LED colour temperature and 80CRI maximises sharpness and definition
Ultra-reflective vacuum-metallised optics deliver spot beam pattern

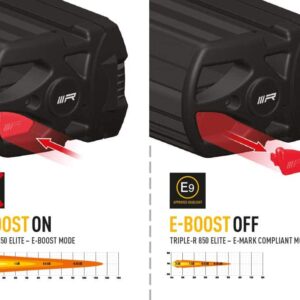

UNECE Reg 112 Class B Driving Light, approved for on-road high beam (E-Boost technology)
Contemporary lamp design
Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

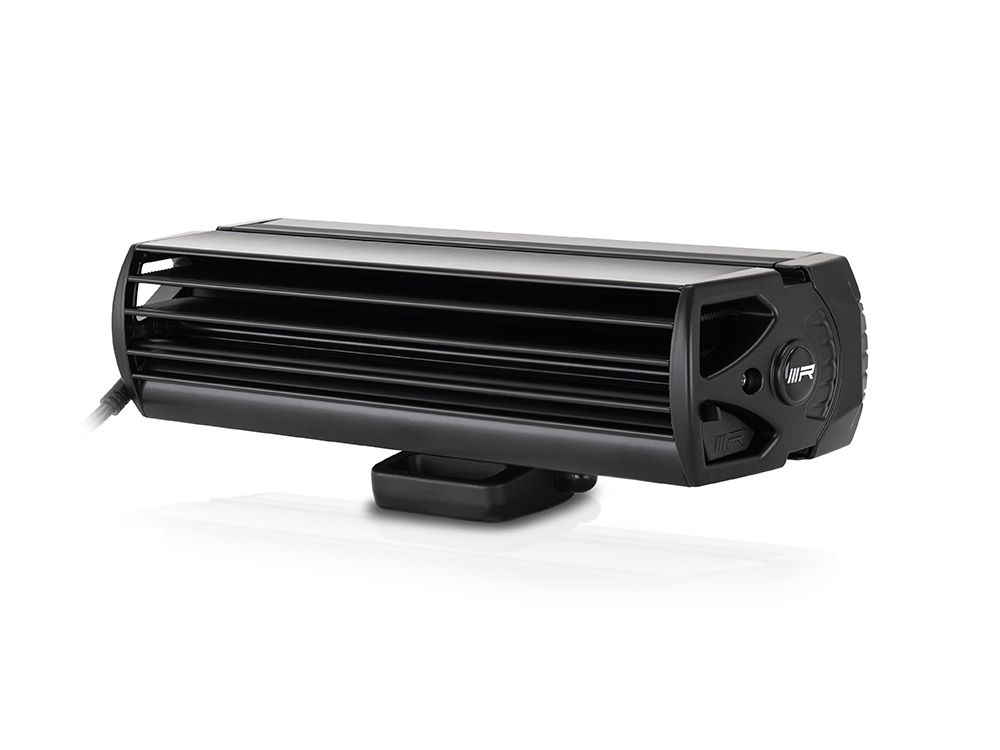

CAE optimised heatsink offers improved thermal dynamics
Over voltage protected
Reverse polarity protected
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
UNECE approved Reg 10
IP68 watertight
5-year warranty
Supplied with pre-wired male/female 2-pin Superseal connectors
Designed & manufactured in UK
TECHNICAL SPECIFICATIONS
Based on: 1x Triple-R 850 Elite.
E-Boost | E-Mark Mode | |
Voltage Range (DC) | 10-32V | 10-32V |
LED Life | 50,000 hrs | 50,000 hrs |
Weight | 1.34 kg | 1.34 kg |
HIGH BEAM FUNCTION | ||
Total Luminous Flux | 8068 Lm | 2017 Lm |
Total Driver ‘FOV’ Flux † | 5317 Lm | 1329 Lm |
Colour Temperature | 5000k | 5000k |
Number of High Output LEDs | 6 | 6 |
Power Consumption | 73 Watts | 18 Watts |
Current Draw (at 14.4V) | 5.1 Amps | 1.3 Amps |
CERTIFICATION | ||
High Beam | N/A | ECE R112 |
E-Mark Ref | N/A | 17.5 |

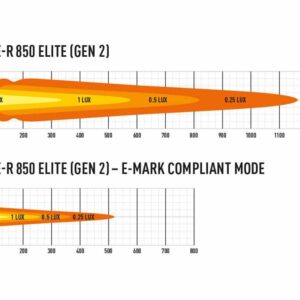

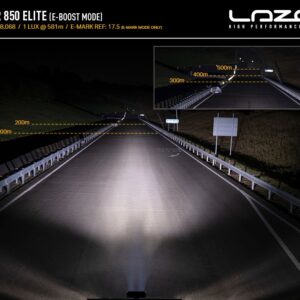

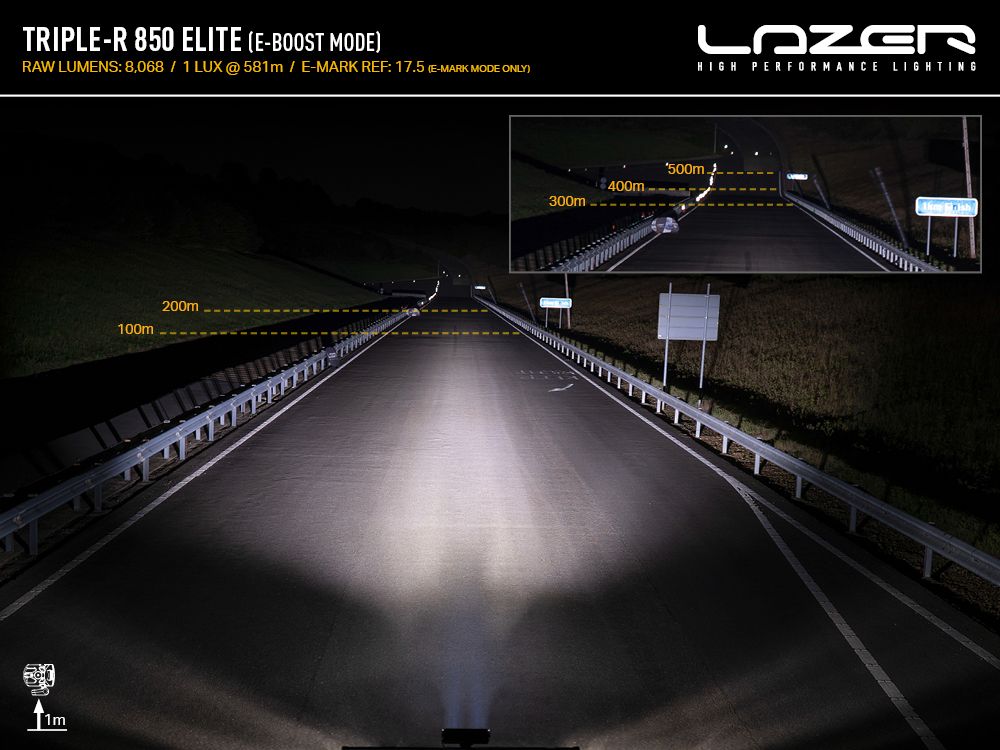

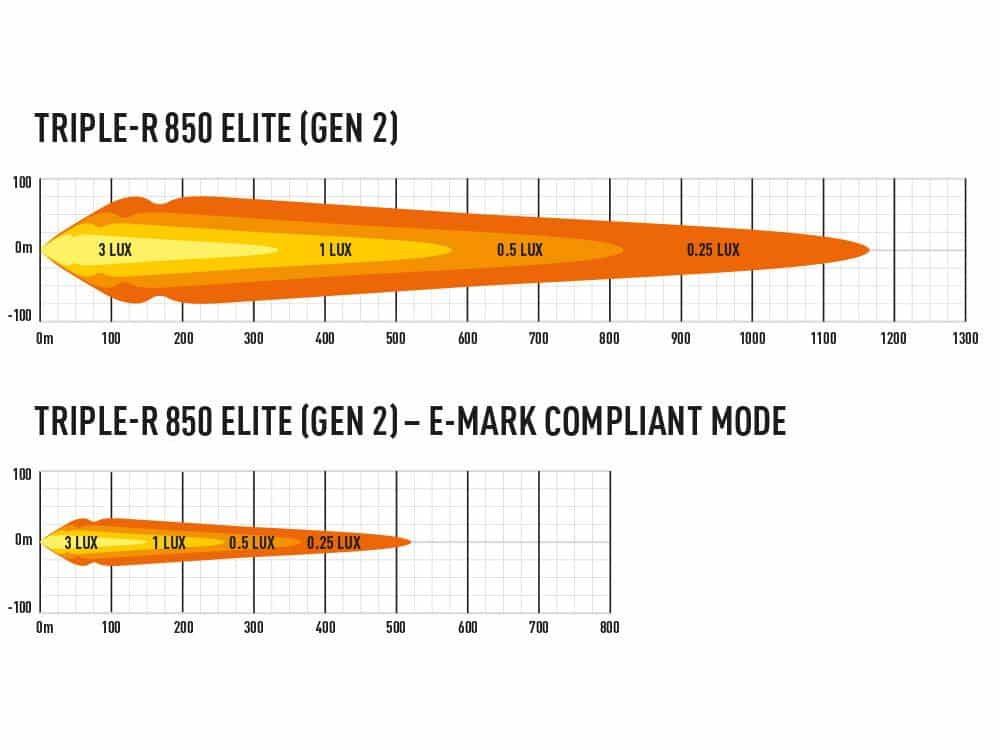

PHOTOMETRIC DATA | ||

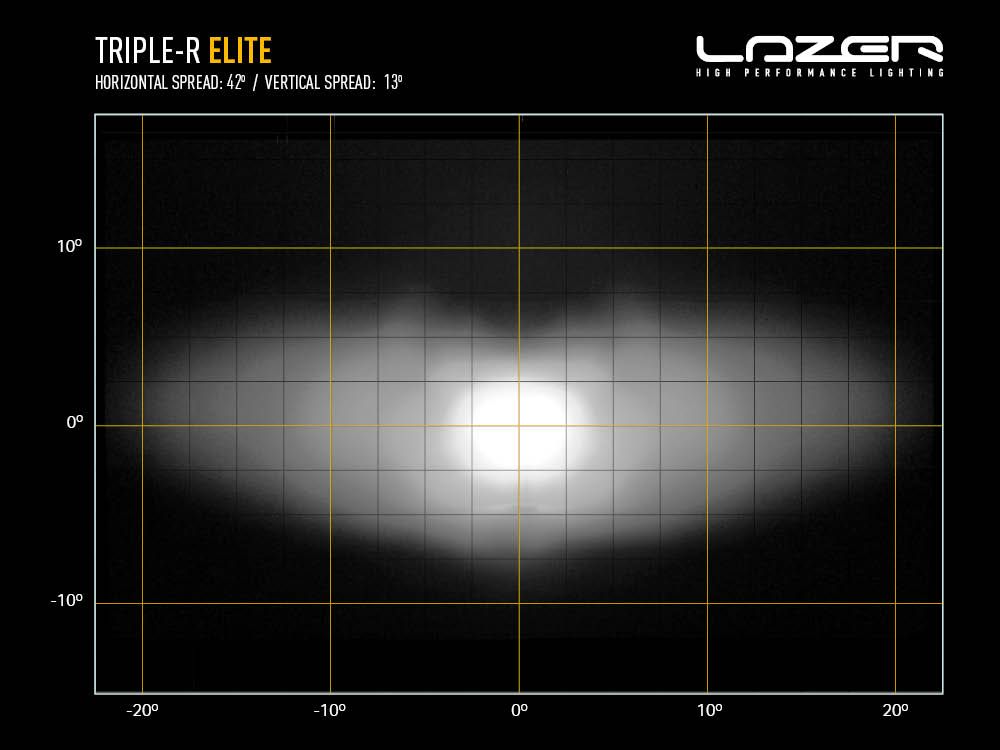

Horiz Beam Angle | 42 Deg | 42 Deg |
0.25 lx Line | 1162 metres | 520 metres |
0.5 lx Line | 822 metres | 367 metres |
1 lx Line | 581 metres | 260 metres |
3 lx Line | 335 metres | 150 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- x1 Triple-R 850 Elite LED Lamp
- x1 Centre Mount (1114K)
- x1 Installation Instructions
