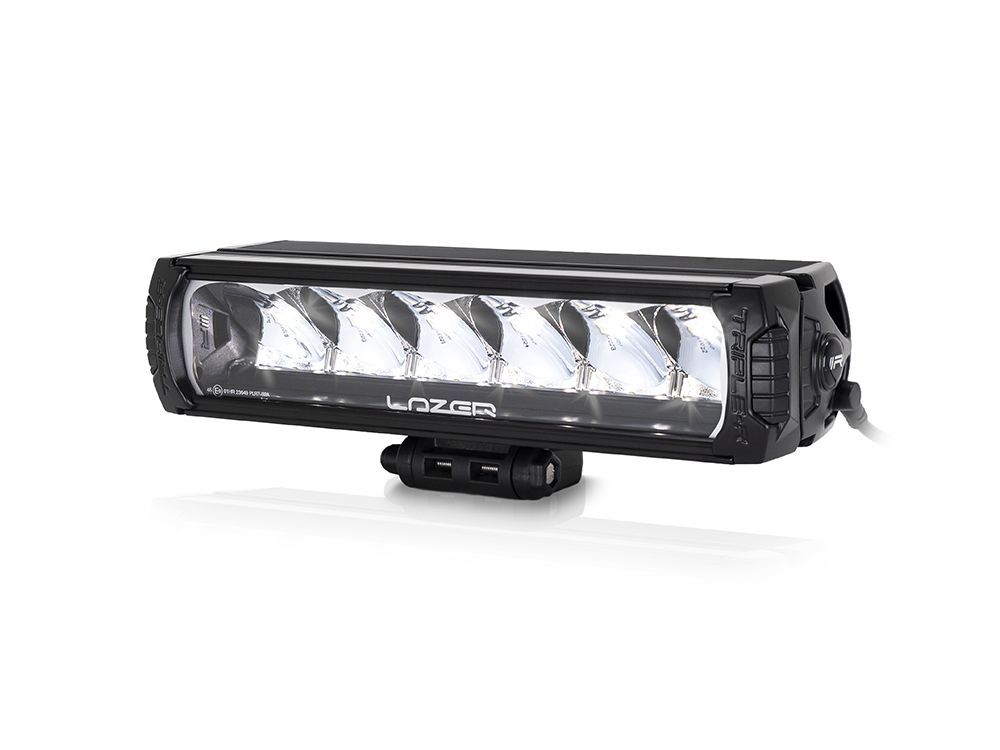

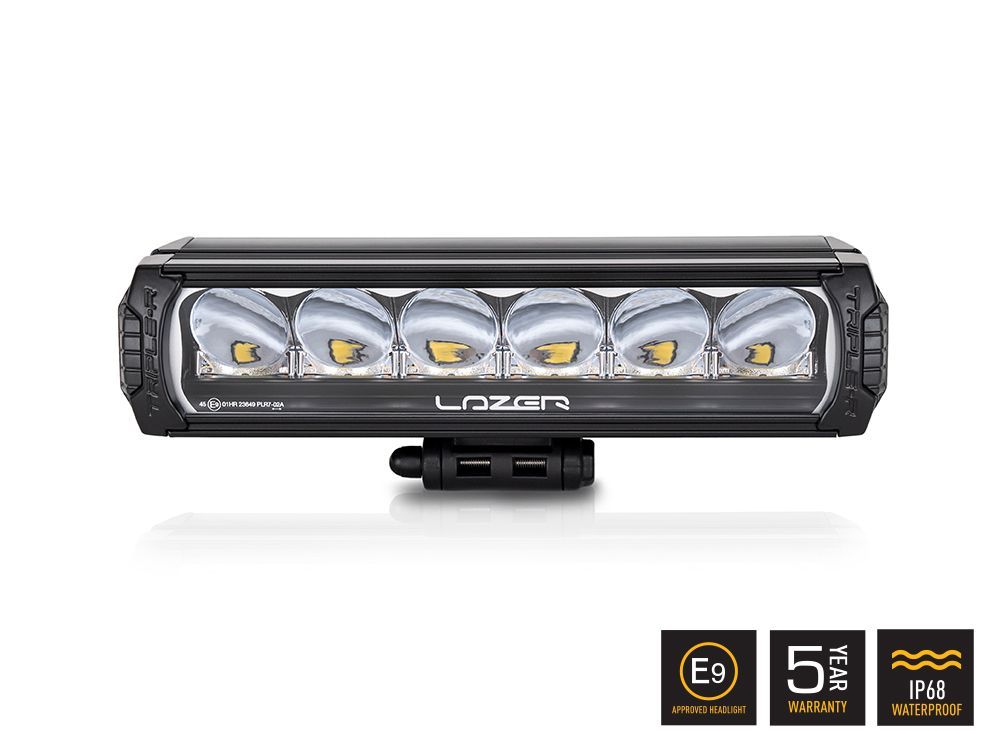

Lazer Triple-R 850 (6930 Lumens)
PRODUCT FEATURES
Highly efficient 11W LED technology
5000K LED colour temperature and 80CRI maximises sharpness and definition
Integrated white and amber position light function
Ultra-reflective vacuum-metallised optics deliver spot beam pattern
UNECE Reg 112 Class B Driving Light, approved for on-road high beam (E-Boost technology) and Reg 7 position/side light function (white only)
Contemporary lamp design
Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

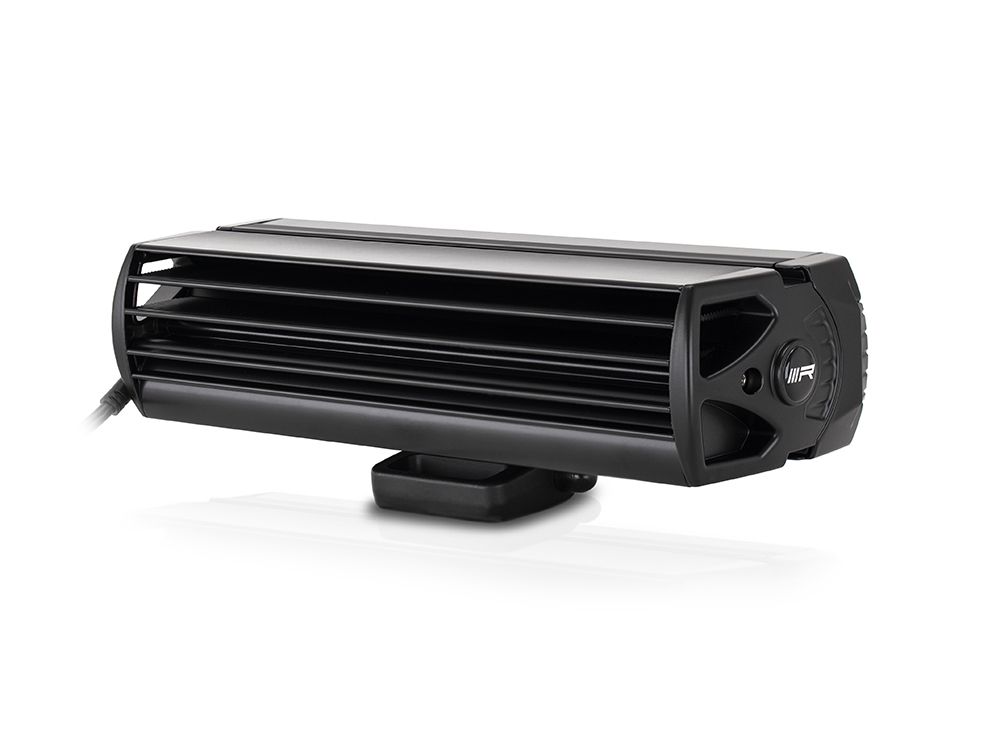

CAE optimised heatsink offers improved thermal dynamics
Over voltage protected
Reverse polarity protected
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
UNECE approved Reg 10
IP68 watertight
5-year warranty

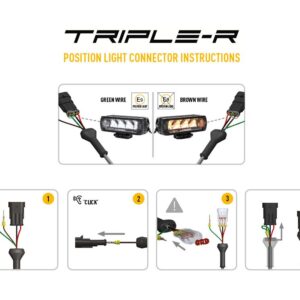

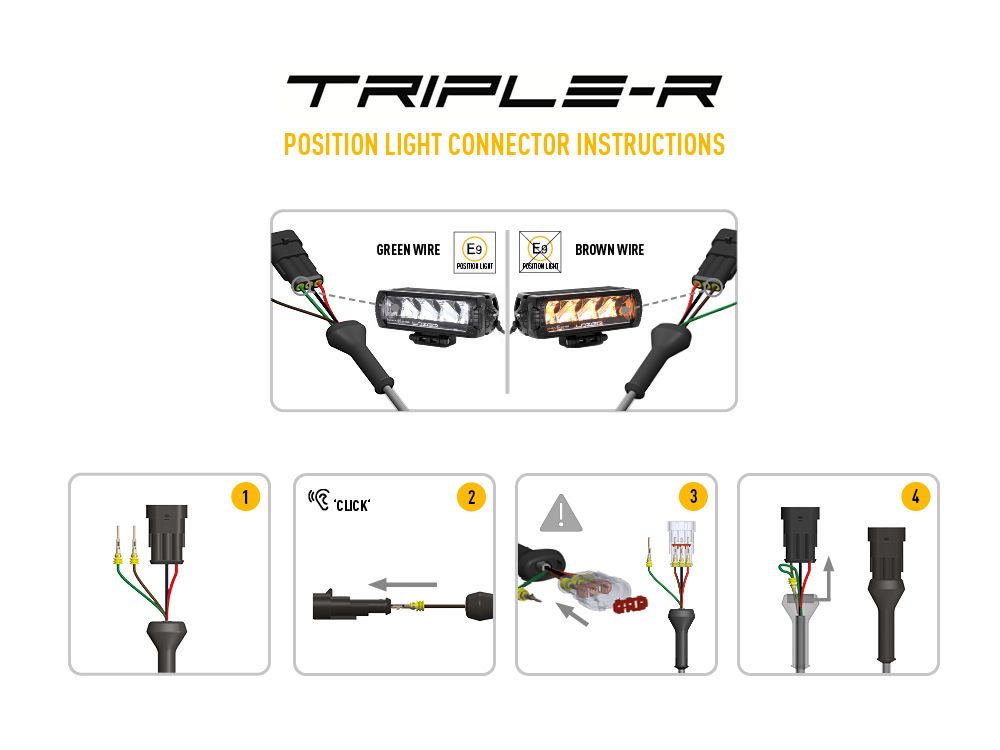

Supplied with pre-wired male/female 3-pin Superseal connectors
Designed & manufactured in UK
TECHNICAL SPECIFICATIONS
Based on: 1x Triple-R 850.
Voltage Range (DC) | 10-32V |
LED Life | 50,000 hours |
Weight | 1.34 kg |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 6930 Lm |
Total Driver ‘FOV’ Flux † | 4179 Lm |
Colour Temperature | 5000k |
Number of High Output LEDs | 6 |
Power Consumption | 66 Watts |
Current Draw (at 14.4V) | 4.6 Amps |
CERTIFICATION | |
High Beam | ECE R112 |
E-Mark Ref | 45 |
Position Light (White) | ECE R7 |

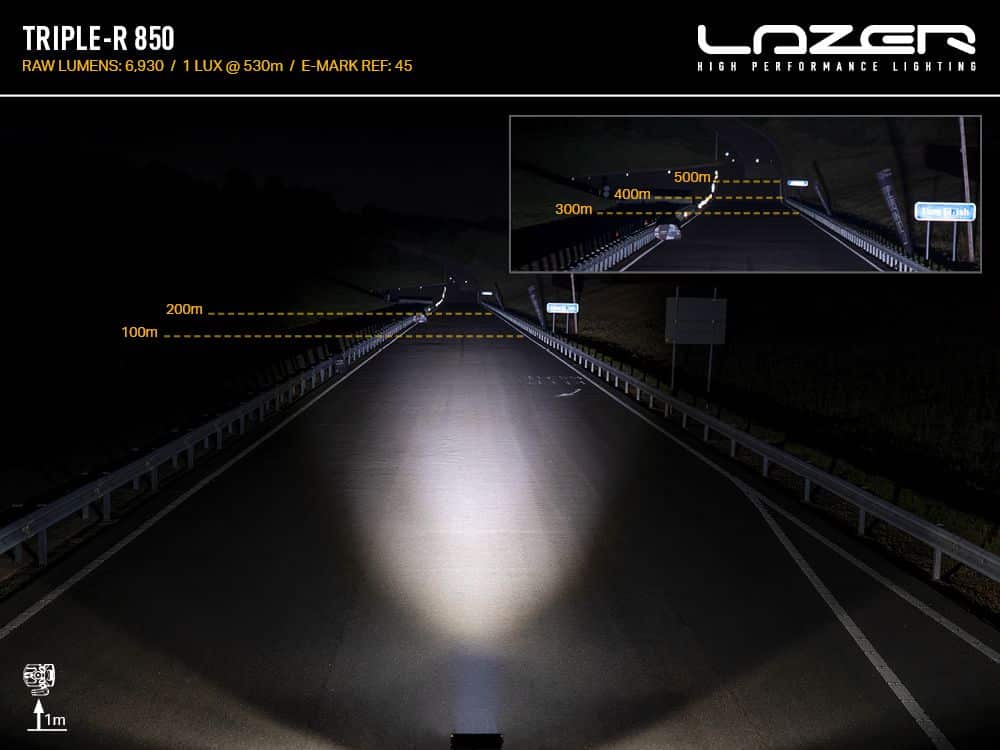

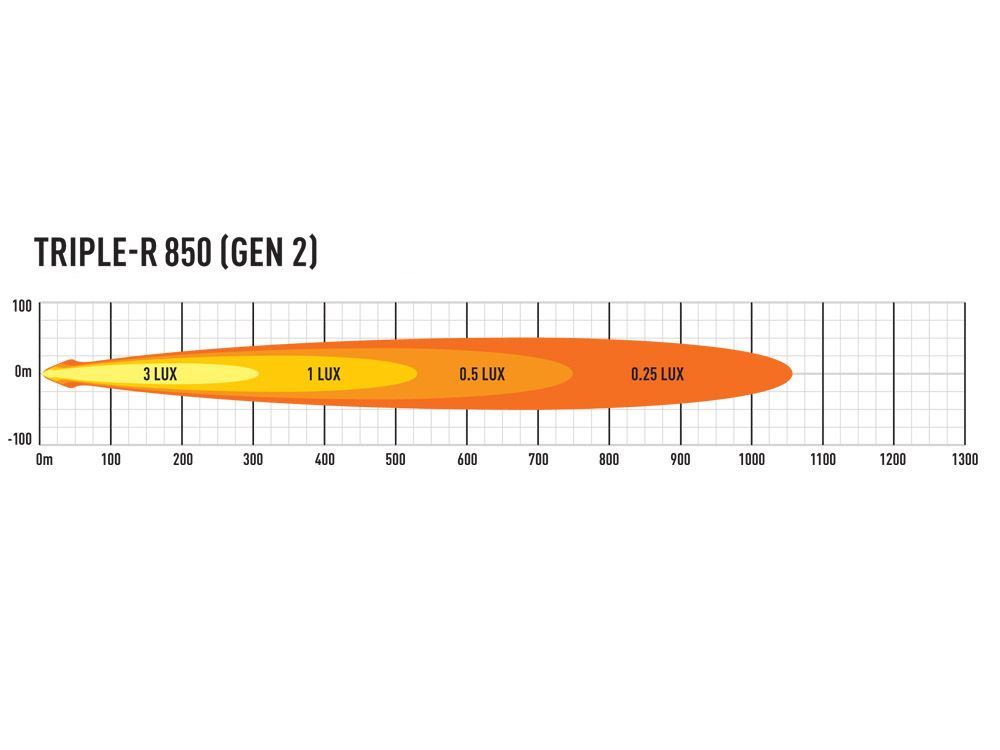

PHOTOMETRIC DATA | |

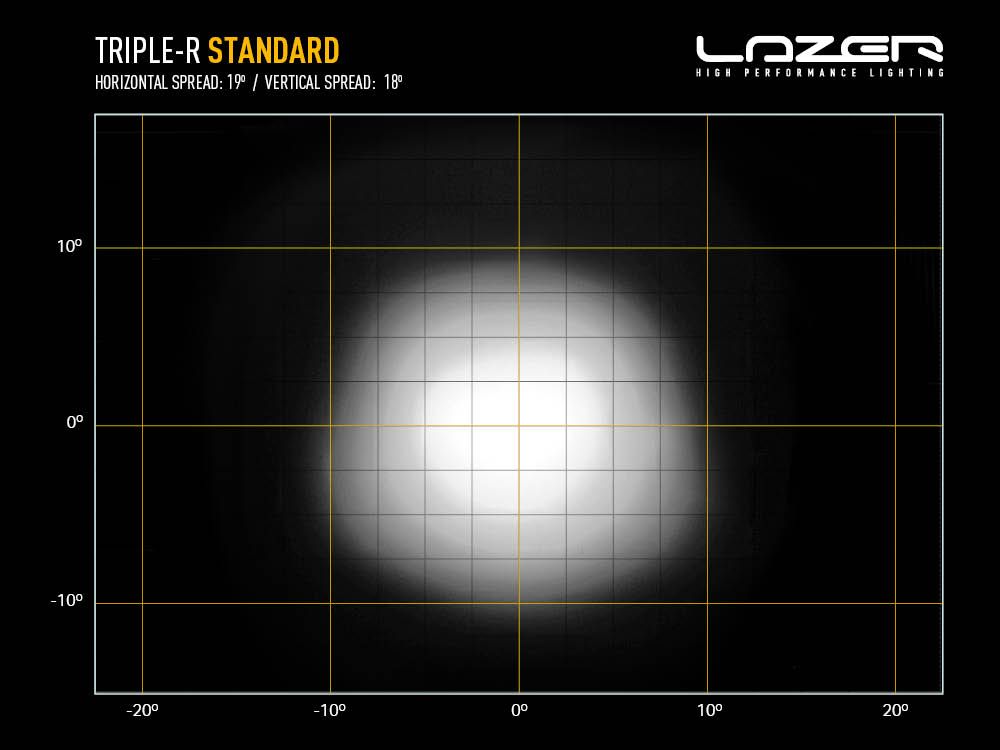

Horiz Beam Angle | 19 Deg |
0.25 lx Line | 1061 metres |
0.5 lx Line | 750 metres |
1 lx Line | 530 metres |
3 lx Line | 306 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- x1 Triple-R 850 LED Lamp
- x1 Centre Mount (1114K)
- x1 Installation Instructions
