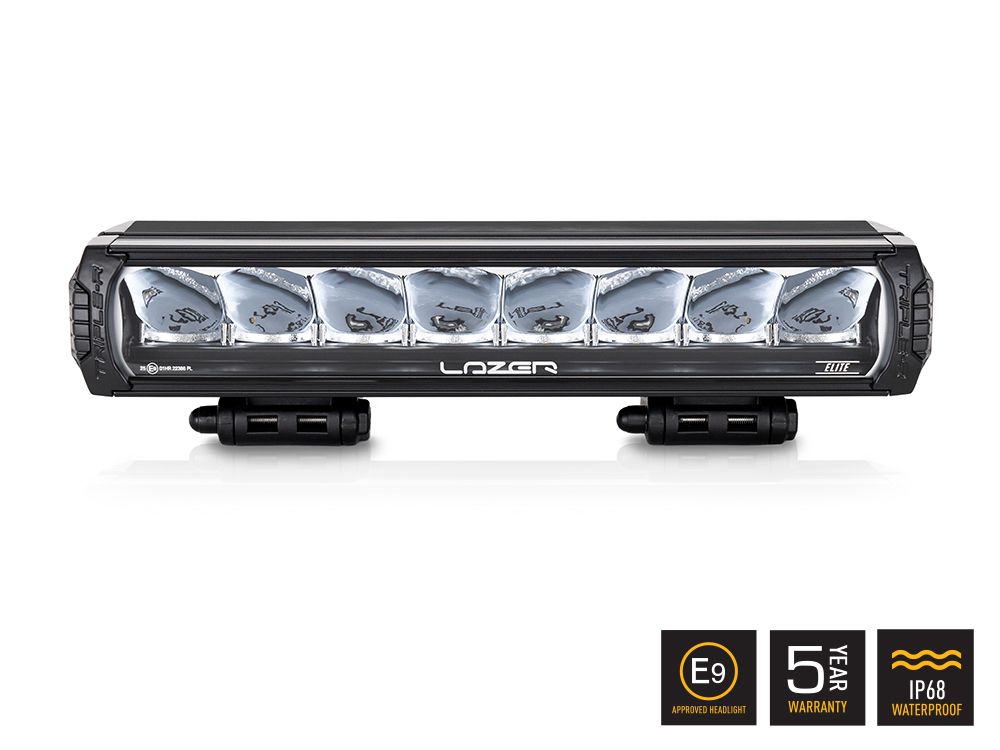

Lazer Triple-R 1000 Elite (10136 Lumens)

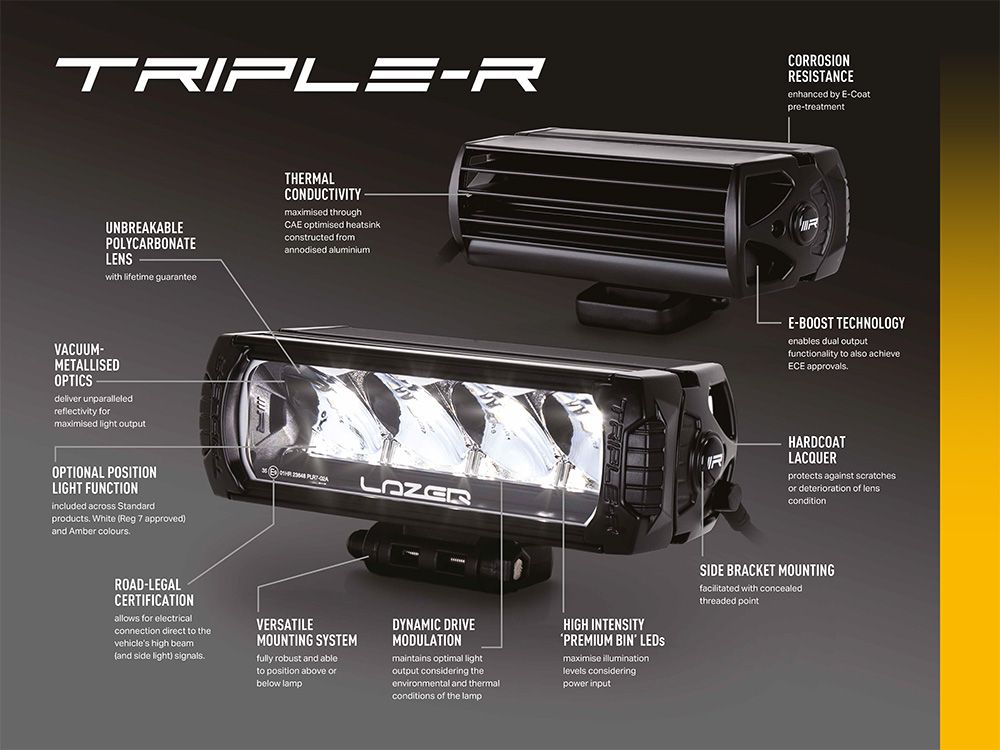

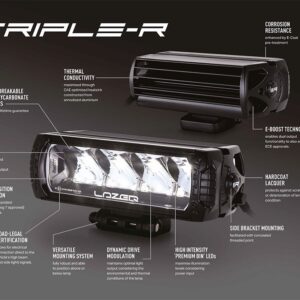

PRODUCT FEATURES
Ultra-reflective vacuum-metallised optics deliver perfectly tuned beam pattern
Highly efficient LED technologies
5000K LED colour temperature and 80CRI maximises sharpness and definition
Ultra-reflective vacuum-metallised optics deliver spot beam pattern
UNECE Reg 112 Class B Driving Light, approved for on-road high beam (E-Boost technology)
Contemporary lamp design
Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
CAE optimised heatsink offers improved thermal dynamics
Over voltage protected
Reverse polarity protected
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
UNECE approved Reg 10
IP68 watertight
5-year warranty
Supplied with pre-wired male/female 2-pin Superseal connectors
Designed & manufactured in UK
TECHNICAL SPECIFICATIONS
Based on: 1x Triple-R 1000 Elite.

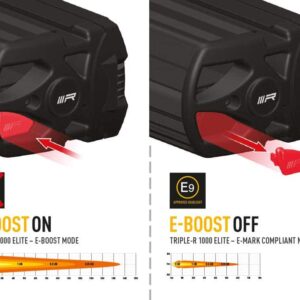

E-Boost | E-Mark Mode | |
Voltage Range (DC) | 10-32V | 9-32V |
LED Life | 50,000 hrs | 50,000 hrs |
Weight | 1.7 kg | 1.7 kg |
HIGH BEAM FUNCTION | ||
Total Luminous Flux | 10136 Lm | 2534 Lm |
Total Driver ‘FOV’ Flux † | 6680 Lm | 1670 Lm |
Colour Temperature | 5000k | 5000k |
Number of High Output LEDs | 8 | 8 |
Power Consumption | 104 Watts | 23 Watts |
Current Draw (at 14.4V) | 7.2 Amps | 1.6 Amps |
CERTIFICATION | ||
High Beam | N/A | ECE R112 |
E-Mark Ref | N/A | 25 |

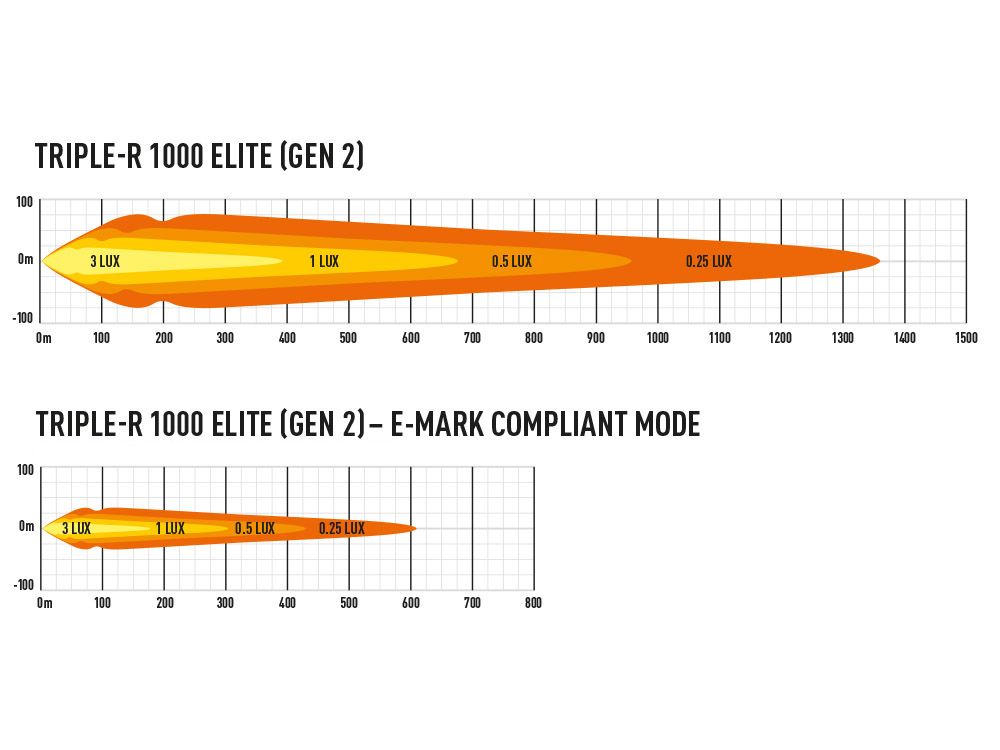

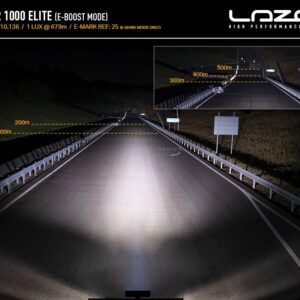

PHOTOMETRIC DATA | ||

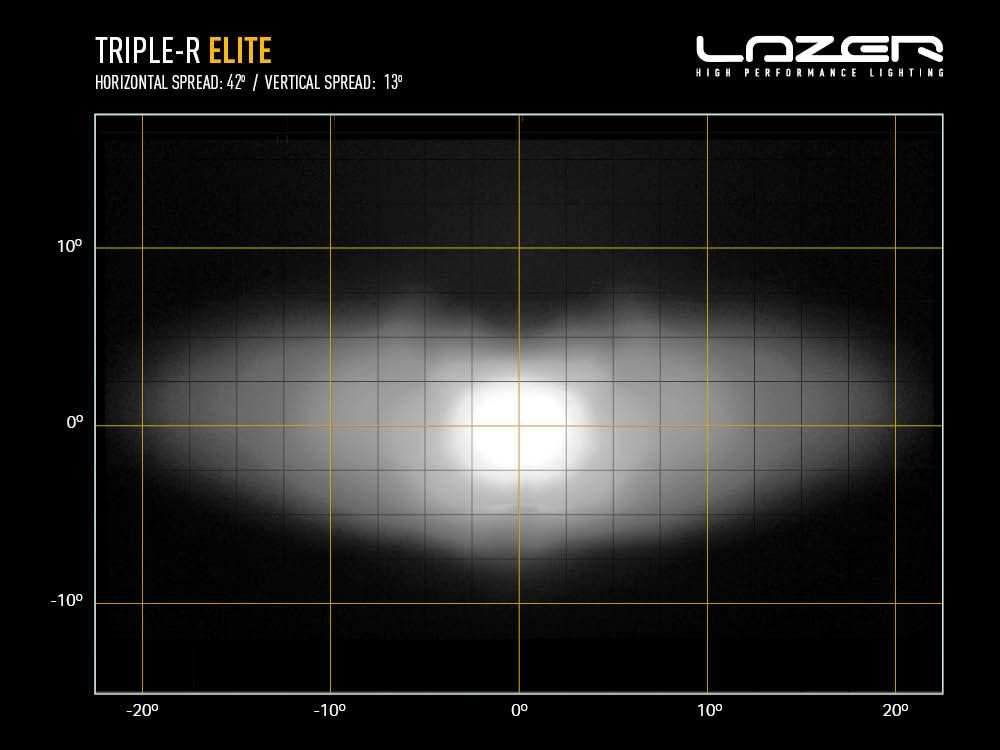

Horiz Beam Angle | 42 Deg | 42 Deg |

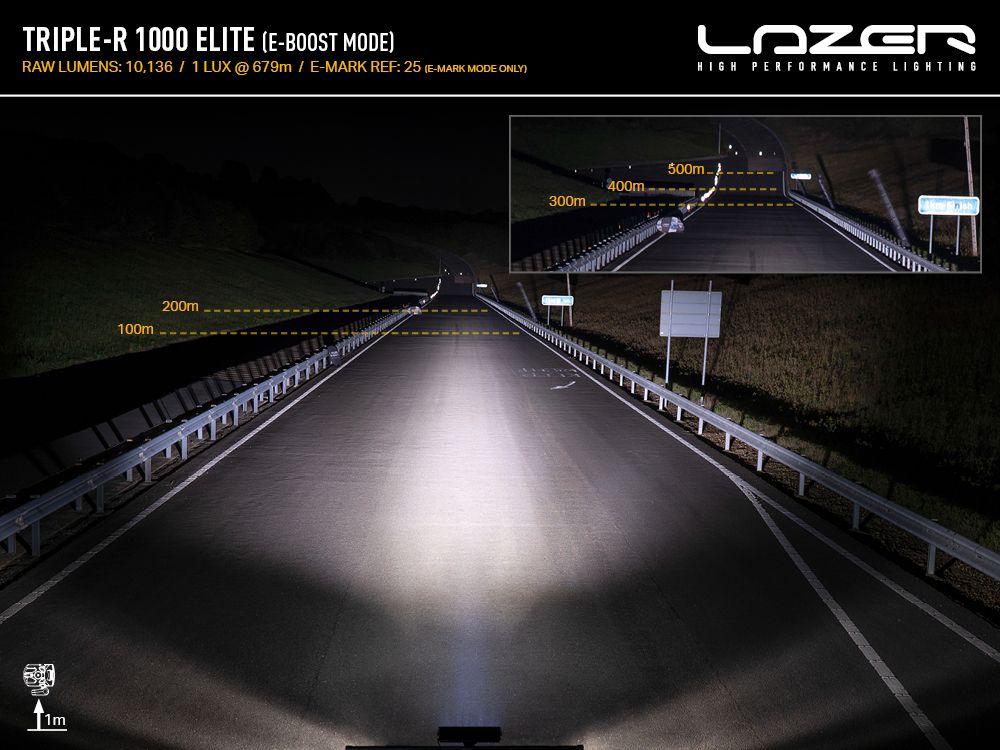

0.25 lx Line | 1358 metres | 607 metres |
0.5 lx Line | 960 metres | 429 metres |
1 lx Line | 679 metres | 304 metres |
3 lx Line | 392 metres | 175 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- x1 Triple-R 1000 Elite LED Lamp
- x2 Centre Mount (1114k)
- x1 Installation Instructions
