Lazer Triple-R 1000 Beacon – WHITE (9240 Lumens)
PRODUCT FEATURES
Highly efficient 11W LED technology
5000K LED colour temperature and 80CRI maximises sharpness and definition
Integrated amber flashing beacon function – 16 flash patterns (incl UNECE Reg65 option)
Integrated white and amber position light function
Ultra-reflective vacuum-metallised optics deliver spot beam pattern

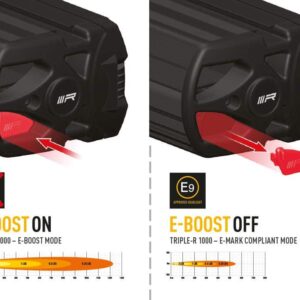

UNECE Reg 112 Class B Driving Light, approved for on-road high beam (E-Boost technology) and Reg 7 position/side light function (white only)
Contemporary lamp design – Black or White colour options
Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
CAE optimised heatsink offers improved thermal dynamics
Over voltage protected
Reverse polarity protected
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
UNECE approved Reg 10
IP68 watertight
5-year warranty

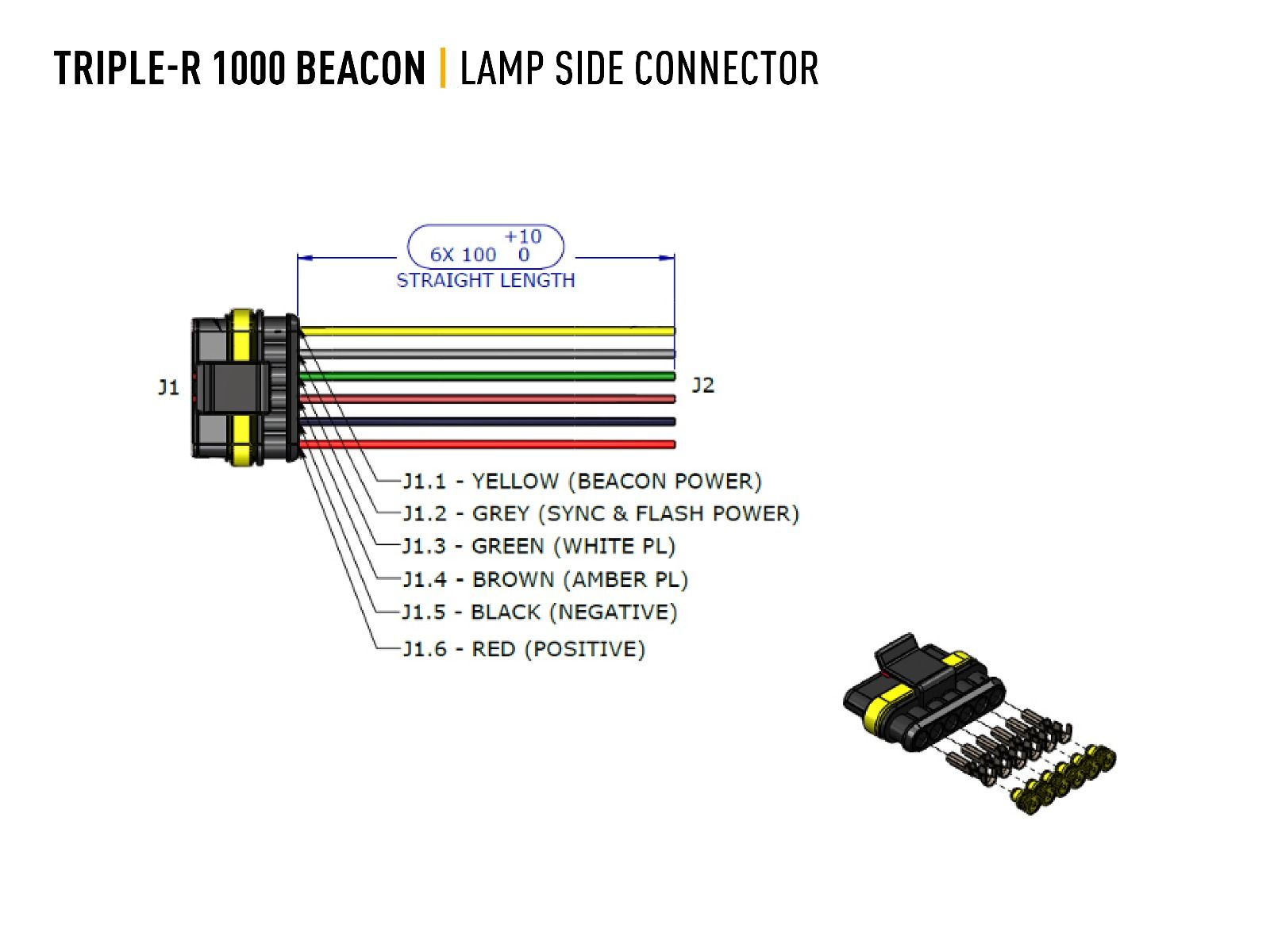

Supplied with pre-wired male/female 6-pin Superseal connectors
Designed & manufactured in UK
TECHNICAL SPECIFICATIONS
Based on: 1x Triple-R 1000 with Beacon.
E-Boost | E-Mark Mode | |
Voltage Range (DC) | 10-32V | 10-32V |
LED Life | 50,000 hrs | 50,000 hrs |
Weight | 1.7 kg | 1.7 kg |
HIGH BEAM FUNCTION | ||
Total Luminous Flux | 9240 Lm | 1848 Lm |
Total Driver ‘FOV’ Flux † | 5572 Lm | 1114 Lm |
Colour Temperature | 5000k | 5000k |
Number of High Output LEDs | 8 | 8 |
Power Consumption | 88 Watts | 17.6 Watts |
Current Draw (at 14.4V) | 6.1 Amps | 1.2 Amps |
CERTIFICATION | ||
High Beam | N/A | ECE R112 |
E-Mark Ref | N/A | 12.5 |
Position Light (White) | ECE R7 | ECE R7 |
Beacon (Amber) | ECE R65 | ECE R65 |

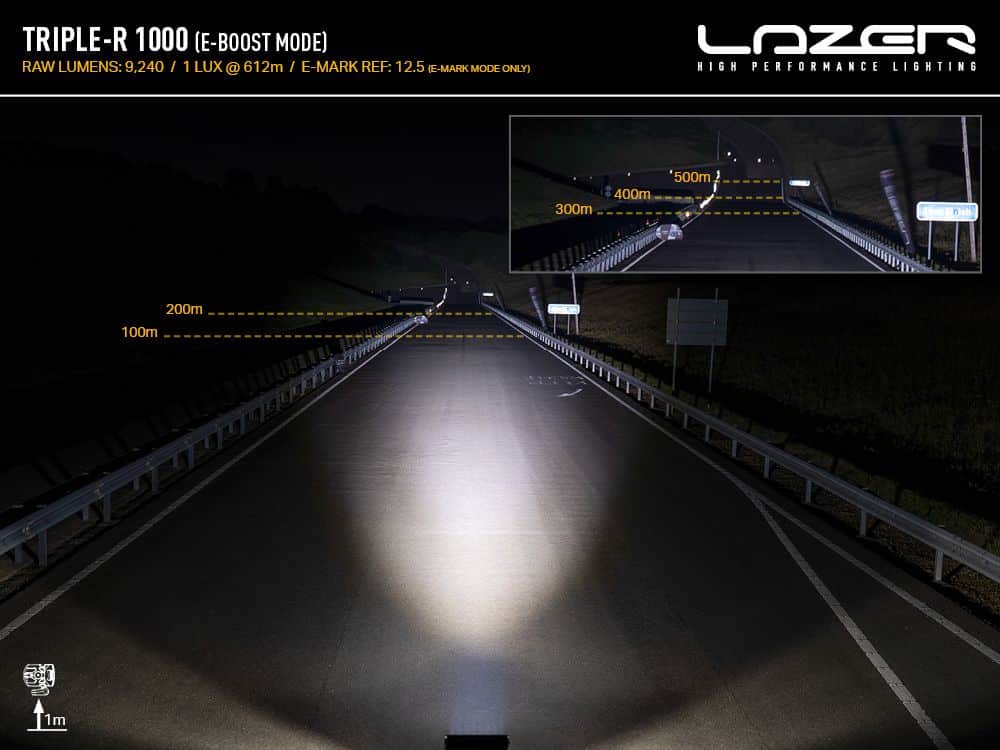

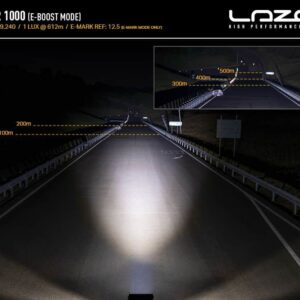

PHOTOMETRIC DATA | ||

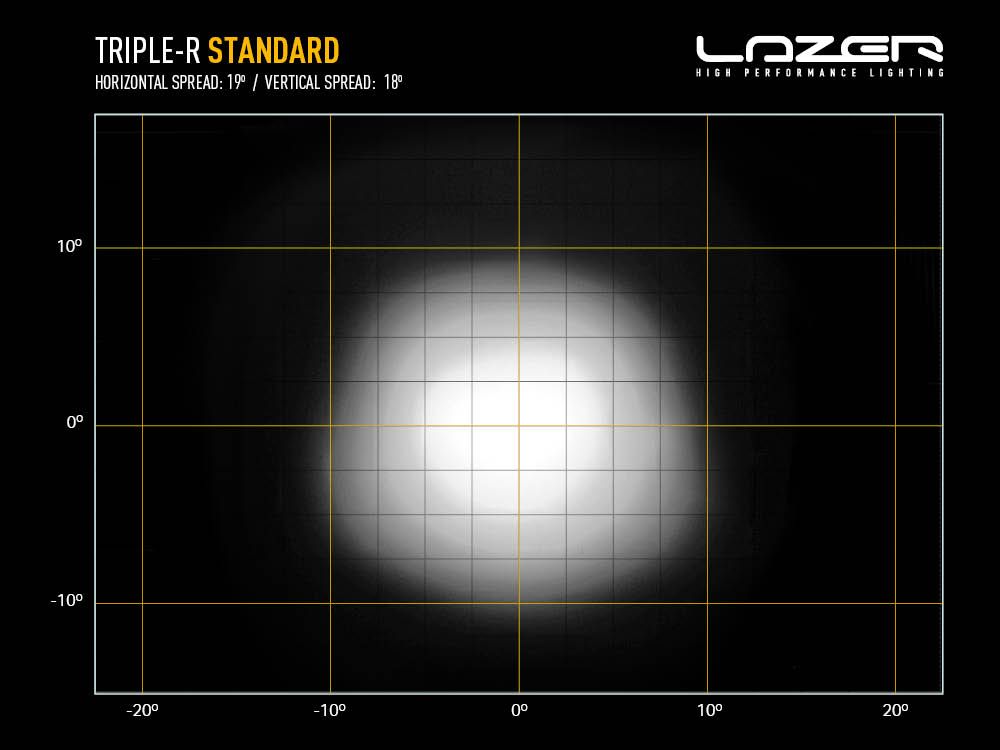

Horiz Beam Angle | 19 Deg | 19 Deg |
0.25 lx Line | 1225 metres | 548 metres |
0.5 lx Line | 866 metres | 387 metres |
1 lx Line | 612 metres | 274 metres |
3 lx Line | 354 metres | 158 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- x1 Triple-R 1000 LED Lamp with Beacon Function
- x2 Centre Mount (1114k)
- x1 Installation Instructions
