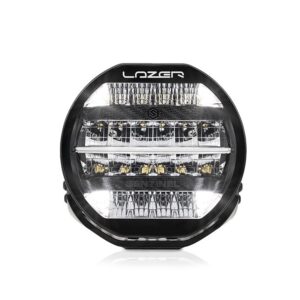

Lazer Sentinel 9”- ‘Slim’ Mount (9520 Lumens)

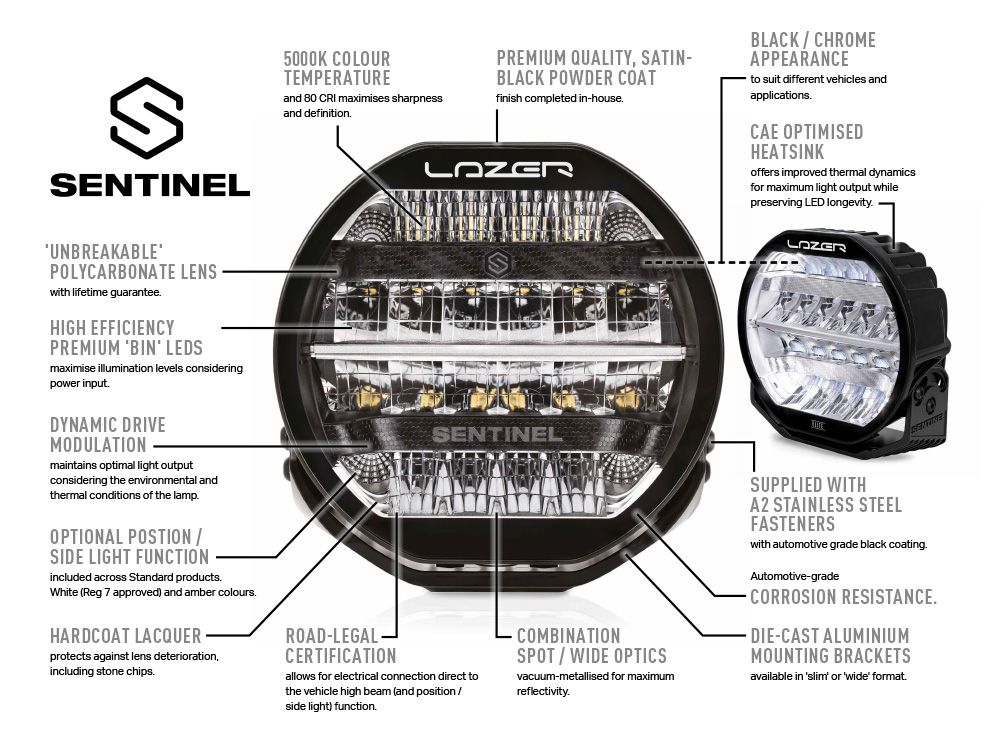

PRODUCT FEATURES
Combination of 20 premium ‘bin’ LEDs
‘Stealth’ appearance from black internal bezel, plus black circuit boards

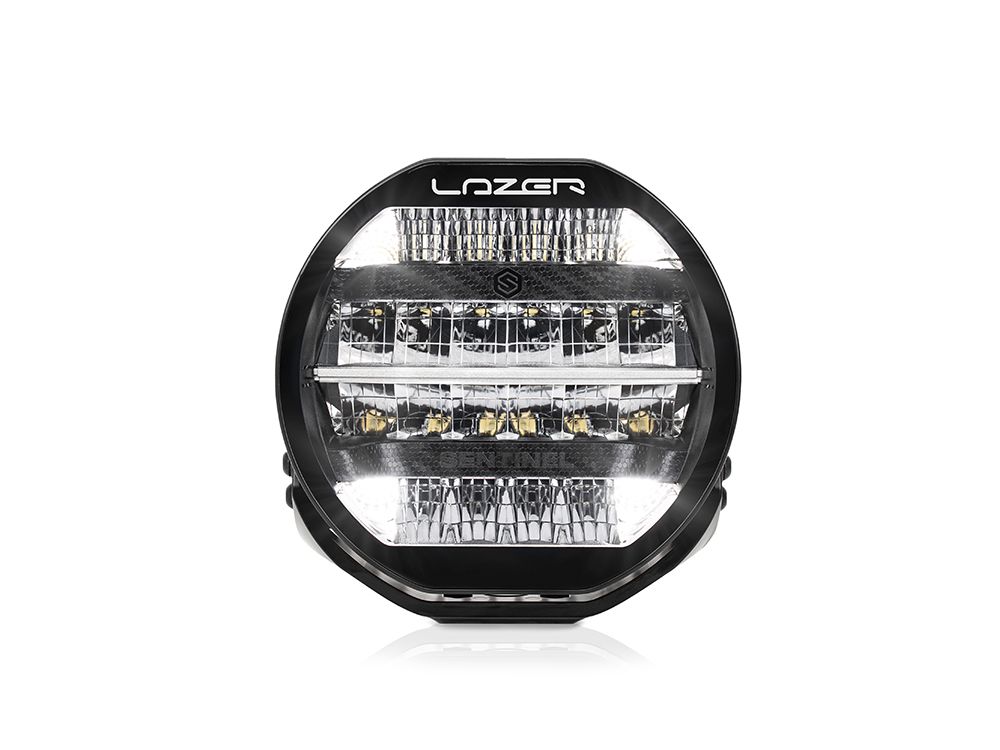

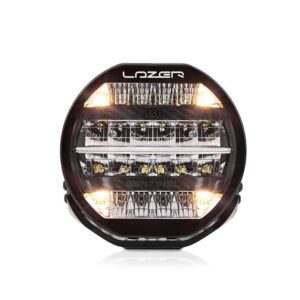

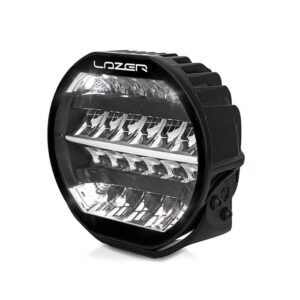

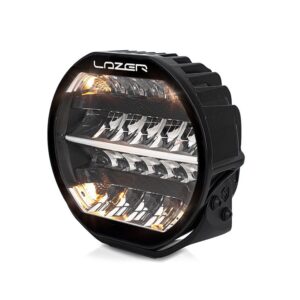

Integrated white and amber position light function
Ultra-reflective vacuum-metallised spot and wide optics
UNECE Reg 112 Class B Driving Light, approved for on-road high beam (E-Boost technology) and Reg 7 position/side light function (white only)
5000K LED colour temperature and 80CRI maximises sharpness and definition
Contemporary lamp design

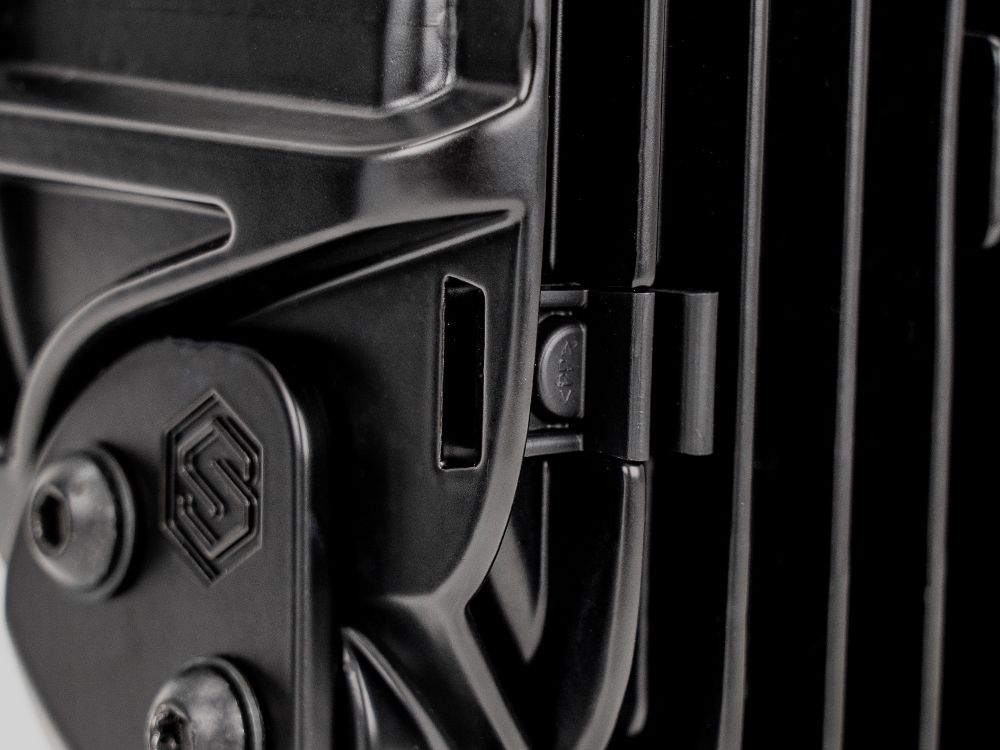

Supplied with ‘slim’ diecast aluminium mounting bracket featuring Sentinel stamp
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
CAE optimised heatsink offers improved thermal dynamics
Over voltage protected
Reverse polarity protected
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
A2 stainless steel fasteners with automotive grade black coating
UNECE approved Reg 10
IP68 watertight – 1.5m submersion (30mins)
5-year warranty

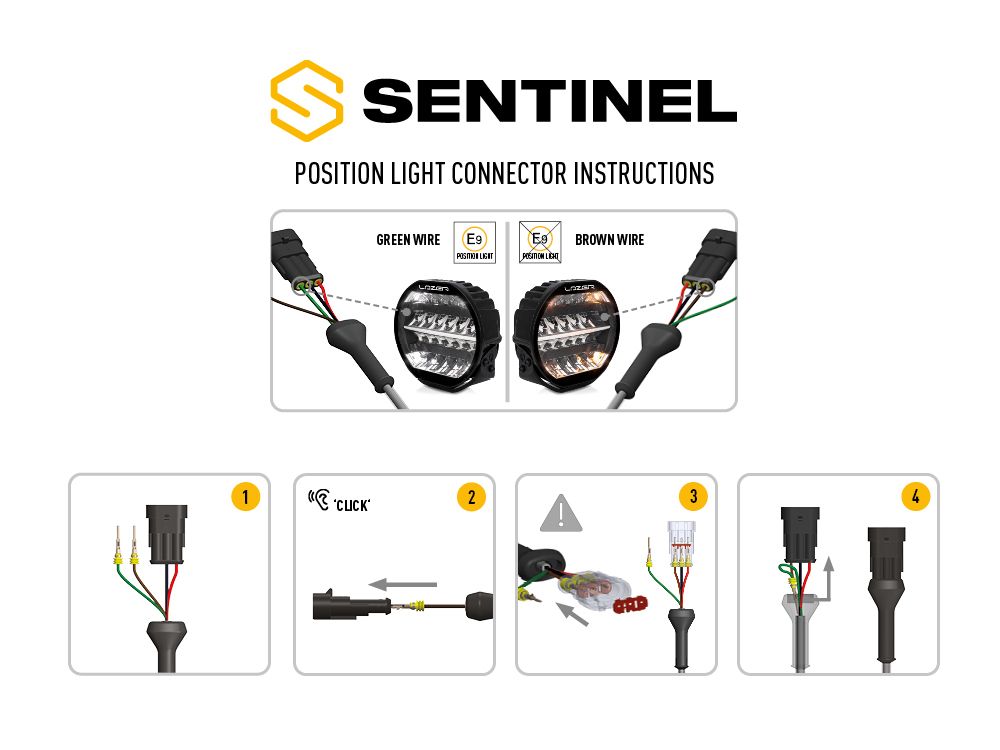

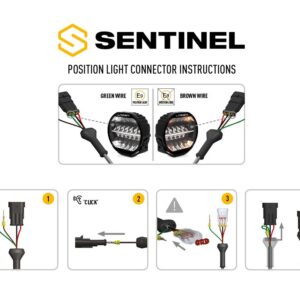

Supplied with pre-wired male/female 3-pin Superseal connectors
Designed & manufactured in UK
TECHNICAL SPECIFICATIONS
Based on: 1x Sentinel 9” LED Lamp.

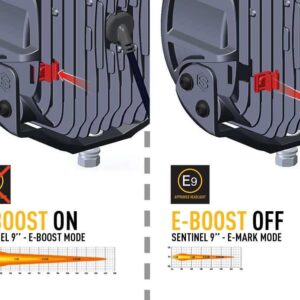

E-Boost | E-Mark Mode | |
Voltage Range (DC) | 10-32V | 10-32V |
LED Life | 50,000 hrs | 50,000 hrs |
Weight | 2.5 kg | 2.4 kg |
HIGH BEAM FUNCTION | ||
Total Luminous Flux | 9520 Lm | 1904 Lm |
Total Driver ‘FOV’ Flux † | 5588 Lm | 1118 Lm |
Colour Temperature | 5000k | 5000k |
Number of High Output LEDs | 20 | 20 |
Power Consumption | 87 Watts | 17 Watts |
Current Draw (at 14.4V) | 6 Amps | 1.2 Amps |
CERTIFICATION | ||
High Beam | N/A | ECE R112 |
E-Mark Ref | N/A | 20 |
Position Light (White) | ECE R7 | ECE R7 |

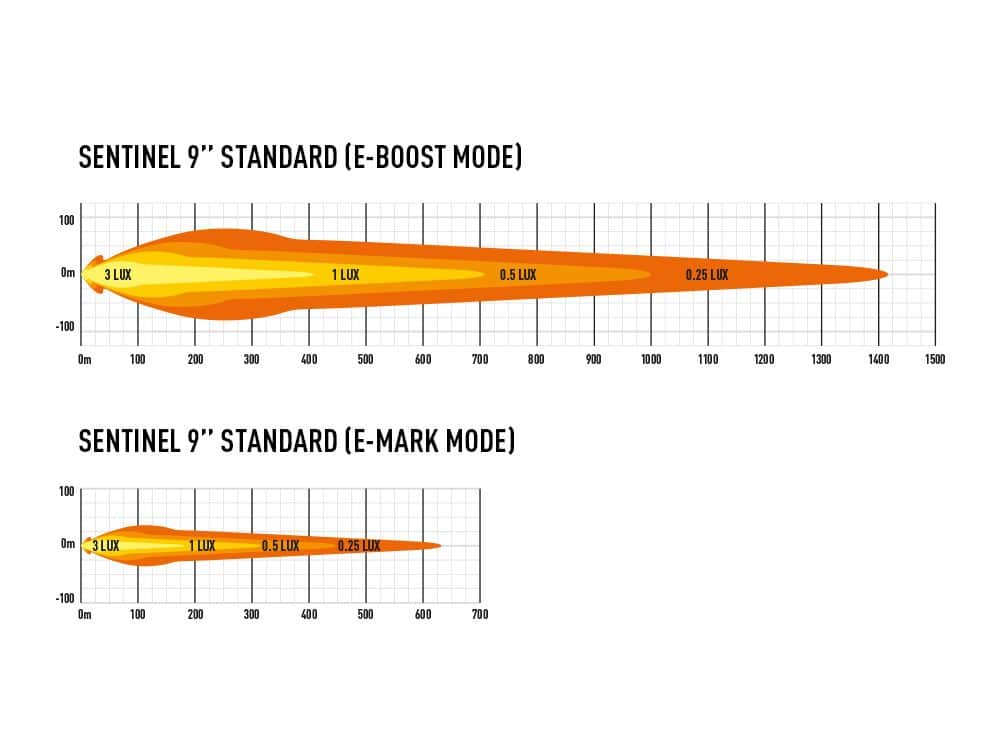

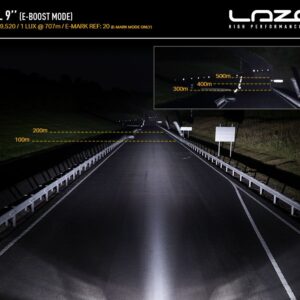

PHOTOMETRIC DATA | ||
Horiz Beam Angle | 52 Deg | 52 Deg |
0.25 lx Line | 1414 metres | 632 metres |
0.5 lx Line | 1000 metres | 447 metres |
1 lx Line | 707 metres | 316 metres |
3 lx Line | 408 metres | 183 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- x1 Sentinel 9” LED Lamp
- x1 ‘Slim’ Mount Kit (1141k)
- x1 Installation Instructions
