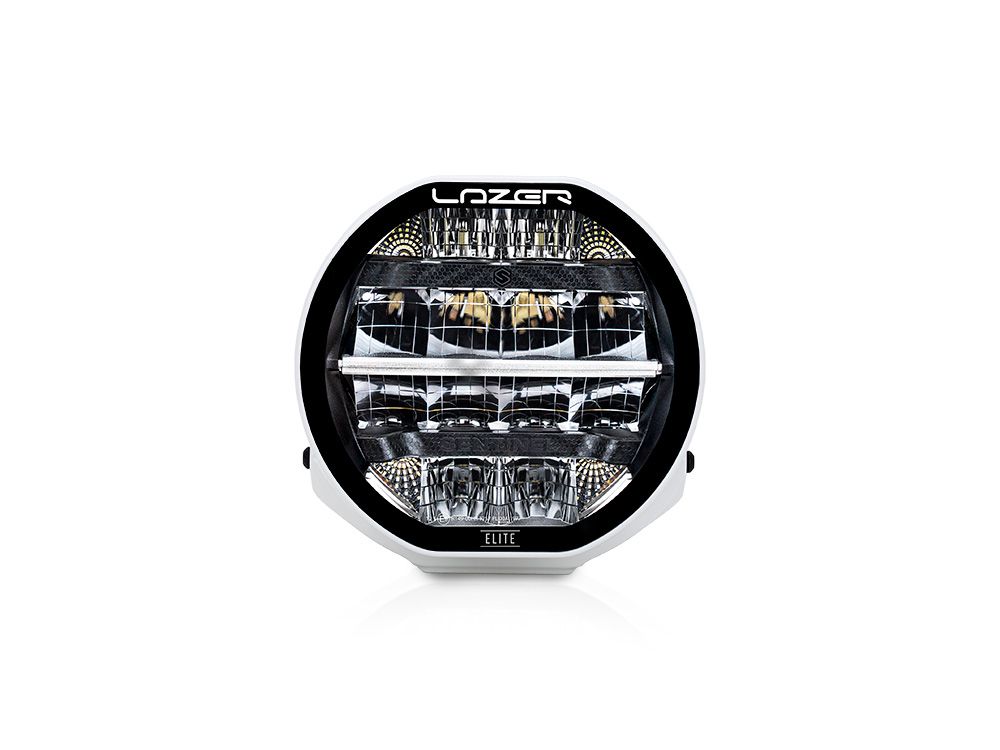

Lazer Sentinel 7″ Elite ‘Slim’Mount – WHITE (10248 Lumens)

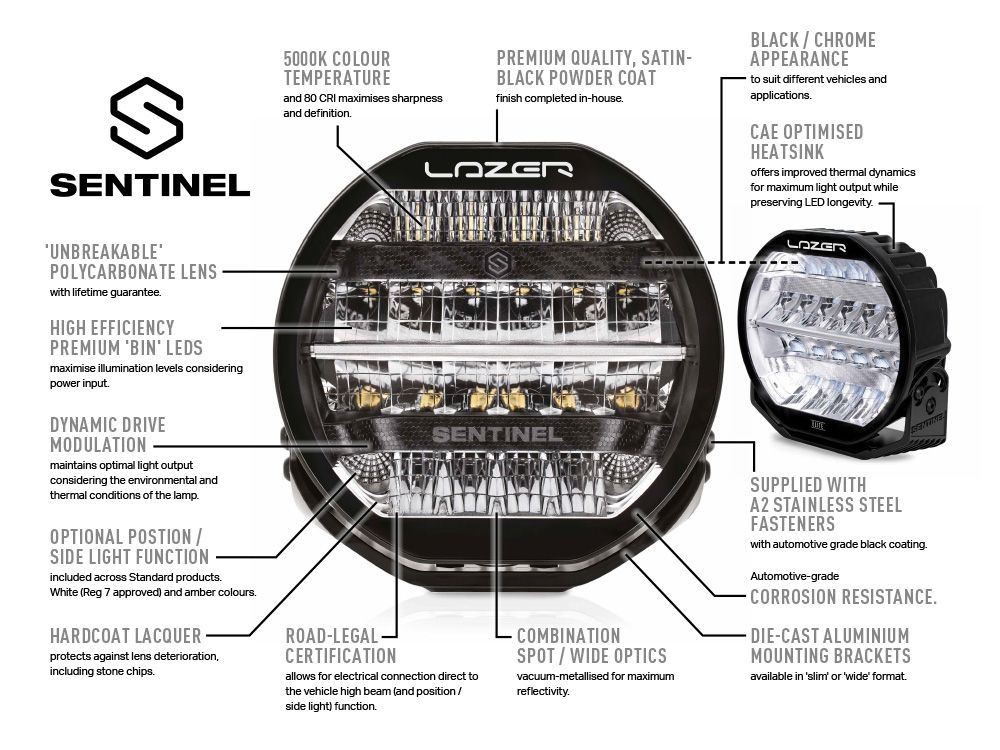

PRODUCT FEATURES
Combination of 24 premium ‘bin’ LEDs
Automotive-grade pre-treatment powder coated satin white
Stealth black internal appearance
5000K LED colour temperature and 80CRI maximises sharpness and definition

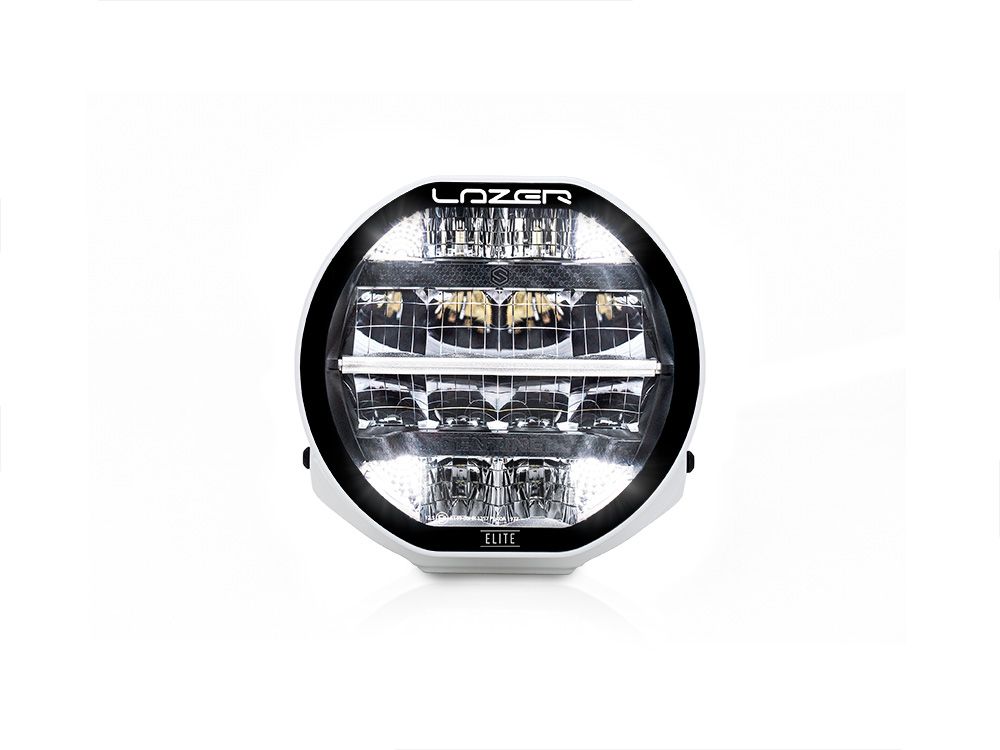

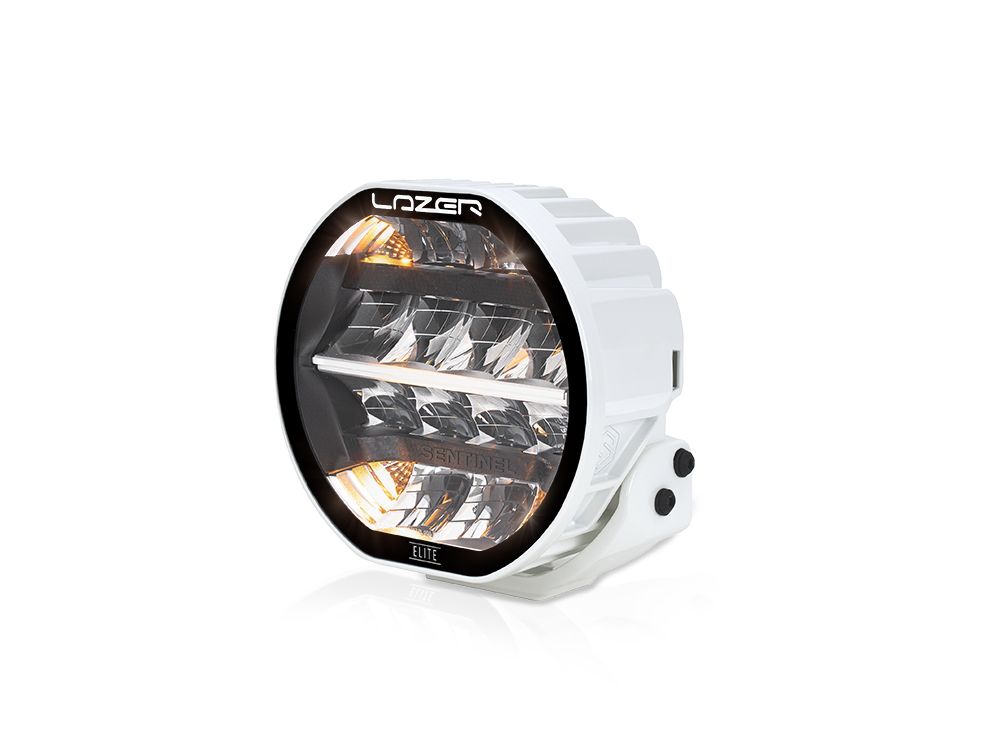

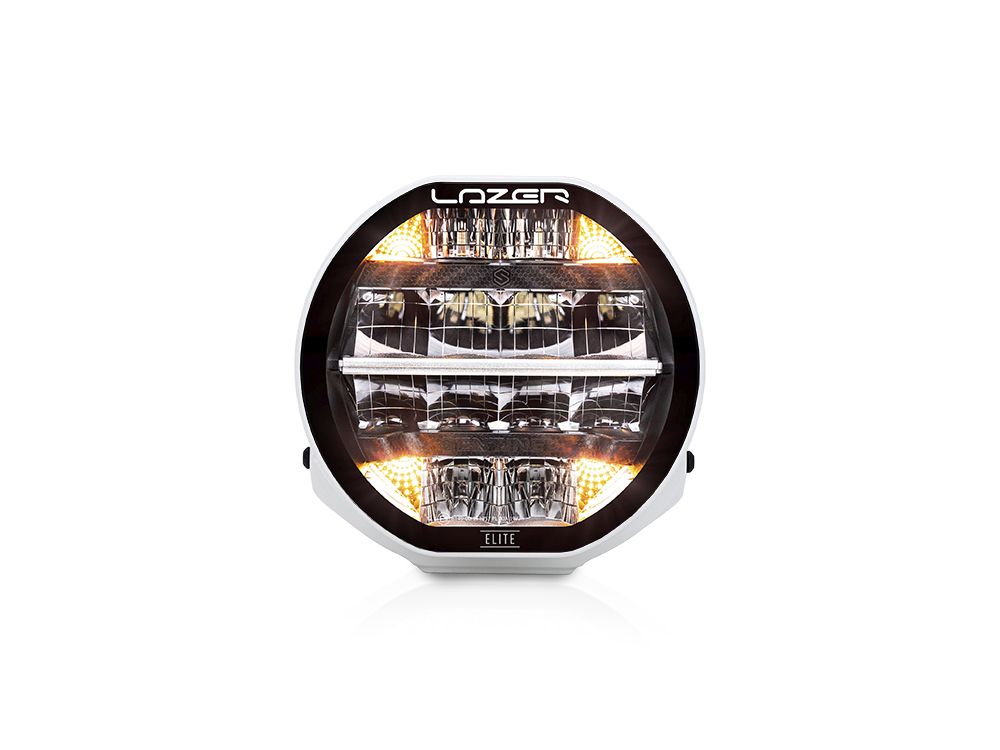

Integrated white and amber position light function (Elite only)
Ultra-reflective vacuum-metallised spot and wide optics

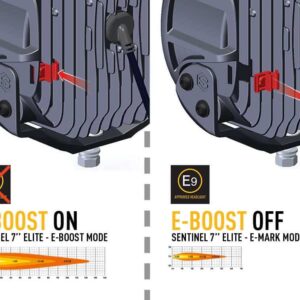

UNECE Reg 149 Class B Driving Light, approved for on-road high beam (E-Boost technology) and Reg 148 position/side light function (white only)
Contemporary lamp design

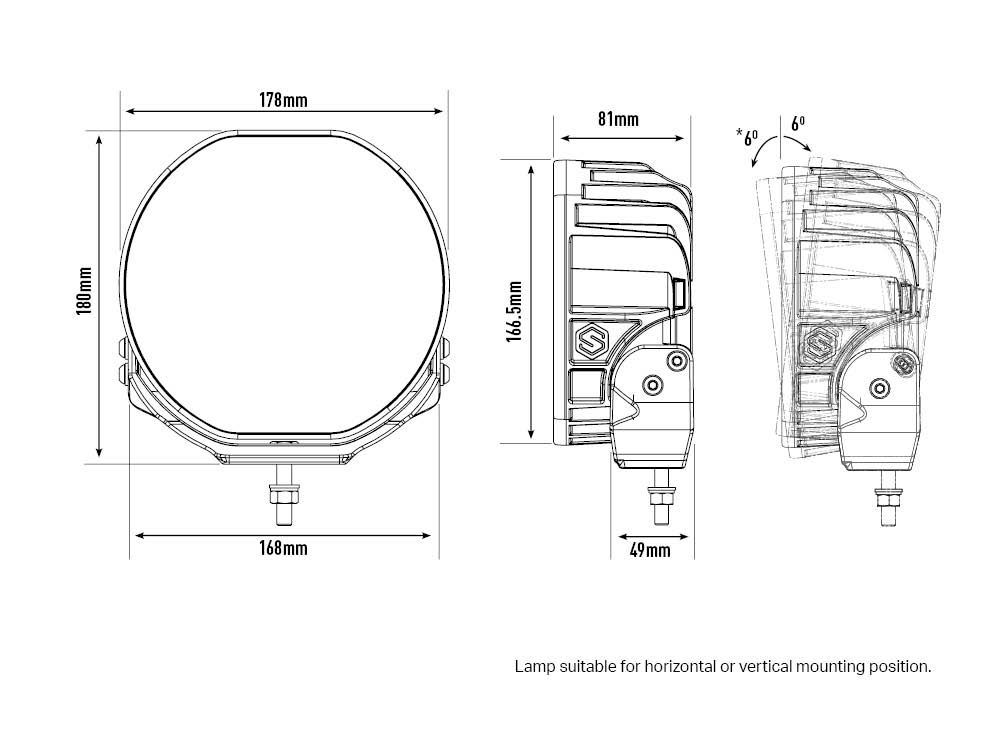

Supplied with ‘slim’ diecast aluminium mounting bracket featuring Sentinel stamp
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

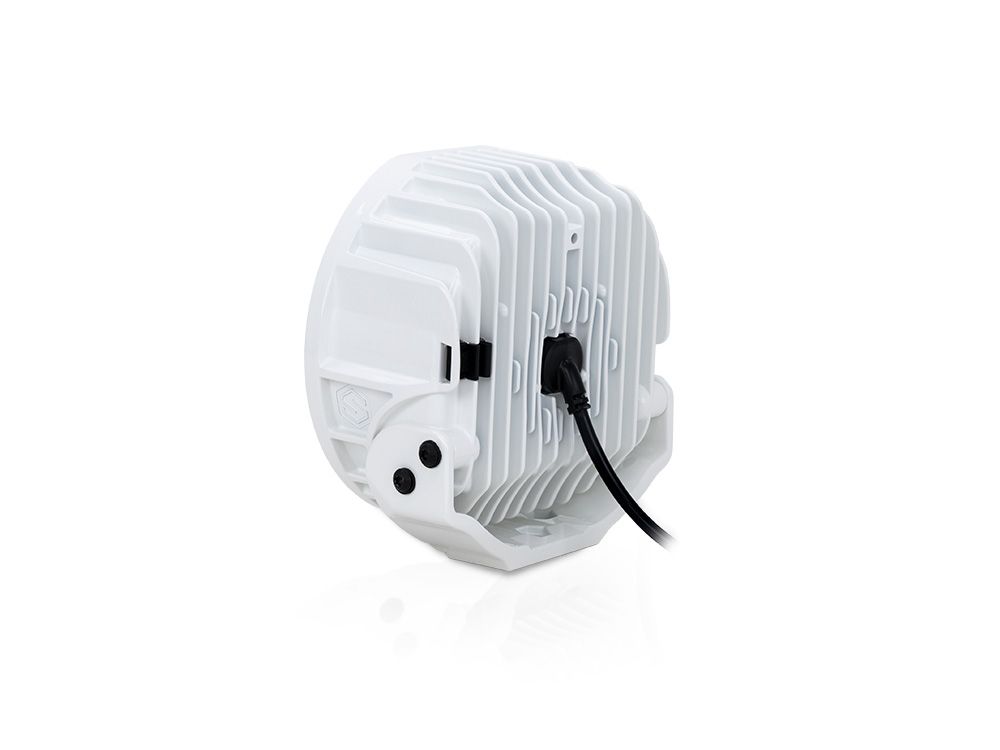

CAE optimised heatsink offers improved thermal dynamics
Over voltage protected
Reverse polarity protected
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
A2 stainless steel fasteners with automotive grade black coating
UNECE approved Reg 10
IP68 watertight – 1.5m submersion (30mins)
5-year warranty

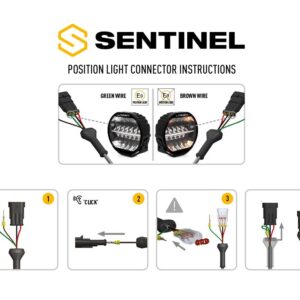

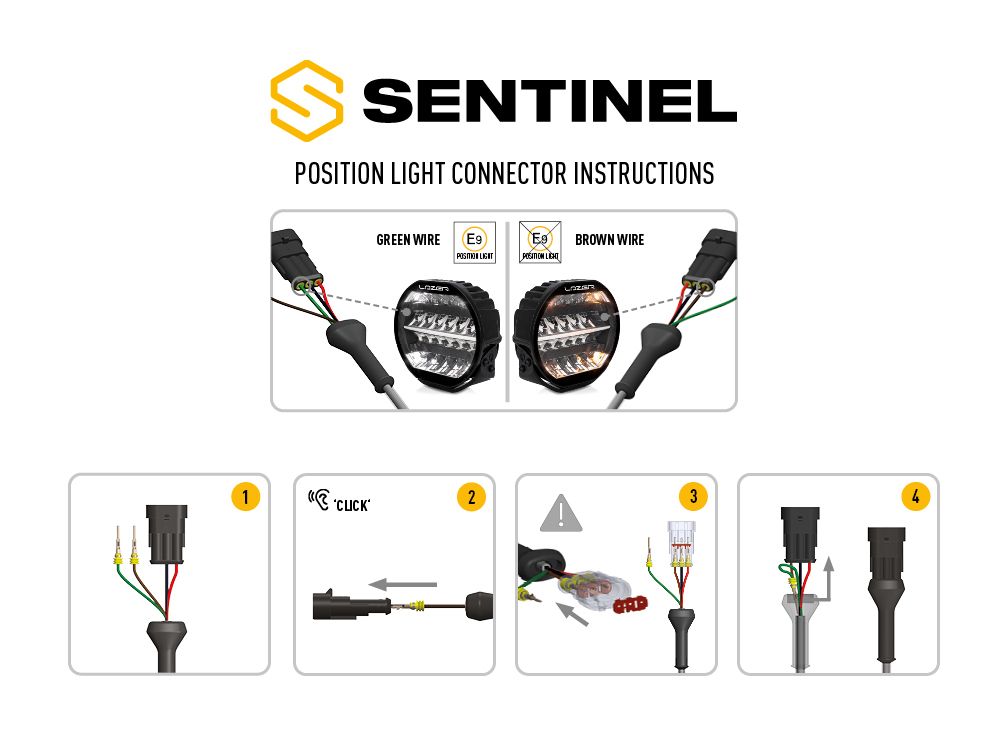

Supplied with pre-wired male/female Superseal connectors
Designed & manufactured in UK
TECHNICAL SPECIFICATIONS
Based on: 1x Sentinel 7” Elite LED Lamp.

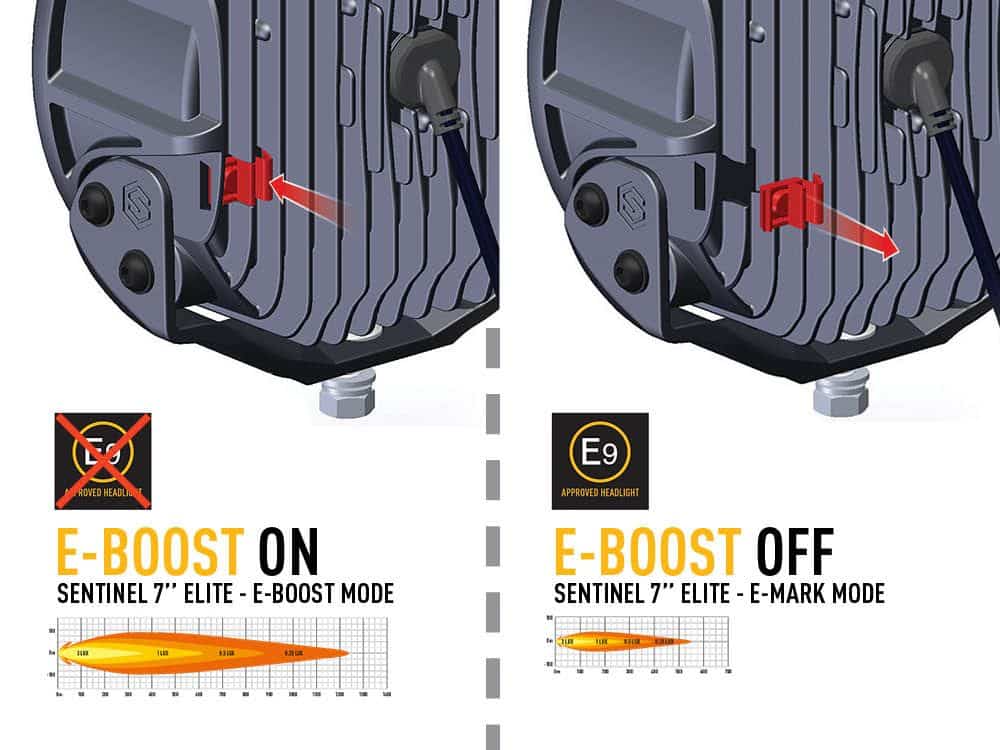

E-Boost | E-Mark Mode | |
Voltage Range (DC) | 10-32V | 10-32V |
LED Life | 50,000 hrs | 50,000 hrs |
Weight | 1.5 kg | 1.5 kg |
HIGH BEAM FUNCTION | ||
Total Luminous Flux | 10248 Lm | 2049 Lm |
Total Driver ‘FOV’ Flux † | 6380 Lm | 1276 Lm |
Colour Temperature | 5000k | 5000k |
Number of High Output LEDs | 24 | 24 |
Power Consumption | 110 Watts | 22 Watts |
Current Draw (at 14.4V) | 7.6 Amps | 1.5 Amps |
CERTIFICATION | ||
High Beam | N/A | ECE R149 |
E-Mark Ref | N/A | 12.5 |

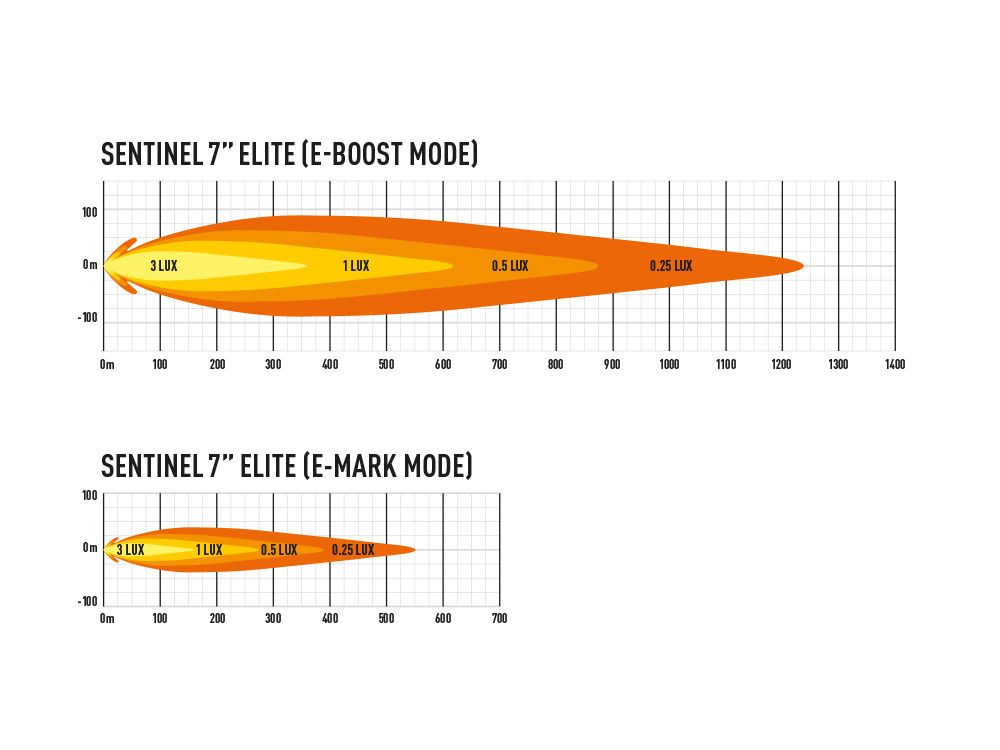

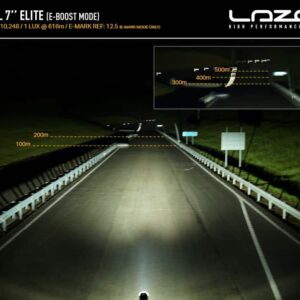

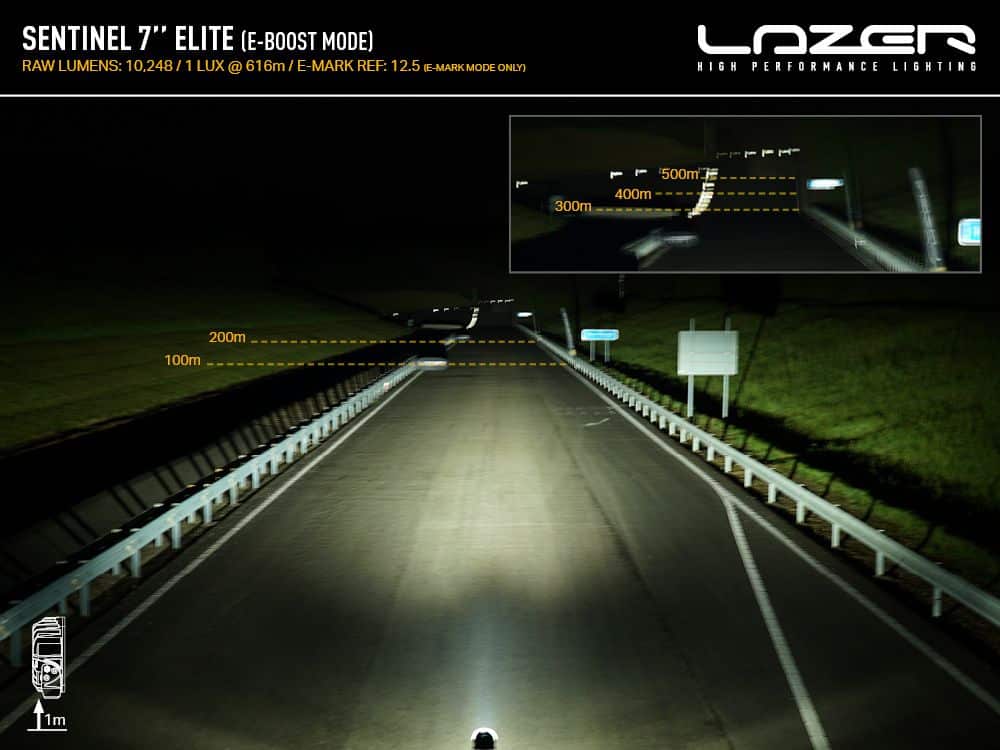

PHOTOMETRIC DATA | ||

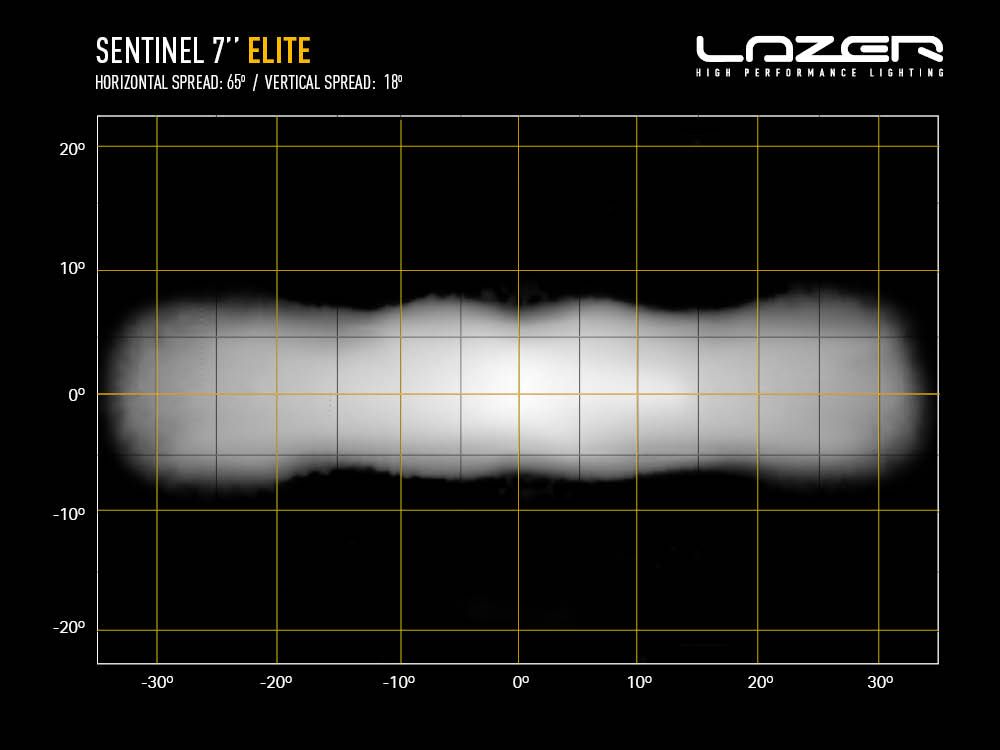

Horiz Beam Angle | 65 Deg | 65 Deg |
0.25 lx Line | 1233 metres | 551 metres |
0.5 lx Line | 872 metres | 390 metres |
1 lx Line | 616 metres | 276 metres |
3 lx Line | 356 metres | 159 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- x1 Sentinel 7” Elite White LED Lamp
- x1 White ‘Slim’ Mount Kit
- x1 Black Lens Cover (LC-0S7-BLK)
- x1 Installation Instructions
