Lazer Lamps VW T6.1 GRILLE KIT – ST4 EVOLUTION
Original price was: 654,50€.567,95€Current price is: 567,95€. WITH TAX
Lazer Lamps VW T6.1 GRILLE KIT – ST4 EVOLUTION

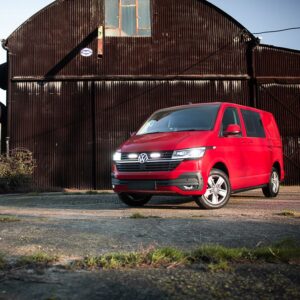

For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

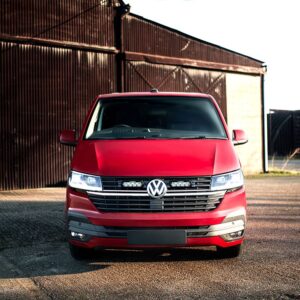

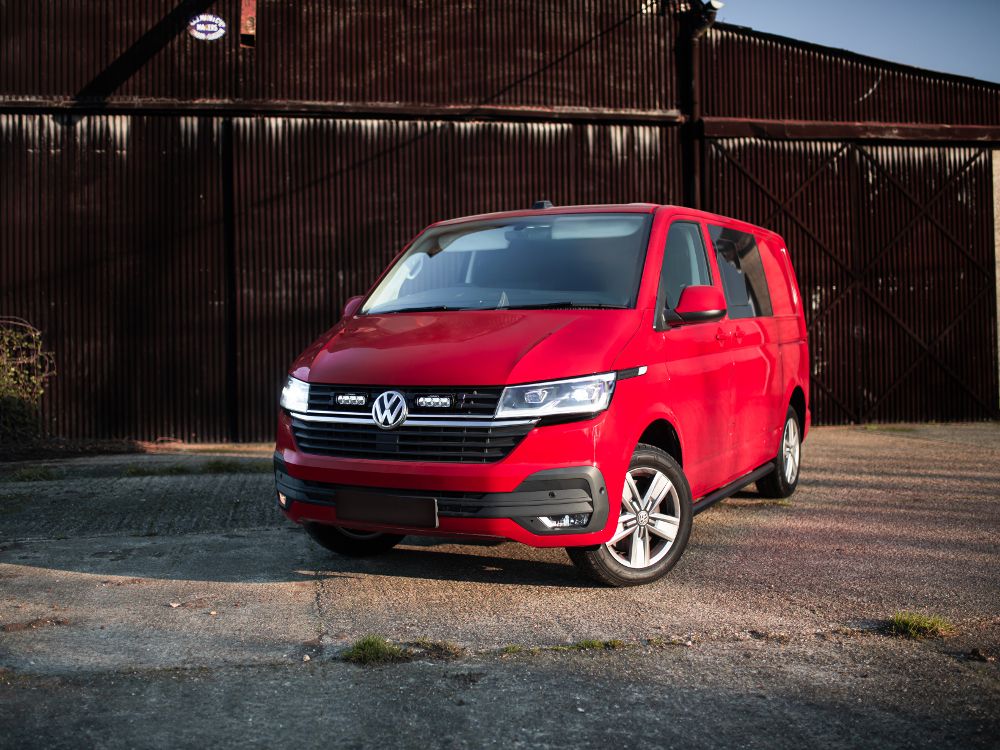

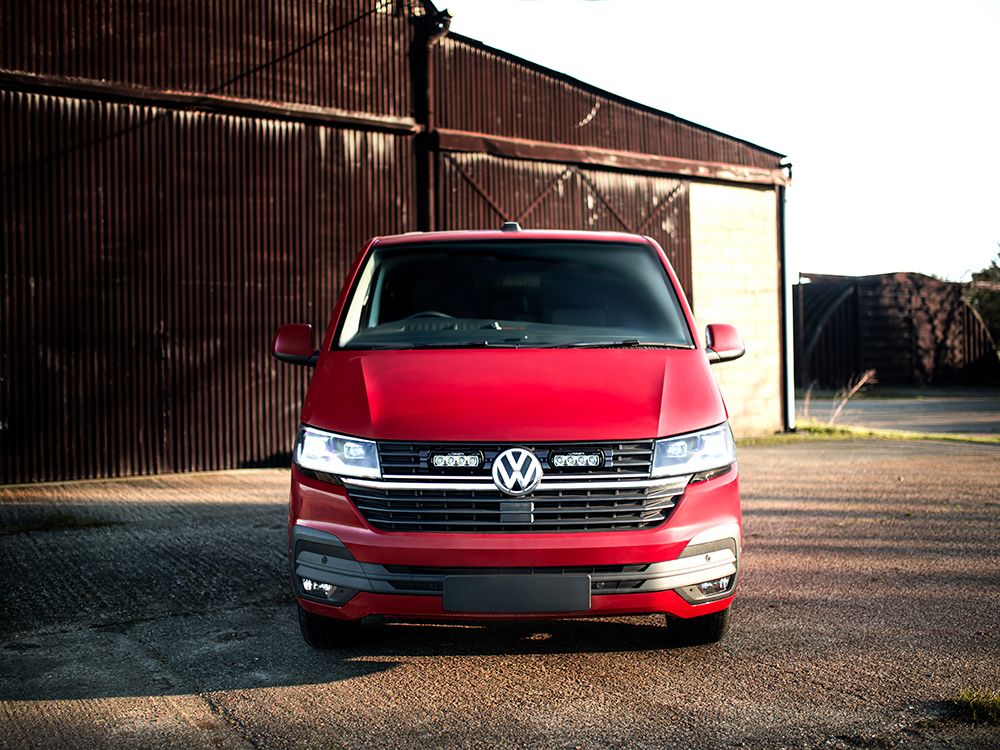

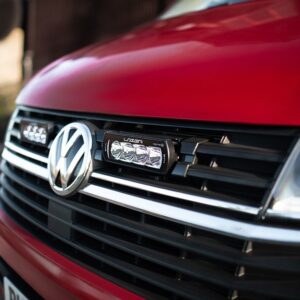

The VW Transporter T6.1 kit, designed for Startline and Highline models, is available with either a pair of ST4 Evolution. For fitting to vehicles without air-con, or any installation of the ST4’s (with or without air-con), the install can be more quickly and easily started with the grille left in-situ on the vehicle.

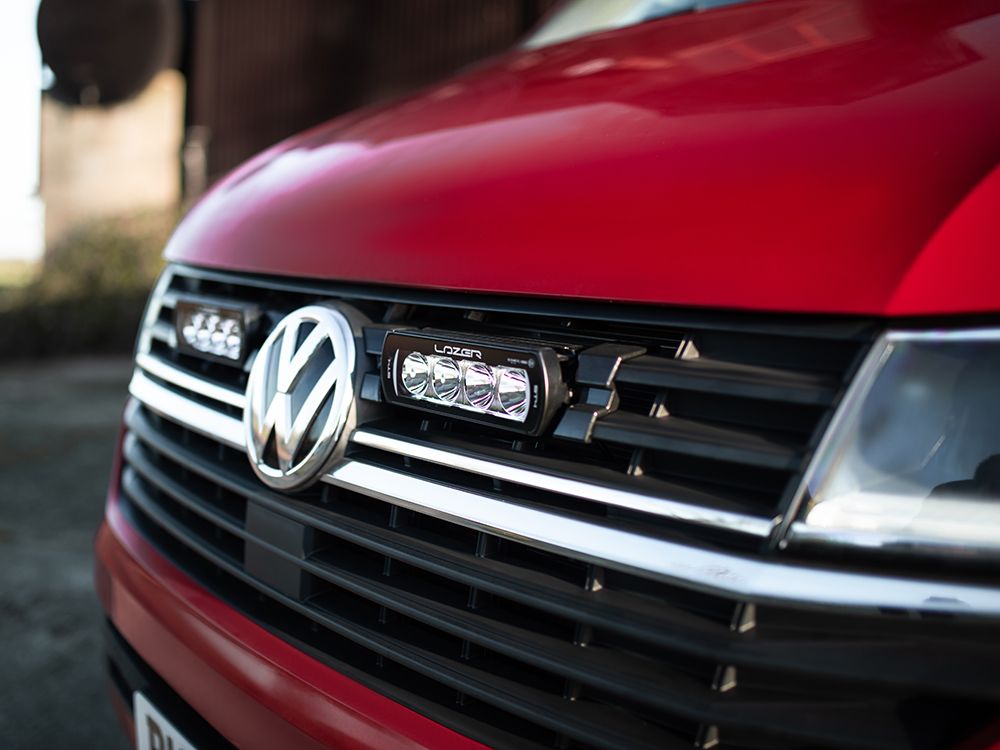

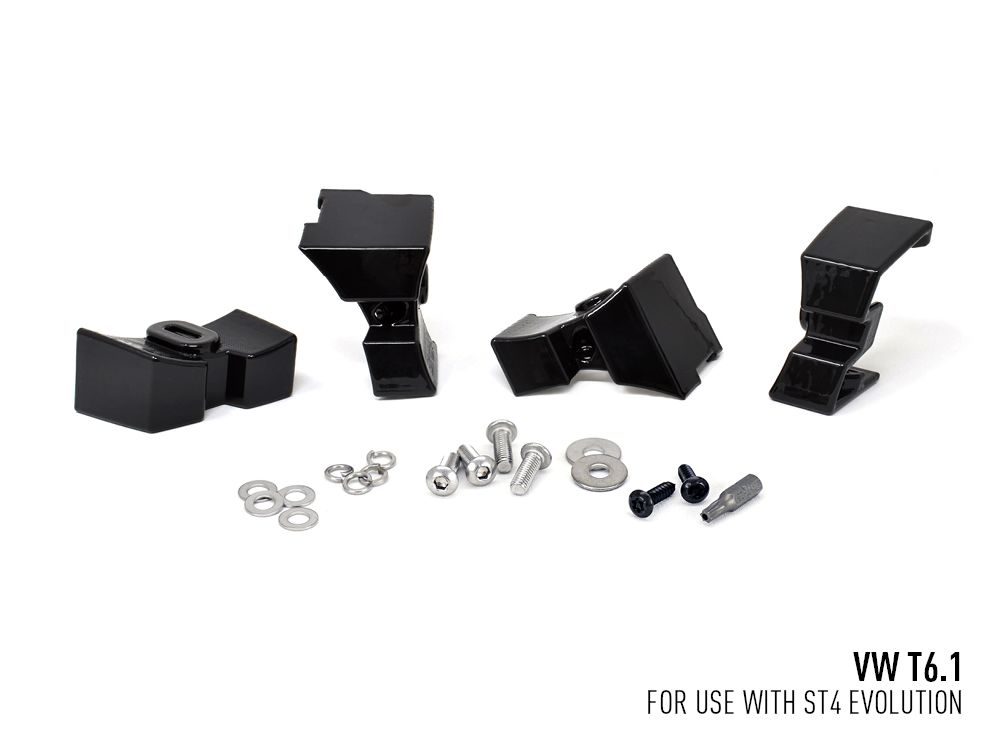

Aside from the pair of high performance auxiliary driving lights, each kit also includes a wiring kit (for connecting directly into the standard high beam driving lights on the vehicle), alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from a high strength composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year. Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time.
The VW T6.1 Grille Integration Kits are optimised for use with ST4 Evolution High Performance LED Spotlights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
Lazer Lamps VW T6.1 GRILLE KIT – ST4 EVOLUTION
PRODUCT FEATURES
Bespoke vehicle integration kit for Lazer LED Spotlight installation
Custom fit for VW Transporter T6.1 (Startline and Highline models)
Available with ST4 Evolution High Performance LED Spotlights
Kit also includes bespoke mounting brackets and two-lamp wiring kit
Brackets made from high strength, UV -stable, composite material
Fully road-legal
5-year warranty
Made in Britain
TECHNICAL SPECIFICATIONS
| x2 ST4 Evolution |
|
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hours |
| Weight | 1340g |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 8272 Lm |
| Total Driver ‘FOV’ Flux † | 4980 Lm |
| Colour Temperature | 5000k |
| Number of High Output LEDs | 2 x 4 |
| Power Consumption | 94 Watts |
| Current Draw (at 14.4V) | 6.6 Amps |
| CERTIFICATION | |
| High Beam | ECE R112 |
| ECE Reference | 10 x2 |
| Position Light (White only) | N/A |

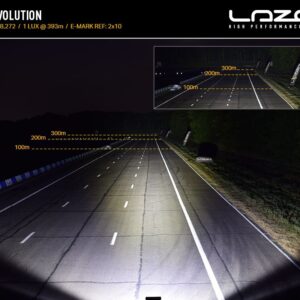

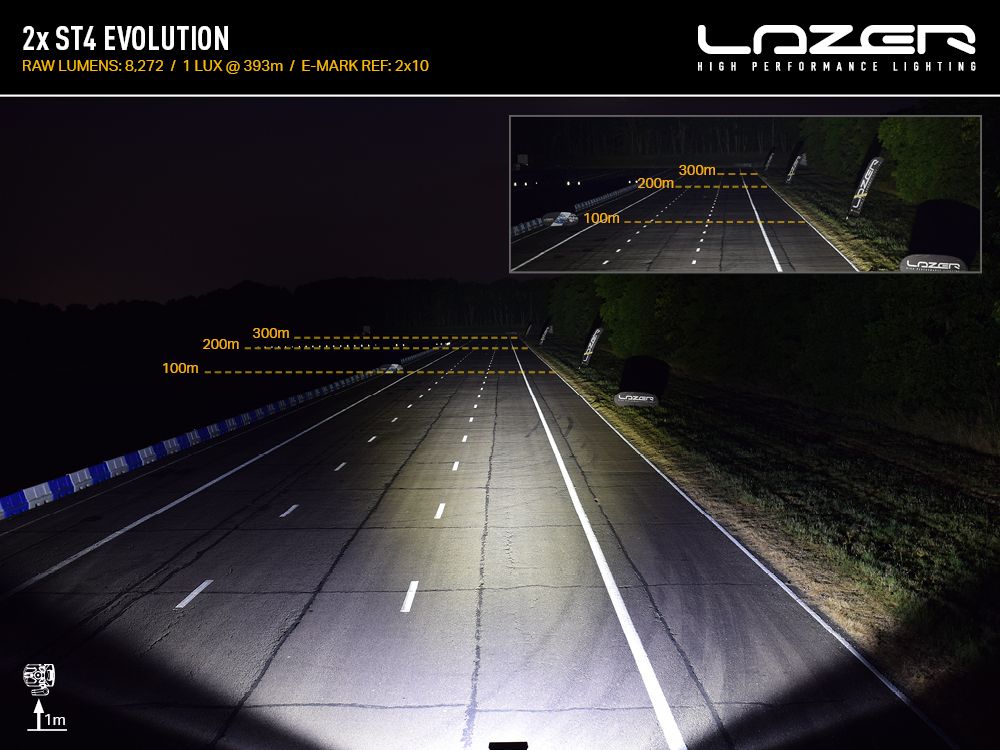

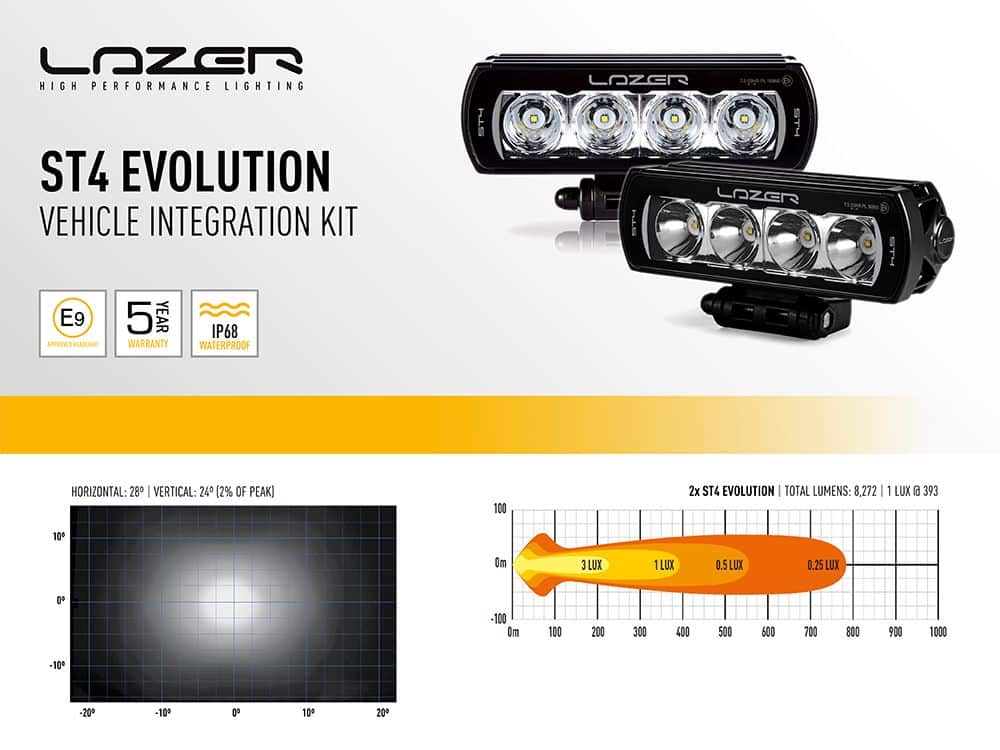

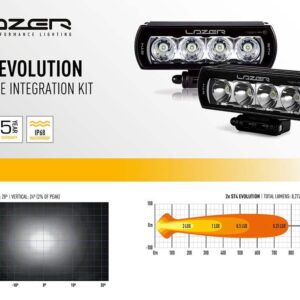

| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 40° |
| 0.25 lx Line | 786m |
| 0.5 lx Line | 555m |
| 1 lx Line | 393m |
| 3 lx Line | 227m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- 1x Grille Mounting Kit (Includes cutting guides)
- 2x ST4 Evolution LED Lamps
- 1x Two-Lamp Wiring Kit
- Installation Instructions
DOWNLOADS
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
VIDEOS
| Car brand | VOLKSWAGEN |
|---|---|
| Product manufacturer | LAZER LAMPS |
| Brand | INTEGRATION KITS, LIGHTS |
| LUMENS | 8272 |
| Lazer Lamps | ST4 Evolution |
