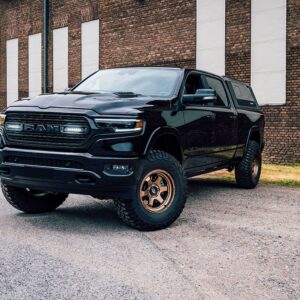

Lazer Lamps RAM 1500 LIMITED (2019+) GRILLE KIT
469,85€ – 583,44€ WITH TAX
Lazer Lamps RAM 1500 LIMITED (2019+) GRILLE KIT
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

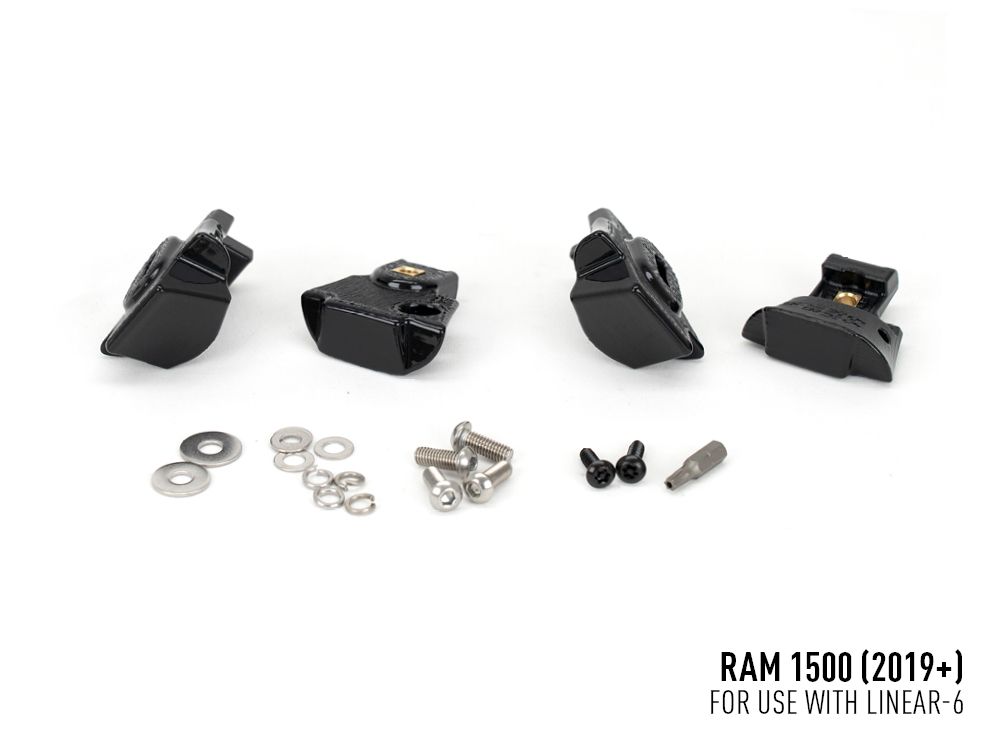

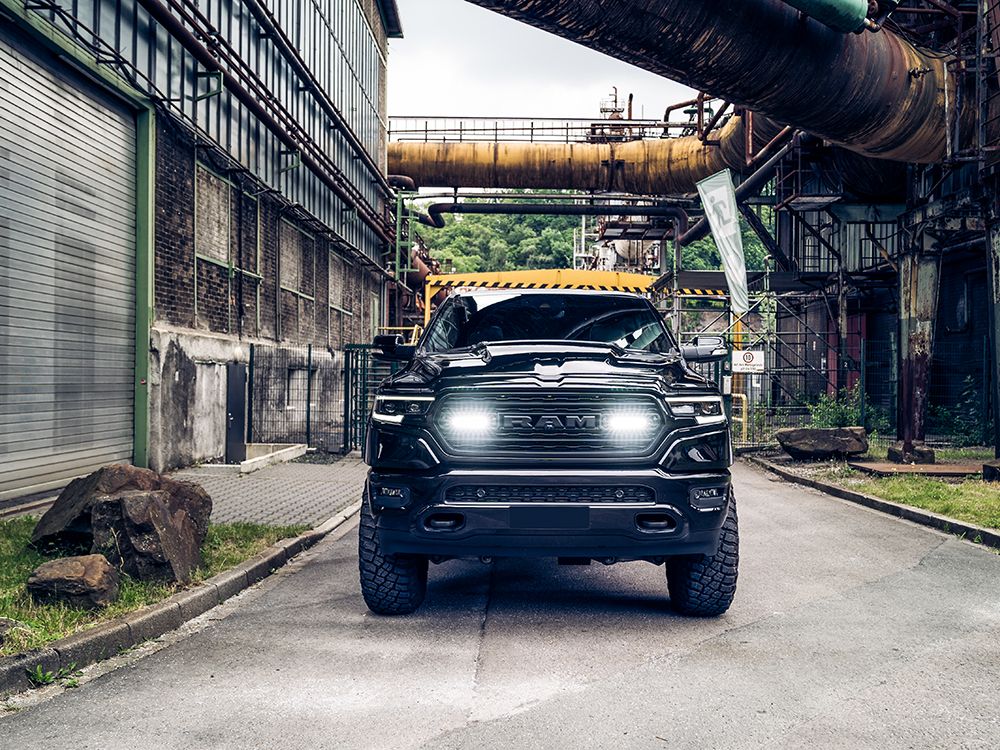

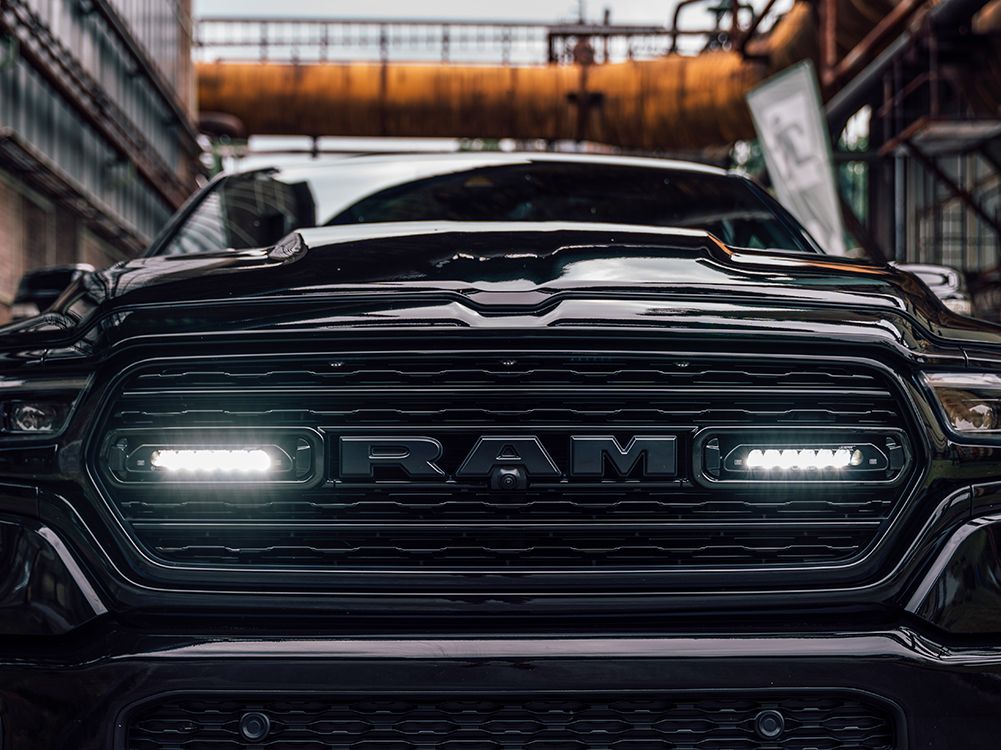

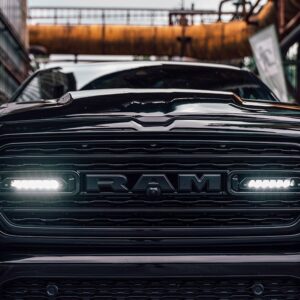

The RAM 1500 Limited kit, designed for 2019 vehicles onwards, includes a pair of Linear-6 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
The RAM 1500 Limited (2019+) Grille Integration Kit is optimised for use with Linear-6 High Performance LED Spotlights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface. For advice on how to check for a 12V high beam signal, please click here.
Delivery time: from 7 to 20 days. Before you order the product, we suggest that you ask for the exact delivery cost and time. The product images shown are for illustration purposes only and may not be an exact representation of the product (contact us for more photos of this product).Lazer Lamps RAM 1500 LIMITED (2019+) GRILLE KIT
PRODUCT FEATURES
Bespoke vehicle integration kit for Lazer LED Spotlight installation
Custom fit for RAM 1500 Limited (2019+)

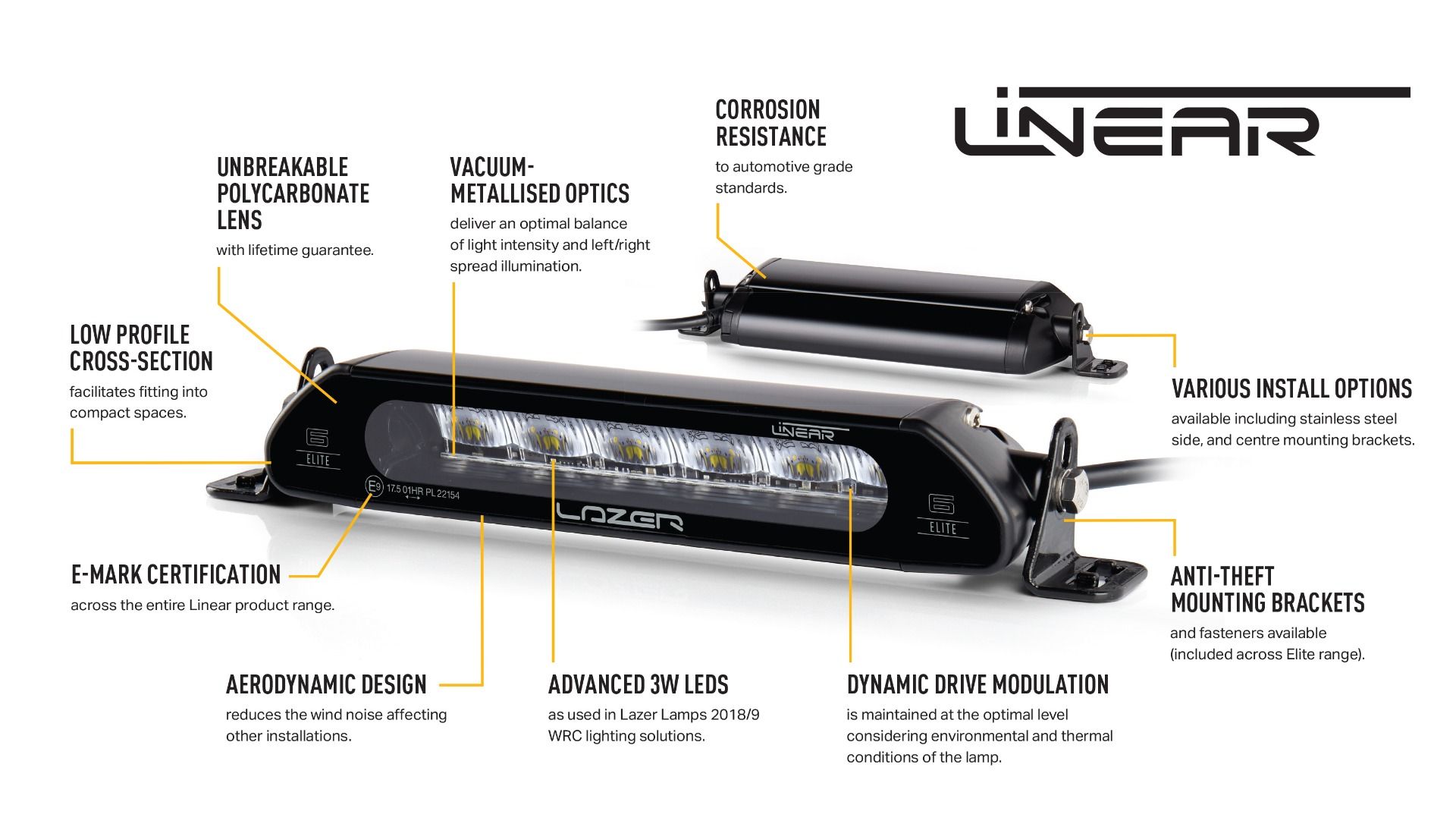

Designed for use with Linear-6 High Performance LED Spotlights
Kit also includes bespoke mounting brackets and two-lamp wiring kit
Brackets made from high strength, UV -stable, ASA material
Fully road-legal
5-year warranty
Made in Britain
TECHNICAL SPECIFICATIONS
| 2x Linear-6 Elite |
2x Linear-6 | |
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hours | 50,000 hours |
| Weight | 800 gr | 800 gr |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 8100 Lm | 4500 Lm |
| Total Driver ‘FOV’ Flux † | 5767 Lm | 3204 Lm |
| Colour Temperature | 5000K | 5000K |
| Number of High Output LEDs | 2 x 12 | 2 x 6 |
| Power Consumption | 84 Watts | 42 Watts |
| Current Draw (at 14.4V) | 5.8 Amps | 2.92 Amps |
| CERTIFICATION | ||
| High Beam | ECE R112 | ECE R112 |
| ECE Reference | 2 x 37.5 | 2 x 27.5 |

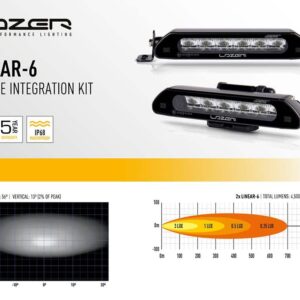

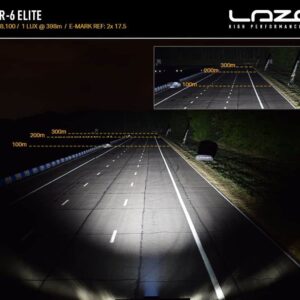

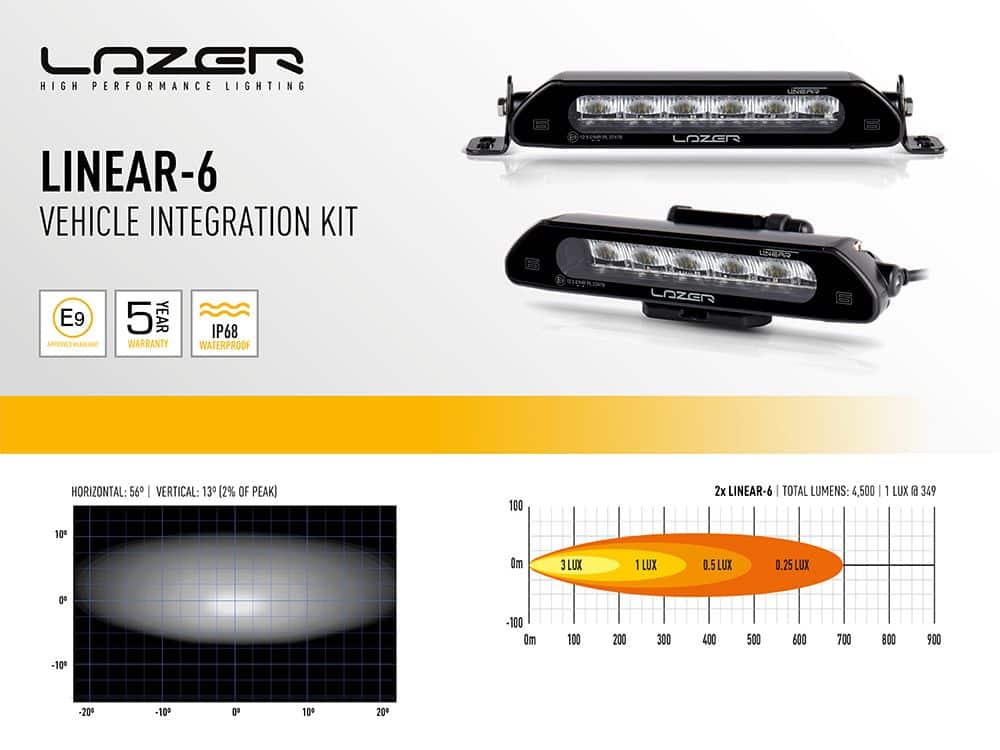

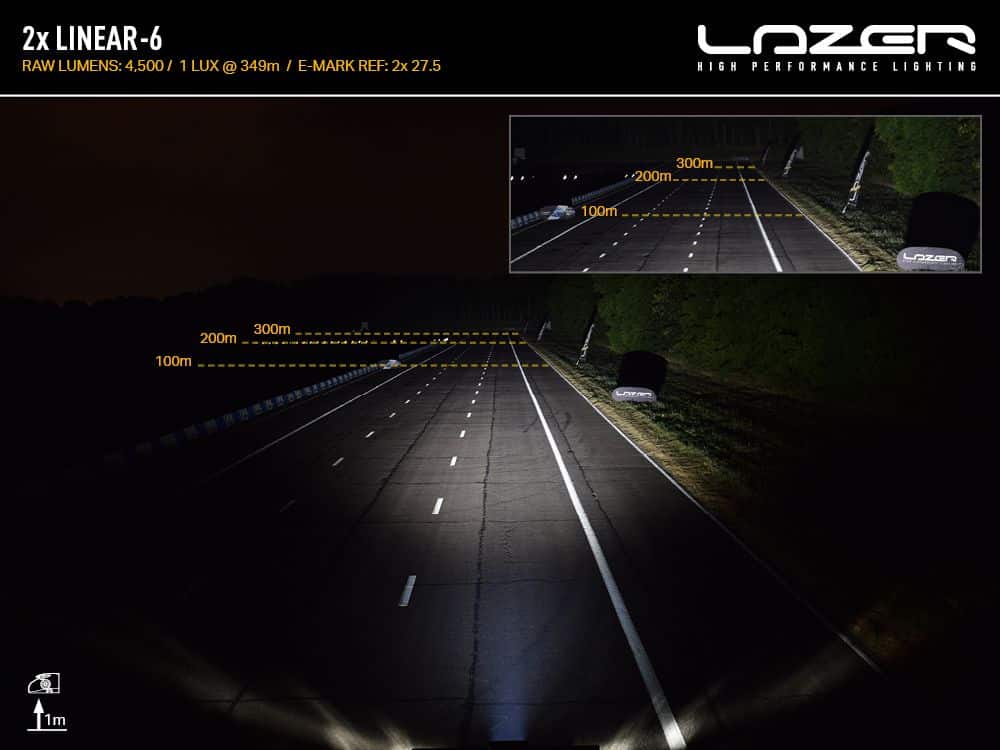

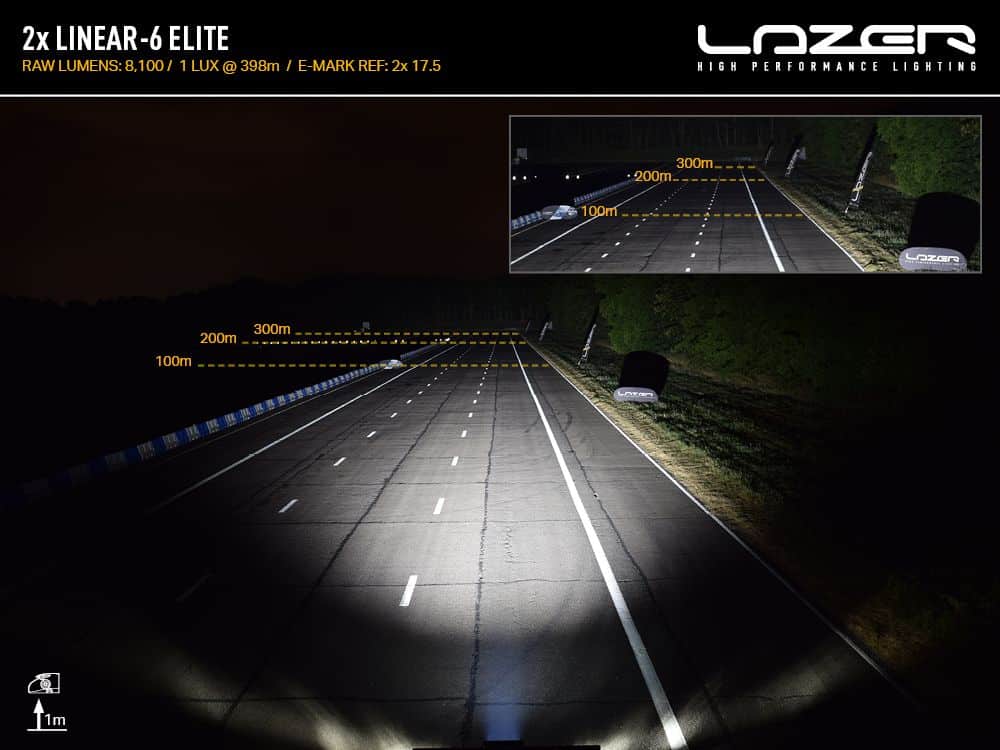

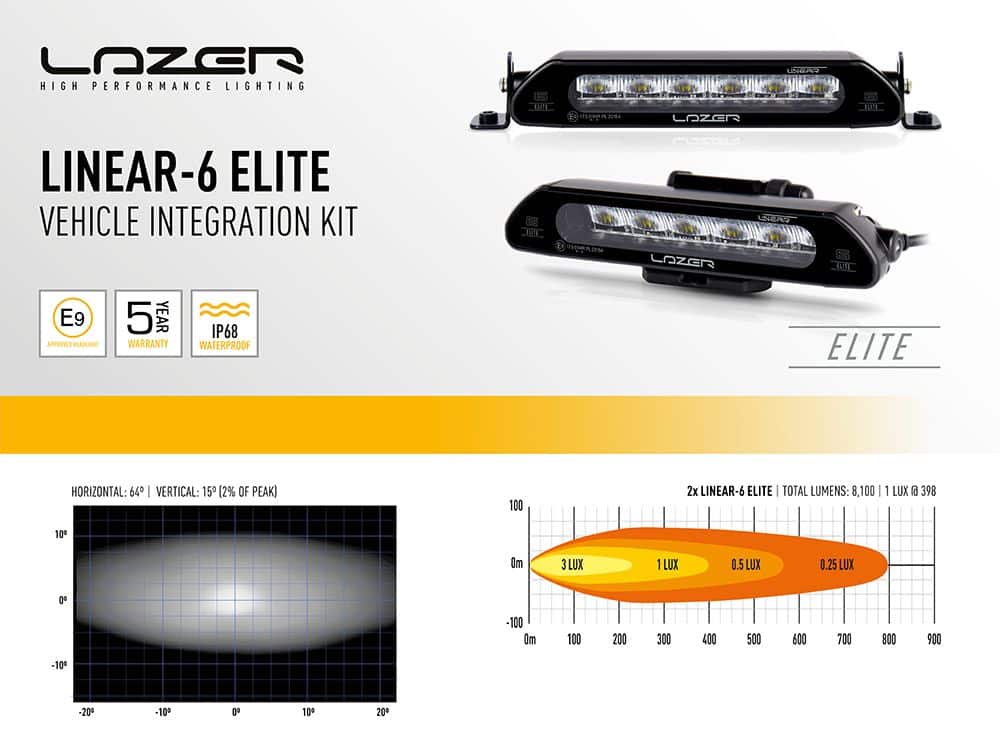

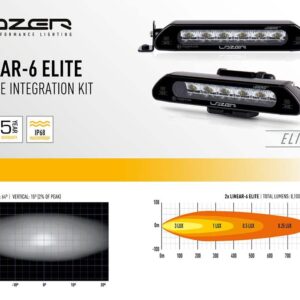

| PHOTOMETRIC DATA | ||
| Horizontal Beam Angle | 64° | 56° |
| 0.25 lx Line | 796m | 698m |
| 0.5 lx Line | 563m | 494m |
| 1 lx Line | 398m | 349m |
| 3 lx Line | 230m | 202m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- 1x Grille Mounting Kit
- 2x Linear-6 LED Lamps
- 1x Two-Lamp Wiring Kit
- Installation Instructions
