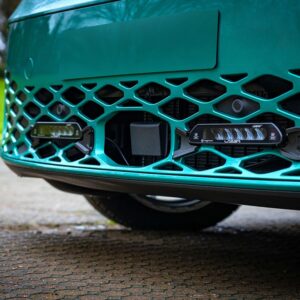

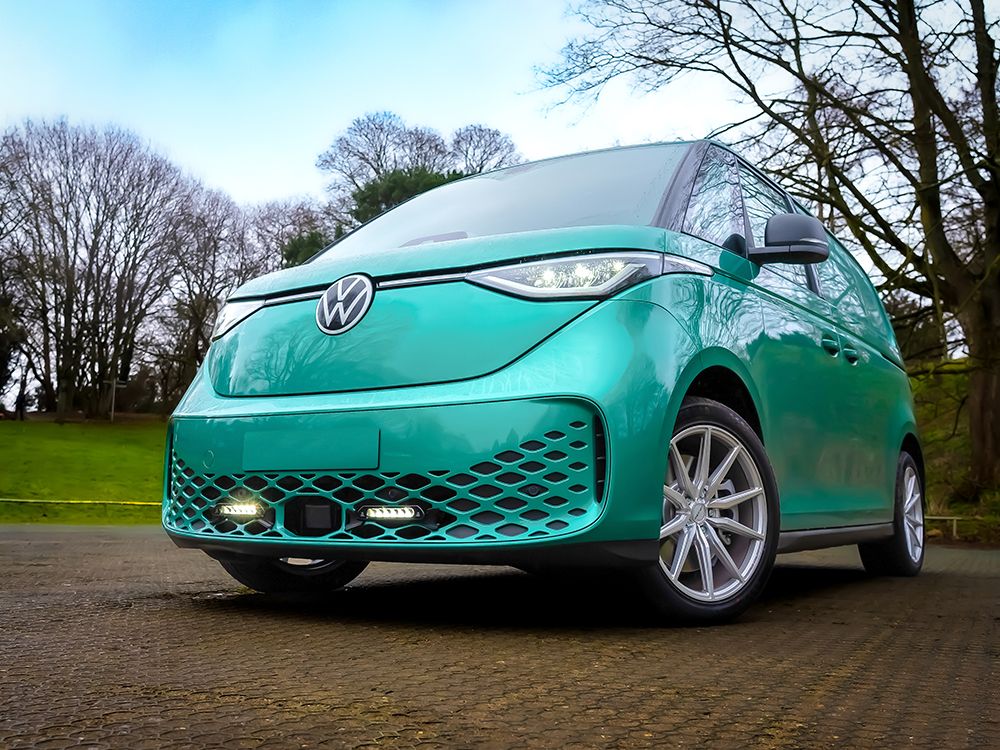

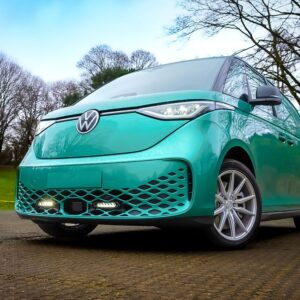

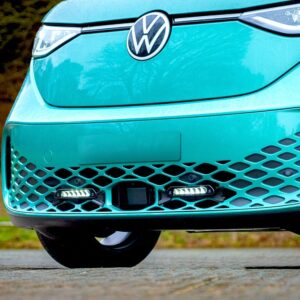

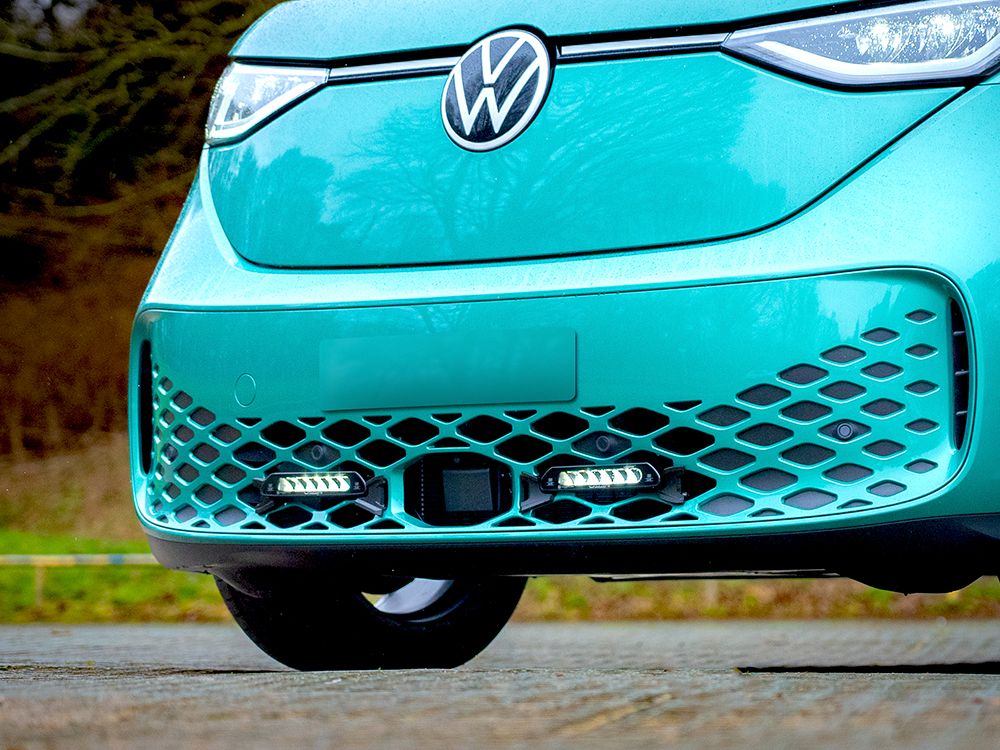

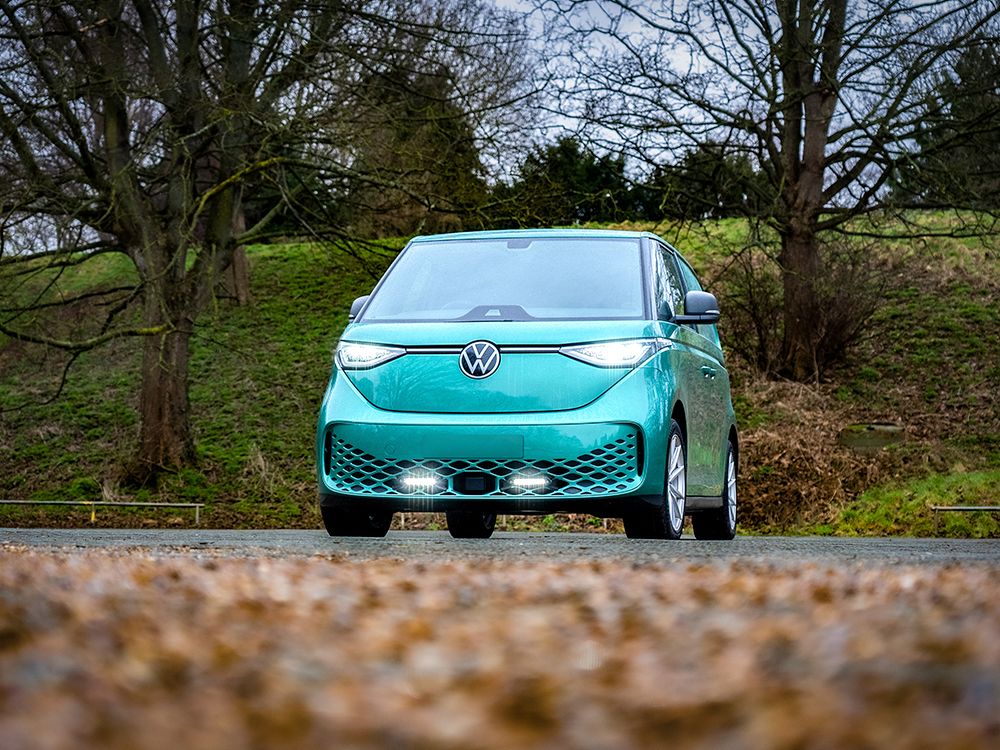

Lazer Lamps VW ID BUZZ GRILLE KIT
PRODUCT FEATURES
Bespoke mounting bracket kit for Lazer LED Spotlight installation
Custom fit for VW ID Buzz (2023+)
Optimised for use with Linear-6 LED Spotlights

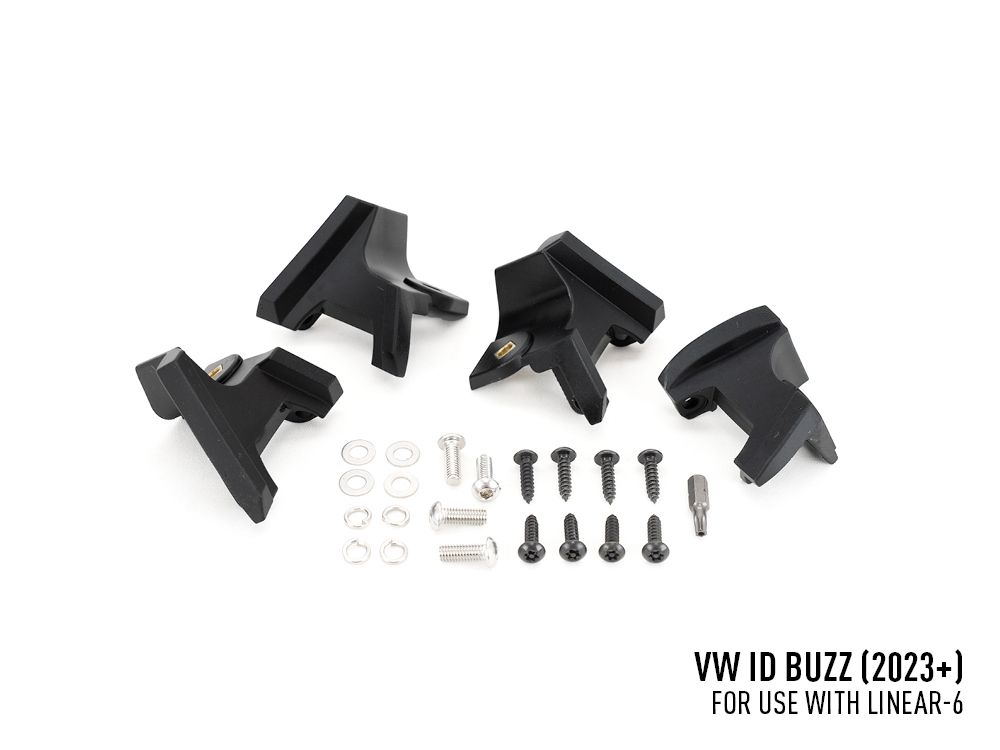

Kits include: 4x brackets, cutting guides, and fasteners
Made from high strength, UV-stable, composite material
5-year warranty
Made in Britain
TECHNICAL SPECIFICATIONS
2x Linear-6 Elite |
2x Linear-6 | |
Voltage Range (DC) | 10-32V | 10-32V |
LED Life | 50,000 hours | 50,000 hours |
Weight | 800 gr | 800 gr |
HIGH BEAM FUNCTION | ||
Total Luminous Flux | 8100 Lm | 4500 Lm |
Total Driver ‘FOV’ Flux †| 5767 Lm | 3204 Lm |
Colour Temperature | 5000K | 5000K |
Number of High Output LEDs | 2 x 12 | 2 x 6 |
Power Consumption | 84 Watts | 42 Watts |
Current Draw (at 14.4V) | 5.8 Amps | 2.92 Amps |
CERTIFICATION | ||
High Beam | ECE R112 | ECE R112 |
ECE Reference | 2 x 37.5 | 2 x 27.5 |

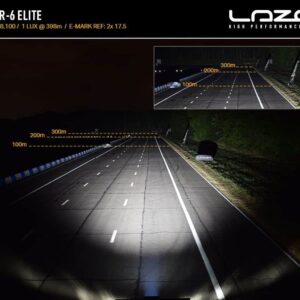

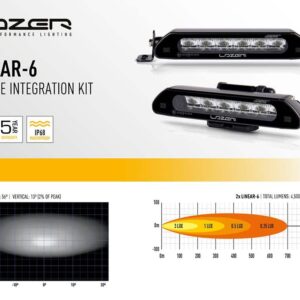

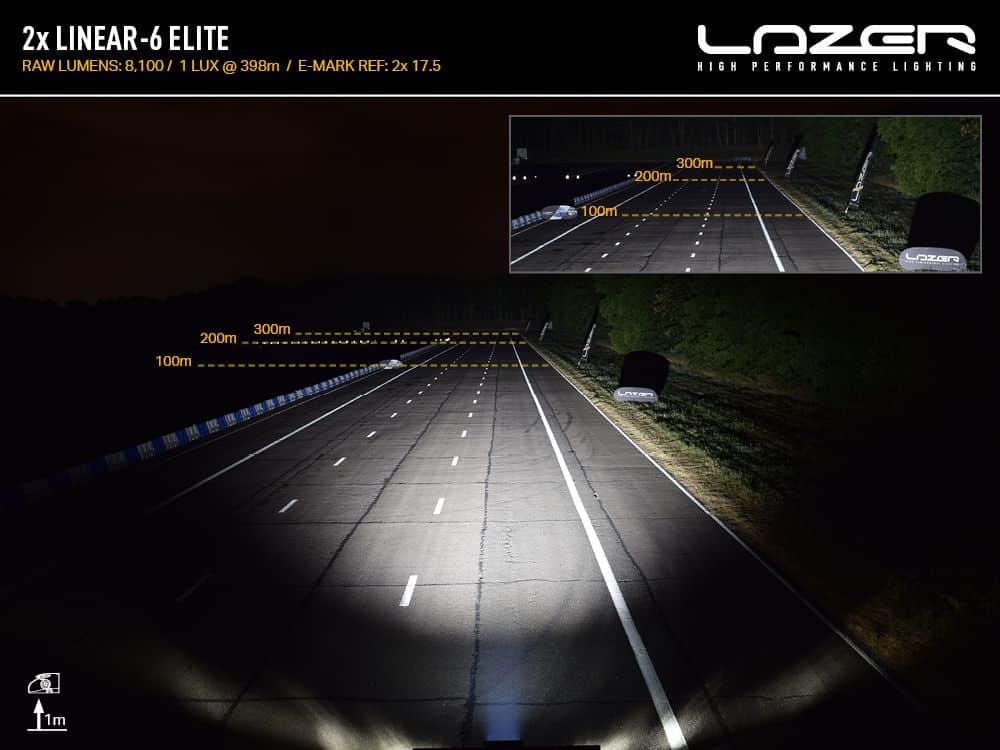

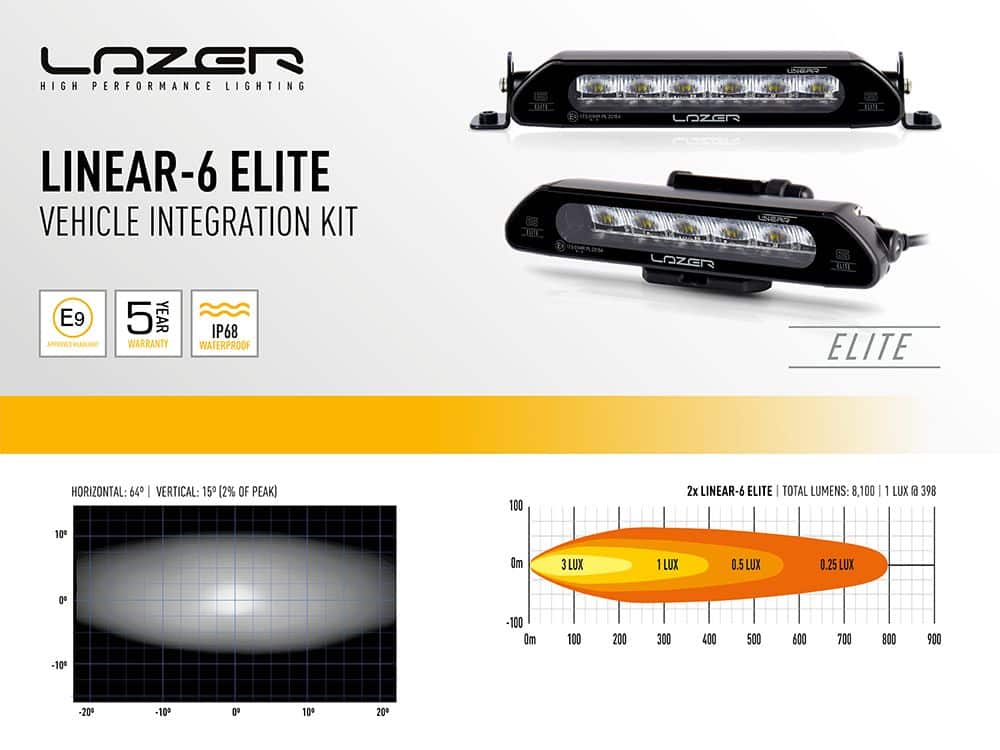

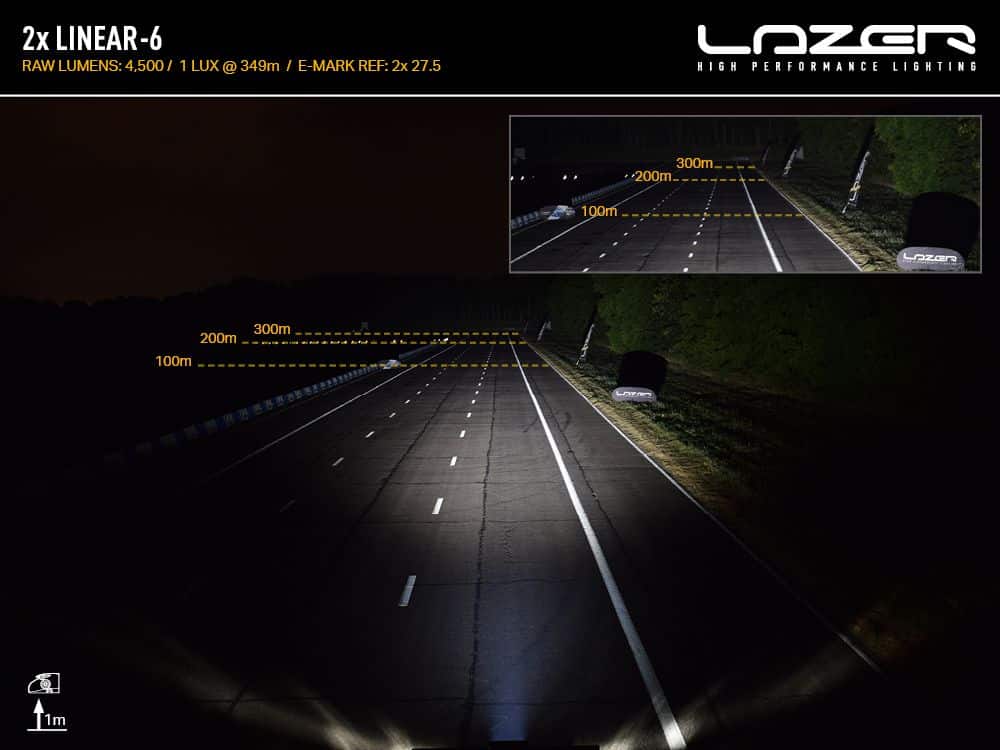

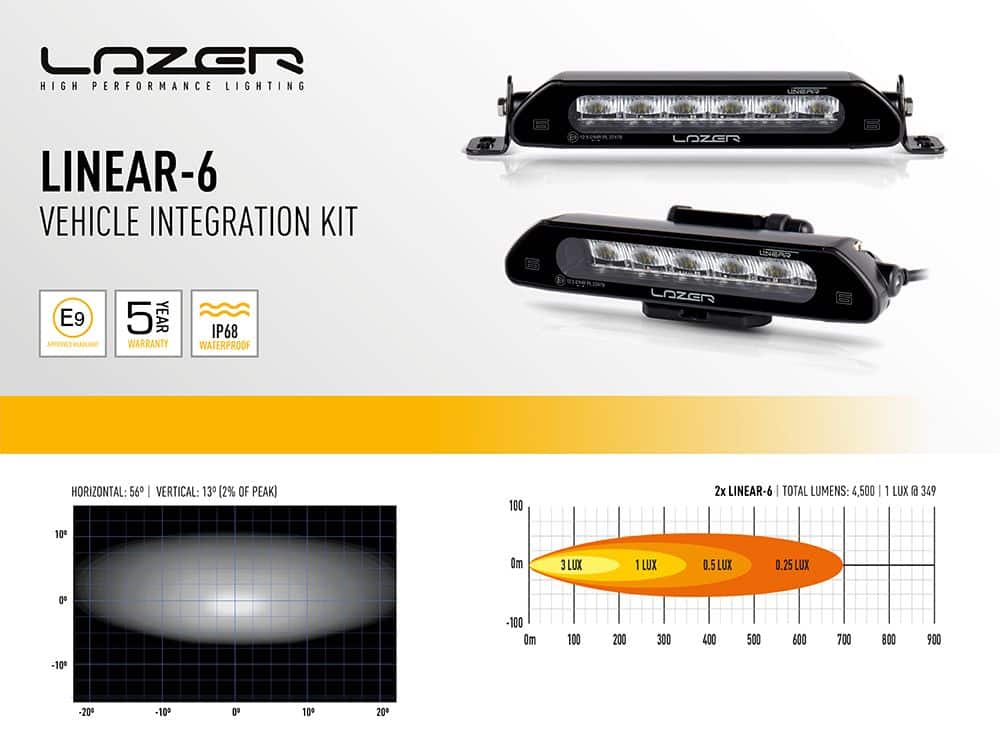

PHOTOMETRIC DATA | ||
Horizontal Beam Angle | 64° | 56° |
0.25 lx Line | 796m | 698m |
0.5 lx Line | 563m | 494m |
1 lx Line | 398m | 349m |
3 lx Line | 230m | 202m |
†Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- 1x Grille Mounting Kit (Includes cutting guides)
- 2x Linear-6 LED Lamps
- 1x Two-Lamp Wiring Kit
- Installation Instructions
