Lazer Lamps TOYOTA LAND CRUISER 300 SERIES GRILLE KIT
624,75€ – 758,99€ WITH TAX
Lazer Lamps TOYOTA LAND CRUISER 300 SERIES GRILLE KIT
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits are custom-fit mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.

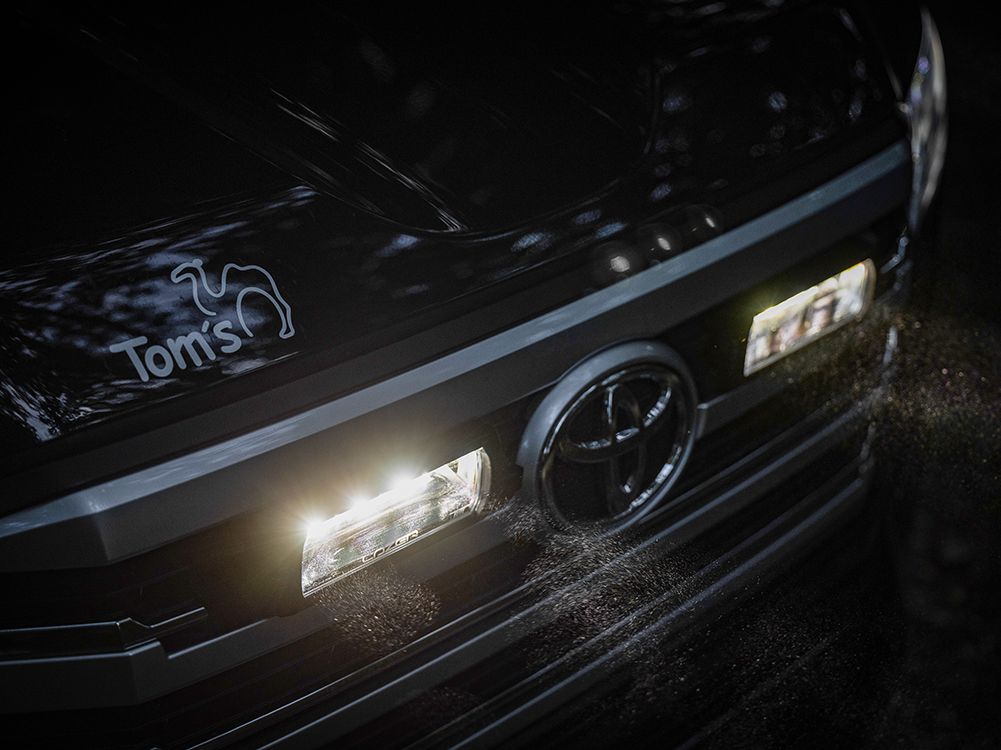

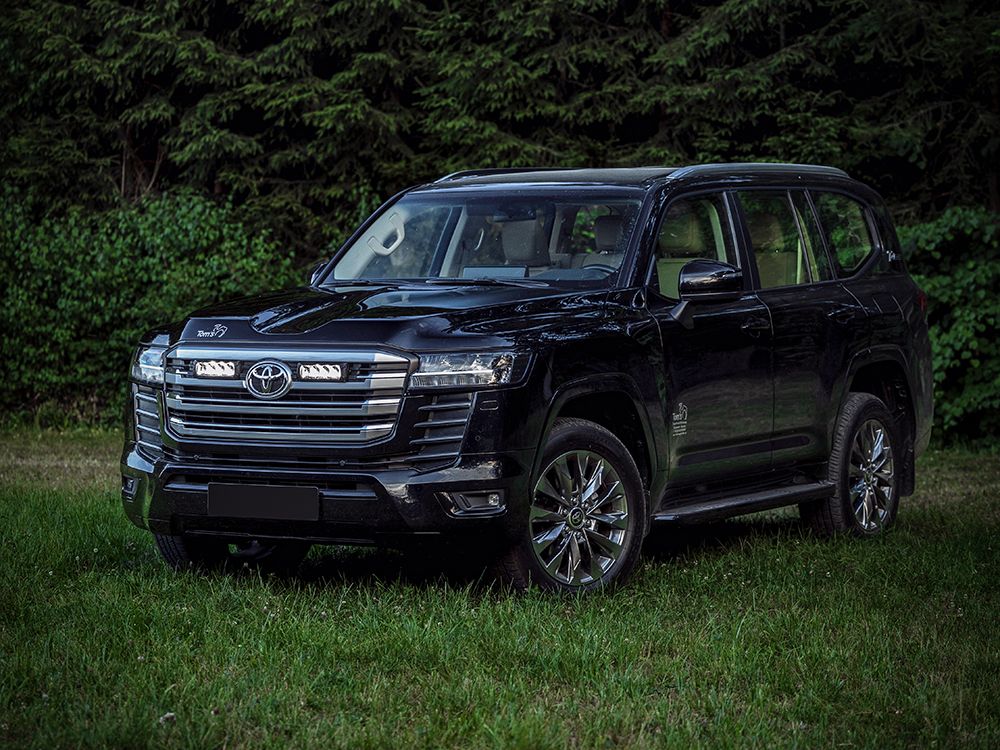

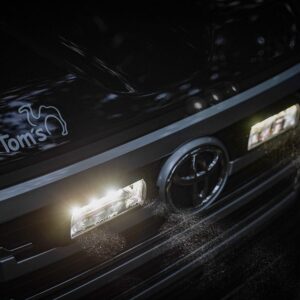

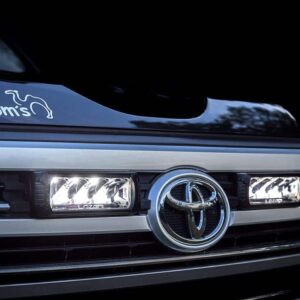

The Toyota Landcruiser 300 Series (2022+) integration kit includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied anti-theft self-tapping screws. Made from high strength composite material, known for being exceptionally robust and UV stable. The brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
The Toyota Land Cruiser 300 Series Grille Integration Kit is optimised for use with Triple-R 750 High Performance LED Spotlights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface. For advice on how to check for a 12V high beam signal, please click here.
Lazer Lamps TOYOTA LAND CRUISER 300 SERIES GRILLE KIT
PRODUCT FEATURES
Bespoke mounting bracket kit for Lazer LED Spotlight installation
Custom fit for Toyota Landcruiser 300 Series (2022+)

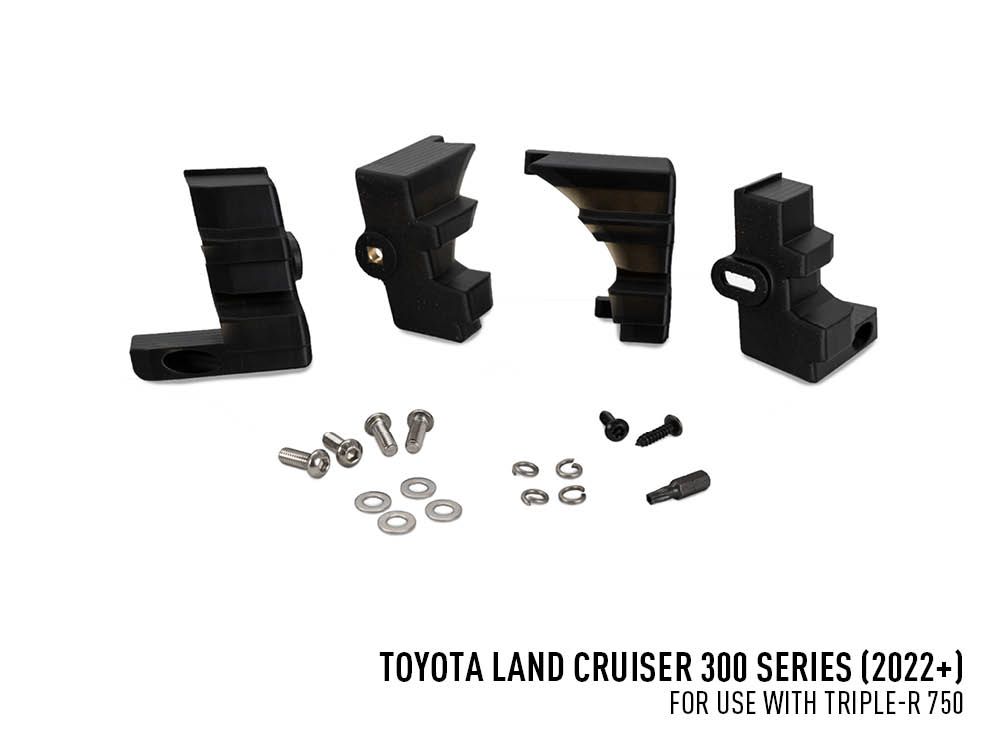

Kits include: 4x brackets, cutting guides, and fasteners
Made from high strength, UV-stable, composite material
5-year warranty
Made in Britain
Optimised for use with Triple-R 750 LED Spotlights
TECHNICAL SPECIFICATIONS
| 2x Triple-R 750 Elite (E-Boost Mode) |
2x Triple-R 750 |
|
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs |
| Weight | 2 kg | 2 kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 10136 Lm | 9240 Lm |
| Total Driver ‘FOV’ Flux † | 6680 Lm | 5572 Lm |
| Colour Temperature | 5000K | 5000K |
| Number of High Output LEDs | 2 x 4 | 2 x 4 |
| Power Consumption | 104 Watts | 88 Watts |
| Current Draw (at 14.4V) | 7.2 Amps | 6.2 Amps |
| CERTIFICATION | ||
| High Beam | ECE R112 | ECE R112 |
| ECE Reference | N/A (12.5 x2 – E-Mark Mode) |
35 x2 |

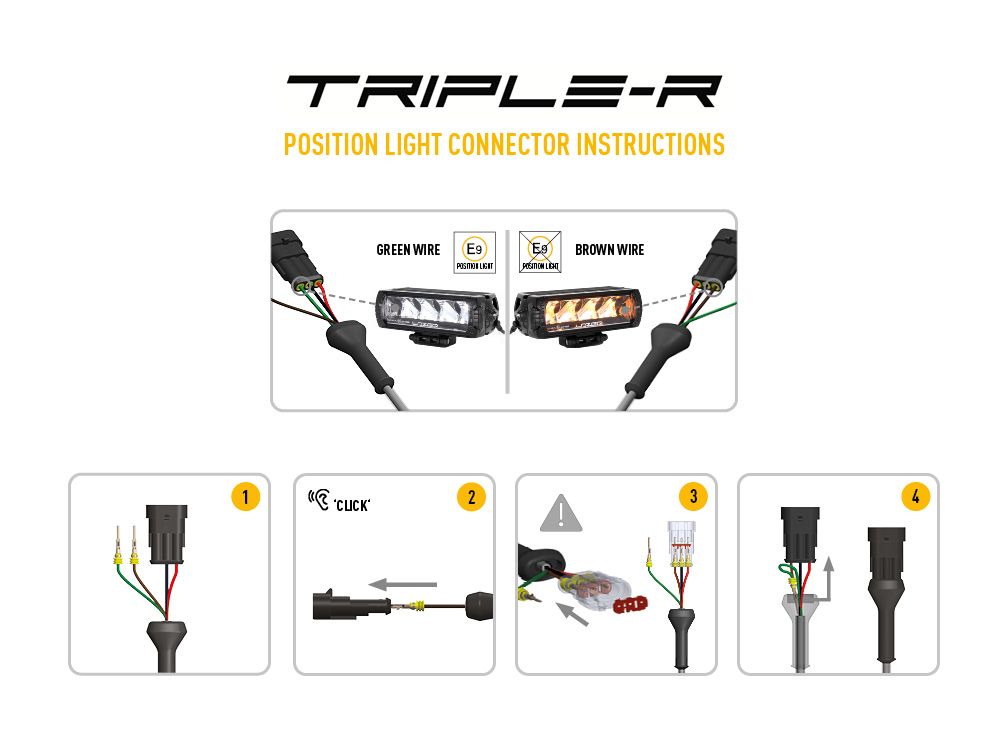

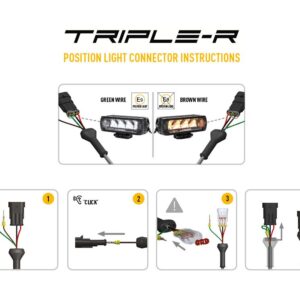

| Position Light (White only) | N/A | ECE R7 |

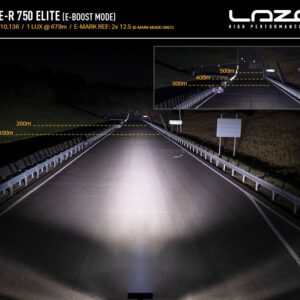

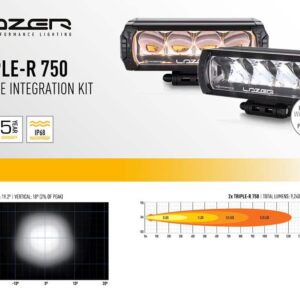

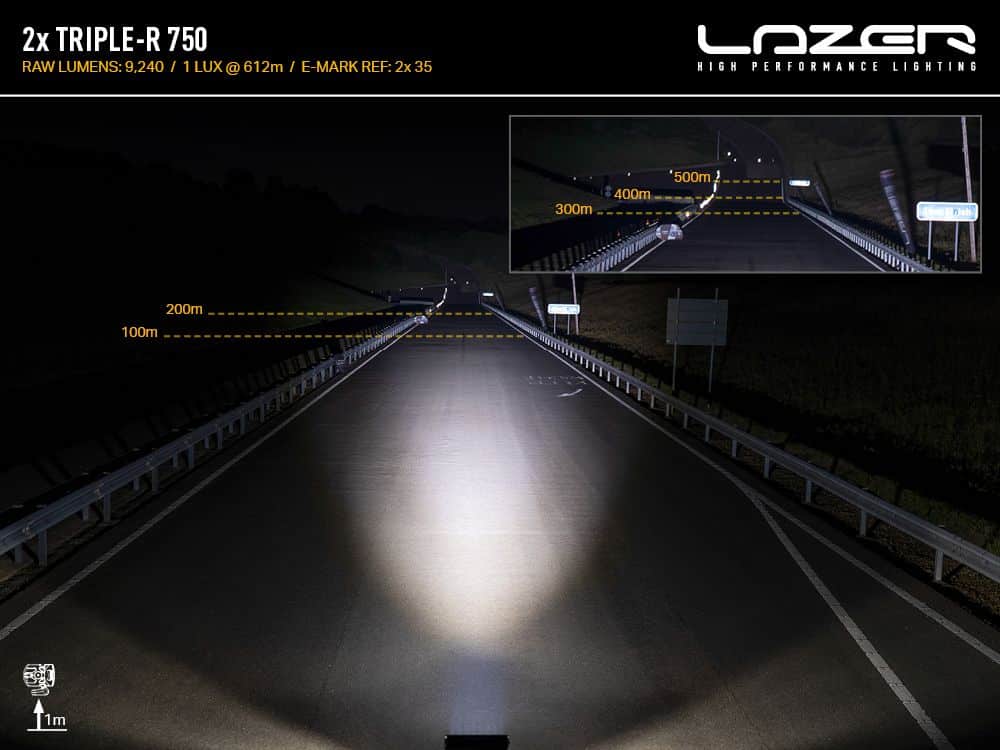

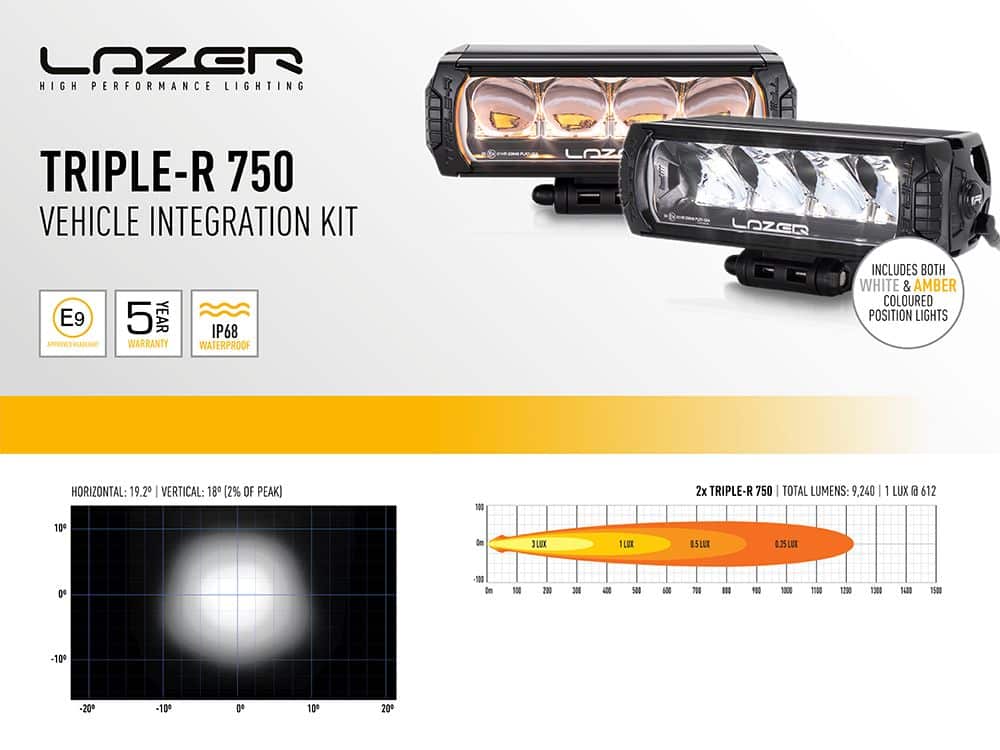

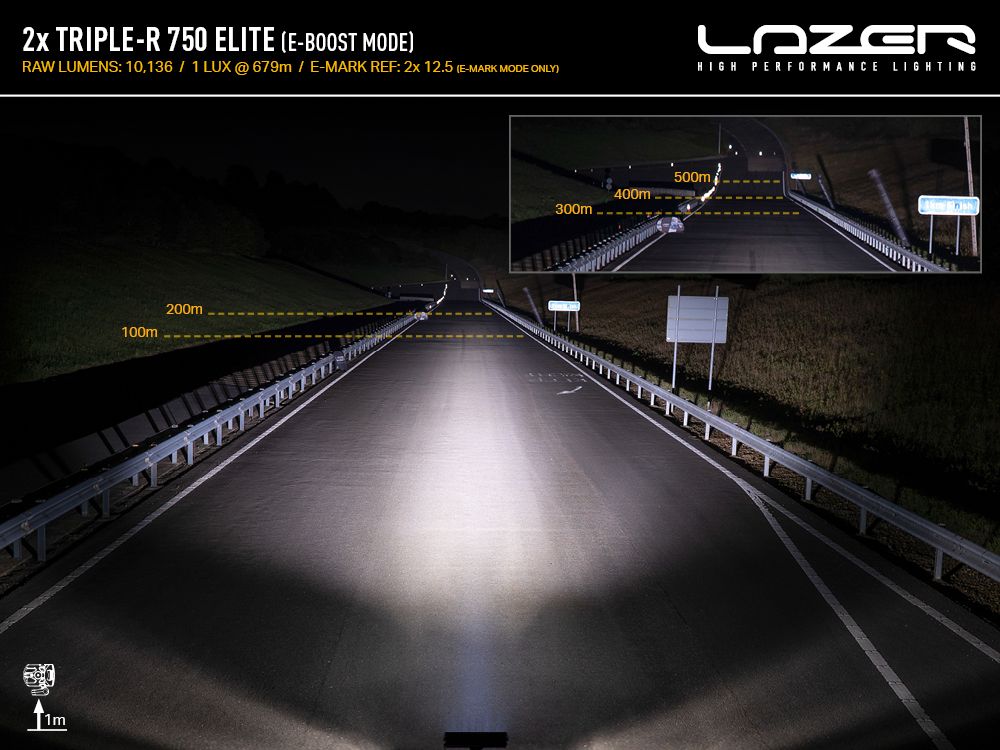

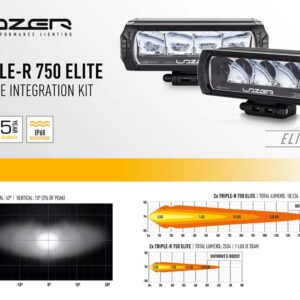

| PHOTOMETRIC DATA | ||
| Horizontal Beam Angle | 42° | 19° |
| 0.25 lx Line | 1358m | 1225m |
| 0.5 lx Line | 960m | 866m |
| 1 lx Line | 679m | 612m |
| 3 lx Line | 392m | 354m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- 1x Grille Mounting Kit (Includes cutting guides)
- 2x Triple-R 750 LED Lamps
- 1x Two-Lamp Wiring Kit
- Installation Instructions
DOWNLOADS
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
VIDEOS
| Car brand | TOYOTA |
|---|---|
| Product manufacturer | LAZER LAMPS |
| Brand | INTEGRATION KITS, LIGHTS |
| LUMENS | 9240, 10136 |
| Lazer Lamps | Triple-R 750, Triple-R 750 Elite |
