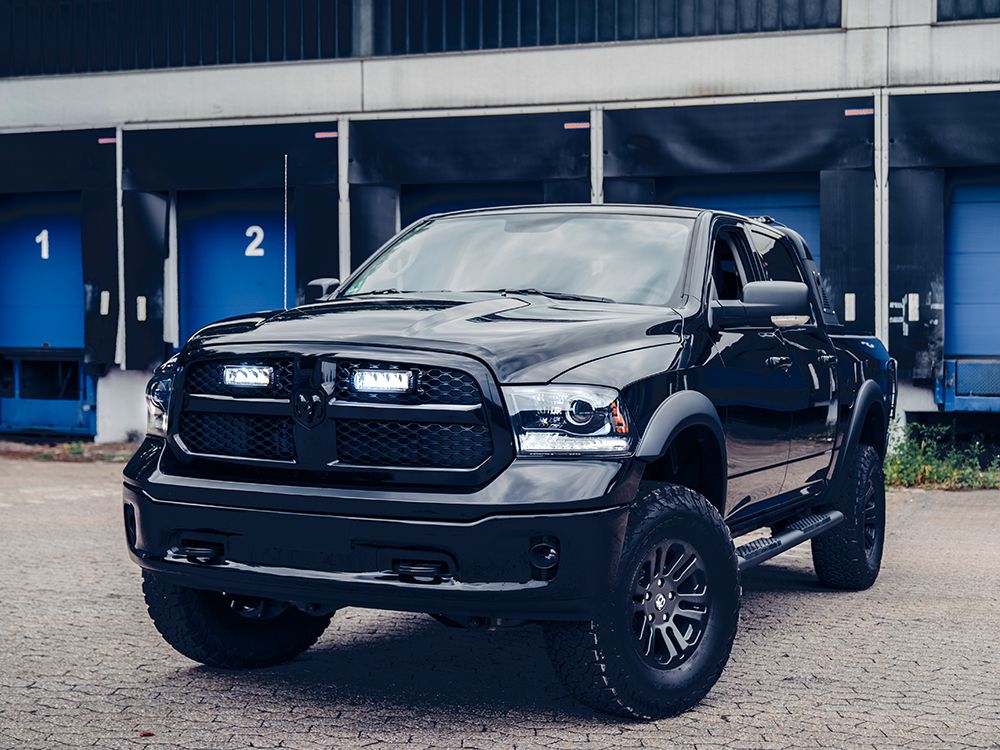

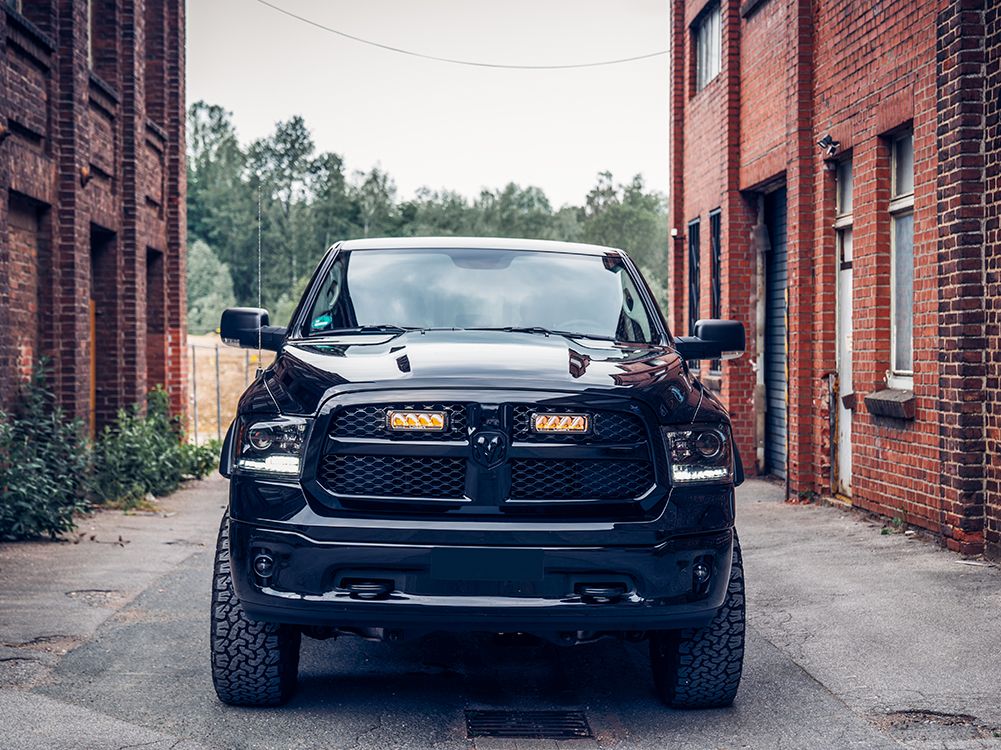

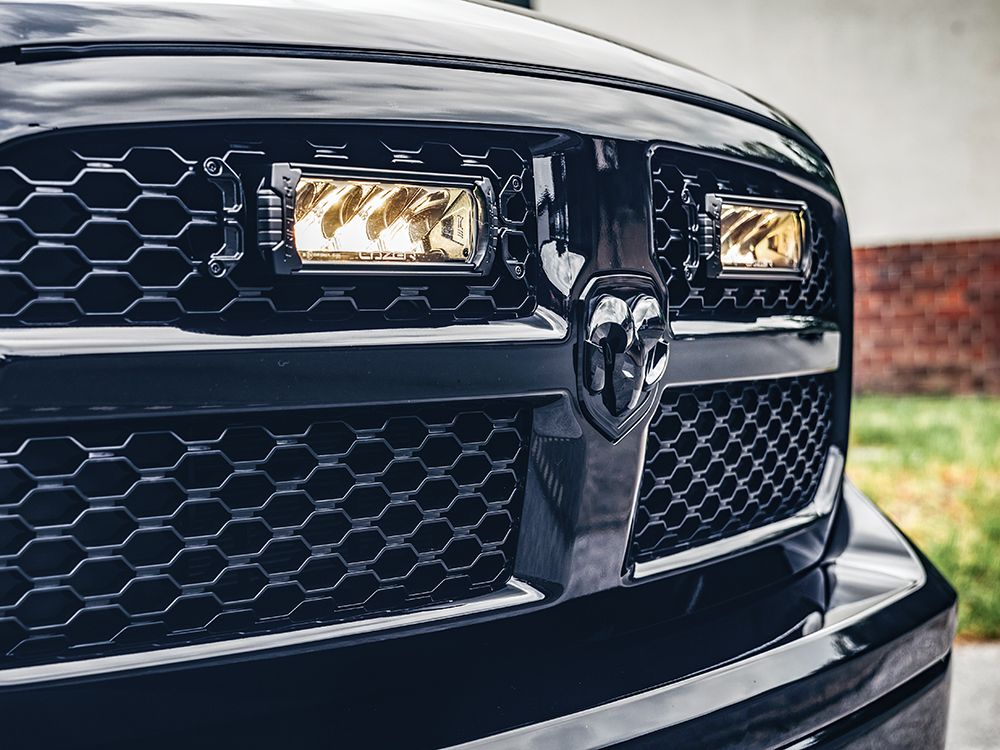

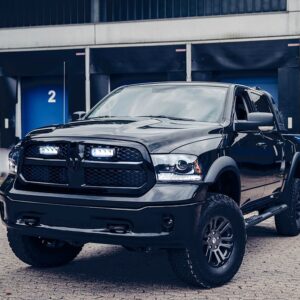

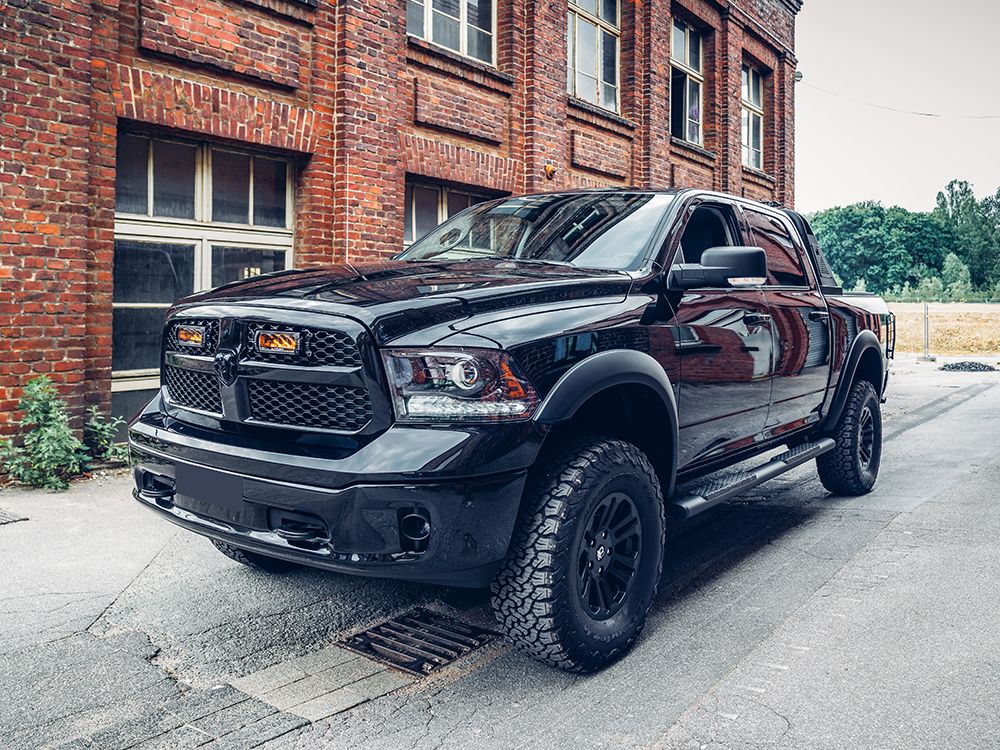

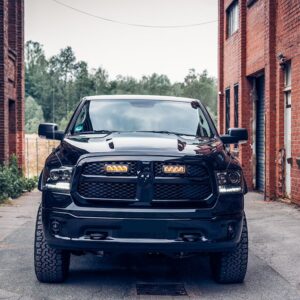

Lazer Lamps RAM 1500 CLASSIC (2013+) GRILLE KIT
PRODUCT FEATURES

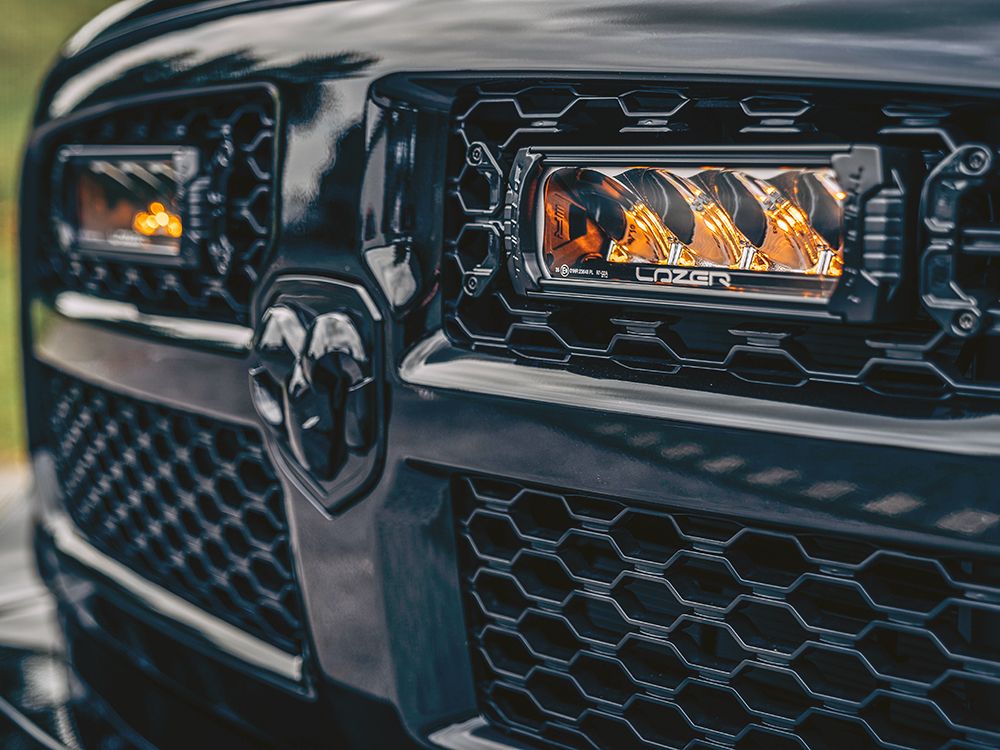

Bespoke vehicle integration kit for Lazer LED Driving Light installation

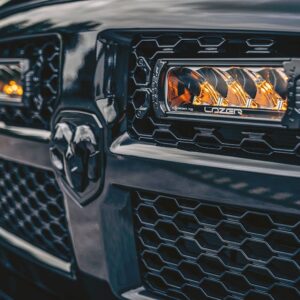

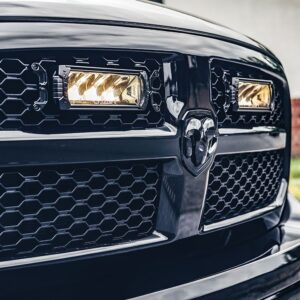

Custom fit for RAM 1500 (2013+)
For use with Triple-R 750 Performance LED driving lights

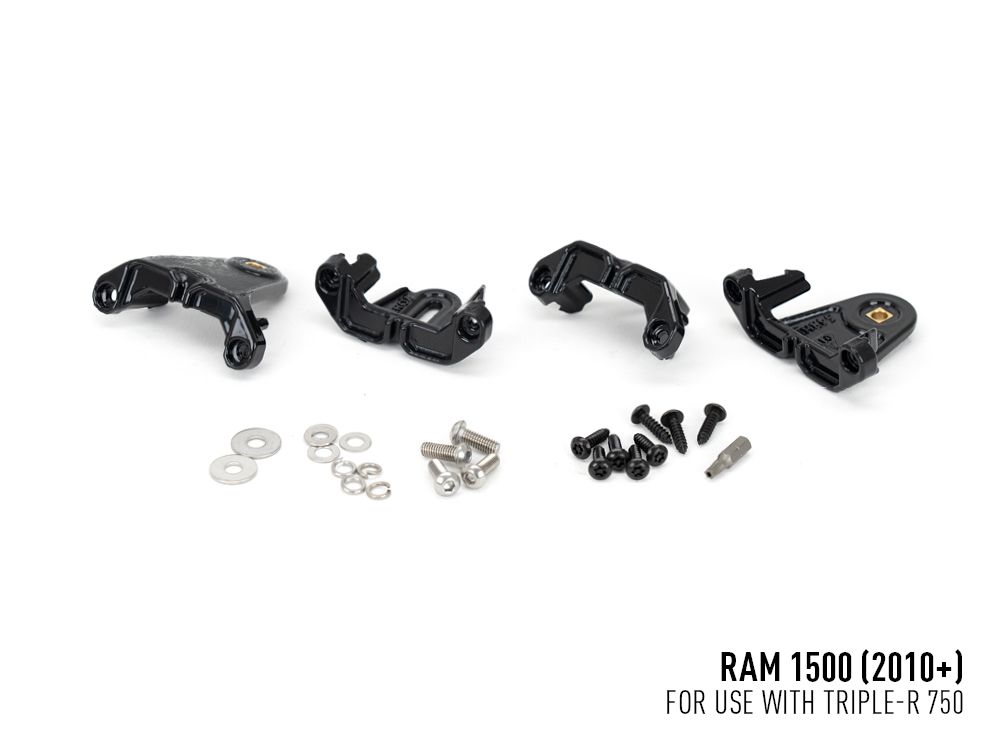

Kit also includes bespoke mounting brackets and two-lamp wiring kit
Cutting guides included
Brackets made from high strength, UV -stable, ASA material
Fully road-legal
5-year warranty
Made in Britain
TECHNICAL SPECIFICATIONS
Based on: x2 Triple-R 750 LED Lamps.
Voltage Range | 10-32V |
LED Life | 50,000 hours |
Weight | 2 kg |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 9240 Lm |
Total Driver ‘FOV’ Flux † | 5572 Lm |
Colour Temperature | 5000K |
Number of High Output LEDs | 2 x 4 |
Power Consumption | 88 Watts |
Current Draw (at 14.4V) | 6.2 Amps |
CERTIFICATION | |
High Beam | ECE R112 |
E-Mark Ref | 35 x2 |

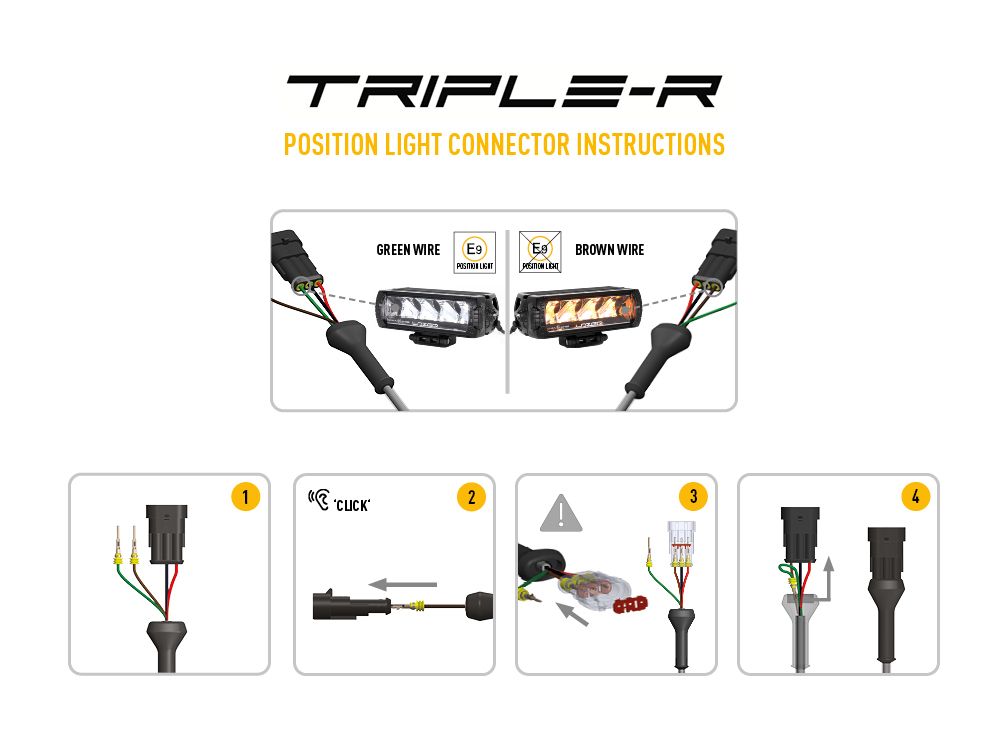

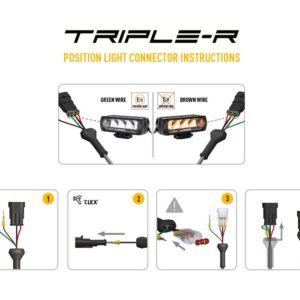

Position Light (White only) | ECE R7 |

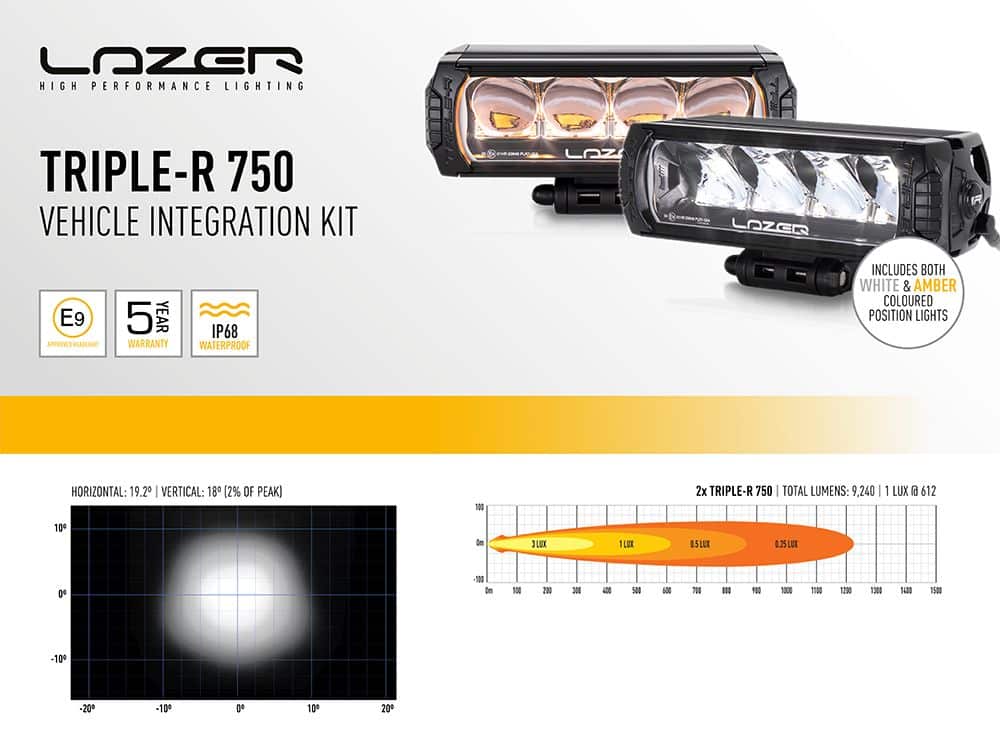

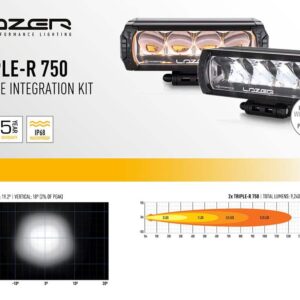

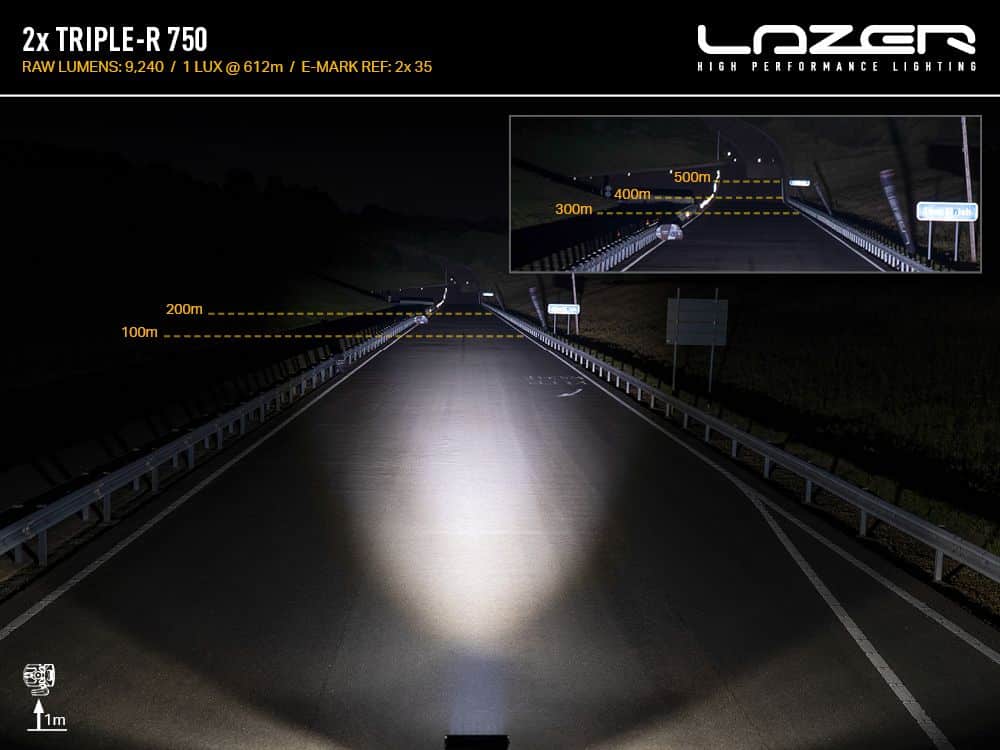

PHOTOMETRIC DATA | |
Horizontal Beam Angle | 19 Degrees |
0.25 lx Line | 1225 metres |
0.5 lx Line | 866 metres |
1 lx Line | 612 metres |
3 lx Line | 354 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- 1x Grille Mounting Kit (Includes cutting guides)
- 2x Triple-R 750 LED Lamps
- 1x Two-Lamp Wiring Kit
- Installation Instructions
