Lazer Lamps NISSAN PATROL Y62 (SERIES 4) GRILLE KIT
666,06€ – 795,13€ WITH TAX
Lazer Lamps NISSAN PATROL Y62 (SERIES 4) GRILLE KIT
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits are bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.

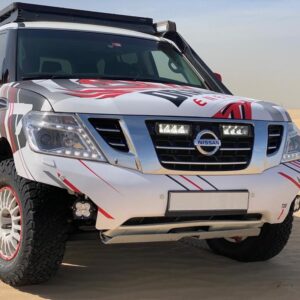

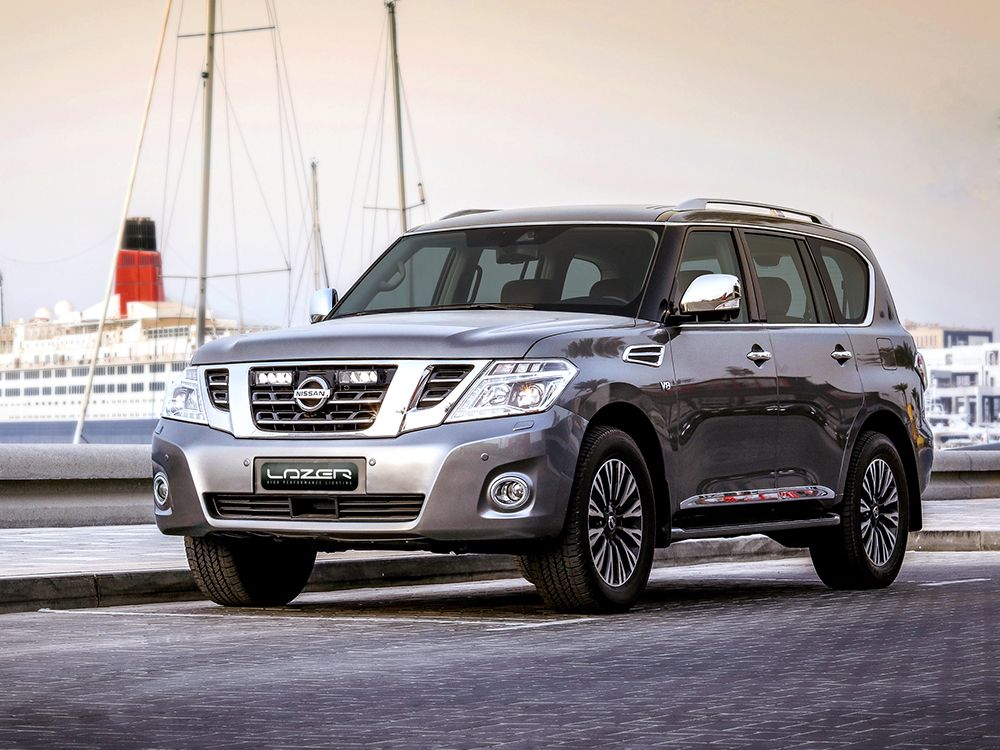

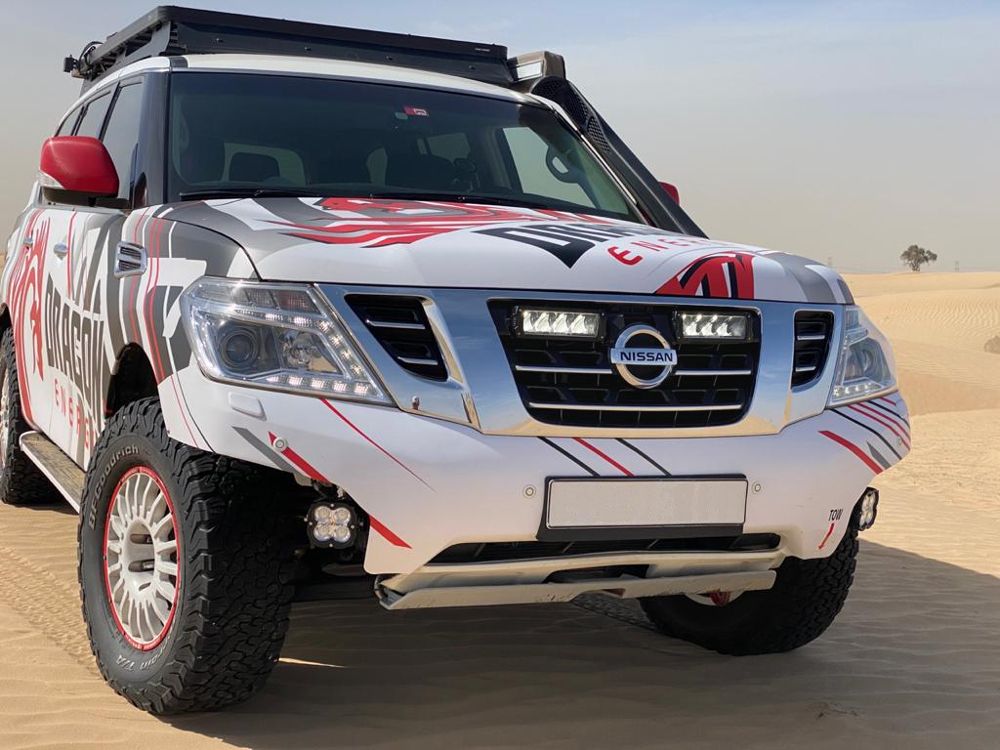

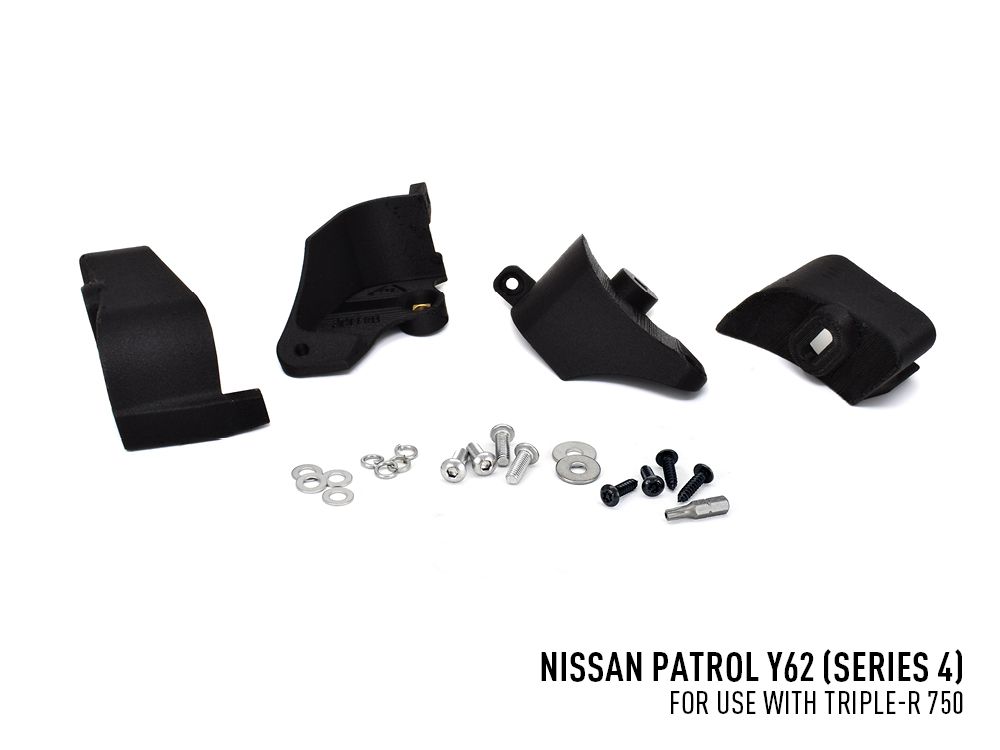

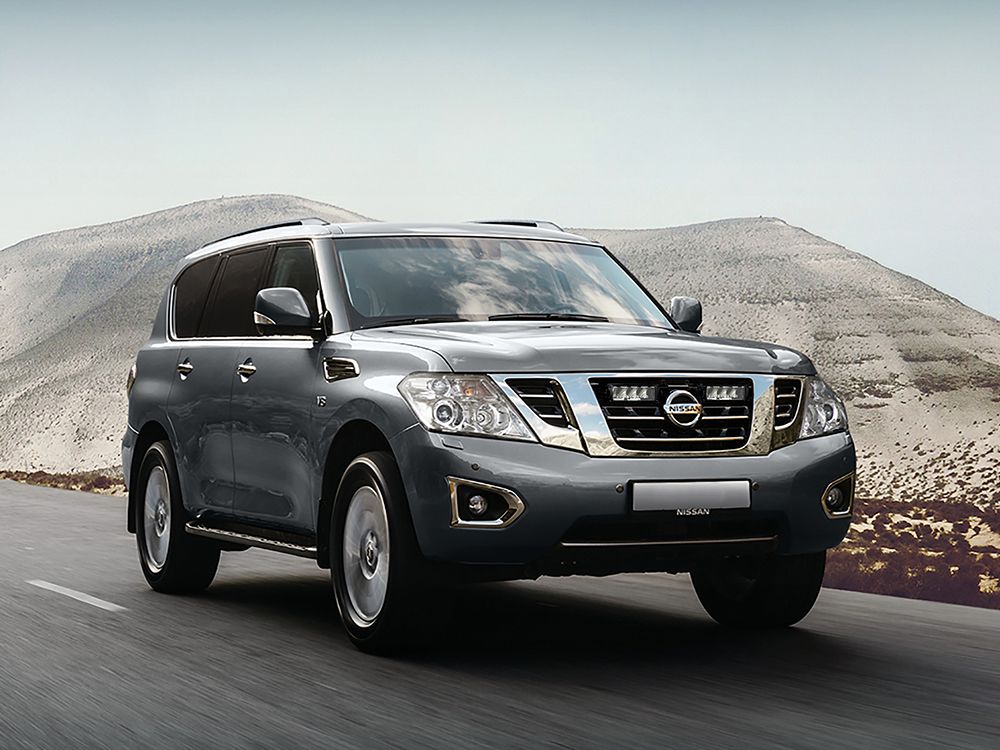

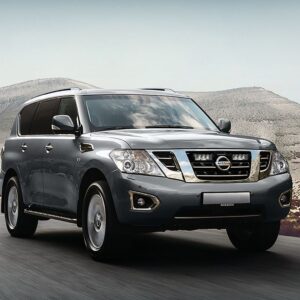

The Nissan Patrol Y62 kit, designed for series 4 (2018-2020) vehicles, features 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Specially manufactured from a carbon-fibre and nylon composite material (CF-PA12), material specially selected for the Y62 to withstand extremes of temperature, the brackets provide excellent strength and UV stability, to ensure your installation is fully weather and chemical resistant staying in great condition year after year.
The Nissan Patrol Y62 (Series 4) Grille Integration Kit is optimised for use with Triple-R 750 High Performance LED Spotlights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
Lazer Lamps NISSAN PATROL Y62 (SERIES 4) GRILLE KIT
PRODUCT FEATURES
Bespoke mounting bracket kit for Lazer LED Spotlight installation
Custom fit for Nissan Patrol Y62 (series 4)
Mounting kits include: 4x brackets and fasteners
Made from carbon-fibre and nylon composite material to withstand extremes of temperature

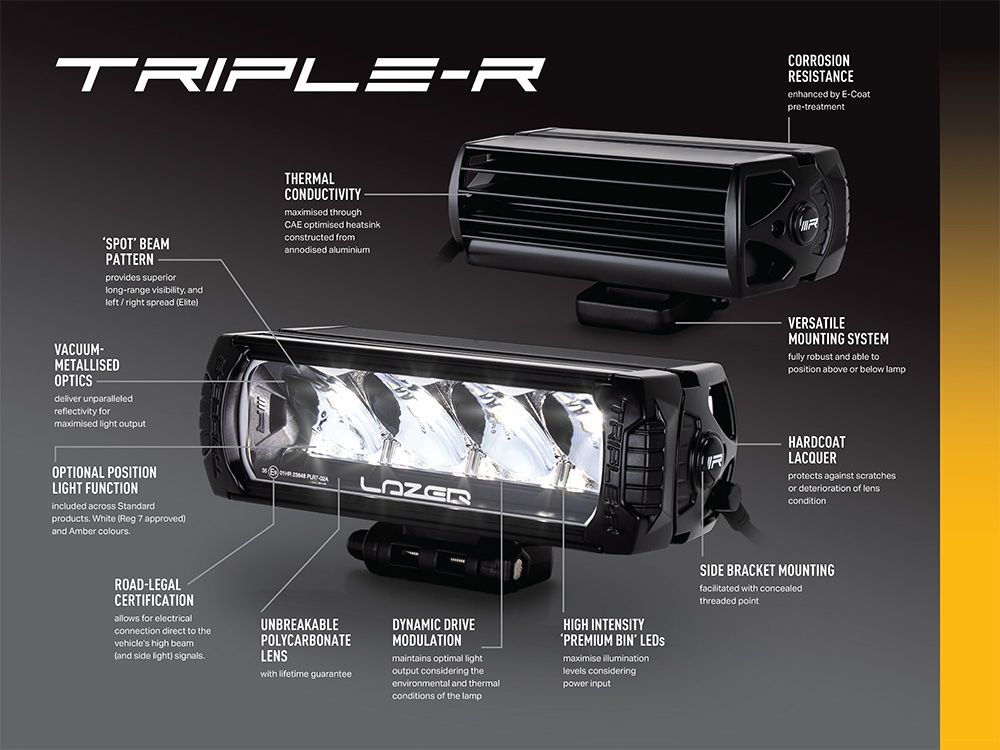

Optimised for use with Triple-R 750 LED Spotlights
Added option for white or amber position/side light function (Standard model only)
Wiring harness kits available
5-year warranty
Made in Britain

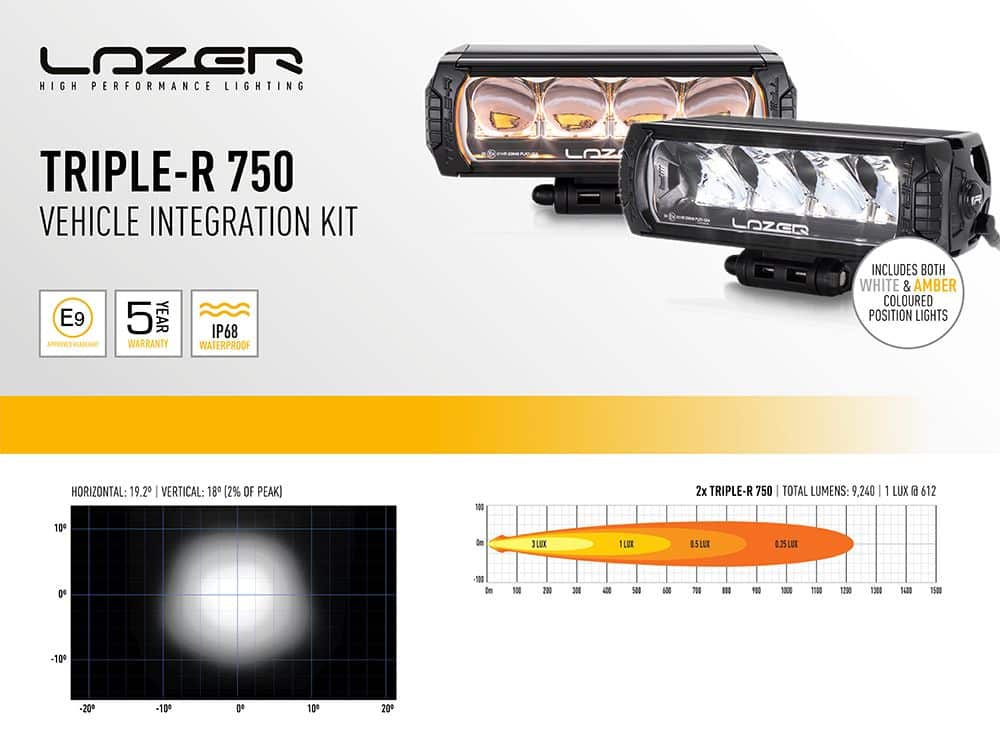

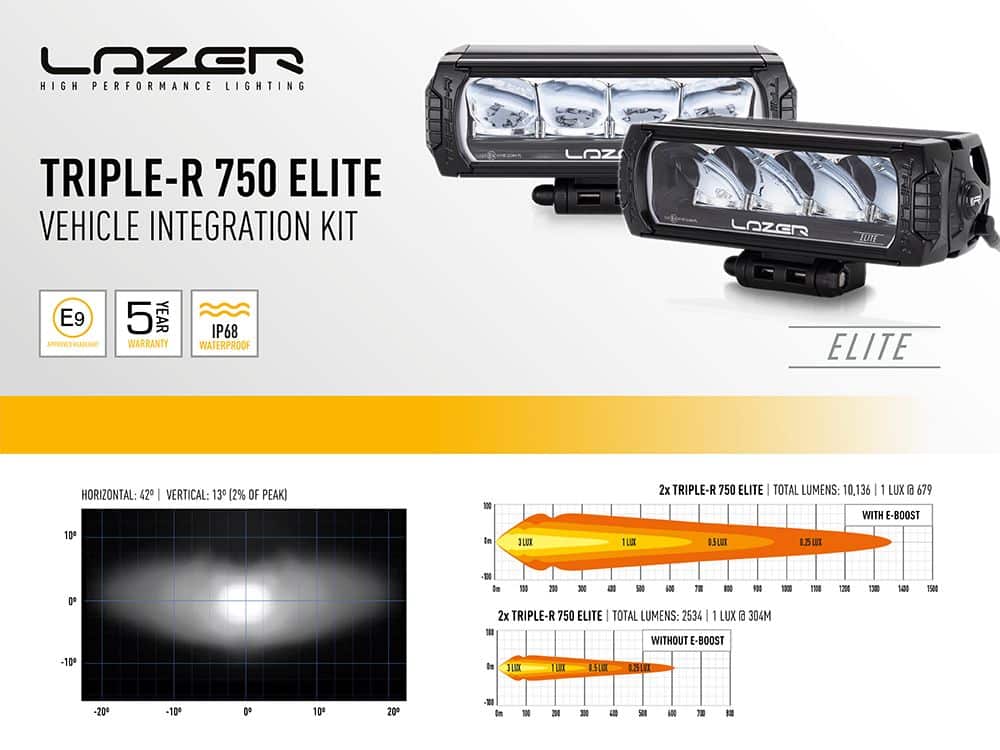

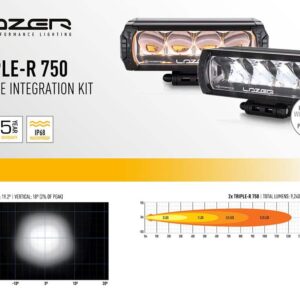

TECHNICAL SPECIFICATIONS

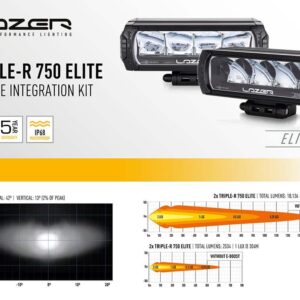

| 2x Triple-R 750 Elite (E-Boost Mode) |
2x Triple-R 750 |
|
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs |
| Weight | 2 kg | 2 kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 10136 Lm | 9240 Lm |
| Total Driver ‘FOV’ Flux † | 6680 Lm | 5572 Lm |
| Colour Temperature | 5000K | 5000K |
| Number of High Output LEDs | 2 x 4 | 2 x 4 |
| Power Consumption | 104 Watts | 88 Watts |
| Current Draw (at 14.4V) | 7.2 Amps | 6.2 Amps |
| CERTIFICATION | ||
| High Beam | ECE R112 | ECE R112 |
| ECE Reference | N/A (12.5 x2 – E-Mark Mode) |
35 x2 |
| Position Light (White only) | N/A | ECE R7 |

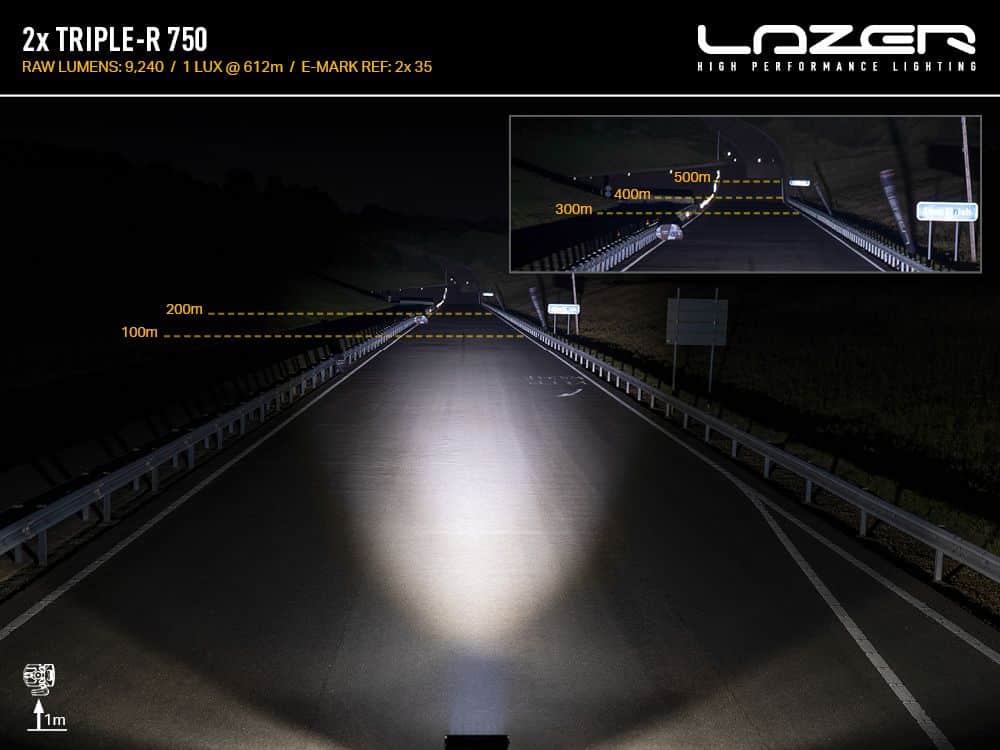

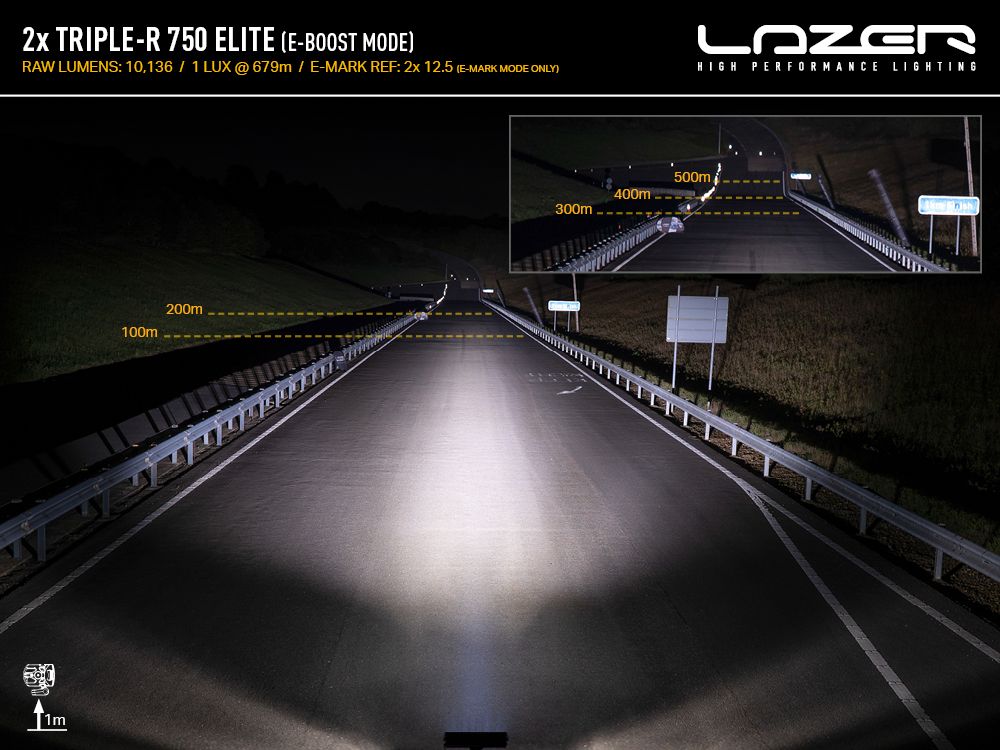

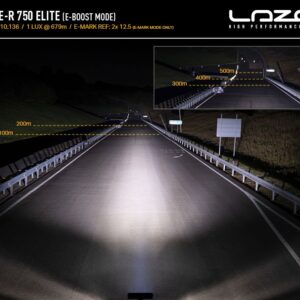

| PHOTOMETRIC DATA | ||
| Horizontal Beam Angle | 42° | 19° |
| 0.25 lx Line | 1358m | 1225m |
| 0.5 lx Line | 960m | 866m |
| 1 lx Line | 679m | 612m |
| 3 lx Line | 392m | 354m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- 1x Grille Mounting Kit (Includes cutting guides)
- 2x Triple-R 750 LED Lamps

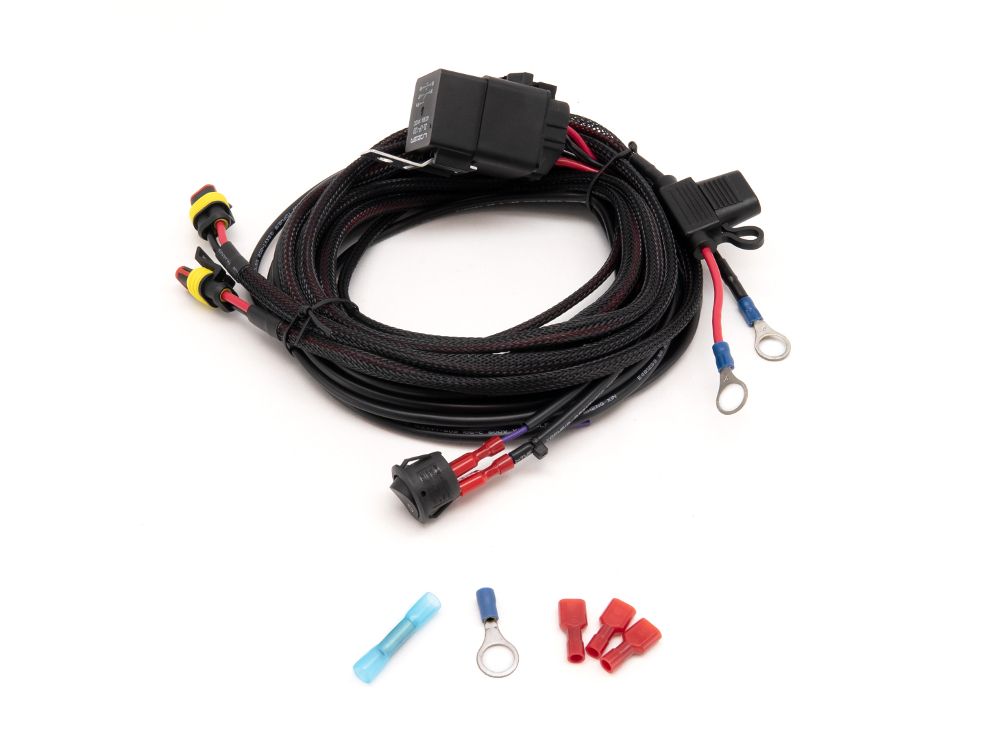

- 1x Two-Lamp Wiring Kit
- Installation Instructions
DOWNLOADS
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
VIDEOS
| Car brand | NISSAN |
|---|---|
| Product manufacturer | LAZER LAMPS |
| Brand | INTEGRATION KITS, LIGHTS |
| LUMENS | 9240, 10136 |
| Lazer Lamps | Triple-R 750, Triple-R 750 Elite |
