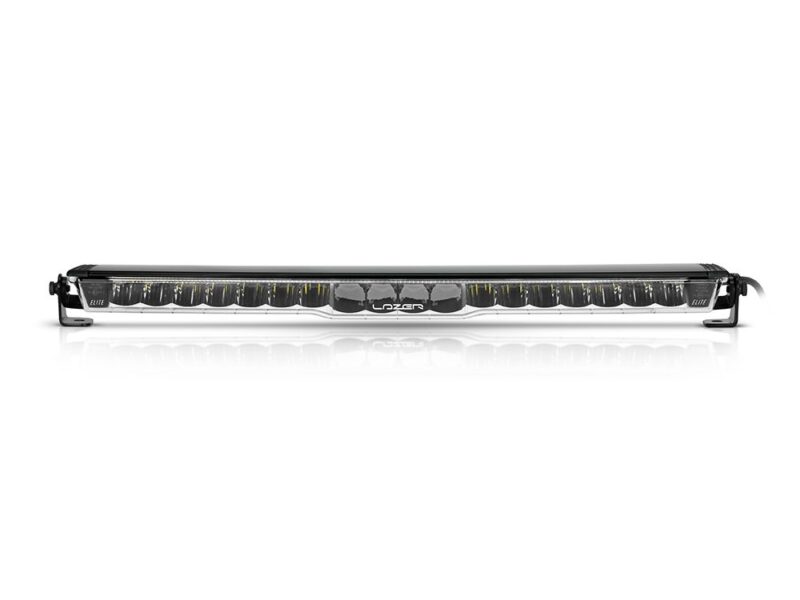

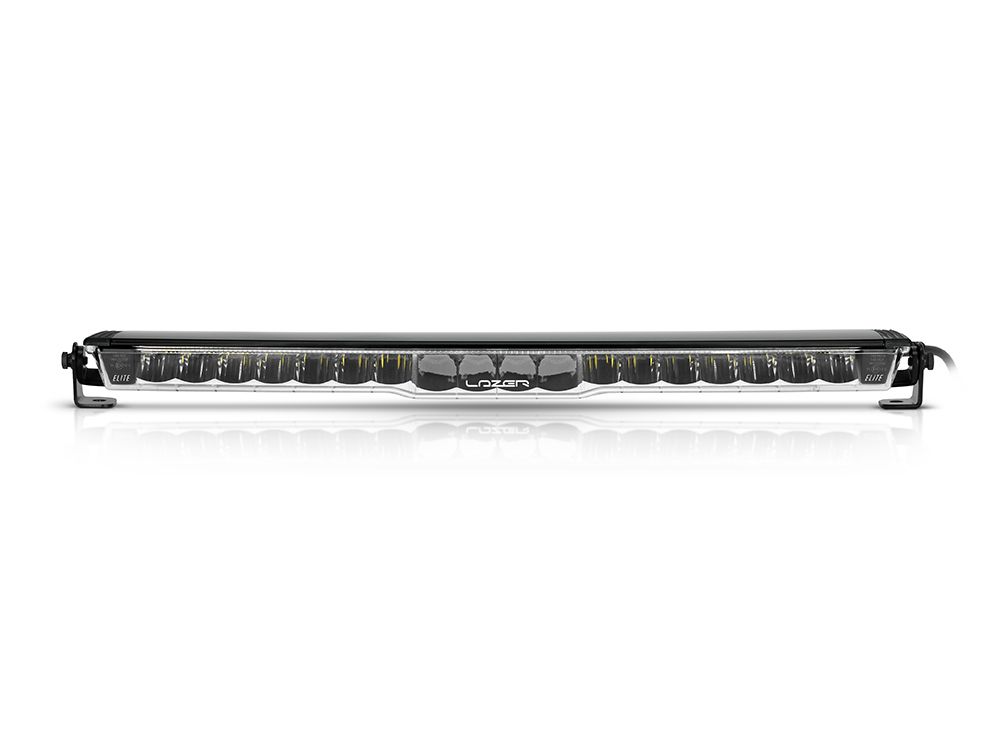

Lazer Glide Elite (with Side Mount Kit) 0G18-EL-SM

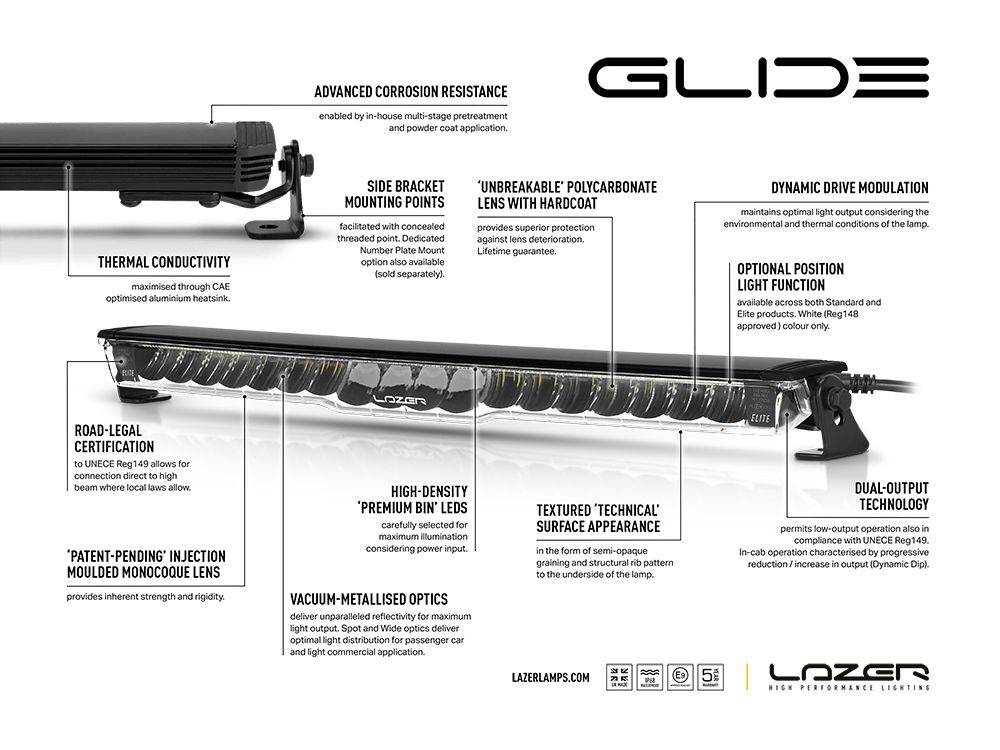

PRODUCT FEATURES

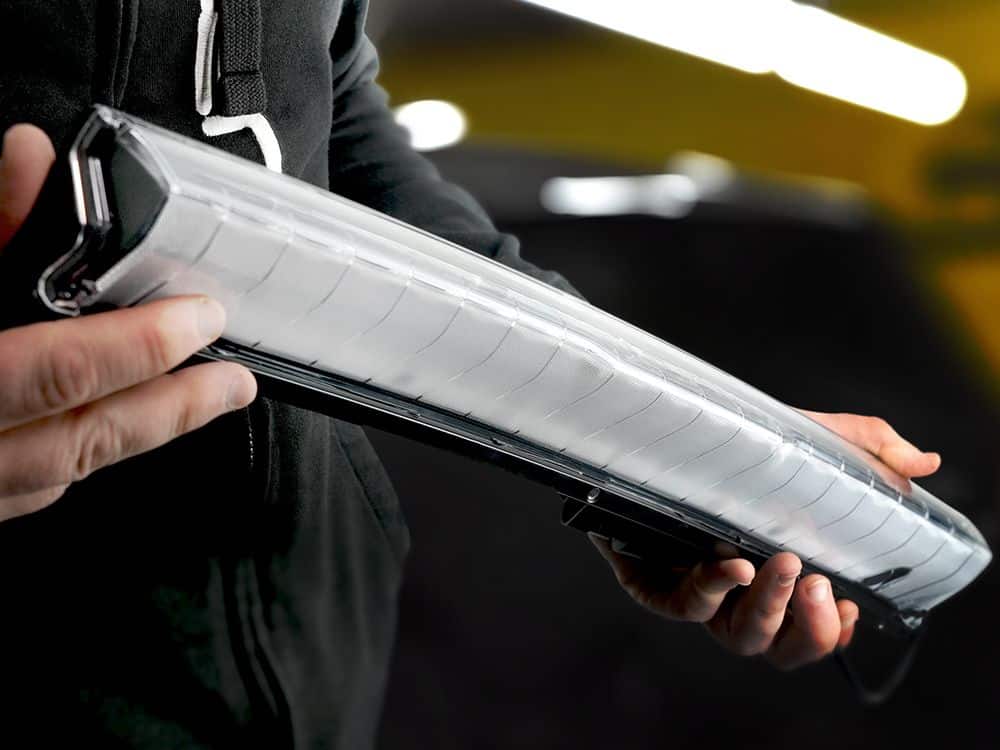

‘Formed’ light bar featuring injection-moulded monocoque lens construction

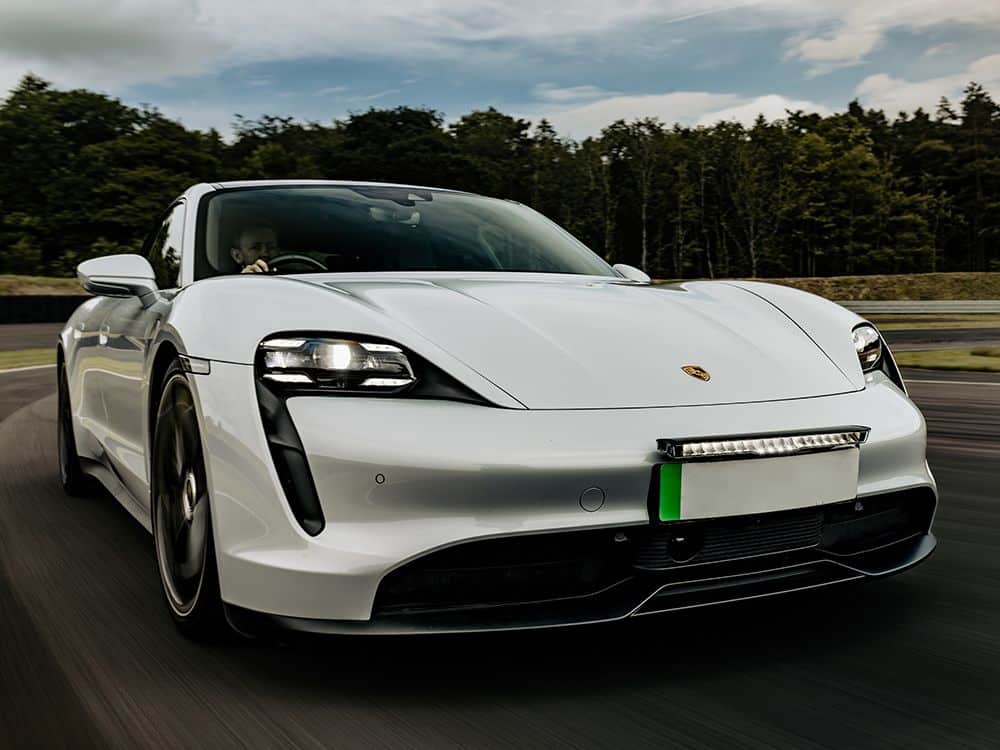

Curved and ultra low-profile lamp design facilitates OE quality vehicle installation
Patent-pending lamp design
Incorporation of the latest high-intensity ‘premium bin’ LEDs
Combined vacuum-metallised spot and wide optic systems deliver optimal light distribution
Dynamic Dip function for transitioning between high and low output modes
UNECE approved Reg 149 (Class B Driving Light) for on-road high beam function – Low Output / E-Mark mode only
Optional integrated white position light function – UNECE Reg 148 approved
Adoption of black PCB’s for a contemporary and stealth appearance
‘Unbreakable’ polycarbonate lens with hardcoat (with lifetime guarantee*)

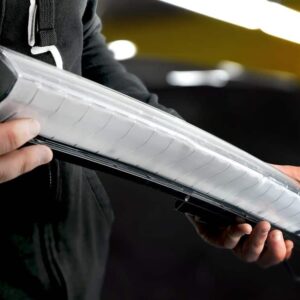

Textured effect to the underside of the polycarbonate lens for a unique aesthetic appearance
5000K LED colour temperature and high 80CRI maximises sharpness and definition

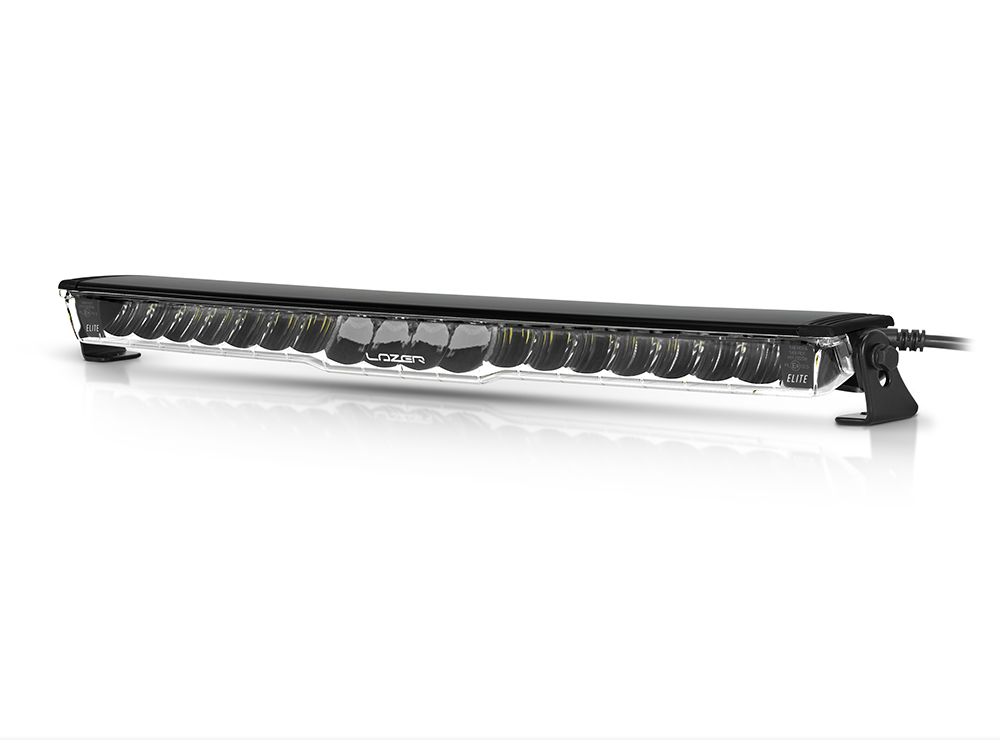

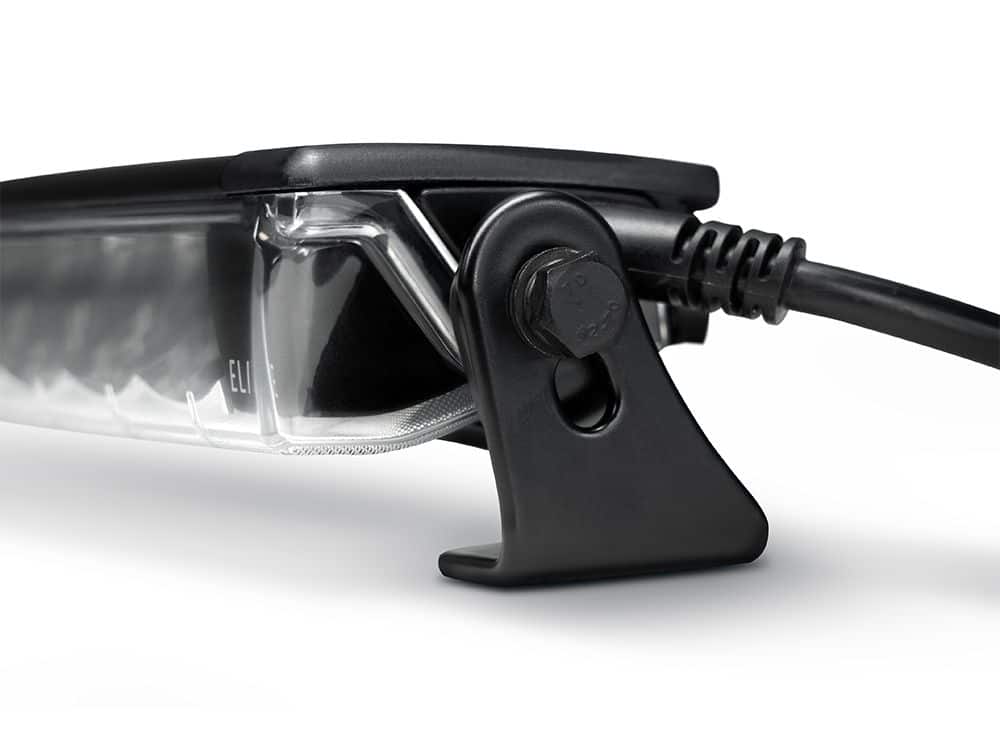

Supplied with side mounting kit – Anti-theft side mounting kit / Number plate mount also available (sold separately)
Electronic thermal management system optimises light output to preserve longevity of the LEDs
In-house pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
Over voltage protected
Reverse polarity protected
UNECE approved Reg 10
IP68 watertight – 1.5m submersion (30mins)
5-year warranty
25cm lamp cable with supplied male/female 2-pin Superseal connectors
Designed and manufactured in UK
TECHNICAL SPECIFICATIONS
BOOST MODE |
LOW OUTPUT/ E-MARK MODE |
|
---|---|---|
Voltage Range (DC) | 10-32V | |
LED Life | 50,000 hours | |
Weight | 0.68 kg | |
HIGH BEAM FUNCTION | ||
Total Luminous Flux | 12,800 Lm | 3,840 Lm |
Total Driver ‘FOV’ Flux † | 8,012 Lm | 2,403 Lm |
Colour Temperature | 5000K | |
Power Consumption | 130 Watts | 38 Watts |
Peak Current Draw | 12.6 Amps | 2.7 Amps |
Current Draw (14.4V) | 9.2 Amps | 2 Amps |
Connector | 2-Pin/3-Pin Superseal (+25cm Cable) | |

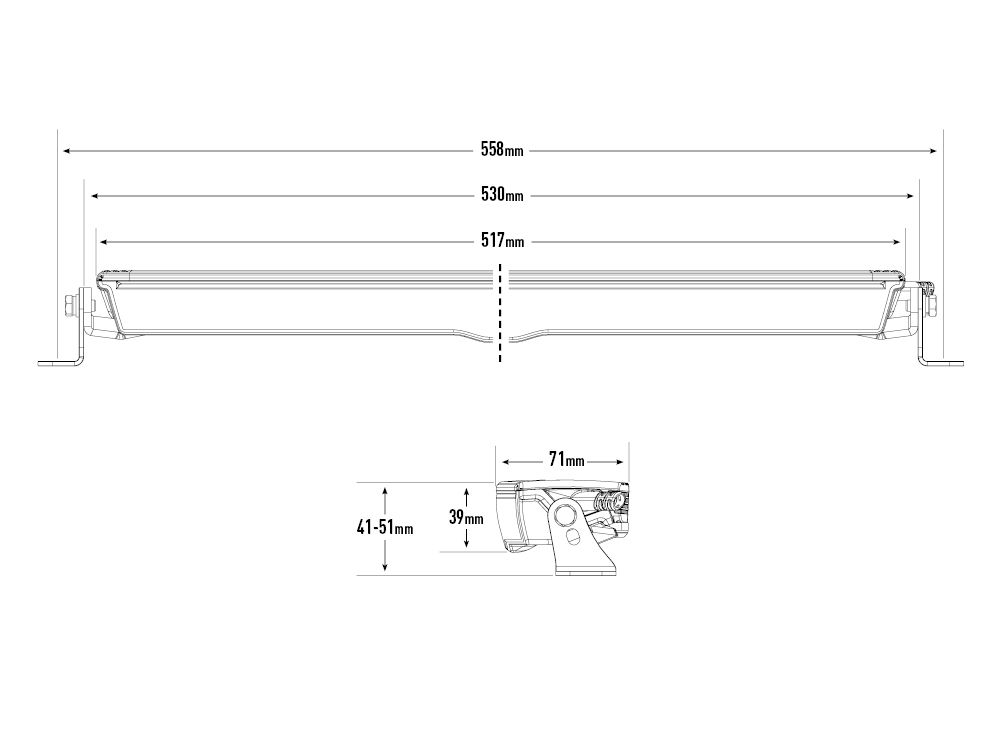

DIMENSIONS | ||
Width | 517 mm | |
Depth | 71 mm | |
Height | 39 mm | |
CERTIFICATION | ||
IP Rating # | IP68 | |
High Beam (E9 approval) | ECE R149 (Double E-Mark) – Ref: 2x 12.5 (in Low Output Mode only) | |
EMC Certification | ECE R10 | |
Salt Spray Test | ISO 9227 | |
Dump Load Protection | ISO 7637-2 | |

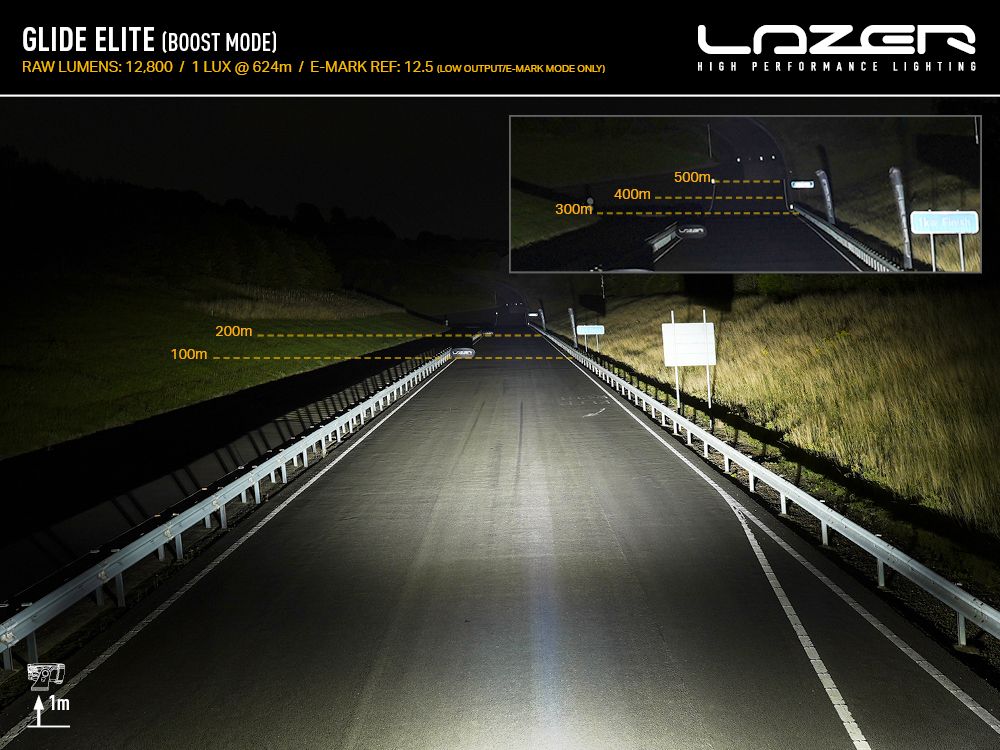

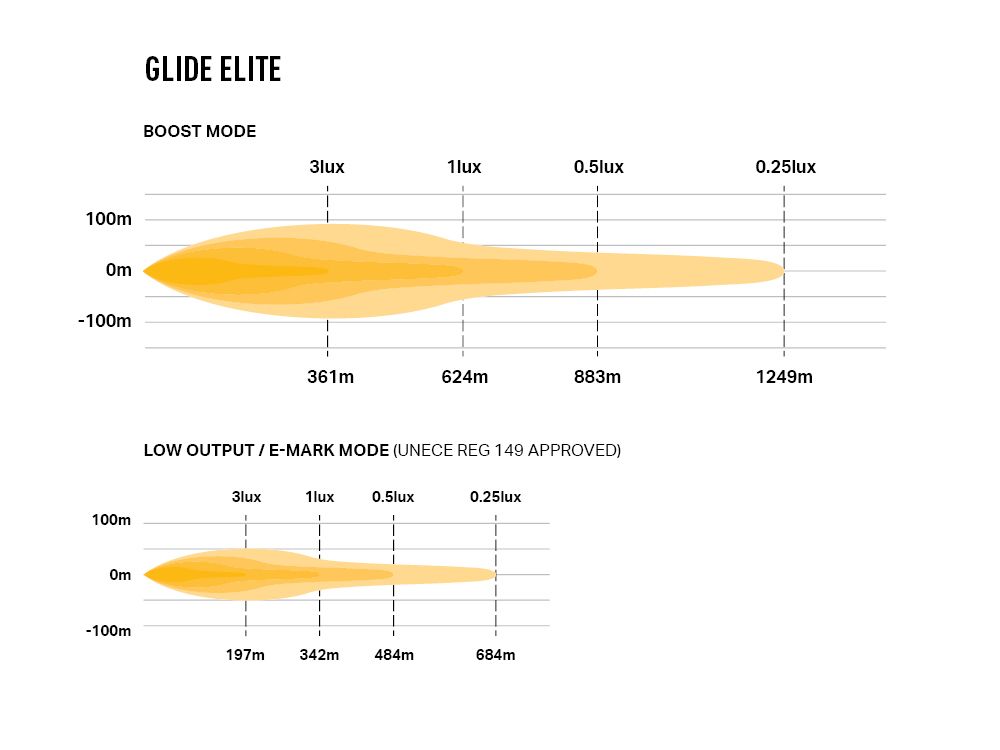

PHOTOMETRIC DATA | ||

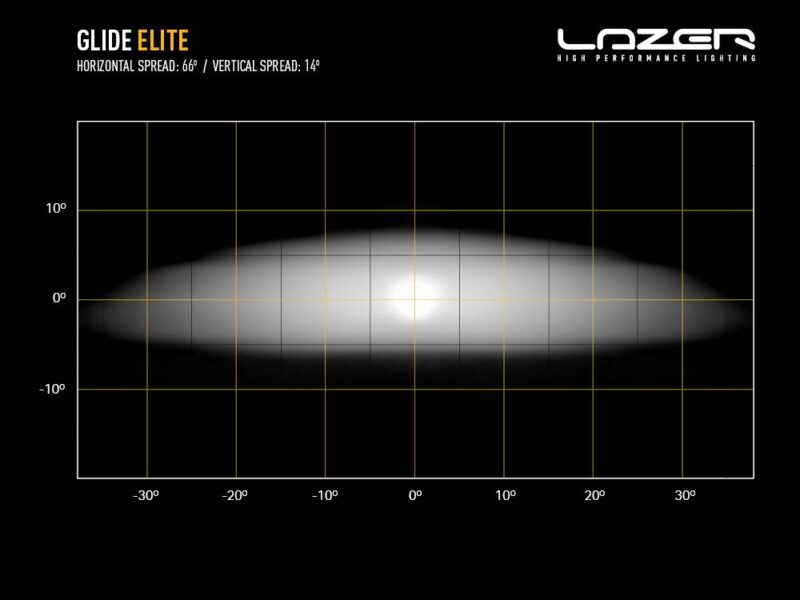

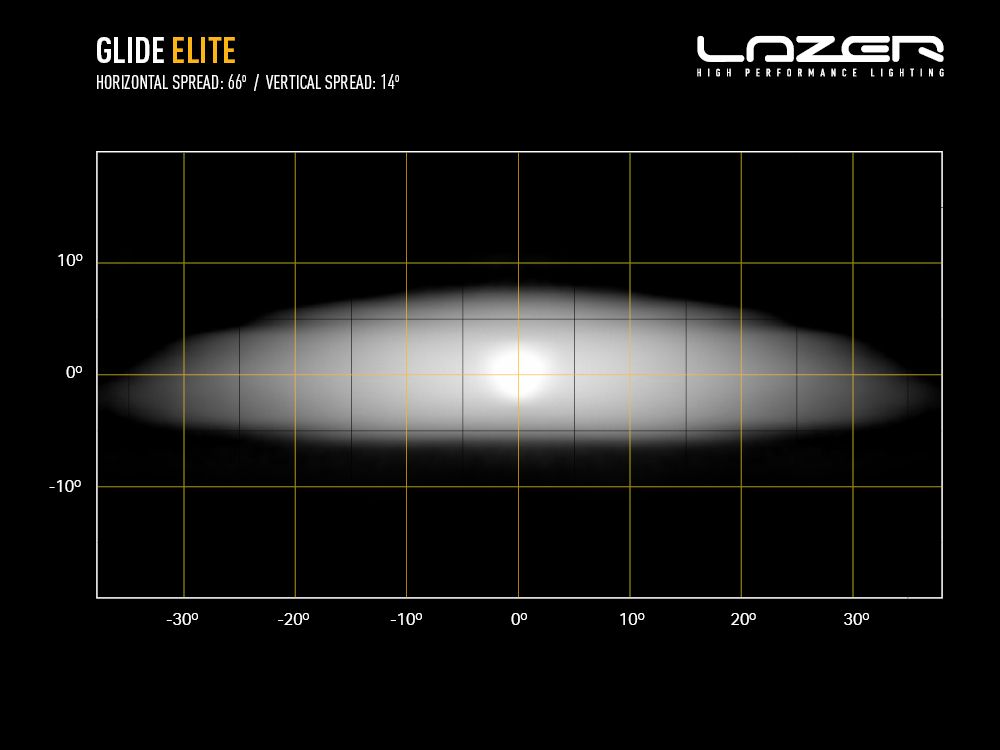

Horizontal / Vertical Beam Angle | 66° / 14° | |
0.25 lx Line | 1249m | 682m |
0.5 lx Line | 883m | 484m |
1 lx Line | 624m | 342m |
3 lx Line | 361m | 197m |
† – Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
# – All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
WHAT’S INCLUDED

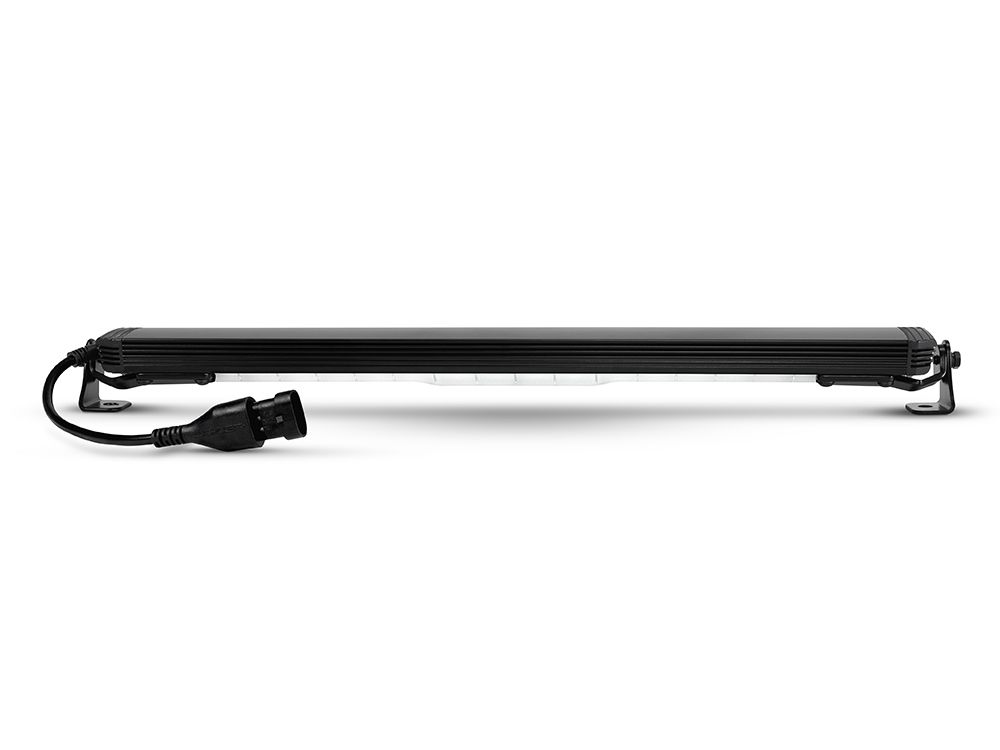

- Glide Elite LED Lightbar

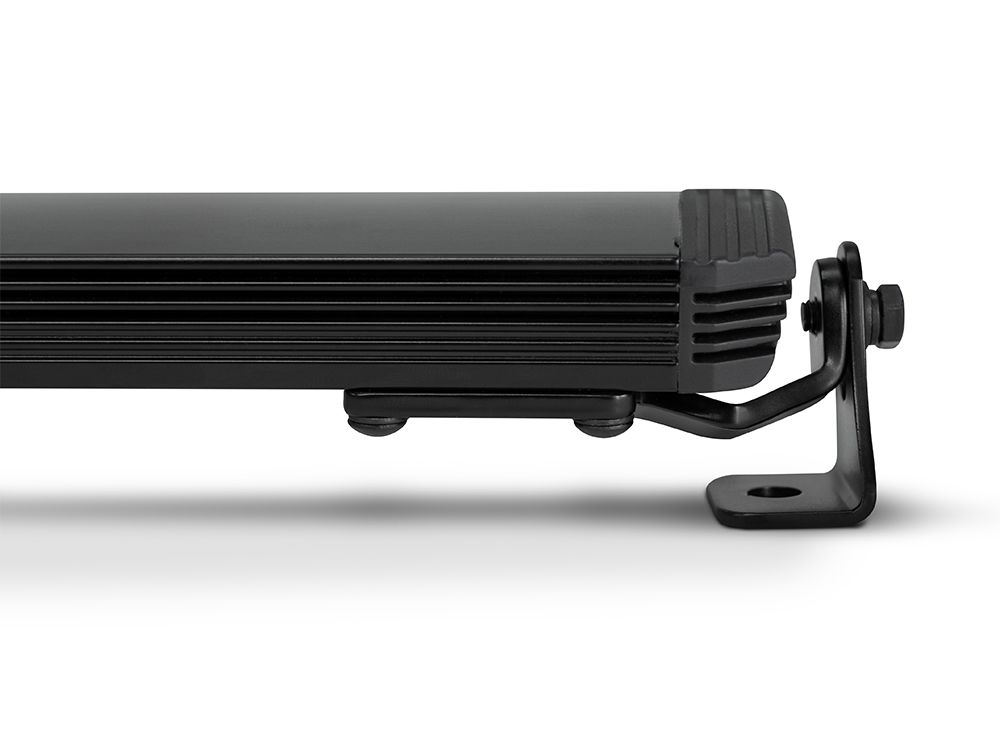

- Side Mounting Kit (1131K)
- Installation Instructions
