Lazer Four-Lamp Harness Kit – with ITT Connector (Carbon-6 Gen3, 12V)

Lazer Four-Lamp Harness Kit – with ITT Connector (Carbon-6 Gen3, 12V)

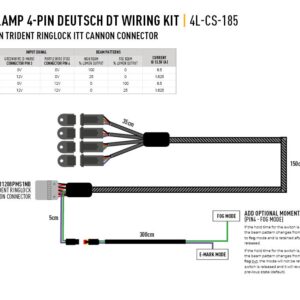

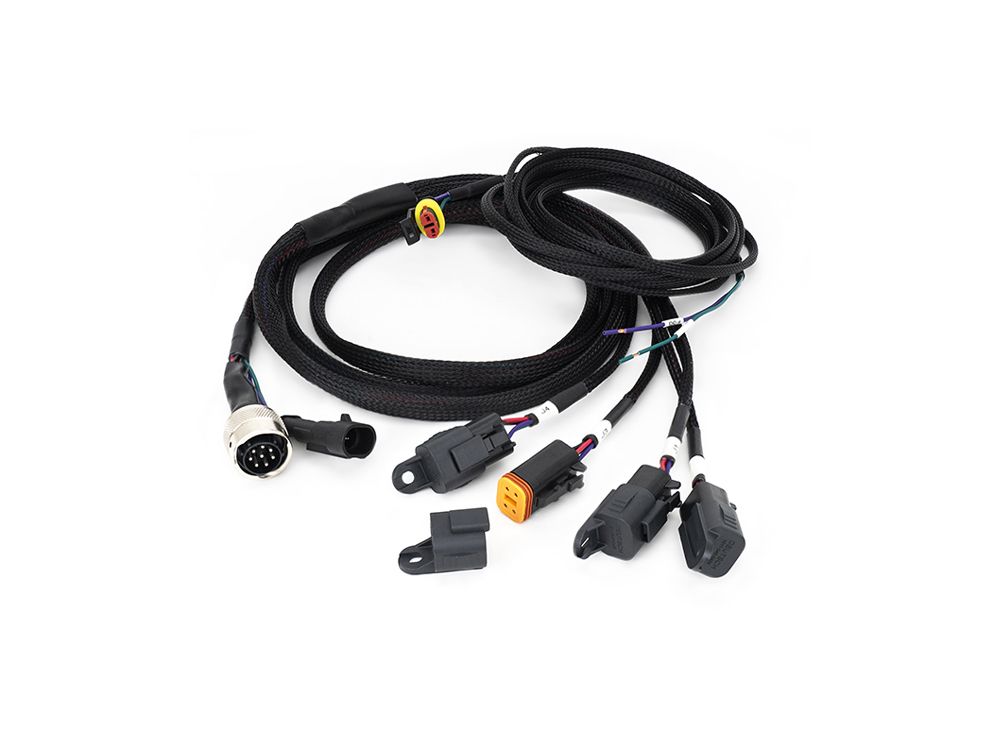

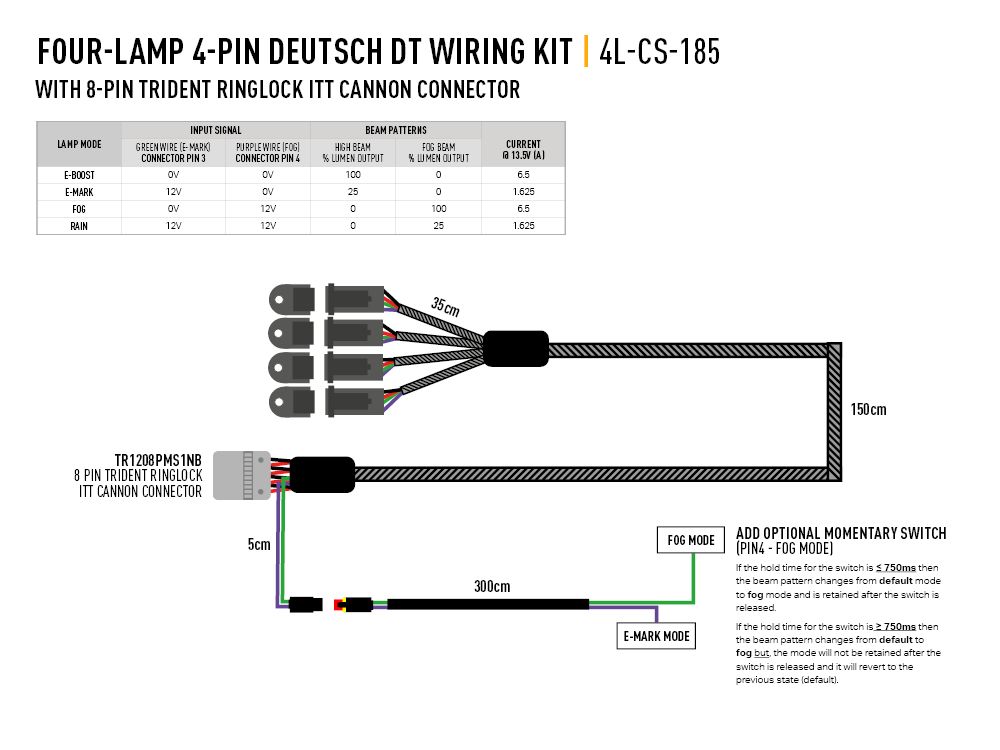

The ideal solution for wiring 4x Lazer Carbon-6 (Gen3) High Performance LED Driving Lights, where the vehicle side connection is compatible with an ITT Cannon Connector. The resulting setup is quick, easy, and reliable with Deutsch DT06-4S lamp connectors and no configuration procedures. The kit features 1.85m of flex on the lamp cable(s) to the 8-pin Trident Ringlock ITT Cannon Connector (compatible with Skoda R5 rally cars as an example)

Additional signal wires from the ITT Connector are included for operation of lamps’ in either: ‘Fog’ mode (purple wire), or ‘E-mark’ mode (green wire).

All Carbon-6 (Gen3) LED Driving Lights feature a corresponding built-in DT04-4P Deutsch Connector (with gold plated solid DT contacts).



Compatiable with:
– Carbon-6 DRIVE (Gen3)
– Carbon-6 SPOT (Gen3)

Delivery time to us: from 1 to 7 working days. Before you order the product, we suggest that you ask for the exact delivery cost and time. The product images shown are for illustration purposes only and may not be an exact representation of the product (contact us for more photos of this product).
