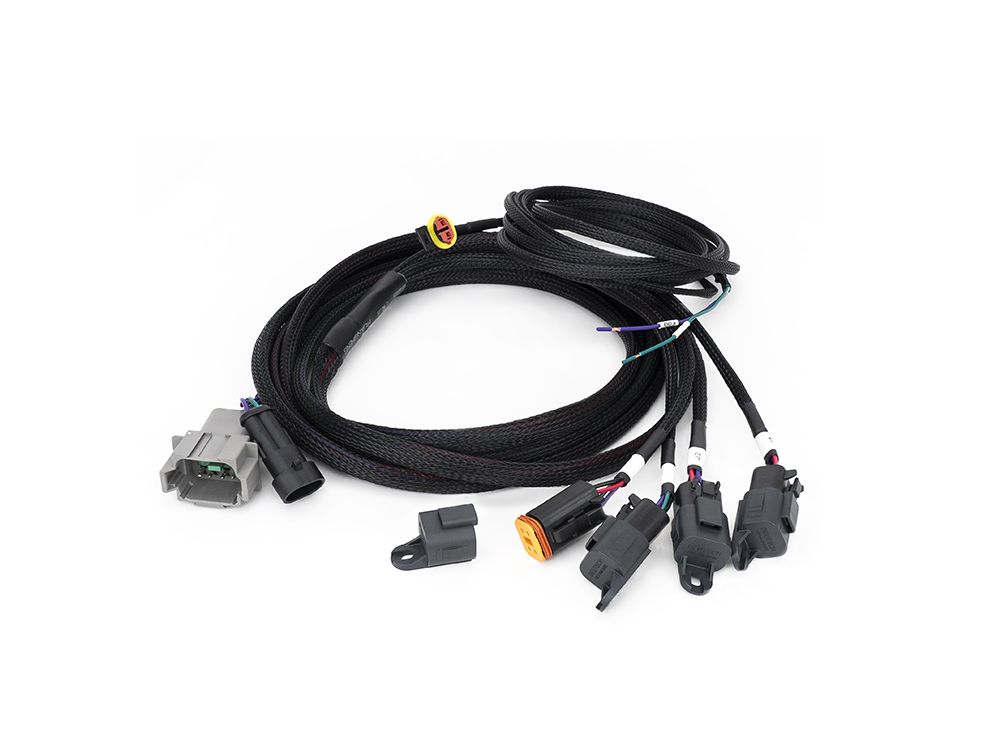

Lazer Four-Lamp Harness Kit – with DT04-08 Connector (Carbon-6 Gen3, 12V)

Lazer Four-Lamp Harness Kit – with DT04-08 Connector (Carbon-6 Gen3, 12V)

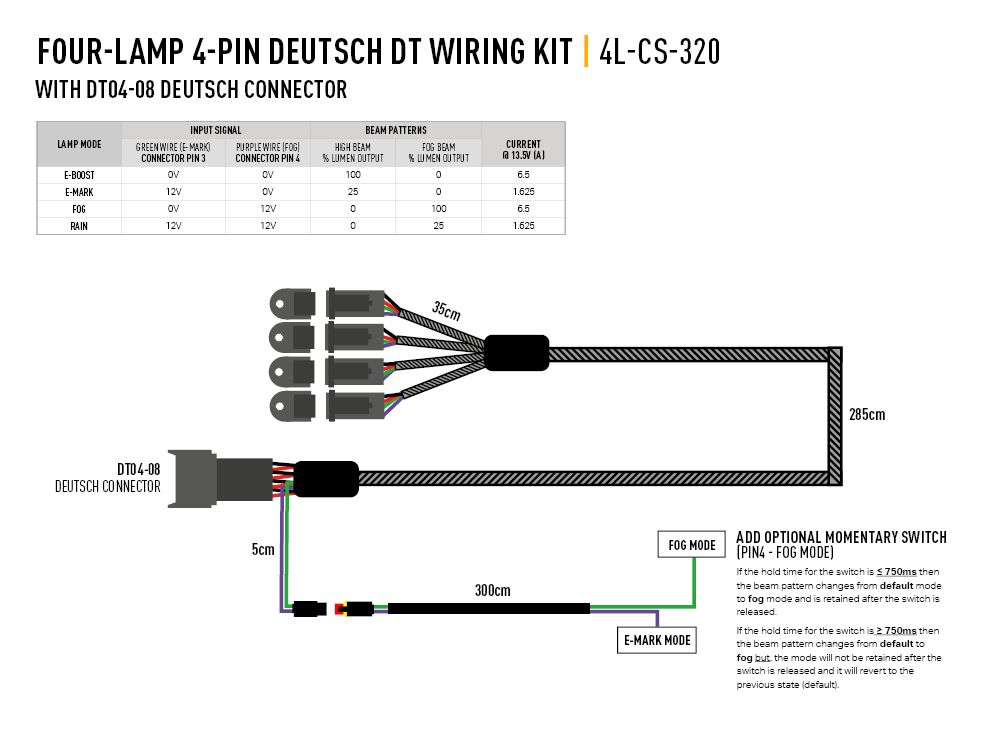

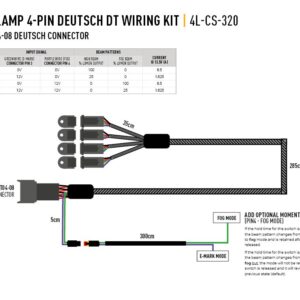

The ideal solution for wiring 4x Lazer Carbon-6 (Gen3) High Performance LED Driving Lights, where the vehicle side connection is compatible with an DT04-08 Deutsch Connector. The resulting setup is quick, easy, and reliable with Deutsch DT06-4S lamp connectors and no configuration procedures. The kit features 3.2m of flex on the lamp cable(s) to the 8-pin DT04-08 Connector (compatible with Citroen C3 rally cars as an example).

Additional signal wires from the DT04-08 Connector are included for operation of lamps’ in either: ‘Fog’ mode (purple wire), or ‘E-mark’ mode (green wire).

All Carbon-6 (Gen3) LED Driving Lights feature a corresponding built-in DT04-4P Deutsch Connector (with gold plated solid DT contacts).



Compatiable with:
– Carbon-6 DRIVE (Gen3)
– Carbon-6 SPOT (Gen3)

Delivery time to us: from 1 to 7 working days. Before you order the product, we suggest that you ask for the exact delivery cost and time. The product images shown are for illustration purposes only and may not be an exact representation of the product (contact us for more photos of this product).
