Wagner Tuning Competition Package Intercooler / Downpipe EU-model for Audi S5 F5 3.0TFSI 700001120

The Wagner Tuning Competition Package Intercooler / Downpipe EU-model for Audi S5 F5 3.0TFSI 700001120 is a high-performance upgrade designed to significantly improve charge air cooling and engine efficiency. Engineered for demanding street and motorsport applications, this intercooler ensures lower intake temperatures, increased power potential, and enhanced reliability for turbocharged Audi engines. Developed with advanced flow optimization and precision manufacturing, the 700001120 intercooler provides maximum cooling surface area while maintaining excellent airflow characteristics.

Performance Benefits of Wagner Tuning Competition Package Intercooler / Downpipe EU-model for Audi S5 F5 3.0TFSI 700001120

Improved Cooling Efficiency – Larger core volume and optimized fin design reduce intake air temperatures. Increased Power Potential – Lower temperatures allow for more aggressive tuning and improved combustion efficiency. Reduced Pressure Drop – Optimized internal flow channels ensure maximum airflow without restriction. Enhanced Engine Reliability – Stable intake temperatures protect against heat soak during spirited driving or track use. Motorsport-Proven Engineering – Designed for both high-performance street builds and track-driven vehicles.

Technical Information

• Brand: Wagner Tuning
• Product Name: Competition Package Intercooler / Downpipe EU-model for Audi S5 F5 3.0TFSI
• Product Reference Code: 700001120
• Vehicle Make: Audi
• Vehicle Model: Audi S5 F5
• Engine Compatibility: S5 F5 3.0TFSI
• Weight: 25.0

Why Choose Wagner Tuning?

Wagner Tuning is globally recognized for developing high-performance cooling solutions for turbocharged vehicles. Each intercooler is engineered using CFD flow simulations and high-quality materials to ensure superior thermal efficiency and durability. The Competition Package Intercooler / Downpipe EU-model for Audi S5 F5 3.0TFSI is the perfect solution for enthusiasts looking to unlock the full potential of their platform while maintaining long-term reliability.

Wagner Tuning product information about Wagner Tuning Competition Package Intercooler / Downpipe EU-model for Audi S5 F5 3.0TFSI 700001120

The competition package for the Audi S4 B9/S5 F5 consists of the intercooler upgrade kit and the downpipe upgrade kit.
Audi S4 B9 3.0TFSI 260KW/354PS (2016+)*
Audi S5 F5 3,0TFSI 260KW/354PS (2016+)*

* The brackets supplied are only suitable for the EU model.

the intercooler upgrade kit 200001120.PIPE

Are you looking for a way to increase the performance and efficiency of your vehicle? Our Competition high performance intercooler is the answer. Here’s what you can expect from this exceptional product:

Our high performance intercooler redefines the standards for performance. With core dimensions of 550 mm x 445 mm x 70 mm (equivalent to 17,130 cc), it offers an impressive 134% larger flow area and 105% more charge air volume compared to the conventional intercooler. This means that your engine receives more cooled air, resulting in a noticeable increase in performance.

Our Competition high performance intercooler core is made from high quality Tube Fin material with internal turbulators. This ensures maximum heat transfer and efficient airflow to keep cooling performance at the highest level.

Despite its imposing size, our intercooler is surprisingly light, weighing just 9.5 kg. This minimizes the load on your vehicle and helps to improve overall performance.

The kit is also available with complete charge air piping as an option. Want to get the most out of your intercooler? Our kit with complete charge air piping is the answer. It includes three reinforced silicone hoses and an aluminum charge air pipe for even better performance. The cast aluminium end boxes of our intercooler were developed and optimized with the help of flow analyses in the CFD system. The result is excellent cooling properties with minimal back pressure. All our intercoolers are equipped with an anti-corrosion coating that also has excellent heat conduction properties. This ensures permanent and optimum cooling, which is reflected in an impressive increase in performance. Our kit is completely ready to install and enables simple replacement with the standard intercooler. No complex conversion required – simply plug and play. Tested at up to 6 bar and pressure-stable.

Our products are subject to strict quality control and are also suitable for racing. Boost the performance of your vehicle with our Competition high-performance intercooler and feel the difference every time you drive. Experience a new dimension in vehicle performance!

Dimensions original intercooler:
720mm x 145mm x 80mm
V=8.35 liters
A=1044 cm²

Wagner Tuning intercooler dimensions:
550mm x 445mm x 70mm
V=17.13 liters
A=2447 cm²

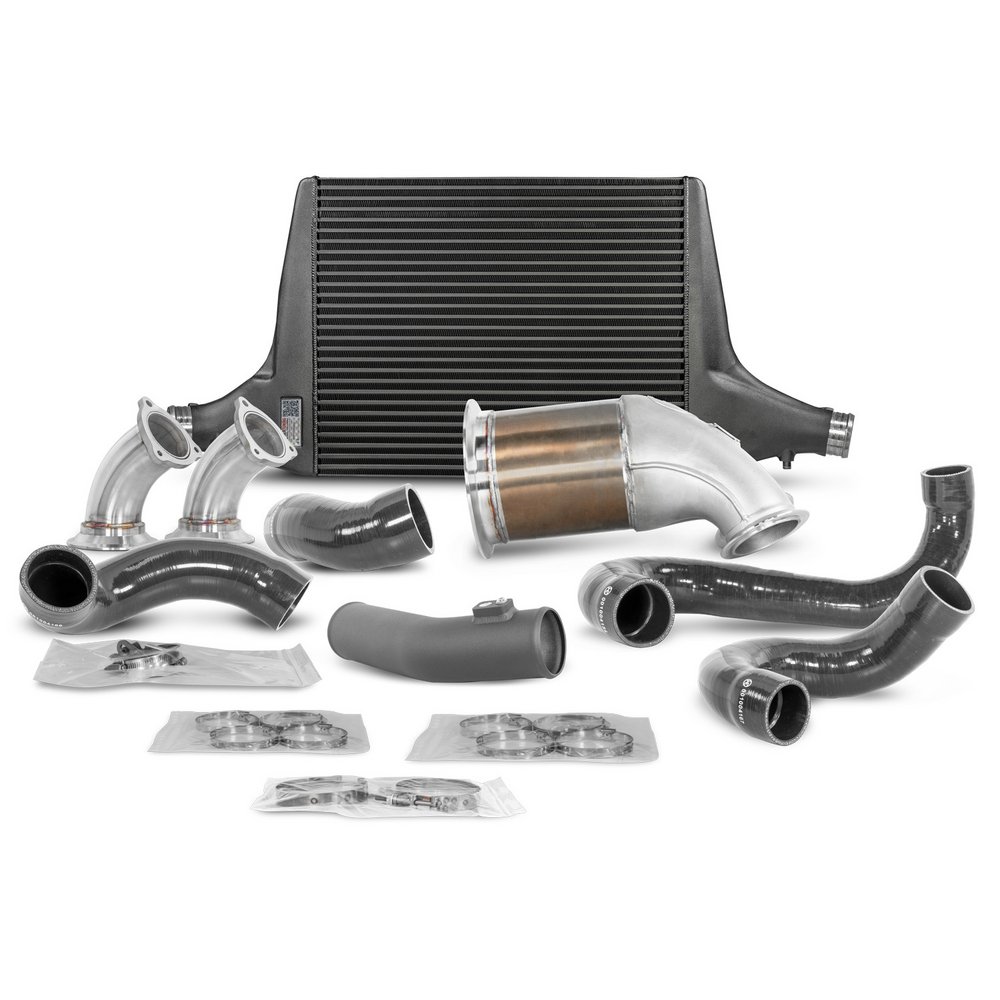

Kit comes with:
1 intercooler (black coated)
1 aluminum charge air pipe (black coated) / optional
3 reinforced silicone hoses (black) / optional
1 mounting material
1 assembly instructions

Downpipe Kit with 300CPSI Racing catalyst for Audi S4 B9 / S5 F5 3,0TFSI 500001031

Take the performance of your Audi S4 B9 or S5 F5 3.0TFSI to a new level with our downpipe kit, which is equipped with a state-of-the-art 300CPSI racing catalytic converter.

Technical features:

Manufactured from high quality cast stainless steel 1.4301 (SS304) for unsurpassed durability and performance
Complete with 2x Ø3 and adapter to original AGA for easy integration
CAD-designed and flow-optimized to maximize exhaust flow and increase performance
Equipped with a lambda probe connection at the OEM position for precise exhaust measurements

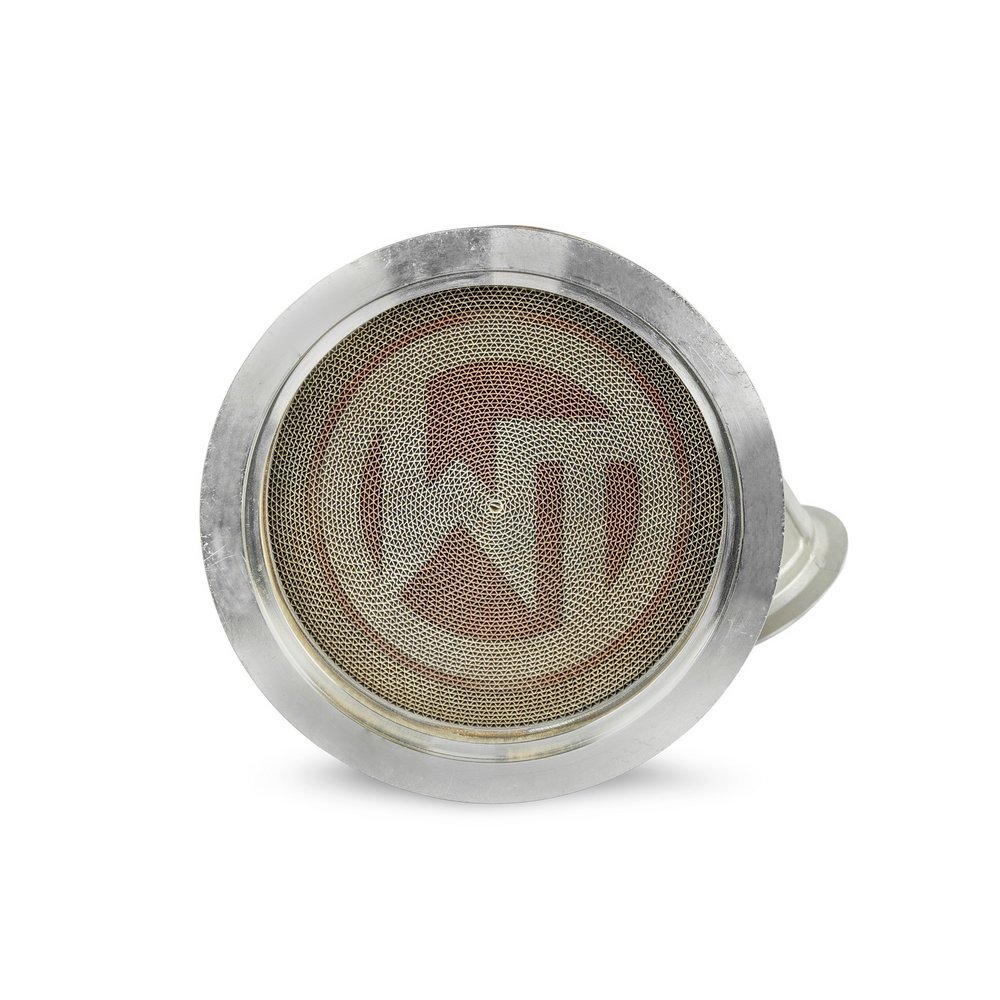

Racing metal catalytic converter (300 CPSI EU6 coating) for optimum exhaust gas purification and performance optimization
100% accuracy of fit, enables easy replacement with the standard part
Reduces the thermal load on the turbocharger and increases the service life
Noticeable increase in performance due to back pressure reduction, resulting in a significant increase in torque

Maximum performance. Incomparable driving experience:

Our downpipe kit with 300CPSI racing catalytic converter for the Audi S4 B9 / S5 F5 3.0TFSI offers the perfect combination of quality, performance and reliability. Experience improved vehicle performance and an impressive driving experience on the road and on the race track.

Wagner Tuning Hosenrohr/ Downpipe Kit 300CPSI EU6 für
Audi S4 B9 3,0TFSI 260KW/354PS (2016+)*
Audi S5 F5 3,0TFSI 260KW/354PS (2016+)*
Part number 500001031

*Error display in the DME possible.

Disclaimer for catalytic converters
Please note that Wagner Tuning catalytic converters are intended for use on OEM vehicles for performance optimization. They are NOT intended for use in conjunction with ECU tuning. Wagner Tuning GmbH & Co. Kg. accepts no responsibility for damage caused by modifications to a vehicle, such as a tuned ECU and/or deactivating the boost cut-off. Wagner Tuning GmbH & Co. Kg. is also not responsible for damage caused by engine malfunctions that create rich/lean conditions that are detrimental to the catalytic converter. All claims regarding a catalytic converter are subject to a warranty check. In order for a warranty to be honored, Wagner Tuning GmbH & Co. Kg. requires the purchaser to prove that the engine has been set up unchanged and in accordance with the original manufacturer’s specifications and has been kept in proper working order. The end user assumes all responsibility for the legality of the use of a non-OEM catalytic converter on their vehicle for the region in which it is used.
