Why Choose Wagner Tuning?

Wagner Tuning is globally recognized for developing high-performance cooling solutions for turbocharged vehicles. Each intercooler is engineered using CFD flow simulations and high-quality materials to ensure superior thermal efficiency and durability. The Competition Package 2,0TDI Intercooler / Radiator / Oil Cooler for VW Transporter T6 / T6.1 2.0 TDI is the perfect solution for enthusiasts looking to unlock the full potential of their platform while maintaining long-term reliability.

Wagner Tuning product information about Wagner Tuning Competition Package 2,0TDI Intercooler / Radiator / Oil Cooler for VW Transporter T6 / T6.1 2.0 TDI 700001184.T6

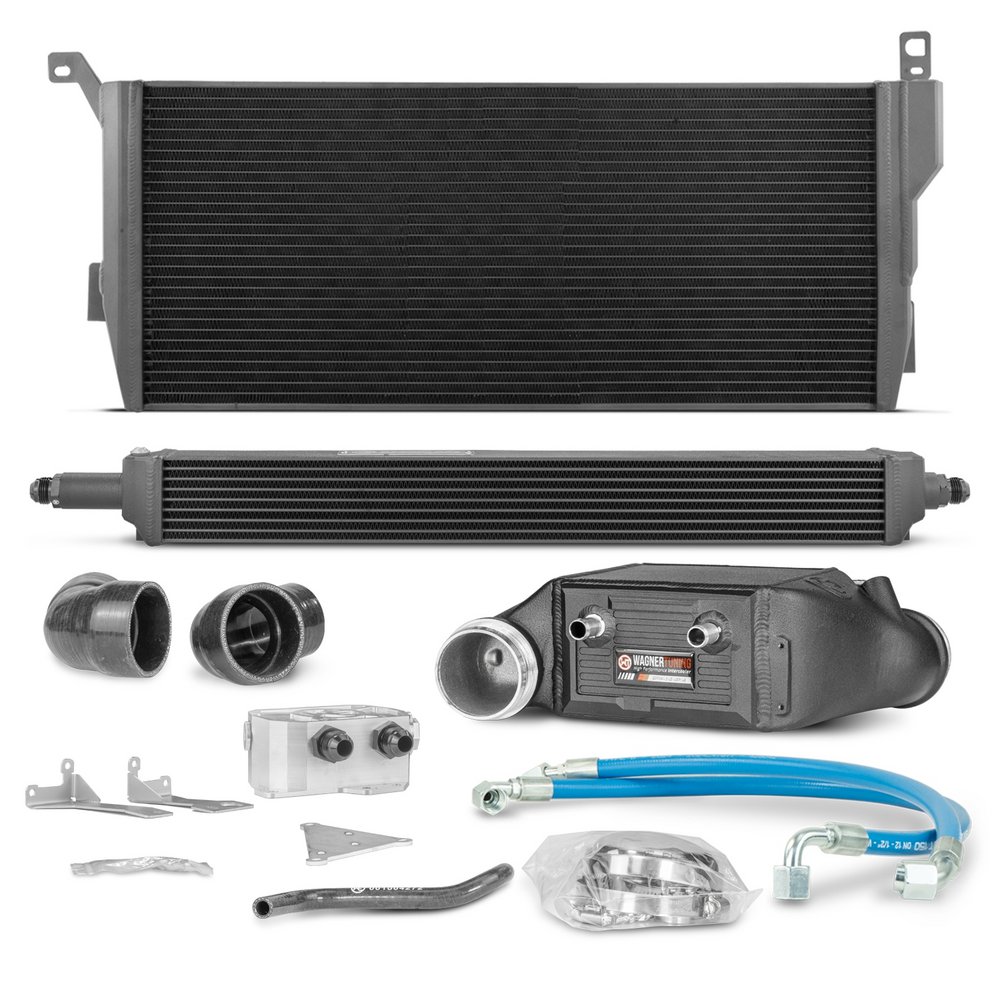

The competition package for the VW T6 2.0TDI consists of the intercooler upgrade kit and the water cooler upgrade kit and the additional oil cooler kit.
Volkswagen T6 2.0 TDI: 110KW/150 PS (2016-2019)
Volkswagen T6.1 2.0 TDI: 110KW/150 PS (2019-)

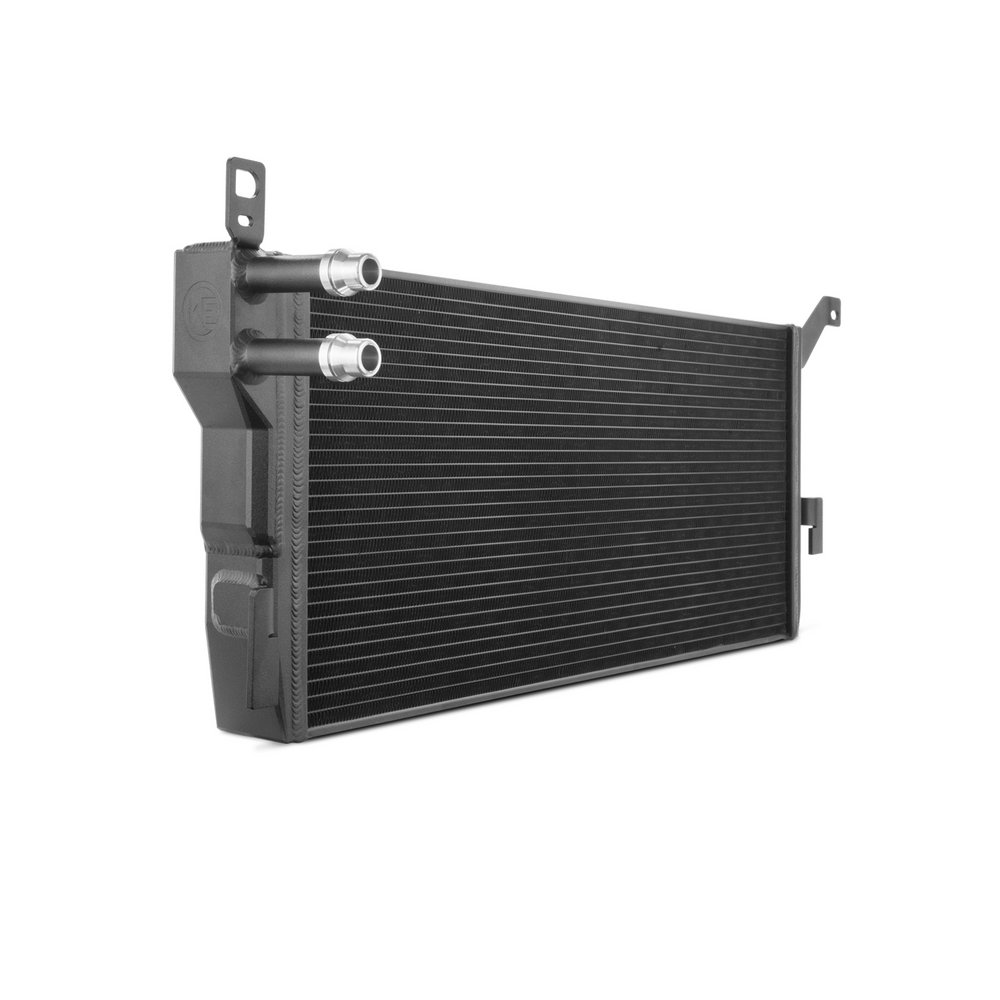

the radiator upgrade kit 400001019

The 2.0 liter TDI engine of the VW T6/T6.1 is equipped with an indirect charge air cooling circuit, which does not cool the charge air with ambient air as usual, but with its own cooling water circuit. Lowering the cooling water temperature leads directly to an improved cooling performance of the charge air. This is where the advantages of our Wagner Tuning Upgrade water coolers come into play.

Our newly developed competition racing core`s increase the radiator volume of the standard water cooler by an impressive 30%. The ratio between the inner and outer cooling surface ensures maximum heat transfer and at the same time allows sufficient airflow for adjacent components such as the engine water cooler. The increased cooling water volume means that the entire system thermal can be kept at a lower level over a longer period of time.

All Wagner Tuning water coolers are equipped with a thermally conductive anti-corrosion coating, which ensures a long-lasting cooling effect. The installation of the system is uncomplicated and almost plug & play thanks to our detailed installation instructions.

Prepare your VW T6/T6.1 2.0 TDI for maximum performance and optimum cooling with our competition water cooler kit.

Competition water cooler kit for the VW T6/T6.1 2.0 TDI is suitable for the following models:
Volkswagen T6 2.0 TDI: 62-110KW/84-150 PS (2016-2019)
Volkswagen T6.1 2.0 TDI: 66-110KW/84-150 hp (2019-)


Dimensions OEM water cooler:
714 mm x 245 mm x 54 mm
V = 9.5 liters
A = 1750 cm²

Wagner Tuning water cooler dimensions:
710 mm x 311 mm x 56 mm
V = 12.4 liters (+30%)
A = 2208 cm² (+26%)

Part number 400001019

Kit comes with:
1x frontal water cooler, black coated (low-temperature circuit)
1x installation instructions

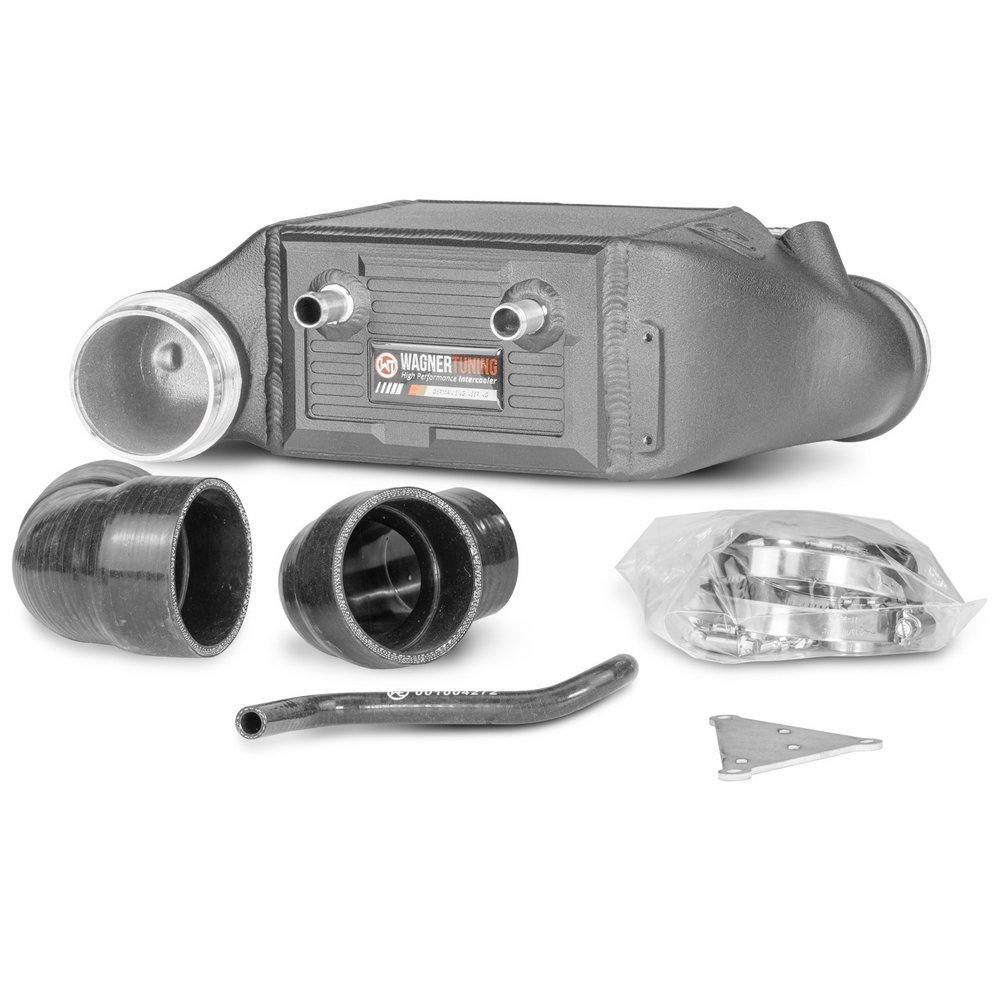

the intercooler upgrade kit 200001184

The 2.0-liter TDI engine of the VW T6 models has an indirect charge air cooling circuit as standard, in which the charge air is cooled by a water-cooled intercooler. But now you can unleash the full potential of your engine by replacing the original intercooler with our ground-breaking Wagner Tuning high-performance intercooler.

The Wagner Tuning high performance intercooler impresses with a new type of performance intercooler core and the dimensions 150mm x 185mm x 114mm, which was specially developed for the demanding requirements of the VW engine. With 106% more external core volume compared to the original intercooler, this high-performance champion sets new standards. The perfect ratio between the inner and outer cooling surface enables maximum heat transfer while ensuring optimum internal airflow. The cast aluminium end boxes have been optimized using CAD design and CFD simulations to achieve excellent cooling properties with minimal back pressure. Enjoy optimum cooling of the supercharged air and feel the significant increase in performance!

Our Wagner Tuning intercoolers are equipped with a thermally conductive anti-corrosion coating that ensures a long-lasting cooling effect. The installation of the system is uncomplicated with the help of our installation instructions and can be carried out in no time at all with plug & play.

The advantages of this product are manifold:

– Achieve significantly improved cooling performance
– Feel a power and torque boost for your engine
– Relieve the turbocharger mechanically
– 100 % pressure resistance for maximum reliability
– Simple and easy plug-and-play installation
– Benefit from up to 4 years warranty to protect your investment.

Choose the Wagner Tuning high-performance intercooler and experience a new era of performance and driving pleasure. Give your VW T6/T6.2 TDI the upgrade it deserves.

Replaces the original intercooler: 04L145749L, 04L145749J (NOT 04L145749F)

Performance intercooler kit suitable for the following models:
Volkswagen T6 2.0 TDI: 62-110KW/84-150 PS (2016-2019)
Volkswagen T6.1 2.0 TDI: 66-110KW/84-150 hp (2019-)

core dimensions OEM intercooler:
137mm x 167mm x 67mm
V = 1.53 L

Wagner Tuning intercooler core dimensions:
150mm x 185mm x 114mm
V = 3.16 L (+106%)

Part number: 200001184

Kit comes with:
Please select the desired version.

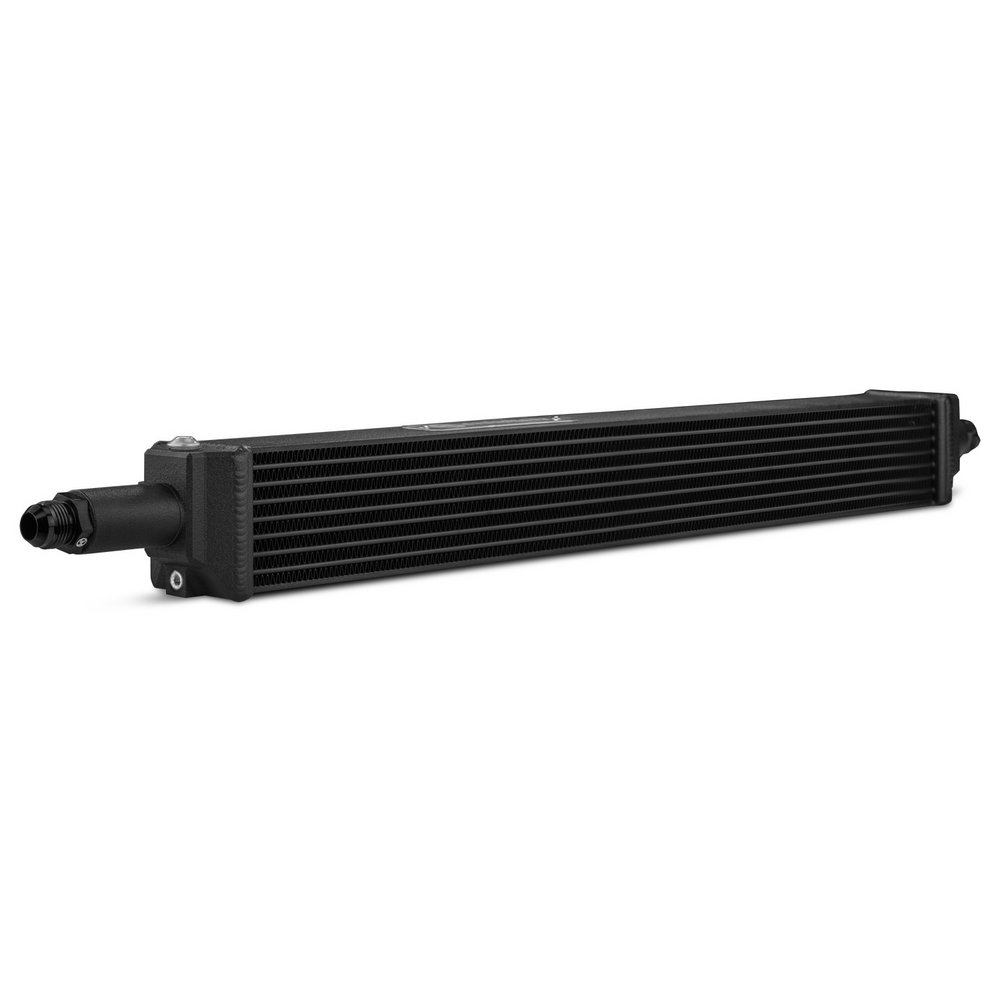

the oil cooler kit 250001002

Volkswagen T6 2.0 TDI: 110KW/150 PS (2016-2019) MKB: CXHA; CXFA
Volkswagen T6.1 2.0 TDI: 110KW/150 PS (2019+) engine code: DNAA

(for the smaller engines, the water cooler must be replaced 7E0121212B)
*ATTENTION: Not suitable for vehicles with the older engine series VW EA189.

The high-quality WagnerTuning oil cooler kit prevents excessive oil temperatures and is therefore a must for all VW T6 2.0(Bi)TDI vehicles.
Due to the additional cooling surface, the oil temperature is optimally cooled even under high loads, thus ensuring constant oil pressure.

Features:

7-row all-aluminum oil cooler
Guarantees optimum oil cooling even in vehicles with increased performance
Plug & play installation including adapter plate and thermostat

Part number 250001002

Kit comes with:
1x oil cooler (black coated)
1x mounting material

Attention: According to the KBA, oil coolers are not relevant for approval! Registration can therefore also be carried out without a parts certificate.
We recommend replacing the following OEM gaskets with new ones for installation. These are not included in the scope of delivery.

3pcs. 03N 117 070
1pc. 03N 115 441

Furthermore, a certain amount of noise (slight whirring) may occur after the kit has been installed. This noise is caused by the pulsation of the oil within the lines. If the lines are laid as far as possible decoupled from the bodywork and its components, this noise can be minimized until it is barely perceptible.
