Wagner Tuning Competition Package 2,0BiTDI Intercooler / Radiator / Oil Cooler for VW Transporter T6 / T6.1 2.0 BiTDI 700001182.T6

The Wagner Tuning Competition Package 2,0BiTDI Intercooler / Radiator / Oil Cooler for VW Transporter T6 / T6.1 2.0 BiTDI 700001182.T6 is a high-performance upgrade designed to significantly improve charge air cooling and engine efficiency. Engineered for demanding street and motorsport applications, this intercooler ensures lower intake temperatures, increased power potential, and enhanced reliability for turbocharged Audi engines. Developed with advanced flow optimization and precision manufacturing, the 700001182.T6 intercooler provides maximum cooling surface area while maintaining excellent airflow characteristics.

Performance Benefits of Wagner Tuning Competition Package 2,0BiTDI Intercooler / Radiator / Oil Cooler for VW Transporter T6 / T6.1 2.0 BiTDI 700001182.T6

Improved Cooling Efficiency – Larger core volume and optimized fin design reduce intake air temperatures. Increased Power Potential – Lower temperatures allow for more aggressive tuning and improved combustion efficiency. Reduced Pressure Drop – Optimized internal flow channels ensure maximum airflow without restriction. Enhanced Engine Reliability – Stable intake temperatures protect against heat soak during spirited driving or track use. Motorsport-Proven Engineering – Designed for both high-performance street builds and track-driven vehicles.

Technical Information

• Brand: Wagner Tuning
• Product Name: Competition Package 2,0BiTDI Intercooler / Radiator / Oil Cooler for VW Transporter T6 / T6.1 2.0 BiTDI
• Product Reference Code: 700001182.T6
• Vehicle Make: VW
• Vehicle Model: VW Transporter
• Engine Compatibility: Transporter T6 / T6.1 2.0 BiTDI
• Weight: 29.5

Why Choose Wagner Tuning?

Wagner Tuning is globally recognized for developing high-performance cooling solutions for turbocharged vehicles. Each intercooler is engineered using CFD flow simulations and high-quality materials to ensure superior thermal efficiency and durability. The Competition Package 2,0BiTDI Intercooler / Radiator / Oil Cooler for VW Transporter T6 / T6.1 2.0 BiTDI is the perfect solution for enthusiasts looking to unlock the full potential of their platform while maintaining long-term reliability.

Wagner Tuning product information about Wagner Tuning Competition Package 2,0BiTDI Intercooler / Radiator / Oil Cooler for VW Transporter T6 / T6.1 2.0 BiTDI 700001182.T6

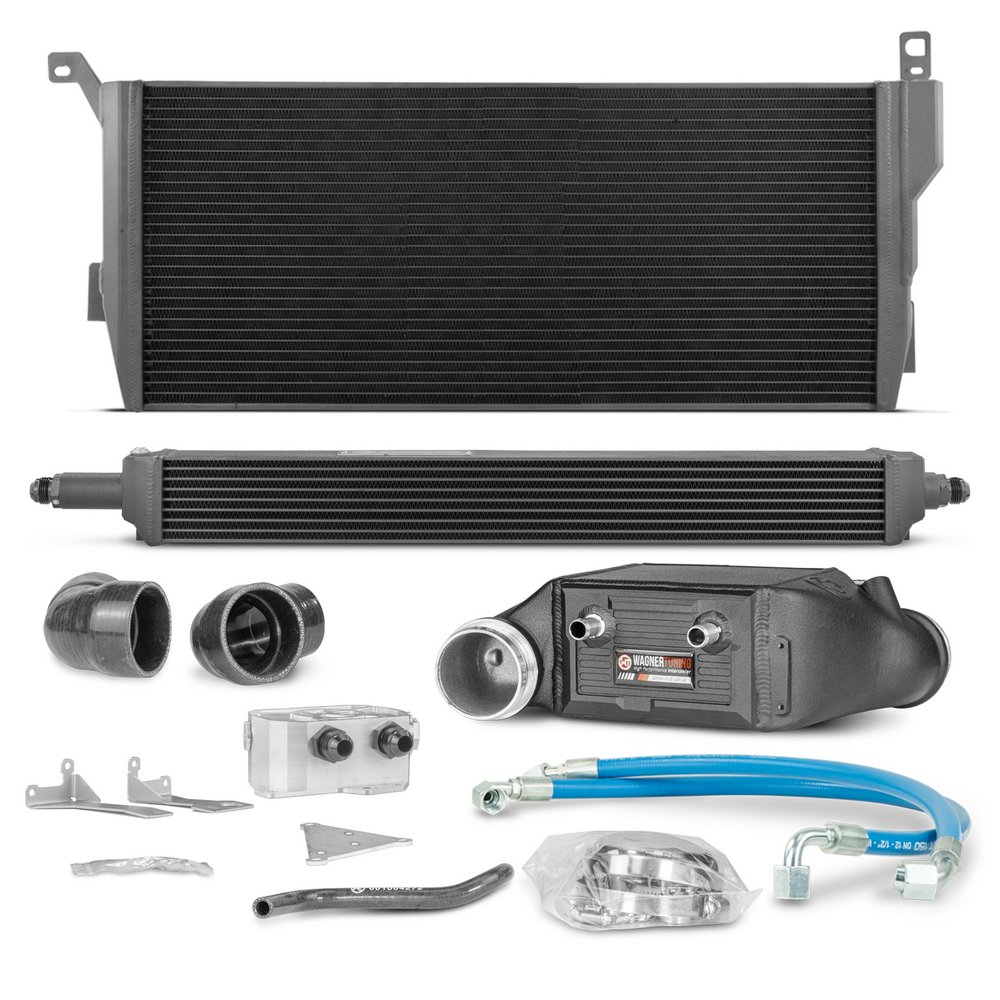

The Wagner Tuning Competition Package for the VW T6 2.0BiTDI consists of the intercooler upgrade kit and the water cooler upgrade kit and the additional oil cooler kit.

***Now with original VW gasket set for the oil filter housing***

Volkswagen T6 2.0BiTDI: 146-150KW/199- 204 PS (2016-2019)
Volkswagen T6.1 2.0BiTDI: 146-150KW/199- 204 hp (2019-) CXEC; CXEB; DMZA

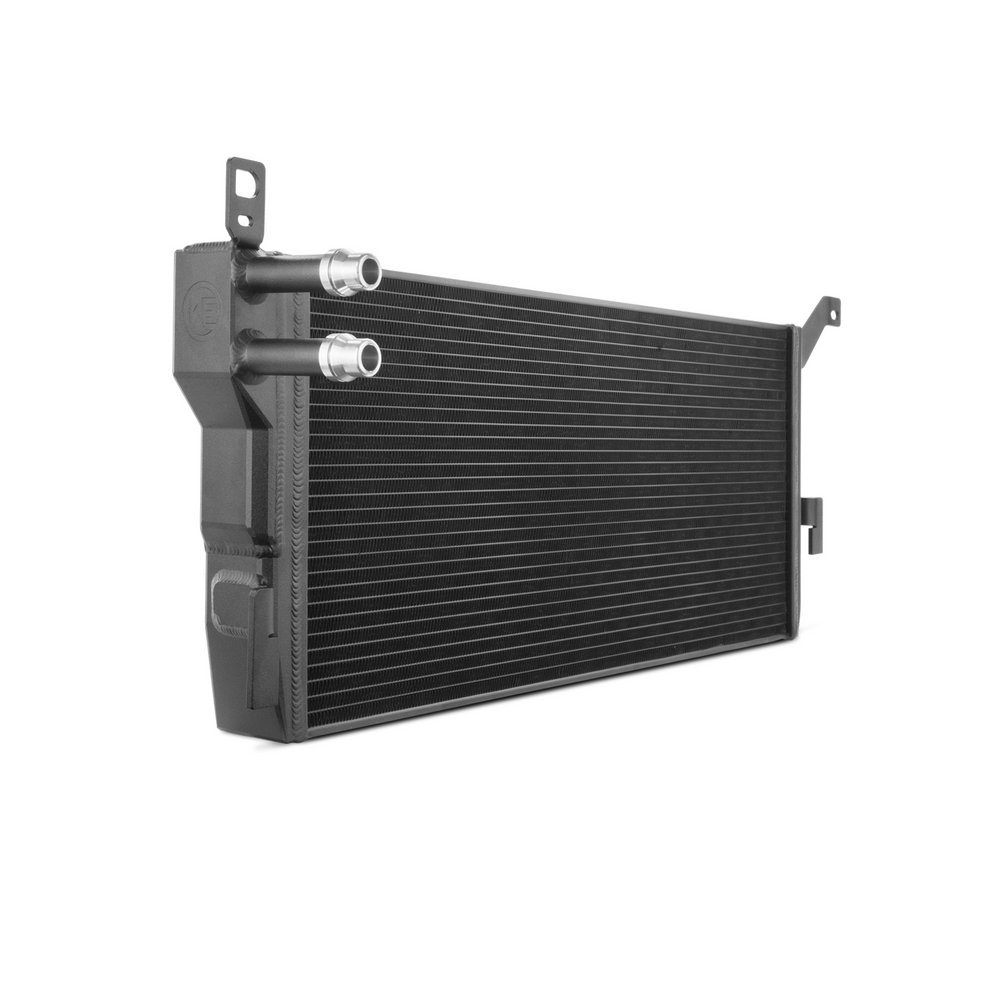

the radiator upgrade kit 400001019

The 2.0 liter TDI engine of the VW T6/T6.1 is equipped with an indirect charge air cooling circuit, which does not cool the charge air with ambient air as usual, but with its own cooling water circuit. A reduction in the cooling water temperature leads directly to an improved cooling performance of the charge air. This is where the advantages of our Wagner Tuning Upgrade water coolers come into play.

Our newly developed competition racing core`s increase the radiator volume of the standard water cooler by an impressive 30%. The ratio between the inner and outer cooling surface ensures maximum heat transfer and at the same time allows sufficient air flow for adjacent components such as the engine water cooler. The increased cooling water volume means that the entire system thermal can be kept at a lower level over a longer period of time.

All Wagner Tuning water coolers are equipped with a thermally conductive anti-corrosion coating, which ensures a long-lasting cooling effect. The installation of the system is uncomplicated and almost plug & play thanks to our detailed installation instructions.

Prepare your VW T6/T6.1 2.0 TDI for maximum performance and optimum cooling with our competition water cooler kit.

Competition water cooler kit for theVW T6/T6.1 2.0 TDI is suitable for the following models:
Volkswagen T6 2.0BiTDI: 146-150KW/199- 204 PS (2016-2019)
Volkswagen T6.1 2.0BiTDI: 146-150KW/199- 204 hp (2019-)

Dimensions OEM water cooler:
714 mm x 245 mm x 54 mm
V = 9.5 liters
A = 1750 cm²

Wagner Tuning water cooler dimensions:
710 mm x 311 mm x 56 mm
V = 12.4 liters (+30%)
A = 2208 cm² (+26%)

Part number 400001019

Kit comes with:
1x frontal water cooler, black coated (low-temperature circuit)
3x seal 03N 117 070 (original VW component)
1x seal 03N 115 441 (original VW component)
1x installation instructions

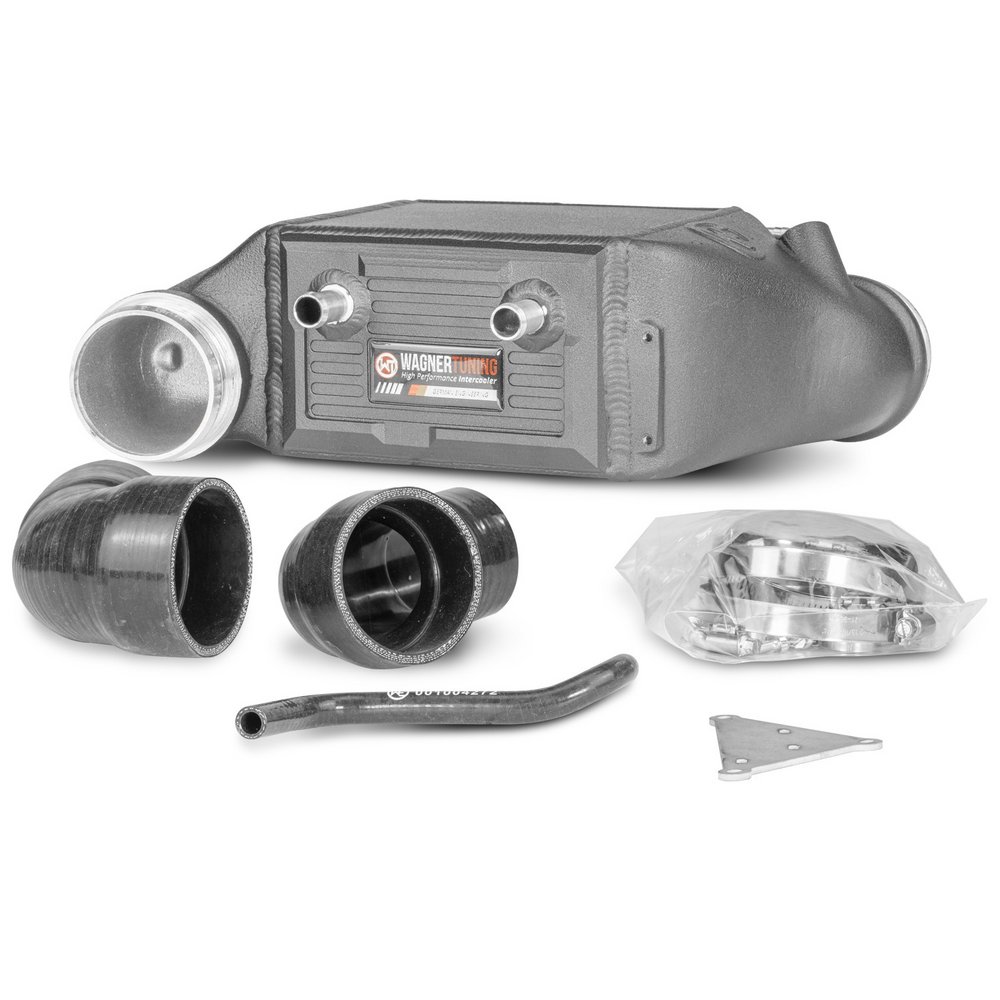

the intercooler upgrade kit 200001184

Boost the power and performance of your vehicle to a whole new level. Our high-performance intercooler replaces the water-cooled intercooler of the indirect charge air cooling circuit and brings you a multitude of benefits.

With impressive dimensions of 150 mm x 185 mm x 114 mm and a new type of performance intercooler core, this intercooler has been specially developed to meet the high demands of the VW engine. Compared to the original intercooler, it offers an astonishing 106% more external core volume. The intelligent ratio between the inner and outer cooling surface ensures maximum heat transfer and at the same time enables optimum internal air flow. Through CAD design and CFD simulations, the cast aluminum end boxes have been perfected to ensure excellent cooling properties with minimal back pressure. The result is optimum cooling of the supercharged air and a significant increase in performance for your engine.

Our Wagner Tuning intercoolers are equipped with a high-quality thermally conductive anti-corrosion coating that ensures a long-lasting cooling effect and protects your vehicle from the elements. Installation of the system is straightforward and plug & play thanks to our detailed installation instructions, so you can quickly reap the benefits.

The advantages of this product at a glance:

– Significantly improved cooling capacity for optimum performance
– More power and torque for your engine
– Mechanical relief of the turbocharger for a longer service life
– 100% pressure resistance and reliable performance under all conditions
– Easy installation thanks to plug-and-play system
– Up to 4-year warranty for a worry-free driving experience

Boost the performance of your VW T6 with the Wagner Tuning high-performance intercooler and experience a top-class driving experience. Get the upgrade your vehicle deserves now!

The Wagner Tuning Performance intercooler kit fits the following vehicles:
Volkswagen T6, 2.0BiTDI: 146-150KW/199- 204 PS (2015-2019) CXEC; CXEB
Volkswagen T6.1, 2.0BiTDI: 146-150KW/199- 204 PS (2015-today) CXEC; CXEB; DMZA

Mains dimensions OEM intercooler:
137mm x 167mm x 67mm
V = 1.53 L

Mains dimensions Wagner Tuning intercooler:
150mm x 185mm x 114mm
V = 3.16 L (+106%)

Part number 200001182

Kit comes with:
Please select the desired version.

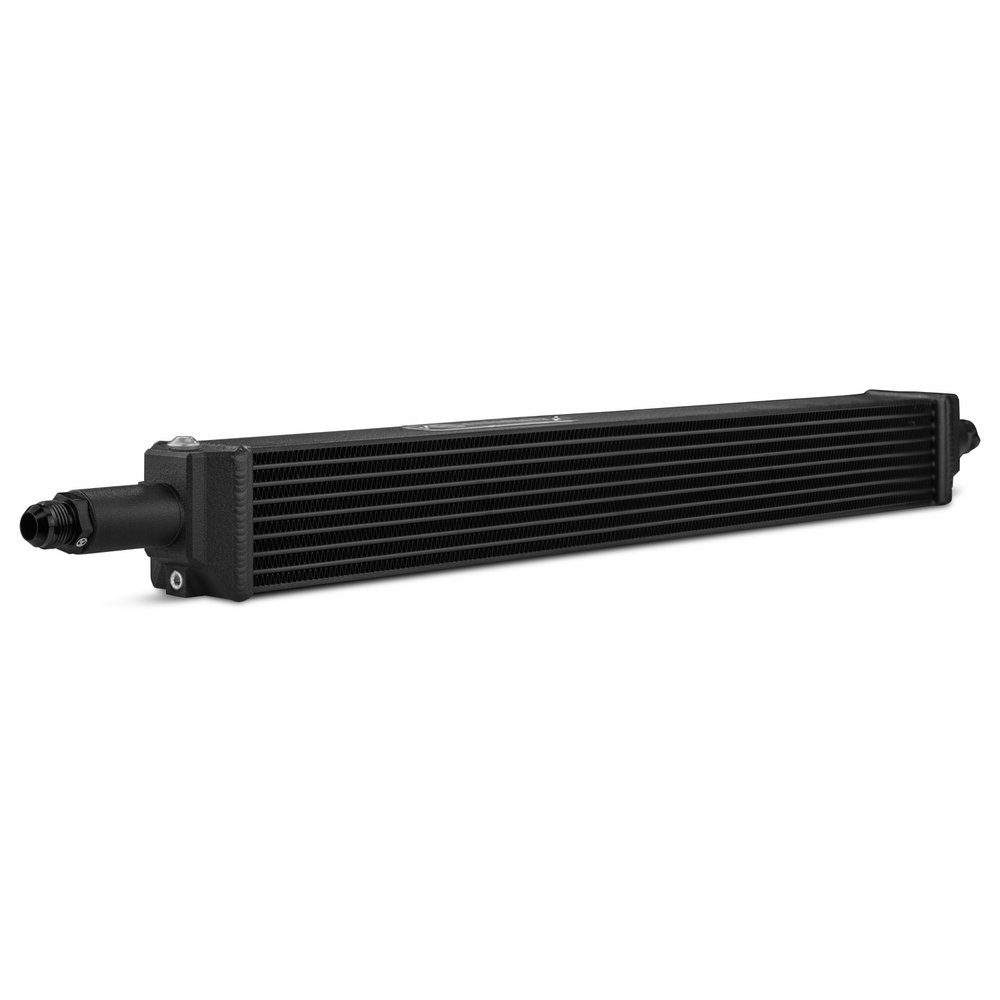

the oil cooler kit 250001002

Volkswagen T6 2.0BiTDI: 146-150KW/199- 204 PS (2016-2019) MKB: CXEC; CXEB
Volkswagen T6.1 2.0BiTDI: 146-150KW/199- 204 PS (2019+) engine code: CXEC; DMZA

*ATTENTION: Not suitable for

The high-quality WagnerTuning oil cooler kit prevents excessive oil temperatures and is therefore a must for all VW T6 2.0(Bi)TDI vehicles.
Due to the additional cooling surface, the oil temperature is optimally cooled even under high loads, thus ensuring constant oil pressure.

Features:

7-row all-aluminum oil cooler
Guarantees optimum oil cooling even in vehicles with increased performance
Plug & play installation including adapter plate and thermostat

Kit comes with:
1x oil cooler (black coated)
3x seal 03N 117 070 (original VW component)
1x seal 03N 115 441 (original VW component)
1x mounting material

Attention: According to the KBA, oil coolers are not relevant for approval! Registration can therefore also be carried out without a parts certificate.

Furthermore, a certain amount of noise (slight whirring) may occur after the kit has been installed. This noise is caused by the pulsation of the oil within the lines. If the lines are laid as far as possible decoupled from the bodywork and its components, this noise can be minimized until it is barely perceptible.
