Wagner Tuning Competition Intercooler Kit EVO3 for Audi TTRS 8J 2.5 TFSI 200001056

The Wagner Tuning Competition Intercooler Kit EVO3 for Audi TTRS 8J 2.5 TFSI 200001056 is a high-performance upgrade designed to significantly improve charge air cooling and engine efficiency. Engineered for demanding street and motorsport applications, this intercooler ensures lower intake temperatures, increased power potential, and enhanced reliability for turbocharged Audi engines. Developed with advanced flow optimization and precision manufacturing, the 200001056 intercooler provides maximum cooling surface area while maintaining excellent airflow characteristics.

Performance Benefits of Wagner Tuning Competition Intercooler Kit EVO3 for Audi TTRS 8J 2.5 TFSI 200001056

Improved Cooling Efficiency – Larger core volume and optimized fin design reduce intake air temperatures. Increased Power Potential – Lower temperatures allow for more aggressive tuning and improved combustion efficiency. Reduced Pressure Drop – Optimized internal flow channels ensure maximum airflow without restriction. Enhanced Engine Reliability – Stable intake temperatures protect against heat soak during spirited driving or track use. Motorsport-Proven Engineering – Designed for both high-performance street builds and track-driven vehicles.

Technical Information

• Brand: Wagner Tuning
• Product Name: Competition Intercooler Kit EVO3 for Audi TTRS 8J 2.5 TFSI
• Product Reference Code: 200001056
• Vehicle Make: Audi
• Vehicle Model: Audi TTRS 8J
• Engine Compatibility: TTRS 8J 2.5 TFSI
• Weight: 18.0

Why Choose Wagner Tuning?

Wagner Tuning is globally recognized for developing high-performance cooling solutions for turbocharged vehicles. Each intercooler is engineered using CFD flow simulations and high-quality materials to ensure superior thermal efficiency and durability. The Competition Intercooler Kit EVO3 for Audi TTRS 8J 2.5 TFSI is the perfect solution for enthusiasts looking to unlock the full potential of their platform while maintaining long-term reliability.

Wagner Tuning product information about Wagner Tuning Competition Intercooler Kit EVO3 for Audi TTRS 8J 2.5 TFSI 200001056

Wagner Tuning Competition Intercooler Kit EVO 3 for Audi TTRS 8J – 142% more volume & with parts certificate

Experience new dimensions of performance! Our Wagner Tuning Competition Intercooler Kit EVO 3 is the ultimate upgrade for your Audi TTRS 8J and is now available with parts certification. This kit sets new standards in terms of performance and cooling and is the perfect choice for performance enthusiasts.

Why our EVO 3 intercooler is the best choice for your TTRS:
Massive performance increase: With impressive dimensions of 515 mm x 367[274] mm x 95 mm, the EVO 3 offers an enormous 120% larger flow area and an incredible 142% more charge air volume compared to the stock intercooler. This massive increase ensures significantly improved cooling performance, which is directly noticeable in a noticeable increase in performance.
Two mesh variants for every requirement: Choose between the standard version (for power classes up to 600 hp) and the X version (for power classes above 600 hp) to find the perfect match for your vehicle. This ensures that your radiator always delivers maximum performance, even under extreme conditions.

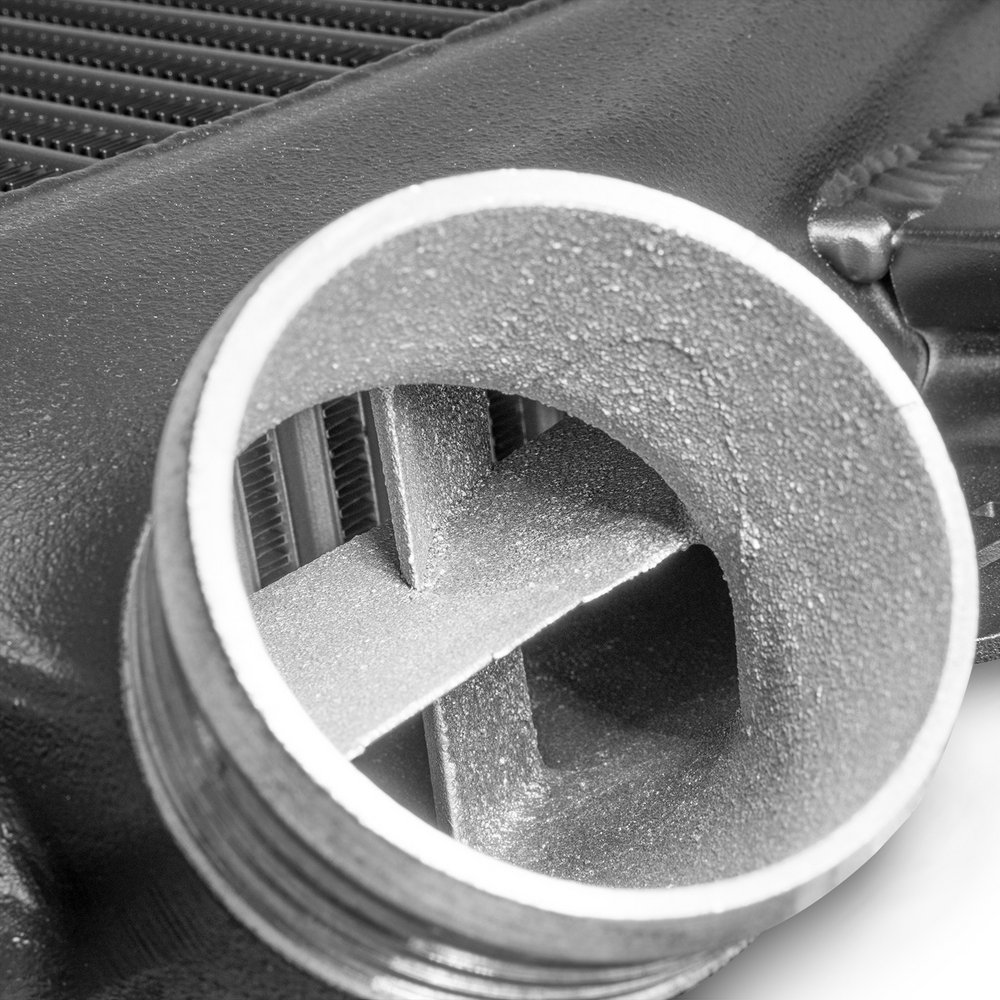

Flow-optimized & minimal back pressure: The newly developed Competition high-performance mesh ensures sufficient airflow to adjacent components. The cast aluminum end boxes have been optimized in the CAD system and with flow analyses. Integrated air deflectors in the inlet guarantee even filling of the radiator, resulting in excellent cooling properties with minimal back pressure.

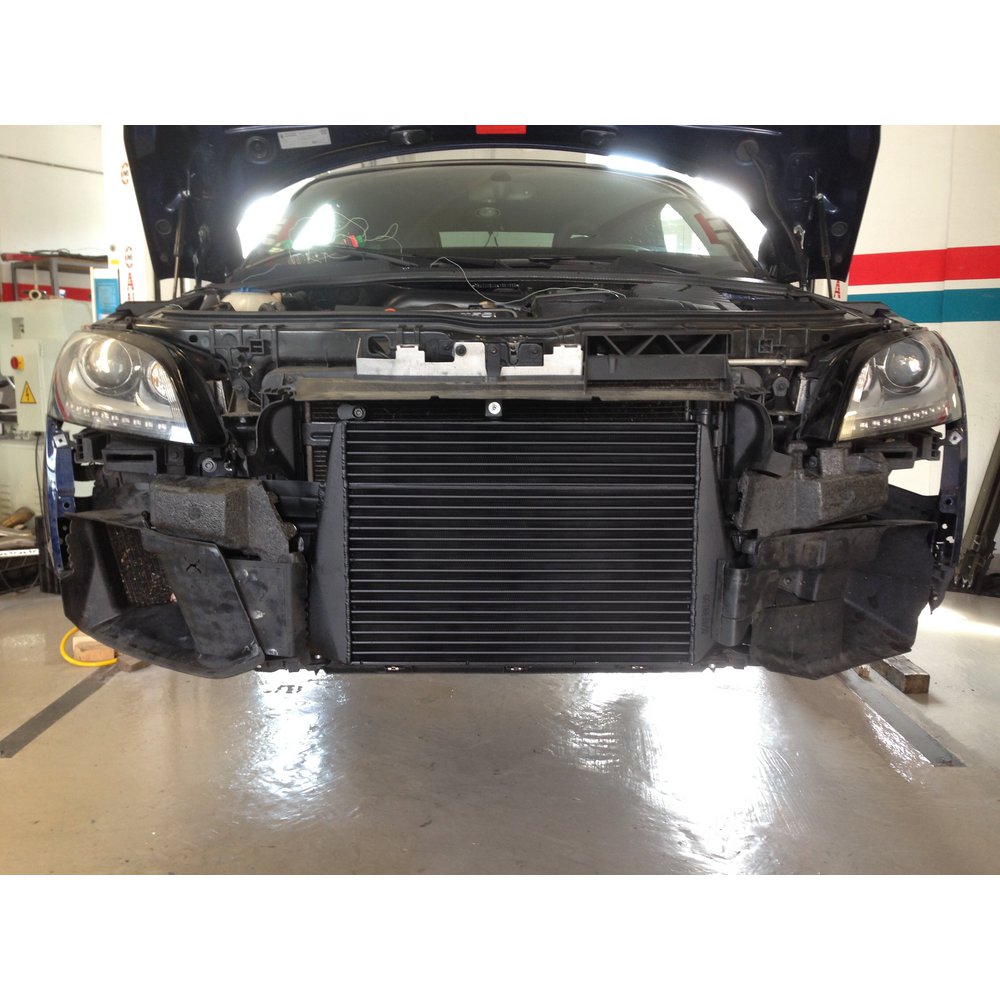

Simple plug-and-play installation: The intercooler and the original cross member form a stable unit that is easily mounted at the factory mounting points. Thanks to the plug-and-play principle, the 1:1 replacement is straightforward. The connection diameters of 68 mm on both sides are precisely matched to the requirements of the kit.
Highest quality and safety: With a weight of only 18 kg and thanks to constant quality monitoring, you can rely on the highest standards. The enclosed parts certificate makes registration and legal compliance for your Audi TTRS 8J incredibly easy.

OEM intercooler: cooling surface 856cm² / charge air volume 6.8L
WT EVO 1 Performance: cooling surface 856cm² / charge air volume 9.4L
WT EVO 2 Competition: cooling surface 1391cm² / charge air volume 13.2L
WT EVO 3 Competition: cooling surface 1890cm² / charge air volume 16.5
All our products are subject to constant quality control.

Technical details & vehicle compatibility:
Net dimensions: 515 mm x 367[274] mm x 95 mm
Charge air volume: 16.5 liters (+142% vs. OEM)
Enlarged flow area: +120% vs. OEM
Weight: 18 kg
Connection diameter: 68 mm on both sides
Mesh type: Competition high-performance mesh (two variants)
Approval: Includes parts certificate

Vehicle compatibility:
Audi TTRS 8J
Part number: 200001056
Kit comes with:
1x intercooler together with cross member
1x set of mounting hardware
1x set of license plate holders
1x installation instructions
1x parts certificate
