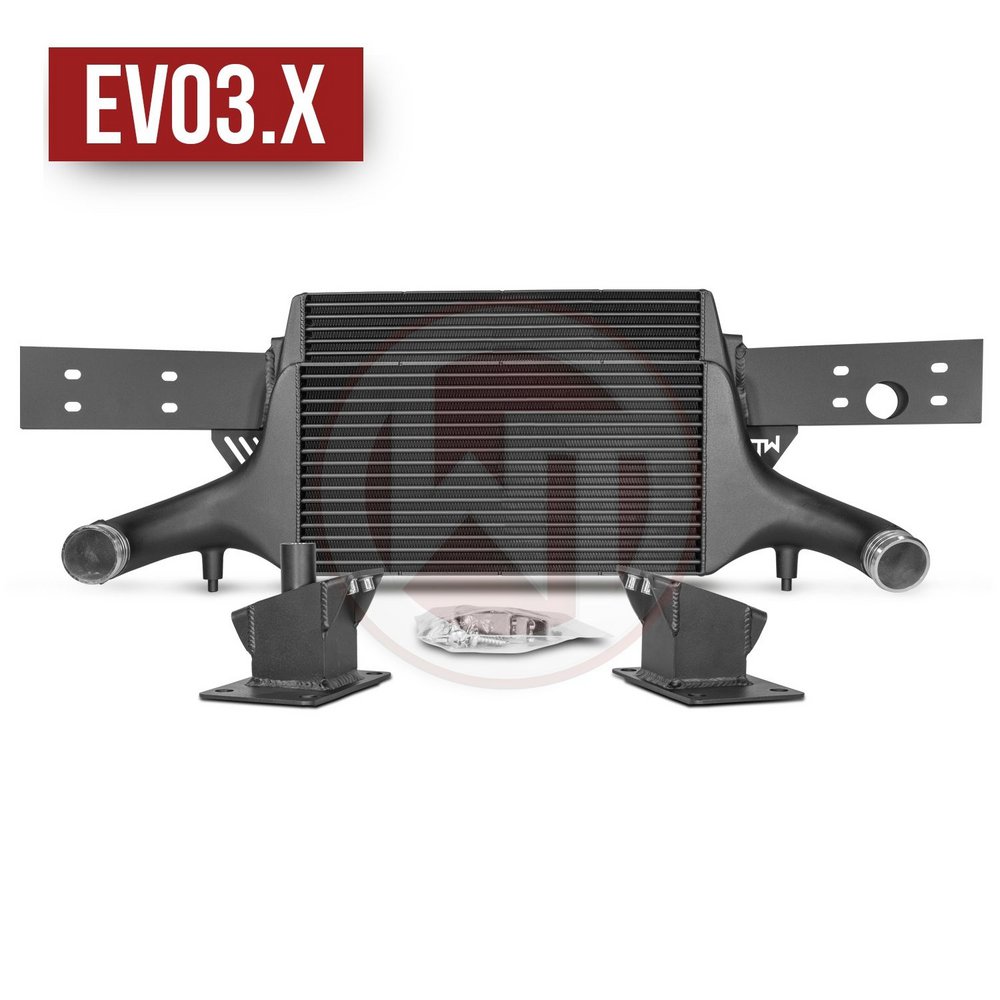

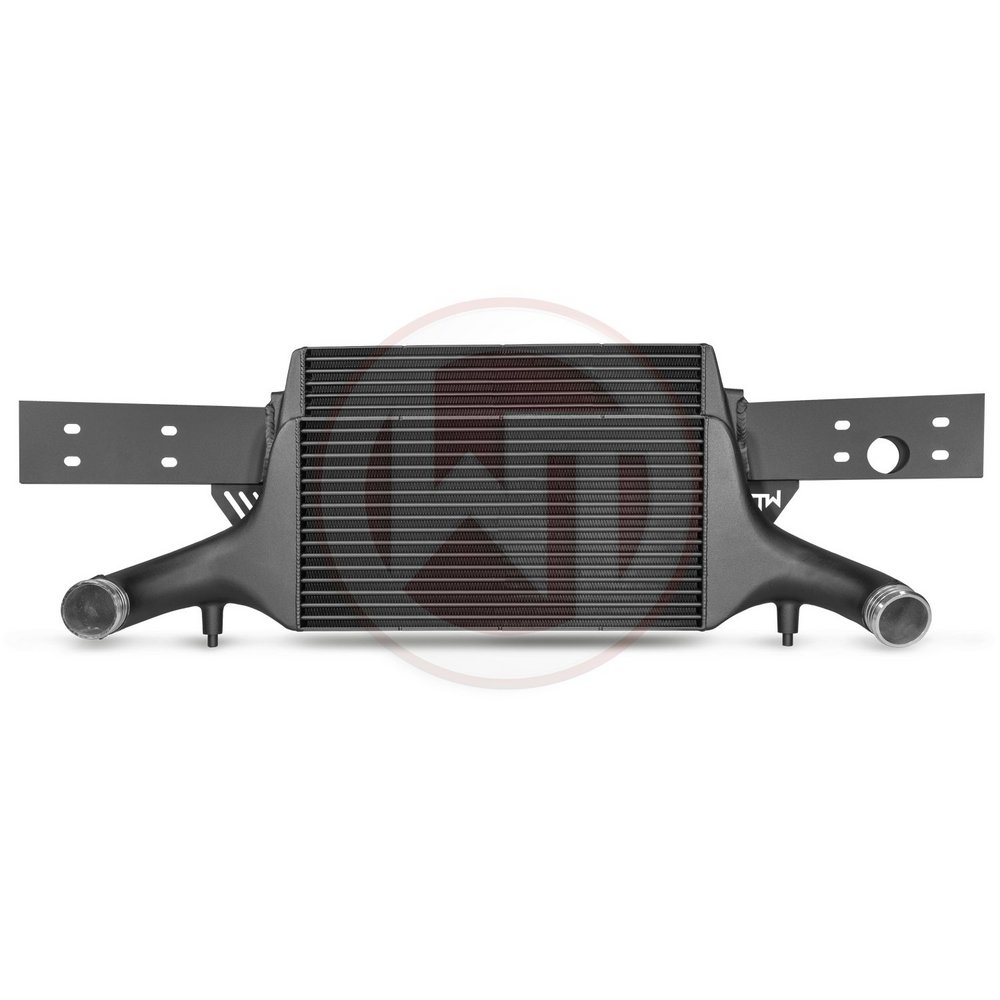

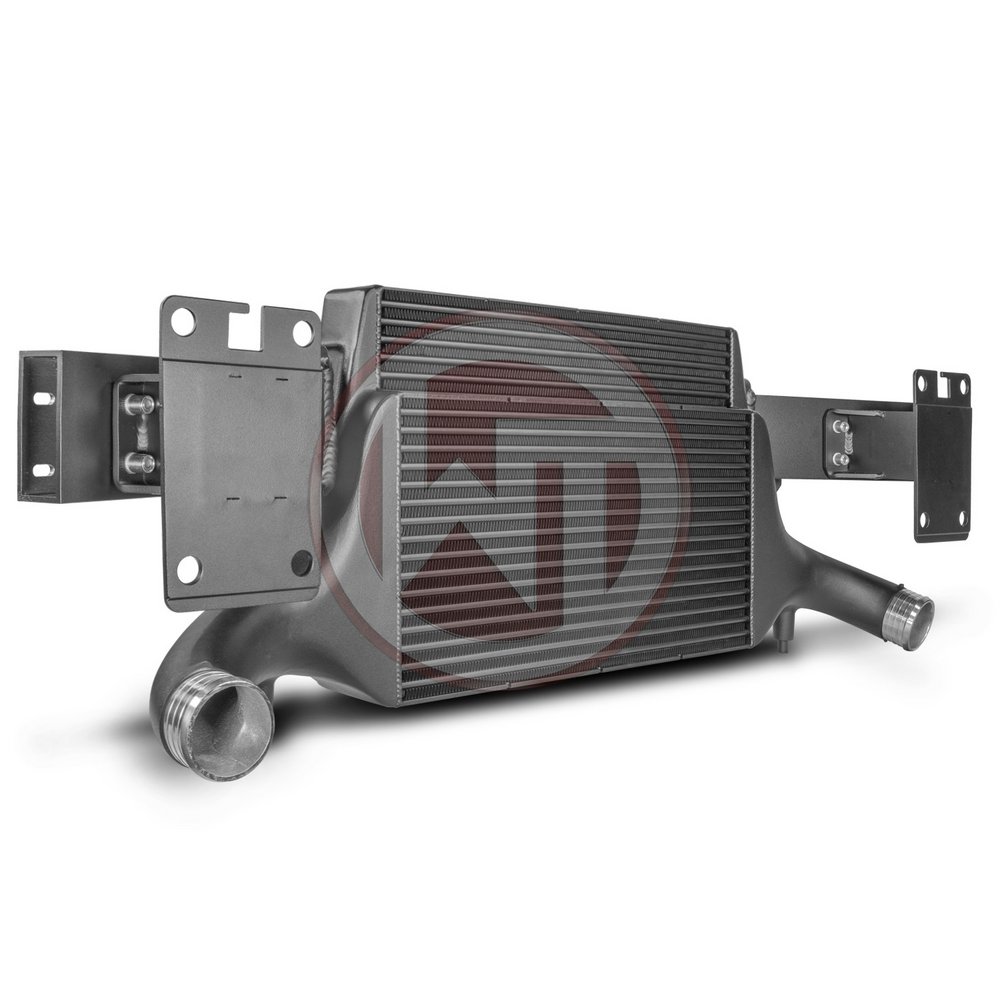

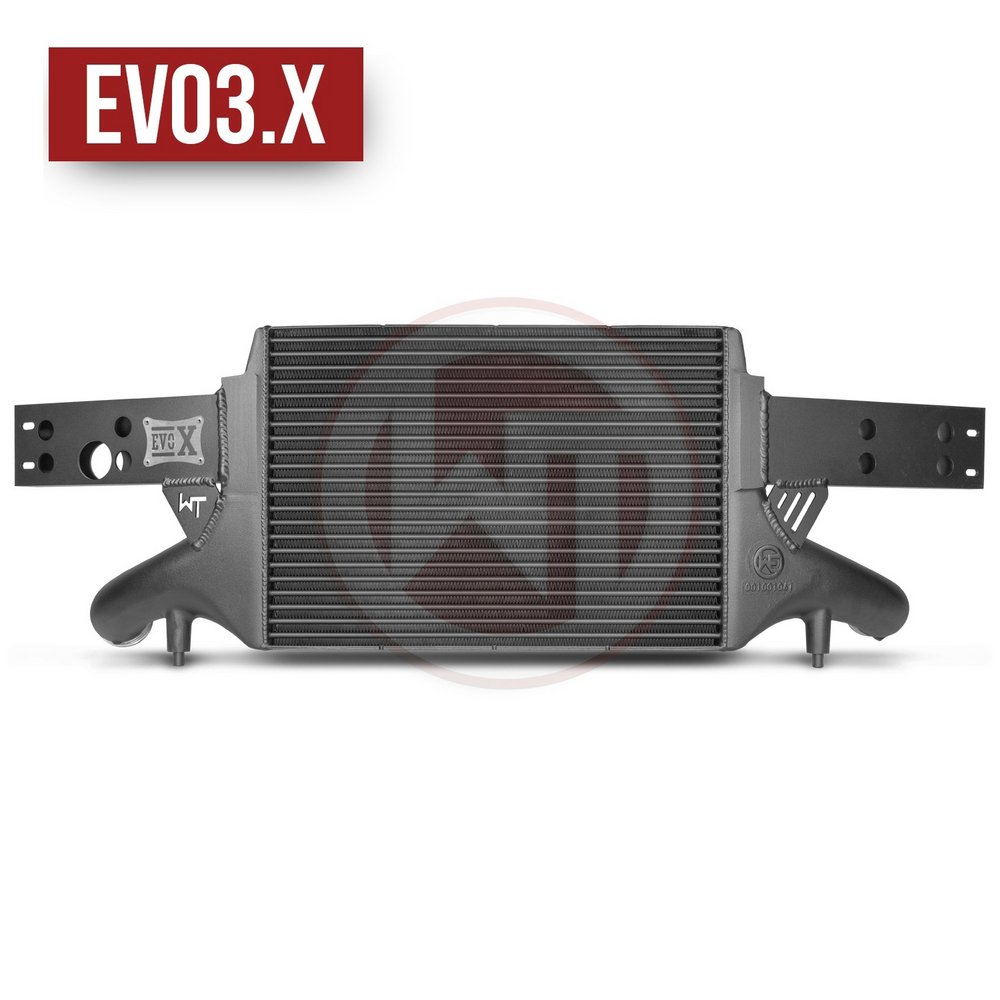

Wagner Tuning Competition Intercooler EVO3.X for Audi TTRS 8S 2.5 TFSI 200001136.X

The Wagner Tuning Competition Intercooler EVO3.X for Audi TTRS 8S 2.5 TFSI 200001136.X is a high-performance upgrade designed to significantly improve charge air cooling and engine efficiency. Engineered for demanding street and motorsport applications, this intercooler ensures lower intake temperatures, increased power potential, and enhanced reliability for turbocharged Audi engines. Developed with advanced flow optimization and precision manufacturing, the 200001136.X intercooler provides maximum cooling surface area while maintaining excellent airflow characteristics.

Performance Benefits of Wagner Tuning Competition Intercooler EVO3.X for Audi TTRS 8S 2.5 TFSI 200001136.X

Improved Cooling Efficiency – Larger core volume and optimized fin design reduce intake air temperatures. Increased Power Potential – Lower temperatures allow for more aggressive tuning and improved combustion efficiency. Reduced Pressure Drop – Optimized internal flow channels ensure maximum airflow without restriction. Enhanced Engine Reliability – Stable intake temperatures protect against heat soak during spirited driving or track use. Motorsport-Proven Engineering – Designed for both high-performance street builds and track-driven vehicles.

Technical Information

• Brand: Wagner Tuning
• Product Name: Competition Intercooler EVO3.X for Audi TTRS 8S 2.5 TFSI
• Product Reference Code: 200001136.X
• Vehicle Make: Audi
• Vehicle Model: Audi TTRS 8S
• Engine Compatibility: TTRS 8S 2.5 TFSI
• Weight: 21.0

Why Choose Wagner Tuning?

Wagner Tuning is globally recognized for developing high-performance cooling solutions for turbocharged vehicles. Each intercooler is engineered using CFD flow simulations and high-quality materials to ensure superior thermal efficiency and durability. The Competition Intercooler EVO3.X for Audi TTRS 8S 2.5 TFSI is the perfect solution for enthusiasts looking to unlock the full potential of their platform while maintaining long-term reliability.

Wagner Tuning product information about Wagner Tuning Competition Intercooler EVO3.X for Audi TTRS 8S 2.5 TFSI 200001136.X

Competition Intercooler Kit EVO3 for Audi TTRS 8S now available with TÜV certificate and two different intercooler core options

Advantages of the Wagner Tuning intercooler:
– Improved cooling performance
– 84% larger inflow area
– 101% more charge air volume
– weight 11.7 kg
– flow-optimized
– less back pressure
– original mounting points

The new core option EVO3.X was developed in cooperation with a renowned German Audi tuner and is suitable for higher performance applications 600PS+. The size of the intercooler remains unchanged from the original version. Only the internal core design has been further optimized for the high power applications and guarantees optimal air flow and excellent cooling performance. For all power applications below the 600PS we recommend to use the standard version.

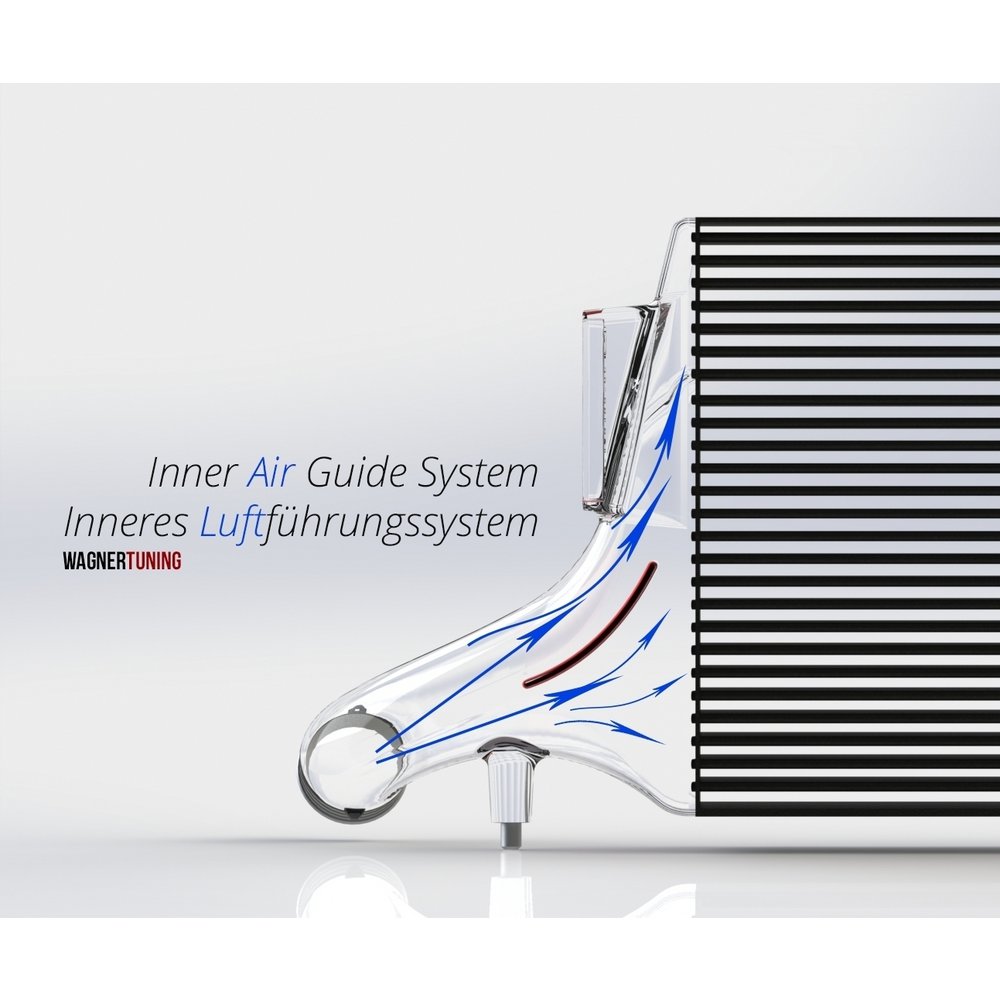

The high performance intercooler has the following core dimension (515mm x 367mm x 95mm = 16.500cm³) and thus offers a 84% larger cooling surface and 101% more charge air volume compared to the original intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. This Audi RS3 intercooler uses our award winning WAGNERTUNING Competition Intercooler Core, which is made specifically for this application. Constructed of the highest quality Tube and Fin intercooler cores with inside turbulators combined with cast aluminum endtanks optimized by CFD for best possible internal airflow. With the help of additional air guides, inside inlet, a uniform filling of the intercooler is provided. The result is excellent cooling properties with minimum pressure drop. So this kit is just the right thing for racing. The intercooler and the original crossmember form a stable unit and weighs only 11.7 kg. It is mounted to the original mounting points and is easy to perform (simple adjustments necessasy – check installation instruction). Optimum cooling of the charged air with a clear increase in performance! 68mm In and Outlets.

OEM intercooler:
cooling surface 1024cm²(158,7Inch²)
charge-air-volume 8,2L (500,4Inch³)

Wagner Tuning EVO 3 Competition:
cooling surface 1890cm² (293Inch²)
charge-air-volume 16,5L (1006,9Inch³)

kit comes with:
1 intercooler including crossmember
1 mounting material
1 installation instruction
1 TÜV Certification (*only for Non-OPF cars)
