Why Choose Wagner Tuning?

Wagner Tuning is globally recognized for developing high-performance cooling solutions for turbocharged vehicles. Each intercooler is engineered using CFD flow simulations and high-quality materials to ensure superior thermal efficiency and durability. The Competition Intercooler EVO3.X for Audi RS3 8V 2.5 TFSI is the perfect solution for enthusiasts looking to unlock the full potential of their platform while maintaining long-term reliability.

Wagner Tuning product information about Wagner Tuning Competition Intercooler EVO3.X for Audi RS3 8V 2.5 TFSI 200001081.NOACC.X

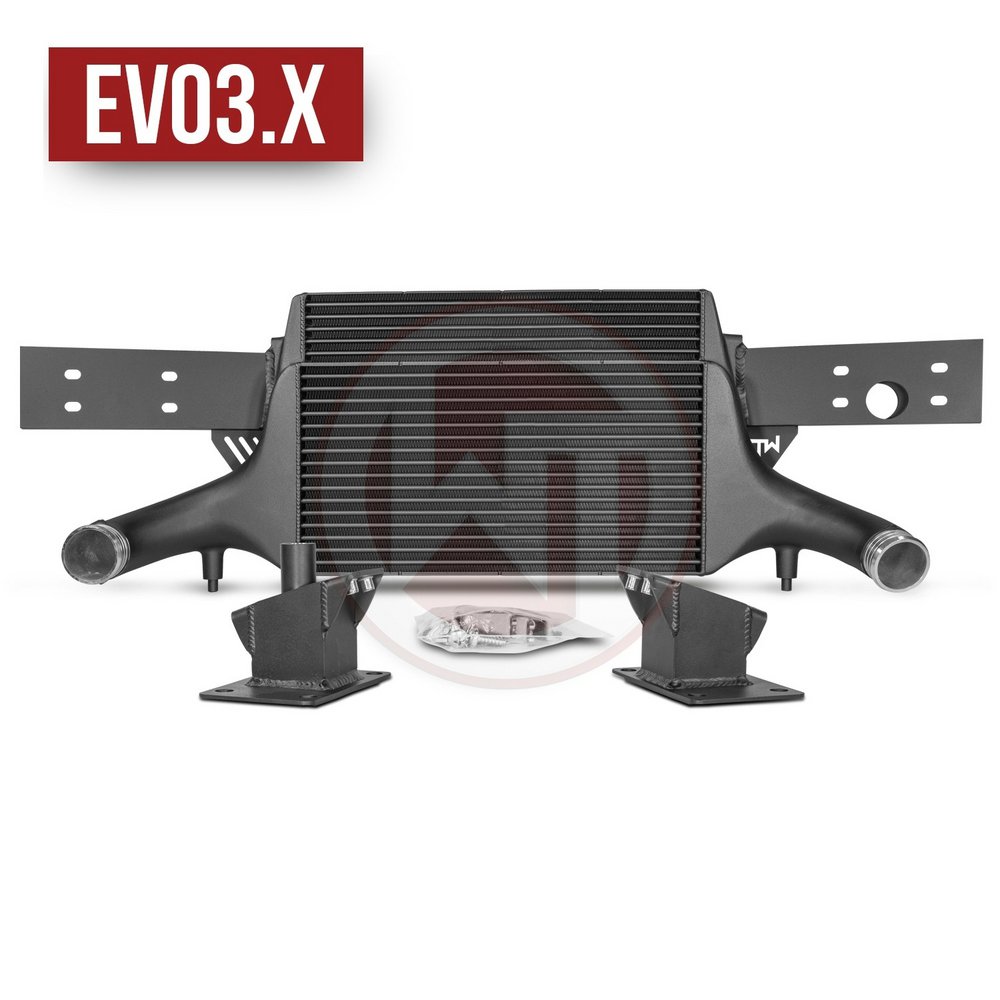

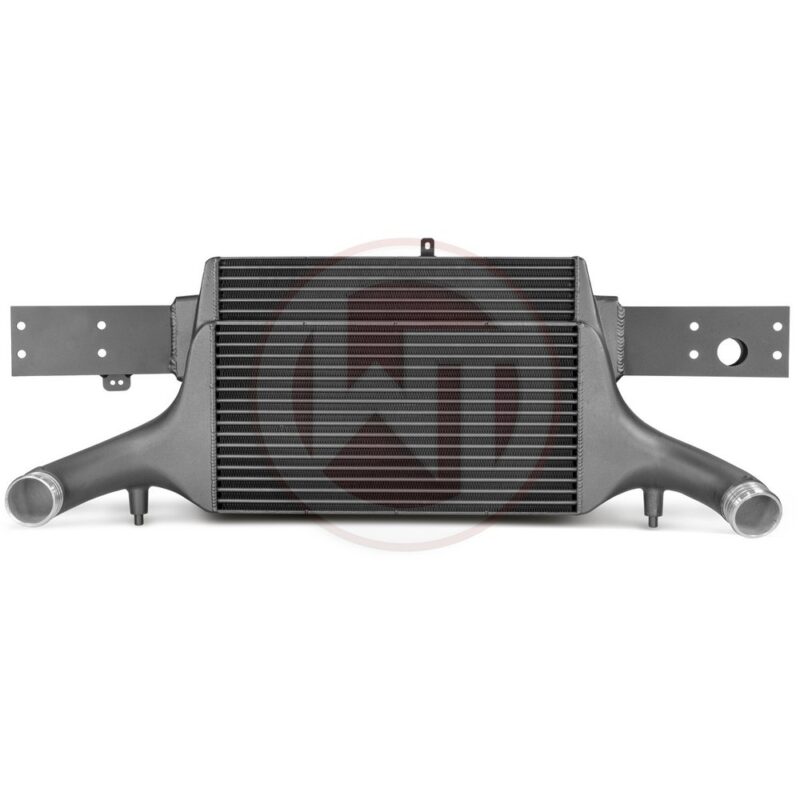

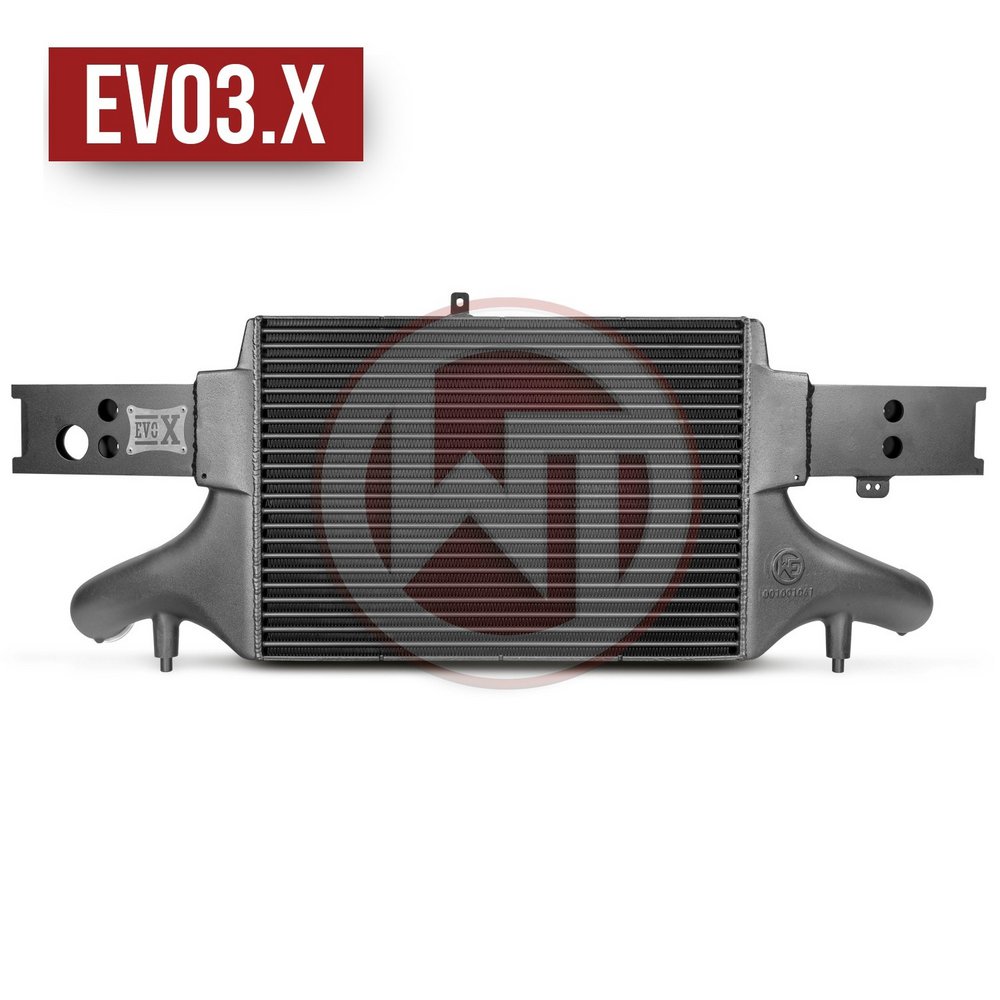

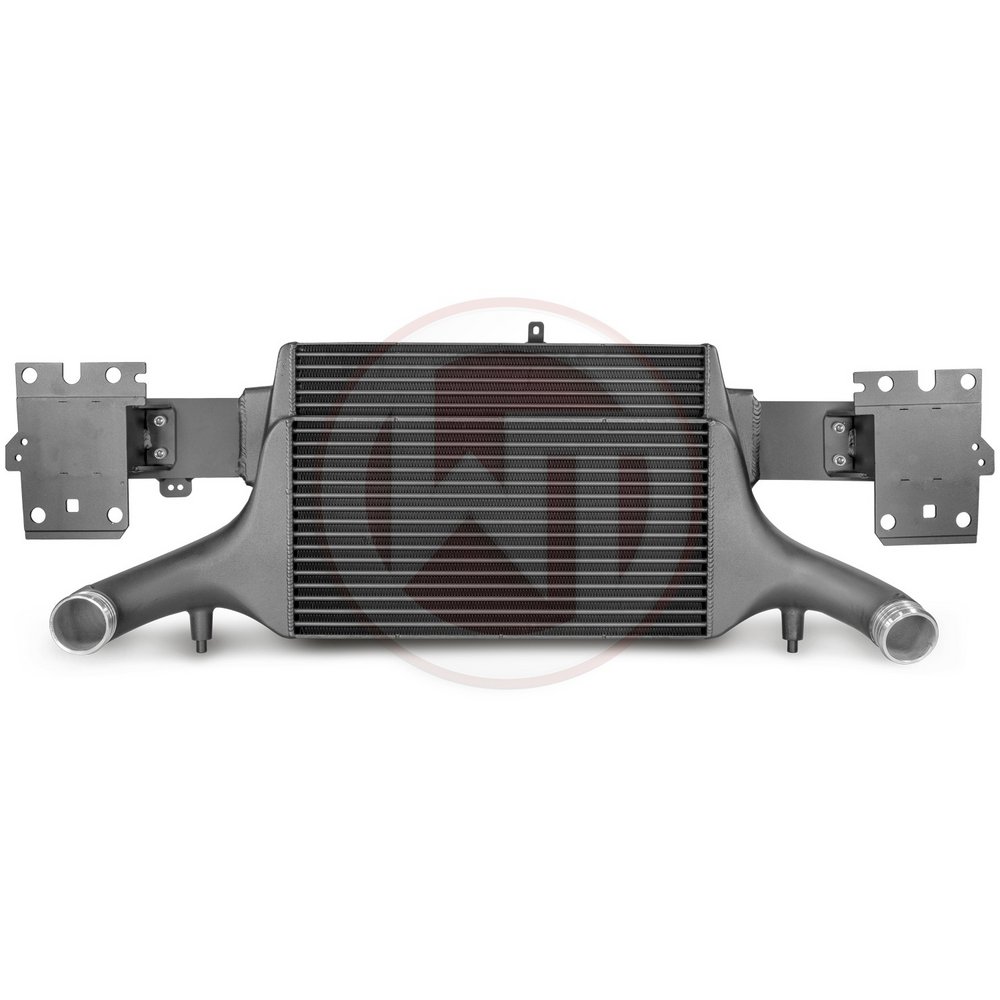

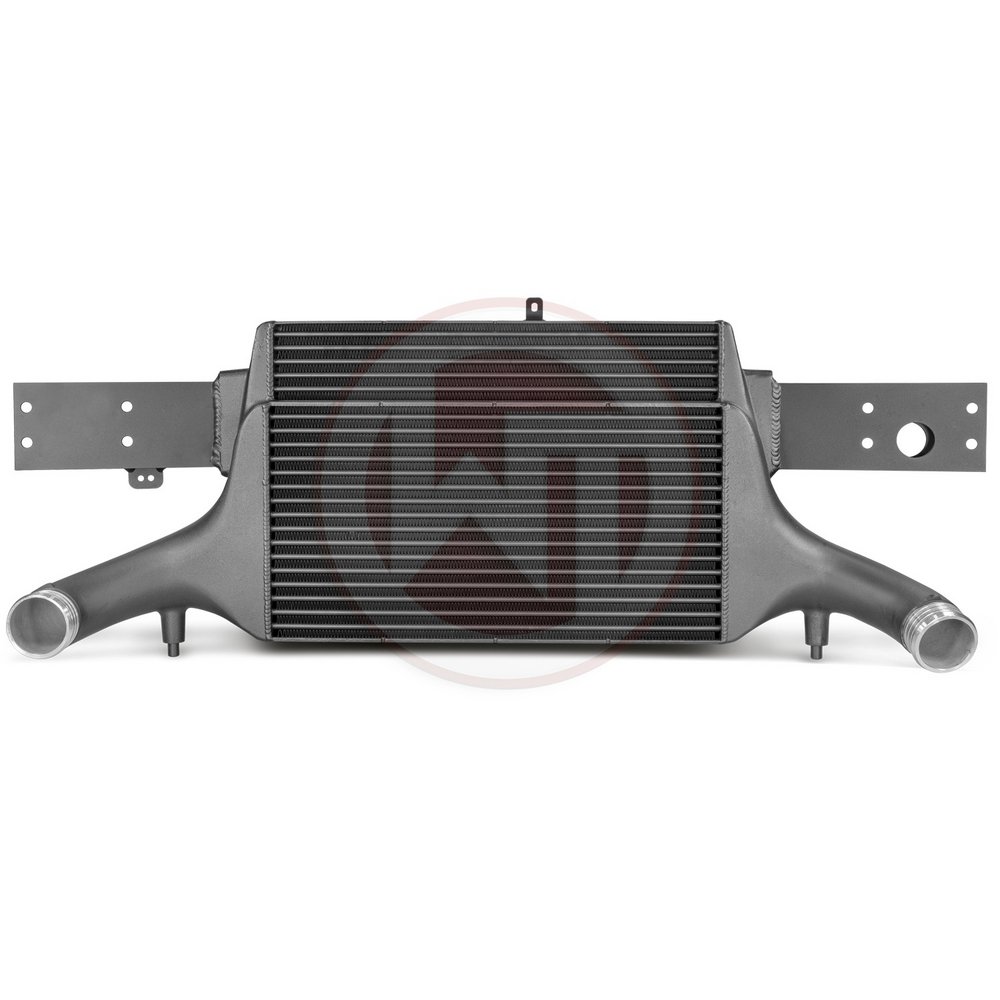

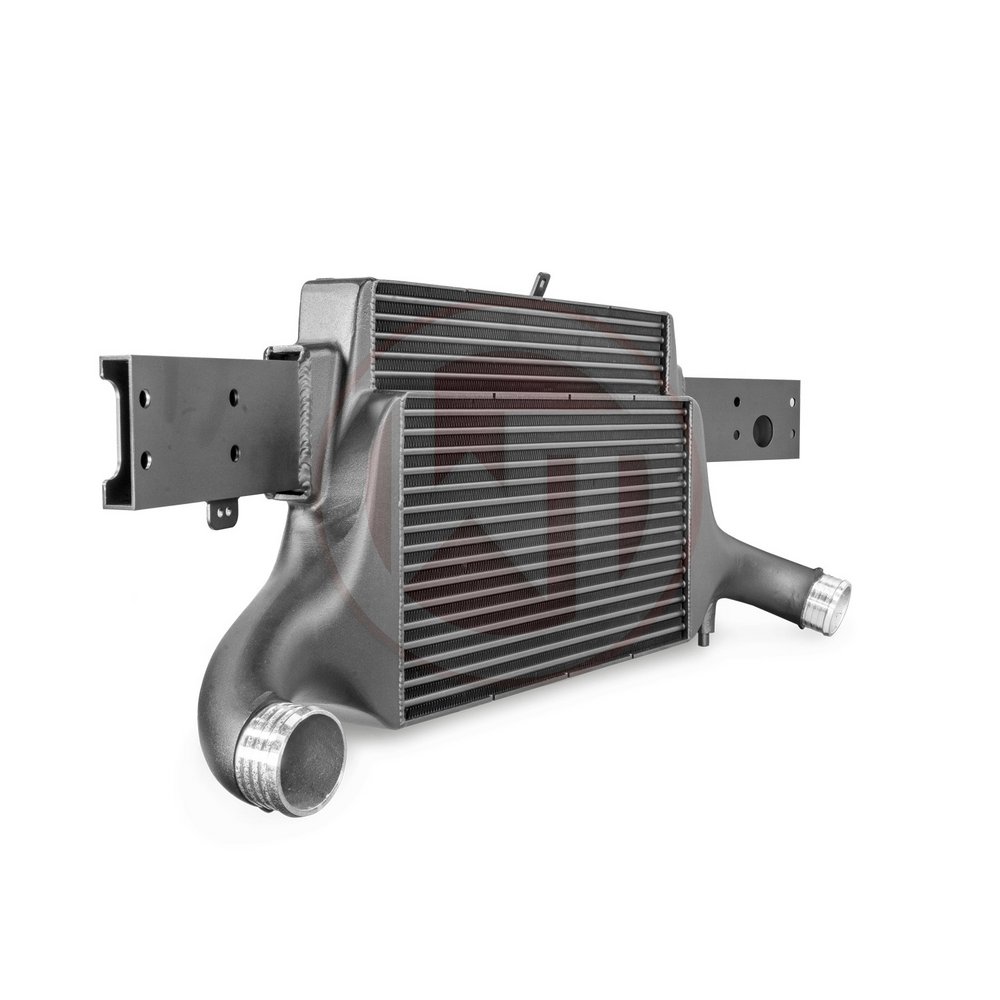

COMPETITION INTERCOOLER EVO 3 AUDI RS3 8V now available with part certificate and two different intercooler core options

Advantages of the Wagner Tuning intercooler:
– improved cooling performance
– 84% larger inflow area
– 101% more charge air volume
– weight 15KG
– Inlet and outlet Ø68mm
– Plug & Play

Audi RS3 8V Sportback 270KW/367PS 04/201504/2016
Audi RS3 8V Sportback/Sedan 294KW/400PS 08/2017+

The new core option EVO3.X was developed in cooperation with a renowned German Audi tuner and is suitable for higher performance applications 600PS+. The size of the intercooler remains unchanged from the original version. Only the internal core design has been further optimized for the high power applications and guarantees optimal air flow and excellent cooling performance. For all power applications below the 600PS we recommend to use the standard version.

The high performance intercooler has the following core dimension (515mm x 367mm x 95mm = 16,5L/14,45Inch x 3,74Inch = 1006,9Inch³) and this offers a 84% larger cooling surface and 101% more charge air volume compared to the original intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. This Audi RS3 intercooler uses our award winning WAGNERTUNING Competition Intercooler Core, which is made specifically for this application. Constructed of the highest quality TUBE and FIN intercooler cores with inside turbulators combined with cast aluminum endtanks optimized by CFD for best possible internal airflow. With the help of additional air guides, inside inlet, a uniform filling of the intercooler is provided. The result is excellent cooling properties with minimum pressure drop. So this kit is just the right thing for racing. The intercooler and the crossmember form a stable unit. It is mounted to the original mounting points and is easy to perform (1:1 exchange). Optimum cooling of the charged air with a clear increase in performance! 68mm (2,67Inch) in- and outlets.

OEM intercooler:
cooling surface 1024cm²(158,7Inch²)
charge-air-volume 8,2L (500,4Inch³)

Wagner Tuning EVO 3 Competition:
cooling surface 1890cm² (293Inch²)
charge-air-volume 16,5L (1006,9Inch³)
weight 19Kg

Comment:
recalibration of the ACC maybe necessary

kit comes with:
1 intercooler including crossmember
1 mounting material
1 installation instruction
1 part Certification
