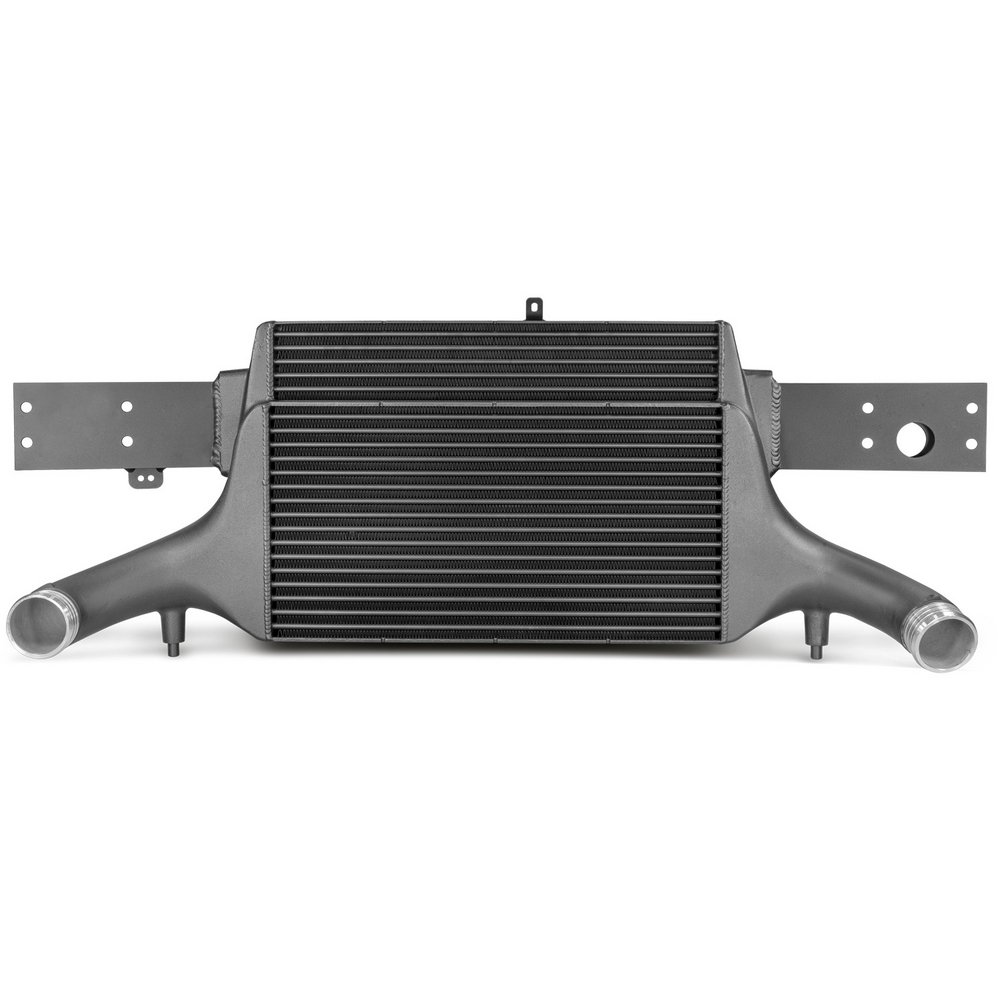

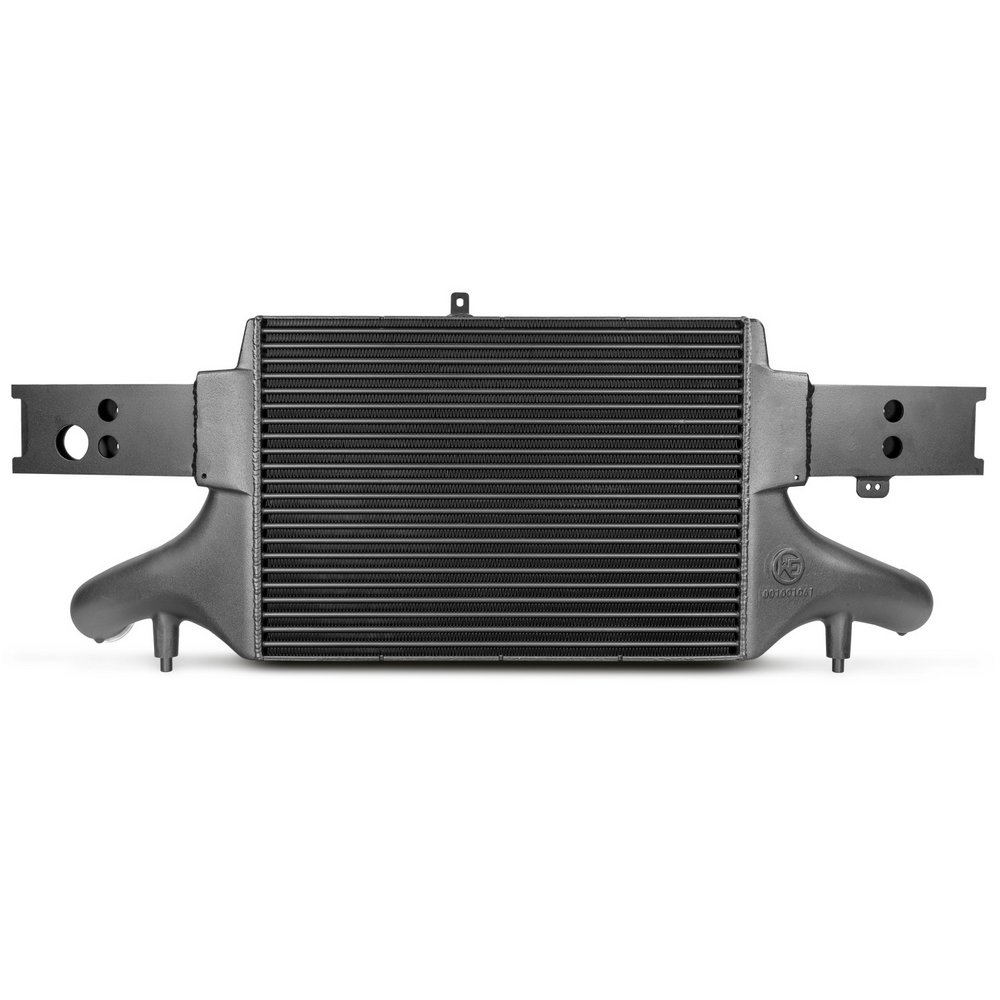

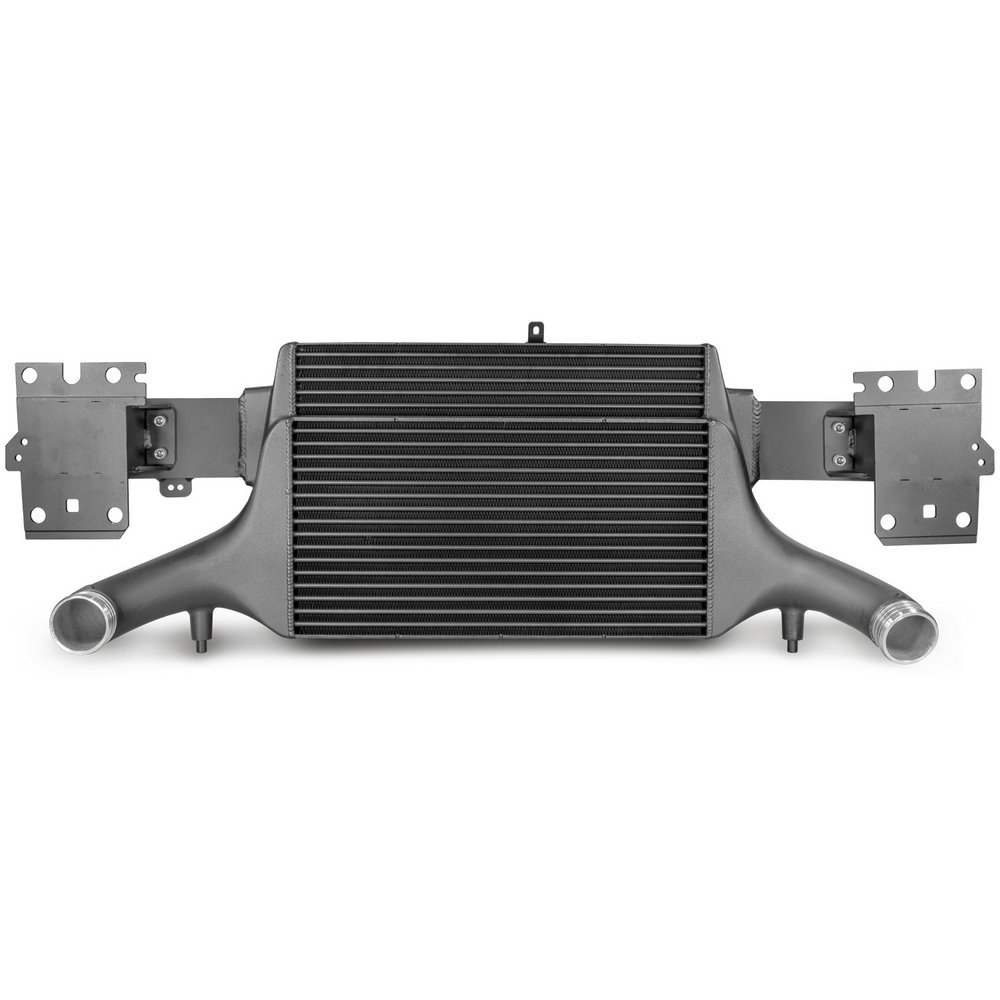

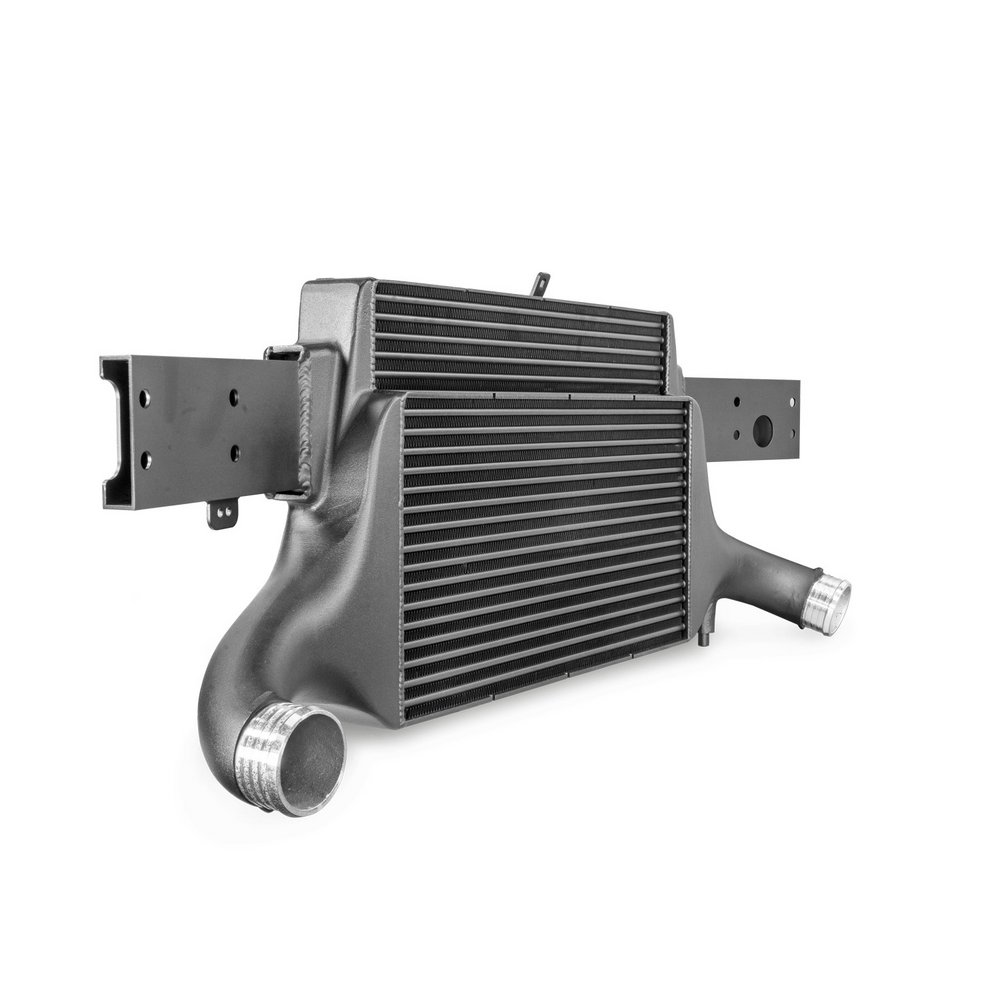

Wagner Tuning Competition Intercooler EVO3 for Audi RS3 8V 2.5 TFSI 200001081.ACC.S

The Wagner Tuning Competition Intercooler EVO3 for Audi RS3 8V 2.5 TFSI 200001081.ACC.S is a high-performance upgrade designed to significantly improve charge air cooling and engine efficiency. Engineered for demanding street and motorsport applications, this intercooler ensures lower intake temperatures, increased power potential, and enhanced reliability for turbocharged Audi engines. Developed with advanced flow optimization and precision manufacturing, the 200001081.ACC.S intercooler provides maximum cooling surface area while maintaining excellent airflow characteristics.

Performance Benefits of Wagner Tuning Competition Intercooler EVO3 for Audi RS3 8V 2.5 TFSI 200001081.ACC.S

Improved Cooling Efficiency – Larger core volume and optimized fin design reduce intake air temperatures. Increased Power Potential – Lower temperatures allow for more aggressive tuning and improved combustion efficiency. Reduced Pressure Drop – Optimized internal flow channels ensure maximum airflow without restriction. Enhanced Engine Reliability – Stable intake temperatures protect against heat soak during spirited driving or track use. Motorsport-Proven Engineering – Designed for both high-performance street builds and track-driven vehicles.

Technical Information

• Brand: Wagner Tuning
• Product Name: Competition Intercooler EVO3 for Audi RS3 8V 2.5 TFSI
• Product Reference Code: 200001081.ACC.S
• Vehicle Make: Audi
• Vehicle Model: Audi RS3 8V
• Engine Compatibility: RS3 8V 2.5 TFSI
• Weight: 19.0

Why Choose Wagner Tuning?

Wagner Tuning is globally recognized for developing high-performance cooling solutions for turbocharged vehicles. Each intercooler is engineered using CFD flow simulations and high-quality materials to ensure superior thermal efficiency and durability. The Competition Intercooler EVO3 for Audi RS3 8V 2.5 TFSI is the perfect solution for enthusiasts looking to unlock the full potential of their platform while maintaining long-term reliability.

Wagner Tuning product information about Wagner Tuning Competition Intercooler EVO3 for Audi RS3 8V 2.5 TFSI 200001081.ACC.S

COMPETITION INTERCOOLER EVO 3 AUDI RS3 8V now available with certificate and two different intercooler core options

Advantages of the Wagner Tuning intercooler:
– improved cooling performance
– 84% larger inflow area
– 101% more charge air volume
– weight 15KG
– Inlet and outlet Ø68mm
– Plug & Play

Audi RS3 8V Sportback 270KW/367PS 04/201504/2016
Audi RS3 8V Sportback/Sedan 294KW/400PS 08/2017+

Important note:We recommend to use the standard version for power applications up to 600HP and the X-version for power application above 600HP.

The high performance intercooler has the following core dimension (515mm x 367mm x 95mm = 16,5L/14,45Inch x 3,74Inch = 1006,9Inch³) and this offers a 84% larger cooling surface and 101% more charge air volume compared to the original intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. This Audi RS3 intercooler uses our award winning WAGNERTUNING Competition Intercooler Core, which is made specifically for this application. Constructed of the highest quality TUBE and FIN intercooler cores with inside turbulators combined with cast aluminum endtanks optimized by CFD for best possible internal airflow. With the help of additional air guides, inside inlet, a uniform filling of the intercooler is provided. The result is excellent cooling properties with minimum pressure drop. So this kit is just the right thing for racing. The intercooler and the crossmember form a stable unit. It is mounted to the original mounting points and is easy to perform (1:1 exchange). Optimum cooling of the charged air with a clear increase in performance! 68mm (2,67Inch) in- and outlets.

OEM intercooler:
cooling surface 1024cm²(158,7Inch²)
charge-air-volume 8,2L (500,4Inch³)

Wagner Tuning EVO 3 Competition:
cooling surface 1890cm² (293Inch²)
charge-air-volume 16,5L (1006,9Inch³)

Comment: recalibration of the ACC maybe necessary

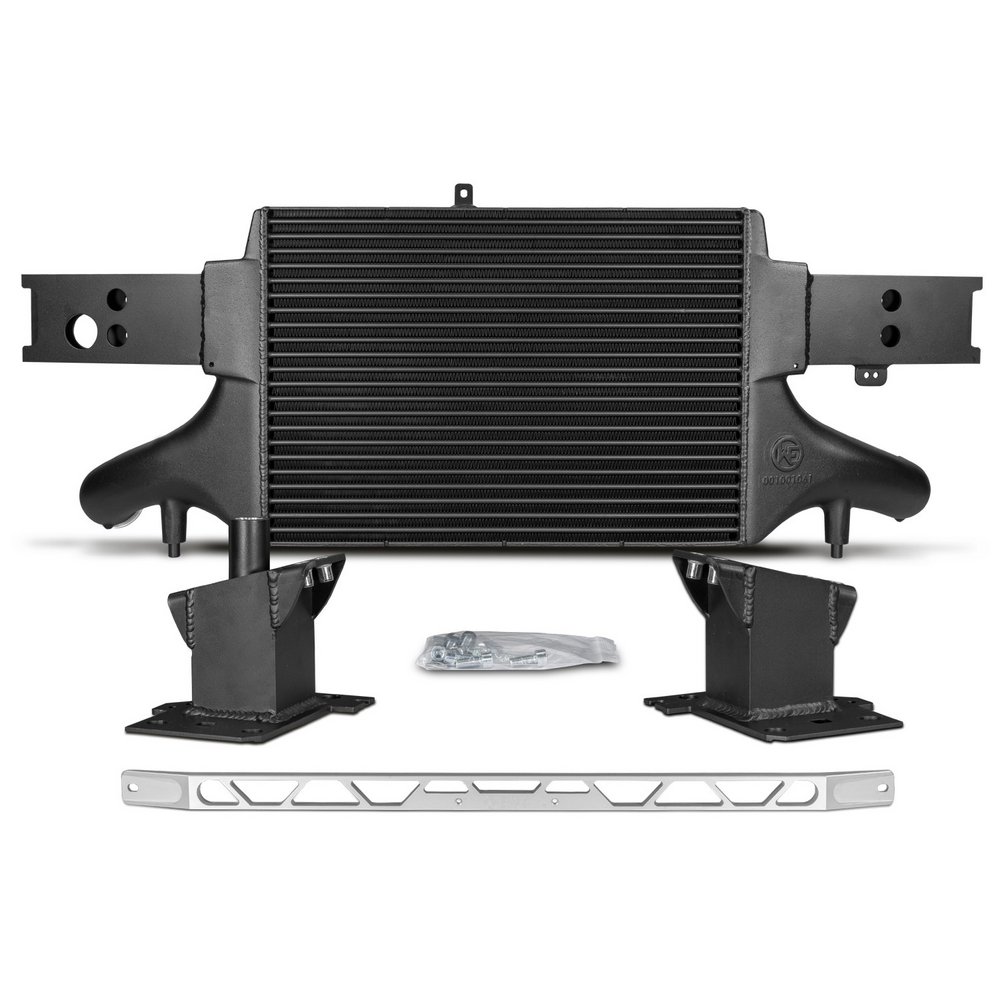

kit comes with:
1 intercooler including crossmember
1 mounting material
1 installation instruction
1 Certification
