Wagner Tuning Comp. Intercooler Kit for Audi S4 B9 3.0TFSI 200001120USA

The Wagner Tuning Comp. Intercooler Kit for Audi S4 B9 3.0TFSI 200001120USA is a high-performance upgrade designed to significantly improve charge air cooling and engine efficiency. Engineered for demanding street and motorsport applications, this intercooler ensures lower intake temperatures, increased power potential, and enhanced reliability for turbocharged Audi engines. Developed with advanced flow optimization and precision manufacturing, the 200001120USA intercooler provides maximum cooling surface area while maintaining excellent airflow characteristics.

Performance Benefits of Wagner Tuning Comp. Intercooler Kit for Audi S4 B9 3.0TFSI 200001120USA

Improved Cooling Efficiency – Larger core volume and optimized fin design reduce intake air temperatures. Increased Power Potential – Lower temperatures allow for more aggressive tuning and improved combustion efficiency. Reduced Pressure Drop – Optimized internal flow channels ensure maximum airflow without restriction. Enhanced Engine Reliability – Stable intake temperatures protect against heat soak during spirited driving or track use. Motorsport-Proven Engineering – Designed for both high-performance street builds and track-driven vehicles.

Technical Information

• Brand: Wagner Tuning
• Product Name: Comp. Intercooler Kit for Audi S4 B9 3.0TFSI
• Product Reference Code: 200001120USA
• Vehicle Make: Audi
• Vehicle Model: Audi S4 B9
• Engine Compatibility: S4 B9 3.0TFSI
• Weight: 15.0

Why Choose Wagner Tuning?

Wagner Tuning is globally recognized for developing high-performance cooling solutions for turbocharged vehicles. Each intercooler is engineered using CFD flow simulations and high-quality materials to ensure superior thermal efficiency and durability. The Comp. Intercooler Kit for Audi S4 B9 3.0TFSI is the perfect solution for enthusiasts looking to unlock the full potential of their platform while maintaining long-term reliability.

Wagner Tuning product information about Wagner Tuning Comp. Intercooler Kit for Audi S4 B9 3.0TFSI 200001120USA

Maximize the performance of your vehicle with our Competition high performance intercooler!

Advantages of the Wagner Tuning intercooler:
improved cooling performance
134% larger inflow area
105% more charge air volume
weighs 9,5 Kg
less back pressure
Plug and Play

Looking for a way to increase your vehicle’s performance and efficiency? Our Competition high-performance intercooler is the answer. Here’s what you can expect from this exceptional product:

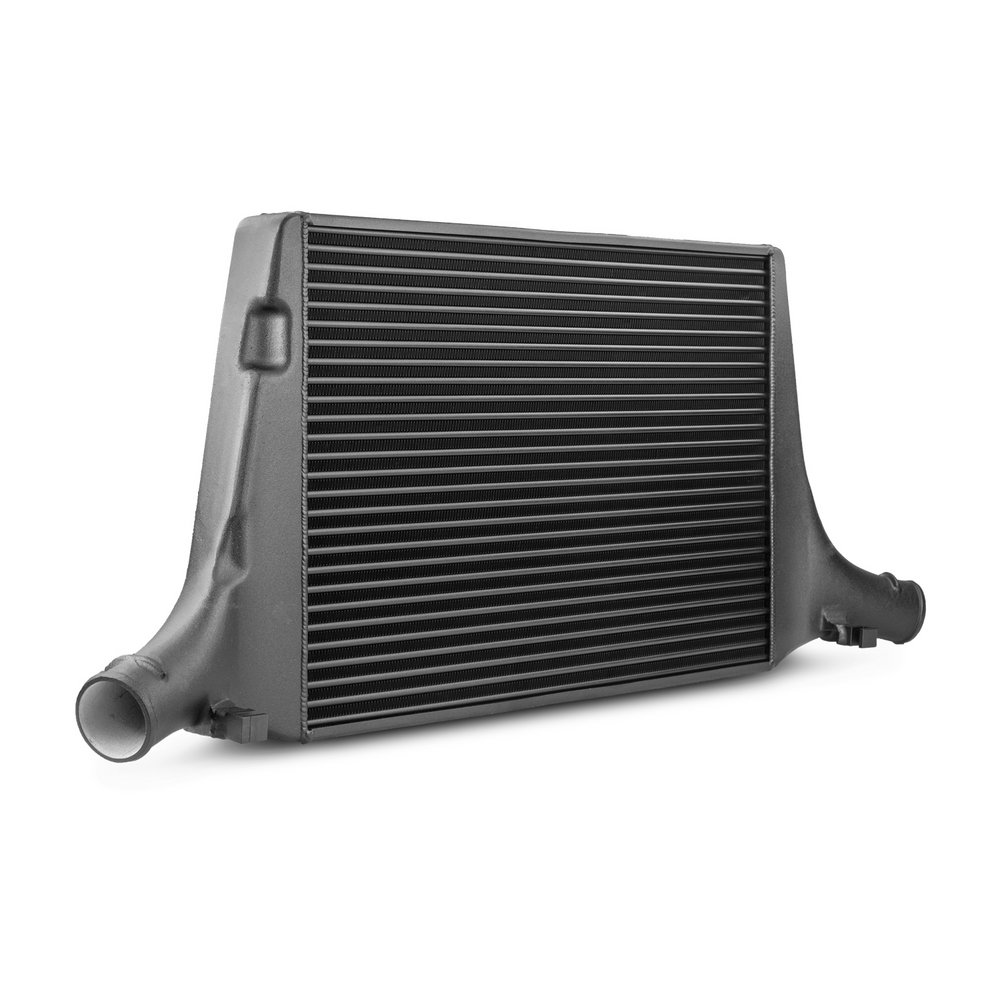

Our high performance intercooler redefines the standards for performance. With net dimensions of 550 mm x 445 mm x 70 mm (equivalent to 17,130 cc), it offers an impressive 134% larger flow area and 105% more charge air volume compared to the conventional intercooler. This means your engine gets more cooled air, resulting in a noticeable increase in power.

Our Competition high performance mesh is made of high quality Tube Fin material with internal turbulators. This ensures maximum heat transfer and efficient airflow to keep cooling performance at its highest level.

Despite its imposing size, our intercooler is surprisingly lightweight, weighing only 9.5 kg. This minimizes the load on your vehicle and helps improve overall performance.

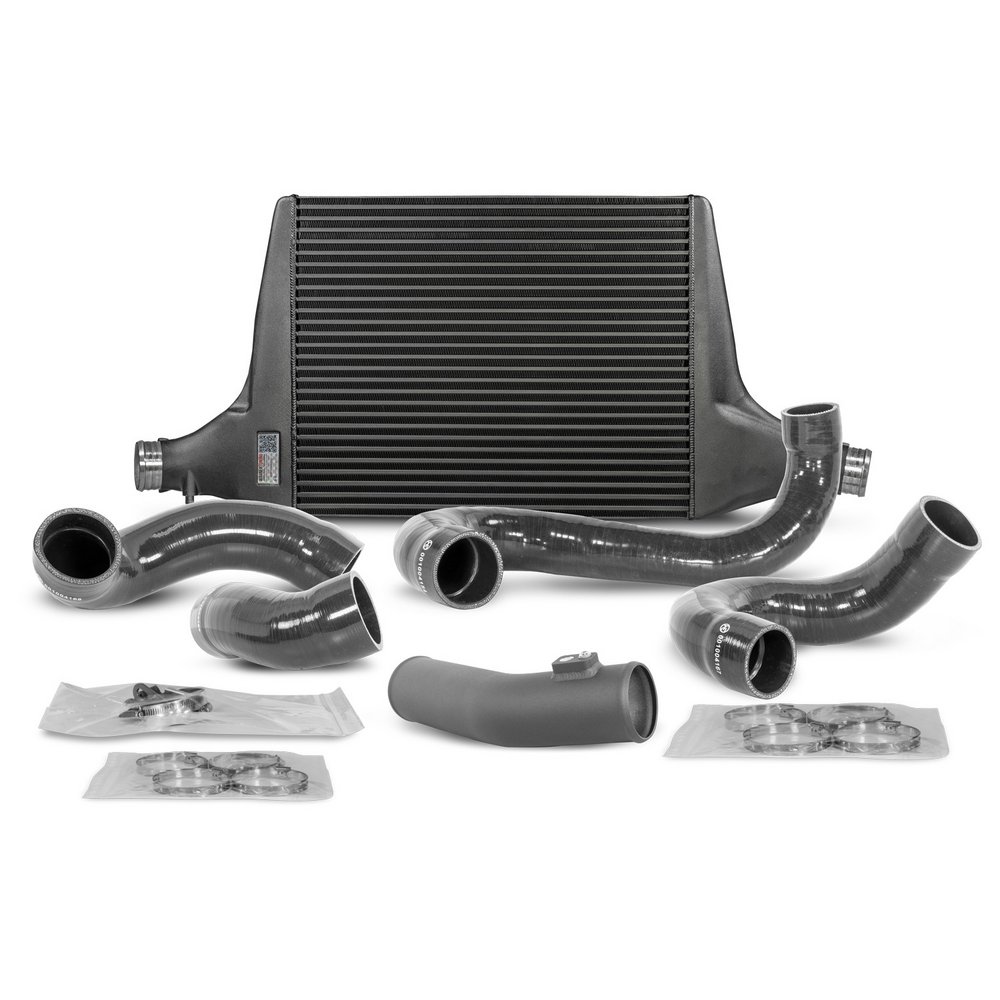

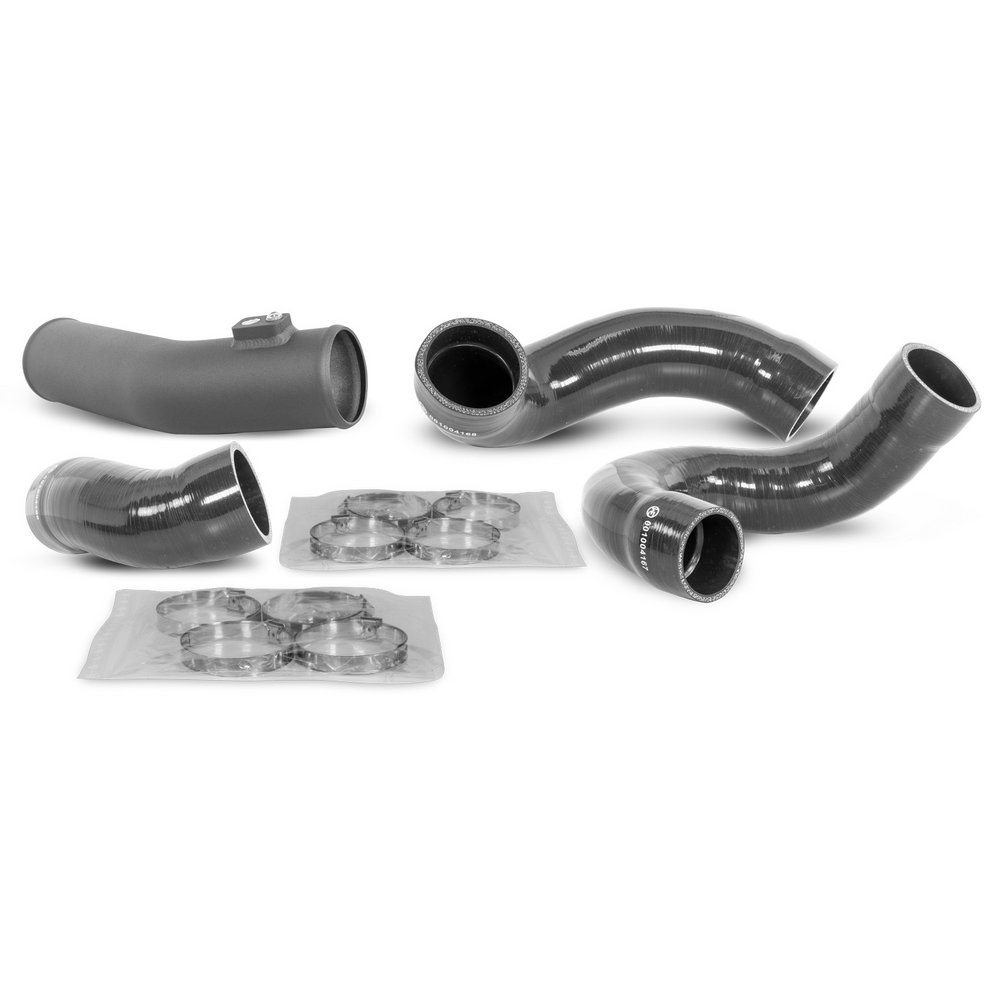

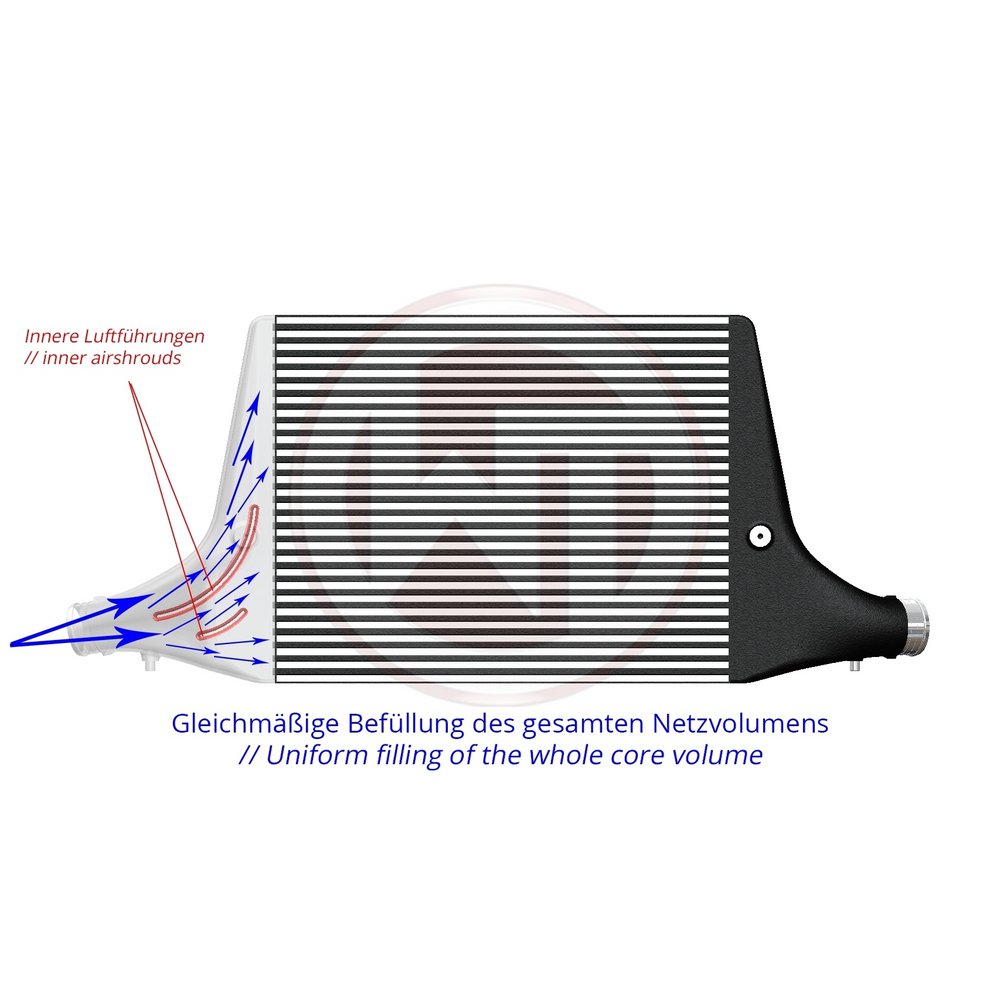

Optionally, the kit is also available with complete charge air piping. Want to get the most out of your intercooler? Our kit with complete charge air piping is the answer. It includes three reinforced silicone hoses and an aluminum charge air tube for even better performance. The cast aluminum end boxes of our intercooler were developed and optimized with the help of flow analyses in the CFD system. The result is excellent cooling properties with minimal backpressure. All our charge air coolers are equipped with an anti-corrosion coating, which at the same time has excellent heat conduction properties. This ensures permanent and optimal cooling, which translates into an impressive increase in performance. Our kit is completely ready to install and allows for easy replacement with the stock intercooler. No complex conversion required – simply plug and play. Tested up to 6 bar and pressure stable. Our products are subject to strict qualitative monitoring and are also suitable for racing. Increase the performance of your vehicle with our Competition high performance intercooler and feel the difference on every ride. Experience a new dimension in vehicle performance!

Competition Intercooler Kit for Audi S4 B9/S5 F5 3,0TSFI
Audi S4 B9 3,0TFSI 260KW/354PS (2016+)*
Audi S5 F5 3,0TFSI 260KW/354PS (2016+)*
* the supplied brackets are only suitable for the US model.

Core dimensions original intercooler:
720mm x 145mm x 80mm
V=8,35 Liter
A=1044 cm²

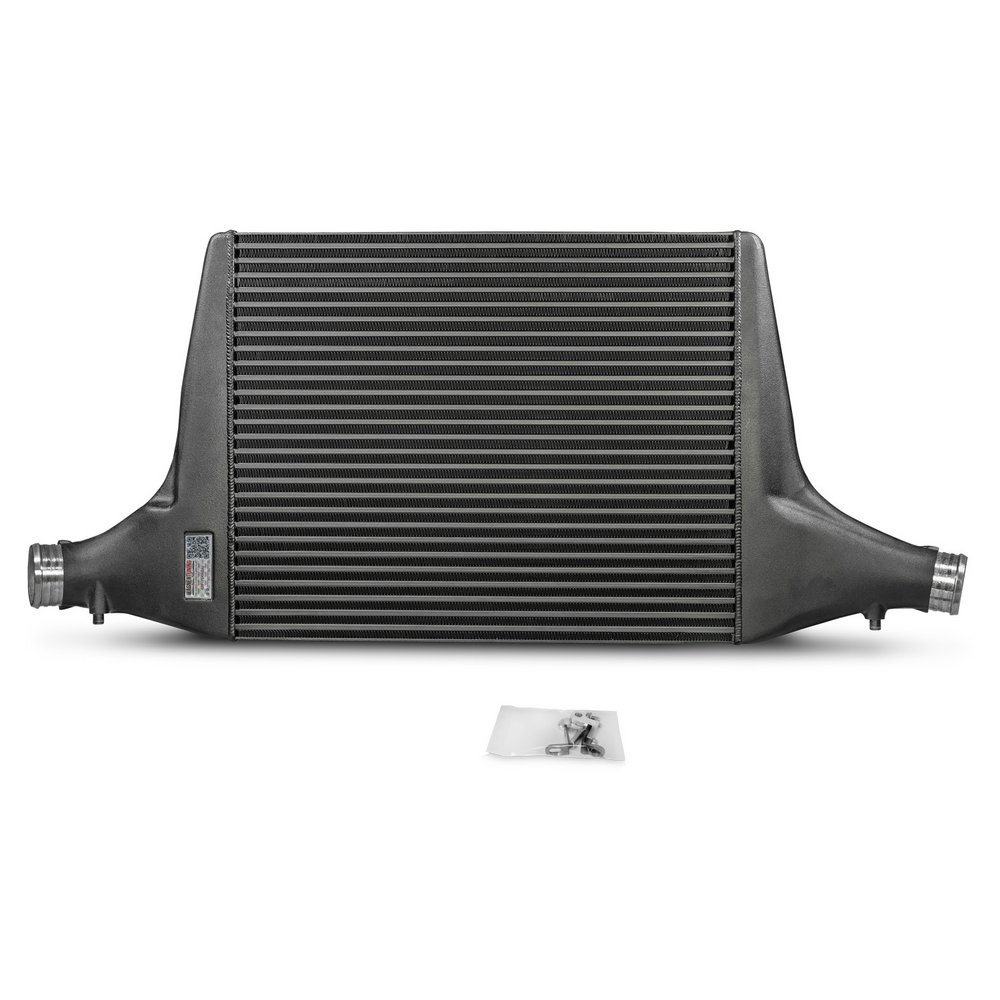

Core dimensions Wagner Tuning intercooler:
550mm x 445mm x 70mm
V=17,13 Liter
A=2447 cm²
weighs 9,5kg

Part number 200001120USA
Kit comes with:
Please choose option
