Wagner Tuning Comp. Intercooler Kit for Audi 3.0TFSI 200001121USA.PIPE

The Wagner Tuning Comp. Intercooler Kit for Audi 3.0TFSI 200001121USA.PIPE is a high-performance upgrade designed to significantly improve charge air cooling and engine efficiency. Engineered for demanding street and motorsport applications, this intercooler ensures lower intake temperatures, increased power potential, and enhanced reliability for turbocharged Audi engines. Developed with advanced flow optimization and precision manufacturing, the 200001121USA.PIPE intercooler provides maximum cooling surface area while maintaining excellent airflow characteristics.

Performance Benefits of Wagner Tuning Comp. Intercooler Kit for Audi 3.0TFSI 200001121USA.PIPE

Improved Cooling Efficiency – Larger core volume and optimized fin design reduce intake air temperatures. Increased Power Potential – Lower temperatures allow for more aggressive tuning and improved combustion efficiency. Reduced Pressure Drop – Optimized internal flow channels ensure maximum airflow without restriction. Enhanced Engine Reliability – Stable intake temperatures protect against heat soak during spirited driving or track use. Motorsport-Proven Engineering – Designed for both high-performance street builds and track-driven vehicles.

Technical Information

• Brand: Wagner Tuning
• Product Name: Comp. Intercooler Kit for Audi 3.0TFSI
• Product Reference Code: 200001121USA.PIPE
• Vehicle Make: Audi
• Vehicle Model: Audi SQ5 FY
• Engine Compatibility: 3.0TFSI
• Weight: 15.0

Why Choose Wagner Tuning?

Wagner Tuning is globally recognized for developing high-performance cooling solutions for turbocharged vehicles. Each intercooler is engineered using CFD flow simulations and high-quality materials to ensure superior thermal efficiency and durability. The Comp. Intercooler Kit for Audi 3.0TFSI is the perfect solution for enthusiasts looking to unlock the full potential of their platform while maintaining long-term reliability.

Wagner Tuning product information about Wagner Tuning Comp. Intercooler Kit for Audi 3.0TFSI 200001121USA.PIPE

Experience ultimate performance enhancement with our Competition High Performance Intercooler!

Your vehicle deserves nothing but the best, and our Competition High Performance Intercooler is designed to deliver just that. With its impressive specifications and high-quality materials, this intercooler is the perfect addition to your vehicle.

Our Competition high performance intercooler sets a new standard in cooling performance. With net dimensions of 550 mm x 445 mm x 70 mm (equivalent to 17,130 cc), it offers a 134% larger flow area and 105% larger charge air volume compared to the stock intercooler. This means your engine gets more cooled air, resulting in a noticeable increase in power.

Our Competition high performance intercooler core is made of high quality Tube Fin material with internal turbulators. This combination allows for maximum heat transfer and airflow to maximize cooling performance.

Despite its size, our intercooler is surprisingly lightweight, weighing only 9.5 kg. This minimizes stress on your vehicle and helps improve overall performance.

The cast aluminum end boxes of our intercooler were developed in the CAD system and optimized using flow analyses in the CFD system. The result is excellent cooling properties with minimal back pressure. All our charge air coolers are equipped with an anti-corrosion coating that also has excellent heat conduction properties. This ensures permanent and optimal cooling, which translates into an impressive increase in performance.

Our kit is completely ready to install and allows for easy replacement with the stock intercooler. No complex conversion required – simply plug and play. Tested up to 6 bar and pressure stable.

Our products are subject to strict qualitative monitoring and are also suitable for racing. Increase the performance of your vehicle with our Competition high performance intercooler and feel the difference on every ride.

Competition Intercooler Kit for Audi SQ5 FY 3,0TSFI
Audi SQ5 FY 3,0TFSI 260KW/354PS (2016+)

Dimensions original intercooler:
720mm x 145mm x 80mm
V=8,35 liter
A=1044 cm²

Wagner Tuning intercooler dimensions:
550mm x 445mm x 70mm
V=17,13 Liter
A=2447 cm²

Part number 200001121

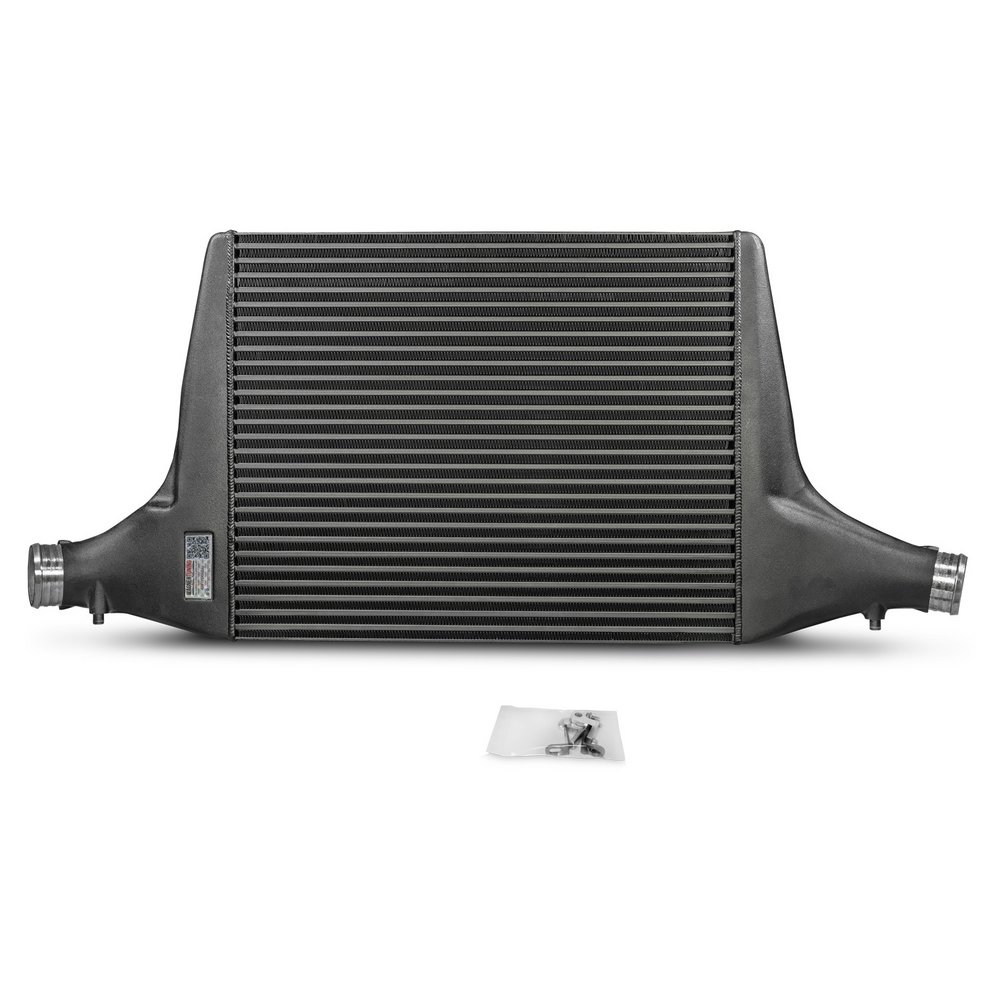

Kit comes with:
1 intercooler (coated black)
1 Ø65mm Aluminium air pipe
1 mounting material
1 installation instruction
