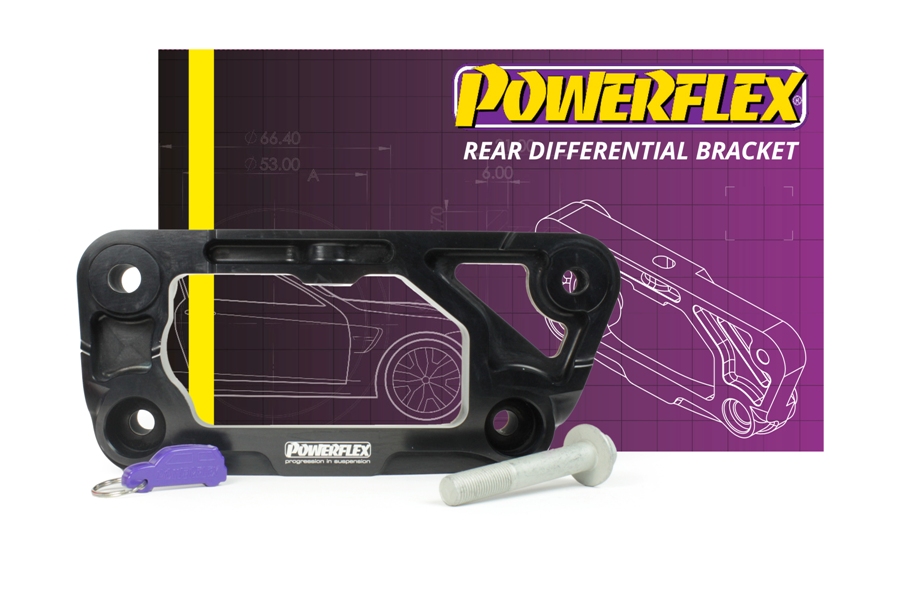

Powerflex Dual-Mount Rear Differential Bracket BMW 4 Series PFR5-4030

Powerflex Dual-Mount Rear Differential Bracket BMW 4 Series PFR5-4030

OEM Part Number 1: 33172284775

Fitting instructions PDF: Fitting_PFR5-4030.pdf

Supplied complete with M14 bolt, thread locker and Powerflex keyring. The bracket comes on its own without bushes, so you can choose to use it with a variety of bush combinations. Single OE bush, Dual OE bushes, Single OE bush with single PU bush (1 x PFR5-4026) or Dual PU bushes (2 x PFR5-4026). We would recommend dual PU bushes ideally. If you wish to use it with a single OE bush with a single PU bush, then the PU bush would fit in the vacant right-hand mounting hole in the subframe. With the newerF8xM2/M3/M4s making big power and having superb chassis straight from the showroom, it’s no wonder they’re often found at the most serious of track-days or at tuning shops across the globe.Unfortunately, the power that makes these cars so fun to drive eventually has an impact on the vehicle components, most notably the rear differential bushes.Despite having the provision for two mounting bushes on the factory tubular subframe, BMW opts to use only a single offset bush to mount the diff bracket to the subframe. This essentially creates a pivot point for the diff under torque loading, especially if the 4x front diff bushes are worn and softened.With hard launch starts and sudden and frequent on-off throttle changes, this puts the single rear OE rubber bush through extreme torsional and directional forces, resulting in accelerated ageing with failure often seen at around the 30-40,000 mile mark and an unsettled and potentially clunky rear-end.We are proud to release a high-performance solution to this problem, giving you the tools to re-establish rear-end stability on yourF8xM2/M3/M4.PFR5-4030 Dual Mount Diff Bracketis made from our in-house CNC machined6082 High-Tensile Aluminiumand is designed to utilise the secondary mounting position on the OE subframe. With the addition of a second bush, this prevents the diff from twisting under load, providing benefits such as:Reduced drivetrain movementImproved throttle responseA more controlled and consistent on-off throttle chassis response.Improved tyre-to-road power transfer reducing wheel hopReduced strain on fitted bushesThe corrosion-resistantSatin Black Anodised Aluminium Bracketis optimised for high stress and deflection whilst withstanding high torque loads butis designed to function equallyon standard or modified vehicleswith either a single OE bush or dual aftermarket bushes.Although the bracket can be fitted without the need to remove the subframe from the vehicle completely, we would naturally recommend combiningPowerflexproducts by using our already hugely popular 80A durometerPFR5-4026Rear Diff Mounting Bushfor both subframe rear mounting positions with the addition of ourPFR5-4025Rear Diff Front Mounting Bushesfor the front for the ultimate in differential control and a lasting fast-road or track solution.
