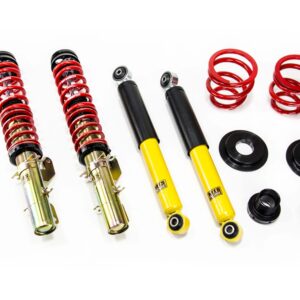

MTS Technik Coilover Kit Street Volkswagen GOLF IV (1J1) MTSGWVW88

The MTS Technik Coilover Kit Street Volkswagen GOLF IV (1J1) MTSGWVW88 is designed to improve vehicle handling, driving stability and appearance through adjustable ride height and performance-focused suspension engineering. Developed for enthusiasts who want better control and a lowered stance, this coilover kit delivers a balanced combination of sport performance and daily driving comfort. Manufactured with durable materials and precise engineering, MTS Technik suspension systems are built to meet the demands of both performance driving and everyday use.

Performance Suspension Upgrade

Coilover suspension systems allow drivers to customize the ride height of their vehicle while improving overall driving dynamics. The MTS Technik Coilover Kit Street helps reduce body roll, improve cornering stability and provide a more responsive driving experience. Adjustable lowering also allows drivers to achieve a sportier stance while maintaining proper suspension functionality.

Key Benefits of MTS Technik Coilover Kit Street Volkswagen GOLF IV (1J1) MTSGWVW88

Adjustable ride height for a customized vehicle stance Improved handling and cornering stability Reduced body roll during dynamic driving Durable suspension construction for long service life Designed for both daily driving and performance builds

Vehicle Compatibility

• Make: Volkswagen
• Model: GOLF IV (1J1)
• Type: 1J1
• Engine: 1.9 TDI 4motion
• Engine Code: AGR,AUY;AJM,ATD,ARL,ASZ
• Body Type: Hatchback
• Drive Type: AWD (All-Wheel Drive)
• Fuel Type: Diesel
• Production Years: 08/97 – 03/07
• Engine Capacity: 1896 ccm
• Power: 66,85,74,110,96 kW

Technical Specifications of MTS Technik Coilover Kit Street Volkswagen GOLF IV (1J1) MTSGWVW88

• Series: Street
• Damper Housing: Gold
• Maximum Axle Load Front: -1050 kg
• Maximum Axle Load Rear: -1080 kg
• Lowering Front: 25 – 50 mm
• Lowering Rear: 25 – 50 mm

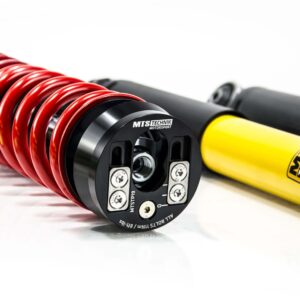

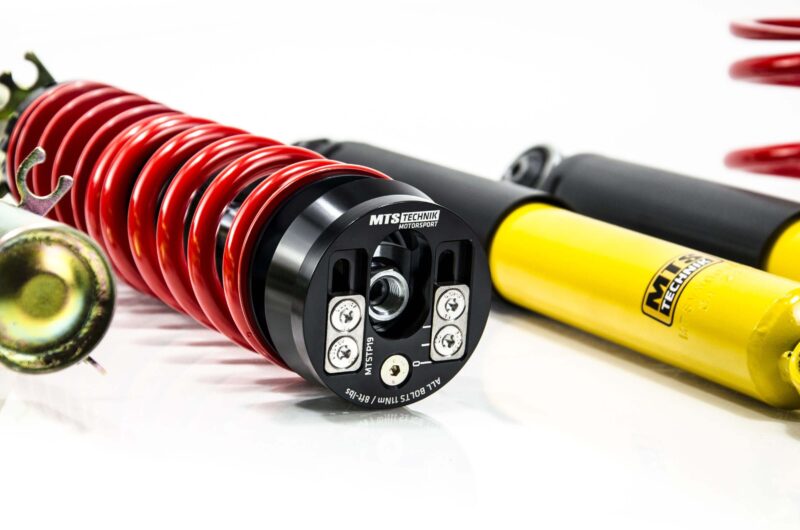

• Front Camber Plates: yes
• Rear Camber Plates: no
• TÜV Certificate: no

Product Information

• Part Number: MTSGWVW88
• EAN Code: 5903855621916

Additional Notes of MTS Technik Coilover Kit Street Volkswagen GOLF IV (1J1) MTSGWVW88

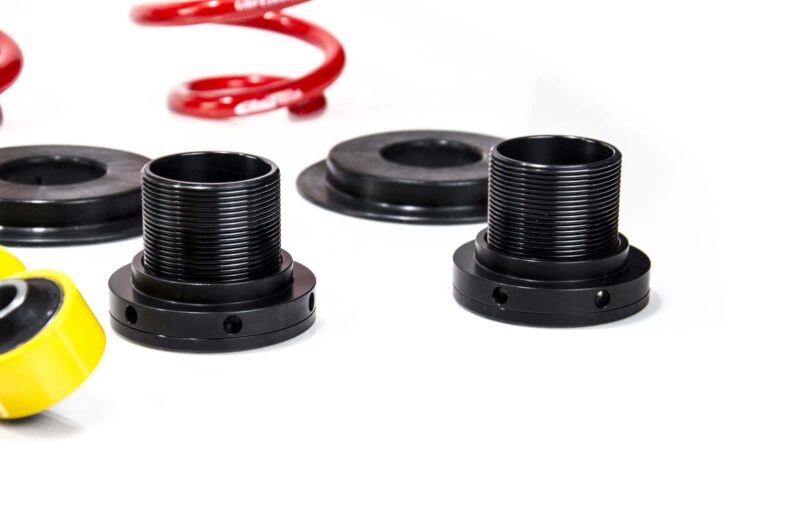

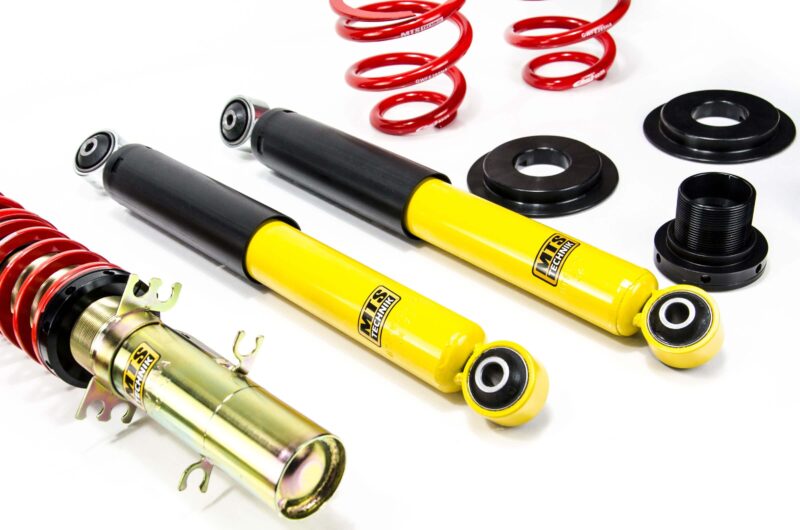

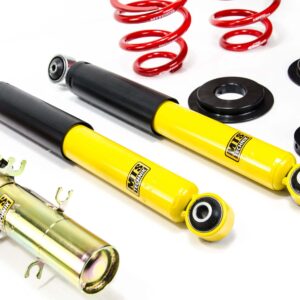

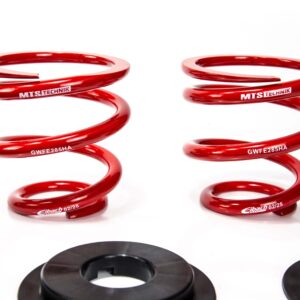

• 3 – Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).
• 5 – Stabilizer bars may need to be changed with longer ones if lowering more than 40mm.
• 6 – If the right drive shaft diameter of more than 42 mm, the maximum lowering mentioned in the catalogue is reduced by 15 mm.
• 21 – If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
• 24 – During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
• 73 – For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.

MTS Technik Suspension Engineering

MTS Technik Coilover Kit Street Volkswagen GOLF IV (1J1) MTSGWVW88 are engineered to provide reliable performance, adjustable ride height and improved driving dynamics. Designed with precision manufacturing and durable components, these coilovers offer an effective solution for drivers seeking both enhanced vehicle control and a sportier appearance.
