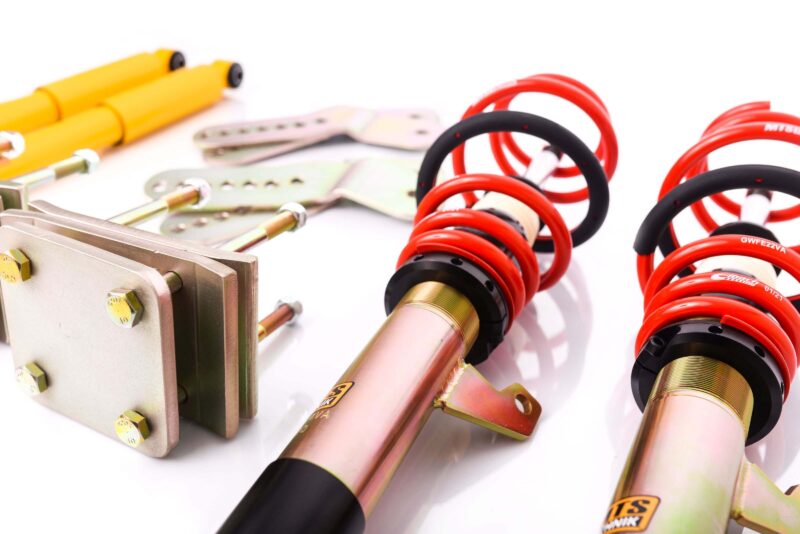

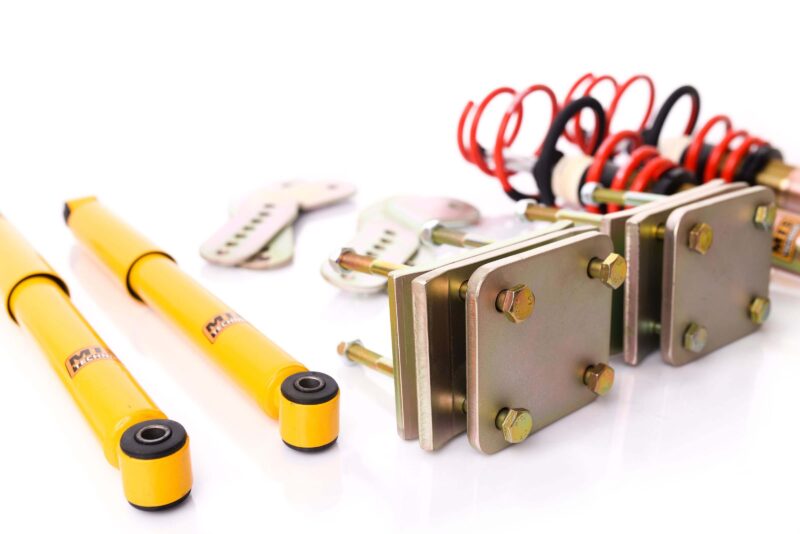

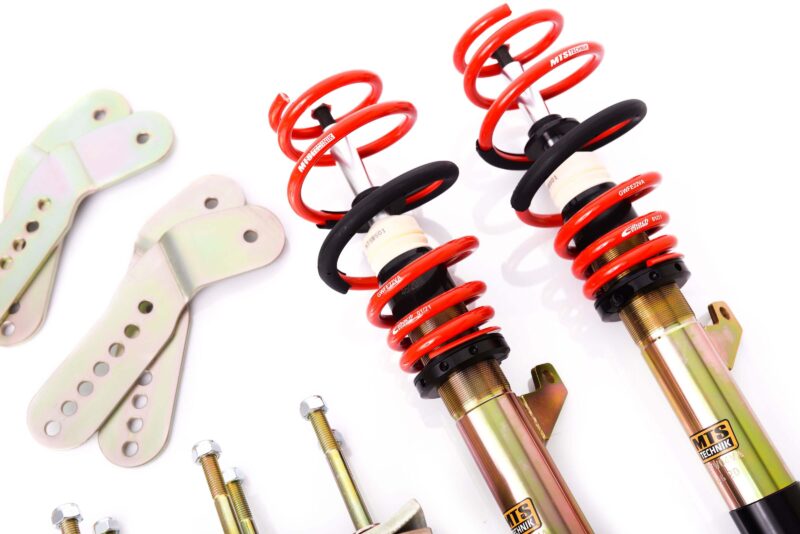

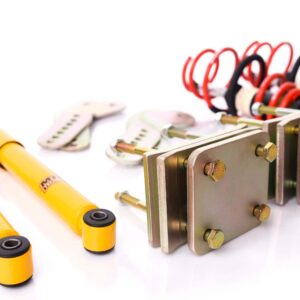

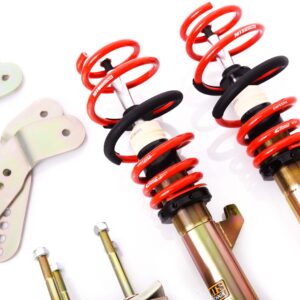

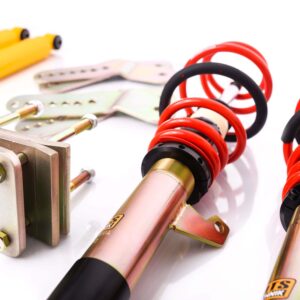

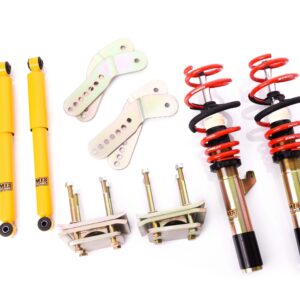

MTS Technik Coilover Kit Street Volkswagen CADDY III Box Body/MPV (2K/2C) MTSGWVW34

The MTS Technik Coilover Kit Street Volkswagen CADDY III Box Body/MPV (2K/2C) MTSGWVW34 is designed to improve vehicle handling, driving stability and appearance through adjustable ride height and performance-focused suspension engineering. Developed for enthusiasts who want better control and a lowered stance, this coilover kit delivers a balanced combination of sport performance and daily driving comfort. Manufactured with durable materials and precise engineering, MTS Technik suspension systems are built to meet the demands of both performance driving and everyday use.

Performance Suspension Upgrade

Coilover suspension systems allow drivers to customize the ride height of their vehicle while improving overall driving dynamics. The MTS Technik Coilover Kit Street helps reduce body roll, improve cornering stability and provide a more responsive driving experience. Adjustable lowering also allows drivers to achieve a sportier stance while maintaining proper suspension functionality.

Key Benefits of MTS Technik Coilover Kit Street Volkswagen CADDY III Box Body/MPV (2K/2C) MTSGWVW34

Adjustable ride height for a customized vehicle stance Improved handling and cornering stability Reduced body roll during dynamic driving Durable suspension construction for long service life Designed for both daily driving and performance builds

Vehicle Compatibility

• Make: Volkswagen
• Model: CADDY III Box Body/MPV (2K/2C)
• Type: 2KA, 2KH, 2CA, 2CH
• Engine: 1.6 TDI,1.9 TDI,2.0 SDI,2.0 TDI,2.0 TDI 16V
• Engine Code: CAYE,CAYD,BLS;BJB,BSU,BST;BDJ,CFHE,CLCA,CFJA,BMM,CLCB;CFHC
• Body Type: Box Body / MPV
• Drive Type: FWD (Front-Wheel Drive)
• Fuel Type: Diesel
• Production Years: 03/04 – 05/15
• Engine Capacity: 1598,1896,1968 ccm
• Power: 55,75,77,51,62,81,125,103 kW

Technical Specifications of MTS Technik Coilover Kit Street Volkswagen CADDY III Box Body/MPV (2K/2C) MTSGWVW34

• Series: Street
• Damper Housing: Gold
• Maximum Axle Load Front: 1076 – 1235 kg
• Maximum Axle Load Rear: -1300 kg
• Lowering Front: 35 – 90 mm
• Lowering Rear: 35 – 90 mm
• Front Camber Plates: no
• Rear Camber Plates: no
• TÜV Certificate: yes

Product Information

• Part Number: MTSGWVW34
• EAN Code: 5903357784683

Additional Notes of MTS Technik Coilover Kit Street Volkswagen CADDY III Box Body/MPV (2K/2C) MTSGWVW34

• 3 – Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).
• 8 – Not for 4×4.
• 19 – Only for vehicles equipped with a one-piece leaf spring on the rear axle. If the vehicle is equipped with a two-part leaf spring on the rear axle a one-piece leaf spring has to be purchased seperately (while used in a Caddy – use VW part no. for leaf spring spring 2K0 511 151 N, while used in a Caddy Maxi use VW part no. for leaf spring spring 2K3 511 151 E).
• 21 – If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
• 24 – During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
• 44 – Installation of the rear axle adjustment must be carried out in accordance with the instructions.
• 45 – Front and rear axle height adjustable (threaded shock absorber housing on the front, provided adjustment plates + shock absorbers on the rear axle).
• 116 – Cars with two-leaf spring on the rear axle should be swapped to on-leaf spring. VW Caddy 3 (-05/2015): 2K5 511 151 N, VW Caddy 4 (05/2015-): 2K5 511 151 AA, VW Caddy MAXI: 2K3 511 151 E.

MTS Technik Suspension Engineering

MTS Technik Coilover Kit Street Volkswagen CADDY III Box Body/MPV (2K/2C) MTSGWVW34 are engineered to provide reliable performance, adjustable ride height and improved driving dynamics. Designed with precision manufacturing and durable components, these coilovers offer an effective solution for drivers seeking both enhanced vehicle control and a sportier appearance.
