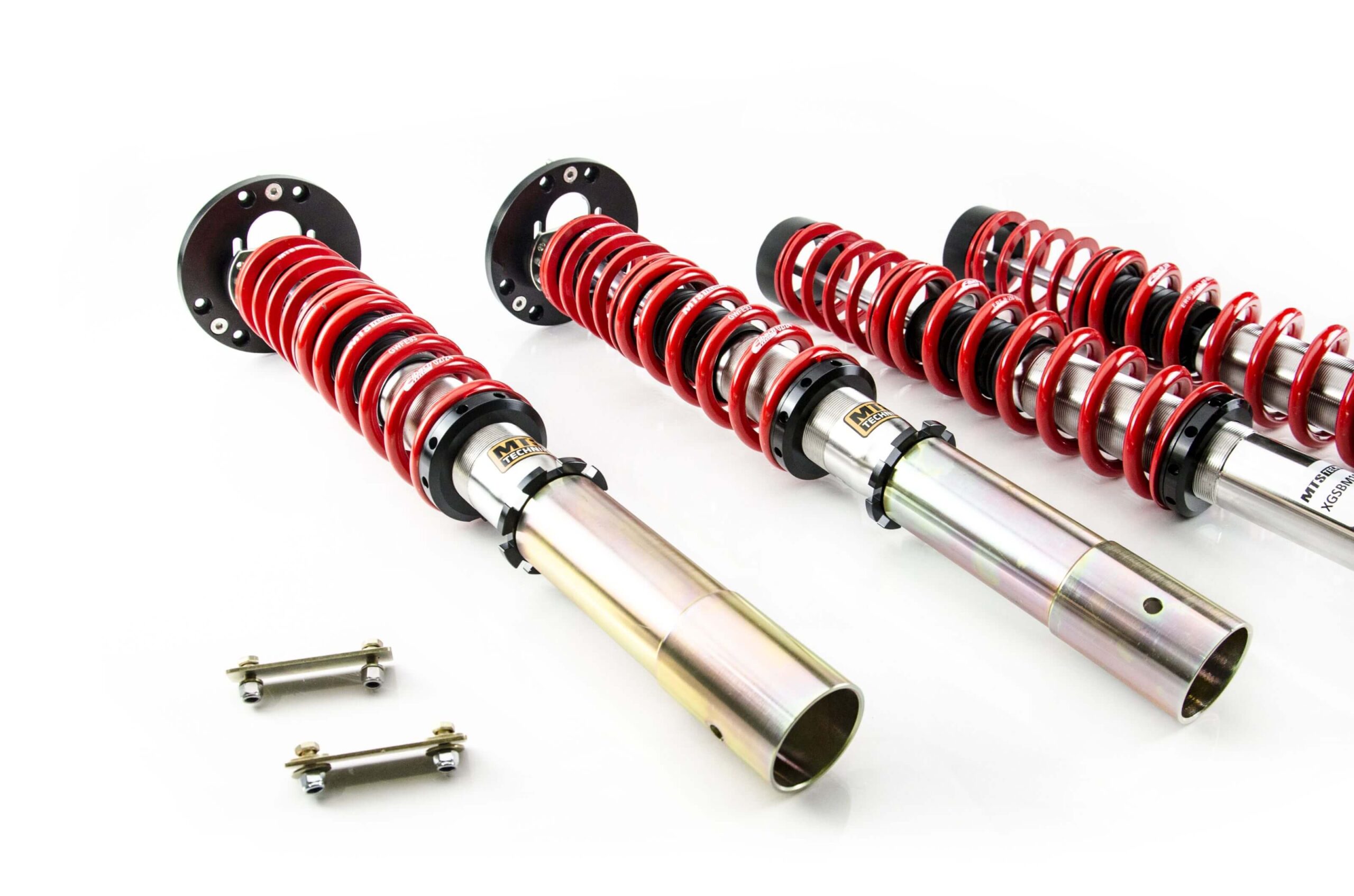

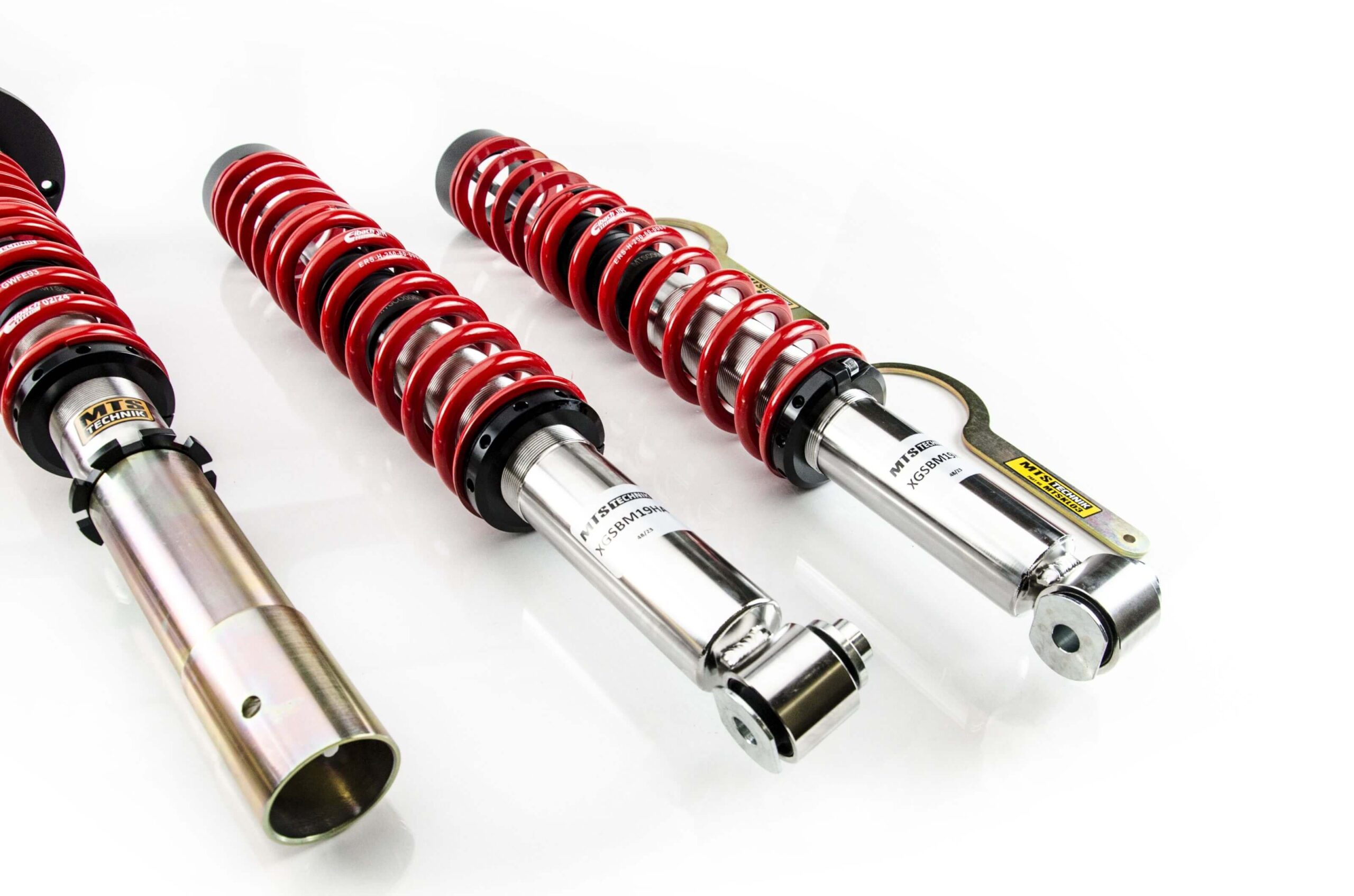

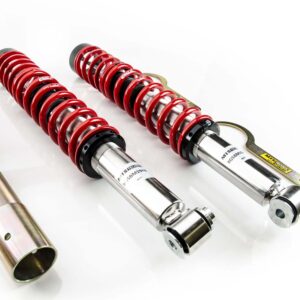

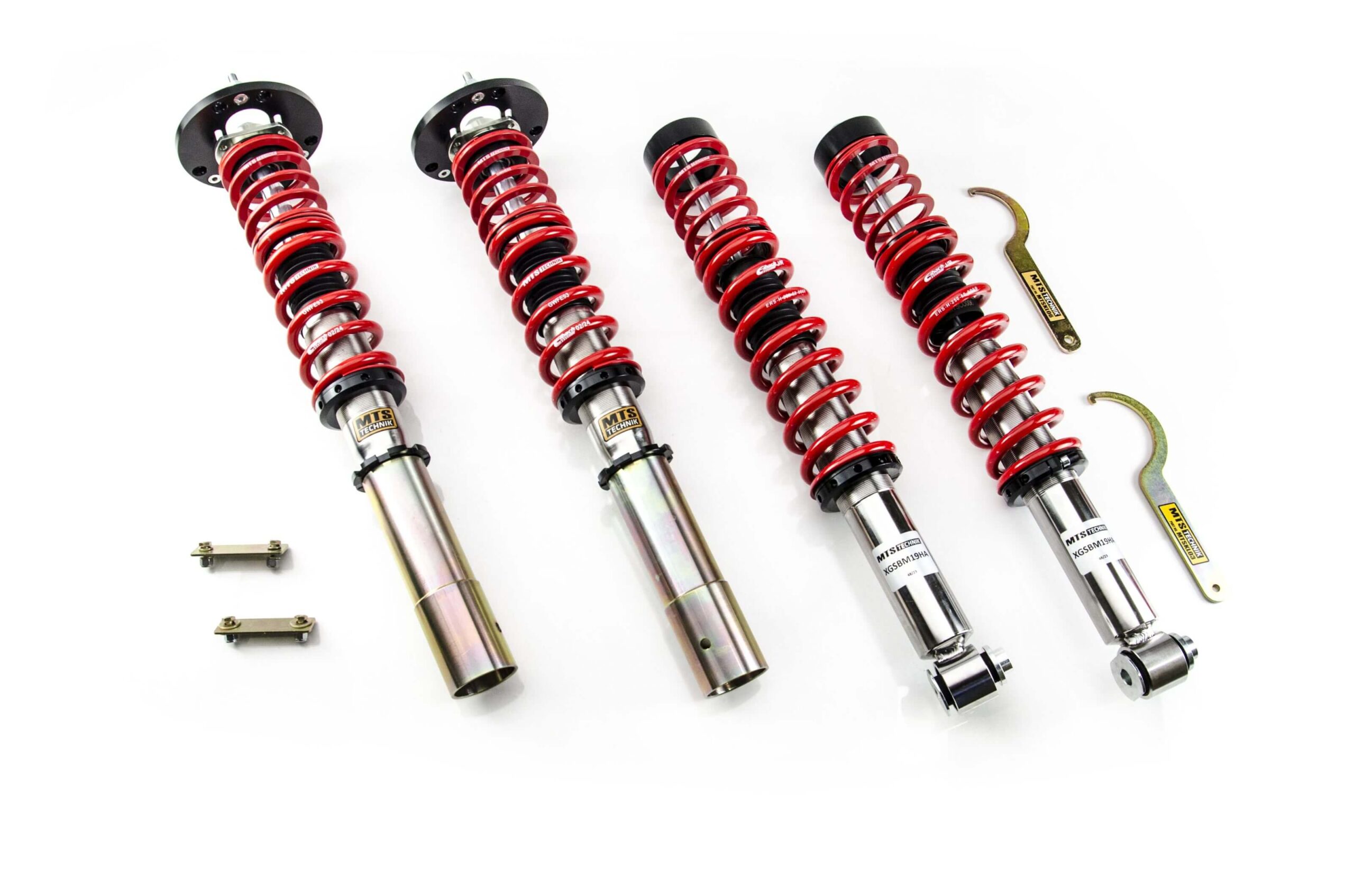

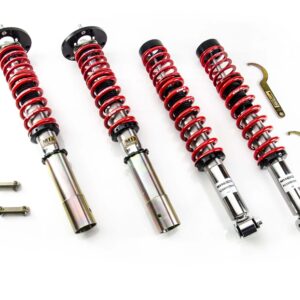

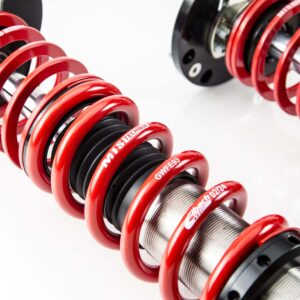

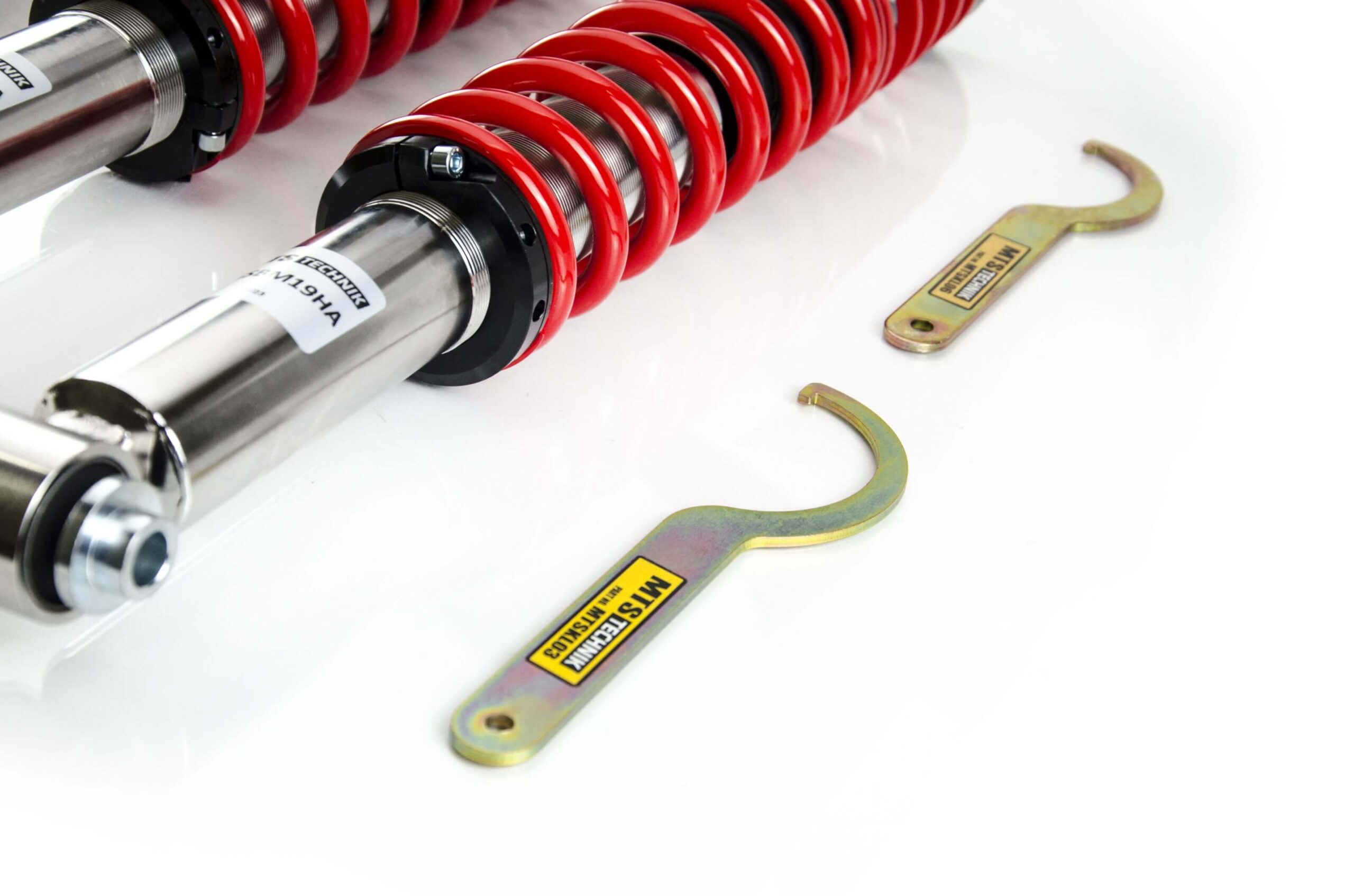

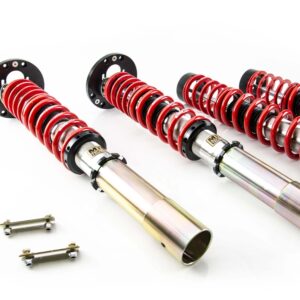

MTS Technik Coilover Kit Street BMW 7 (E23) XMTSGWBM29

The MTS Technik Coilover Kit Street BMW 7 (E23) XMTSGWBM29 is designed to improve vehicle handling, driving stability and appearance through adjustable ride height and performance-focused suspension engineering. Developed for enthusiasts who want better control and a lowered stance, this coilover kit delivers a balanced combination of sport performance and daily driving comfort. Manufactured with durable materials and precise engineering, MTS Technik suspension systems are built to meet the demands of both performance driving and everyday use.

Performance Suspension Upgrade

Coilover suspension systems allow drivers to customize the ride height of their vehicle while improving overall driving dynamics. The MTS Technik Coilover Kit Street helps reduce body roll, improve cornering stability and provide a more responsive driving experience. Adjustable lowering also allows drivers to achieve a sportier stance while maintaining proper suspension functionality.

Key Benefits of MTS Technik Coilover Kit Street BMW 7 (E23) XMTSGWBM29

Adjustable ride height for a customized vehicle stance Improved handling and cornering stability Reduced body roll during dynamic driving Durable suspension construction for long service life Designed for both daily driving and performance builds

Vehicle Compatibility

• Make: BMW
• Model: 7 (E23)
• Type: E23
• Engine: 728,730,725 i,728 i,732 i,733 i,735 i,745 i
• Engine Code: M30 B28,M30 B30,M30 B25,M30 B32,M30 B34 (346EC),M30 B32 (326TA),M30 B34 (346TA)
• Body Type: Saloon
• Drive Type: RWD (Rear-Wheel Drive)
• Fuel Type: Petrol
• Production Years: 09/81 – 04/88
• Engine Capacity: 2788,2986,2494,3210,3430 ccm
• Power: 125,135,110,145,160,185 kW

Technical Specifications of MTS Technik Coilover Kit Street BMW 7 (E23) XMTSGWBM29

• Series: Street
• Damper Housing: Inox
• Maximum Axle Load Front: -1040 kg
• Maximum Axle Load Rear: -1150 kg
• Lowering Front: 35 – 95 mm
• Lowering Rear: 20 – 110 mm
• Front Camber Plates: yes
• Rear Camber Plates: no
• TÜV Certificate: no

Product Information

• Part Number: XMTSGWBM29
• EAN Code: 5903855622807

Additional Notes of MTS Technik Coilover Kit Street BMW 7 (E23) XMTSGWBM29

• 2 – Front and rear axle height adjustable (threaded shock absorber housing).
• 21 – If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
• 24 – During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
• 26 – Independent height adjustment at the lower brackets on the front dampers.

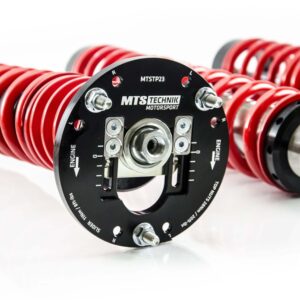

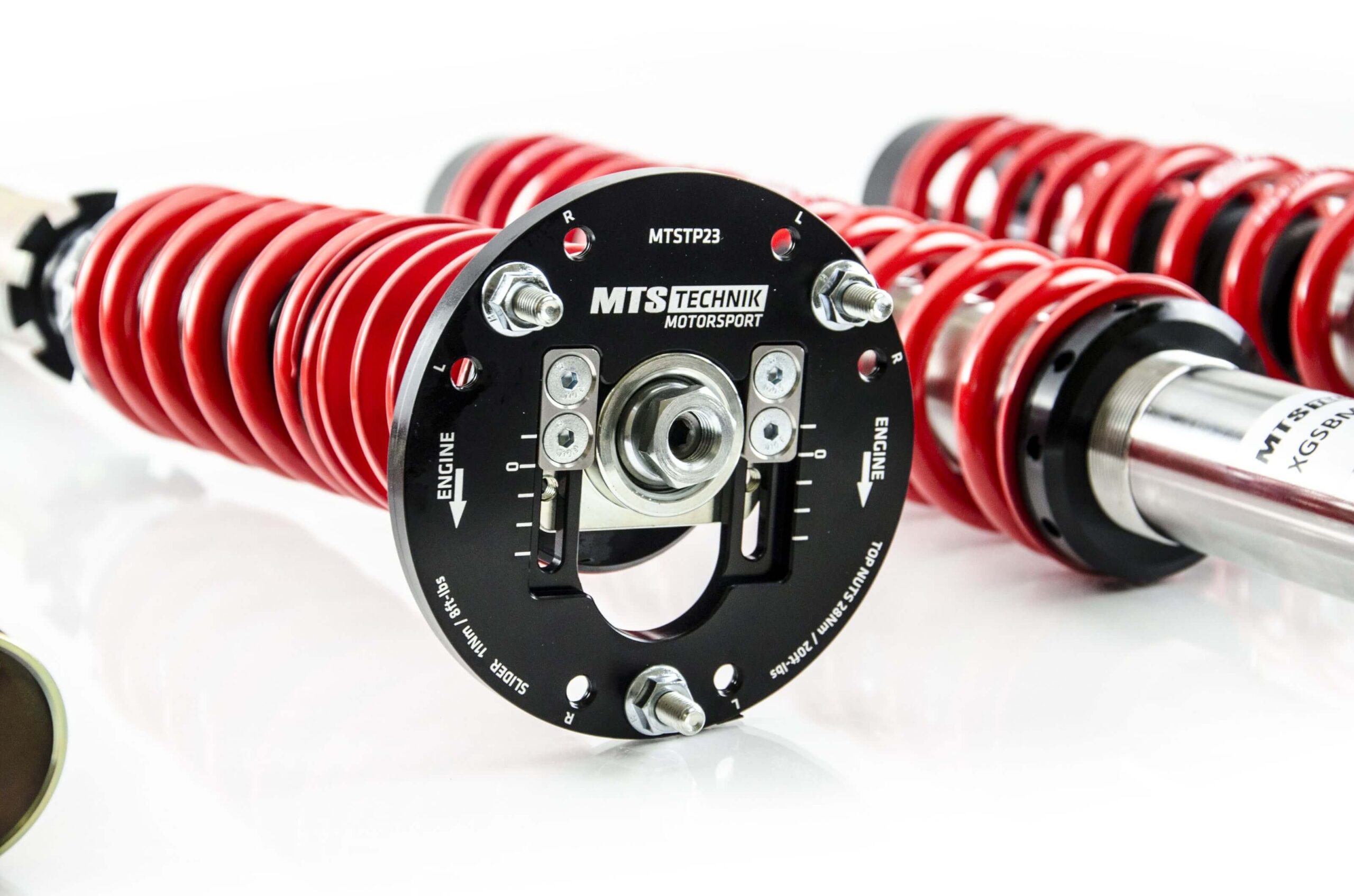

• 28 – Set includes 2x upper “camber plates” on the front axle.
• 29 – The installation requires the use of OE front struts – they should be cut and welded as described in the attached manual.
• 32 – In some cases additional OE-parts for the installation of the suspension components are required. Those are not included in the set.
• 33 – Including M-Technik.
• 57 – Only suitable for vehicles manufactured from 09/1981.
• 65 – Suspension compatible only with a rear top mount with an internal diameter of 78mm – OEM number: 33521117657 or 33521126987. It is possible to mount the suspension to cars equipped with other top mounts, but original parts marked with one of the above numbers will be required.
• 66 – In the case of cars equipped with Nivo, it will be required to replace the rear top mounts with OEM: 33521117657 or 33521126987.
• strut diameter at the front axle of 52 mm

MTS Technik Suspension Engineering

MTS Technik Coilover Kit Street BMW 7 (E23) XMTSGWBM29 are engineered to provide reliable performance, adjustable ride height and improved driving dynamics. Designed with precision manufacturing and durable components, these coilovers offer an effective solution for drivers seeking both enhanced vehicle control and a sportier appearance.
