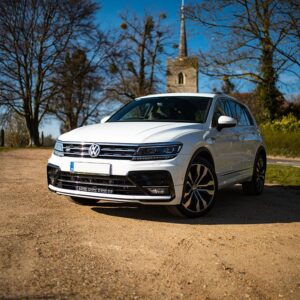

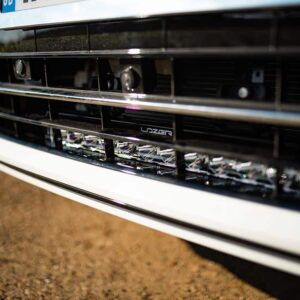

Lazer VW Tiguan (2016-2020) – Bumper Beam Mounting Kit VIFK-TIGUAN-01K
PRODUCT FEATURES

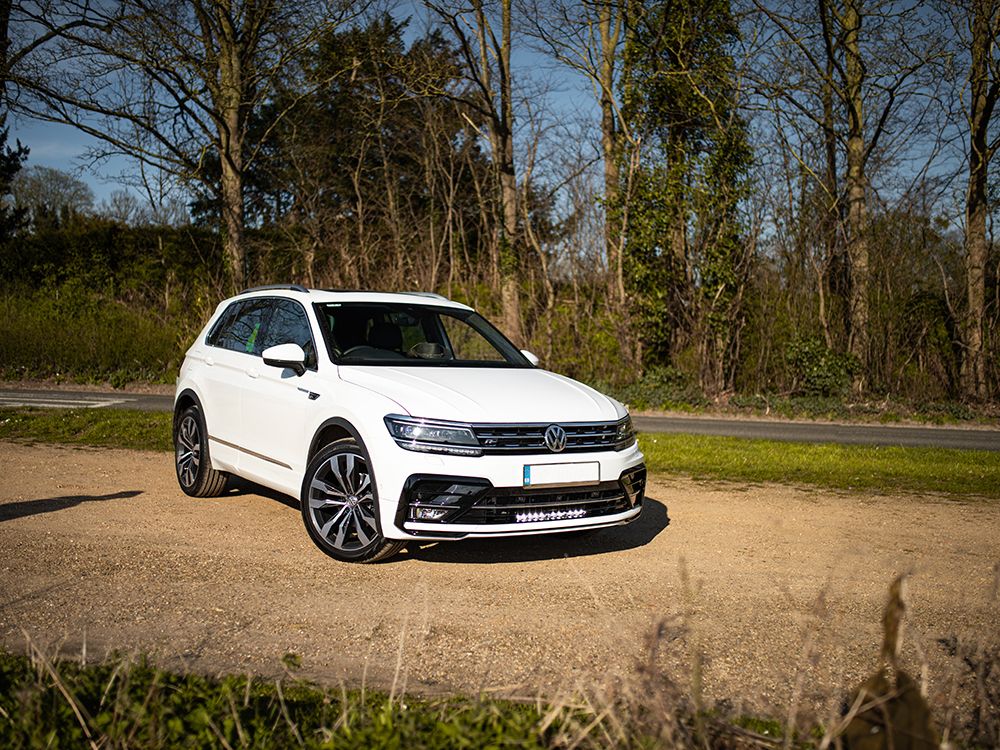

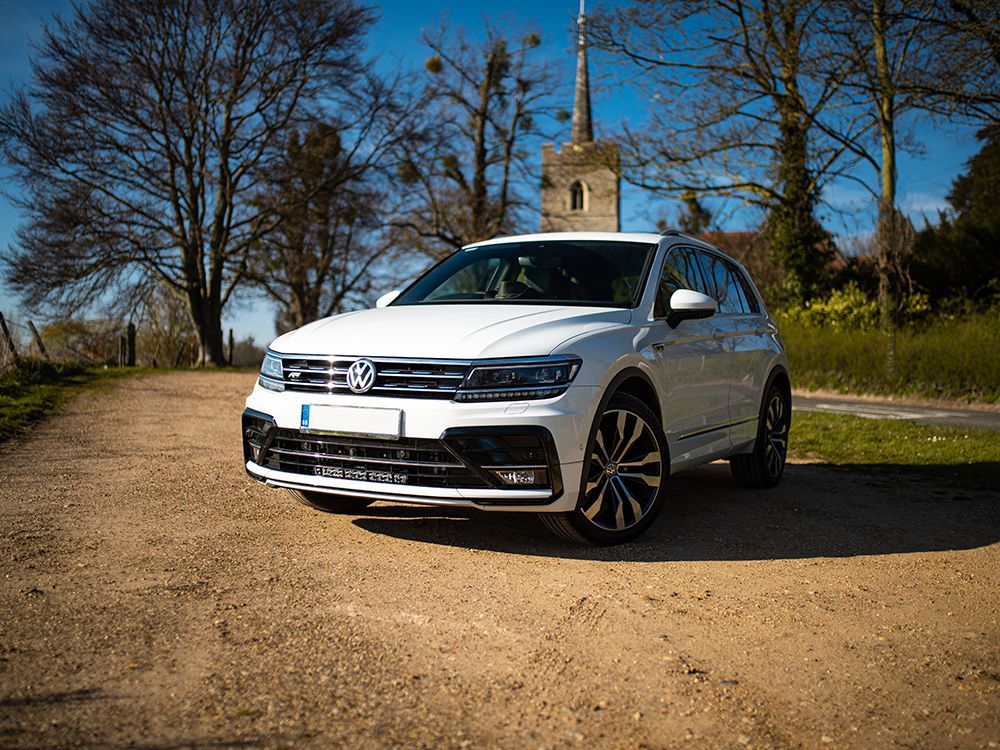

Auxiliary spotlight installation for VW Tiguan (2016-2020)
Optimised mounting for a pair of ST4 or a single ST12 Evolution lights

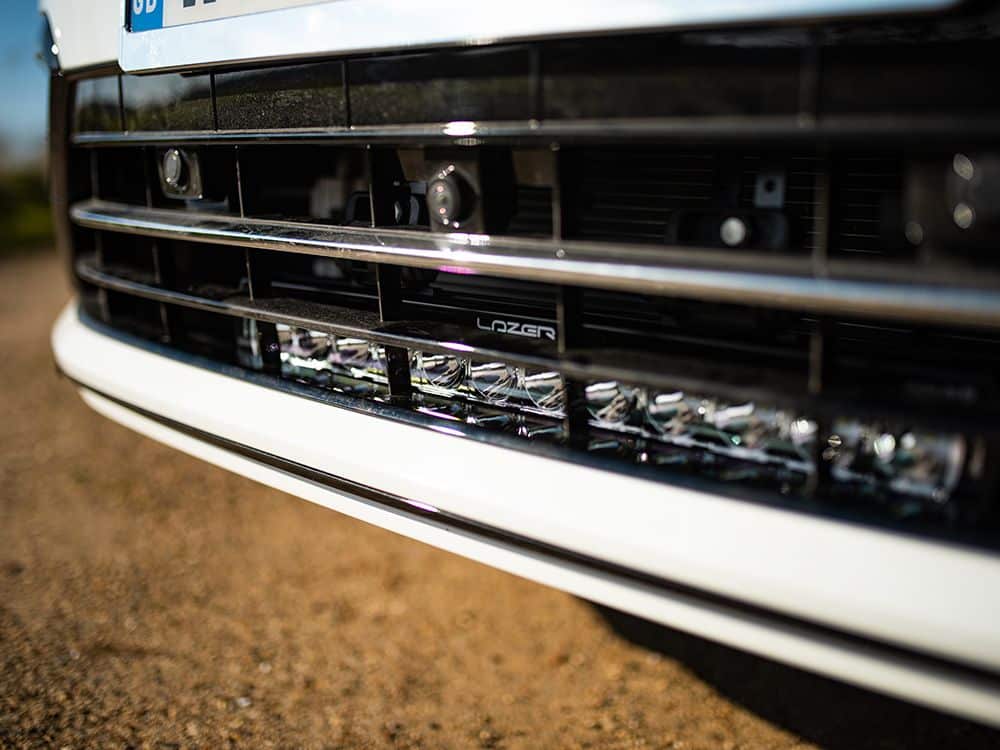

Secured to vehicle’s bumper beam bar behind lower grille
Vehicle wiring kits and CANbus Interfaces available
Fully road-legal
5-year warranty
Made in Britain
TECHNICAL SPECIFICATIONS
x2 ST4 Evolution |
x1 ST12 Evolution | |
Voltage Range | 10-32V | 10-32V |
LED Life | 50,000 hours | 50,000 hours |
Weight | 1340g | 1634g |
HIGH BEAM FUNCTION | ||
Total Luminous Flux | 8272 Lm | 12408 Lm |
Total Driver ‘FOV’ Flux † | 4980 Lm | 7470 Lm |
Colour Temperature | 5000k | 5000K |
Number of High Output LEDs | 2 x 4 | 12 |
Power Consumption | 94 Watts | 144 Watts |
Current Draw (at 14.4V) | 6.6 Amps | 10.0 Amps |
CERTIFICATION | ||
High Beam | ECE R112 | ECE R112 |
E-Mark Ref | 10 x2 | 25 |
PHOTOMETRIC DATA | ||
Horizontal Beam Angle | 40° | 40° |
0.25 lx Line | 786m | 962m |
0.5 lx Line | 555m | 680m |
1 lx Line | 393m | 481m |
3 lx Line | 227m | 278m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

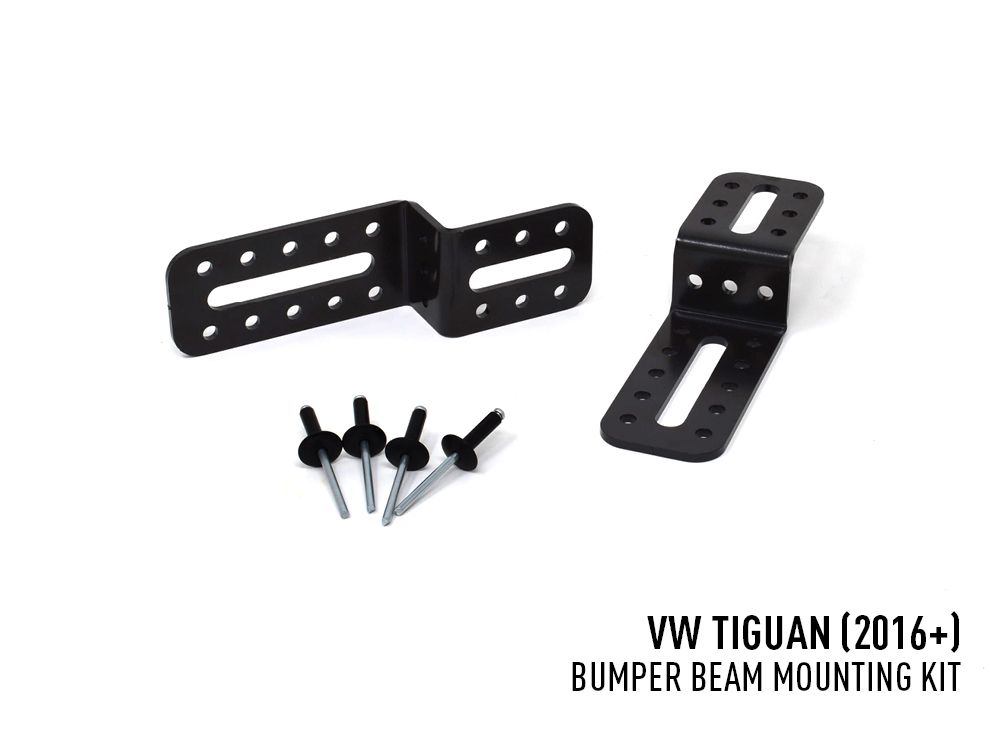

WHAT’S INCLUDED
- 2x Mounting Brackets
- Fixtures
Fitting instructions available in the downloads section below.
