Lazer Volvo V60/S60 (2018+) Bumper Beam Mounting Kit (for Linear-18) VIFK-V60-01K

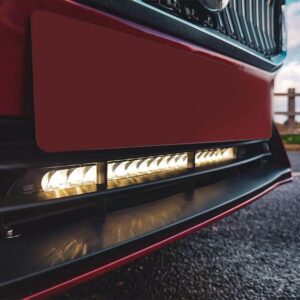

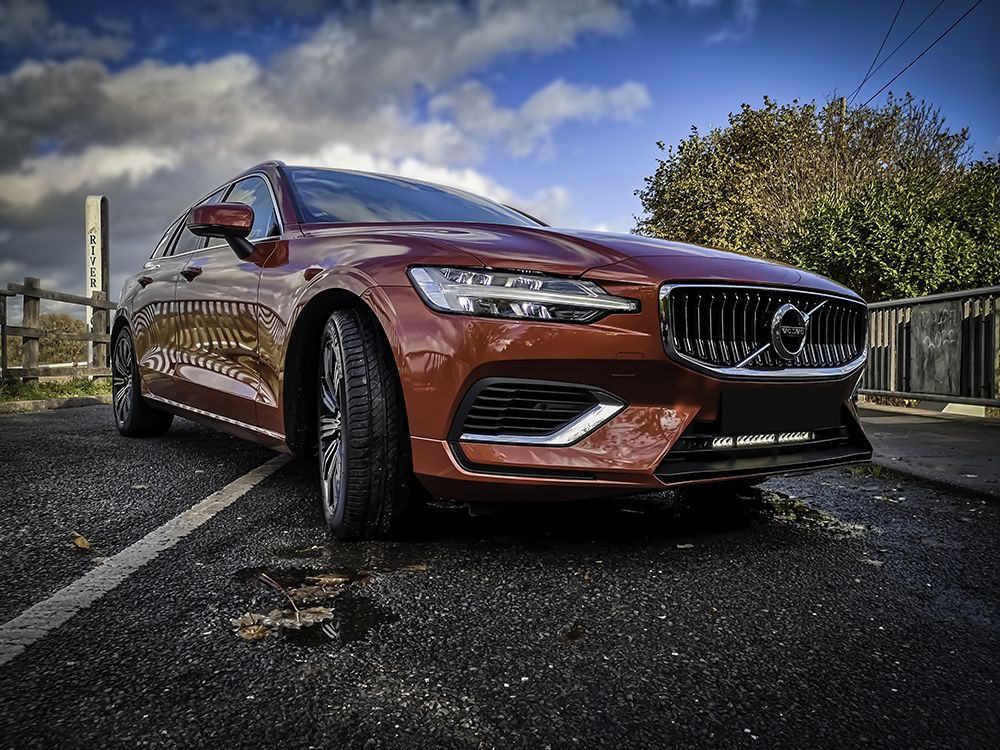

Utilising satin black mounting brackets concealed behind the lower grille, the Lazer Lamps vehicle integration kit for the Volvo V60/S60 (2018+), allows for mounting of our class-leading Linear-18 (Standard, Elite or Elite with i-LBA) high performance LED spotlight, for an auxiliary LED driving light installation that impresses day and night. The slimline design and high-end styling of the Linear-18 blends seamlessly into the front-end of the vehicle for an understated integration, albeit one that delivers exceptional lighting performance (borne out of development and testing done at the highest levels of professional motorsport) perfectly tuned to everyday road and off-road use.
E-mark certification allows for connecting into the vehicle’s electrical system so that the light activates with the vehicle’s standard high beam lights. Available with all necessary installation parts including wiring loom, and fixtures, the V60/S60 lighting upgrade kit delivers incredible levels of illumination for when the sun goes down. Where the vehicle utilises LED driving lights as standard, a CanM8 high beam interface is available as an optional part to complete a unified electrical install.

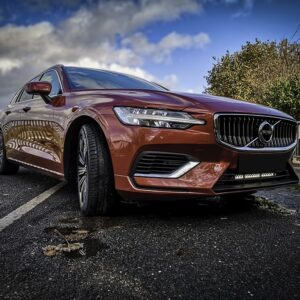

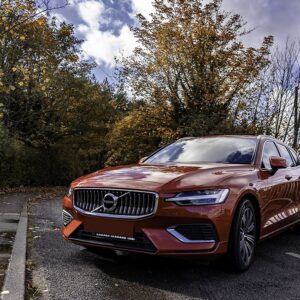

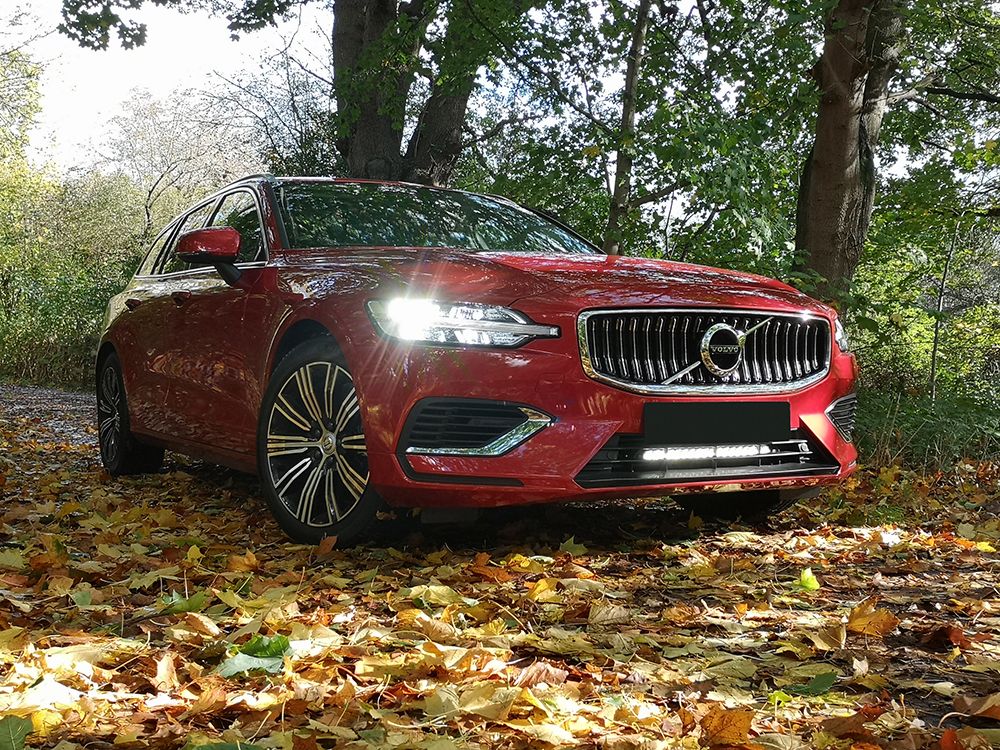

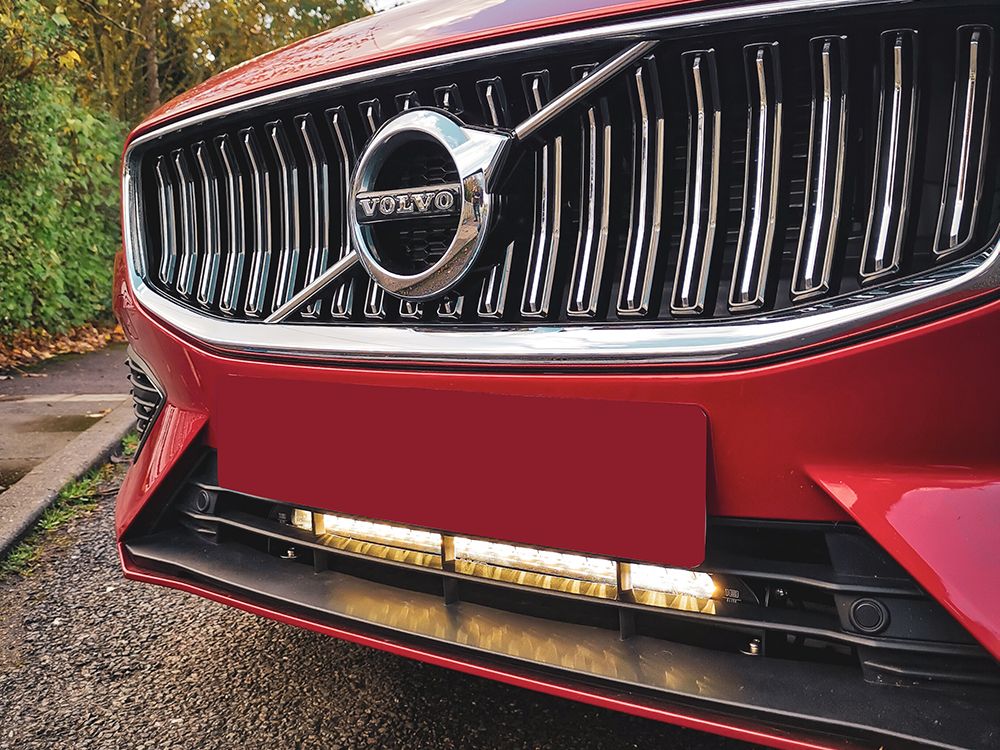

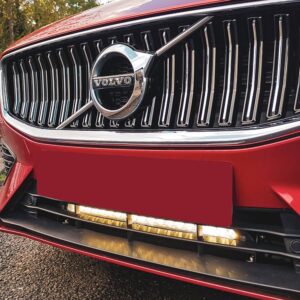

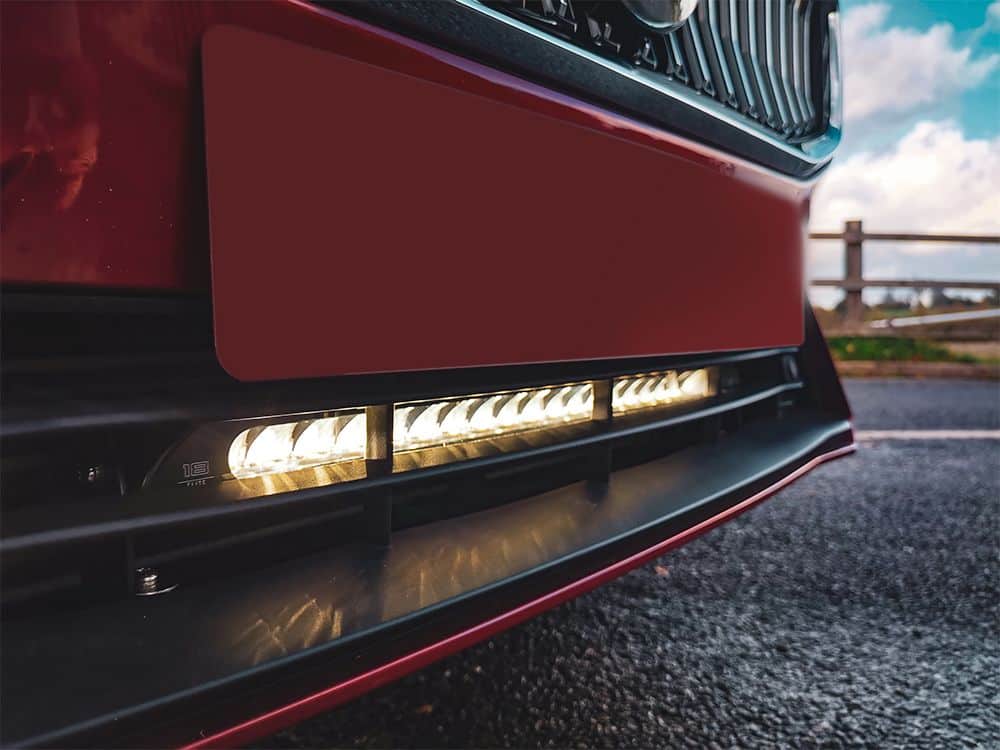

The mounting of the light is quick and simple utilising our side mounting brackets made from folded aluminium, that are finished with a satin black powder coat. The mounts mount directly to the bumper beam bar for a subtle installation behind the lower grille, secured using supplied rivets. The resulting setup is secure and robust, with the added extra security of the light being mounted behind the grille. Like all lighting products from Lazer Lamps, the Linear-18’s are designed, engineered, and manufactured in the UK, backed up by our comprehensive 5 year warranty. With no compromises in component parts or production techniques, your installation will stay looking in great shape year-after-year.
(Please note – One-Lamp Harness Kit included with the following lamps: Linear-18 Elite with i-LBA and Linear-18 Elite+)Â
Lazer Volvo V60/S60 (2018+) Bumper Beam Mounting Kit (for Linear-18) VIFK-V60-01K
PRODUCT FEATURES
Auxiliary spotlight installation for Volvo V60/S60 (2018+)
Compatible with Linear-18 Standard, Elite or Elite with i-LBA
Fully robust and secure, with extra protection against theft
Vehicle wiring kits and CAN bus Interfaces available
Fully road-legal
5-year warranty
Made in Britain
TECHNICAL SPECIFICATIONS
| 1x Linear-18 Elite (Double E-Mark) | 1x Linear-18 Elite with i-LBA (E-Boost) |
1x Linear-18 Elite+ (E-Boost/ E-Mark) |
1x Linear-18Â | |
| Voltage Range (DC) | 10-32V | 10-32V | 10-32V | 10-32V |
| LED Life | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours |
| Weight | 1090 gr | 1090 gr | 1090 gr | 1090 gr |
| HIGH BEAM FUNCTION | Â | Â | Â | |
| Total Luminous Flux | 13,500 Lm | 18,000 Lm | 14850 / 4455 Lm | 6,750 Lm |
| Total Driver ‘FOV’ Flux †| 9,612 Lm | 12,816 Lm | 10573 / 3172 Lm | 4,806 Lm |
| Colour Temperature | 5000K | 5000K | 5000K | 5000K |
| Number of High Output LEDs | 36 | 48 | 36 | 18 |
| Power Consumption | 130 Watts | 135 Watts | 134 W / 39 W | 63 Watts |
| Current Draw (at 14.4V) | 9 Amps | 15 Amps | 9.9 A / 2.7 A | 4.4 Amps |
| CERTIFICATION | Â | Â | Â | Â |
| High Beam | ECE R112 | ECE R112 | ECE R149 | ECE R112 |
| ECE Reference | 2×25 (2x 10 – With E-Mark Cap) |
N/A (17.5 – E-Mark Mode) |
TBC | 30 |
| PHOTOMETRIC DATA | ||||

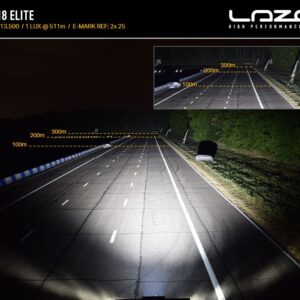

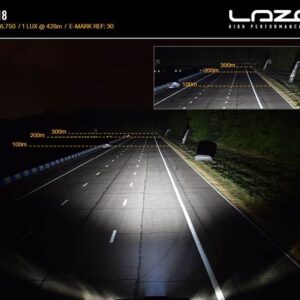

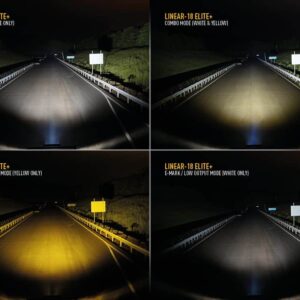

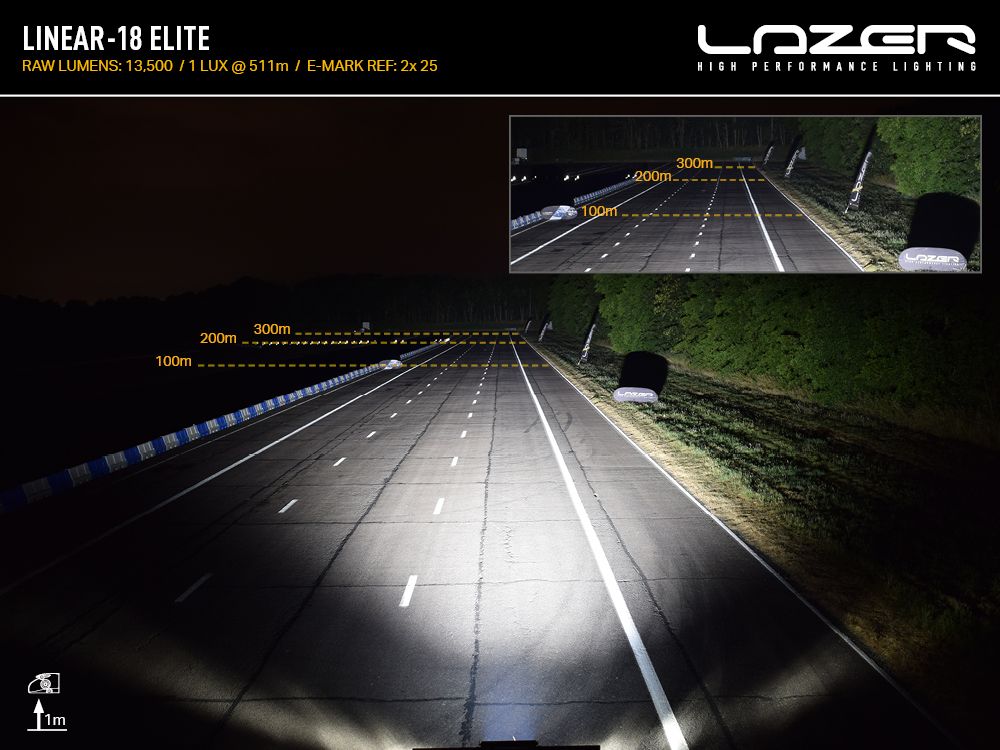

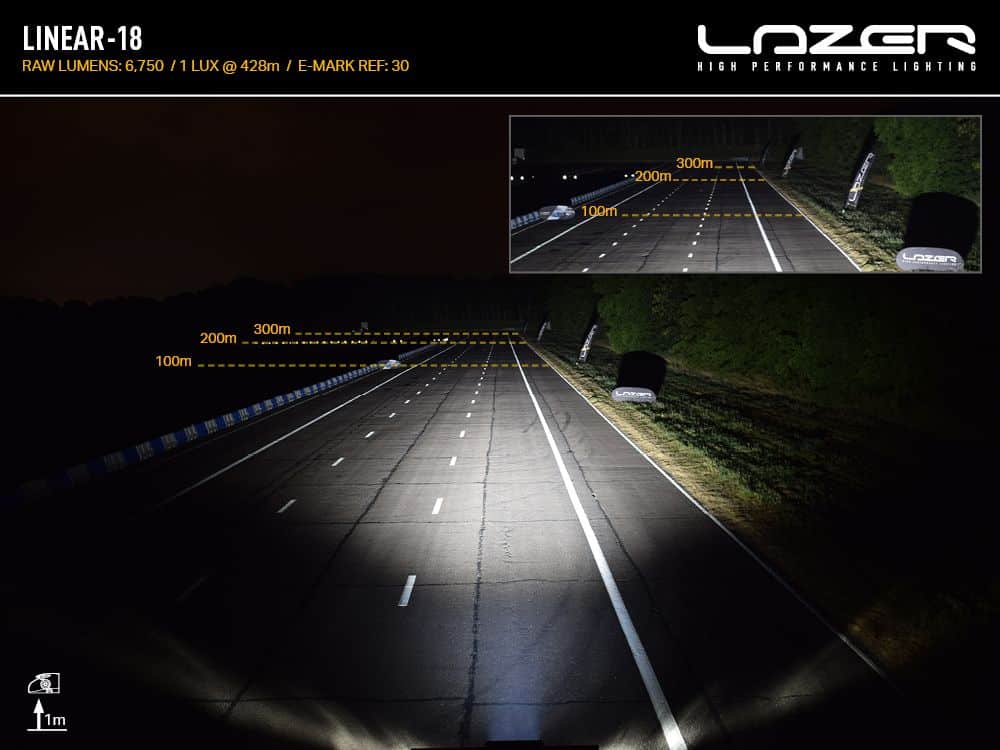

| Horizontal Beam Angle | 64° | 60° | 84o | 56° |
| 0.25 lx Line | 1023m | 1043m | 1152m / 694m | 855m |
| 0.5 lx Line | 723m | 738m | 815m / 491m | 605m |
| 1 lx Line | 511m | 522m | 576m / 347m | 428m |
| 3 lx Line | 295m | 301m | 333m / 200m | 247m |
†Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

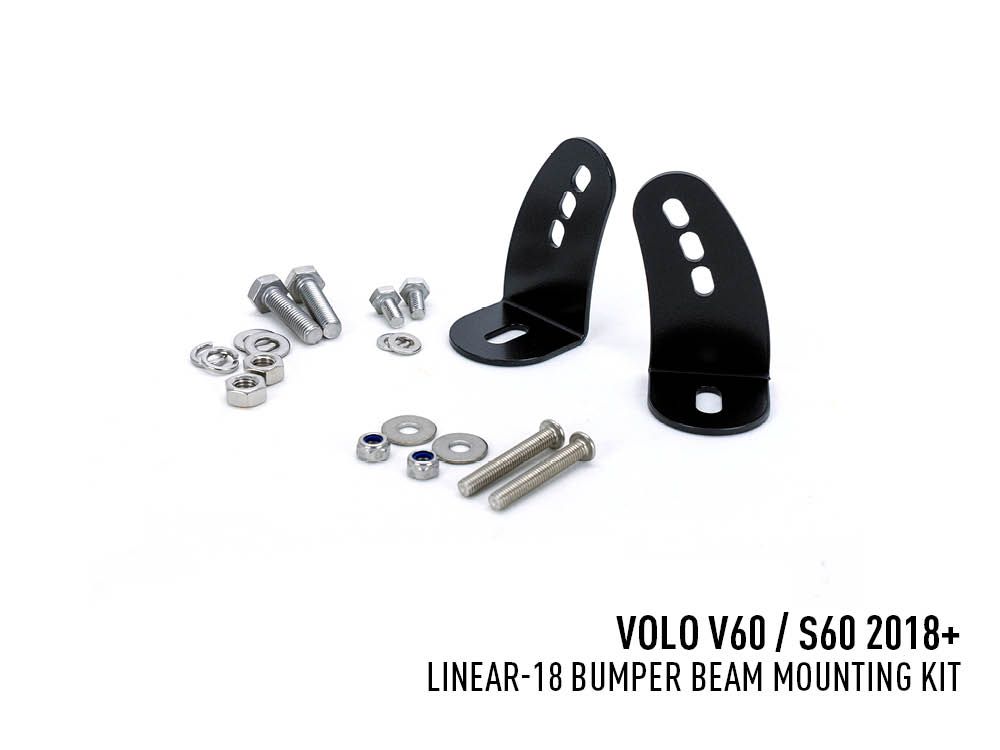

WHAT’S INCLUDED
- 2x Mounting Brackets
- Fixtures
Fitting instructions available in the downloads section below.
DOWNLOADS
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
| Product manufacturer | LAZER LAMPS |
|---|---|
| Brand | LAZER ACCESSORIES |
