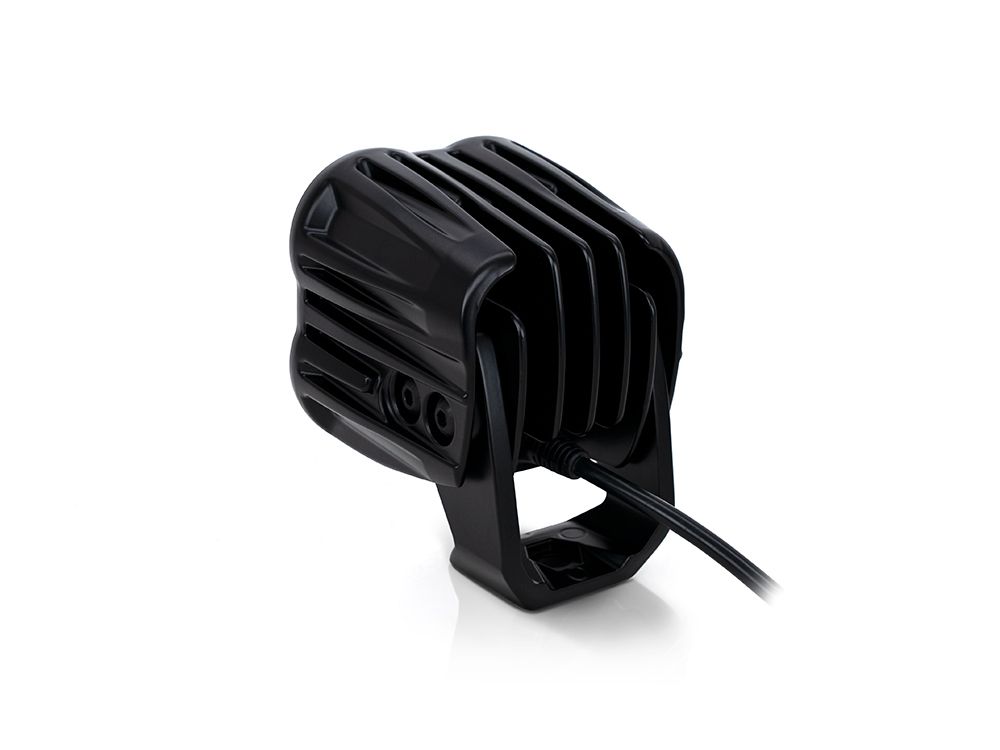

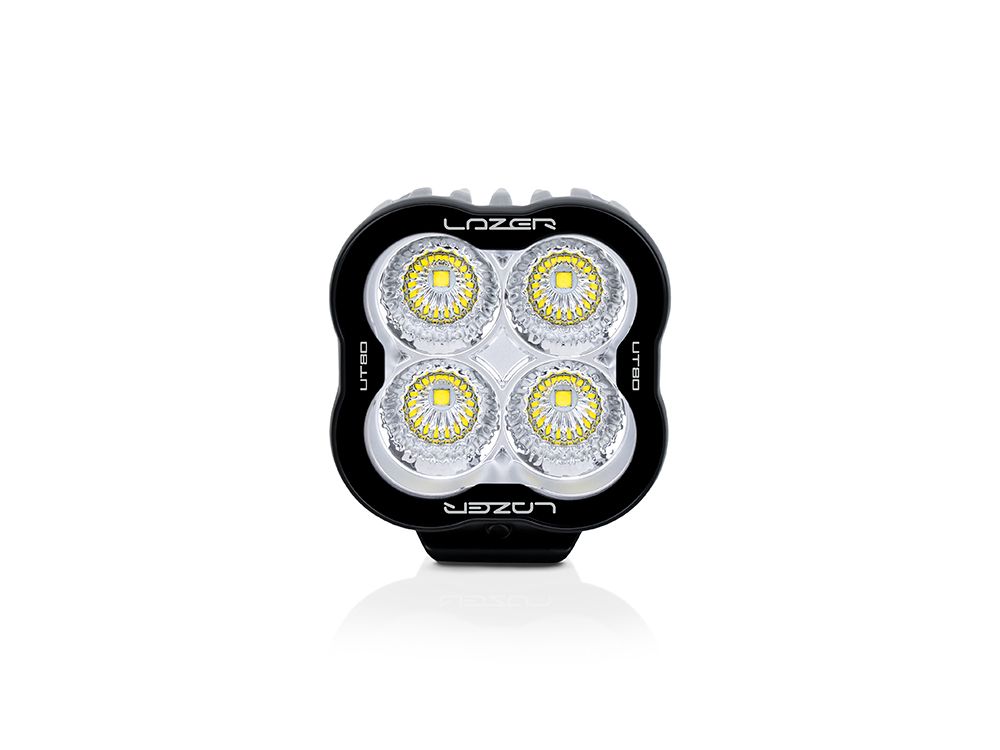

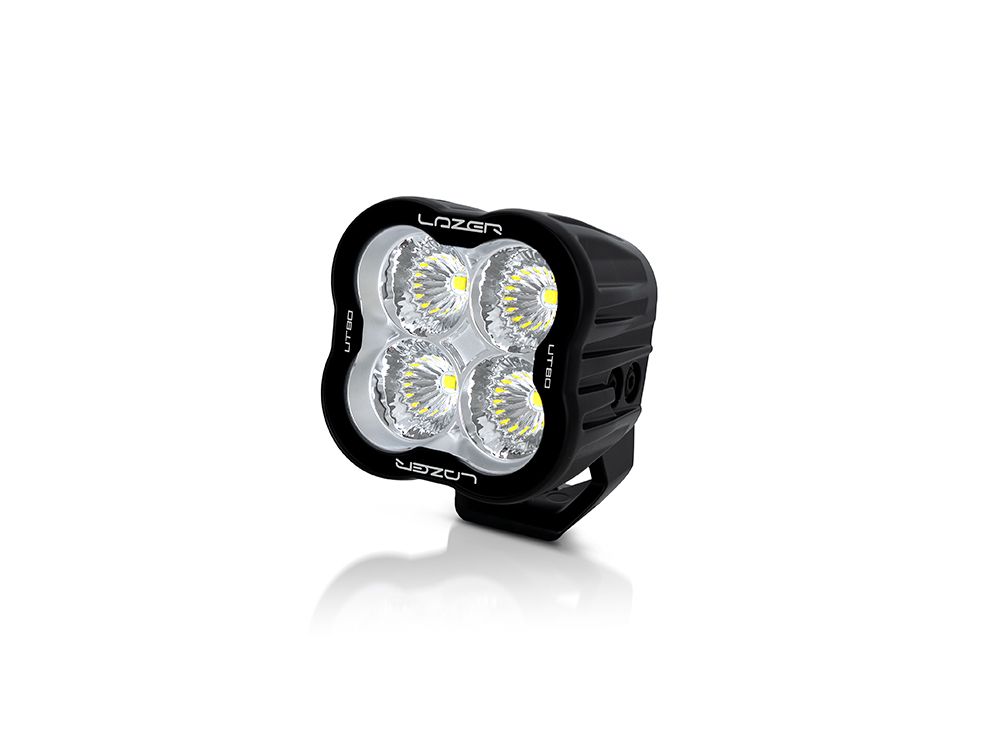

Lazer Utility-80 HD (8940 Lumens)

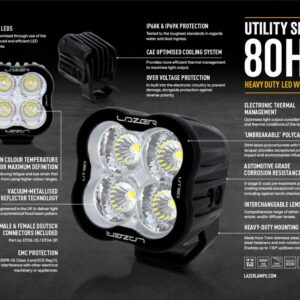

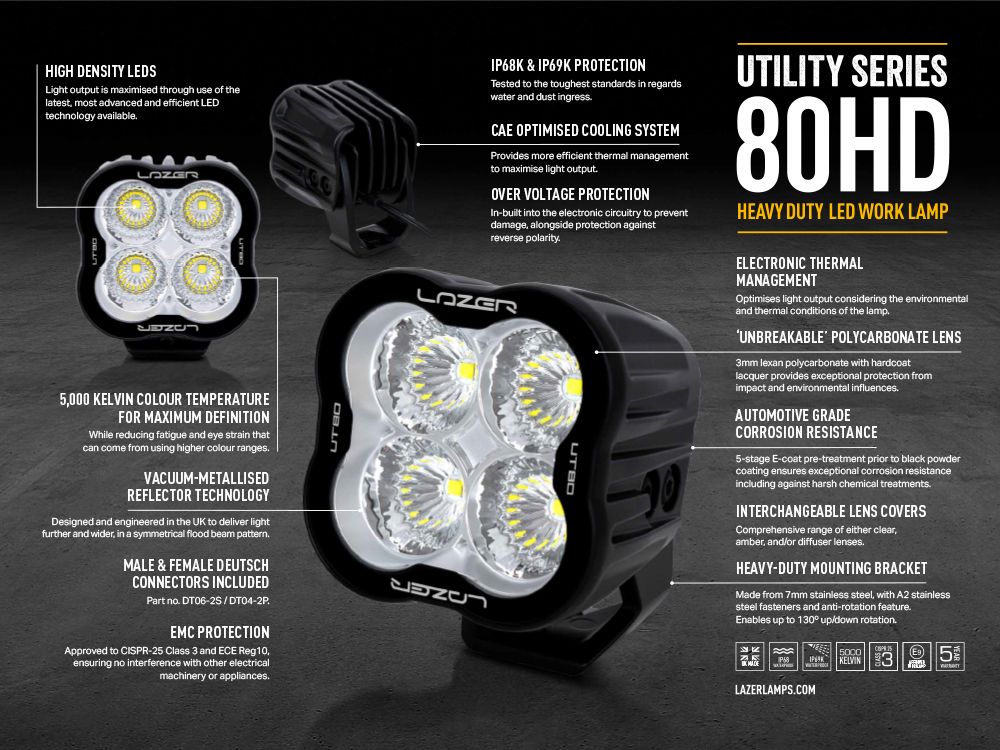

PRODUCT FEATURES
ECE approved work light
Utilising 4 high-density 20W LEDs
Variable brightness option available
CAE optimised cooling system with Electronic Thermal Management
5000k colour temperature
Vacuum-metallised optics for superior light utilisation
Die-cast, heavy-duty mounting bracket made from 7mm stainless steel
‘Unbreakable’ polycarbonate lens with hardcoat
Automotive grade corrosion resistance
EMC protected- CISPR:25 (Class 3)
IP68 / IP69k approved
Over voltage protected
Reverse polarity protected
Includes male/female Deutsch connectors
Comprehensive range of lens covers available
5year warranty
Made in the UK
TECHNICAL SPECIFICATIONS
Based on: 1x Utility-80 HD LED Work Lamp.
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hours |
| Colour Temperature | 5,000K |
| Weight | 1.1kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 8940 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 4 |
| Power Consumption | 80 Watts |
| Current Draw (at 14.4V) | 5.6 Amps |
| CERTIFICATION | |
| Work Lamp | ECE R10 |
| IP Rating | IP68 / IP69K |
| Salt Spray Test | ISO 9227 (2000H) |
| EMC Protection | CISPR-25 (Class 3) |
| OPERATING CONDITIONS | |
| Vibration (BS EN 60068) | 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz |
| Operating Temperature | -40deg C … +90degC |
| DIMENSIONS | |
| Width | 107mm |
| Depth | 108mm |
| Height | 107mm |

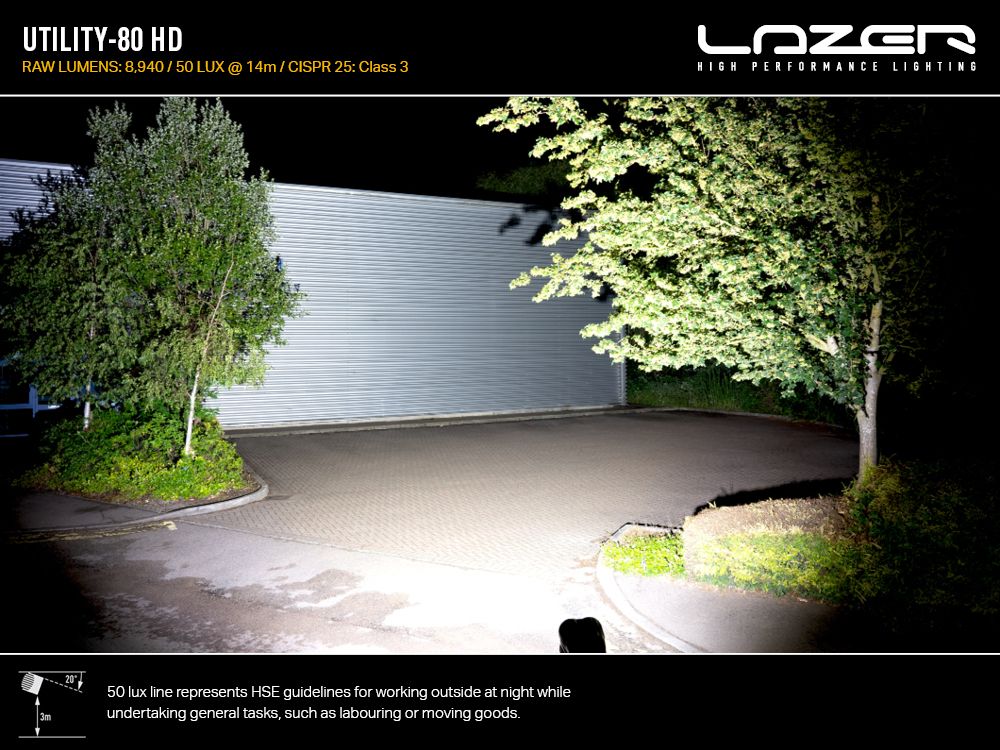

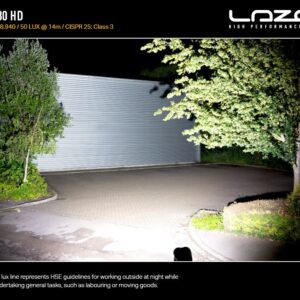

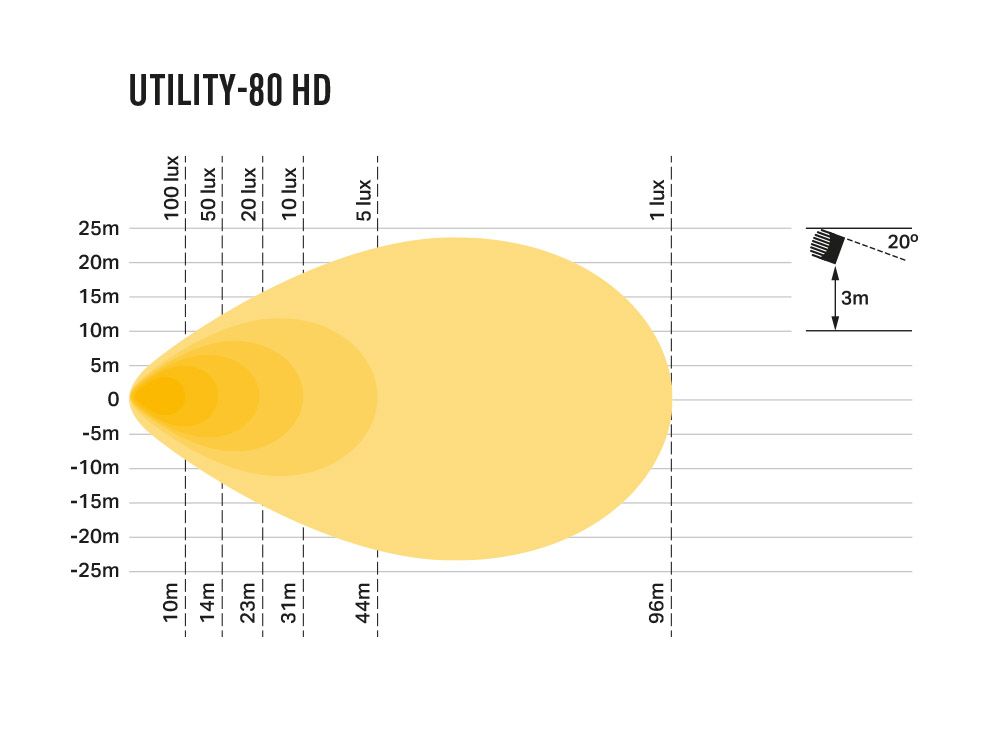

| PHOTOMETRIC DATA | |
| 1Lx Line @ | 96m |
| 5Lx Line @ | 44m |
| 20Lx Line @ | 23m |
| 50Lx Line @ | 14m* |
* – 50 Lux represents HSE guidelines for effective illumination when working outdoors at night.
WHAT’S INCLUDED
- 1x Utility-80 HD Work Lamp
- 1x Lamp Mount (supplied attached to lamp)
