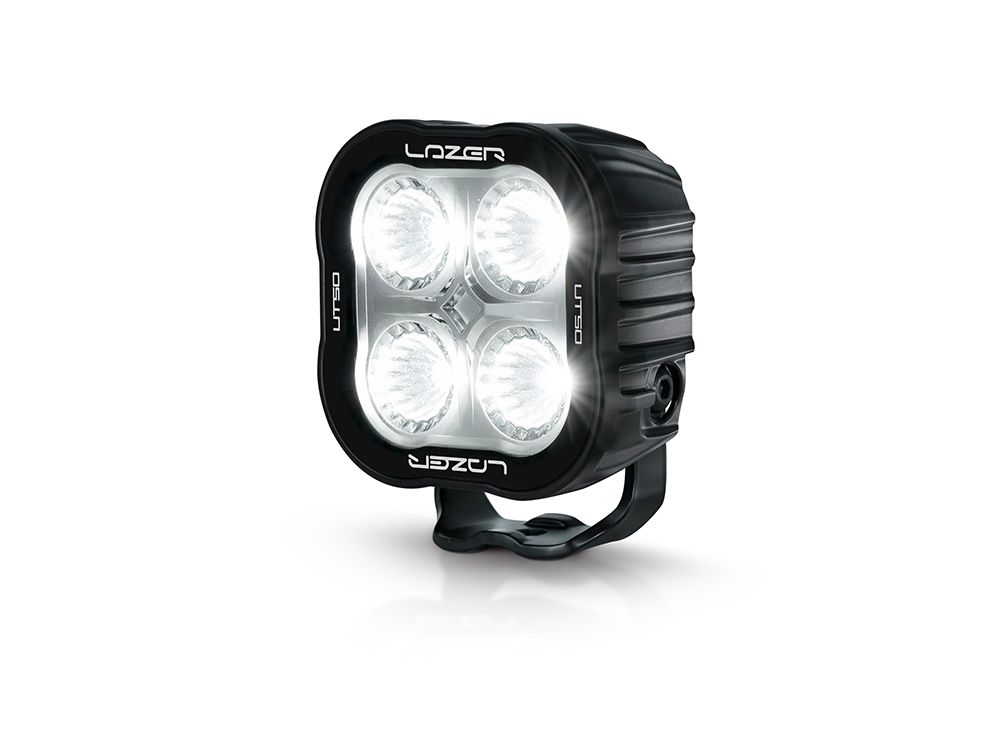

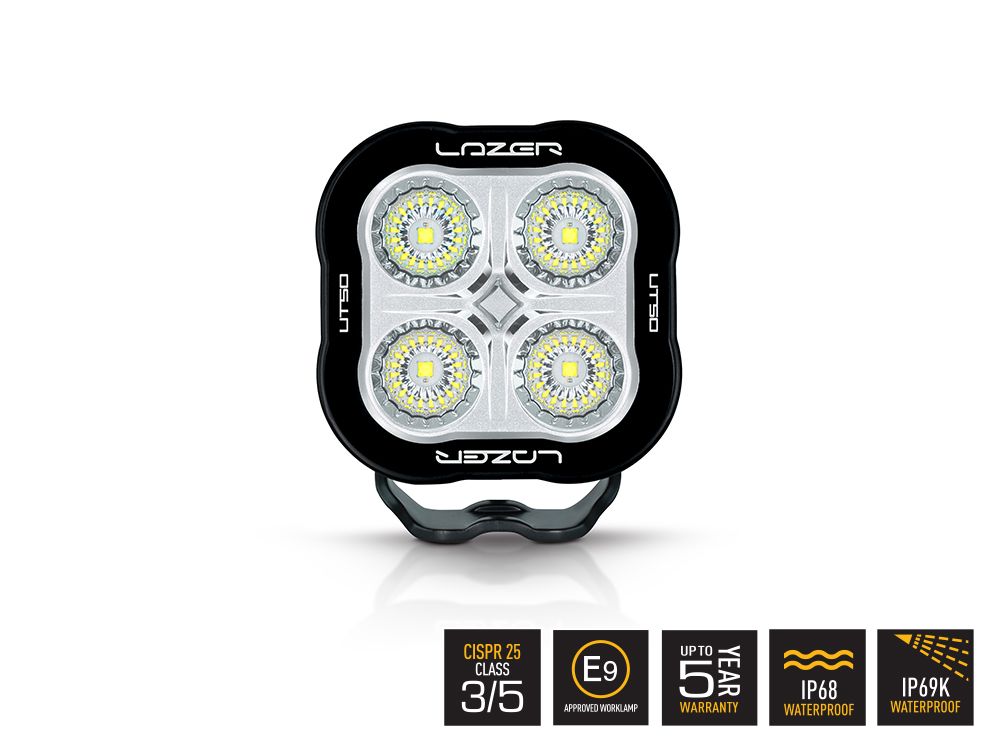

Lazer Utility-50 STD (Fixed Bolt) 00U50-FB-B

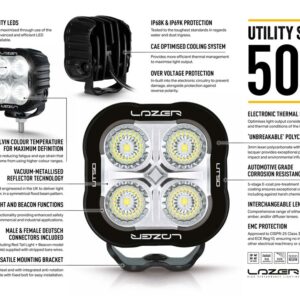

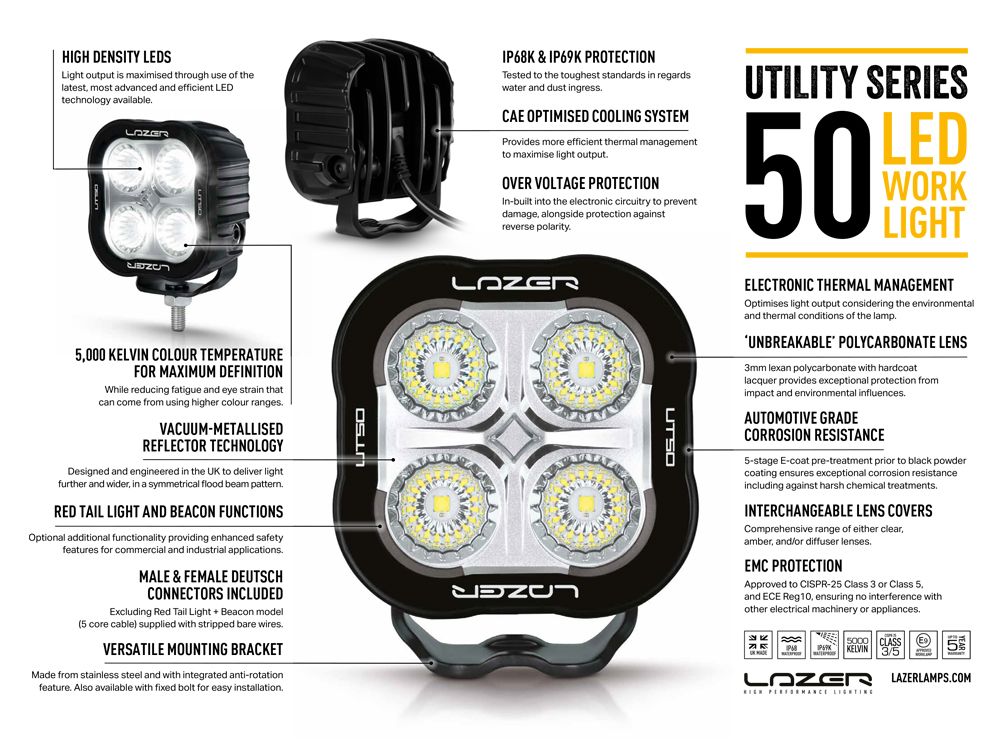

PRODUCT FEATURES
Reg10 UNECE approved work light

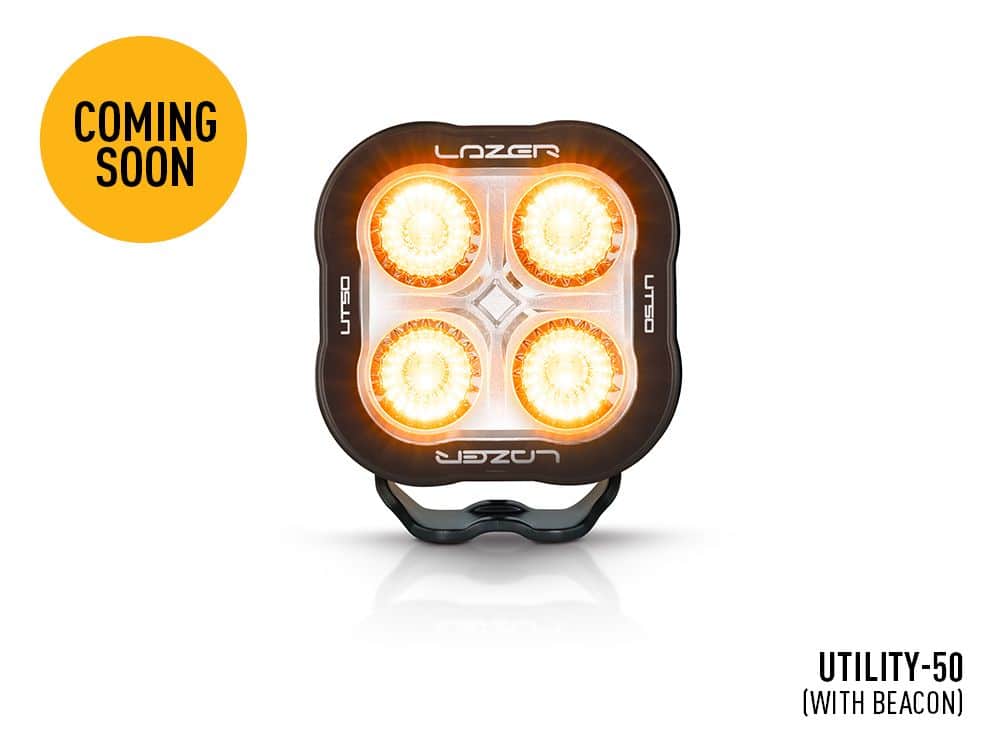

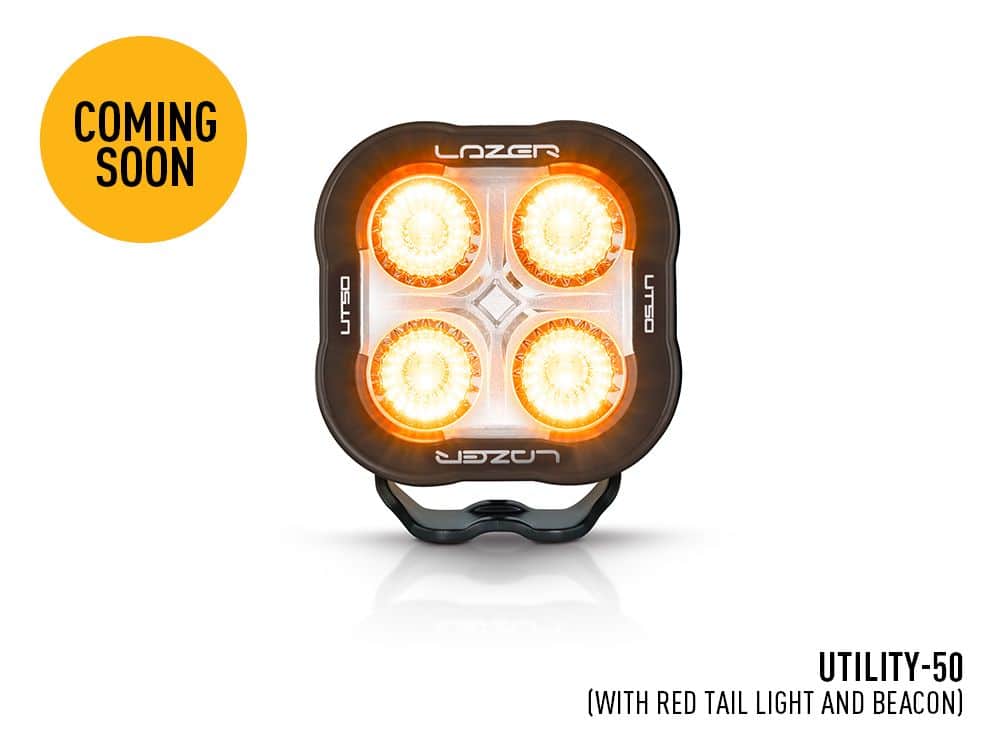

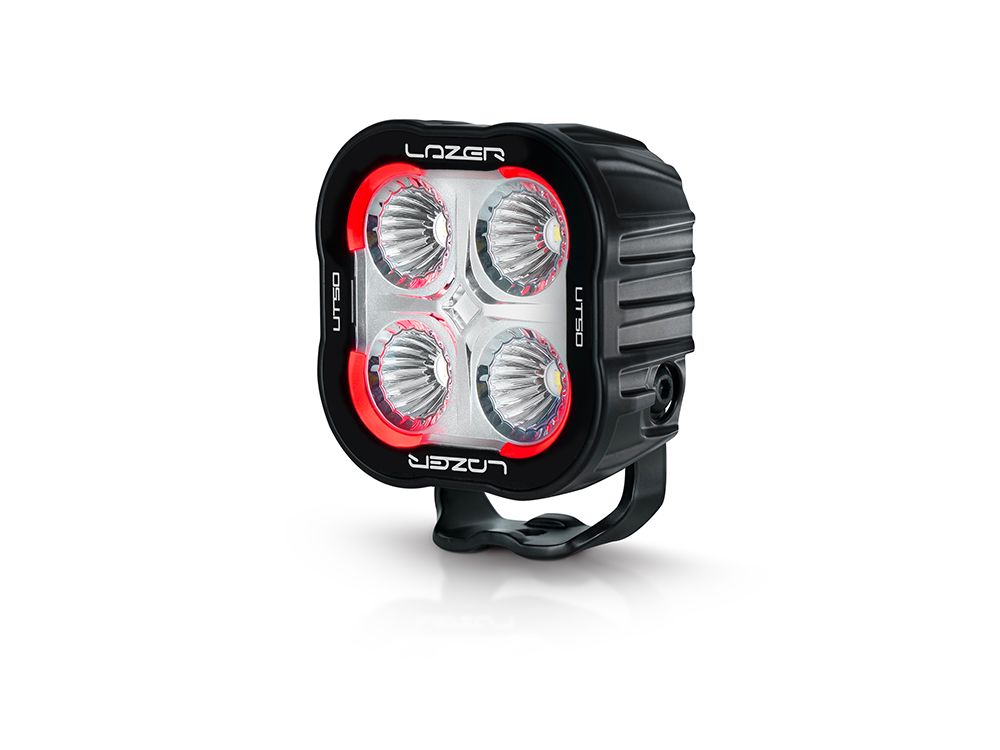

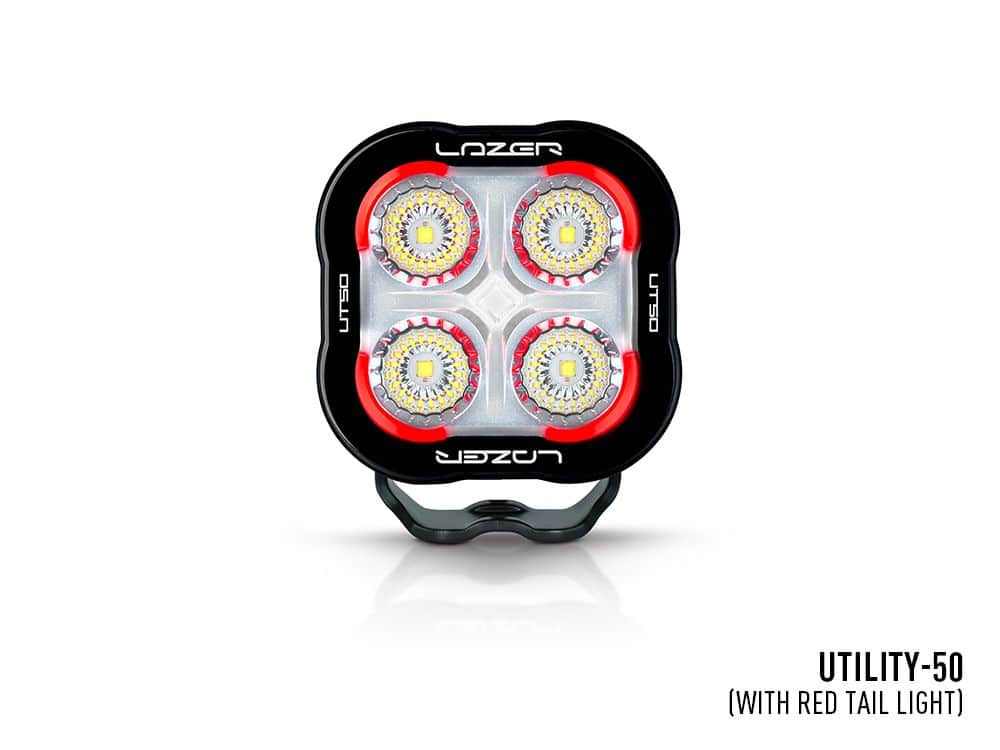

Optional red tail-light function available (UNECE Reg 148-R1)
5000k colour temperature
CAE optimised cooling system with Electronic Thermal Management
Vacuum-metallised optics for superior light utilisation
Supplied with versatile stainless steel mounting bracket and fasteners
Fixed bolt ‘fast-mount’ solution available
‘Unbreakable’ polycarbonate lens with hardcoat
Automotive grade corrosion resistance
EMC protected- CISPR:25 (Class 3 or Class 5)
IP68 / IP69k approved
Over voltage protected
Reverse polarity protected
Includes male/female Deutsch connectors
Comprehensive range of lens covers available
5year warranty (2year for non-automotive / industrial applications)
Made in the UK
TECHNICAL SPECIFICATIONS
| 1x Utility-50 LED Work Light | |
|---|---|
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hours |
| Weight | 0.65 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 5,000 Lm |
| Colour Temperature | 5000K |
| Power Consumption | 50 Watts |
| Peak Current Draw | 7.25 Amps |
| Current Draw (14.4V) | 3.6 Amps |
| Connector | 2-Pin/4-Pin Deutsch DT (+28cm Cable) |

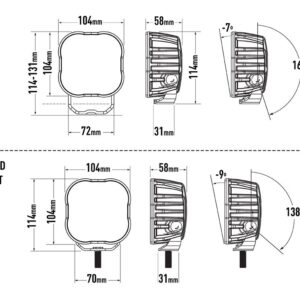

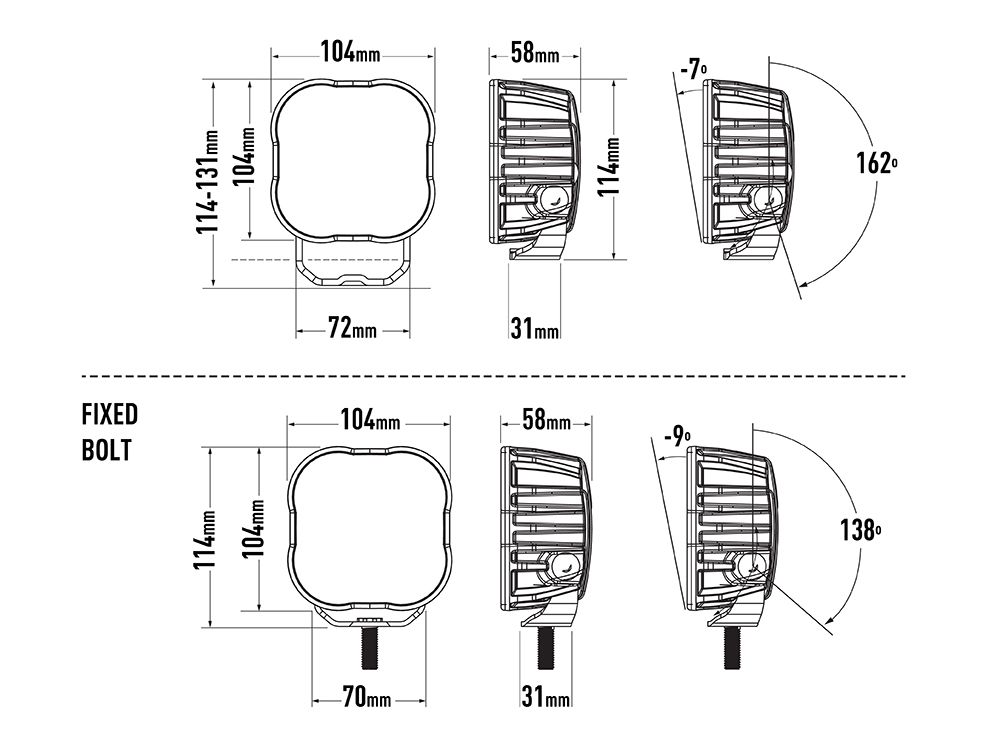

| DIMENSIONS | |
| Width | 104 mm |
| Depth | 58 mm |
| Height | 104 mm |
| CERTIFICATION | |
| IP Rating # | IP68 |
| EMC Certification | ECE R10 |
| EMC Protection | CISPR-25 (Class 3/5) |
| Salt Spray Test | ISO 9227 |
| Dump Load Protection | ISO 7637-2 |
| OPERATING CONDITIONS |
|
| Operating Temperature | -40oC … +90oC |
| Vibration (BS EN 60068) | 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz |

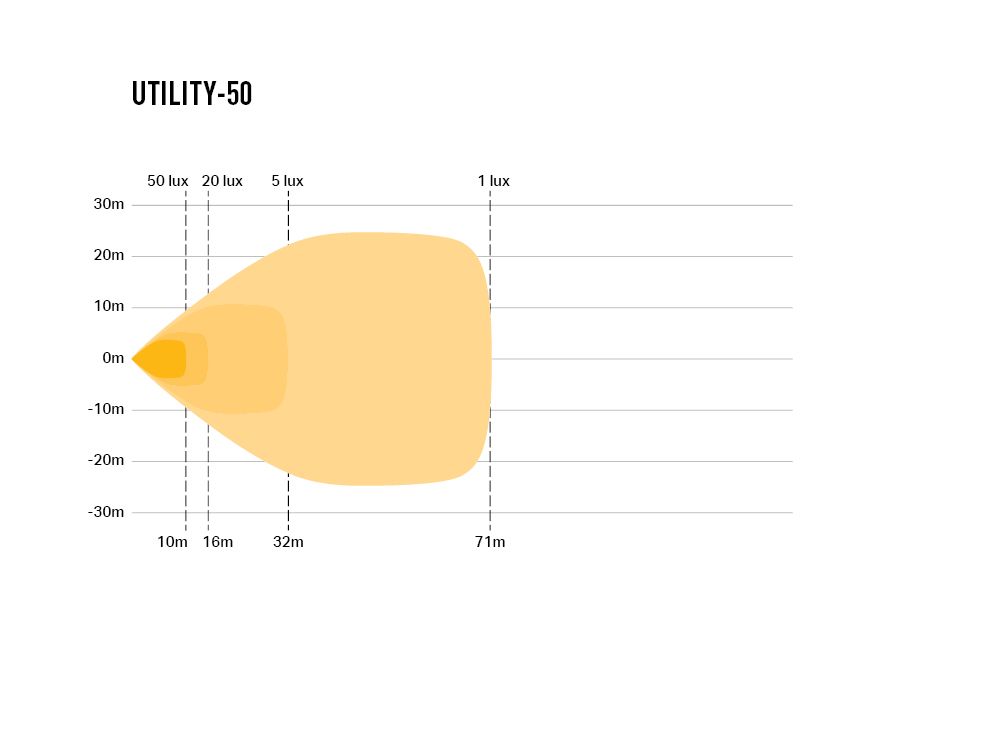

| PHOTOMETRIC DATA | |
| Horizontal / Vertical Beam Angle | 80° / 80° |
| 1 Lux | 71m |
| 5 Lux | 32m |
| 20 Lux | 16m |
| 50 Lux * | 10m |
* – 50 Lux represents HSE guidelines for effective illumination when working outdoors at night.
# – All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
| 1x Utility-50 LED Work Light | |
|---|---|
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hours |
| Weight | 0.65 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 5,000 Lm |
| Colour Temperature | 5000K |
| Power Consumption | 50 Watts |
| Peak Current Draw | 7.25 Amps |
| Current Draw (14.4V) | 3.6 Amps |
| Connector | 2-Pin/4-Pin Deutsch DT (+28cm Cable) |
| DIMENSIONS | |
| Width | 104 mm |
| Depth | 58 mm |
| Height | 104 mm |
| CERTIFICATION | |
| IP Rating # | IP68 |
| EMC Certification | ECE R10 |
| EMC Protection | CISPR-25 (Class 3/5) |
| Salt Spray Test | ISO 9227 |
| Dump Load Protection | ISO 7637-2 |
| OPERATING CONDITIONS |
|
| Operating Temperature | -40oC … +90oC |
| Vibration (BS EN 60068) | 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz |
| PHOTOMETRIC DATA | |
| Horizontal / Vertical Beam Angle | 80° / 80° |
| 1 Lux | 71m |
| 5 Lux | 32m |
| 20 Lux | 16m |
| 50 Lux * | 10m |
* – 50 Lux represents HSE guidelines for effective illumination when working outdoors at night.
# – All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
WHAT’S INCLUDED
- Utility-50 LED Work Light
- Mounting Bracket (attached to lamp)
- Installation Instructions
