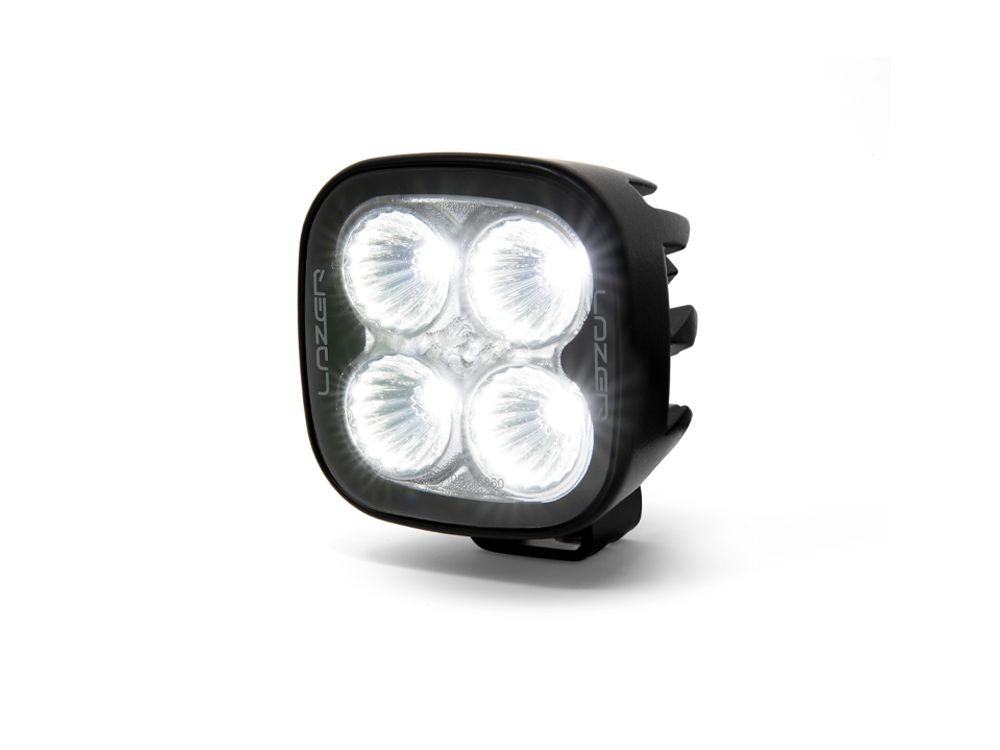

Lazer Utility-25 (3016 Lumens)

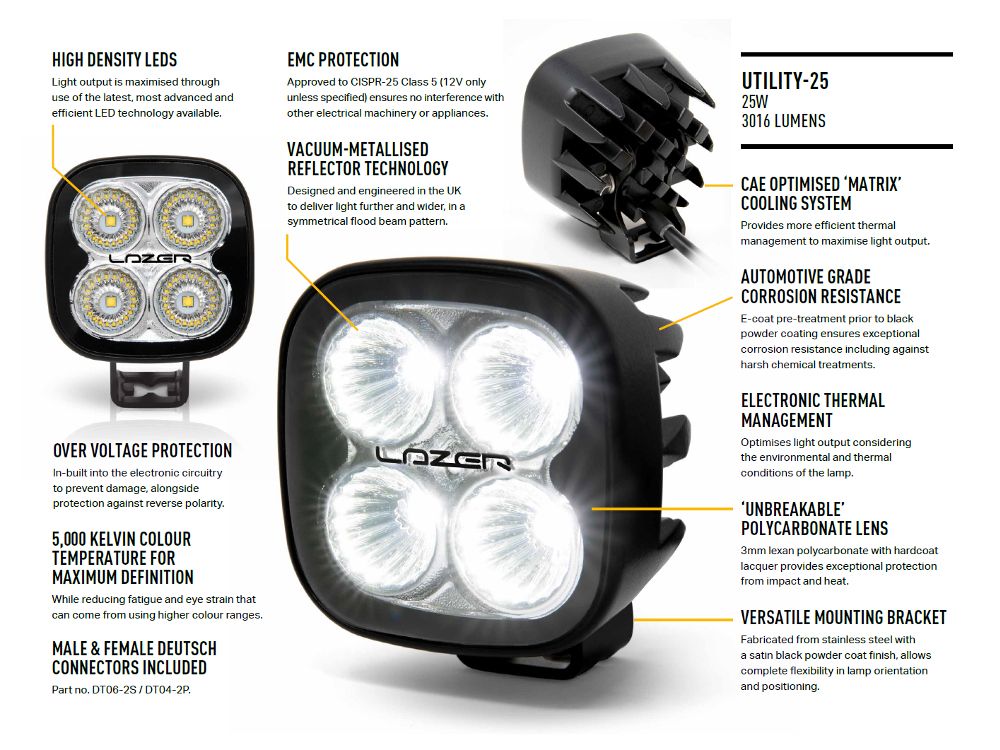

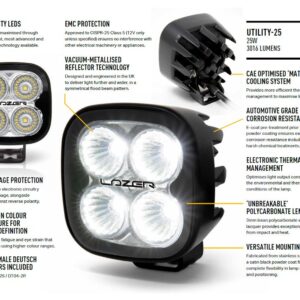

PRODUCT FEATURES
UNECE approved Work Light (Reg 10)
High density, premium ‘bin’ LEDs
Advanced optical design delivers superior lighting performance

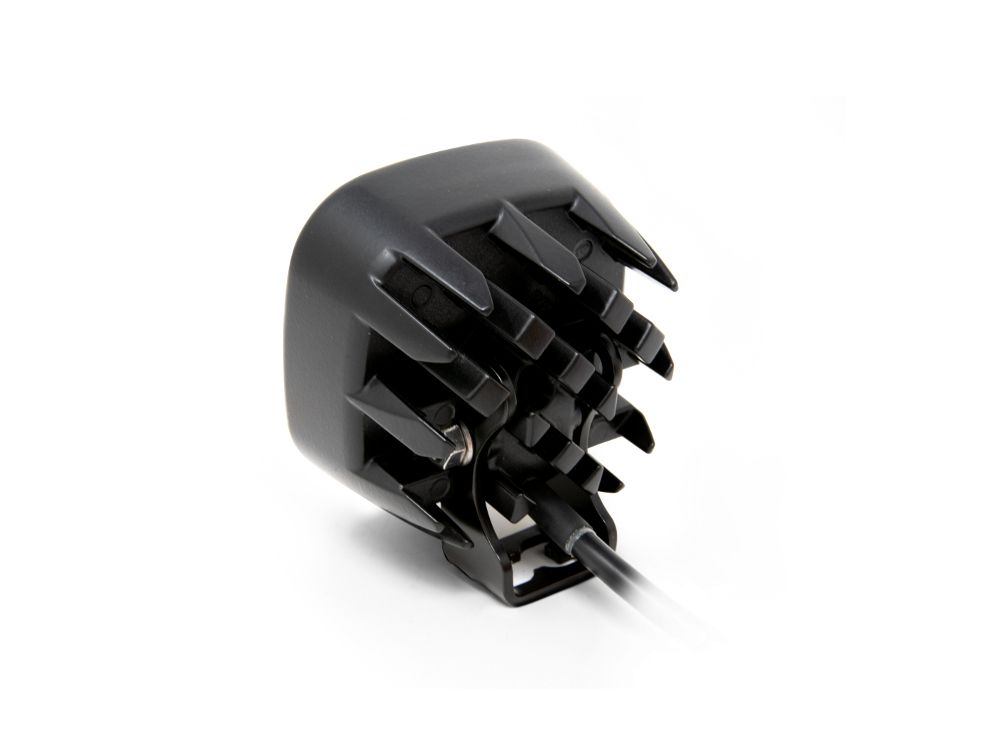

CAE optimised ‘Matrix’ cooling system offers improved thermal dynamics
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
EMC protected – CISPR 25: 2008 (Class 5)
Over voltage protected
Reverse polarity protected
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
IP69 watertight
5-year warranty*
Supplied with pre-wired male/female 2-pin Deutsch connectors
Designed and manufactured in UK
TECHNICAL SPECIFICATIONS
Voltage Range (DC) | 10-32V |
LED Life | 50,000 hours |
Weight | 360 gr |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 3016 Lm |
Colour Temperature | 5000K |
Number of High Output LEDs | 4 |
Power Consumption | 25 Watts |
Current Draw (at 14.4V) | 1.6 Amps |
CERTIFICATION | |
Work Lamp | ECE R10 |
IP Rating | IP68 / IP69K |
Salt Spray Test | ISO 9227 (2000H) |
EMC Protection | CISPR-25 (Class 5) |
OPERATING CONDITIONS | |
Vibration (BS EN 60068) | 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz |
Operating Temperature | -40deg C … +90degC |

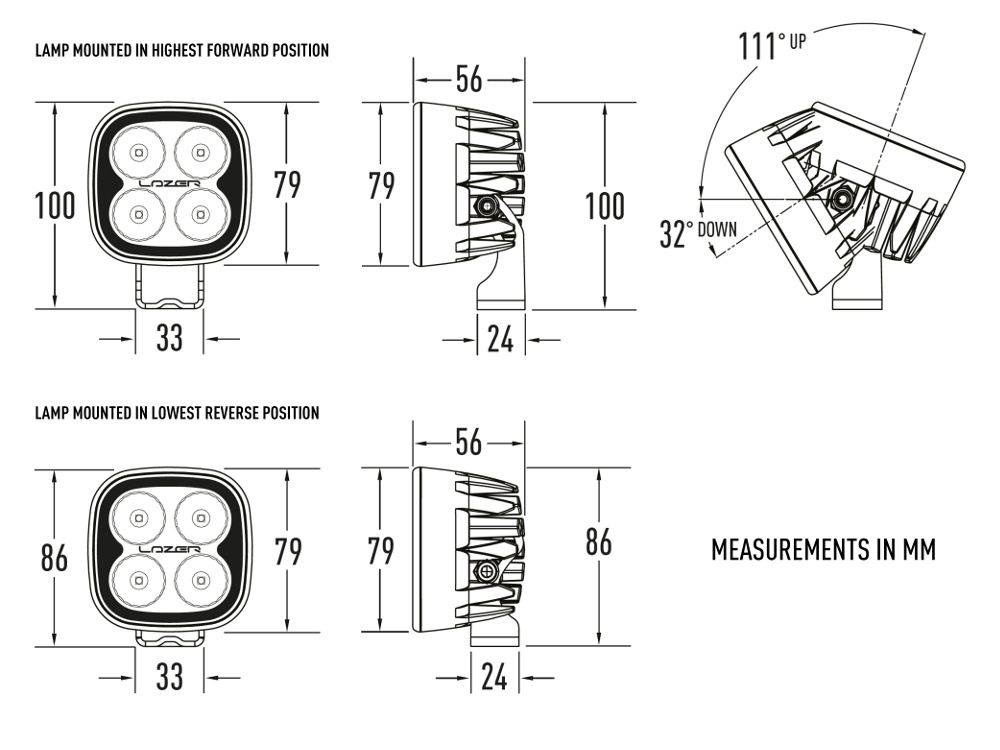

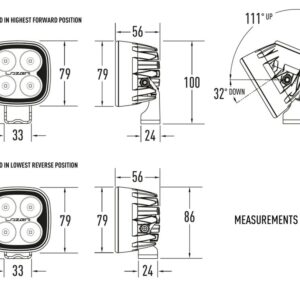

DIMENSIONS | |
Width | 80 mm |
Depth | 56 mm |
Height | 80 mm |

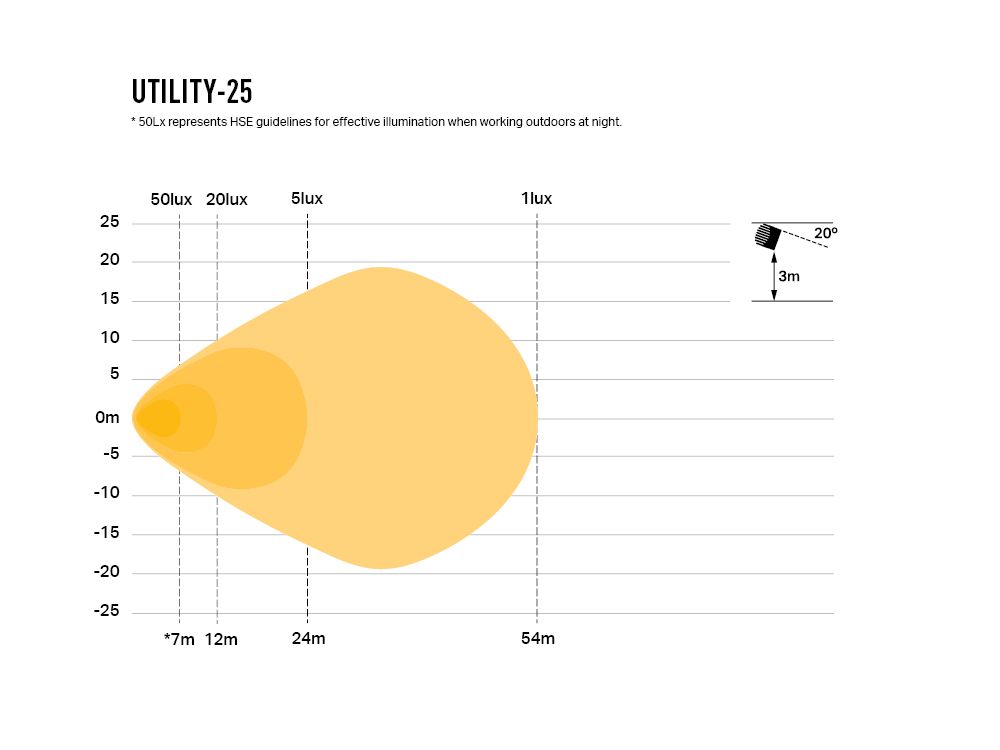

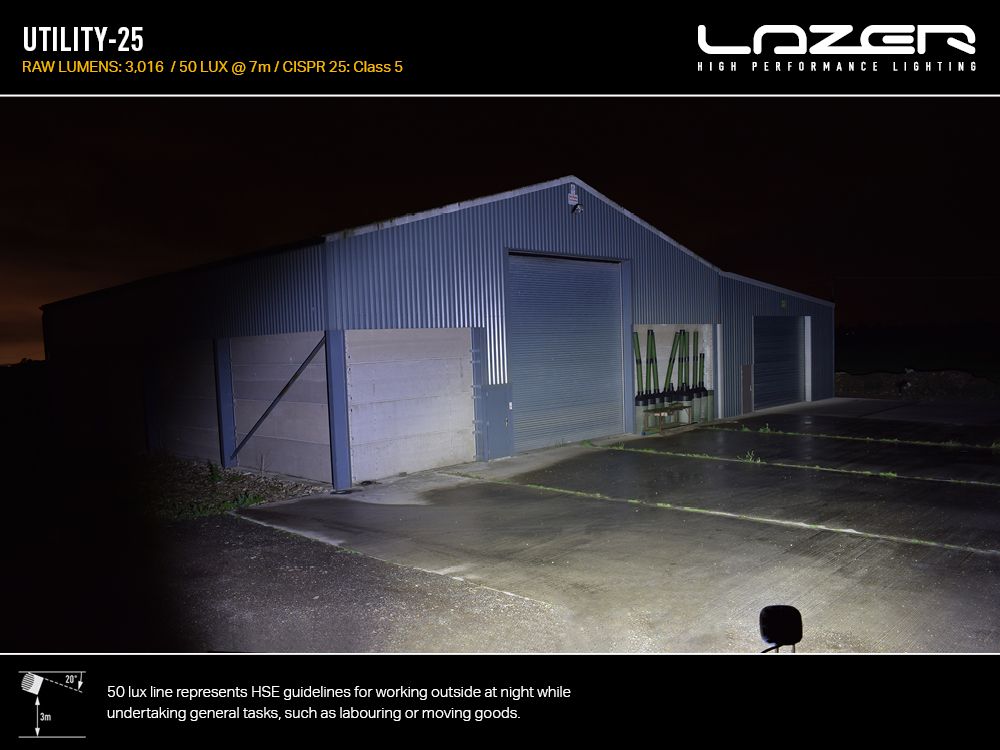

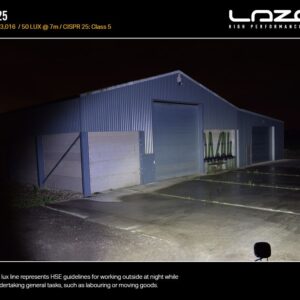

PHOTOMETRIC DATA | |
1Lx Line @ | 54m |
5Lx Line @ | 24m |
20Lx Line @ | 12m |
50Lx Line @ | 7m* |
* – 50Lx represents HSE guidelines for effective illumination when working outdoors at night.
WHAT’S INCLUDED
- 1x Utility-25 Work Lamp
- 1x Uility-25 Centre Mount (supplied attached to lamp)
