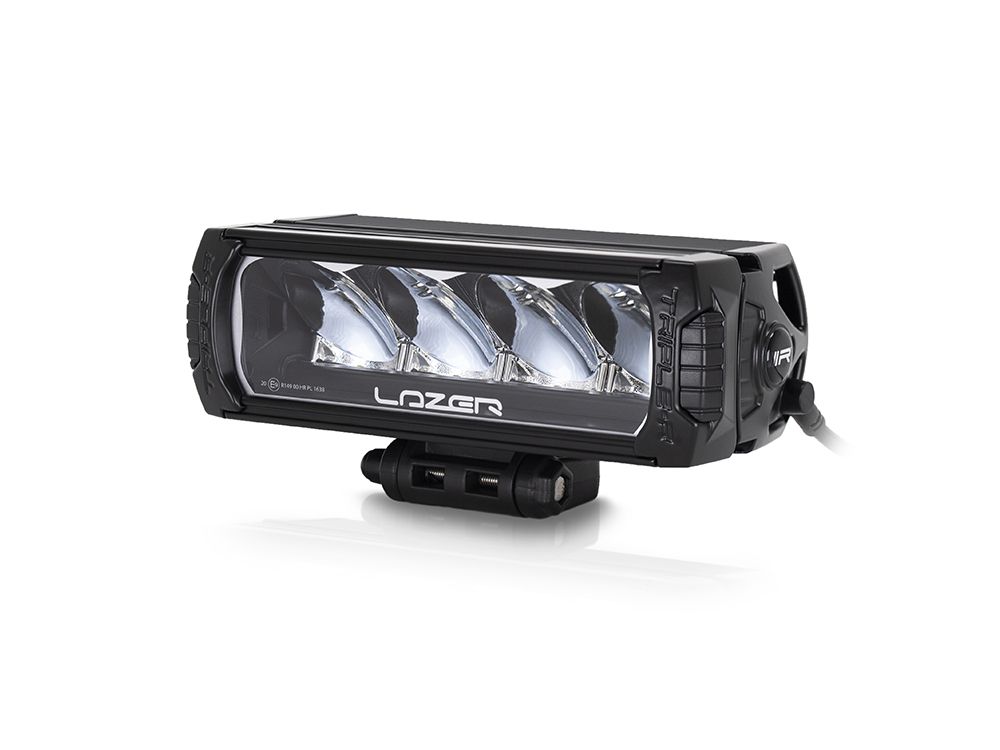

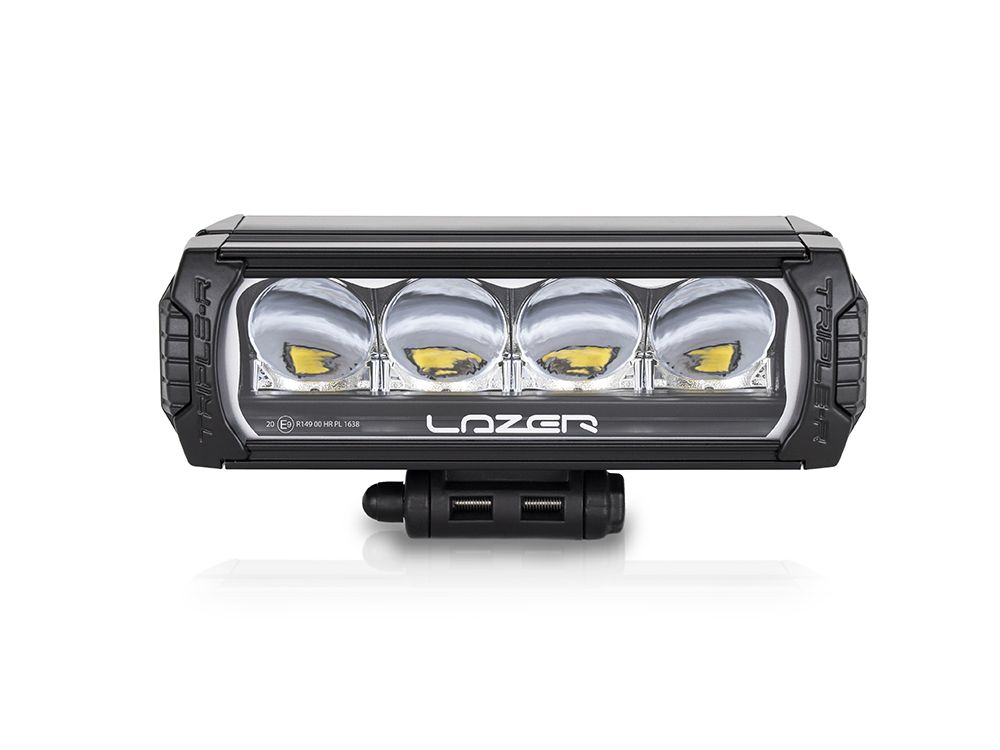

Lazer Triple-R 750 Wide 00R4-G2-WIDE-B
PRODUCT FEATURES
Highly efficient 11W LED technology
5000K LED colour temperature and 80CRI maximises sharpness and definition
UNECE Reg 149 Class B Driving Light, approved for on-road high beam

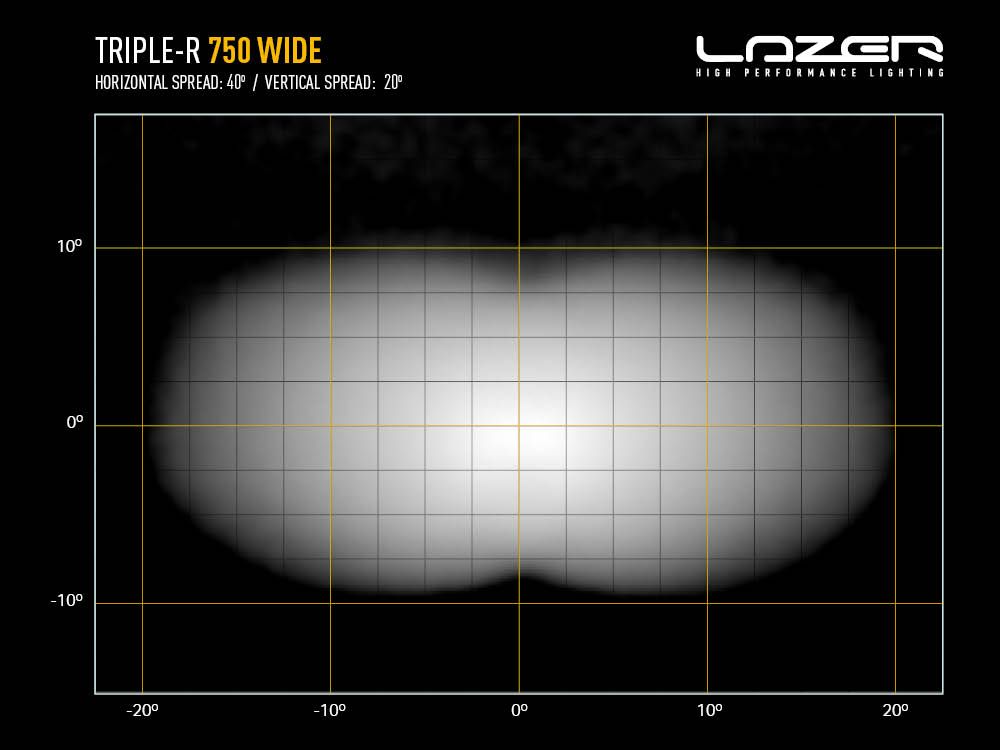

A wide 40 degrees left/right spread of light qualifies the lamp for a lower E-Mark Reference number – 20
Ultra-reflective vacuum-metallised optics deliver long-range beam pattern
Contemporary lamp design
Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

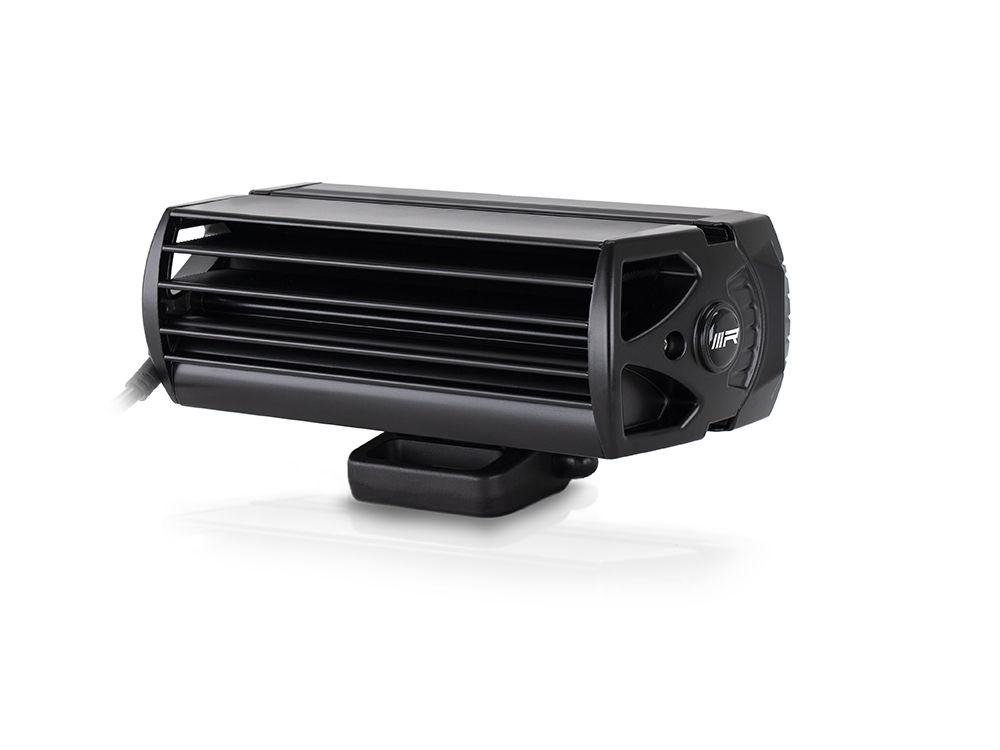

CAE optimised heatsink offers improved thermal dynamics
Over voltage protected
Reverse polarity protected
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
UNECE approved Reg 10
IP68 watertight
5-year warranty
Supplied with pre-wired male/female 2-pin Superseal connectors
Designed & manufactured in UK
TECHNICAL SPECIFICATIONS
Based on: 1x Triple-R 750 Wide.
Voltage Range (DC) | 10-32V |
LED Life | 50,000 hours |
IP Rating | IP 68 |
Weight | 1 kg |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 4620 Lm |
Total Driver ‘FOV’ Flux † | 2633 Lm |
Colour Temperature | 5000k |
Number of High Output LEDs | 4 |
Power Consumption | 44 Watts |
Peak Current Draw (10V) | 4.4 Amps |
Current Draw (14.4V) | 3.1 Amps |
CERTIFICATION | |
High Beam | ECE R149 |
E-Mark Ref | 20 |

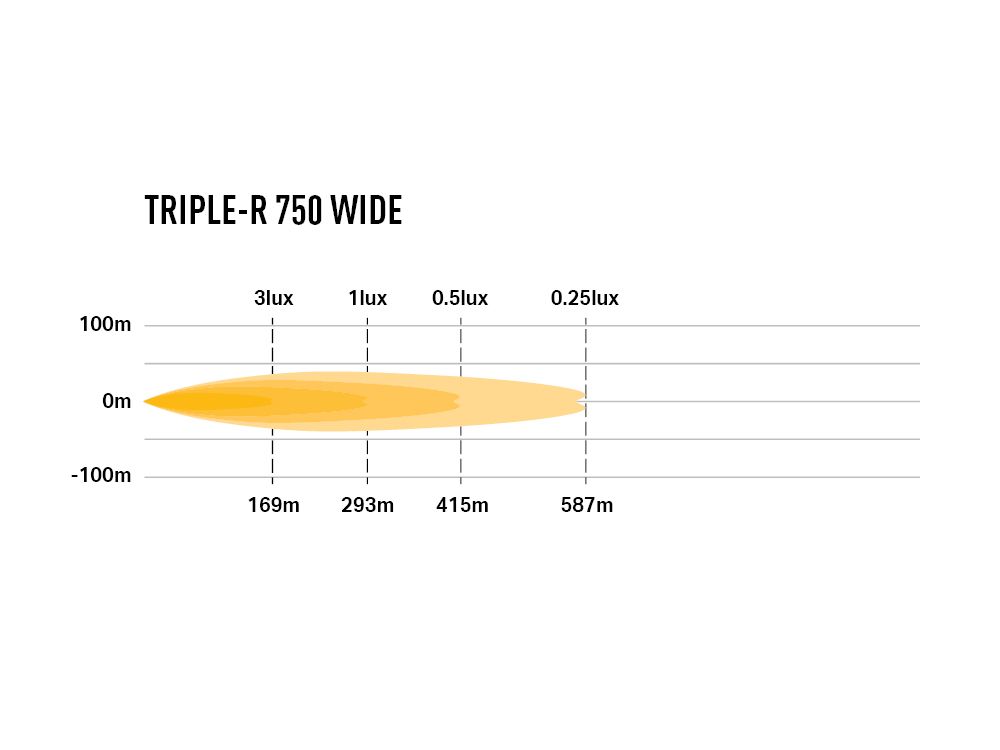

PHOTOMETRIC DATA | |
Horiz Beam Angle | 40o |
0.25 lx Line | 587m |
0.5 lx Line | 415m |
1 lx Line | 293m |
3 lx Line | 169m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- x1 Triple-R 750 Wide LED Lamp
- x1 Centre Mount (1114K)
- x1 Installation Instructions
