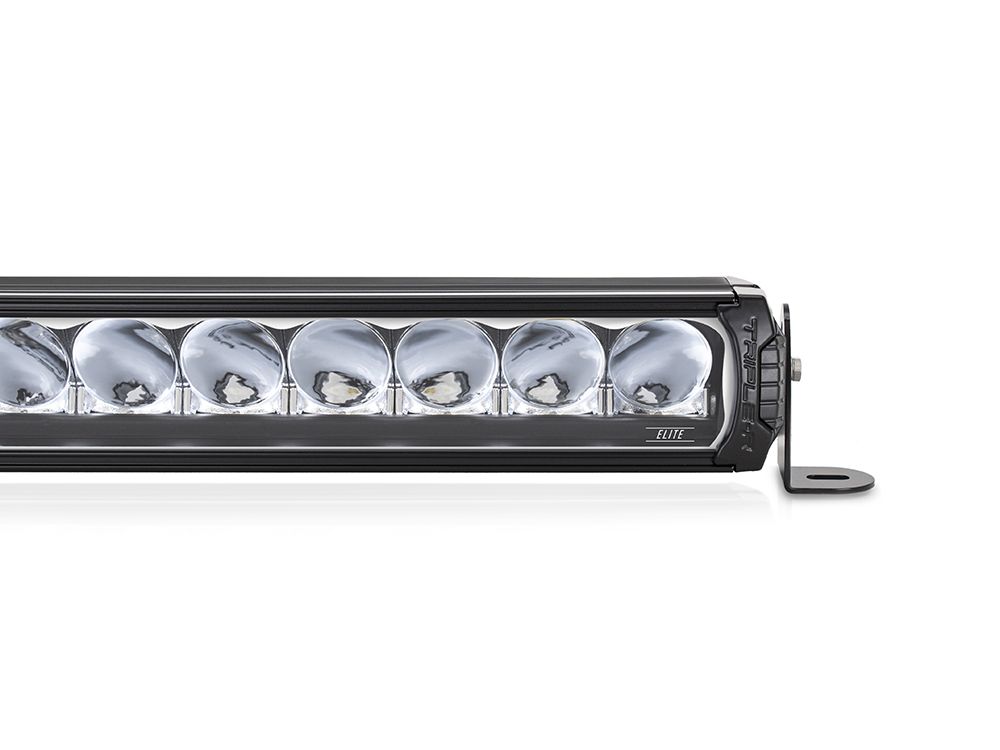

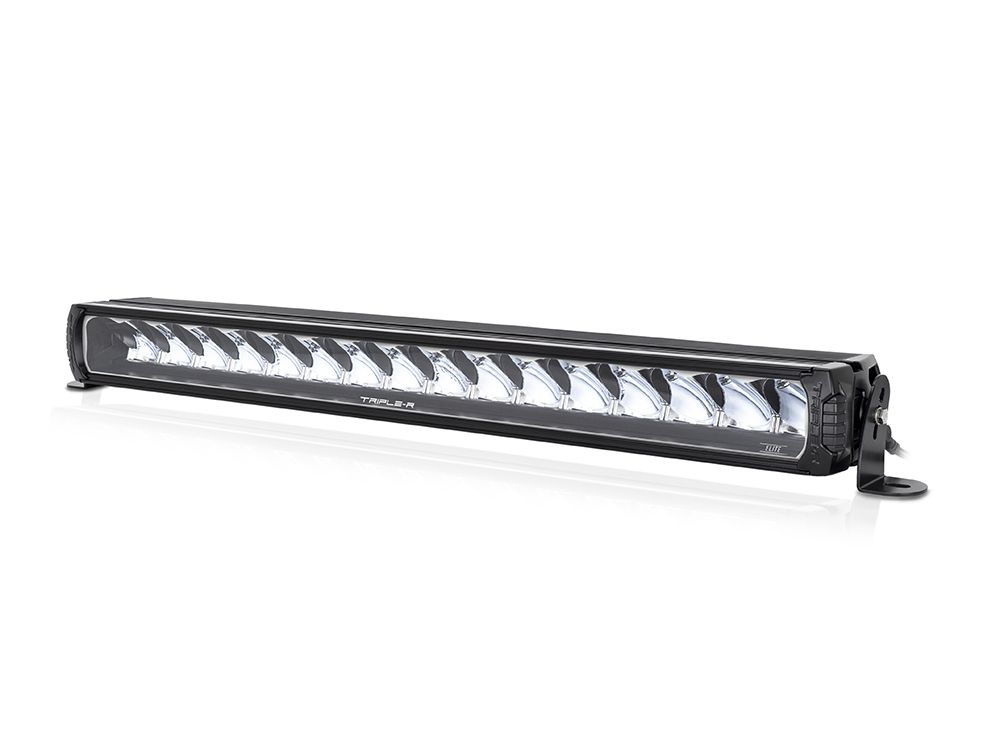

Lazer Triple-R 16 Elite (18040 Lumens)
PRODUCT FEATURES
Ultra-reflective vacuum-metallised optics deliver perfectly tuned beam pattern
Highly efficient LED technologies
5000K LED colour temperature and 80CRI maximises sharpness and definition
Ultra-reflective vacuum-metallised optics deliver spot beam pattern
Contemporary lamp design
Improved aero design benefits low wind noise performance
Vehicle wiring kit included (1L-HP-300)
Includes ‘Centre Mount’ and Side Mount Kit
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
CAE optimised heatsink offers improved thermal dynamics
Over voltage protected
Reverse polarity protected
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
UNECE approved Reg 10
IP68 watertight
5-year warranty
Supplied with pre-wired male/female 2-pin Superseal connectors
Designed & manufactured in UK
TECHNICAL SPECIFICATIONS
Based on: 1x Triple-R 16 Elite LED lightbar.
Voltage Range (DC) | 10-32V |
LED Life | 50,000 hrs |
Weight | 3.2 kg |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 18040 Lm |
Total Driver ‘FOV’ Flux † | 11888 Lm |
Colour Temperature | 5000k |
Number of High Output LEDs | 16 |
Power Consumption | 208 Watts |
Current Draw (at 14.4V) | 14.4 Amps |
CERTIFICATION | |
High Beam | N/A |
E-Mark Ref | N/A |

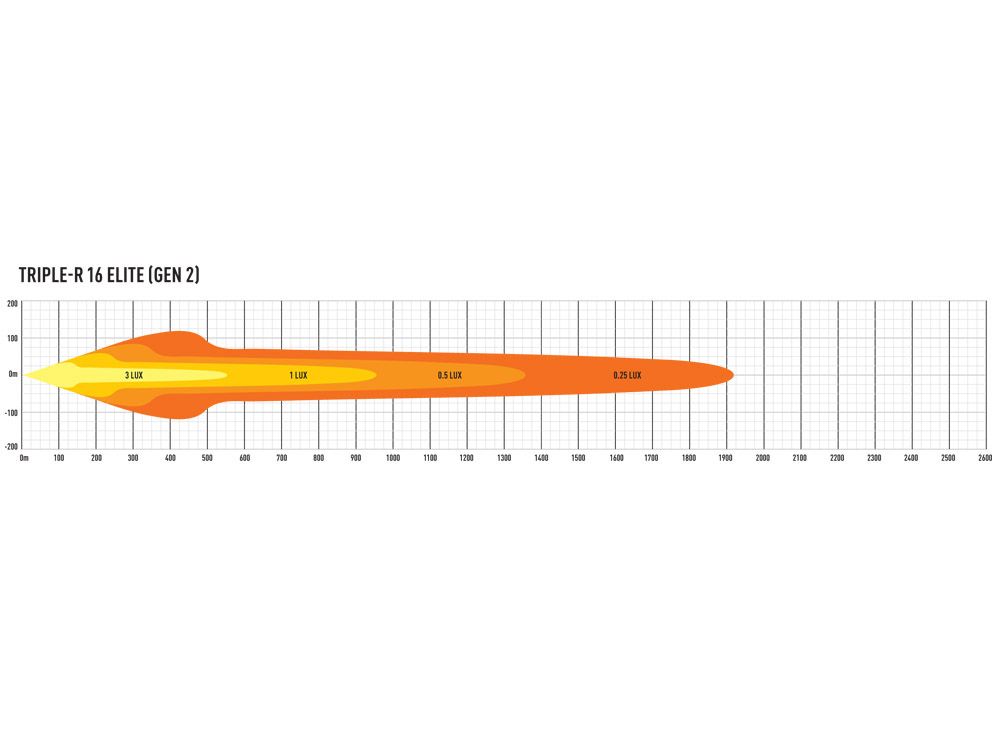

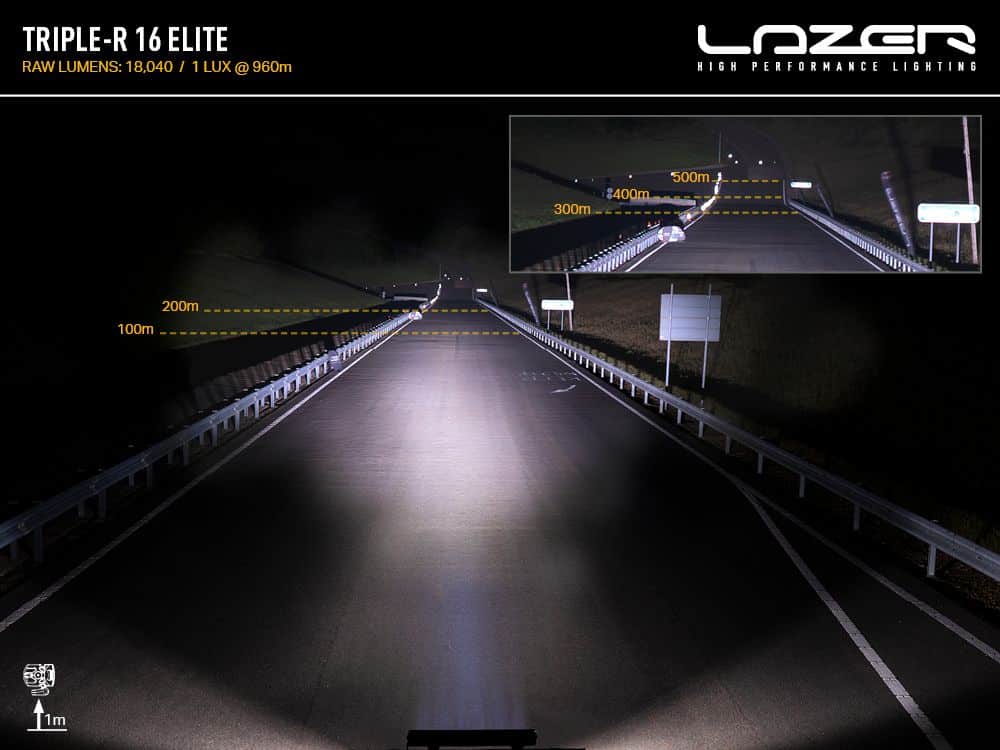

PHOTOMETRIC DATA | |

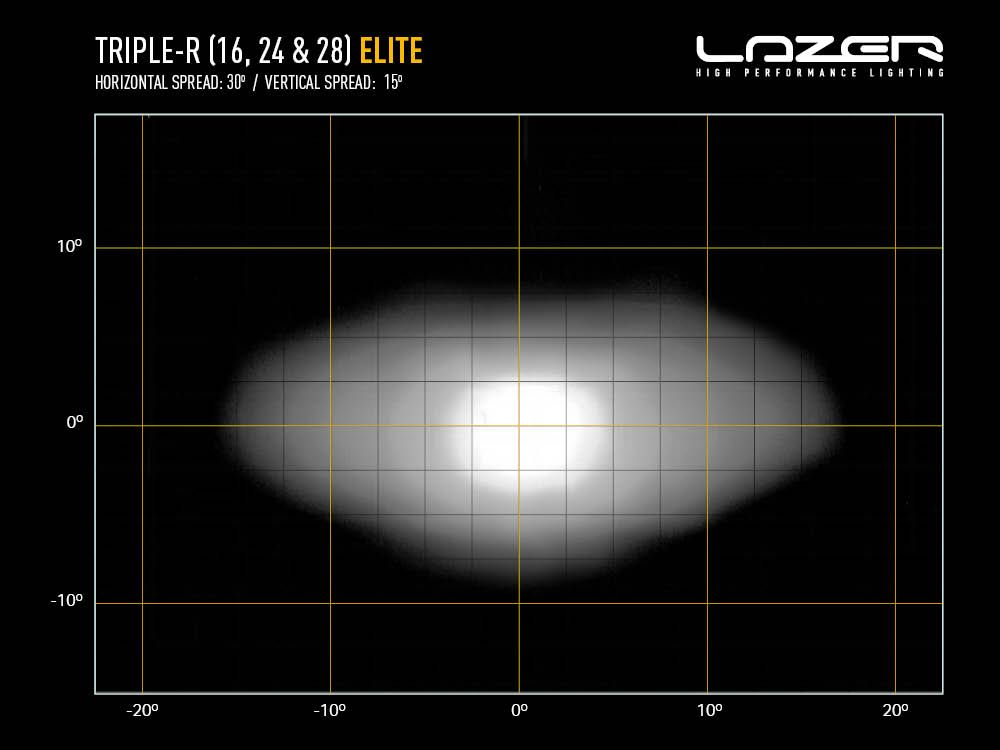

Horiz Beam Angle | 30 Deg |
0.25 lx Line | 1920 metres |
0.5 lx Line | 1358 metres |
1 lx Line | 960 metres |
3 lx Line | 554 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- x1 Triple-R 16 Elite LED Lamp
- x2 Centre Mount (1114k)
- x1 Side Mount Kit (1118k)

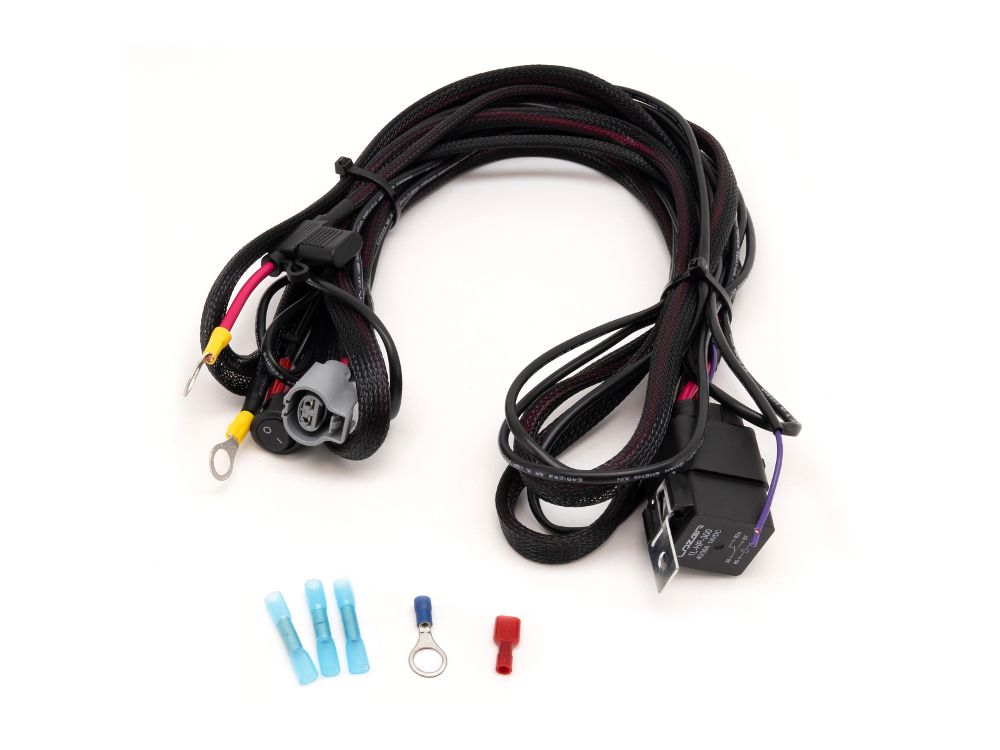

- x1 Single-Lamp Wiring Kit with Switch (1L-HP-300)
- x1 Installation Instructions
