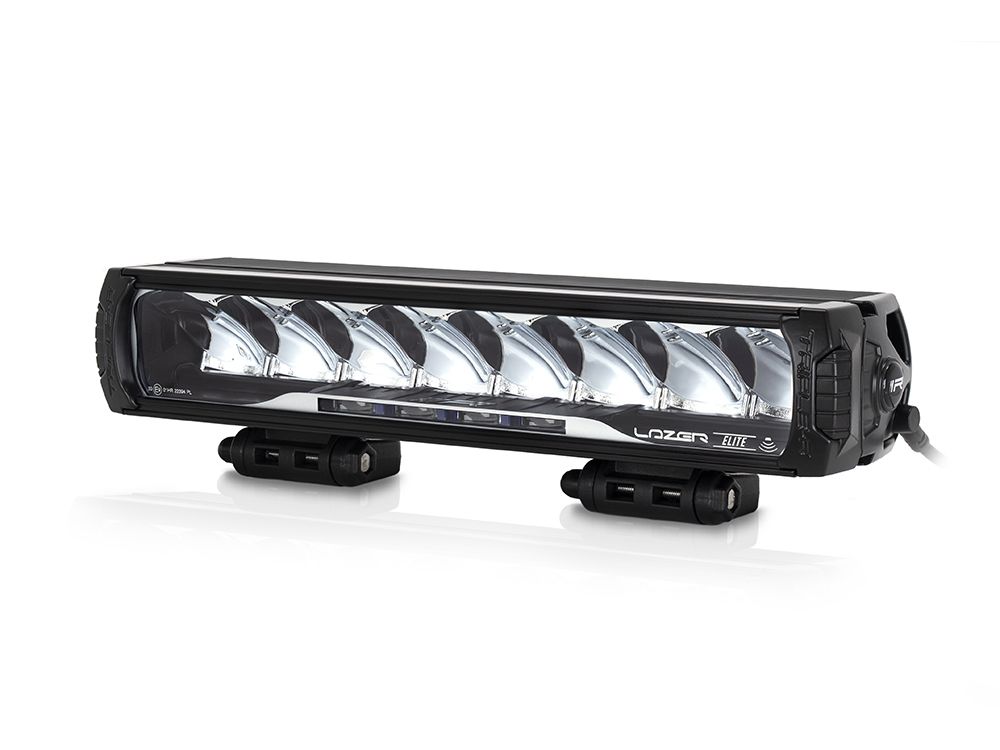

Lazer Triple-R 1000 Elite i-LBA (11068 Lumens)

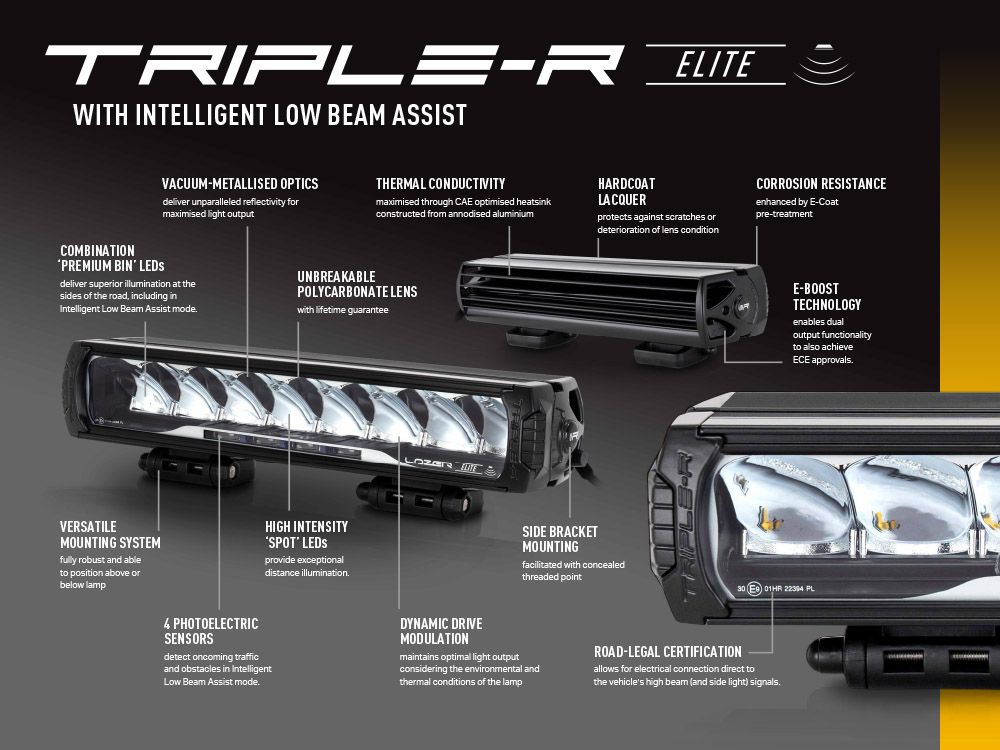

PRODUCT FEATURES

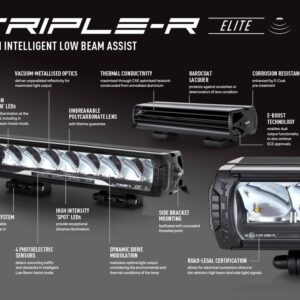

Combination of 26 high efficiency LEDs deliver exceptional lighting performance
Ultra-reflective vacuum-metallised optics deliver perfectly tuned beam pattern for everyday road use
Low Beam Assist mode provides superior short/mid-range visibility

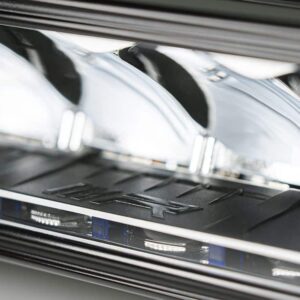

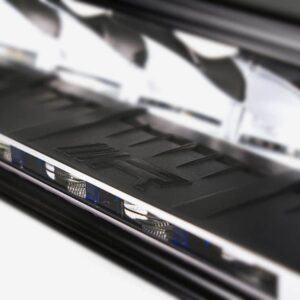

Integrated photoelectric sensors detect oncoming traffic and obstacles so that light output responds to surroundings in Low Beam Assist mode
5000K LED colour temperature and 80CRI maximises sharpness and definition

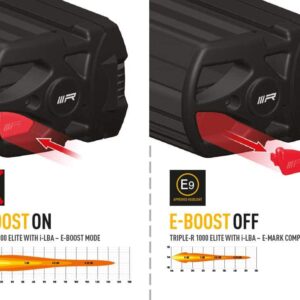

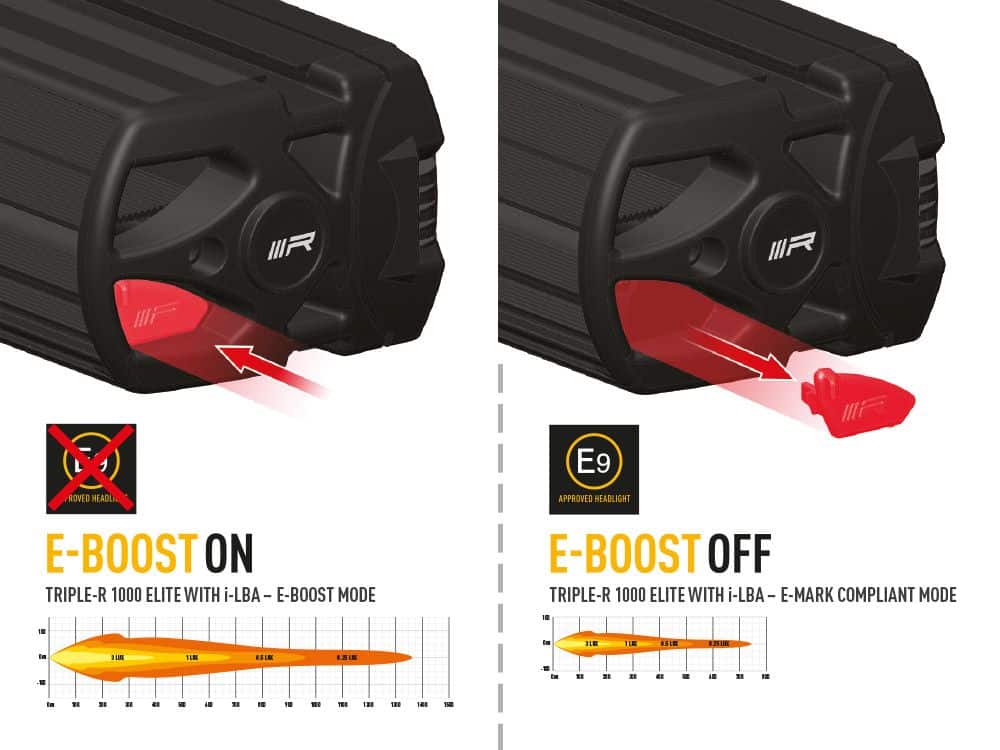

UNECE Reg 112 Class B Driving Light, approved for on-road high beam (E-Boost technology)
Contemporary lamp design
Supplied with Single-Lamp Wiring Kit
Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
CAE optimised heatsink offers improved thermal dynamics
Over voltage protected
Reverse polarity protected
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
UNECE approved Reg 10
IP68 watertight
5-year warranty
Electrical connection made via 4-pin Deutsch connectors
Designed & manufactured in UK
TECHNICAL SPECIFICATIONS
Based on: 1x Triple-R 1000 Elite with i-LBA.
E-Boost | E-Mark Mode | |
Voltage Range (DC) | 10-32V | 10-32V |
LED Life | 50,000 hrs | 50,000 hrs |
Weight | 1.7 kg | 1.7 kg |
HIGH BEAM FUNCTION | ||
Total Luminous Flux | 11068 Lm | 3423 Lm |
Total Driver ‘FOV’ Flux † | 7294 Lm | 2256 Lm |
Colour Temperature | 5000k | 5000k |
Number of High Output LEDs | 26 | 26 |
Power Consumption | 111 Watts | 32 Watts |
Peak Current Draw (@10V) | 9.5 Amps | N/A |
Current Draw (@14.4V) | 6.6 Amps | 2.3 Amps |
CERTIFICATION | ||
High Beam | N/A | ECE R112 |
E-Mark Ref | N/A | 30 |

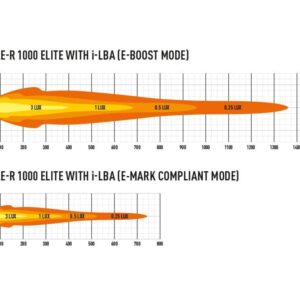

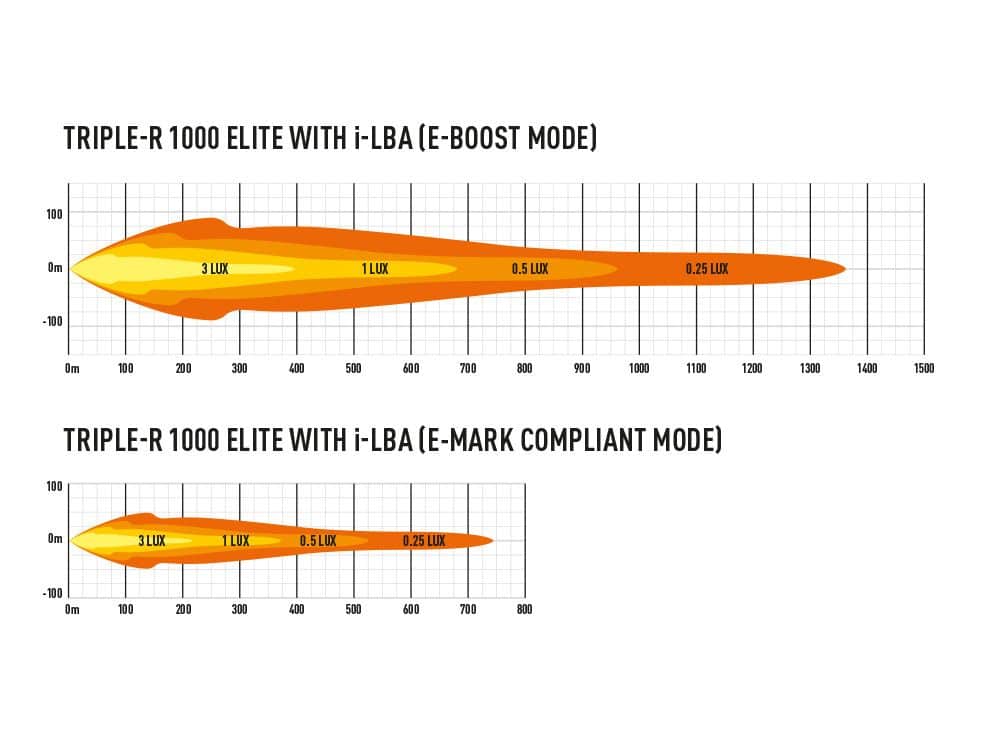

PHOTOMETRIC DATA | ||

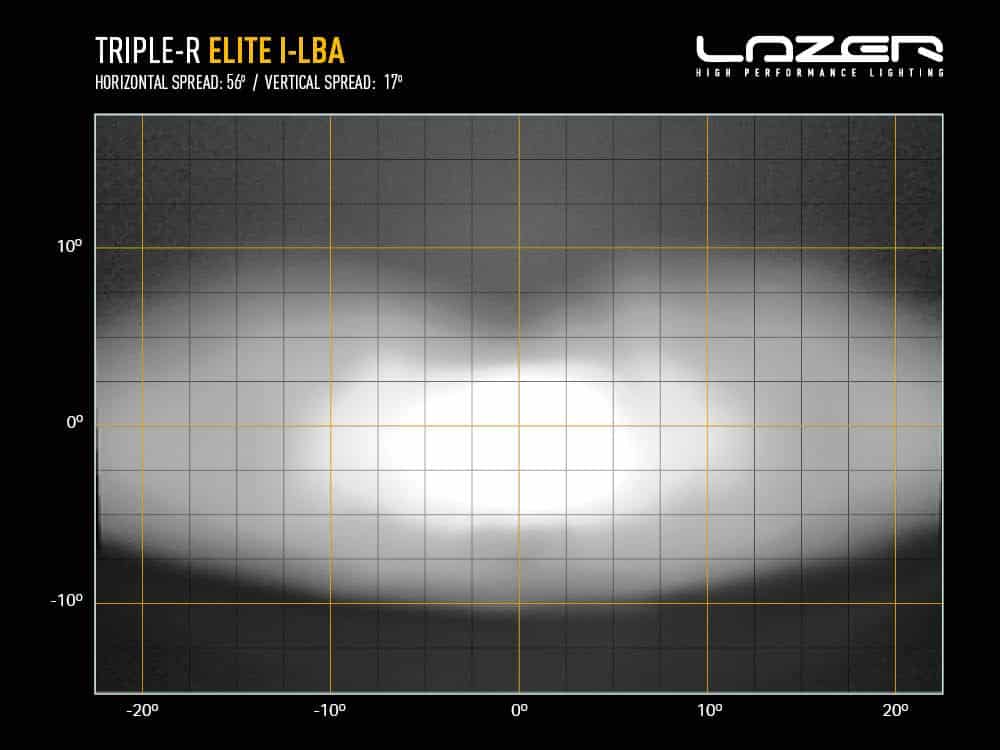

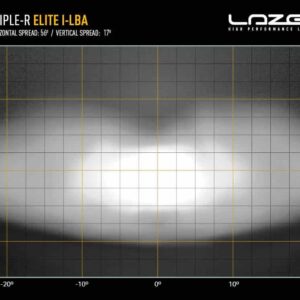

Horiz Beam Angle | 56 Deg | 56 Deg |
0.25 lx Line | 1362m | 746m |
0.5 lx Line | 963m | 527m |
1 lx Line | 681m | 373m |
3 lx Line | 393m | 215m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- x1 Triple-R 1000 with i-LBA LED Lamp
- x2 Centre Mount (1114k)

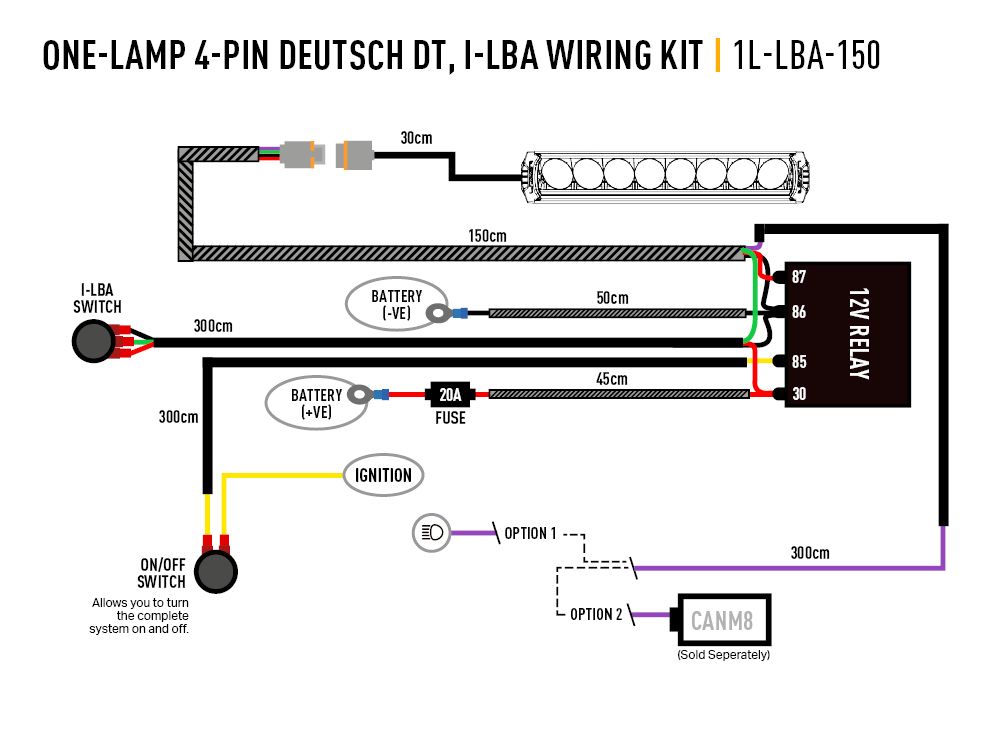

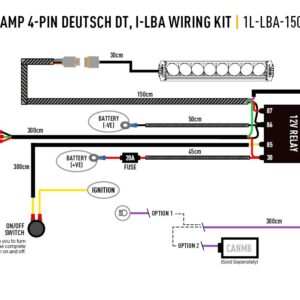

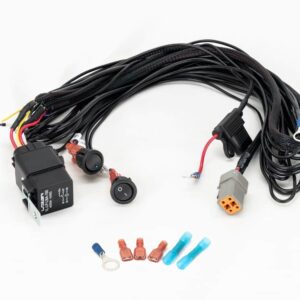

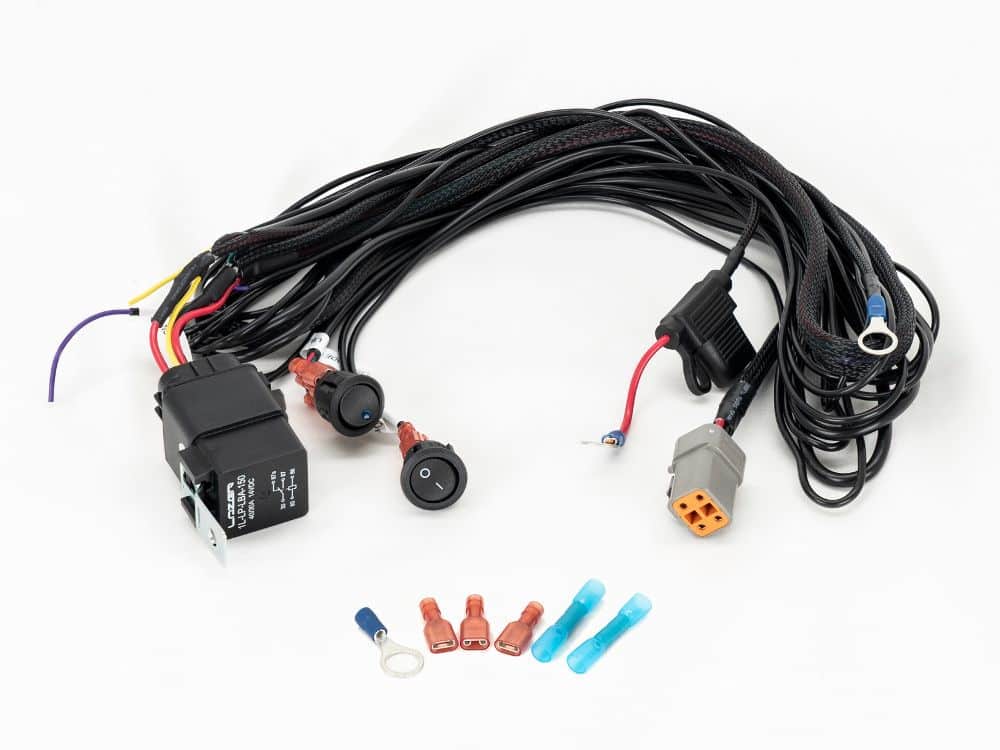

- x1 Single-Lamp ‘Low Beam Assist’ Wiring Kit (1L-LP-LBA-150)
- x1 Installation Instructions
