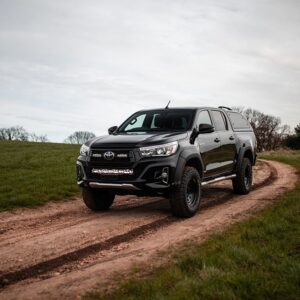

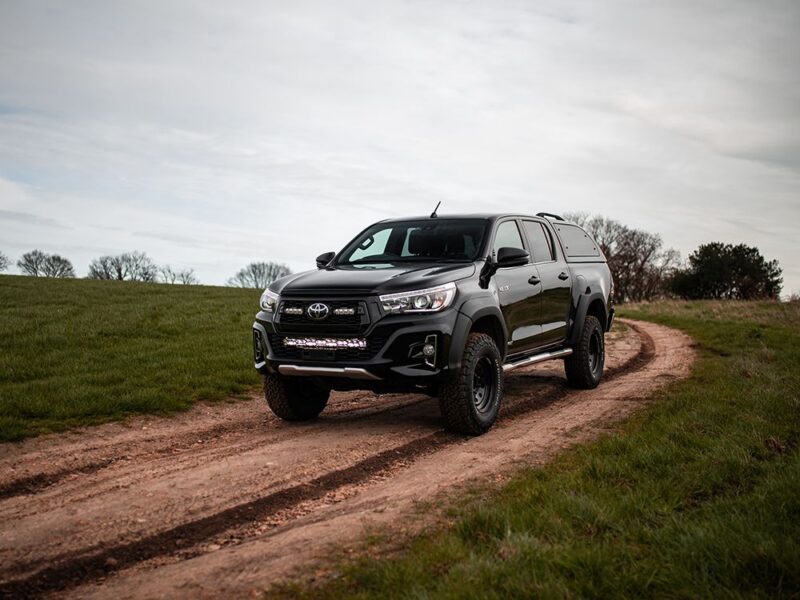

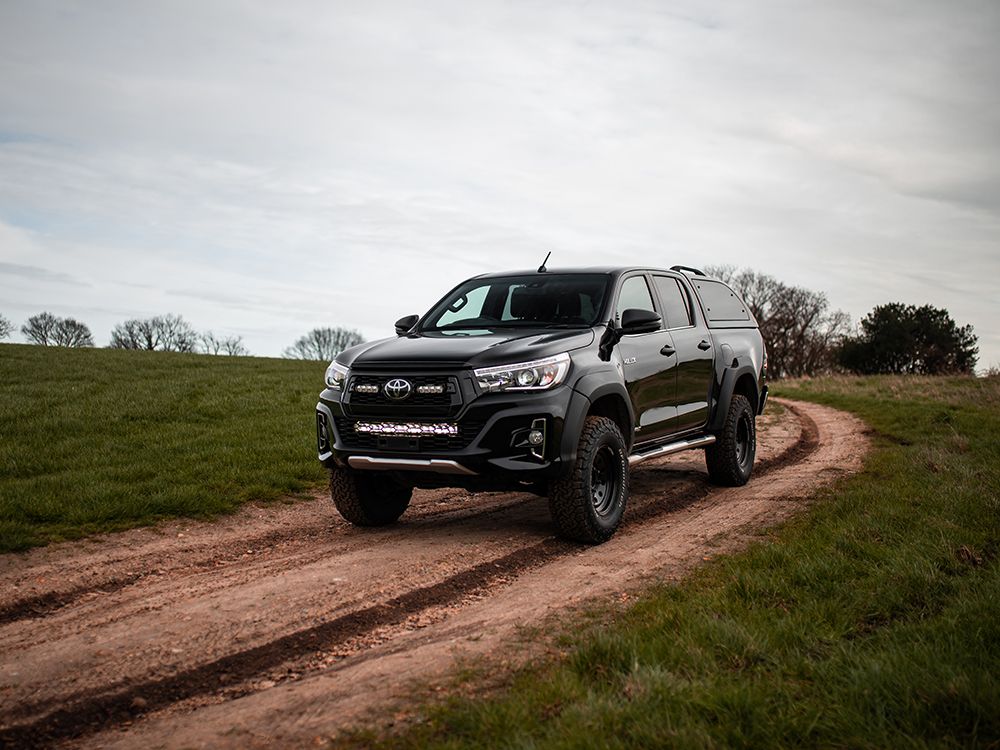

Lazer Toyota Hilux (2017-2020) – Lower Grille Mounting Kit ( For Triple-R 16) VIFK-HILUX-01K
PRODUCT FEATURES

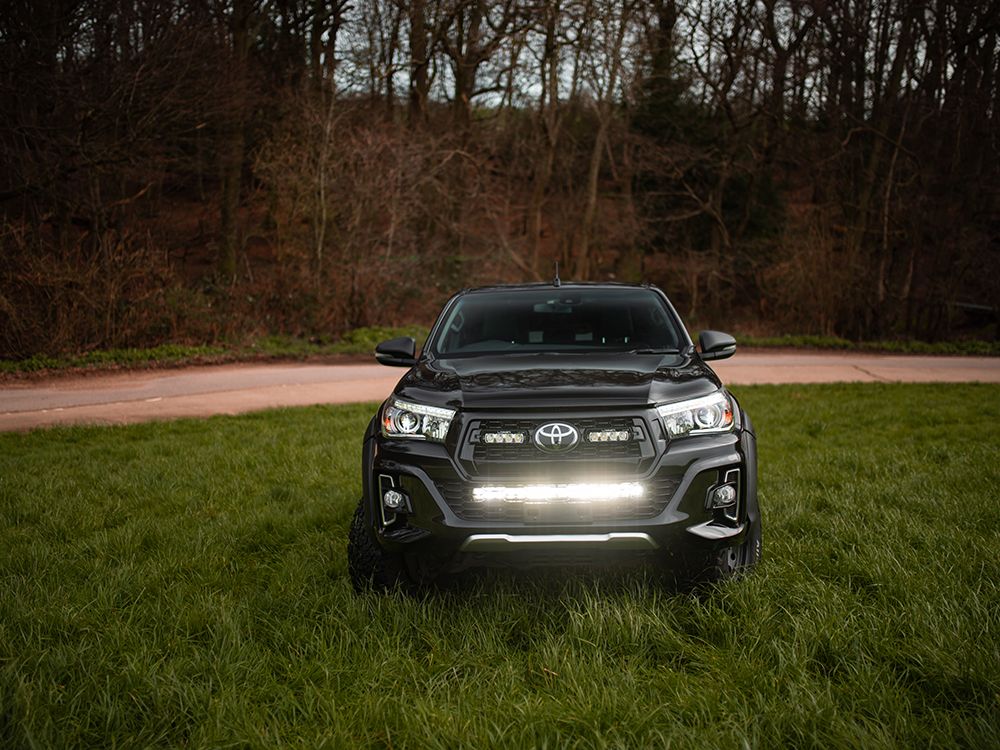

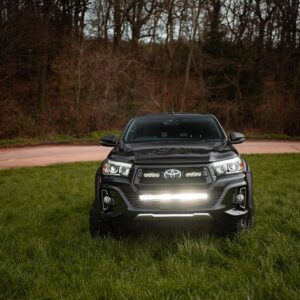

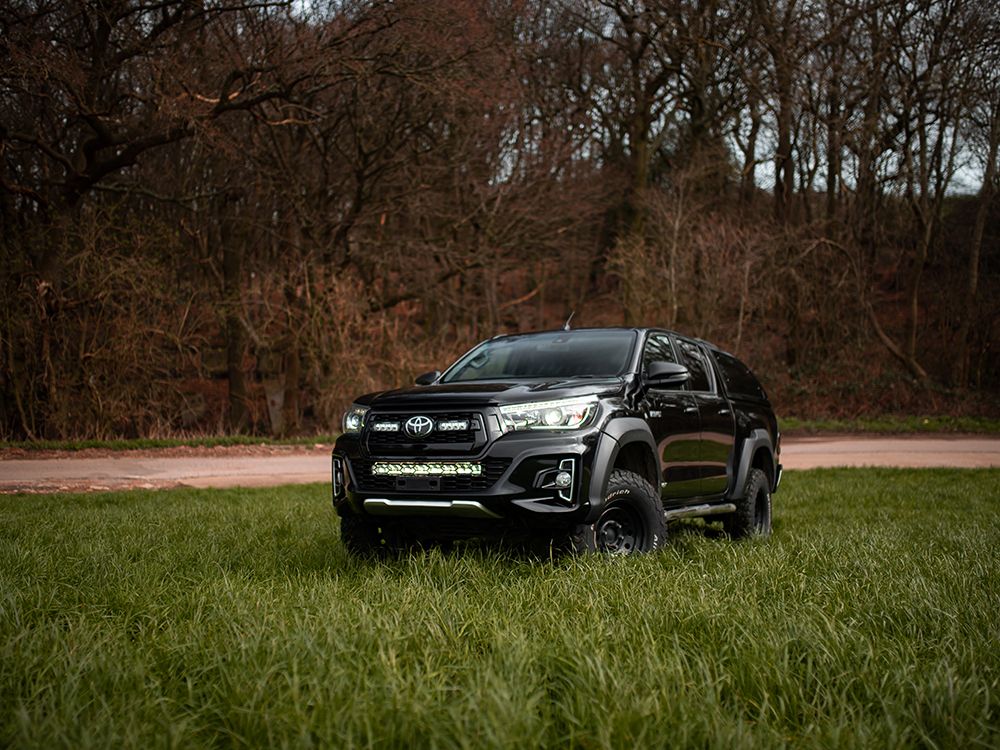

Auxiliary lightbar installation for Toyota Hilux (2017-2020)
Optimised mounting for Triple-R 16 Elite

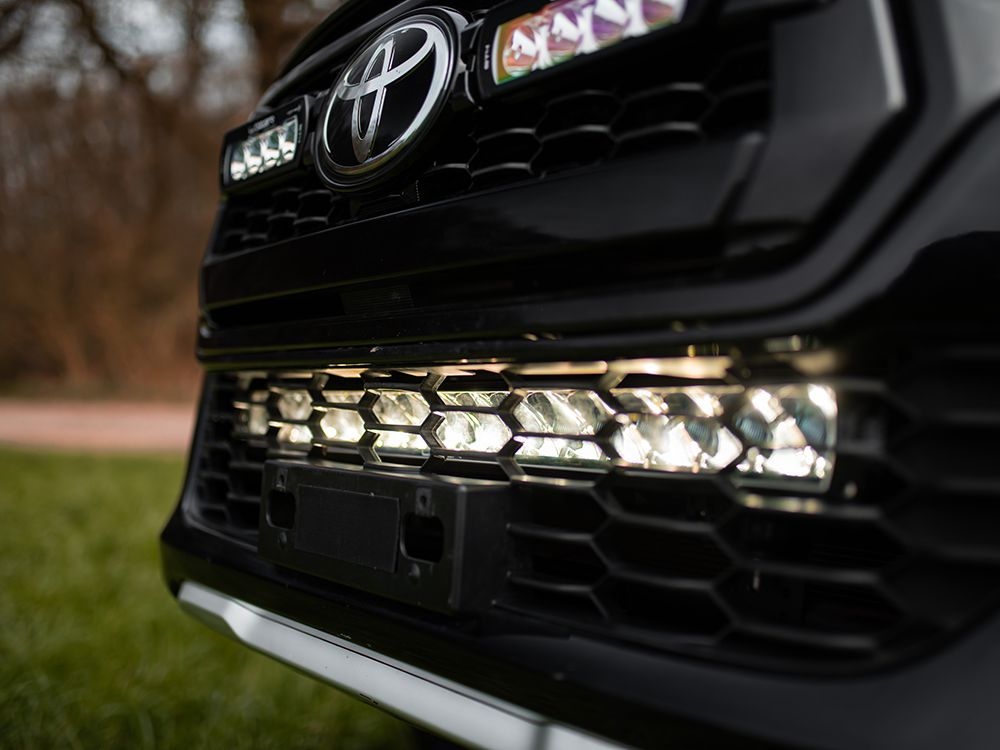

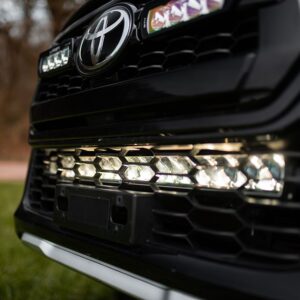

Secured to vehicle’s bumper beam bar behind lower grille
Fully robust and secure, with extra protection against theft
Vehicle wiring kit included and CANbus Interfaces available
5-year warranty
Made in Britain
TECHNICAL SPECIFICATIONS
x1 Triple-R 16 Elite | |
Voltage Range | 10-32V |
LED Life | 50,000 hrs |
Weight | 2.84 kg |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 18040 Lm |
Total Driver ‘FOV’ Flux † | 11888 Lm |
Colour Temperature | 5000k |
Number of High Output LEDs | 16 |
Power Consumption | 208 Watts |
Current Draw (at 14.4V) | 14.4 Amps |
CERTIFICATION | |
High Beam | N/A |
ECE Reference | N/A |

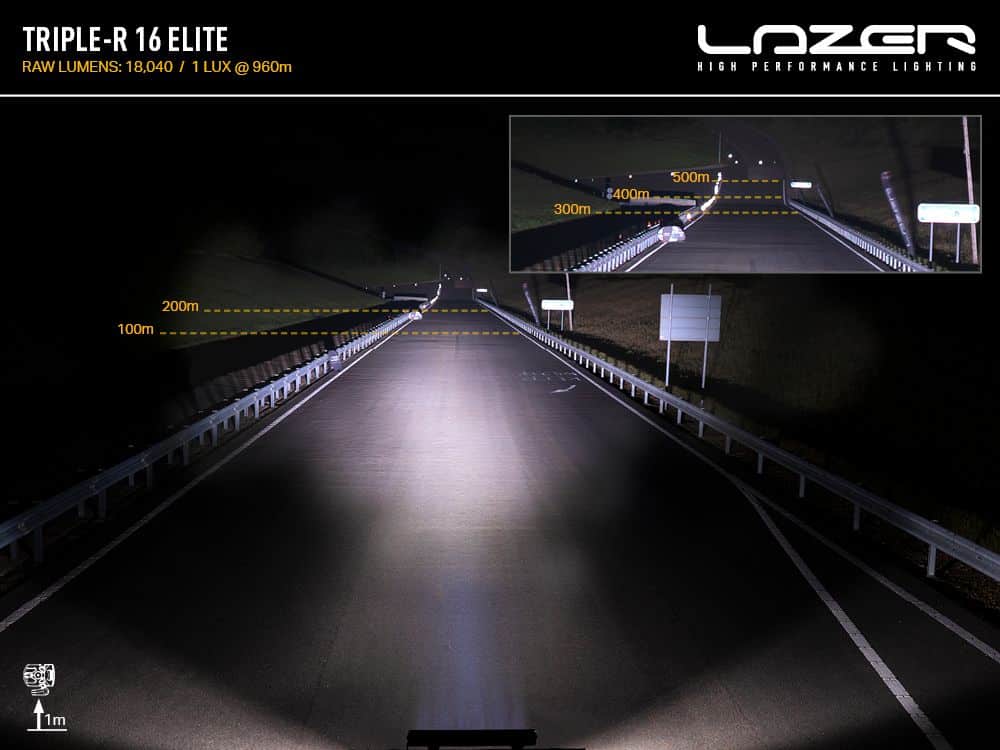

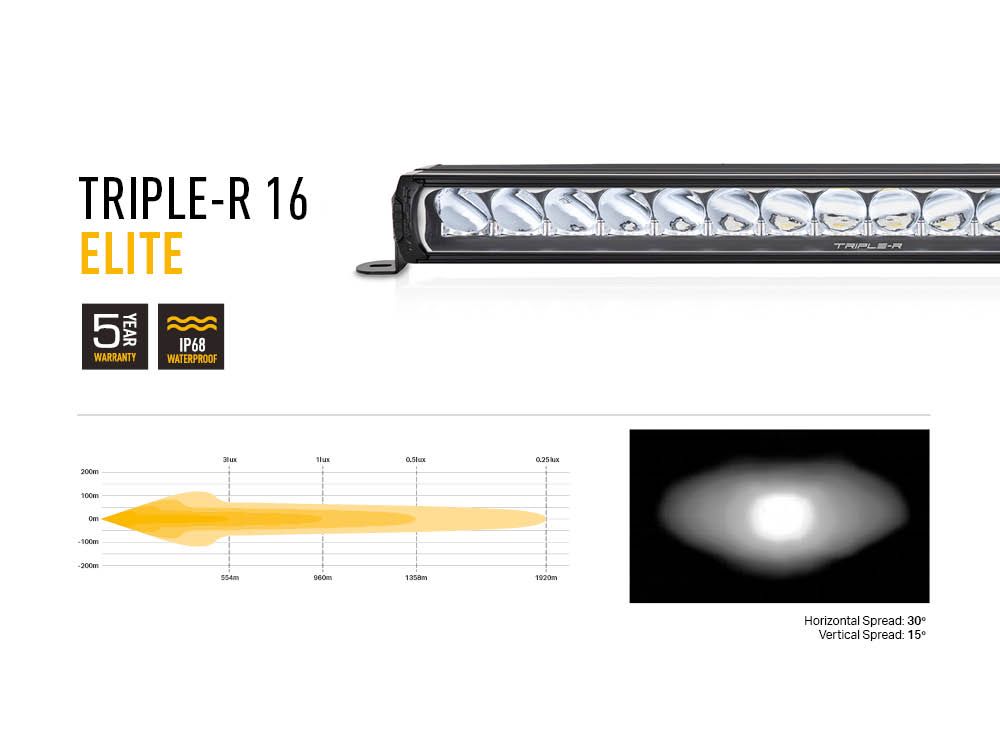

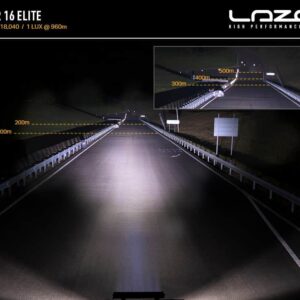

PHOTOMETRIC DATA | |
Horizontal Beam Angle | 30 Deg |
0.25 lx Line | 1920 metres |
0.5 lx Line | 1358 metres |
1 lx Line | 960 metres |
3 lx Line | 554 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

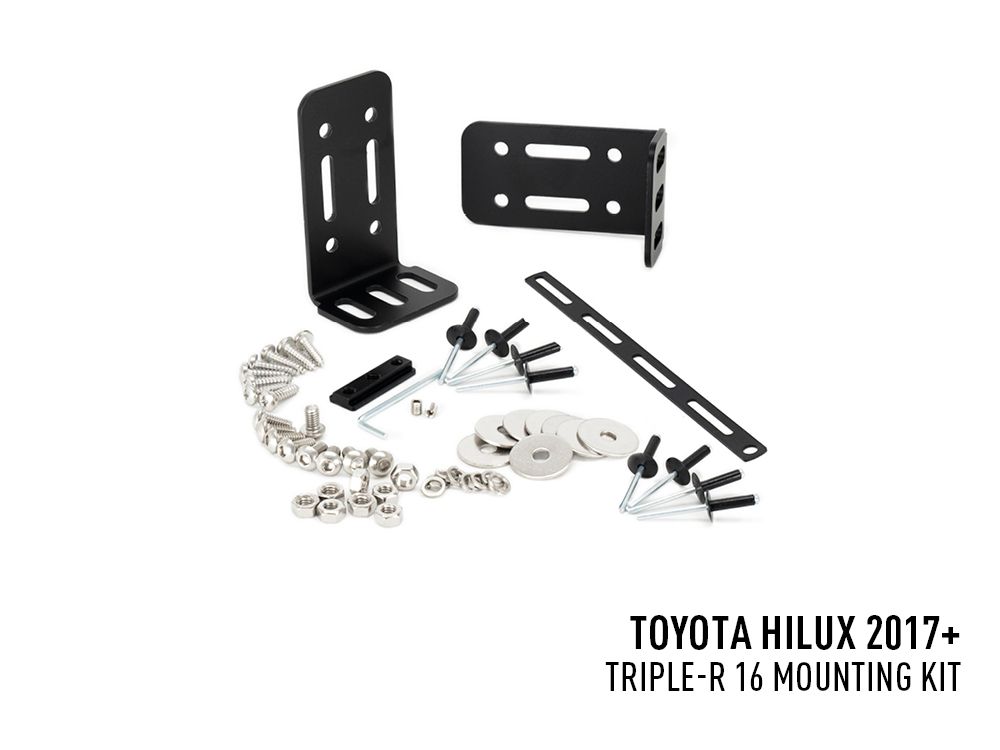

WHAT’S INCLUDED
- 2x Mounting Brackets
- Fixtures
Fitting instructions available in the downloads section below.
