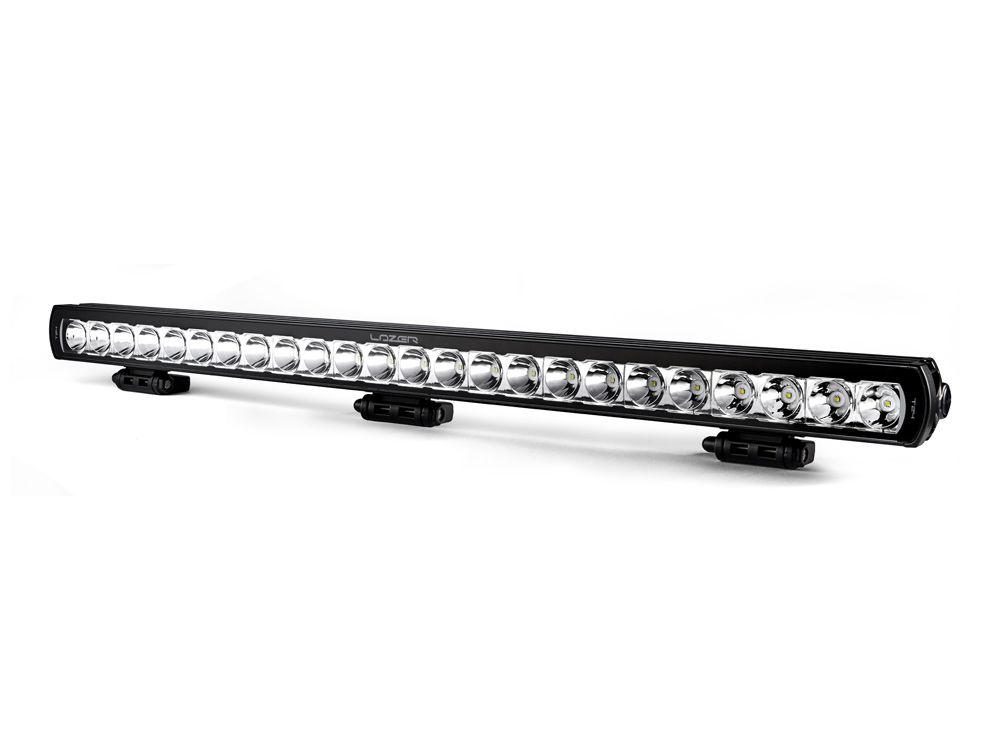

Lazer T24 Evolution (24816 Lumens)

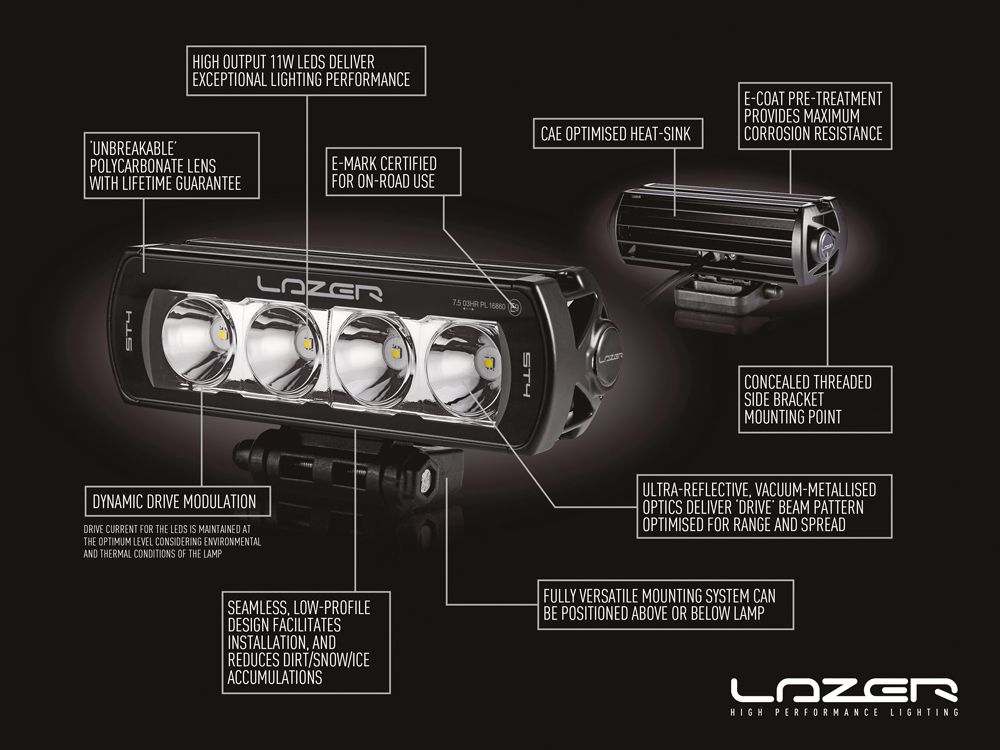

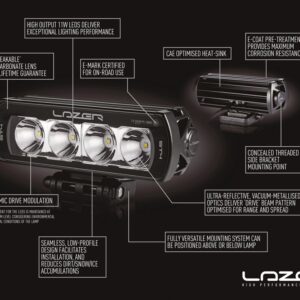

PRODUCT FEATURES
High density, premium ‘bin’ 11W LED technology
5000K LED colour temperature and 80CRI maximises sharpness and definition
Ultra-reflective, vacuum-metallised conical optics deliver excellent spread
Seamless, low profile design facilitates installation and avoids dirt/ice accumulation.
Includes versatile ‘Centre Mount’ mounting system plus side mounting brackets
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
CAE optimised heatsink offers improved thermal dynamics
Over voltage protected
Reverse polarity protected
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
IP68 watertight
5 year warranty
Supplied with pre-wired male/female 2-pin deutsch connectors
Designed and manufactured in UK
TECHNICAL SPECIFICATIONS
Based on: 1x T24 Evolution.
Voltage Range (DC) | 10-32V |
LED Life | 50,000 hours |
Weight | 3084 gr |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 24816 Lm |
Total Driver ‘FOV’ Flux † | 14939 Lm |
Colour Temperature | 5000K |
Number of High Output LEDs | 24 |
Power Consumption | 262 Watts |
Current Draw (at 14.4V) | 18.2 Amps |
CERTIFICATION | |
High Beam | Not certified |

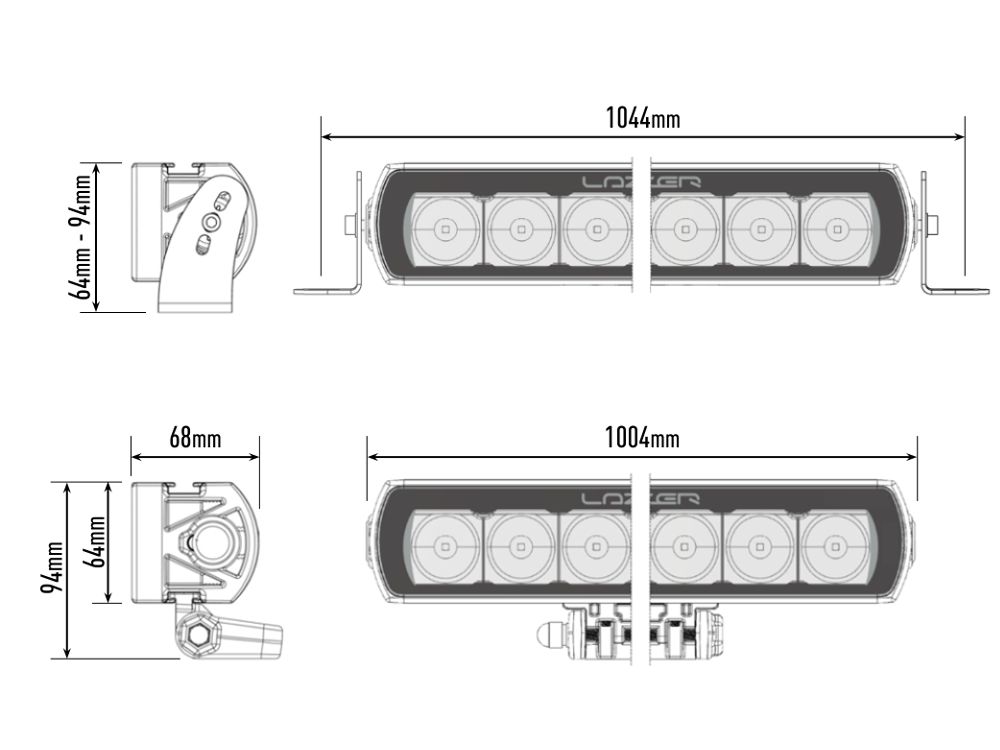

DIMENSIONS | |
Width | 1004 mm |
Depth | 68 mm |
Height | 64 mm |

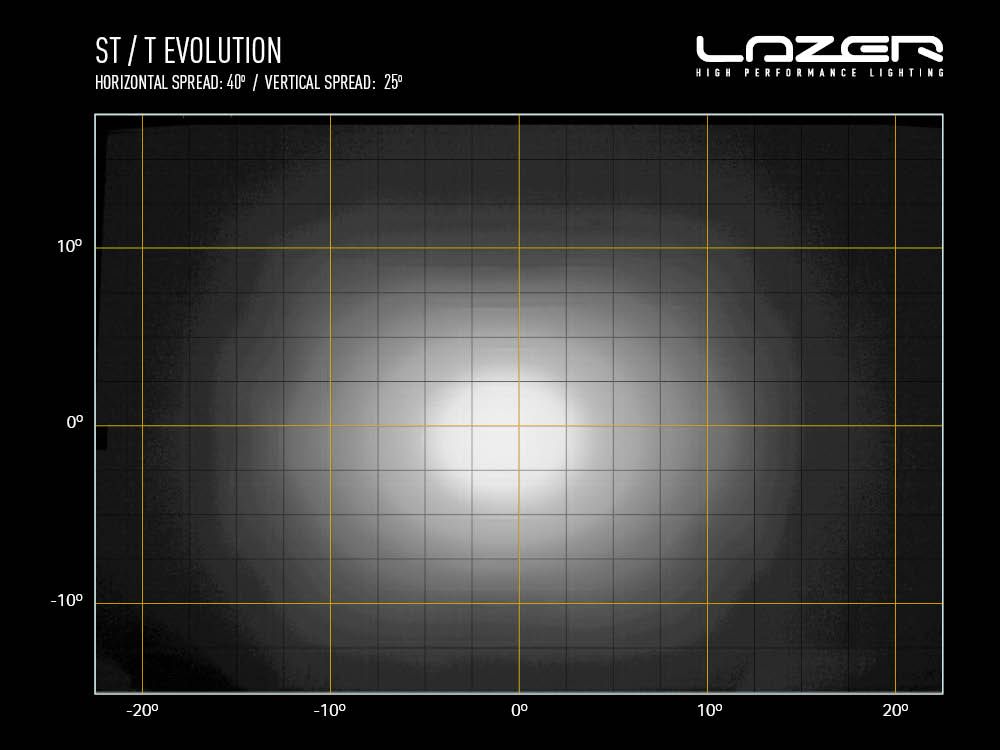

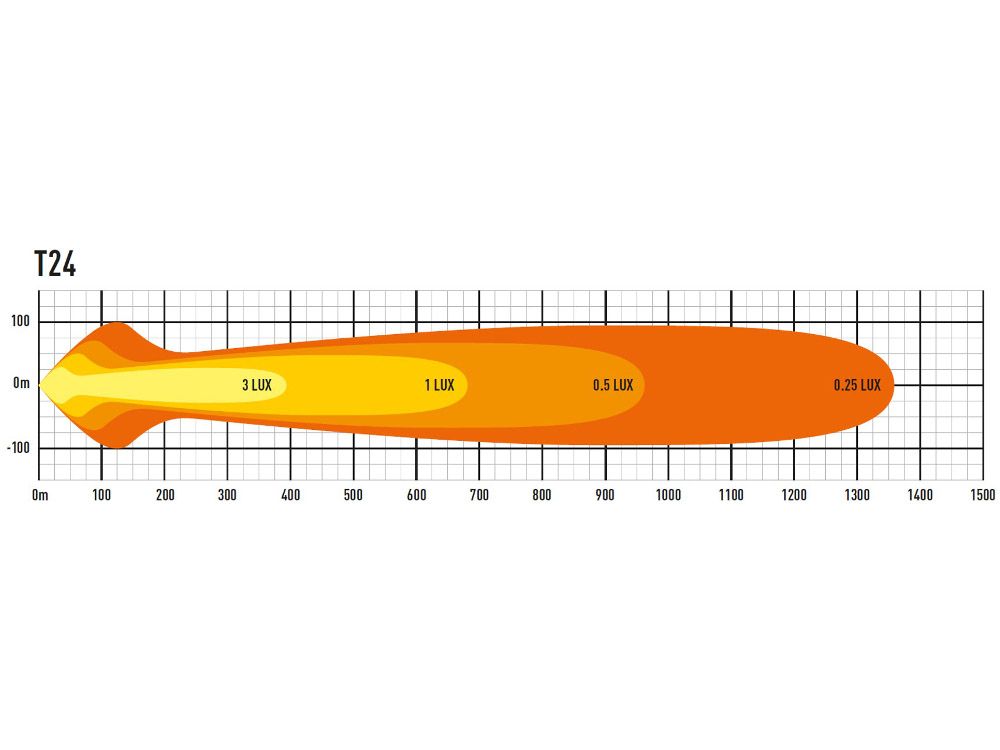

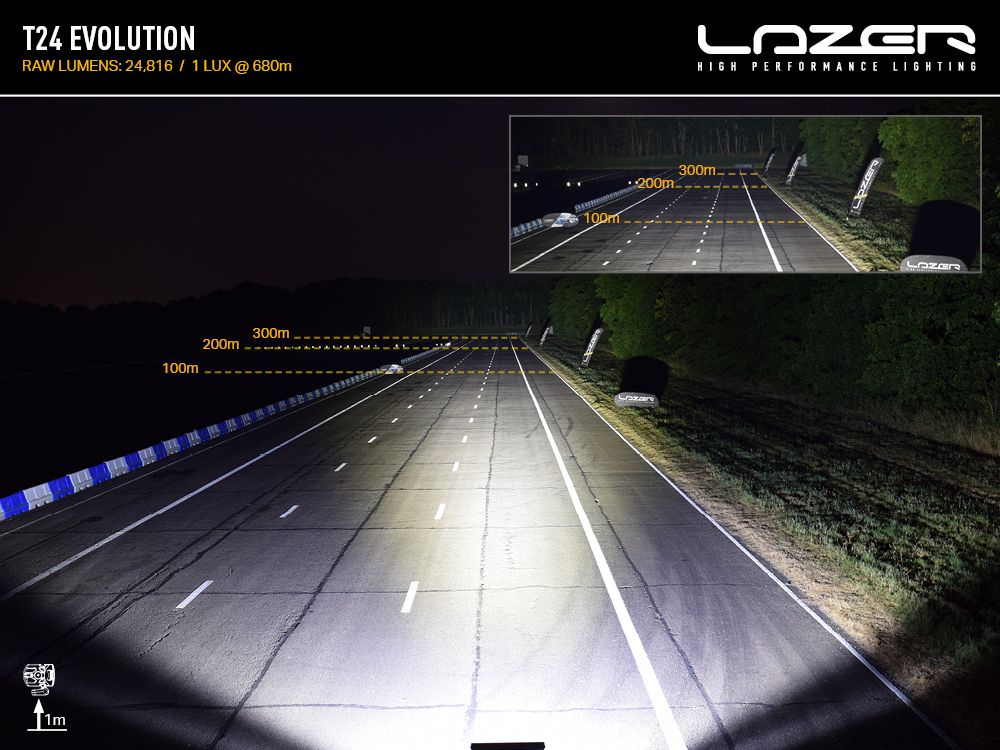

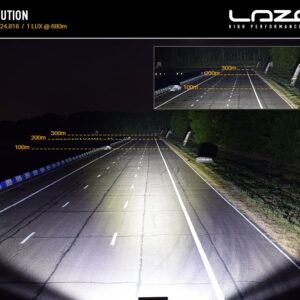

PHOTOMETRIC DATA | |
Horizontal Beam Angle | 40° |
0.25 lx Line | 1361 metres |
0.5 lx Line | 962 metres |
1 lx Line | 680 metres |
3 lx Line | 393 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- x1 T24 Evolution LED Spotlight
- x3 Centre Mount (1114K)
- x1 Side Mount Kit (1118K-B)
- x1 One-Lamp Wiring Harness (1L-HP-300)
- x1 Installation Instructions
