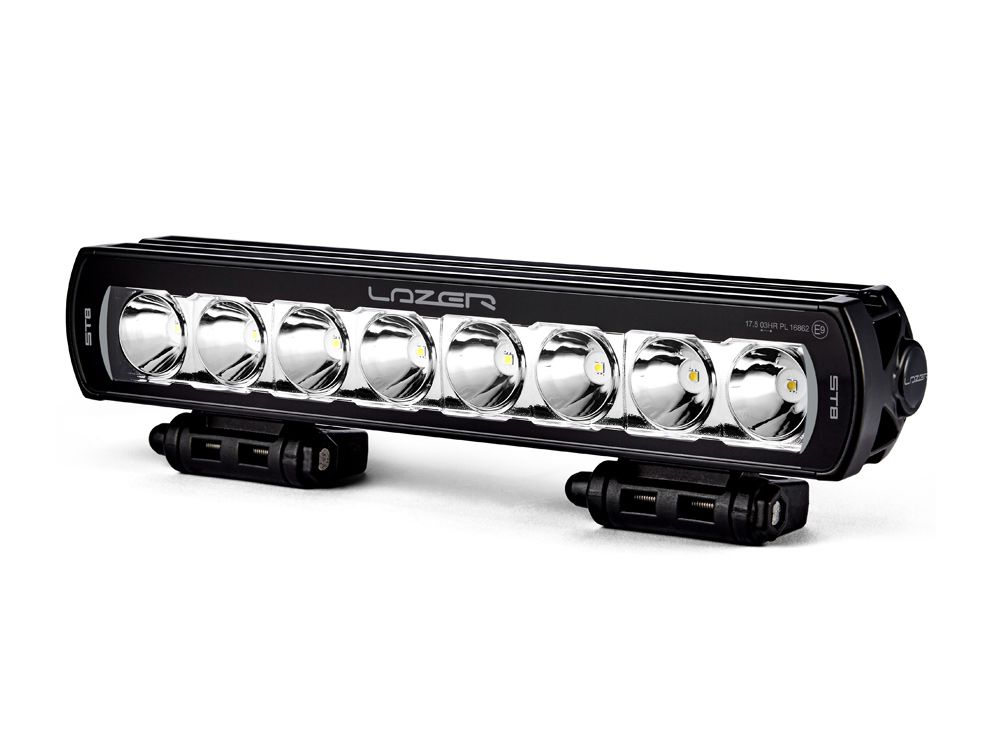

Lazer ST8 Evolution (8272 Lumens)

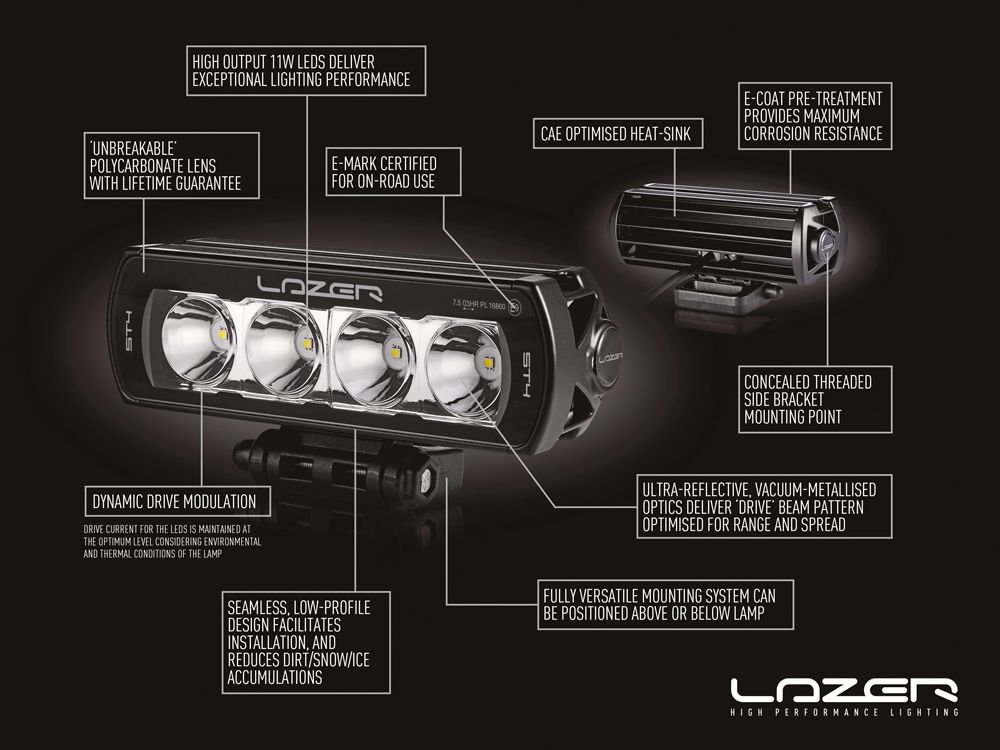

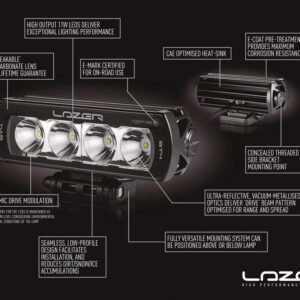

PRODUCT FEATURES
High density, premium ‘bin’ 11W LED technology
5000K LED colour temperature and 80CRI maximises sharpness and definition
Ultra-reflective, vacuum-metallised conical optics deliver excellent spread
Seamless, low profile design facilitates installation and avoids dirt/ice accumulation.
Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
CAE optimised heatsink offers improved thermal dynamics
Over voltage protected
Reverse polarity protected
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
UNECE approved Reg 112 Class B Driving Lights for on-road high beam function
UNECE approved Reg 10
IP68 watertight
5 year warranty
Supplied with pre-wired male/female 2-pin superseal connectors
Designed and manufactured in UK
TECHNICAL SPECIFICATIONS
Based on: 1x ST8 Evolution.
Voltage Range (DC) | 10-32V |
LED Life | 50,000 hours |
Weight | 1150 gr |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 8272 Lm |
Total Driver ‘FOV’ Flux † | 4980 Lm |
Colour Temperature | 5000K |
Number of High Output LEDs | 8 |
Power Consumption | 95 Watts |
Current Draw (at 14.4V) | 6.6 Amps |
CERTIFICATION | |
High Beam | ECE R112 |
ECE Reference | 17.5 |

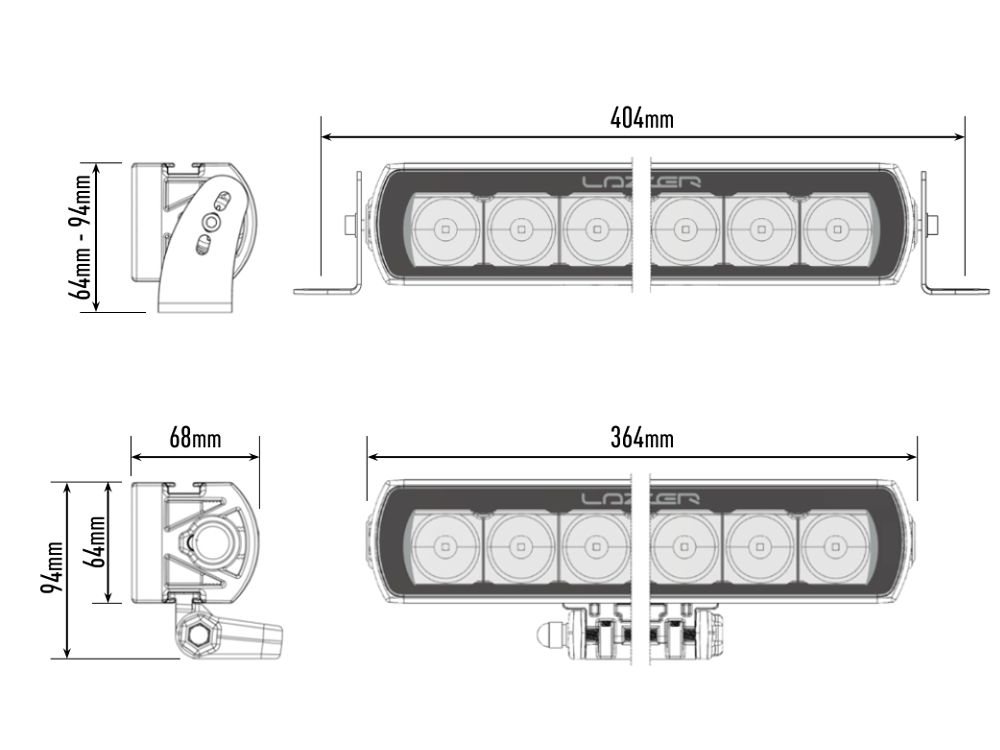

DIMENSIONS | |
Width | 364 mm |
Depth | 68 mm |
Height | 64 mm |

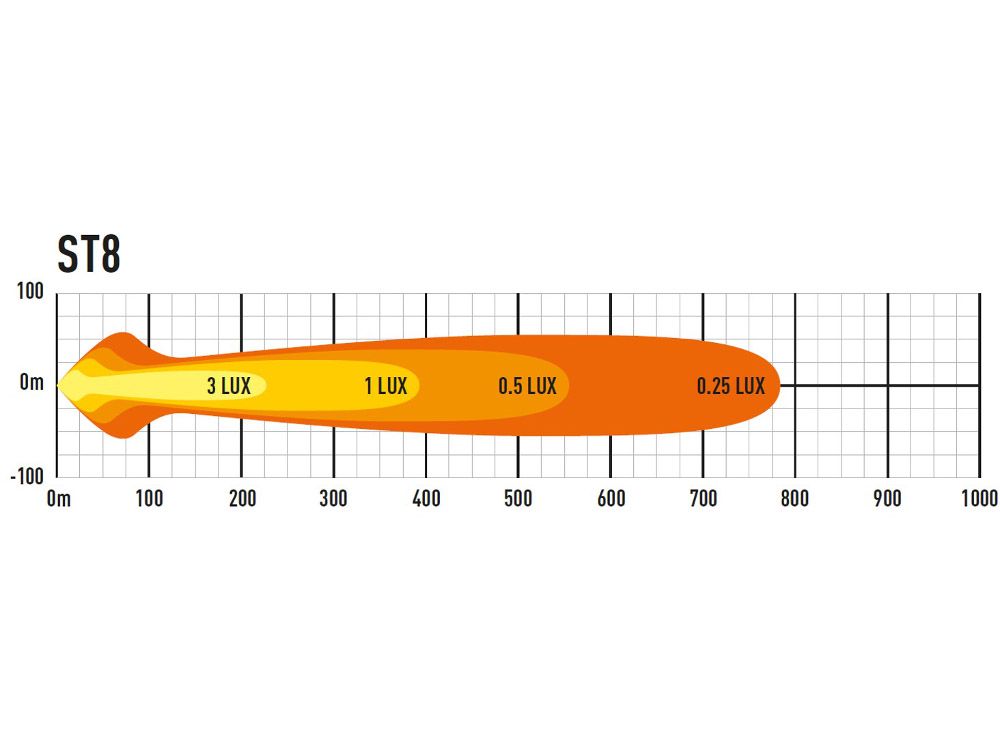

PHOTOMETRIC DATA | |

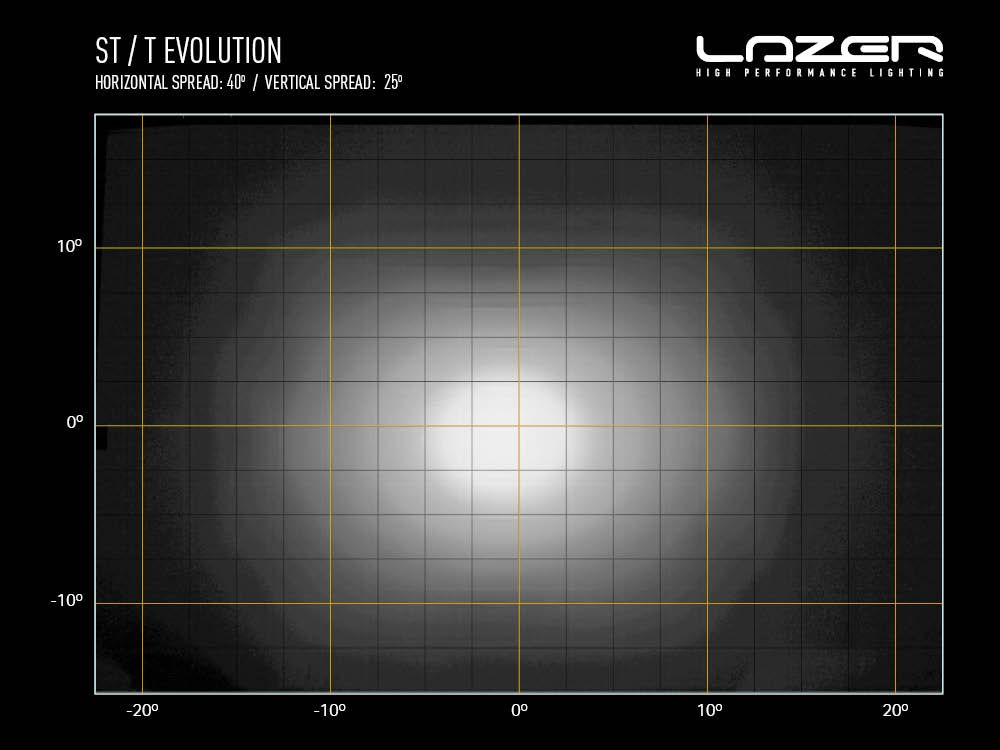

Horizontal Beam Angle | 40° |
0.25 lx Line | 786 metres |
0.5 lx Line | 555 metres |
1 lx Line | 393 metres |
3 lx Line | 227 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
WHAT’S INCLUDED
- x1 ST8 Evolution LED Spotlight
- x2 Centre Mount (1114K)
- x1 Installation Instructions
