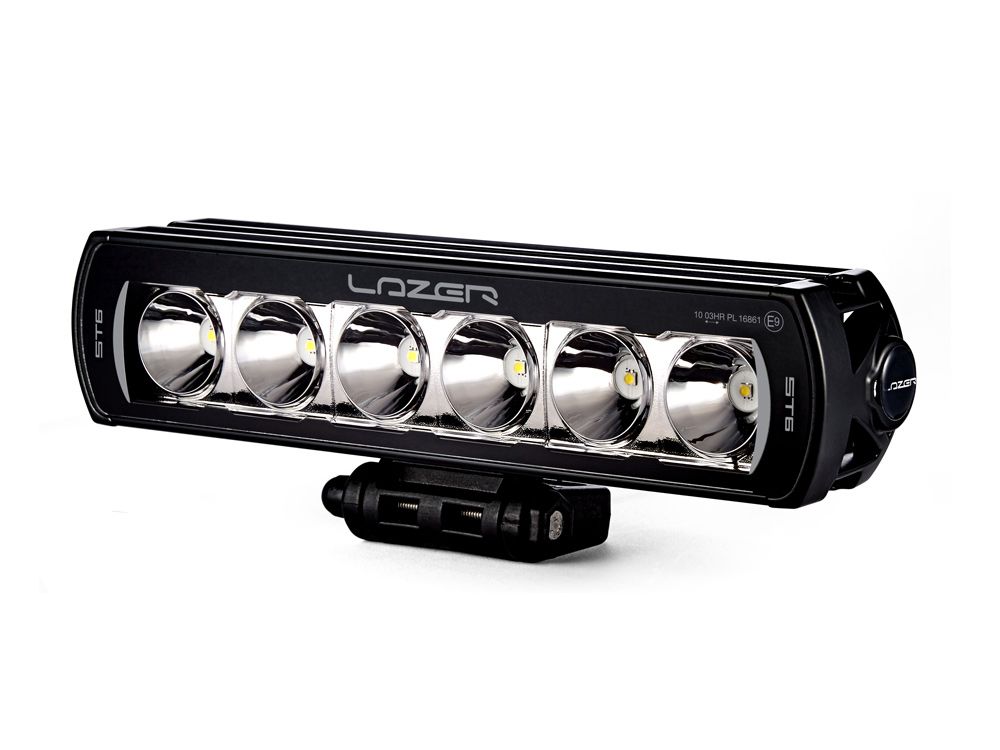

Lazer ST6 Evolution (6204 Lumens)

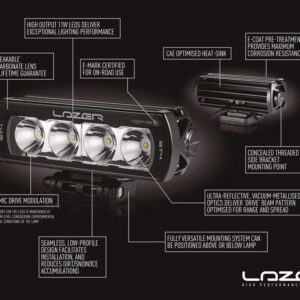

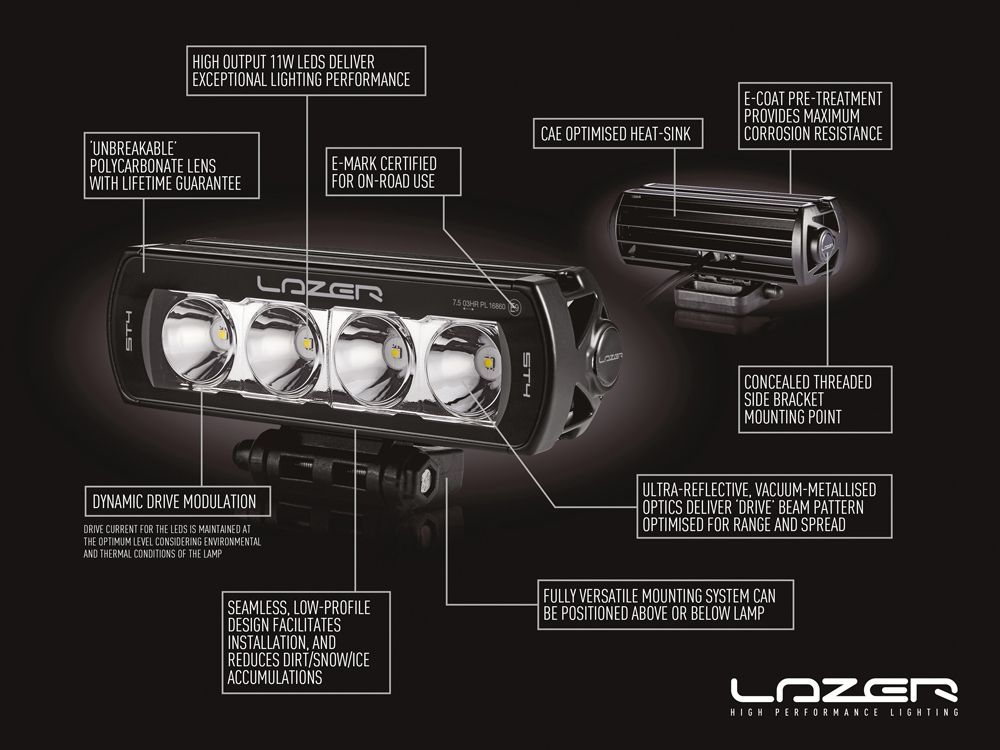

PRODUCT FEATURES
High density, premium ‘bin’ 11W LED technology
5000K LED colour temperature and 80CRI maximises sharpness and definition
Ultra-reflective, vacuum-metallised conical optics deliver excellent spread
Seamless, low profile design facilitates installation and avoids dirt/ice accumulation.
Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

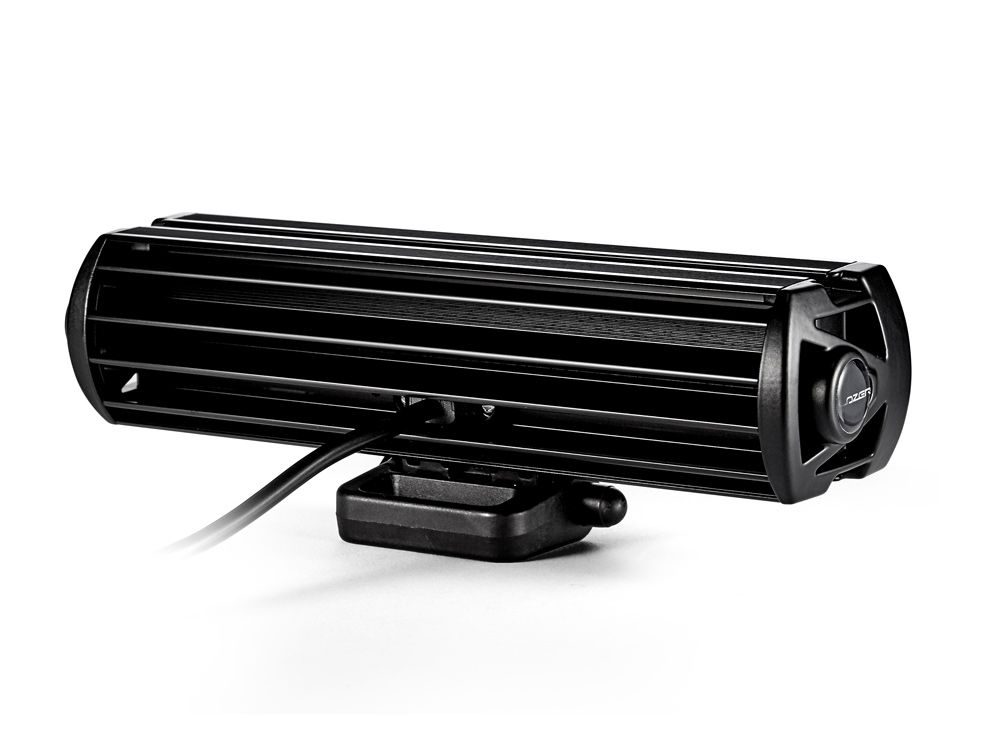

CAE optimised heatsink offers improved thermal dynamics
Over voltage protected
Reverse polarity protected
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
UNECE approved Reg 112 Class B Driving Lights for on-road high beam function
UNECE approved Reg 10
IP68 watertight
5 year warranty
Supplied with pre-wired male/female 2-pin superseal connectors
Designed and manufactured in UK
TECHNICAL SPECIFICATIONS
Based on: 1x ST6 Evolution.
Voltage Range (DC) | 10-32V |
LED Life | 50,000 hours |
Weight | 912 gr |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 6204 Lm |
Total Driver ‘FOV’ Flux † | 3735 Lm |
Colour Temperature | 5000K |
Number of High Output LEDs | 6 |
Power Consumption | 70 Watts |
Current Draw (at 14.4V) | 4.9 Amps |
CERTIFICATION | |
High Beam | ECE R112 |
ECE Reference | 10 |

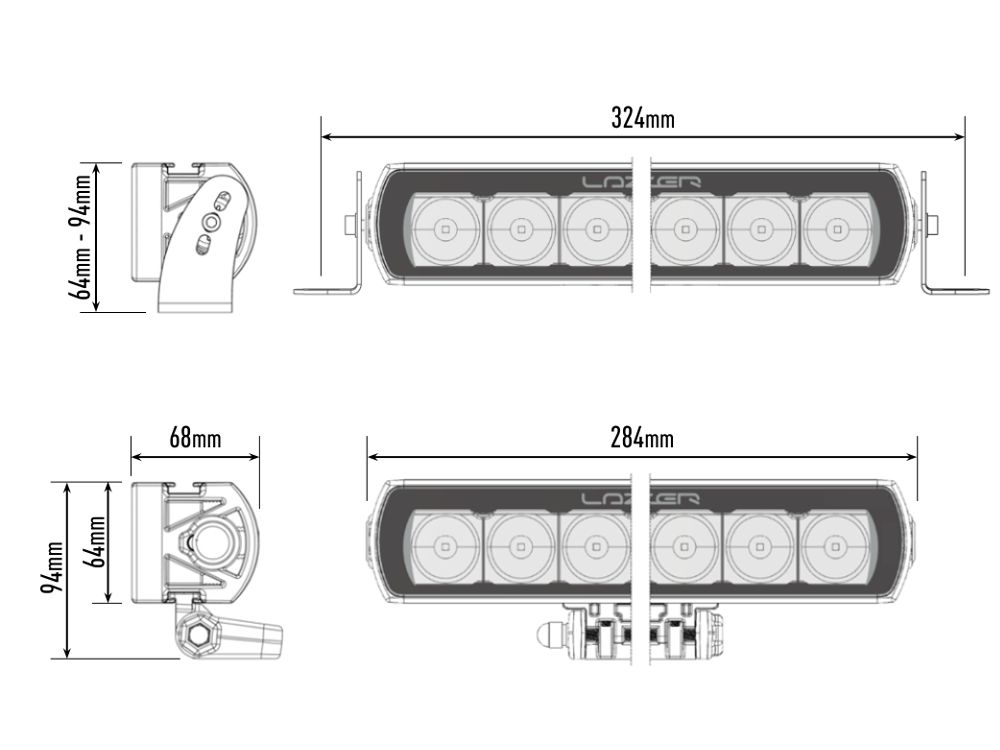

DIMENSIONS | |
Width | 284 mm |
Depth | 68 mm |
Height | 64 mm |

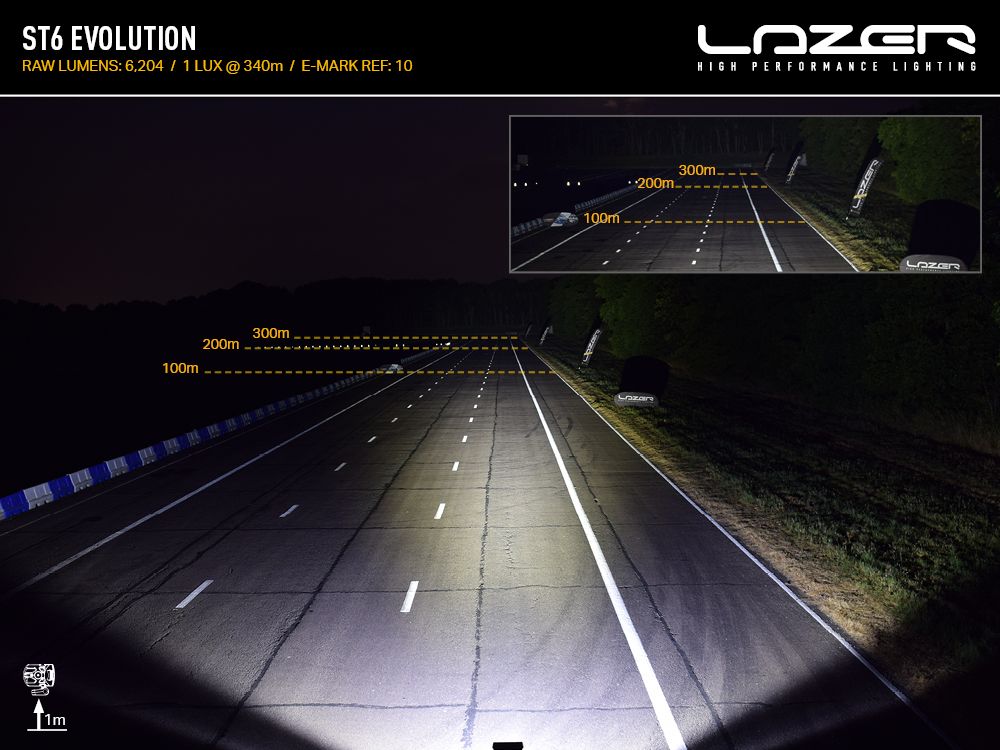

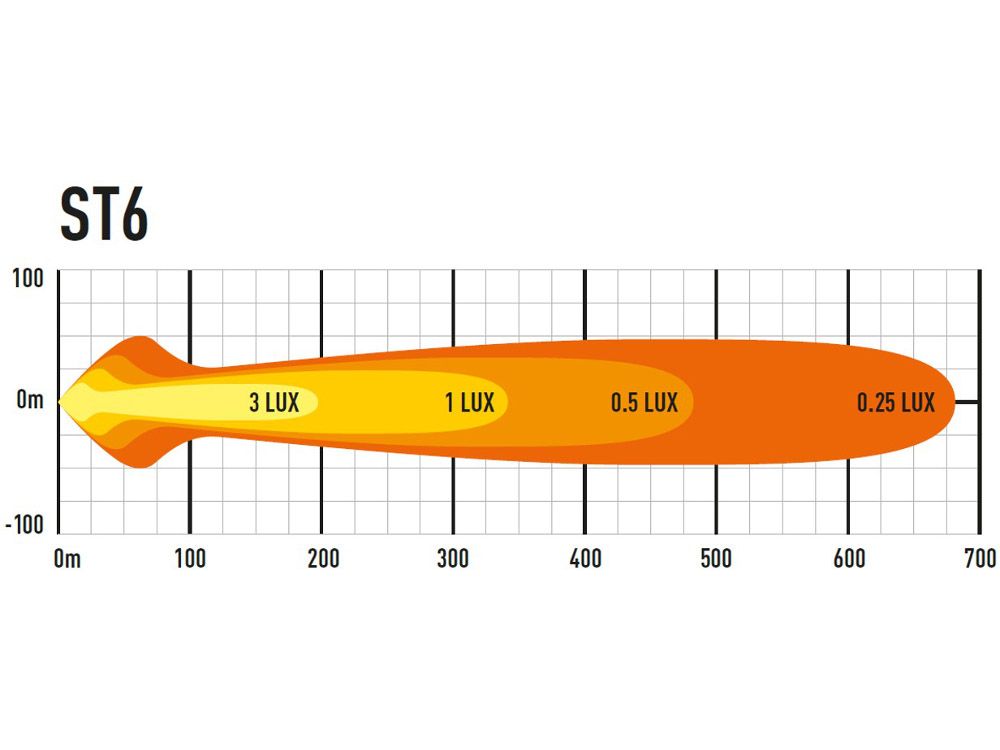

PHOTOMETRIC DATA | |

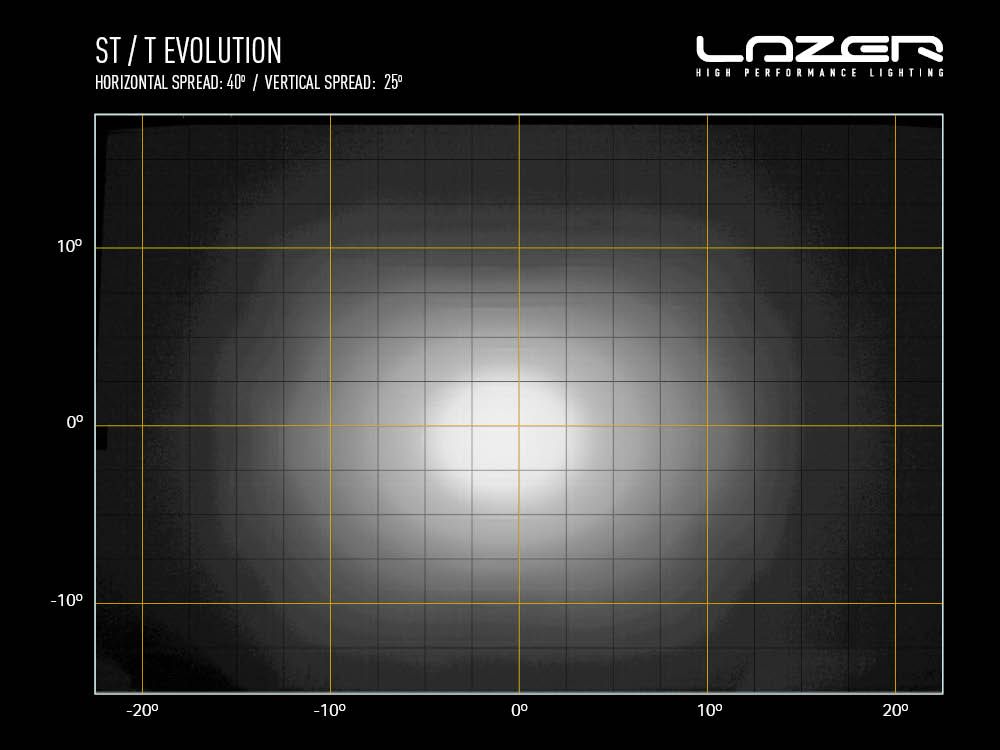

Horizontal Beam Angle | 40° |
0.25 lx Line | 680 metres |
0.5 lx Line | 481 metres |
1 lx Line | 340 metres |
3 lx Line | 196 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- x1 ST6 Evolution LED Spotlight
- x1 Centre Mount (1114K)
- x1 Installation Instructions
