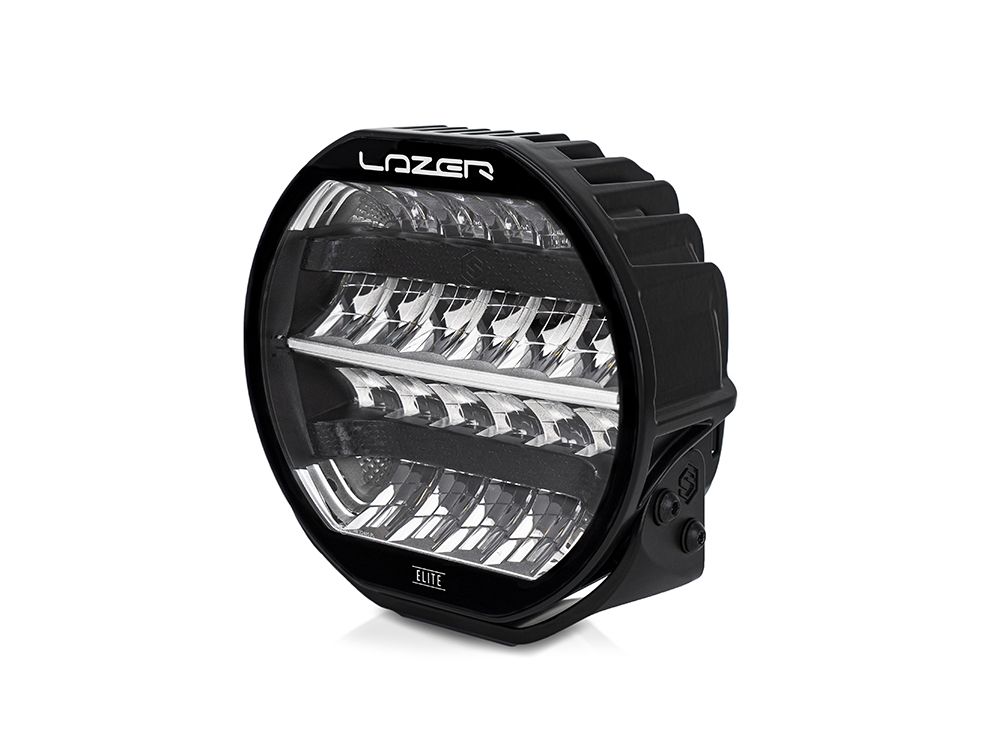

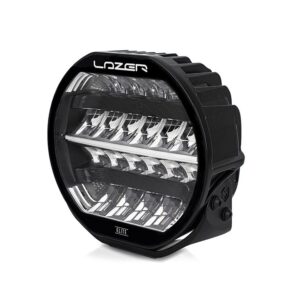

Lazer Sentinel 9” Elite ” – ‘Slim’ Mount (15232 Lumens)

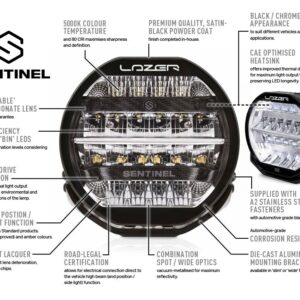

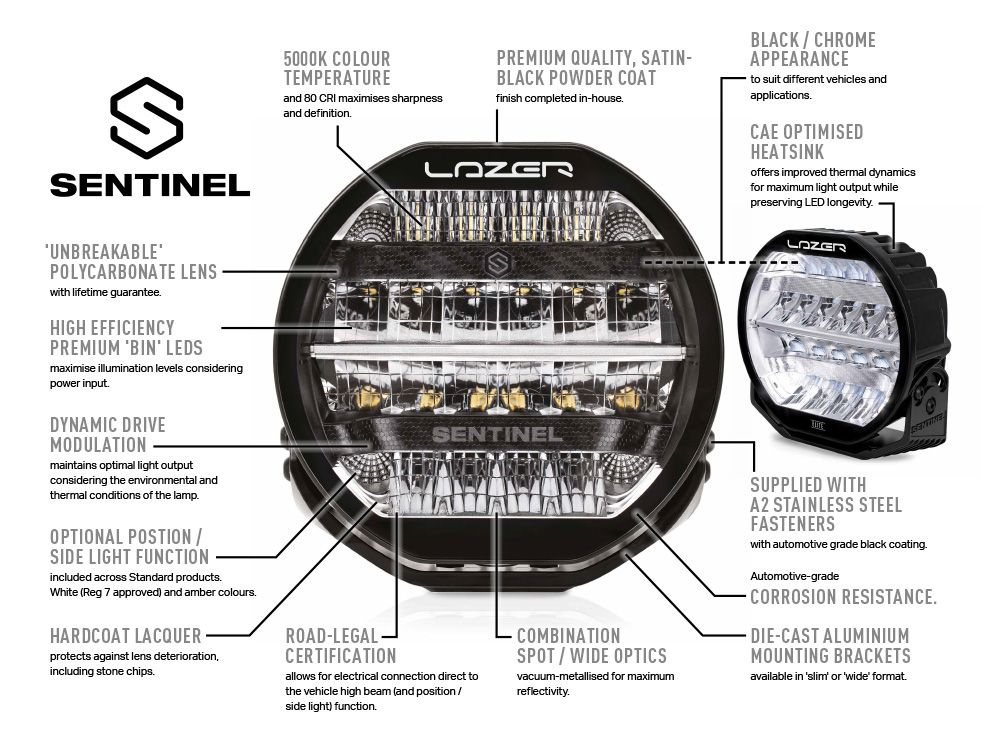

PRODUCT FEATURES
Combination of 32 premium ‘bin’ LEDs

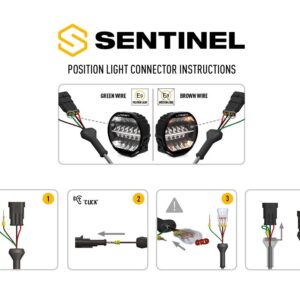

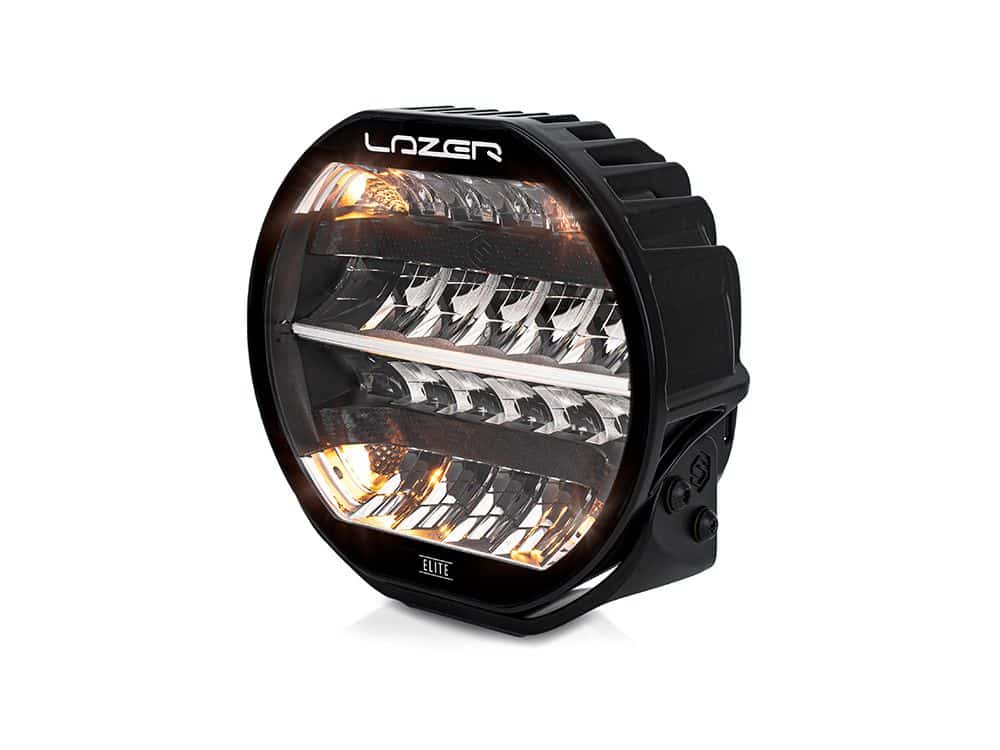

Also available with integrated white/amber Position Light function
Black PCB and bezel detail result in stealth black internal appearance
5000K LED colour temperature and 80CRI maximises sharpness and definition
Ultra-reflective vacuum-metallised spot and wide optics

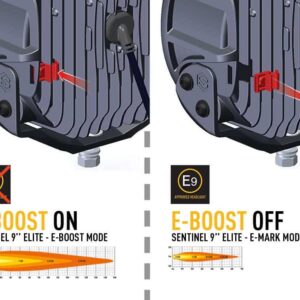

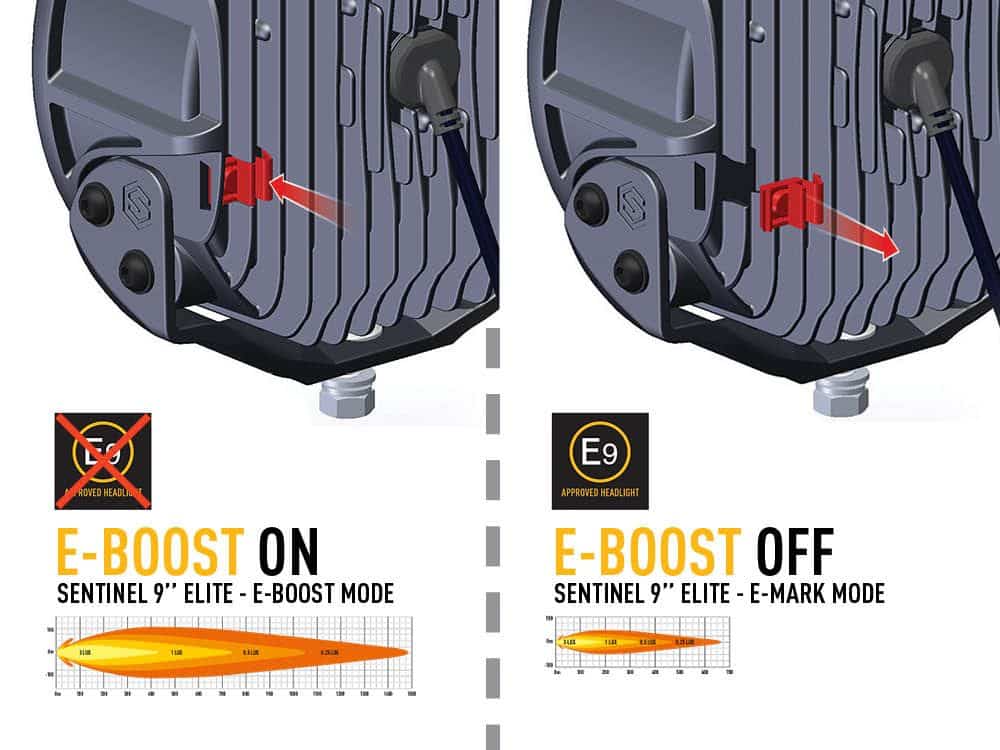

UNECE Reg 112 Class B Driving Light, approved for on-road high beam (E-Boost technology)
Contemporary lamp design

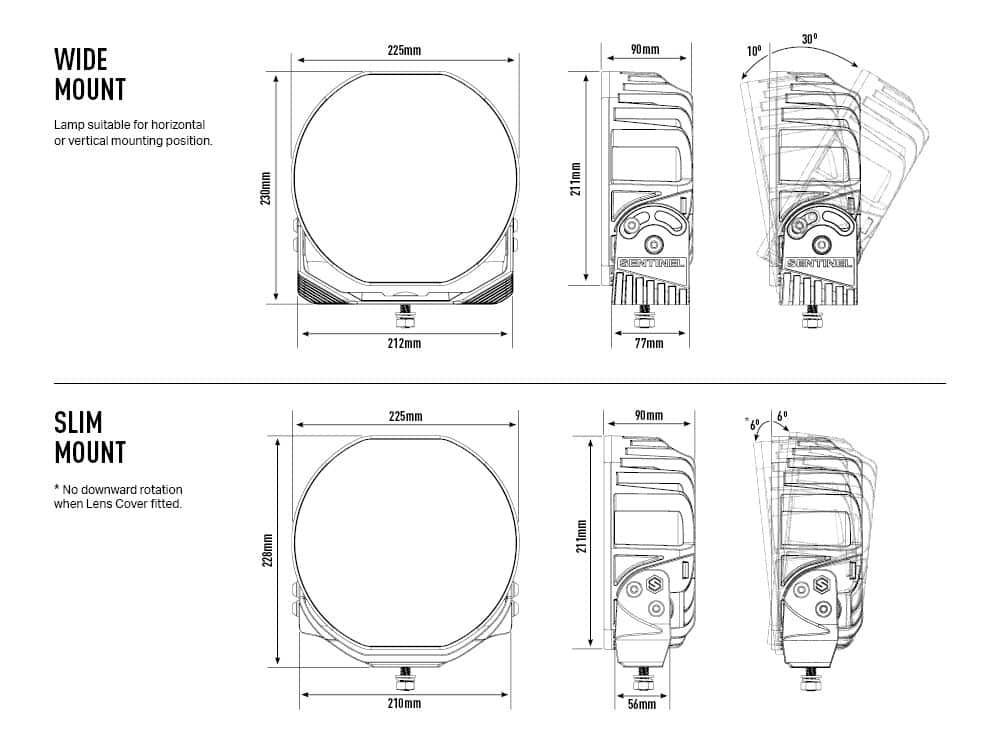

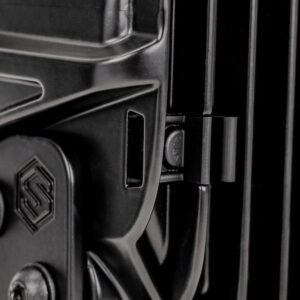

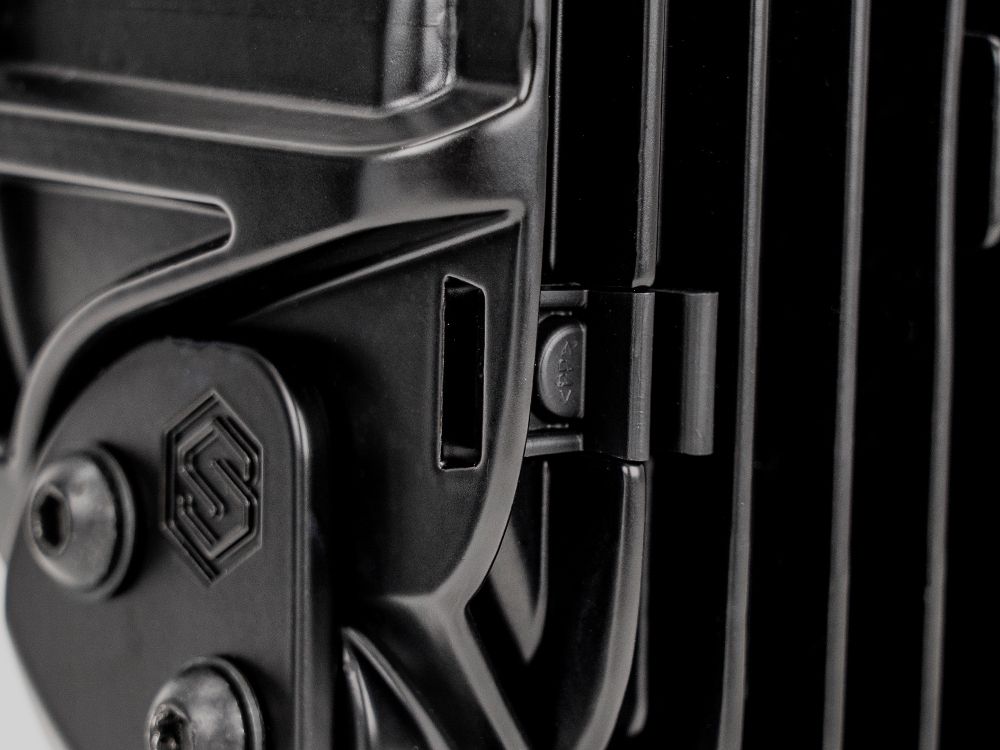

Supplied with ‘slim’ diecast aluminium mounting bracket featuring Sentinel stamp
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

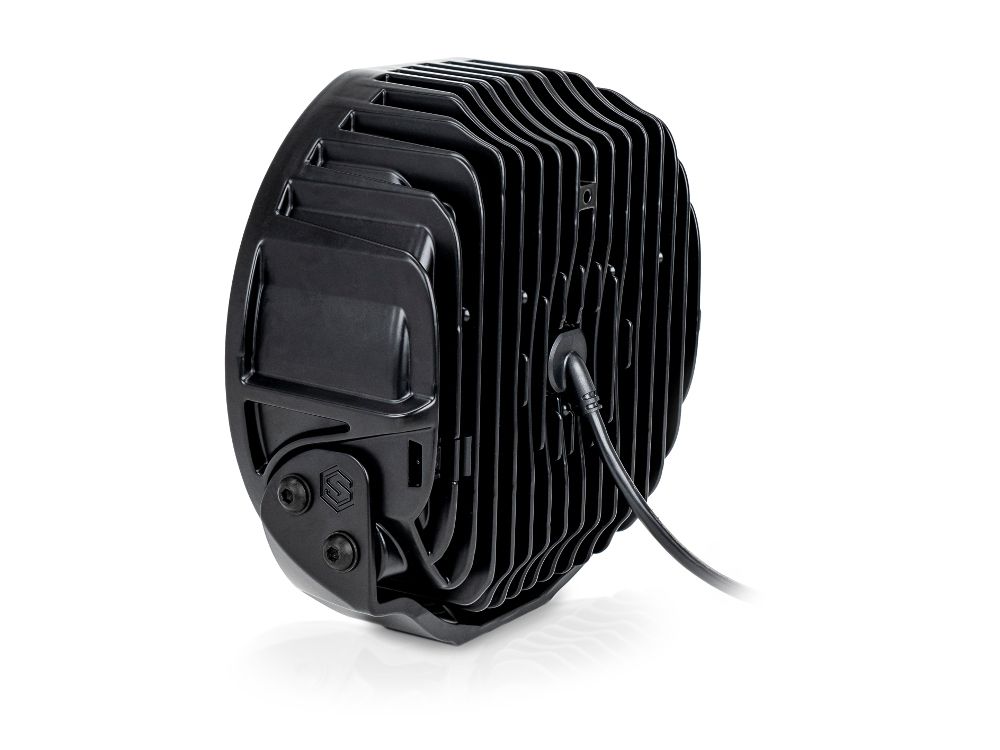

CAE optimised heatsink offers improved thermal dynamics
Over voltage protected
Reverse polarity protected
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
A2 stainless steel fasteners with automotive grade black coating
Supplied with Lazer branded black lens cover
UNECE approved Reg 10
IP68 watertight – 1.5m submersion (30mins)
5-year warranty

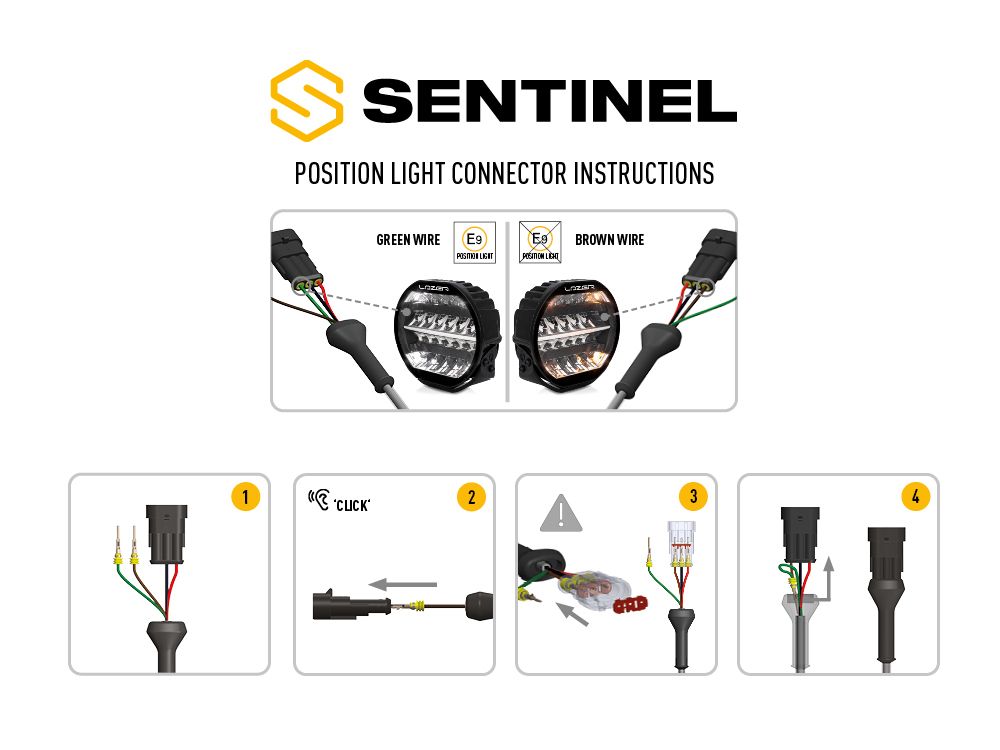

Supplied with pre-wired male/female 2-pin Superseal connectors
Designed & manufactured in UK
TECHNICAL SPECIFICATIONS
Based on: 1x Sentinel 9” Elite LED Lamp.
E-Boost | E-Mark Mode | |
Voltage Range (DC) | 10-32V | 10-32V |
LED Life | 50,000 hrs | 50,000 hrs |
Weight | 2.5 kg | 2.5 kg |
HIGH BEAM FUNCTION | ||
Total Luminous Flux | 15232 Lm | 3046 Lm |
Total Driver ‘FOV’ Flux † | 9048 Lm | 1809 Lm |
Colour Temperature | 5000k | 5000k |
Number of High Output LEDs | 32 | 32 |
Power Consumption | 145 Watts | 29 Watts |
Current Draw (at 14.4V) | 10.1 Amps | 2 Amps |
CERTIFICATION | ||
High Beam | N/A | ECE R112 |
E-Mark Ref | N/A | 20 |

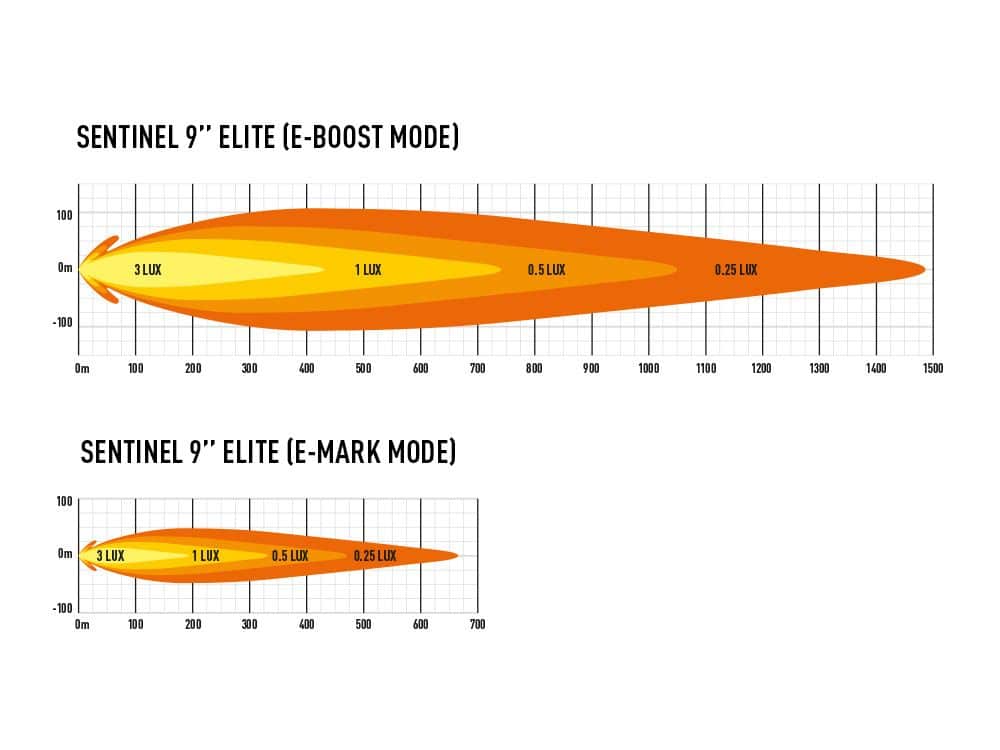

PHOTOMETRIC DATA | ||

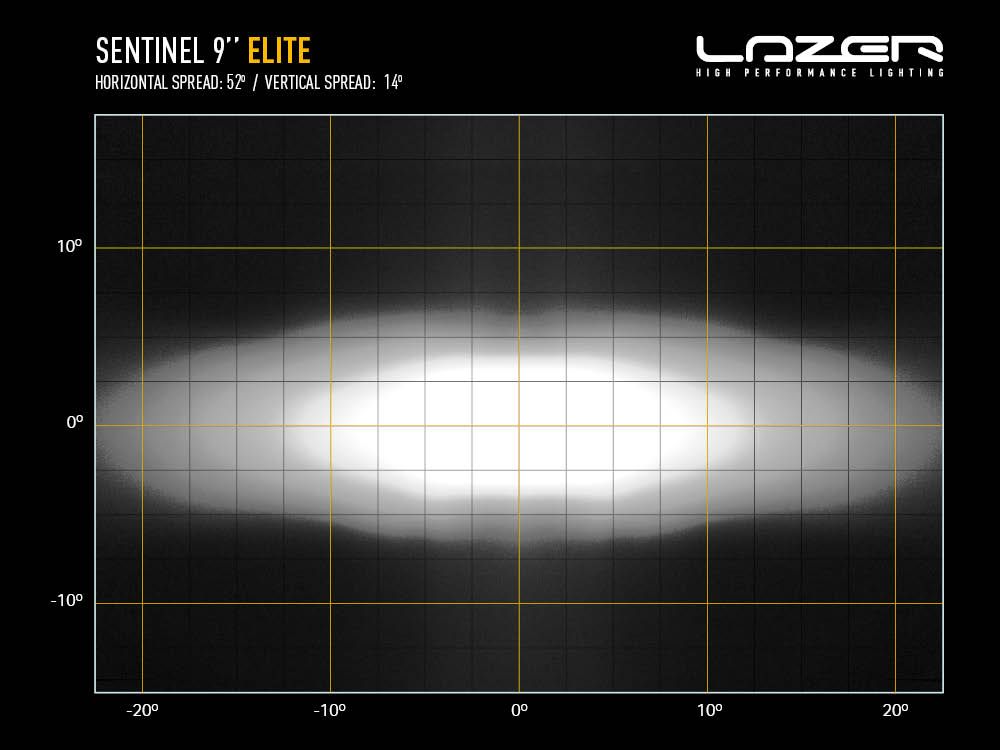

Horiz Beam Angle | 52 Deg | 52 Deg |

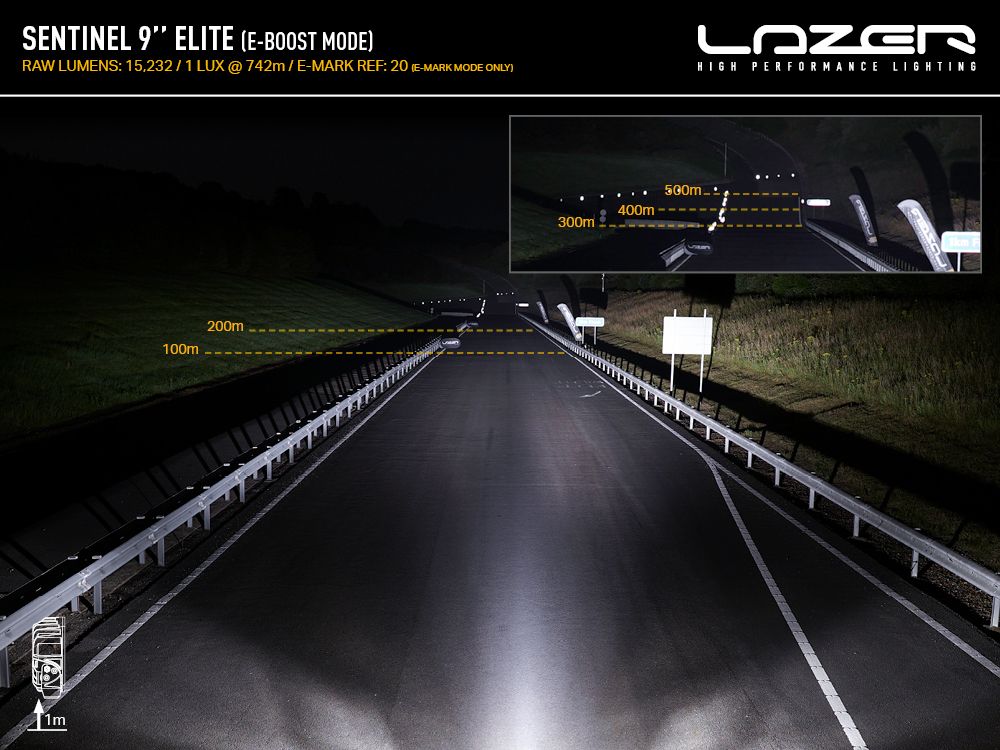

0.25 lx Line | 1483 metres | 663 metres |
0.5 lx Line | 1049 metres | 469 metres |
1 lx Line | 742 metres | 332 metres |
3 lx Line | 428 metres | 191 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- x1 Sentinel 9” Elite LED Lamp
- x1 ‘Slim’ Mount Kit (1141k)
- x1 ‘Lazer’ Black Lens Cover (LC-BLK-0S9)
- x1 Installation Instructions
