Lazer Roof Rack Mounting Kit (For LR Defender 2020+ OEM Expedition Roof Rack) 3001-RR-DEF
Original price was: 21,05€.18,27€Current price is: 18,27€. WITH TAX
Lazer Roof Rack Mounting Kit (For LR Defender 2020+ OEM Expedition Roof Rack) 3001-RR-DEF
The Defender Expedition Roof Rack Mounting Kit enables mounting of Lazer Lamps’ Linear-36 high performance LED light bar to the underside of the front of the roof rack system for a simple, secure install. Included within the kit are: M8 rivnuts plus fasteners, and ‘Standard’ Linear Side Mount Brackets (supplied anti-theft brackets with the Linear LED lights themselves are not suitable for this type of install).
To complete the install; the Linear-36 (Standard or Elite) and wiring is sold separately. With the Linear-36 (standard model only) approved (with double e-mark) to Reg112, there’s the option to connect the lamp directly to the vehicles standard high beams, mindful that where the vehicle has the LED Matrix headlight system as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface.
LIGHTS AND WIRING SOLD SEPARATELY.
(note – One-Lamp Wiring Kit included with lamps: Linear-36 Elite)
Lazer Roof Rack Mounting Kit (For LR Defender 2020+ OEM Expedition Roof Rack) 3001-RR-DEF
PRODUCT FEATURES

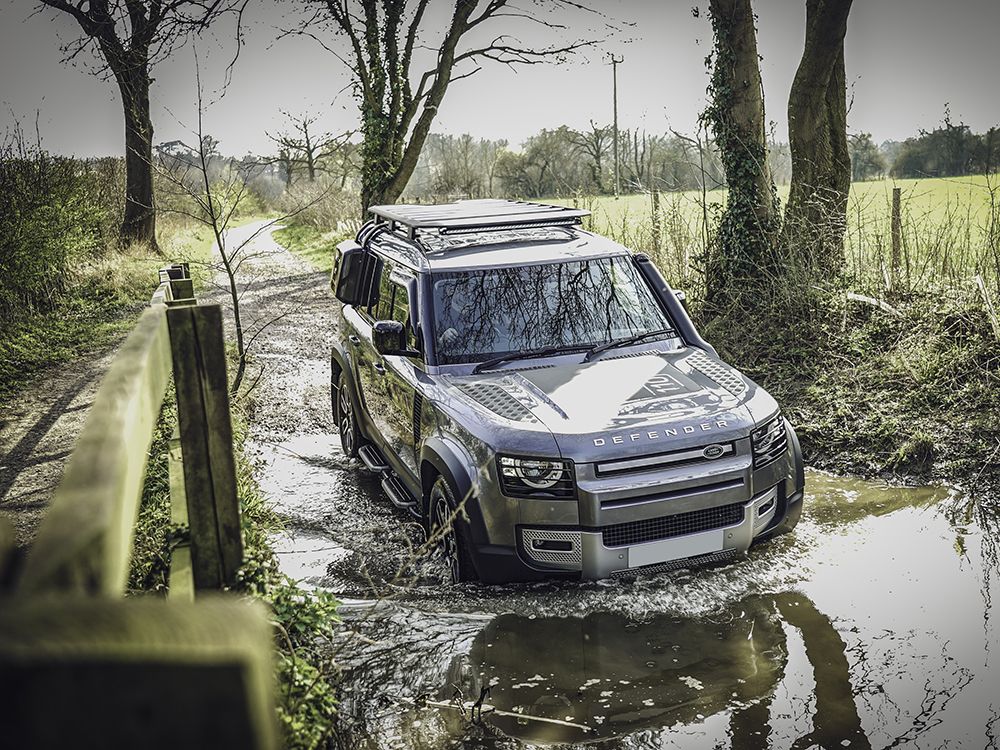

Designed for Land Rover Defender (2020+) OEM Expedition Roof Rack System.
Compatible with Linear-36 LED Driving Light
Fully road-legal
Supplied rivnuts and mounting fixtures utilise stainless steel hardware
Designed and manufactured in the UK
TECHNICAL SPECIFICATIONS
| Linear-36 Elite | Linear-36 | |
| Voltage Range | 10-32V | 10-32V |
| LED Life | 50,000 hours | 50,000 hours |
| Weight | 2.7 kg | 2.7 kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 29700 Lm | 13500 Lm |
| Total Driver ‘FOV’ Flux † | 21325 Lm | 9612 Lm |
| Colour Temperature | 5000K | 5000k |
| Number of High Output LEDs | 72 | 36 |
| Power Consumption | 308 Watts | 126 Watts |
| Current Draw (at 14.4V) | 21.4 Amps | 8.8 Amps |
| CERTIFICATION | ||
| High Beam | N/A | ECE R112 |
| ECE Reference | N/A | 50 |
| DIMENSIONS | ||
| Width | 982 mm | 982 mm |
| Depth | 62 mm | 62 mm |
| Height | 40 mm | 40 mm |

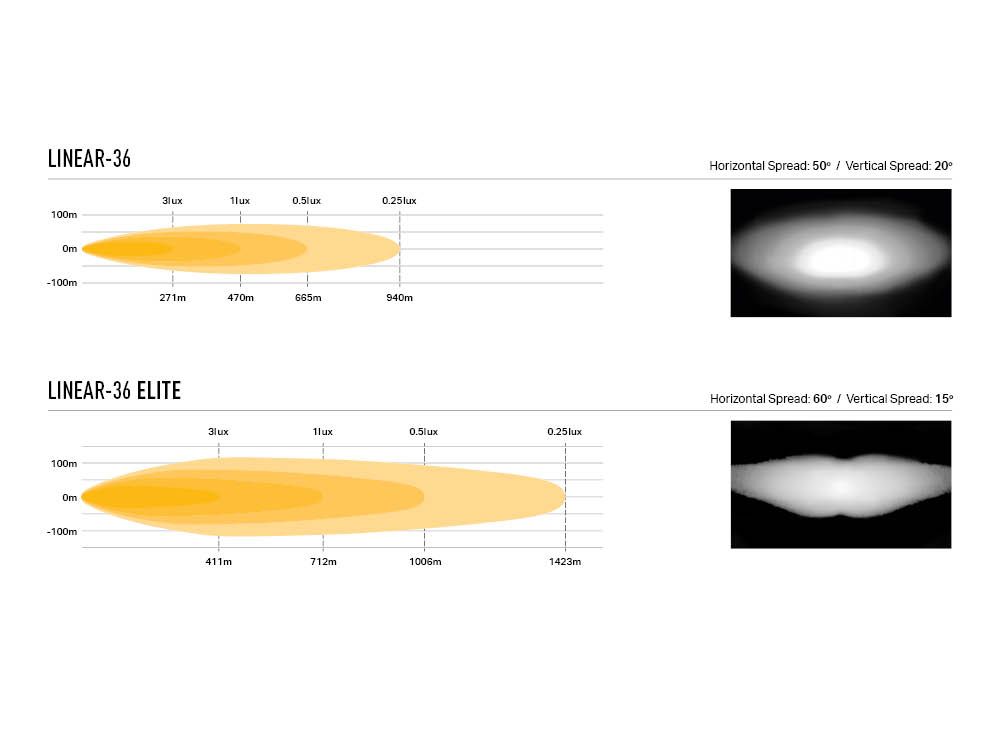

| PHOTOMETRIC DATA | ||
| Horizontal Beam Angle | 60° | 50° |
| 0.25 lx Line | 1423m | 940m |
| 0.5 lx Line | 1006m | 665m |
| 1 lx Line | 712m | 470m |
| 3 lx Line | 411m | 271m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

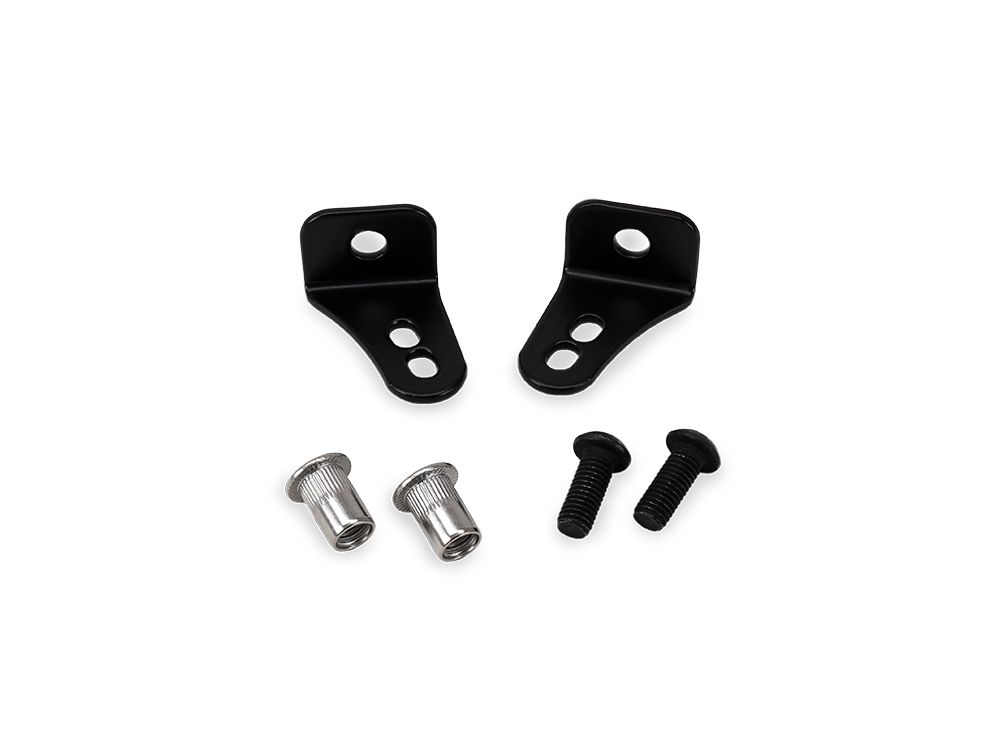

WHAT’S INCLUDED
- 2x Stainless Steel Mounting Bracket (LH/RH) – for Linear
- 2x M8 Rivnuts
- 2x M8 Spring Washers
- 2x M8 Bolts
Fitting instructions available in the downloads section below.
DOWNLOADS
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
| Product manufacturer | LAZER LAMPS |
|---|---|
| Brand | LAZER ACCESSORIES |
