Lazer Roof Mounting Kit – Land Rover Defender (<2016) – 67mm Height (for Linear-48 or Triple-R 28) 3001-DEF-67-K

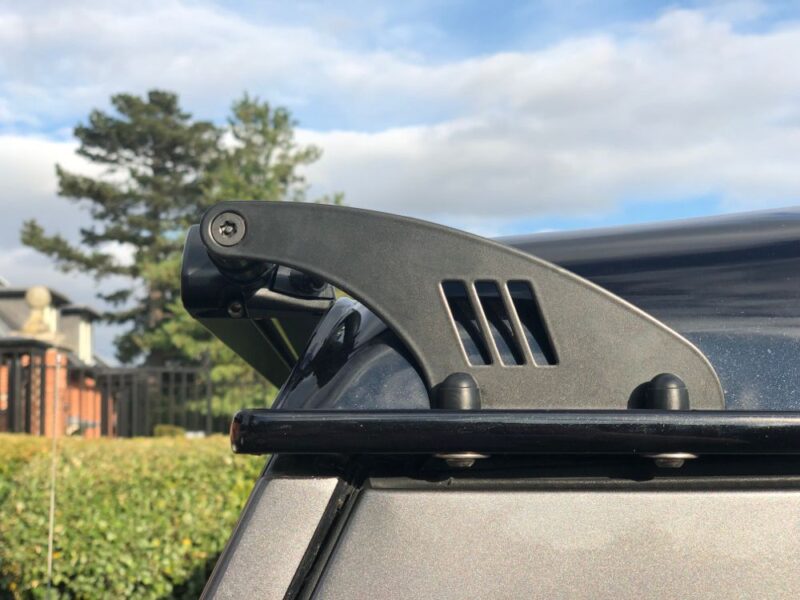

Specifically engineered for the Land Rover Defender (-2018), the Lazer Lamps Roof Mounting Kit, for pre-2019 vehicles, comprises stainless steel brackets that fix to the vehicle’s roof side gutter and are optimised for either our Linear-48 or Triple-R 28 off-road LED spotlights.
Manufactured from A2 stainless steel, and finished with a UV-stable, satin black powder coat, the brackets are fully corrosion resistant in line with automotive grade quality standards, as are the supplied countersunk anti-theft fasteners, which come in a variety of lengths from 20mm–80mm. To complete the mounting of different length light bars, cylindrical carbon spacers, of varying lengths, are provided to aid positioning.
The installation of the brackets to your vehicle is completed using M6 fasteners fixed within the gutter location either side of the Defender’s roof. Cable grommets are supplied to ensure a tidy, and sealed cable entry point, while a supplied VHB cleaning pad is provided for preparation of areas where additional sealant might be applied. Electrical butt connectors are provided to help assure the integrity of the cable reattachment once thread through the roof.
LIGHTS AND WIRING SOLD SEPARATELY.
(note – One-Lamp Wiring Kit included with lamps: Linear-48 Elite and Triple-R 28 Elite)
Lazer Roof Mounting Kit – Land Rover Defender (<2016) – 67mm Height (for Linear-48 or Triple-R 28) 3001-DEF-67-K
PRODUCT FEATURES
Complete one-stop solution for roof-mounting on Land Rover Defender (pre 2018)
Optimised for either Triple-R 28 or Linear-48 (Standard / Elite) LED spotlights
Made from 3mm A2 stainless steel
UV-stable, satin black powder coat
Includes assortment of A2 stainless steel fixings with countersunk head
Carbon spacers facilitate positioning of different length LED light bars
M6 fasteners facilitate mounting brackets to underside of the roof rails
Manufactured in the UK
TECHNICAL SPECIFICATIONS
| Linear-48 Elite | Linear-48 | Triple-R 28 Elite | |
| Voltage Range | 10-32V | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs | 50,000 hrs |
| Weight | 4 kg | 4 kg | 4.7kg |
| HIGH BEAM FUNCTION | |||
| Total Luminous Flux | 34800 Lm | 18000 Lm | 28560 Lm |
| Total Driver ‘FOV’ Flux † | 24986 Lm | 12816 Lm | 18821 Lm |
| Colour Temperature | 5000K | 5000k | 5000k |
| Number of High Output LEDs | 96 | 48 | 28 |
| Power Consumption | 364 Watts | 168 Watts | 315 Watts |
| Current Draw (at 14.4V) | 25.3 Amps | 11.7 Amps | 21.9 Amps |
| CERTIFICATION | |||
| High Beam | N/A | N/A | N/A |
| ECE Reference | N/A | N/A | N/A |

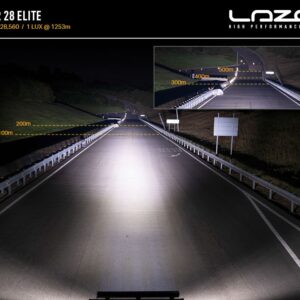

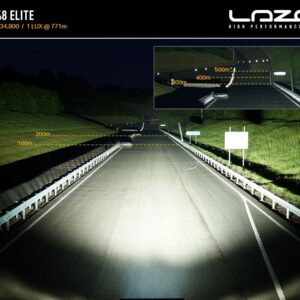

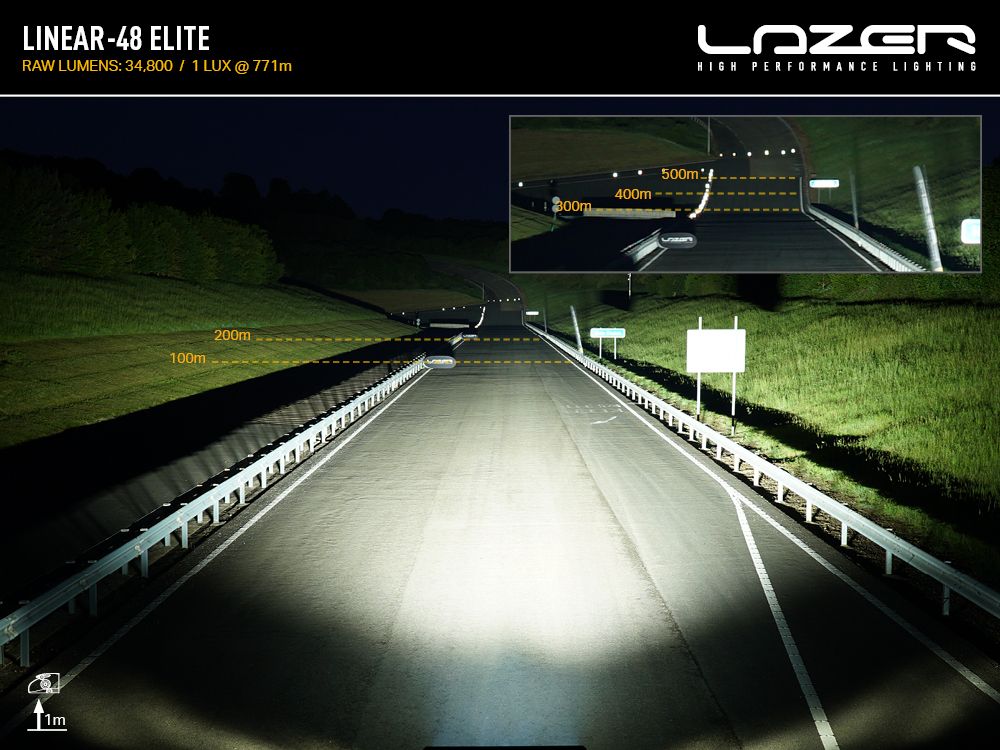

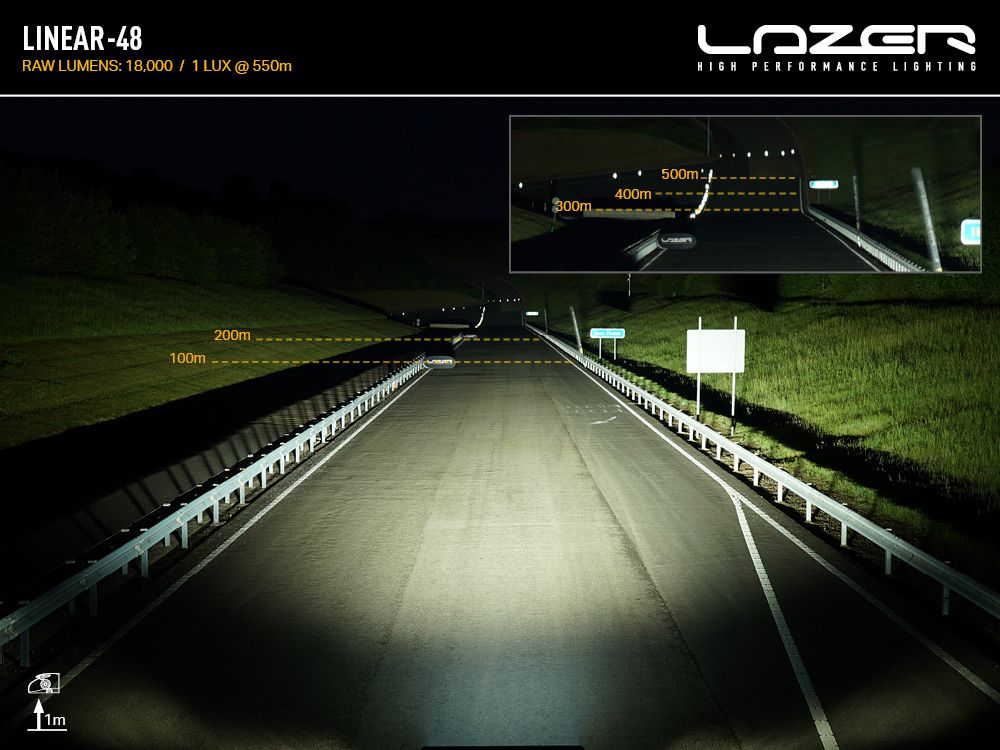

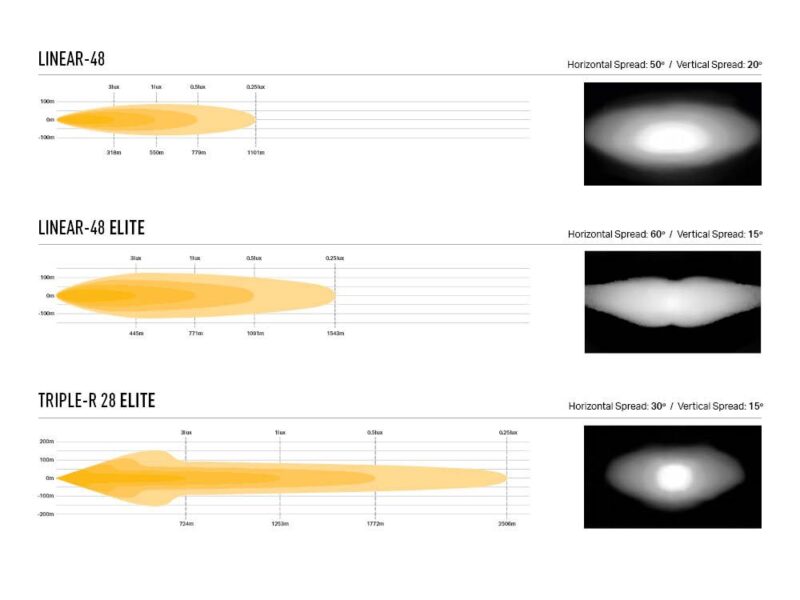

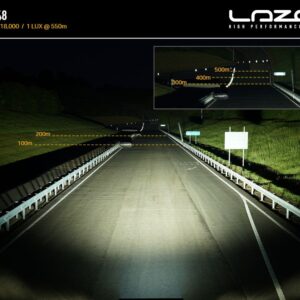

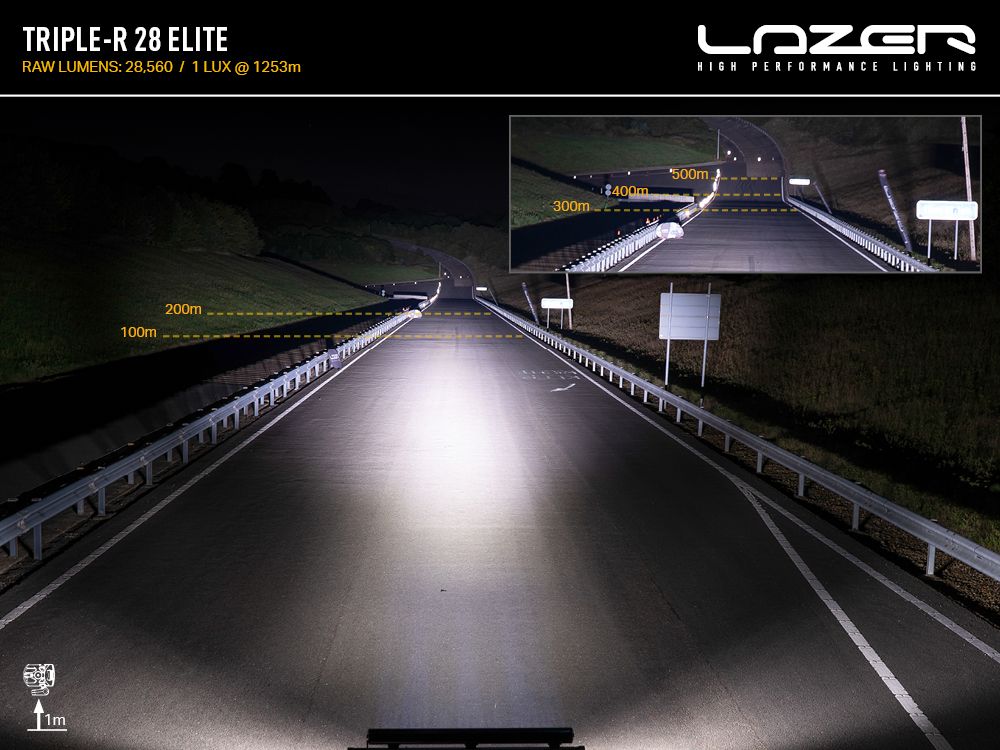

| PHOTOMETRIC DATA | |||
| Horizontal Beam Angle | 60° | 50o | 30o |
| 0.25 lx Line | 1543m | 1101m | 2506m |
| 0.5 lx Line | 1091m | 779m | 1772m |
| 1 lx Line | 771m | 550m | 1253m |
| 3 lx Line | 445m | 318m | 724m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

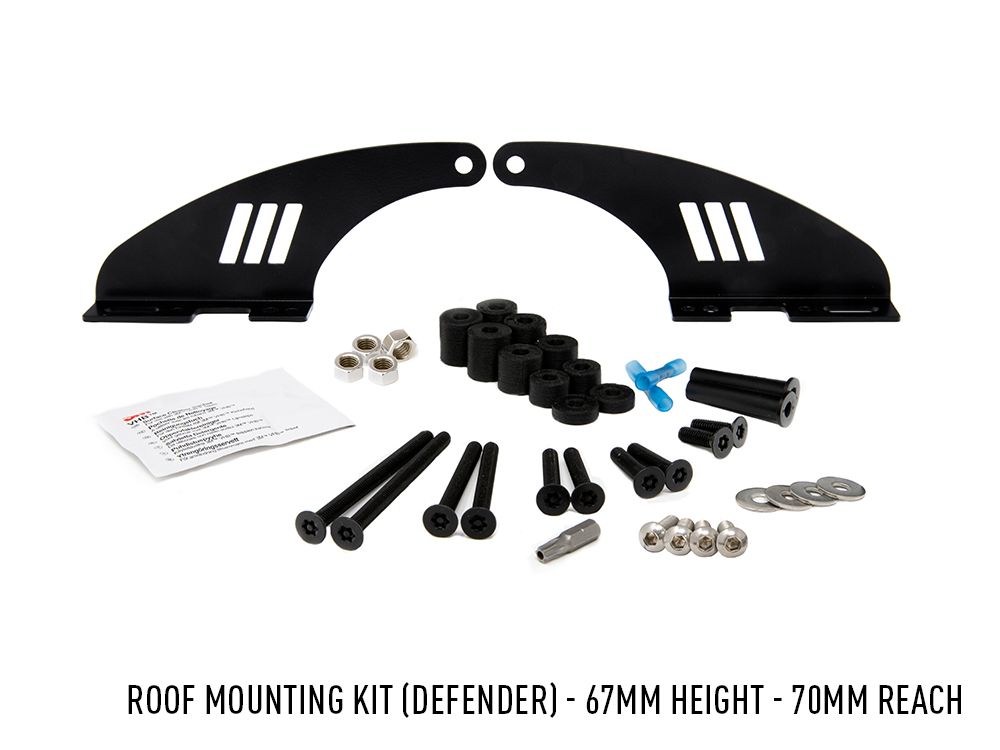

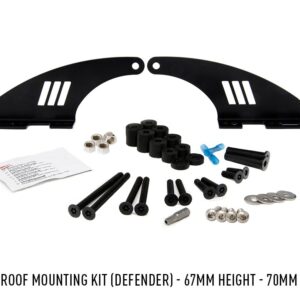

WHAT’S INCLUDED
- Stainless Steel Mounting Brackets (LH/RH)
- Anti-theft Fastener Set (various sizes)
- Spacer Set (various sizes)
- M6 Anti-Theft Fasteners
- Cable Grommets
- VHB Cleaning Sachet
- Heat-shrink Butt Splice
Fitting instructions available in the downloads section below.
DOWNLOADS
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
| Product manufacturer | LAZER LAMPS |
|---|---|
| Brand | LAZER ACCESSORIES |
