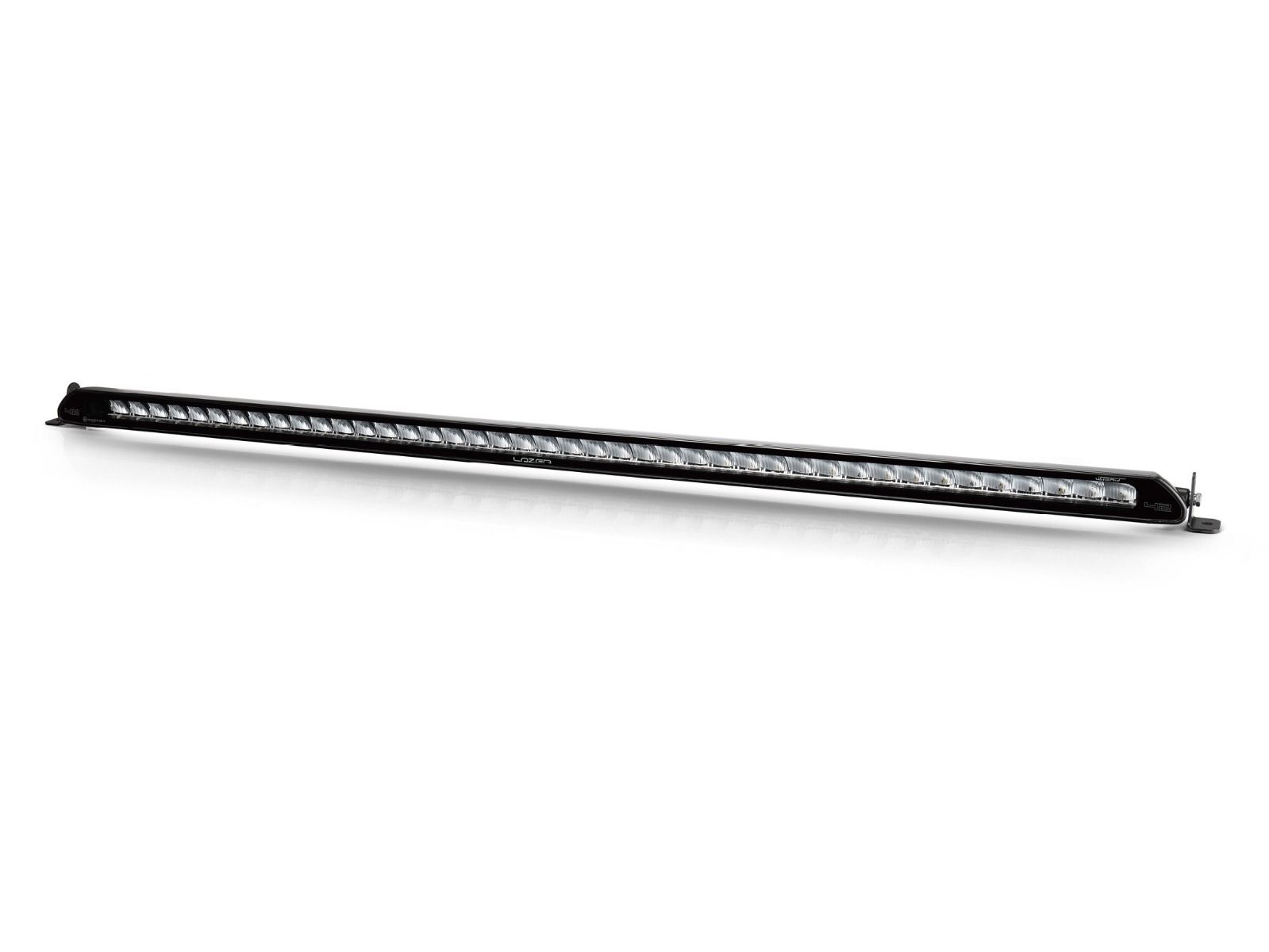

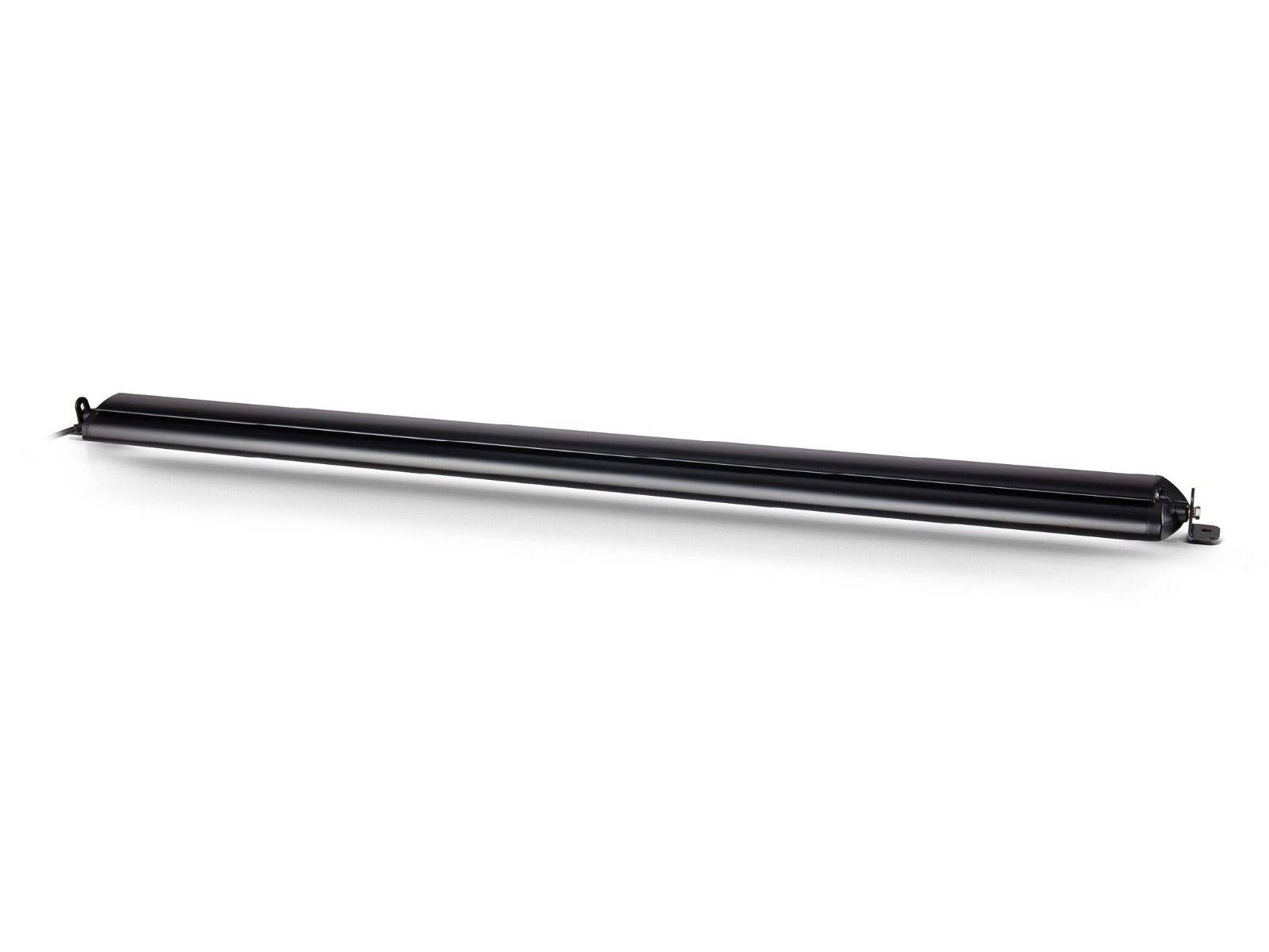

Lazer Linear-42 (15750 Lumens)

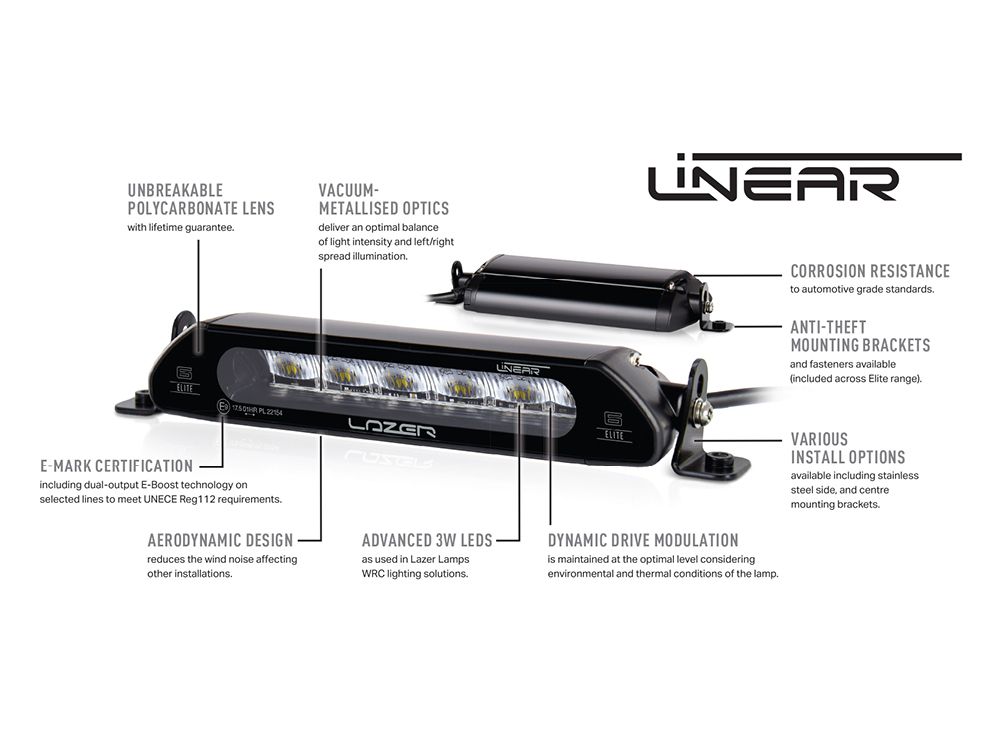

PRODUCT FEATURES
Highly efficient 3W LED technology
5000K LED colour temperature and 80CRI maximises sharpness and definition
Vacuum-metallised optics deliver wide spread of light

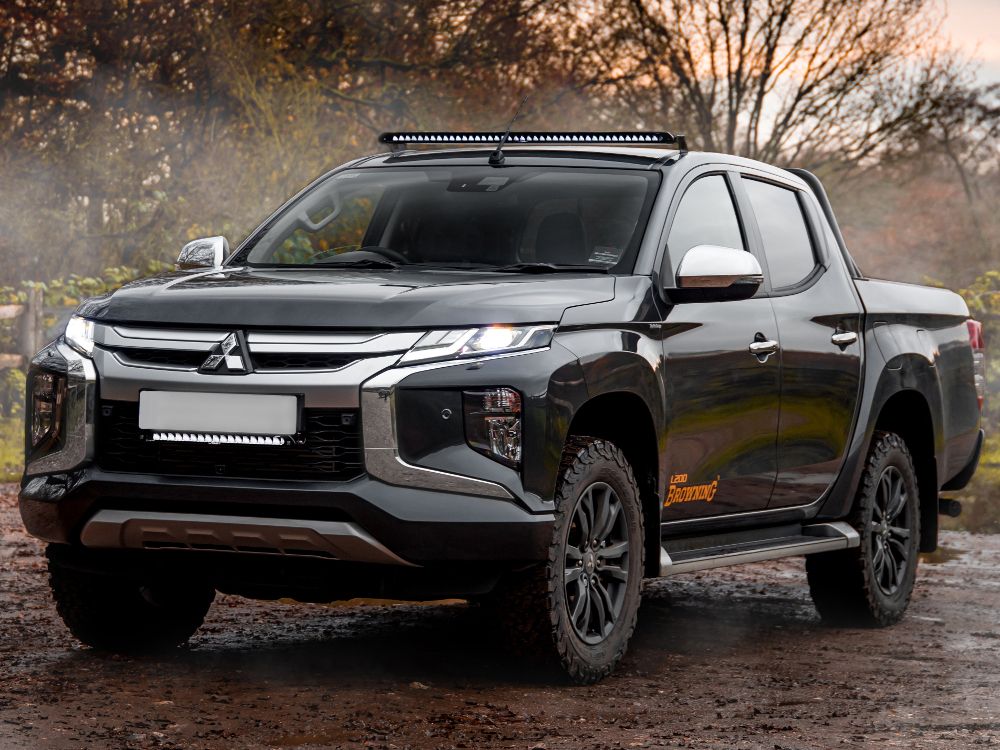

Reduced up/down spread of light suits even low mounting positions, or roof mounting
Sleek, low profile design eases installation

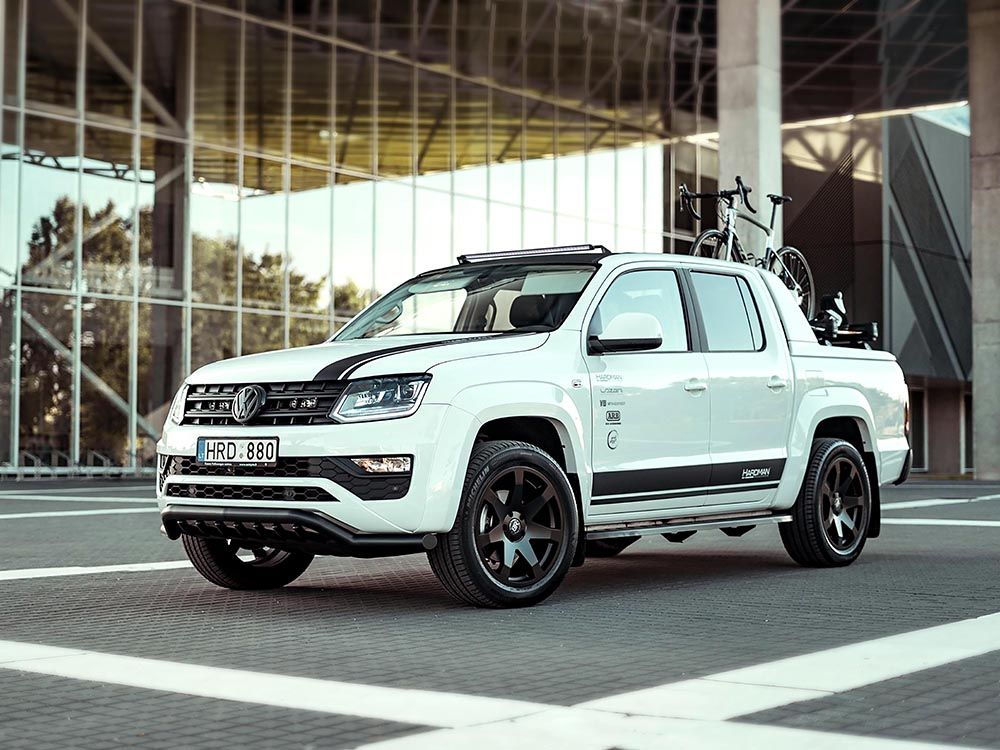

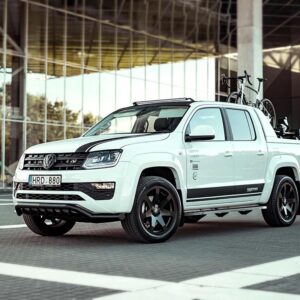

Aero design virtually eliminates wind noise on roof installations
Includes low profile side mounting brackets (anti-theft solutions included on Linear-36/42/48)
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
CAE optimised heatsink offers improved thermal dynamics
Over voltage protected
Reverse polarity protected
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
UNECE approved Reg 112 (Class B Driving Light) for on-road high beam function
UNECE approved Reg 10
IP68 watertight
5 year warranty
Supplied with pre-wired male/female 2-pin Superseal connectors
Designed and manufactured in UK
TECHNICAL SPECIFICATIONS
Based on: 1x Linear-42 LED lightbar.
Voltage Range (DC) | 10-32V |
LED Life | 50,000 hours |
Weight | 3.5 kg |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 15750 Lm |
Total Driver ‘FOV’ Flux † | 11214 Lm |
Colour Temperature | 5000K |
Number of High Output LEDs | 42 |
Power Consumption | 147 Watts |
Current Draw (at 14.4V) | 10.2 Amps |
CERTIFICATION | |
High Beam | ECE R112 |
ECE Reference | 50 |

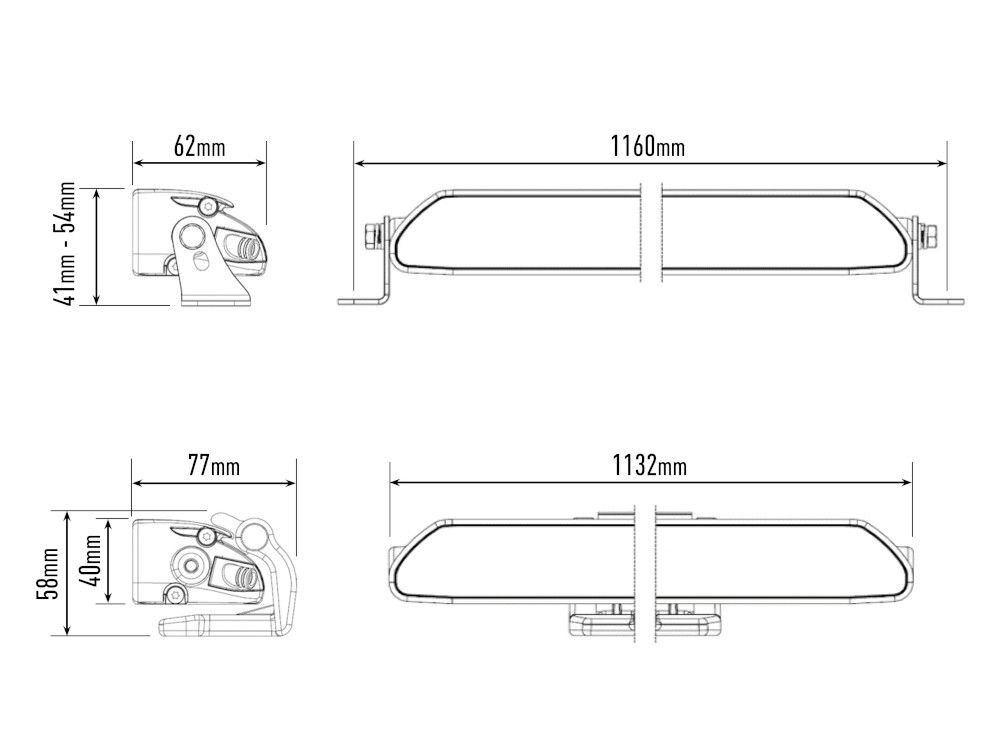

DIMENSIONS | |
Width | 1132 mm |
Depth | 62 mm |
Height | 40 mm |

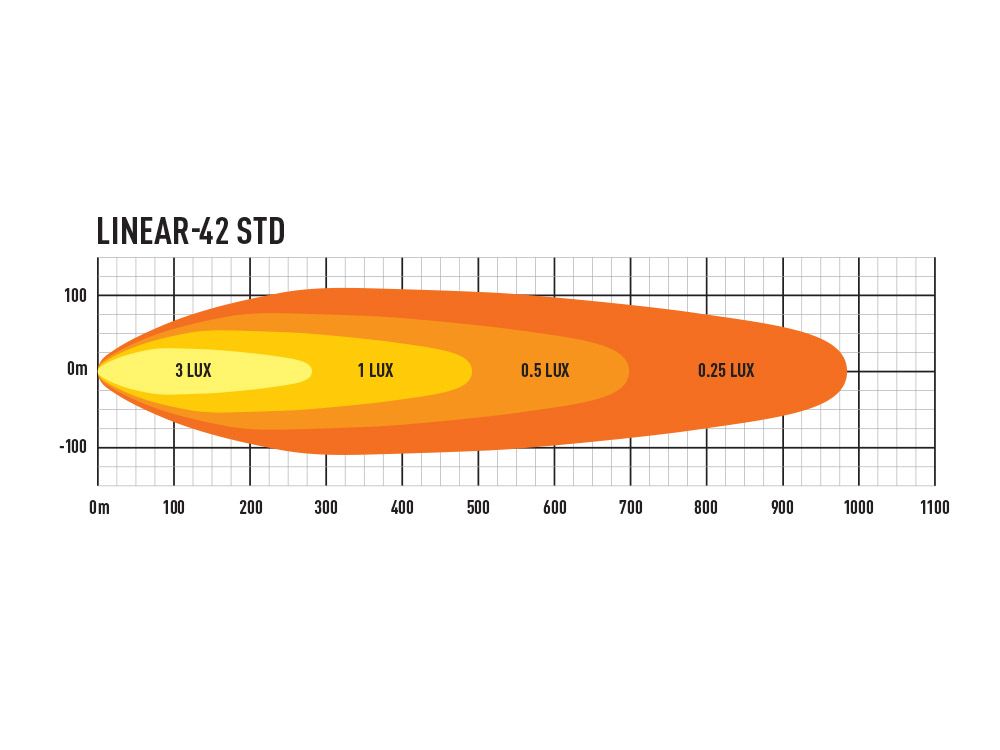

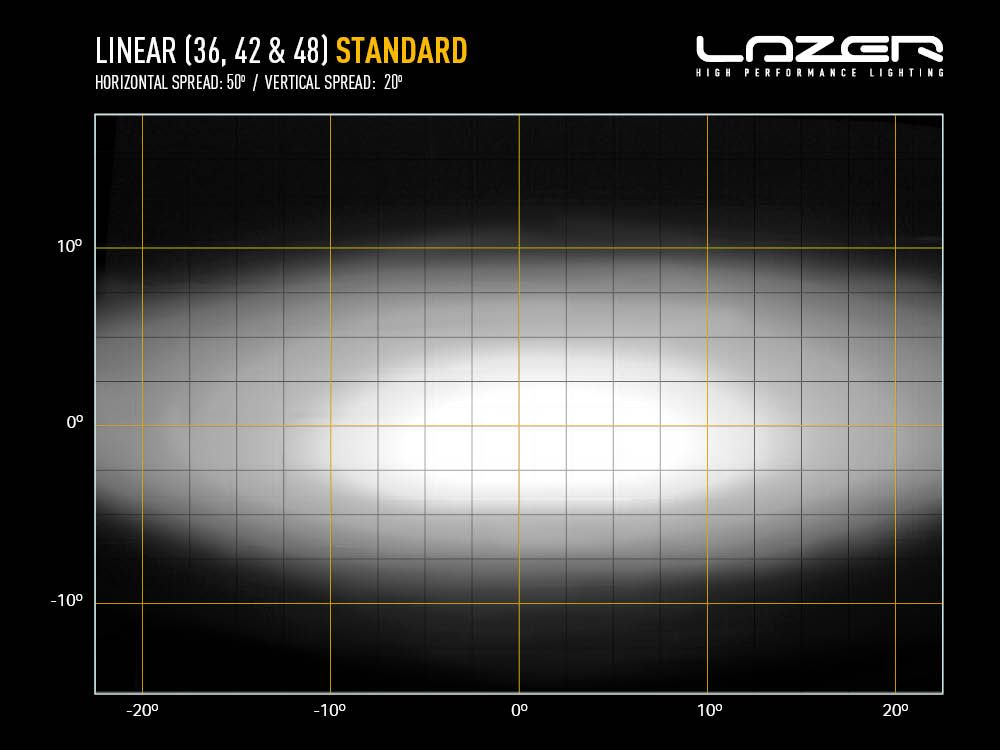

PHOTOMETRIC DATA | |
Horizontal Beam Angle | 50° |
0.25 lx Line | 984 metres |
0.5 lx Line | 696 metres |
1 lx Line | 492 metres |
3 lx Line | 284 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- x1 Linear-42 LED Lamp

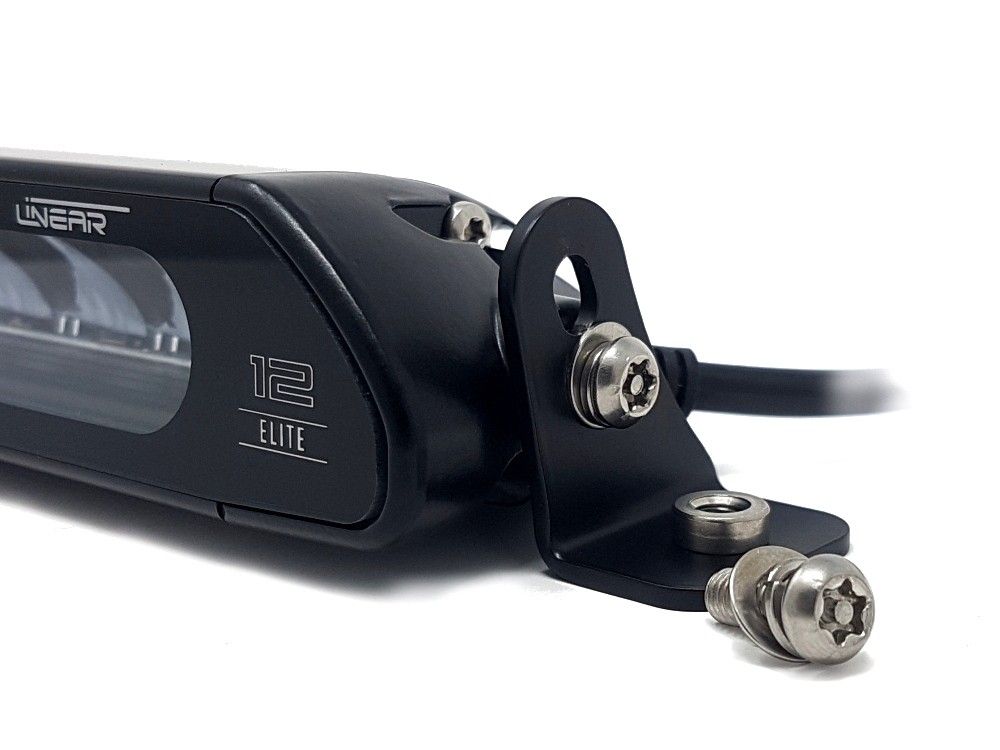

- x1 Anti-Theft Side Mount (1127k)
- x1 Installation Instructions
