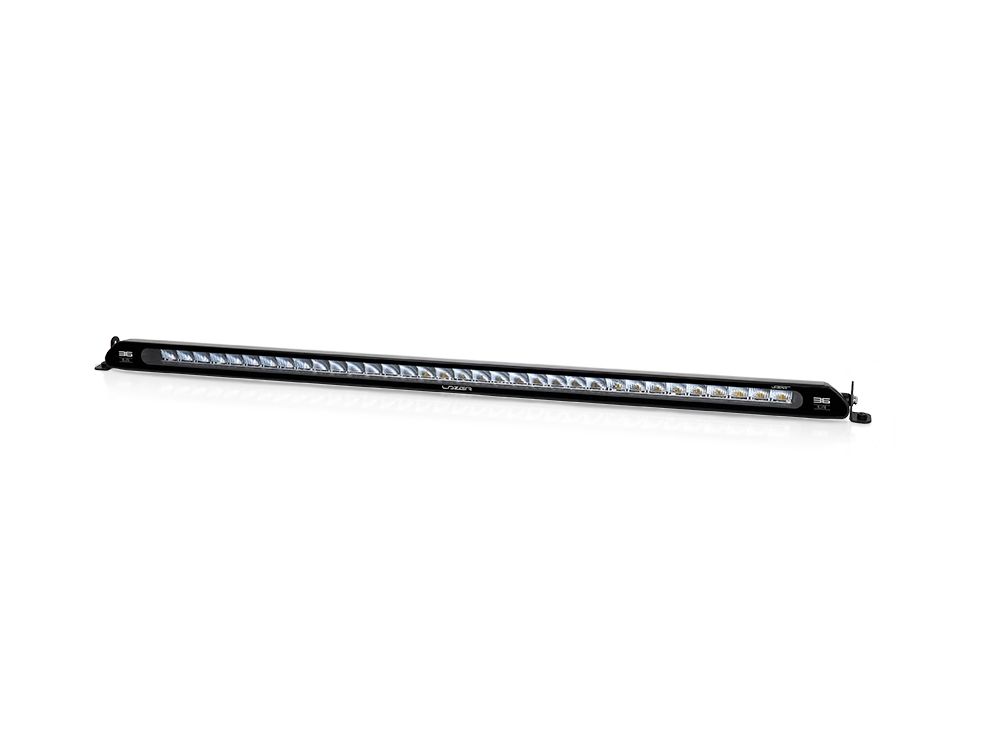

Lazer Linear-36 Elite (29700 Lumens)

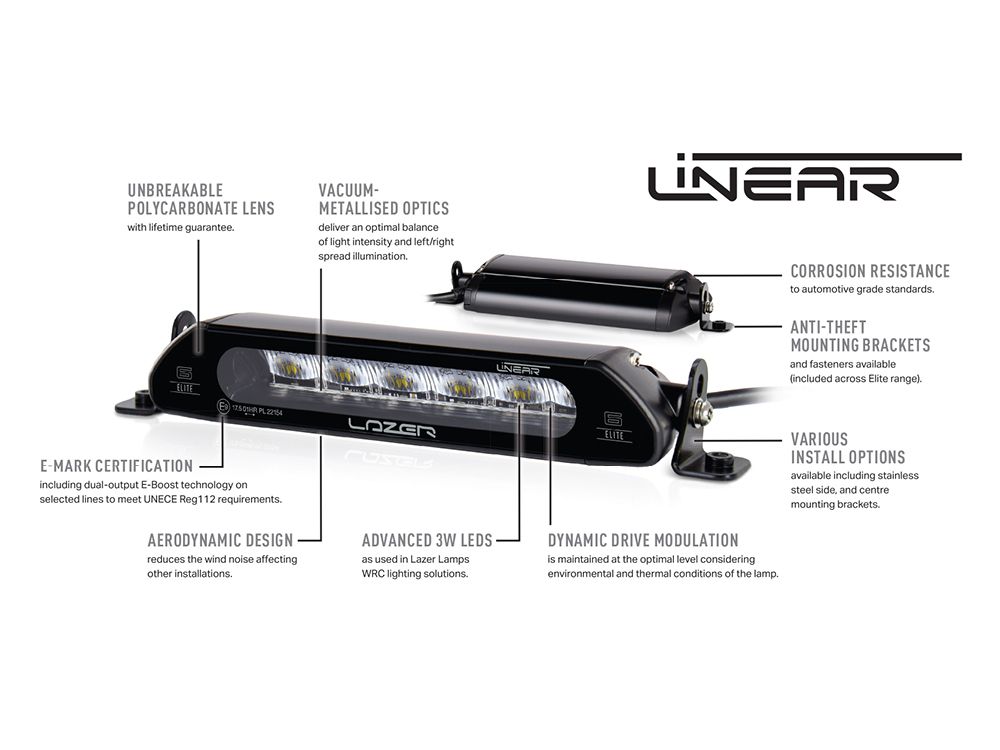

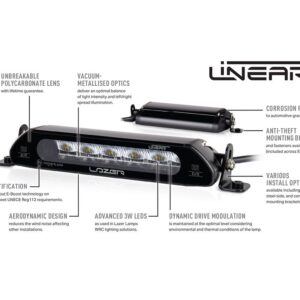

PRODUCT FEATURES
Combination of highly efficient 3W ‘premium bin’ LEDs
5000K LED colour temperature and 80CRI maximises sharpness and definition
Vacuum-metallised optics deliver wide spread of light
Reduced up/down spread of light suits even low mounting positions, or roof mounting
Sleek, low profile design eases installation
Aero design virtually eliminates wind noise on roof installations

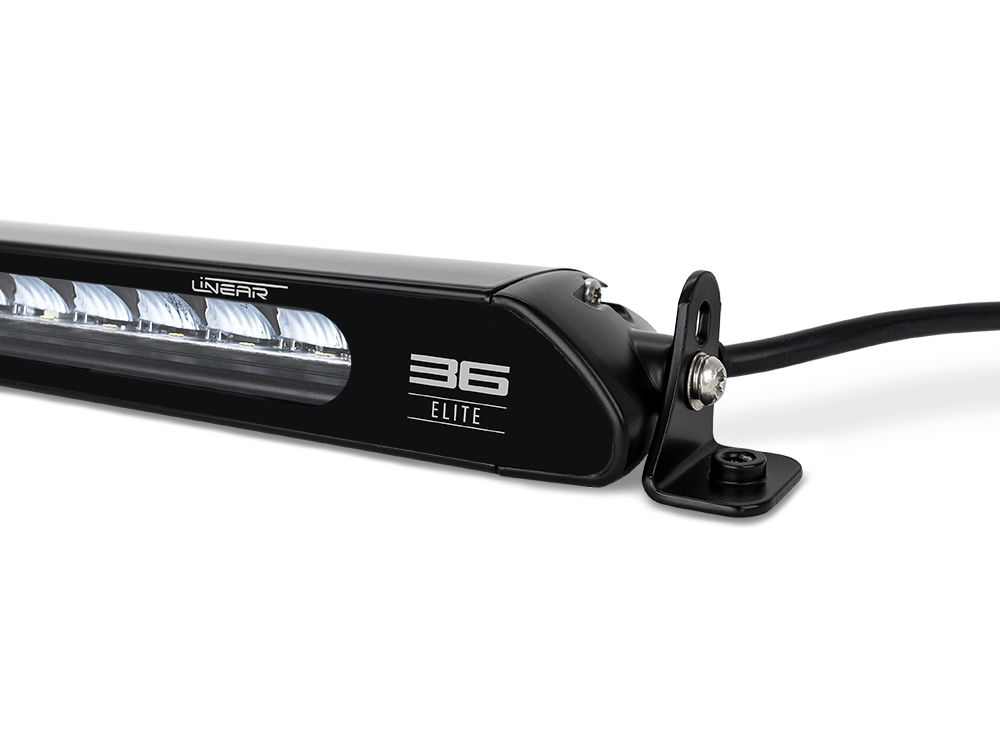

Flexible mounting options – anti-theft side mounting brackets included
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
CAE optimised heatsink offers improved thermal dynamics
Over voltage protected
Reverse polarity protected
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
UNECE approved Reg 10
IP68 watertight
5 year warranty
Supplied with pre-wired male/female 2-pin Aptiv connectors
Designed and manufactured in UK
TECHNICAL SPECIFICATIONS
Based on: 1x Linear-36 Elite.
Voltage Range (DC) | 10-32V |
LED Life | 50,000 hours |
Weight | 2.7 kg |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 29700 Lm |
Total Driver ‘FOV’ Flux † | 21325 Lm |
Colour Temperature | 5000K |
Number of High Output LEDs | 72 |
Power Consumption | 308 Watts |
Current Draw (at 14.4V) | 21.4 Amps |
CERTIFICATION | |
High Beam | N/A |
ECE Reference | N/A |

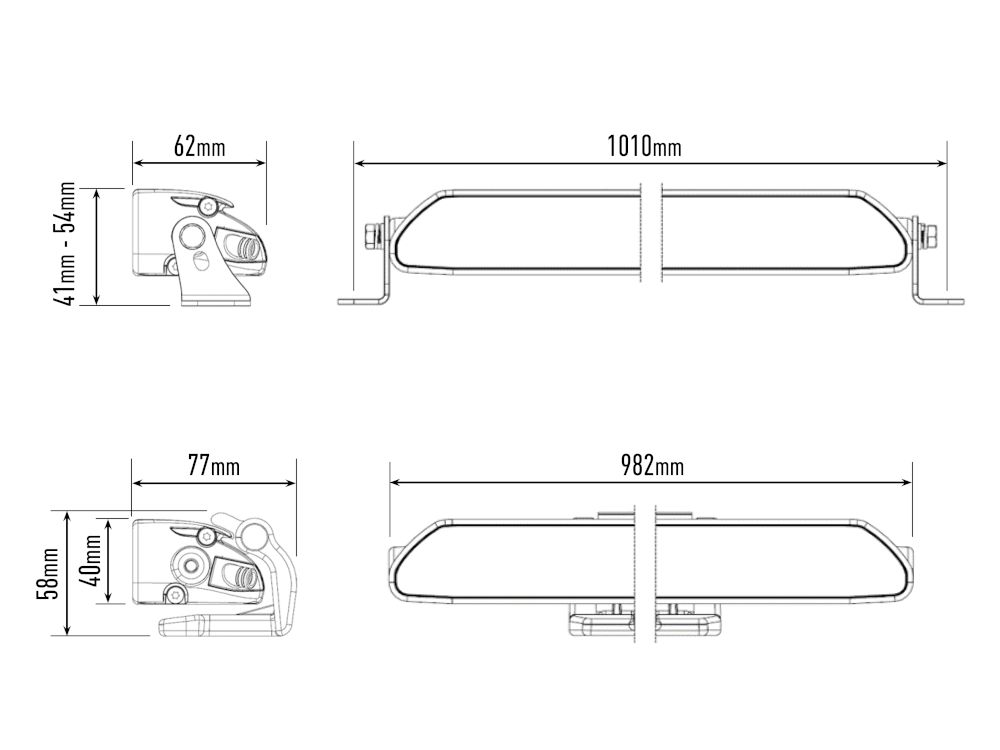

DIMENSIONS | |
Width | 982 mm |
Depth | 62 mm |
Height | 40 mm |

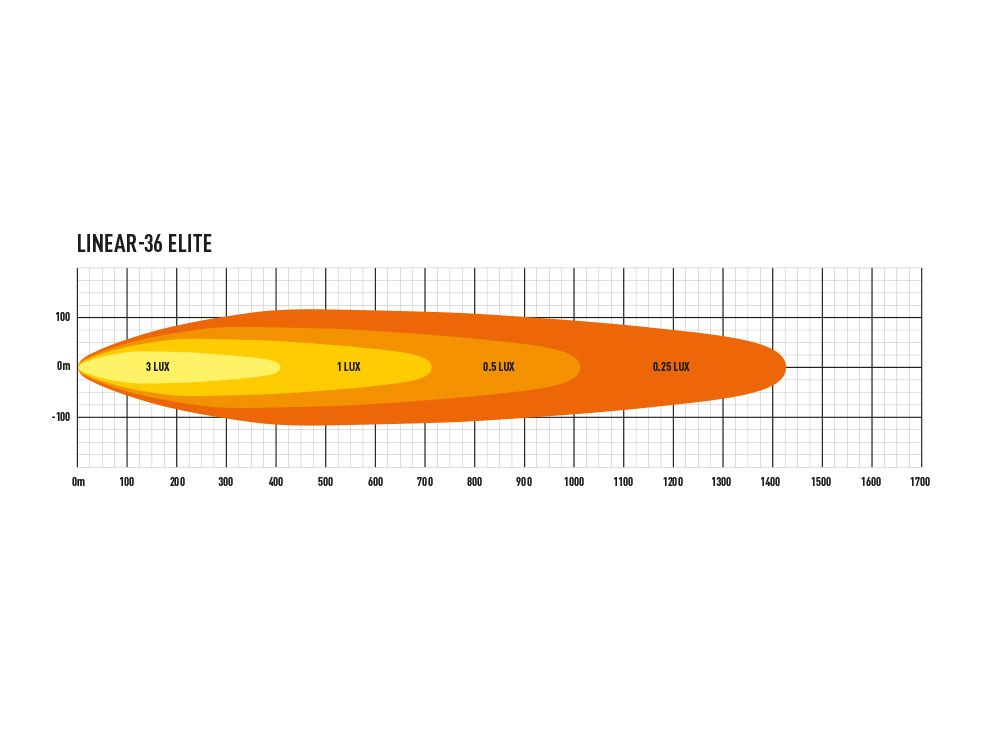

PHOTOMETRIC DATA | |

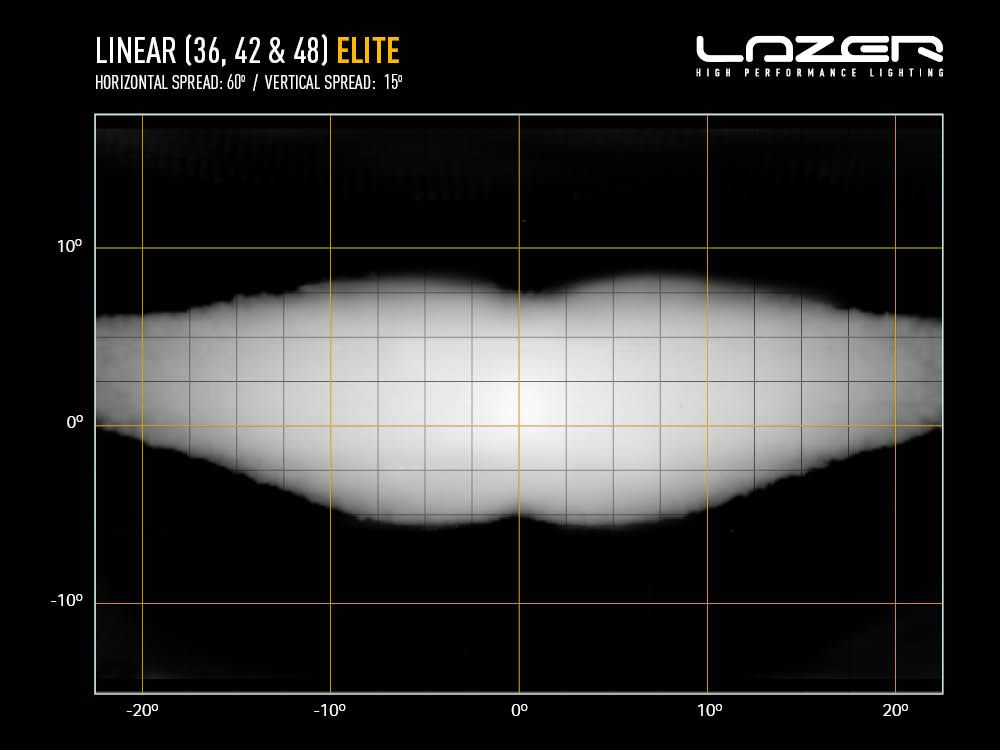

Horizontal Beam Angle | 60° |
0.25 lx Line | 1423m |
0.5 lx Line | 1006m |

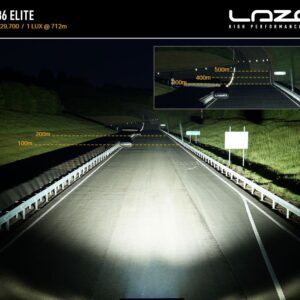

1 lx Line | 712m |
3 lx Line | 411m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED

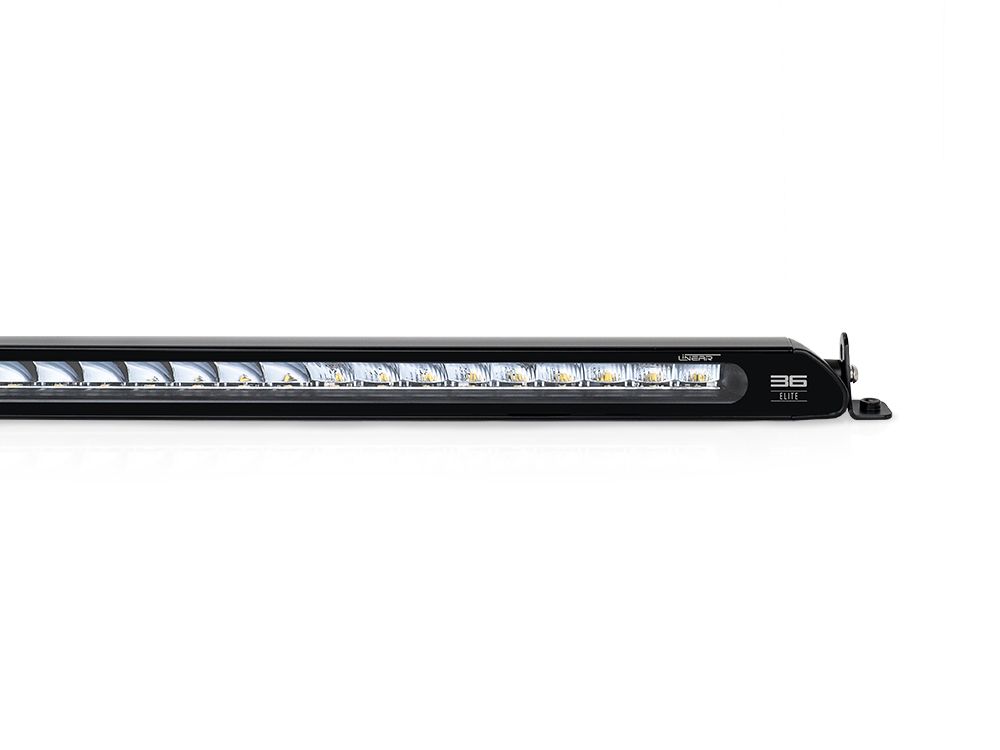

- x1 Linear-36 Elite LED Lamp
- x1 Anti-Theft Side Mount (1127k)

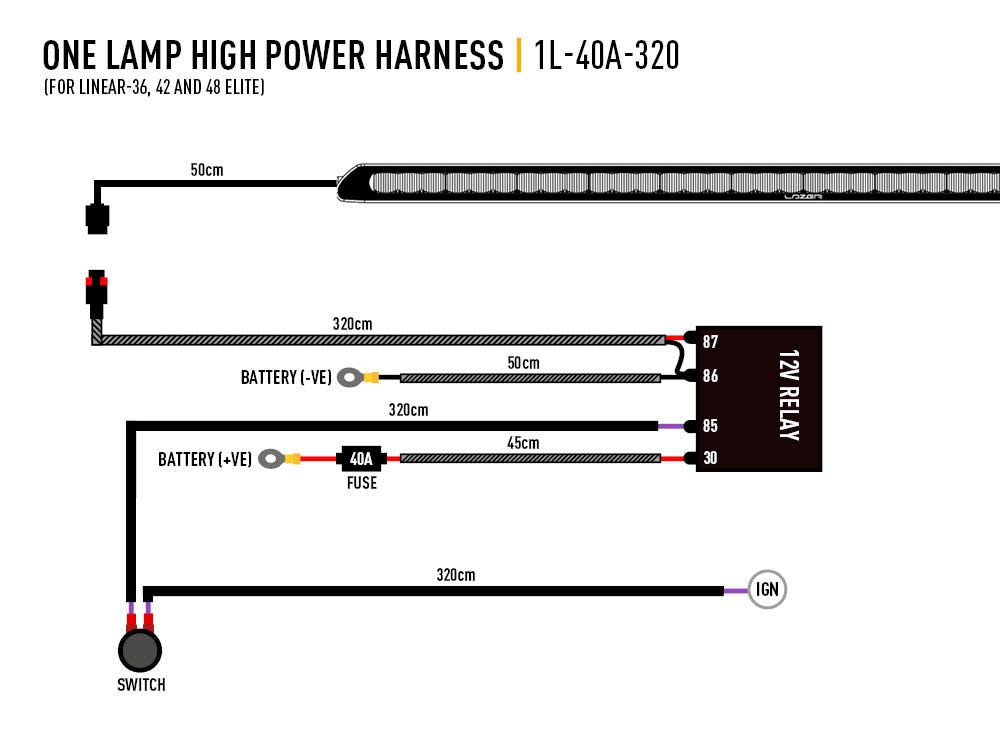

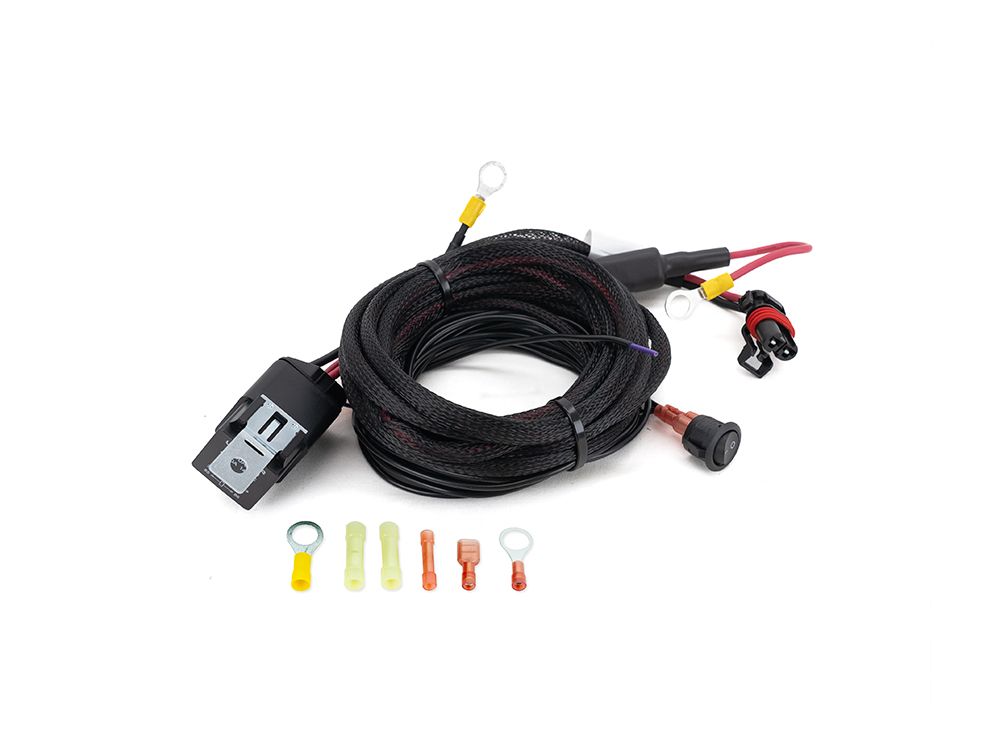

- x1 Single-Lamp Wiring Harness (1L-40A-320)
- x1 Installation Instructions
