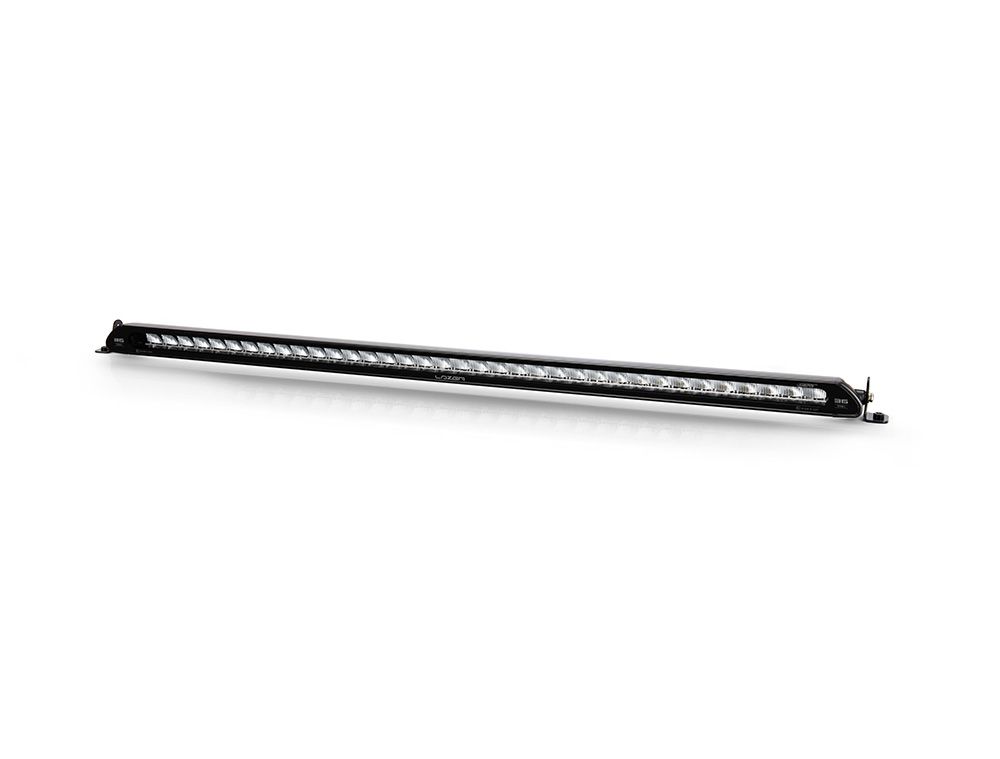

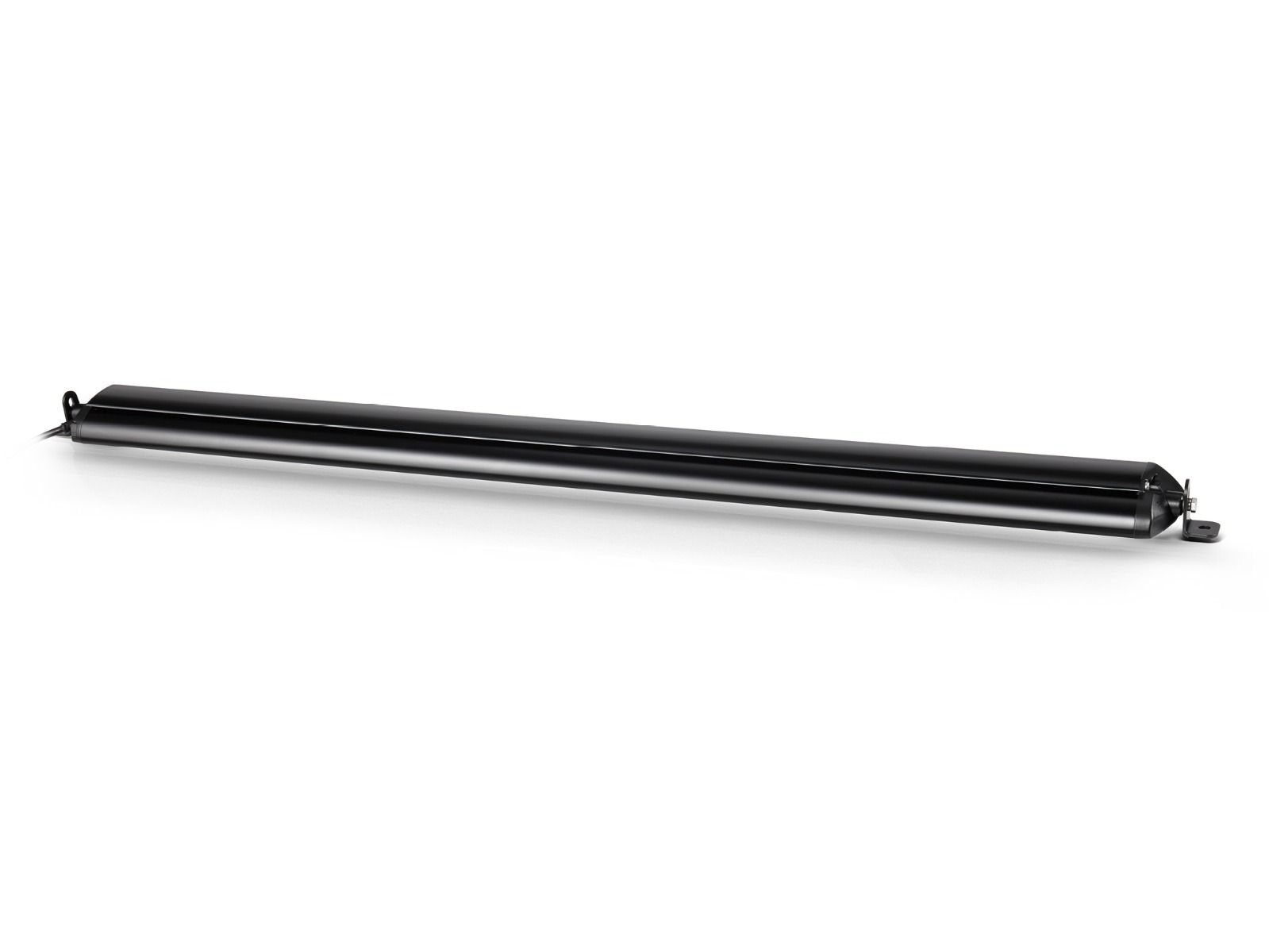

Lazer Linear-36 (13500 Lumens)
Original price was: 792,55€.687,75€Current price is: 687,75€. WITH TAX
Lazer Linear-36 (13500 Lumens)
Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.
The Linear range is available in a variety of sizes from the 232mm (9”) Linear-6 to the 1282mm (51”) Linear-48. With the exception of the range topping Linear-48, all Linear products are fully UNECE certified to Regulation 112 as Class B Driving lights (for on-road use). Elite level products are also available across Linear-6/12/18 product lines with these products boasting twice the light output compared to the equivalent Standard version. The Linear-12 Elite and Linear-18 Elite lights are also available with the option for integrated position light function providing added safety and styling benefits.
Despite the diminutive proportions of the Linear products, the LED light bars are packed full of advanced and innovative features to maximise performance and longevity. With the products designed, engineered and built in-house, at our UK facility, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed by our comprehensive 5-year warranty.

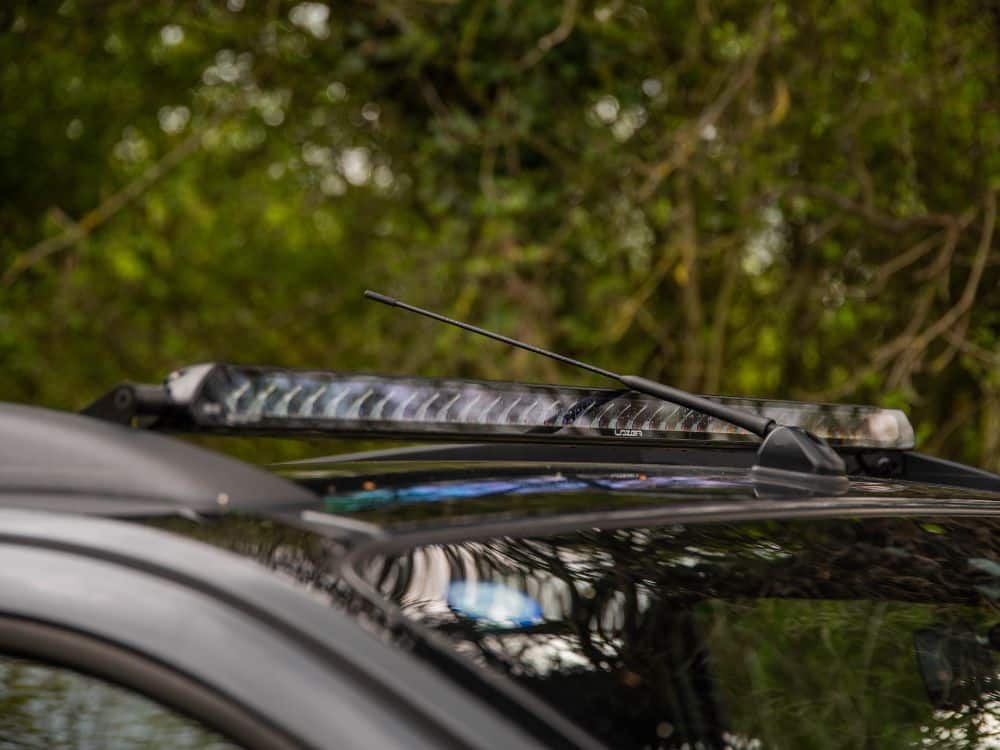

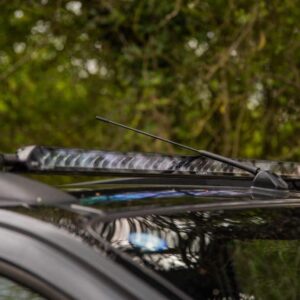

Linear products are especially well-suited to roof mount installations where the sleek, aero design of the aluminium housing eliminates nearly all wind noise, and the comparatively low up/down spread of light ensures no glare off the vehicle bonnet.
Delivery time to us: from 1 to 7 working days. Before you order the product, we suggest that you ask for the exact delivery cost and time. The product images shown are for illustration purposes only and may not be an exact representation of the product (contact us for more photos of this product).
Lazer Linear-36 (13500 Lumens)

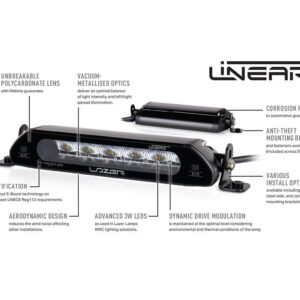

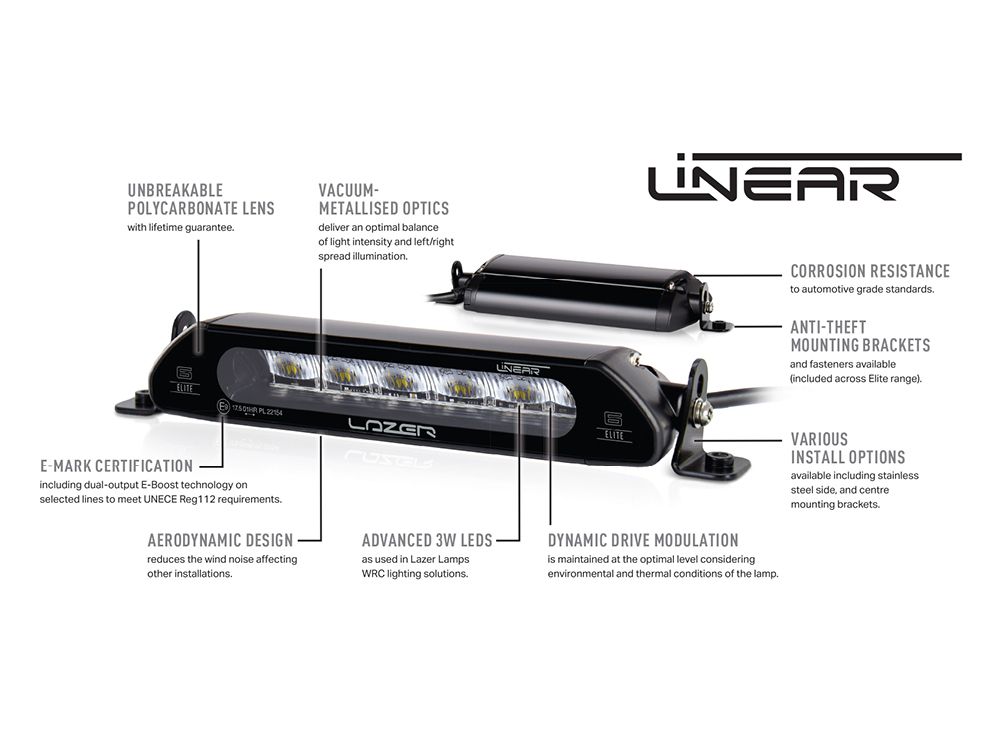

PRODUCT FEATURES
Highly efficient 3W LED technology
5000K LED colour temperature and 80CRI maximises sharpness and definition
Vacuum-metallised optics deliver wide spread of light
Reduced up/down spread of light suits even low mounting positions, or roof mounting
Sleek, low profile design eases installation
Aero design virtually eliminates wind noise on roof installations
Includes low profile side mounting brackets (anti-theft solutions included on Linear-36/42/48)
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
CAE optimised heatsink offers improved thermal dynamics
Over voltage protected
Reverse polarity protected
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
UNECE approved Reg 112 (Class B Driving Light) for on-road high beam function
UNECE approved Reg 10
IP68 watertight
5 year warranty
Supplied with pre-wired male/female 2-pin Superseal connectors
Designed and manufactured in UK
TECHNICAL SPECIFICATIONS
Based on: 1x Linear-36 LED lightbar.
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hours |
| Weight | 2.7 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 13500 Lm |
| Total Driver ‘FOV’ Flux † | 9612 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 36 |
| Power Consumption | 126 Watts |
| Current Draw (at 14.4V) | 8.8 Amps |
| CERTIFICATION | |
| High Beam | ECE R112 |
| ECE Reference | 2x 30 |
| DIMENSIONS | |
| Width | 982 mm |
| Depth | 62 mm |
| Height | 40 mm |

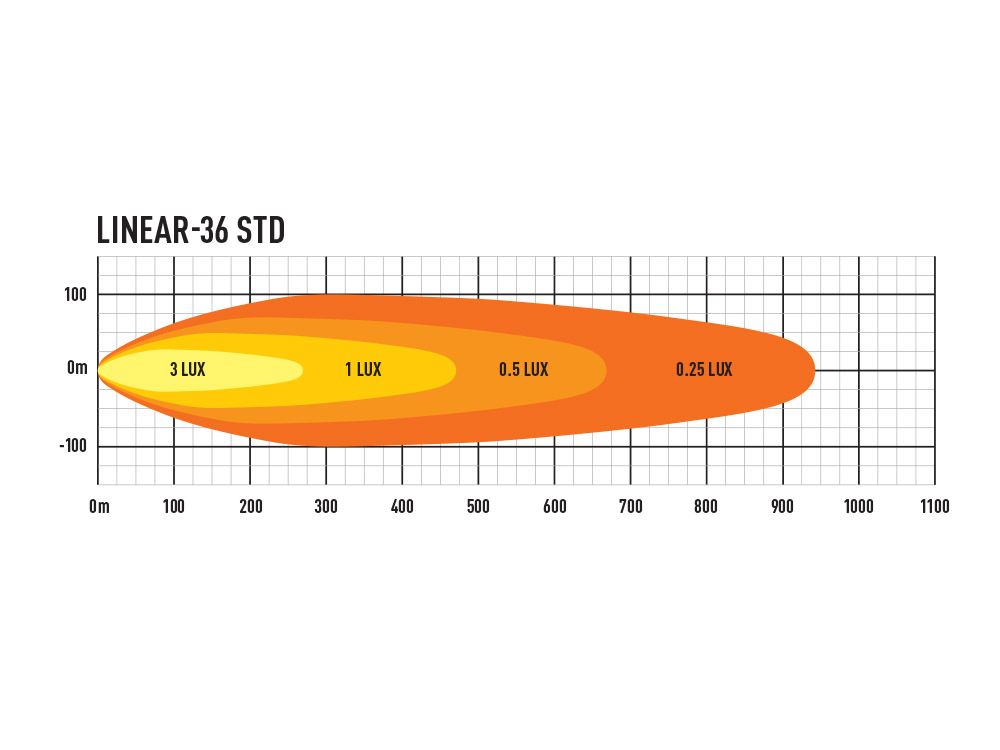

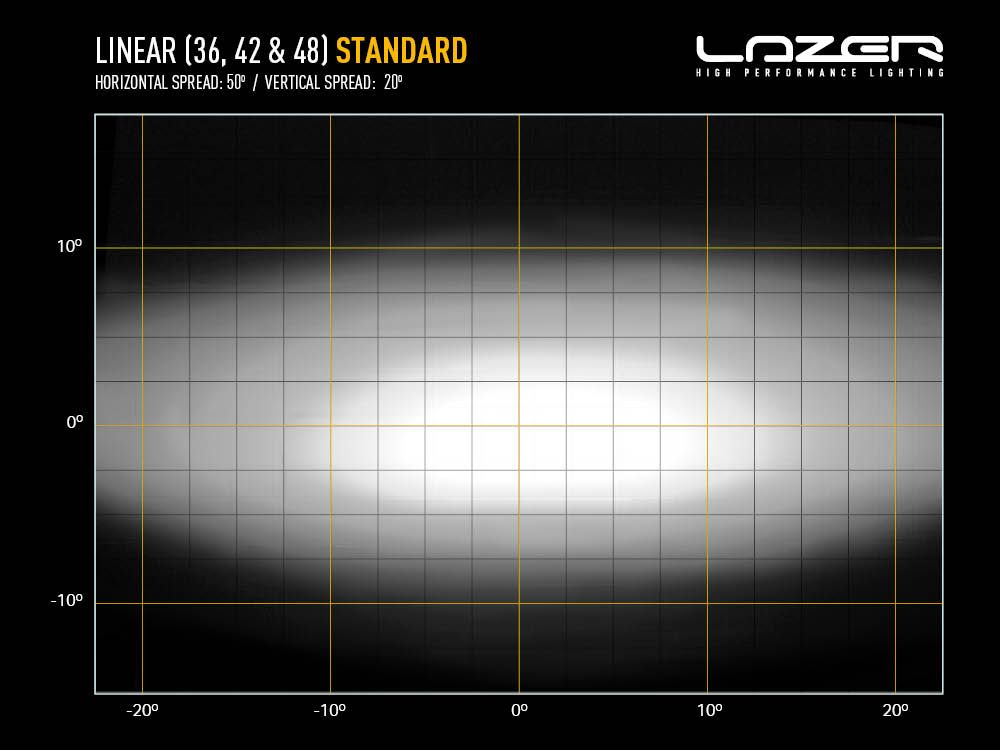

| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 50° |
| 0.25 lx Line | 940 metres |
| 0.5 lx Line | 665 metres |
| 1 lx Line | 470 metres |
| 3 lx Line | 271 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- x1 Linear-36 LED Lamp

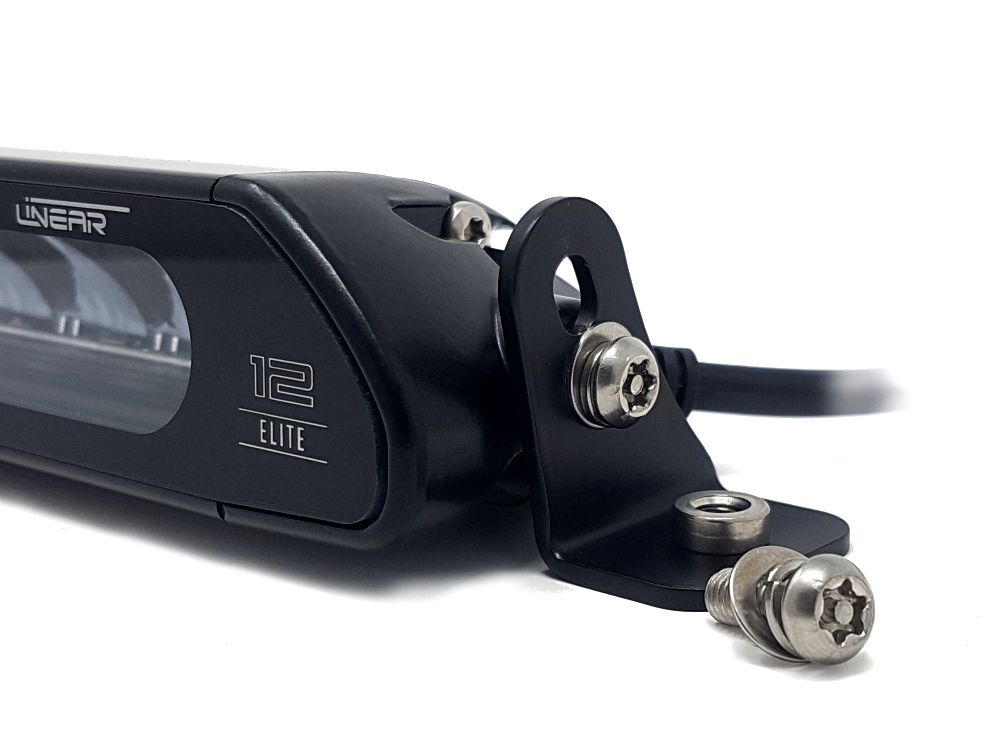

- x1 Anti-Theft Side Mount (1127k)
- x1 Installation Instructions
DOWNLOADS
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
VIDEOS
| Product manufacturer | LAZER LAMPS |
|---|---|
| Brand | LIGHTS |
| LUMENS | 13500 |
