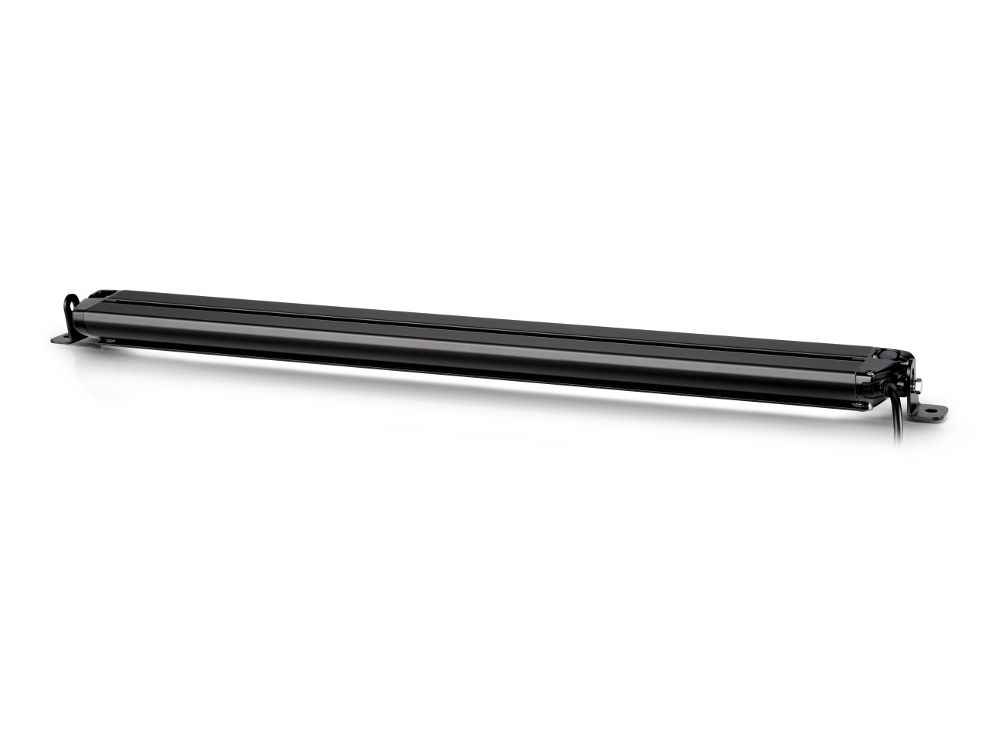

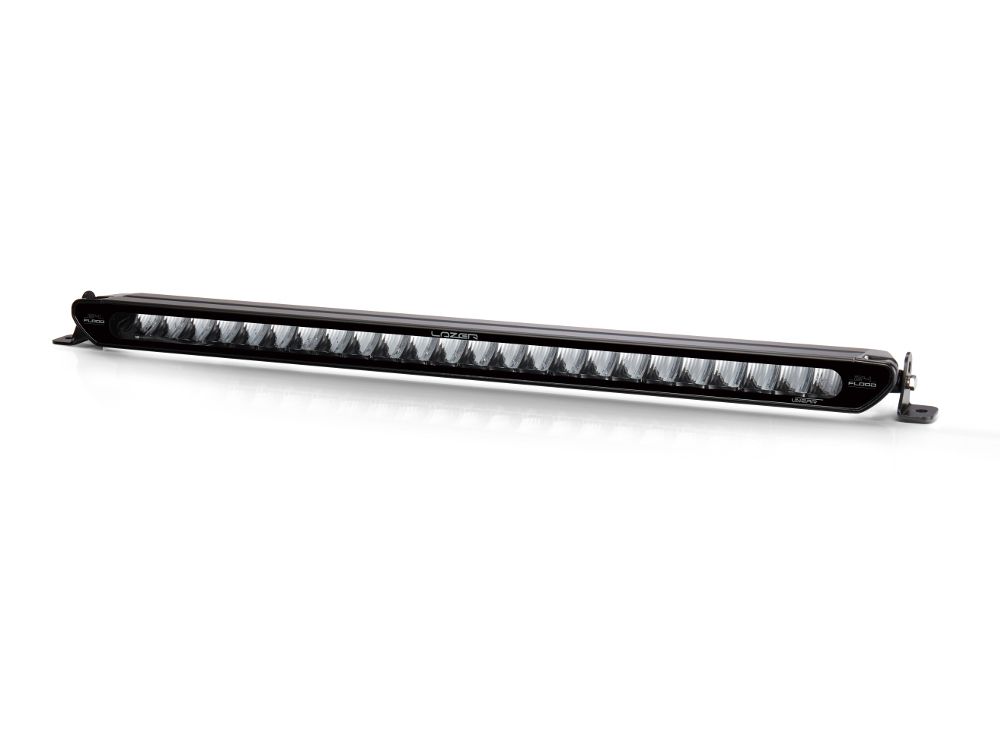

Lazer Linear-24 Flood (16200 Lumens)
PRODUCT FEATURES
High output work light for industrial applications.
Utilises the latest, highly efficient LED technology.
Customised arrangement of vacuum-metallised optics delivers ‘zonal’ lighting.
Light output optimised for exceptional levels of illumination in immediate (<20m) working environment.
Colour temperature – 5000 kelvin.
Supplied with stainless steel, side mounting brackets.
Electronic thermal management
‘Unbreakable’ polycarbonate lens
IP68 watertight
2 year warranty (5 year for Automotive/Commercial Fleet applications)
Supplied with male/female 2-pin Deutsch connectors
Designed & manufactured in Britain
TECHNICAL SPECIFICATIONS
Based on: 1x Linear-24 Flood Work Lamp.
Voltage Range (DC) | 10-32V |
LED Life | 50,000 hours |
Colour Temperature | 5,000 Kelvin |
Weight | 1500 gr |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 16200 Lm |
Total Driver ‘FOV’ Flux † | 11534 Lm |
Colour Temperature | 5000K |
Number of High Output LEDs | 48 |
Power Consumption | 168 Watts |
Current Draw (at 14.4V) | 11.7 Amps |
CERTIFICATION | |
Work Lamp | ECE R10 |
IP Rating | IP67 / IP69K |
Salt Spray Test | ISO 9227 (250H) |
EMC Protection | CISPR-25: 2008 (Class 3) |
OPERATING CONDITIONS | |
Shock | TBC |
Vibration (BS EN 60068) | 10Hz-2000Hz, 10gn |
Operating Temperature | -40deg C … +90degC |
DIMENSIONS | |
Width | 682 mm |
Depth | 62 mm |
Height | 40 mm |
PHOTOMETRIC DATA | |
1Lx Line @ | 44m |
5Lx Line @ | 33m |
20Lx Line @ | 23m |
50Lx Line @ | 18m* |
* 50 Lux represents HSE guidelines for effective illumination when working outdoors at night.
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED
- x1 Linear-24 Flood
- x1 Anti-Theft Side Mount (1127K)
