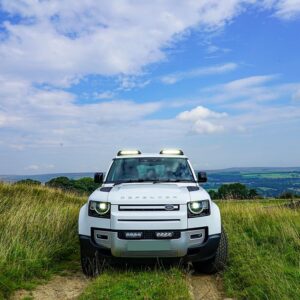

Lazer Land Rover Defender (2020-Present) – Roof Pods (for 2x Linear-12) VIFK-DEF2020-0L12
PRODUCT FEATURES

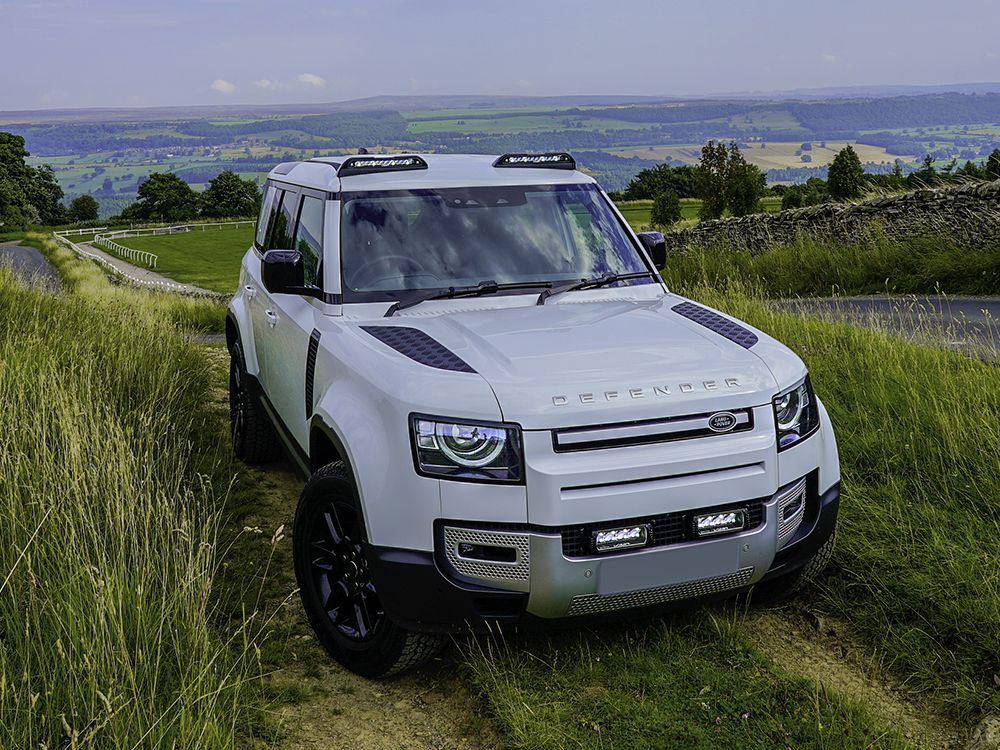

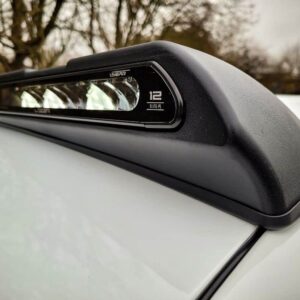

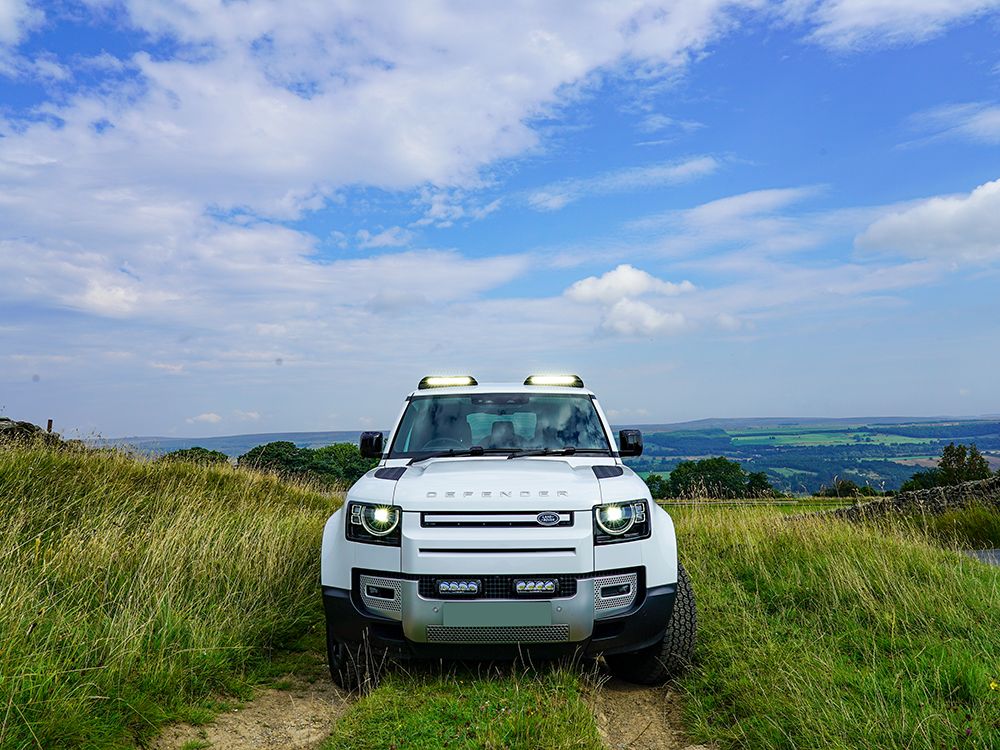

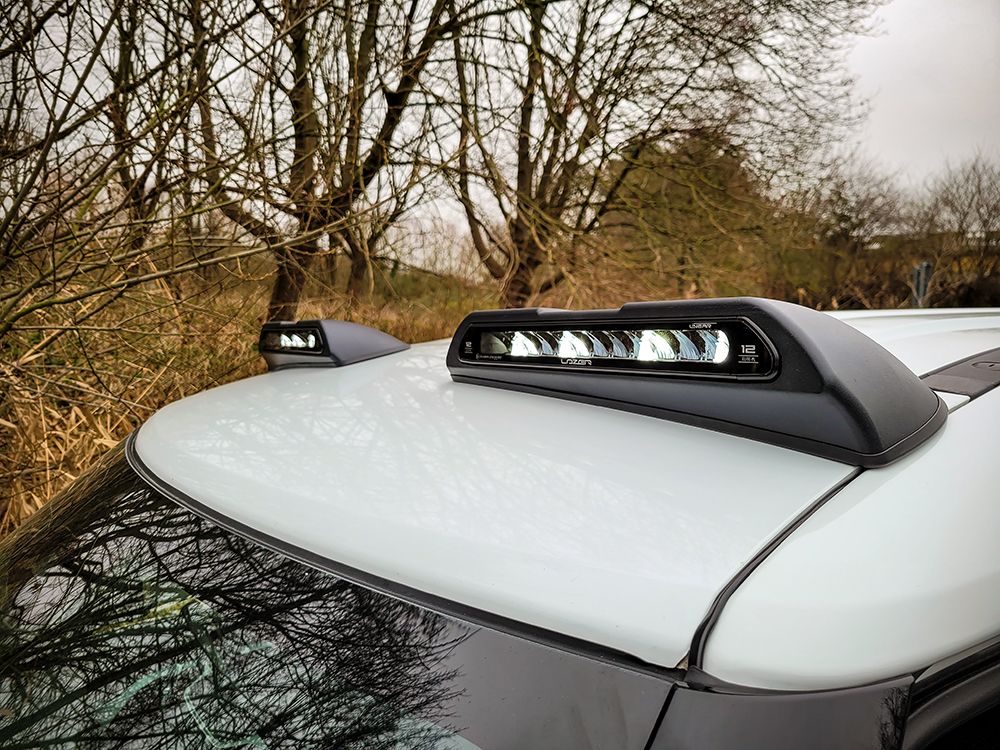

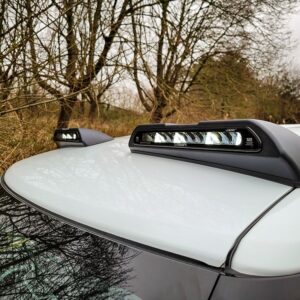

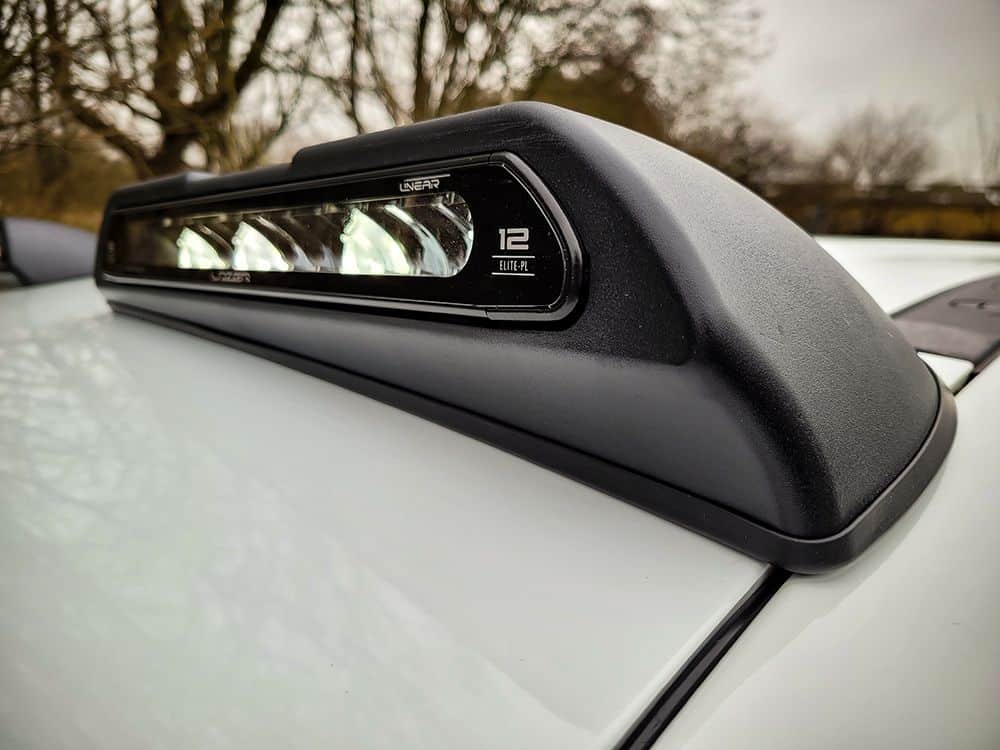

Pair of low-profile LED roof pods designed for Land Rover Defender (2020+)
Compatible with Linear-12 LED driving lights (sold separately)
Quick and easy install. No drilling required
Supplied Dow sealant and pod positioning guides to facilitate pod fixture
Very low wind noise even at high speeds
Rubber seal contributes to OE quality finish
Electrical wiring kits (sold separately) tailor-made for Land Rover Defender
Includes assortment of A2 stainless steel anti-theft fasteners

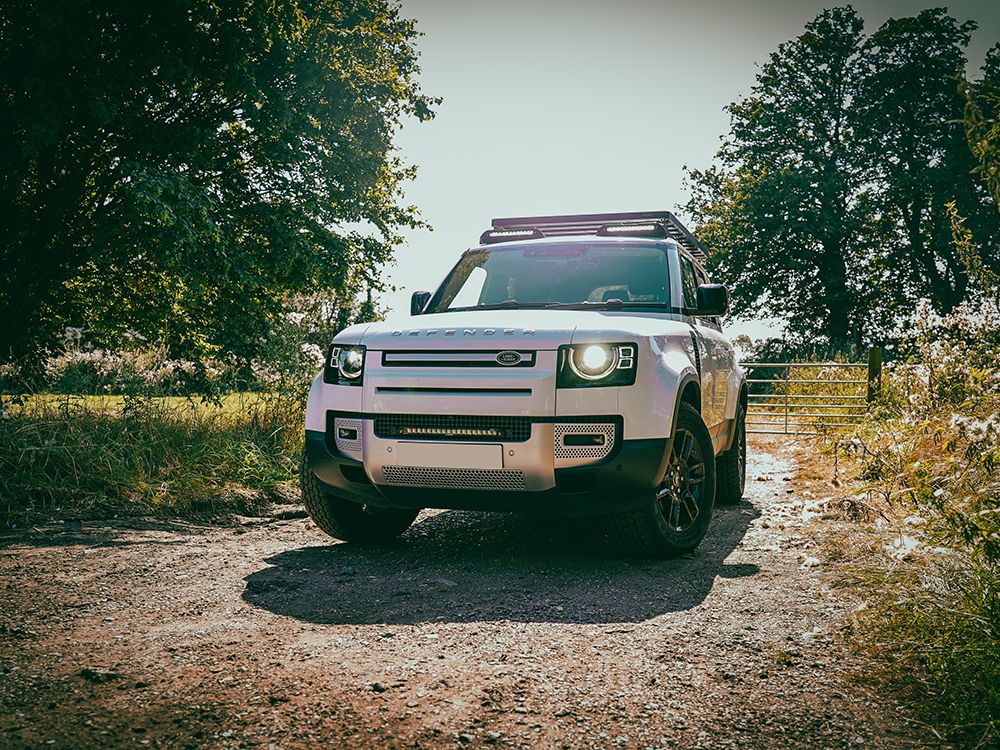

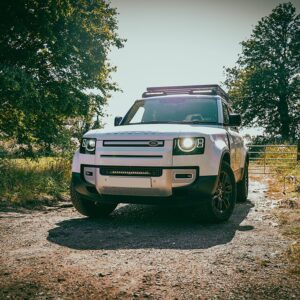

Suitable for vehicles with roof racks (Including Defender Expedition)
Pods fully removable – see Downloads sections for instructions
TECHNICAL SPECIFICATIONS
2x Linear-12 Elite |
2x Linear-12 Standard |
|
Voltage Range | 10-32V | 10-32V |
LED Life | 50,000 hours | 50,000 hours |
Weight | 2x 800g | 2x 800g |
HIGH BEAM FUNCTION | ||
Total Luminous Flux | 16,200 Lm | 9,000 Lm |
Total Driver ‘FOV’ Flux † | 11,534 Lm | 6,408 Lm |
Colour Temperature | 5000k | 5000k |
Number of High Output LEDs | 2x 24 LEDS | 2x 12 LEDS |
Power Consumption | 168 Watts | 84 Watts |
Current Draw (at 14.4V) | 11.6 Amps | 5.8 Amps |
CERTIFICATION | ||
High Beam | ECE R112 | ECE R112 |
ECE Reference | 2x 37.5 | 2x 27.5 |

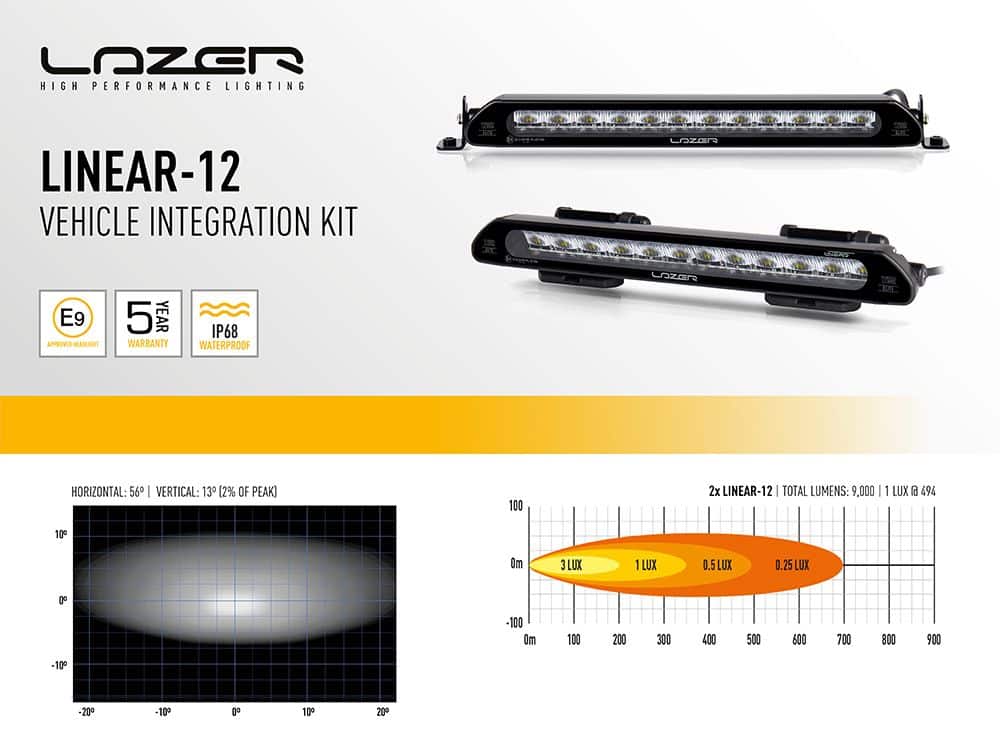

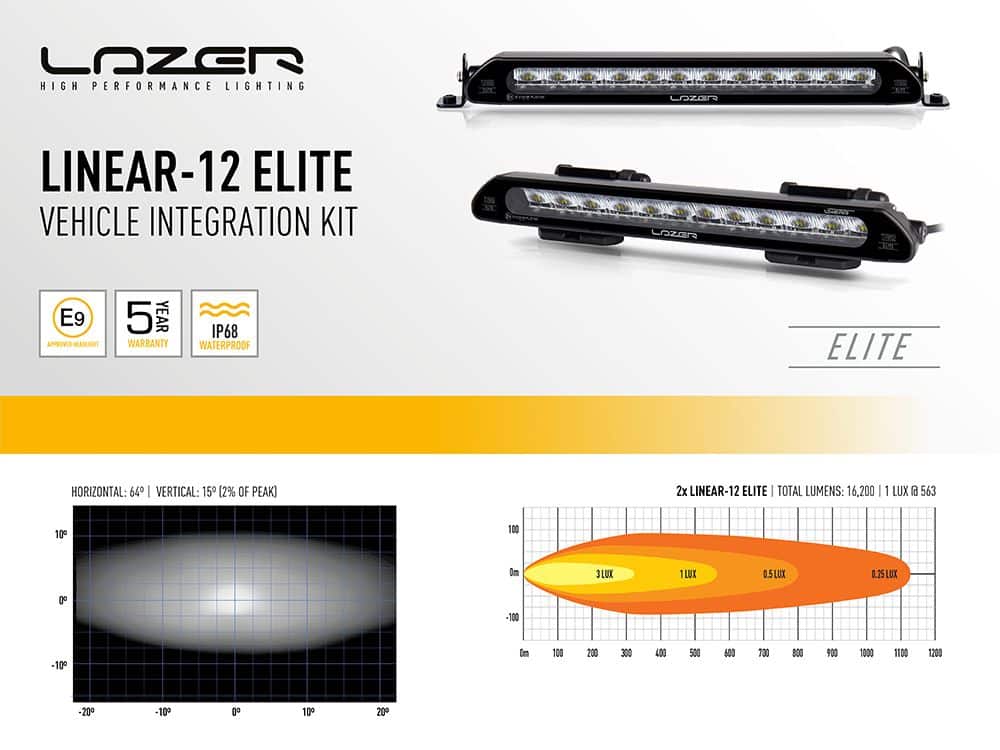

PHOTOMETRIC DATA | ||
Horizontal Beam Angle | 42o | 34o |
0.25 lx Line | 1126m | 987m |
0.5 lx Line | 796m | 698m |
1 lx Line | 563m | 494m |
3 lx Line | 325m | 285m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
WHAT’S INCLUDED

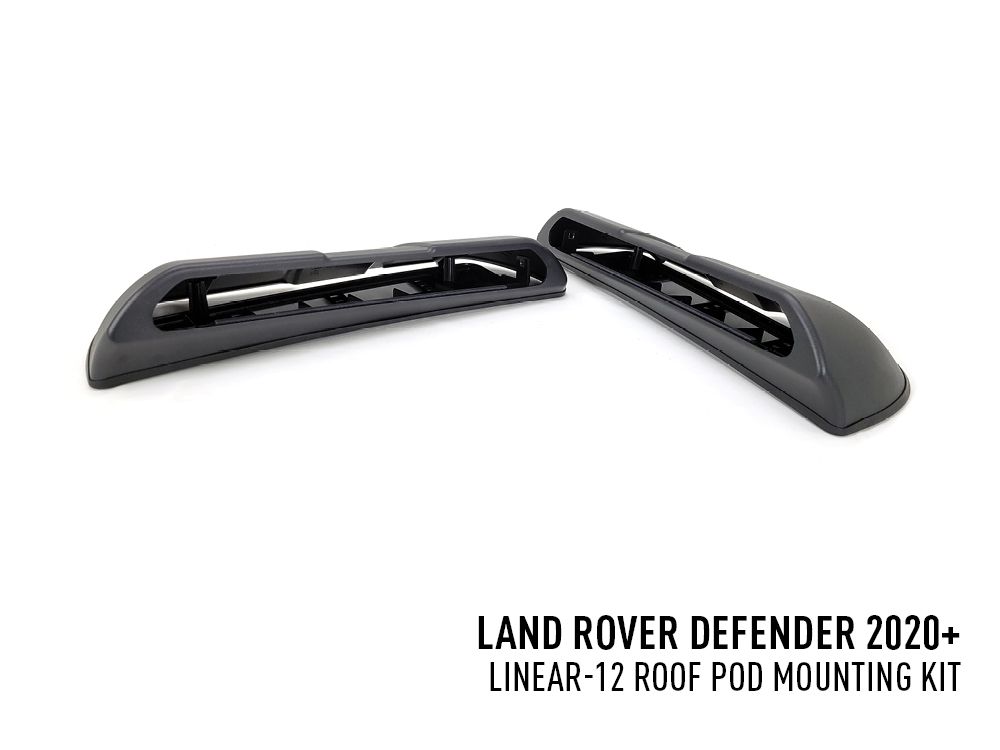

- x2 Lamp pod carriers (LH/RH)
- x2 Lamp pod covers (LH/RH)
- x2 Rubber U-Channel
- x2 Security fastener pack (with bit)
- x1 VHB Cleaning Pad
- 1x Dowsil Sealant
- x2 Position Guides
Fitting instructions available in the downloads section below.
DOWNLOADS
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
