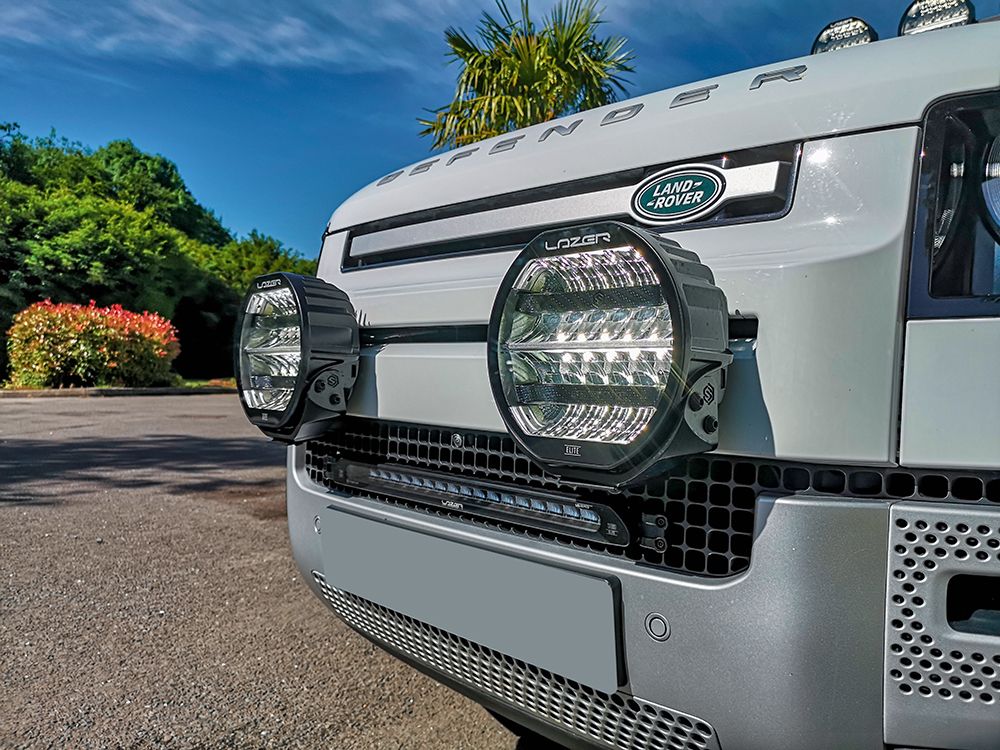

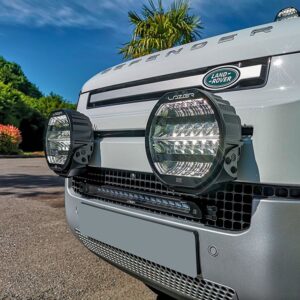

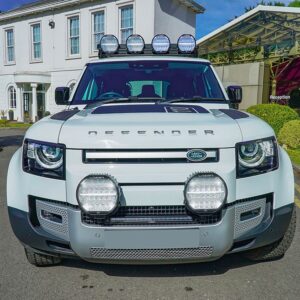

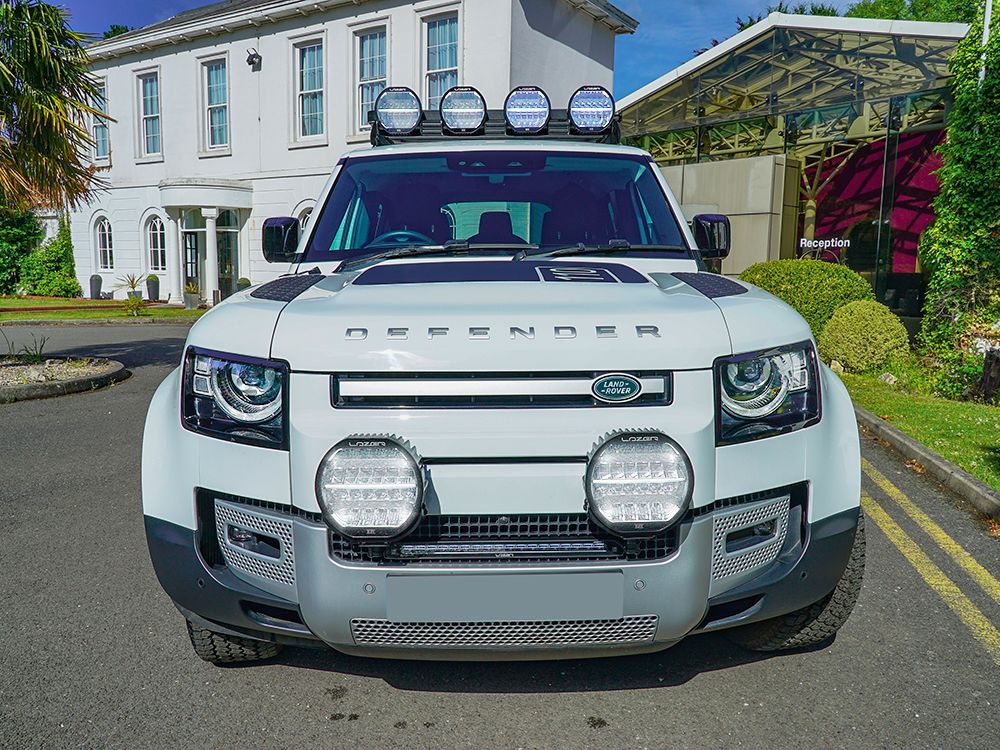

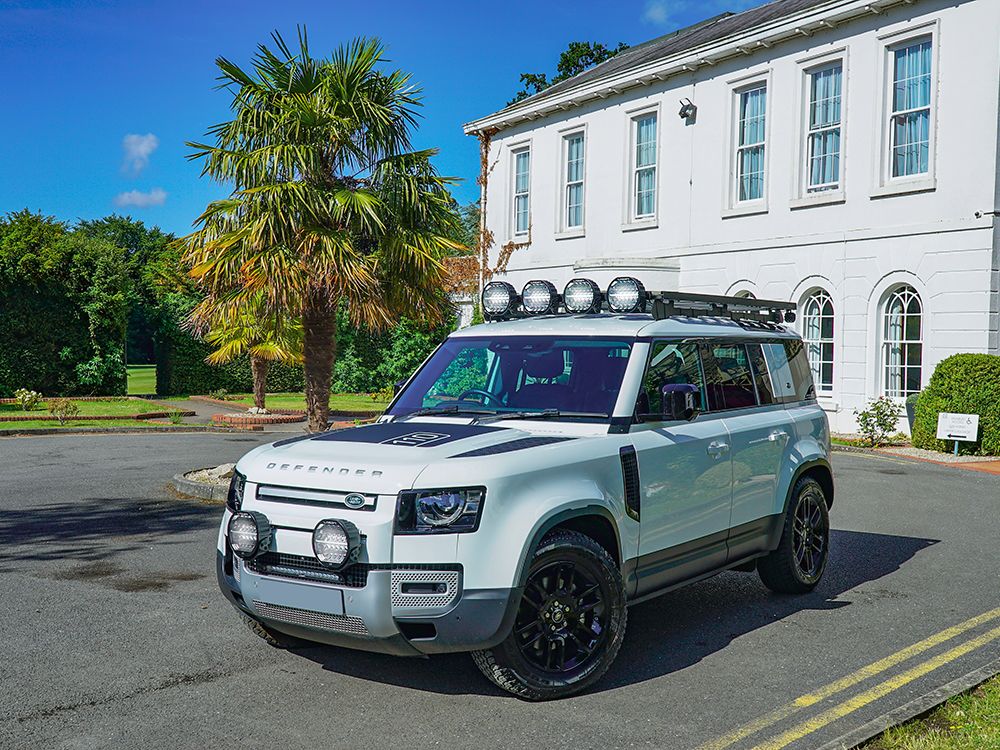

Lazer Land Rover Defender (2020-Present) – Front Mounting Bracket Kit (for 2x Sentinel) VIFK-DEF2020-0S
PRODUCT FEATURES
Bespoke vehicle integration kit for Lazer LED Spotlight installation
Custom fit for Land Rover Defender (MY 2020+)
Compatible with: 2x Sentinel High Performance LED Spotlights
Made from 3mm A2 stainless steel
UV-stable e-coat finish with satin black powder coat
Supplied with stainless steel fixtures and fasteners
Stabilising kits included for a fully robust install
Fully road-legal
5-year warranty
Made in Britain
TECHNICAL SPECIFICATIONS
2x Sentinel 9” Elite (E-Boost) |
2x Sentinel 9” (E-Boost) |
2x Sentinel 7” Elite (E-Boost) |
2x Sentinel 7” (E-Boost) |
|
Voltage Range (DC) | 10-32V | 10-32V | 10-32V | 10-32V |
LED Life | 50,000 hrs | 50,000 hrs | 50,000 hrs | 50,000 hrs |
Weight | 2x 2.5kg | 2x 2.5kg | 2x 1.5kg | 2x 1.5kg |
HIGH BEAM FUNCTION | ||||
Total Luminous Flux | 30,464 Lm | 19,040 Lm | 20,496 Lm | 10,416 Lm |
Total Driver ‘FOV’ Flux † | 18,096 Lm | 11,176 Lm | 12,760 Lm | 6,498 Lm |
Colour Temperature | 5000K | 5000K | 5000K | 5000K |
Number of High Output LEDs | 2 x 32 | 2 x 20 | 2 x 24 | 2 x 12 |
Power Consumption | 290 Watts | 174 Watts | 220 Watts | 128 Watts |
Current Draw (at 14.4V) | 20.2 Amps | 12 Amps | 15.2 Amps | 8.6 Amps |
CERTIFICATION | ||||
High Beam | ECE R112 | ECE R112 | ECE R149 | ECE R149 |
ECE Reference | N/A (2x 20 – E-Mark Mode) |
N/A (2x 20 – E-Mark Mode) |
N/A (2x 12.5 – E-Mark Mode) |
N/A (2x 12.5 – E-Mark Mode) |
Position Light (White only) | ECE R7 | ECE R7 | ECE R7 | N/A |

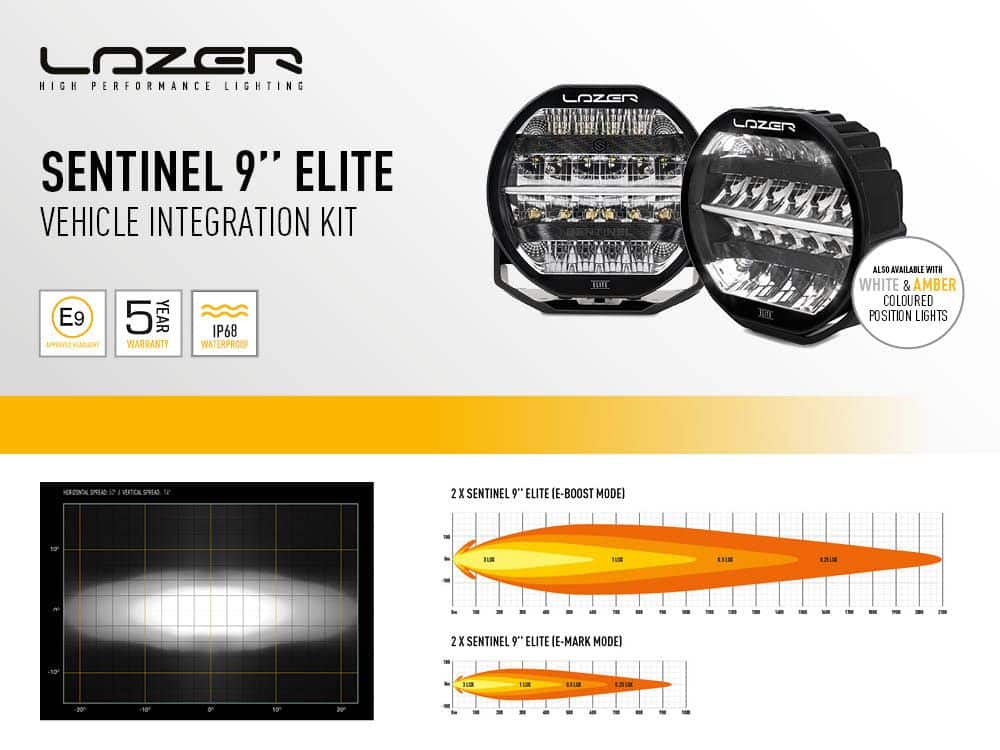

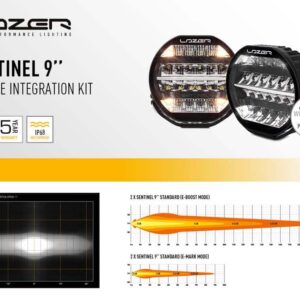

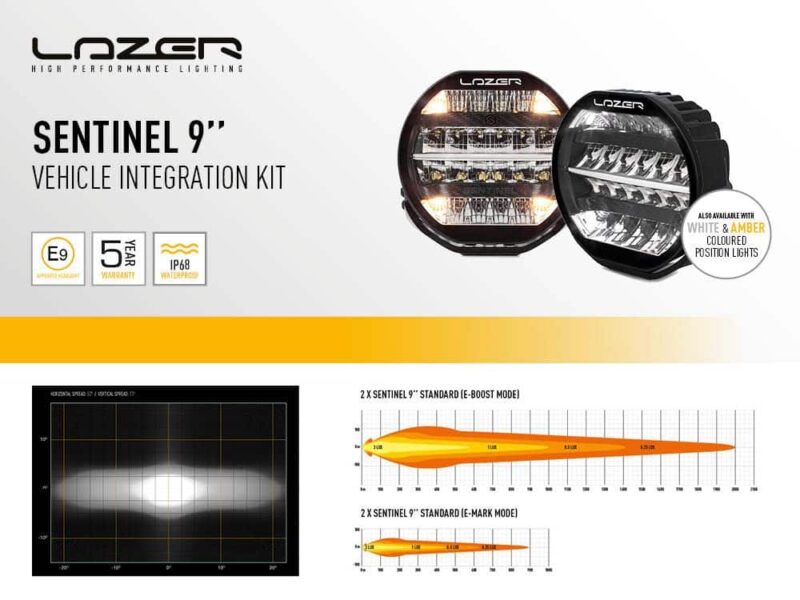

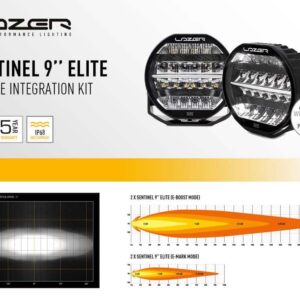

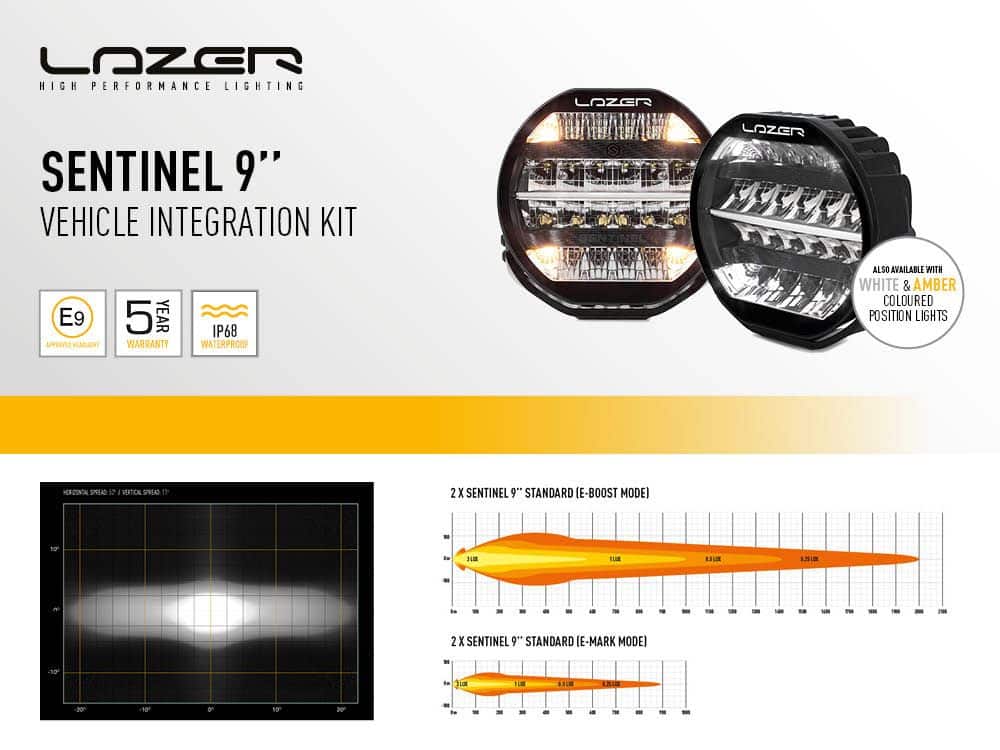

PHOTOMETRIC DATA | ||||
Horizontal Beam Angle | 52o | 52o | 65o | 60o |
0.25 lx Line | 2098m | 2000m | 1744m | 1720m |
0.5 lx Line | 1483m | 1414m | 1233m | 1217m |
1 lx Line | 1049m | 1000m | 872m | 860m |
3 lx Line | 606m | 577m | 503m | 497m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

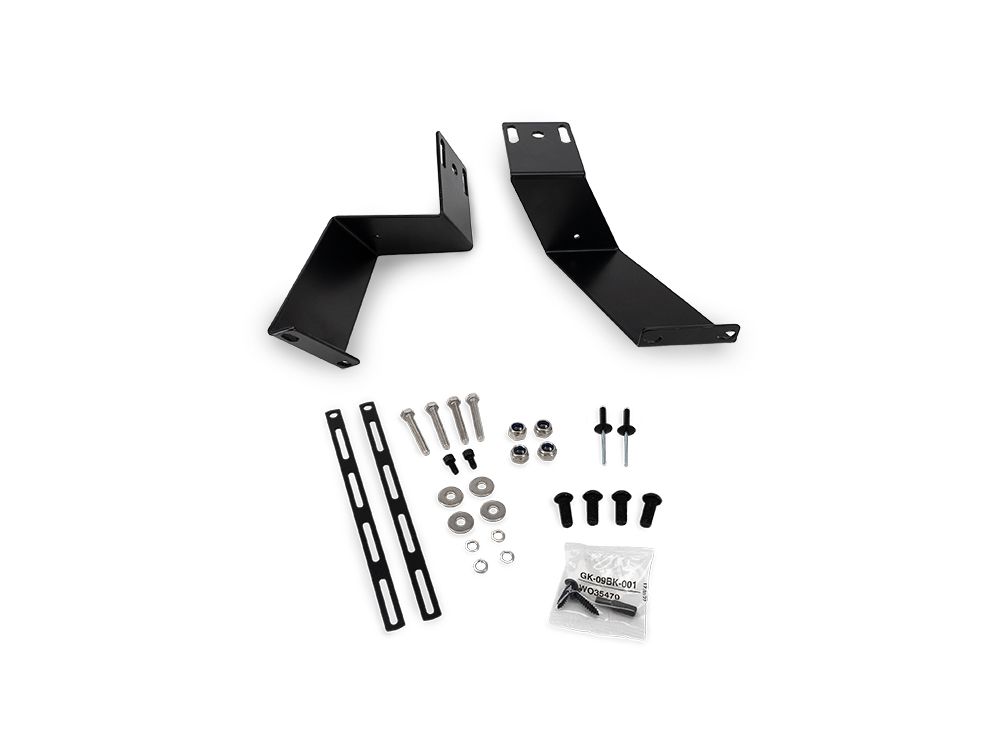

WHAT’S INCLUDED
- x2 Mounting Brackets
- Fixtures
Fitting instructions available in the downloads section below.
